USER MANUAL ION P50 IC162 SHARK

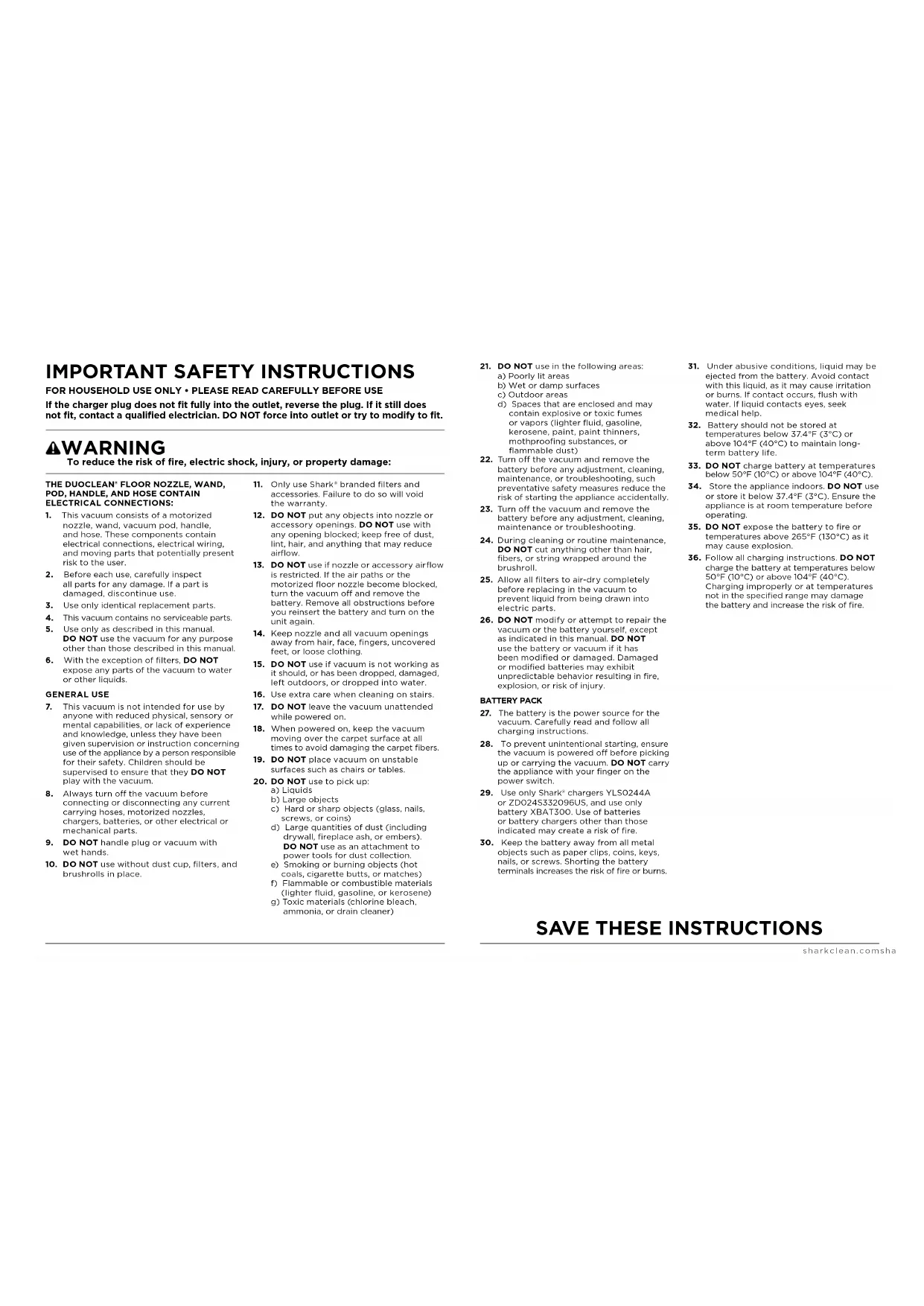

IMPORTANT SAFETY INSTRUCTIONS

FOR HOUSEHOLD USE ONLY · PLEASE READ CAREFULLY BEFORE USE

If the charger plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. DO NOT force into outlet or try to modify to fit.

WARNING

To reduce the risk of fire, electric shock, injury, or property damage:

THE DUOCLEAN' FLOOR NOZZLE, WAND, POD, HANDLE, AND HOSE CONTAIN ELECTRICAL CONNECTIONS:

  1. This vacuum consists of a motorized nozzle, wand, vacuum pod, handle, and hose. These components contain electrical connections, electrical wiring, and moving parts that potentially present risk to the user.
  2. Before each use, carefully inspect all parts for any damage. If a part is damaged, discontinue use.
  3. Use only identical replacement parts.
  4. This vacuum contains no serviceable parts.
  5. Use only as described in this manual. DO NOT use the vacuum for any purpose other than those described in this manual.
  6. With the exception of filters, DO NOT expose any parts of the vacuum to water or other liquids.

GENERALUSE

  1. This vacuum is not intended for use by anyone with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they DO NOT play with the vacuum.
  2. Always turn off the vacuum before connecting or disconnecting any current carrying hoses, motorized nozzles, chargers, batteries, or other electrical or mechanical parts.
  3. DO NOT handle plug or vacuum with wet hands.
  4. DO NOT use without dust cup, filters, and brushrolls in place.

  5. Only use Shark® branded filters and accessories. Failure to do so will void the warranty.

  6. DO NOT put any objects into nozzle or accessory openings. DO NOT use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow.
  7. DO NOT use if nozzle or accessory airflow is restricted. If the air paths or the motorized floor nozzle become blocked, turn the vacuum off and remove the battery. Remove all obstructions before you reinsert the battery and turn on the unit again.
  8. Keep nozzle and all vacuum openings away from hair, face, fingers, uncovered feet, or loose clothing.
  9. DO NOT use if vacuum is not working as it should, or has been dropped, damaged, left outdoors, or dropped into water.
  10. Use extra care when cleaning on stairs.
  11. DO NOT leave the vacuum unattended while powered on.
  12. When powered on, keep the vacuum moving over the carpet surface at all times to avoid damaging the carpet fibers.
  13. DO NOT place vacuum on unstable surfaces such as chairs or tables.
  14. DO NOT use to pick up:
    a) Liquids
    b) Large objects
    c) Hard or sharp object
    (see above, on page 1)
    d) Large quantities of dust (including drywall, fireplace ash, or embers). DO NOT use as an attachment to power tools for dust collection.
    e) Smoking or burning objects (hot coals, cigarette butts, or matches).
    f) Flammable or combustible materials (lighter fluid, gasoline, or kerosene)
    g) Toxic materials (chlorine bleach, ammonia, or drain cleaner)

  15. DO NOT use in the following areas: a) Poorly lit areas b Wet or clamp surfaces c) Outdoor areas d) Spaces that are enclosed and may contain explosive or toxic fumes or vapors (lighter fluid, gasoline, kerosene, paint, paint thinners, mothproofing substances, or flammable dust)

  16. Turn off the vacuum and remove the battery before any adjustment, cleaning, maintenance, or troubleshooting, such preventative safety measures reduce the risk of starting the appliance accidentally.

  17. Turn off the vacuum and remove the battery before any adjustment, cleaning, maintenance or troubleshooting.
  18. During cleaning or routine maintenance, DO NOT cut anything other than hair, fibers, or string wrapped around the brushroll.
  19. Allow all filters to air-dry completely before replacing in the vacuum to prevent liquid from being drawn into electric parts.
  20. DO NOT modify or attempt to repair the vacuum or the battery yourself, except as indicated in this manual. DO NOT use the battery or vacuum if it has been modified or damaged. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion, or risk of injury.

BATTERY PACK

  1. The battery is the power source for the vacuum. Carefully read and follow all charging instructions.
  2. To prevent unintentional starting, ensure the vacuum is powered off before picking up or carrying the vacuum. DO NOT carry the appliance with your finger on the power switch.
  3. Use only Shark' chargers YLS0244A or ZD024S332096US, and use only battery XBAT300. Use of batteries or battery chargers other than those indicated may create a risk of fire.
  4. Keep the battery away from all metal objects such as paper clips, coins, keys, nails, or screws. Shorting the battery terminals increases the risk of fire or burns.

  5. Under abusive conditions, liquid may be ejected from the battery. Avoid contact with this liquid, as it may cause irritation or burns. If contact occurs, flush with water. If liquid contacts eyes, seek medical help.

  6. Battery should not be stored at temperatures below 37.4^ (3^) or above 104^ (40^) to maintain long-term battery life.
  7. DO NOT charge battery at temperatures below 50^ (10^) or above 104^ (40^) .
  8. Store the appliance indoors. DO NOT use or store it below 37.4^ (3^) . Ensure the appliance is at room temperature before operating.
  9. DO NOT expose the battery to fire or temperatures above 265^ (130^) as it may cause explosion.
  10. Follow all charging instructions. DO NOT charge the battery at temperatures below 50^ (10^) or above 104^ (40^) . Charging improperly or at temperatures not in the specified range may damage the battery and increase the risk of fire.

SAVE THESE INSTRUCTIONS

ASSEMBLY

SHARK ION P50 IC162 - ASSEMBLY - 1
1

SHARK ION P50 IC162 - ASSEMBLY - 2
2

SHARK ION P50 IC162 - ASSEMBLY - 3
3

SHARK ION P50 IC162 - ASSEMBLY - 4
4

SHARK ION P50 IC162 - ASSEMBLY - 5
5

SHARK ION P50 IC162 - ASSEMBLY - 6

  1. Insert wand into floor nozzle.
  2. Insert handle into wand.
  3. Alien the bottom of pod onto the rails on the front of the neck of the floor nozzle.
    Slide pod down the rails until it clicks into place.
  4. Connect hote to back of pod, and attach hote clip onto wand.
  5. Insert charged battery into pod with the handle toward the back To ensure proper insertion, the handle on battery must be down.

IMPORTANT: For proper operation, ensure all connections are securely clicked into place.

4 WAYS TO CHARGE THE BATTERY

SHARK ION P50 IC162 - WAYS TO CHARGE THE BATTERY - 1

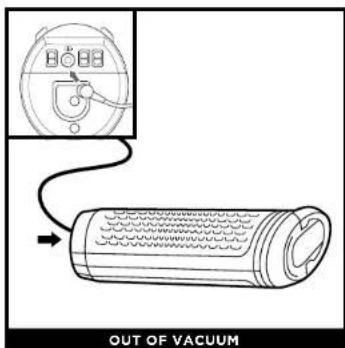

To remove the battery for charging, lift the handle on top of the battery and pull up. The battery must be charged before first use.
A complete charge takes approximately 3.5 hours.
IMPORTANT: When charging, connect the charger to the port first, then plug the charger into wall outlet.

SHARK ION P50 IC162 - WAYS TO CHARGE THE BATTERY - 2

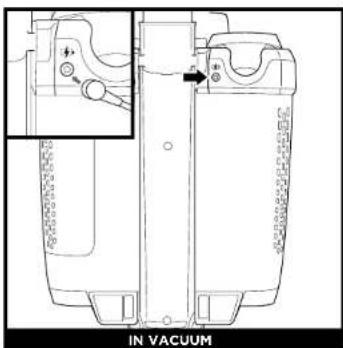

SHARK ION P50 IC162 - WAYS TO CHARGE THE BATTERY - 3

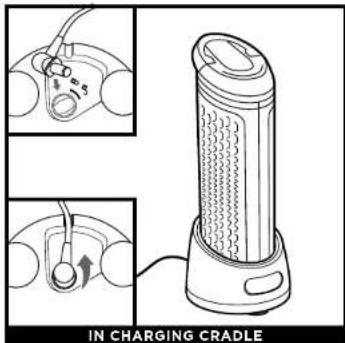

SHARK ION P50 IC162 - WAYS TO CHARGE THE BATTERY - 4

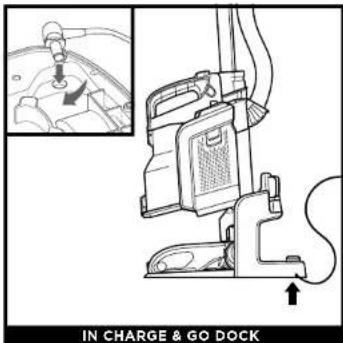

SHARK ION P50 IC162 - WAYS TO CHARGE THE BATTERY - 5

NOTE: Only one charge is provided.
NOTE: Not all charging options are available with all configurations. Please see the enclosed Quick Start Guide for your unit. Additional charging options can be purchased at sharkaccessories.com.
NOTE: When charging in the floor dock, insert vacuum so that wheels align with the wheel indentations on the base of the dock. NOTE: When using the credle or the dock, insert the charger plug into the port and rotate to lock into place. Battery will not charge unless the charger is locked into place.

CHARGE INDICATOR LIGHTS

SHARK ION P50 IC162 - CHARGE INDICATOR LIGHTS - 1

TOP OF BATTERY

Charge Indicator

IN USE:LIGHTS ILLUMINATE STEADILY

SHARK ION P50 IC162 - IN USE:LIGHTS ILLUMINATE STEADILY - 1

Full Charge

SHARK ION P50 IC162 - IN USE:LIGHTS ILLUMINATE STEADILY - 2

Mid Charge

SHARK ION P50 IC162 - IN USE:LIGHTS ILLUMINATE STEADILY - 3

Low Charge

SHARK ION P50 IC162 - IN USE:LIGHTS ILLUMINATE STEADILY - 4

Noods Charge

CHARGING:ONE LIGHT FLASHES

SHARK ION P50 IC162 - CHARGING:ONE LIGHT FLASHES - 1

SHARK ION P50 IC162 - CHARGING:ONE LIGHT FLASHES - 2

SHARK ION P50 IC162 - CHARGING:ONE LIGHT FLASHES - 3

Nearly Full

SHARK ION P50 IC162 - CHARGING:ONE LIGHT FLASHES - 4

Full Charge

TEMPERATURE ISSUE: FIRST AND THIRD INDICATOR LIGHTS ALTERNATE FLASHING

SHARK ION P50 IC162 - TEMPERATURE ISSUE: FIRST AND THIRD INDICATOR LIGHTS ALTERNATE FLASHING - 1

If first and third indicator lights flash alternately, the battery temperature is not optimal. Leave battery plugged in and charging will resume when temperature returns to optimal level.

NOTE: The battery must be charged before first use. A complete charge takes approximately 3.5 hours.

NOTE: After reaching full charge, the indicator light will shut off after 5 minutes.

Press icon to turn power

on

Power

SHARK ION P50 IC162 - TEMPERATURE ISSUE: FIRST AND THIRD INDICATOR LIGHTS ALTERNATE FLASHING - 2

Press icon to select surface

setting:

Carpet

For carpets.

Floor

For bare floors and

small area rugs.

IMPORTANT: Your unit will default into ION BOOST mode

when using in Lift-Away, ION BOOST mode shortens runtime.

SHARK ION P50 IC162 - TEMPERATURE ISSUE: FIRST AND THIRD INDICATOR LIGHTS ALTERNATE FLASHING - 3

Press icon to boost power:

ION BOOST

When in Lift-Away

mode, prese BOOST icon to turn on or off

The default power setting

on floors and carpets i

ION Power mode. For

an additional boost of

suction power, press and

hold the BOOST icon

NOTE: For deep carpet cleaning per ASTM F608 (embedded dirt in carpets), use Carpet setting.

NOTE: Select Carpet for stuck-on dust and debris.

POD, HANDLE AND WAND ARE DETACHABLE

SHARK ION P50 IC162 - POD, HANDLE AND WAND ARE DETACHABLE - 1

Press Lift Away button on handle and lift pad off floor nozzle.

SHARK ION P50 IC162 - POD, HANDLE AND WAND ARE DETACHABLE - 2

Press the Wand Release button until it clicks, then pull up on wotch to detach from the floor nozzle.

SHARK ION P50 IC162 - POD, HANDLE AND WAND ARE DETACHABLE - 3

Pull the Handle Release trigger to dotach the handle from the wand.

SHARK ION P50 IC162 - POD, HANDLE AND WAND ARE DETACHABLE - 4

TIP: See next page for all the different.

ways you can use your vacuum.

NOTE: All accessories can be attached to the ward or the handle.

NOTE: Pod can also remain on floor nozzle when using handle or wand.

For cleaning carpets and hard floors. To activate brushroll, step on floor nozzle and tilt handle back.

SHARK ION P50 IC162 - POD, HANDLE AND WAND ARE DETACHABLE - 5

Use Powered Lift-Away' to reach under furniture to clean carpets and hard floors.

SHARK ION P50 IC162 - POD, HANDLE AND WAND ARE DETACHABLE - 6

Use the wand in Lift-Away mode for more reach when cleaning above-floor areas like crown molding or baseboards.

SHARK ION P50 IC162 - POD, HANDLE AND WAND ARE DETACHABLE - 7

Use the handle in Lift-Away mode for more detailed cleaning of above-floor areas like upholstery or window sills.

IMPORTANT: See the previous page for instructions on how to detach the pod, wand, and handle.

MAINTENANCE

SHARK ION P50 IC162 - MAINTENANCE - 1

IMPORTANT: Remove the battery before performing any maintenance. To remove, lift the handle on top of the battery and pull up.

To remove Dust Cup from pod, pinch and slide side tubs. Till dust cup forward, then lift to remove.

SHARK ION P50 IC162 - MAINTENANCE - 2

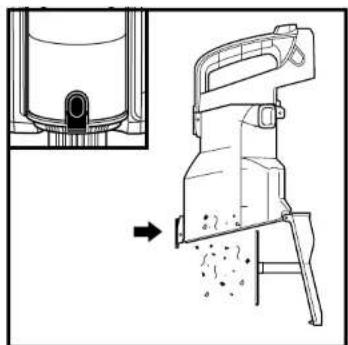

Press lower release button to open bottom of dust cup.

SHARK ION P50 IC162 - MAINTENANCE - 3

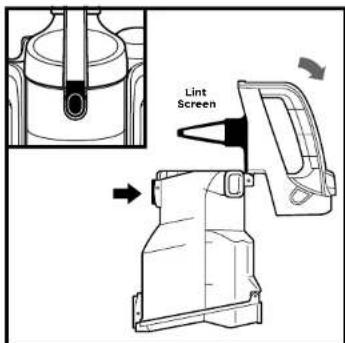

To open top of clutch cup, press upper release button and lift handle. Remove debris from Lint Screen.

SHARK ION P50 IC162 - MAINTENANCE - 4

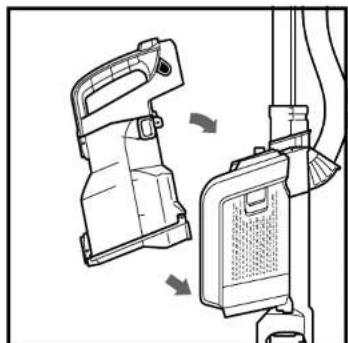

To install dust cup, place bottom into pod and then tilt dust cup toward the wand until it clicks into place.

MAINTENANCE

Your vacuum comes equipped with three filters located on the vacuum pod: two pre-motor filters and one HEPA filter to capture and trap dust and debris.

CLEANING PRE-MOTOR FILTER (ONCE A MONTH)

Perform maintenance on your filters once a month to keep your vacuum's suction power optimal.
IMPORTANT: Rinse pre-motor filter and frame with water ONLY. DO NOT use soap. Allow to completely air-cry for at least 24 hours before reinstalling.

SHARK ION P50 IC162 - CLEANING PRE-MOTOR FILTER (ONCE A MONTH) - 1

SHARK ION P50 IC162 - CLEANING PRE-MOTOR FILTER (ONCE A MONTH) - 2

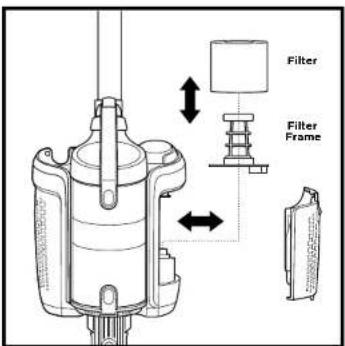

SHARK ION P50 IC162 - CLEANING PRE-MOTOR FILTER (ONCE A MONTH) - 3

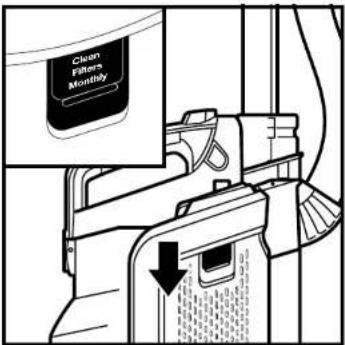

  1. Slide down Filter Door release button.

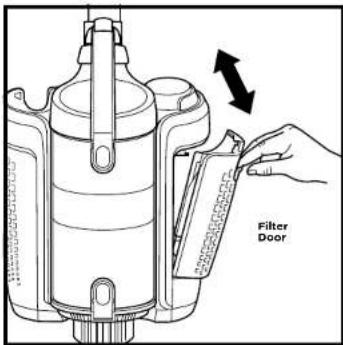

  2. Tilt filter door and lift off.
  3. Remove filter from pod.Pull filter off frame
  4. Rinse filter and filter frame with water ONLY.
  5. Once completely dry, reinsert filter onto filter frame.
  6. While holding the tabs on the frame, slide the filter back completely to secure into place.
  7. Reinsert bottom of filter door into slots on pod. Tilt door to close, pressing until it clicks into place.

MAINTENANCE

CLEANING HEPA FILTER (ONCE A YEAR)

Perform maintenance on your HEPA filter once a year to keep your vacuum's suction power optimal.
IMPORTANT: Rinse HEPA filter with water ONLY. DO NOT use soap. Allow to completely air-dry for at least 24 hours before reinstalling. DO NOT scrub HEPA filter.

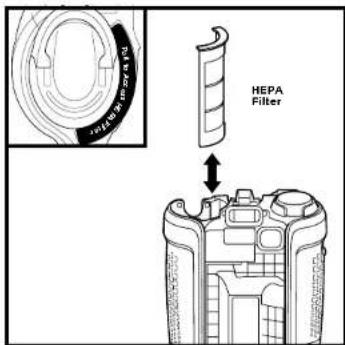

SHARK ION P50 IC162 - CLEANING HEPA FILTER (ONCE A YEAR) - 1

  1. Pull up on HEPA Filter access tab to remove. 2. Rinse filter with water ONLY and let air-dry for 24 hours before reinstalling.
  2. When dry, reinsert HEPA Filter and press down until it clicks into place.

REPLACING FILTERS

Follow the previous instructions for removing filters. The Pre-Motor Filter should be replaced every 2.5 years. The HEPA Filter should be replaced every 3 years.

SHARK ION P50 IC162 - REPLACING FILTERS - 1

Replacement Pre-Motor Foam & Felt Filter Kit XFFK160

SHARK ION P50 IC162 - REPLACING FILTERS - 2

Replacement HEPA Filter XHEPA160

NOTE: To order replacement parts and filters, visit sharkaccessories.com.

MAINTENANCE

CLEANING OR REPLACING BRUSHROLLS

  1. Using a coin, turn locks counterclockwise to open, then lift off cover to access Brushroll.
  2. Use scissors to cut along the groove in the brushroll to remove any string, hair, or debris.
  3. Check for blockages in Debris Intake.
  4. Replace cover and turn locks clockwise to close.

  5. Slide Eject Roller button.

  6. To remove Soft Roller, pull out the right end first.
  7. Tap loose debris off the Soft Roller. Use a dry towel to wipe clean, or to remove any hair or fibers caught in the teeth behind the Soft Roller.
    4.Rins as needed. Use ONLY water, and lot air-dry completely for at least 24 hours.
  8. When dry, insert the left end of the roller first, then push the right end into place with the word Front facing forward.

MAINTENANCE

CHECKING FOR BLOCKAGES

IMPORTANT: DO NOT use sharp or metal objects to clear blockages.

SHARK ION P50 IC162 - CHECKING FOR BLOCKAGES - 1
Detach hose from vacuum pod, and check opening on back of pod for blockages.

SHARK ION P50 IC162 - CHECKING FOR BLOCKAGES - 2
Datastd cust cup from vacuum pod. Emoty dust cup, remove debris from lint screen, and check for blockages.

SHARK ION P50 IC162 - CHECKING FOR BLOCKAGES - 3
Detach handle from wand and hose from the vacuum pod, and check openings for blockages.

SHARK ION P50 IC162 - CHECKING FOR BLOCKAGES - 4
Detach wand from floor nozzle and handle, and check both ends of wand for blockages.

SHARK ION P50 IC162 - CHECKING FOR BLOCKAGES - 5
Detach wand from floor nozzle. Tilt nozzle neck back to straighten the airway, and remove any blockages.

NOTE: To order replacement parts and filters, visit sharkaccessories.com.

NOTE: Turn off vacuum and remove battery before checking for blockages.

ADDITIONAL ACCESSORIES AVAILABLE ON SHARKACCESSORIES.COM

8" Crevice Tool (255FLIH380)
12" Crevice Tool (248FLH200)
18" Flexi Crevice Tool (1352FC200)
Flexible Hose (1356FC200)
Duster Crevice Tool (249FLIH200)
Dusting Brush (250FLIH200)
Multi-Angle Dusting Brush (1354FC200)
Anti-Allergen Dust Brush (233FLIH100)
Upholstery Tool (251FLIH200)
0 Wide Upholstery Tool (1355F)
Pet Multi-Tool (1353FC200)
Deep-Cleaning Motorized Pet Tool (496FFJ160)
MultiFLEX' Under-Appliance Wand (234FLIHI00)
Home & Car Detall Klt (XHMCR380)
Precislon Duster (XDETNH380)
Onboard Tool Clip (392FFJH380)
Accessory Bag (XBGV300)
ION Power Core Battery (XBAT300)
5 ION Power Core Charger (XCRGA160)
Charge & Go Floor Dock (XCRGFD160)
ION Core Charging Cradle (XSCCRD160)

SHARK ION P50 IC162 - ADDITIONAL ACCESSORIES AVAILABLE ON SHARKACCESSORIES.COM - 1
A

SHARK ION P50 IC162 - ADDITIONAL ACCESSORIES AVAILABLE ON SHARKACCESSORIES.COM - 2

SHARK ION P50 IC162 - ADDITIONAL ACCESSORIES AVAILABLE ON SHARKACCESSORIES.COM - 3
C

SHARK ION P50 IC162 - ADDITIONAL ACCESSORIES AVAILABLE ON SHARKACCESSORIES.COM - 4
D

SHARK ION P50 IC162 - ADDITIONAL ACCESSORIES AVAILABLE ON SHARKACCESSORIES.COM - 5
E

SHARK ION P50 IC162 - ADDITIONAL ACCESSORIES AVAILABLE ON SHARKACCESSORIES.COM - 6
F

SHARK ION P50 IC162 - ADDITIONAL ACCESSORIES AVAILABLE ON SHARKACCESSORIES.COM - 7
G

SHARK ION P50 IC162 - ADDITIONAL ACCESSORIES AVAILABLE ON SHARKACCESSORIES.COM - 8
H

SHARK ION P50 IC162 - ADDITIONAL ACCESSORIES AVAILABLE ON SHARKACCESSORIES.COM - 9
1

SHARK ION P50 IC162 - ADDITIONAL ACCESSORIES AVAILABLE ON SHARKACCESSORIES.COM - 10
J

SHARK ION P50 IC162 - ADDITIONAL ACCESSORIES AVAILABLE ON SHARKACCESSORIES.COM - 11
K

SHARK ION P50 IC162 - ADDITIONAL ACCESSORIES AVAILABLE ON SHARKACCESSORIES.COM - 12
L

SHARK ION P50 IC162 - ADDITIONAL ACCESSORIES AVAILABLE ON SHARKACCESSORIES.COM - 13
M

SHARK ION P50 IC162 - ADDITIONAL ACCESSORIES AVAILABLE ON SHARKACCESSORIES.COM - 14
m - 1 0 ;

SHARK ION P50 IC162 - ADDITIONAL ACCESSORIES AVAILABLE ON SHARKACCESSORIES.COM - 15
0

SHARK ION P50 IC162 - ADDITIONAL ACCESSORIES AVAILABLE ON SHARKACCESSORIES.COM - 16
P

SHARK ION P50 IC162 - ADDITIONAL ACCESSORIES AVAILABLE ON SHARKACCESSORIES.COM - 17
Q

SHARK ION P50 IC162 - ADDITIONAL ACCESSORIES AVAILABLE ON SHARKACCESSORIES.COM - 18
R

SHARK ION P50 IC162 - ADDITIONAL ACCESSORIES AVAILABLE ON SHARKACCESSORIES.COM - 19
S

SHARK ION P50 IC162 - ADDITIONAL ACCESSORIES AVAILABLE ON SHARKACCESSORIES.COM - 20
m - 1 0 ;

SHARK ION P50 IC162 - ADDITIONAL ACCESSORIES AVAILABLE ON SHARKACCESSORIES.COM - 21
U

NOTE: Not all accessories come with all units. Please see the enclosed Quick Start Guide for your unit's configuration.

To order additional accessories, visit sharkaccessories.com.

TROUBLESHOOTING

LIGHT INDICATOR WHAT IT MEANS

Floor and Carpet LEDs flash togetherBlockage detected. Turn off unit and remove blockage.
BOOST LED flashesUnit temperature is high. Turn off vacuum. While unit is cooling, look for blockages and remove any that are found. Filters may also need to be cleaned. See Maintenance section.
FIRST and THIRD BATTERY INDICATOR LEDs alternate flashingBattery temperature is not optimal, so charging is temporarily paused. Leave battery plugged in and charging will resume soon.

TROUBLESHOOTING

Vacuum is not picking up debris. No suction or light suction.

Ensure handle, hose, dust cup, and wand are all securely connected onto the unit.
- Check filters to see if they need cleaning. Follow instructions for rinsing and completely air-drying the filters before reinserting them in the vacuum.
Dust cup may be full; empty dust cup.
- Check wand, hose, hose connections, nozzle, and accessories for blockages; clear blockages if required. - Check floor nozzle for blockages; clear blockages if required.
- Remove any string, carpet fibers, or hair that may be wrapped around the brushroll and Soft Roller or trapped behind the Soft Roller.

Vacuum lifts area rugs.

  • Turn off vacuum, and move it away from any obstruction. Turn on vacuum and tilt handle back to activate brushroll.
  • Make sure the ION BOOST setting is off and/or try Floor mode by pressing the surface setting button.
  • Turn off the unit to disengage the brushroll and restart with the Power button.

Brushroll/Soft Roller does not spin.

  • If Brushroll Indicator Light on the floor nozzle turns red, the brushroll and/or Soft Roller have stopped spinning. Immediately turn off and remove battery from vacuum pod and remove blockage before reconnecting and turning vacuum back on. If light turns green, the blockage has been successfully cleared.
  • If headlights are not illuminated, there is a connection issue between the hose, pod, wand, and nozzle. Try disconnecting the pieces and then reconnecting them, sliding in each one until it clicks securely into place. If the headlights still do not illuminate, please contact Customer Service at 1-800-798-7398.

Vacuum turns off on its own or will not turn on.

There are several possible reasons for the vacuum turning off on its own, including blockages, battery issues, and overheating. If vacuum turns off on its own, perform the following steps:
1. Check charge indicator lights to see if battery needs to be recharged. If it does not need charging, turn off vacuum, and remove battery.
2. Empty dust cup and clean filters.
3. Check wand, accessories, and inlet openings and remove any blockages.
4. Allow unit and battery to cool for at least 45 minutes, until it returns to room temperature.
5. Return battery to vacuum and press Power button.

Dust cup will not latch onto unit:

  • The dust cup will not latch if the pod is not inserted properly onto the unit. Align the bottom of pod onto the rails on the front of the neck of the floor nozzle. Slide pod down the rails until it clicks into place.

Battery not charging.

  • Batterios outside of optimal temperature range may not begin charging immediately. Move to room temperature area and/or allow battery to cool before charging.
  • Please review battery runtimes in the Operating the Vacuum section.
  • When charging with the cradle, ensure battery is pressed all the way down onto cradle and that charge indicator lights illuminate.
    For use with floor dock charging station, onsuro vacuum pod is securely mounted to dock and that charge Indicator lights illuminate.
  • Battery life expectancy is at least two years and comes with a two-year limited warranty. New battery packs can be purchased at sharkaccessories.com.
  • When charging with the cradle or floor dock, insert the charger plug into the port and rotate to lock into place. Battery will not charge unless the charger is locked into place.

Battery not Inserting Into vacuum.

  • Make sure handle is down before pushing battery securely into plac.
    Make sure HEPA filter is securely clicked into place prior to inserting the battery.

For all other issues, please call Customer Service 1-800-798-7398.

Shark|Ninja

FIVE (5) YEAR LIMITED WARRANTY

The 5-Year Limited Warranty applies to purchases made from authorized retailers of SharkNinja Operating LLC. Warranty coverage applies to the original owner and to the original product only and is not transferable. SharkNinja warrants that the unit shall be free from defects in material and workmanship for a period of 5 years from the date of purchase when it is used under normal household conditions and maintained according to the requirements outlined in this instruction manual, subject to the following conditions and exclusions.

What is covered in my warranty?

  1. The original unit and/or non-wearable components deemed defective, in SharkNinja's sole discretion, will be repaired or replaced for up to 5 years from the original purchase date.
  2. In the rare event that a replacement unit is issued, the warranty coverage ends six months following the receipt date of the replacement unit, or the remainder of the existing warranty, whichever is greater. If the unit is replaced, SharkNinja reserves the right to replace the unit with one of equal or greater value.

What is not covered in my warranty?

Our Customer Service/Product Specialists are available to provide all the warranty service options available to you, including the possibility of upgrading to our VIP Warranty Service Options for select product categories.

  1. Normal wear and tear of wearable parts such as foam filters, HEPA filters, pads, batteries, etc., which require regular maintenance and/or replacement to ensure the proper functioning of your unit, are not covered by this warranty.
  2. Any unit that has been tampered with or used for commercial purposes,
  3. SharkNinja will cover the cost for the customer to send in the unit to us for repair or replacement. A fee of $19.95 for return shipping costs will be charged at the time of return shipment of the repaired or replacement unit. Shipping fee is subject to change.
  4. Damage caused by misuse, abuse, or negligent handling, or damage due to mishandling in transit.
  5. Consequential and incidental damages.
  6. Defects caused by or resulting from damages from shipping or repairs, service, or alteration to the product or any of its parts which have been performed by a repair person not authorized by SharkNinia.
  7. Products purchased, used or operated outside of North America.

Problems with your unit/How to get service

If your appliance fails to operate properly while in use under normal household conditions within the warranty period, visit sharkclean.com/support for product care/maintenance self-help. Our Customer Care and product specialists are also available at 800-798-7398 to assist with product support and warranty service options.

How to initiate a warranty claim

You can call 1-800-798-7398 to have a Customer Service specialist assist you. Please note you must call 1-800-798-7398 to initiate a warranty claim. Return and Packing Instruction information will be provided at that time.
For Customer Service hours, visit sharkclean.com
Replacement parts are available for purchase at sharkclean.com. For more information on which parts are classified as wearable and non-wearable, please visit sharkclean.com/warranty
This warranty gives you specific legal rights, and you also may have other rights that vary from state to state. Some states do not permit the exclusion or limitation of incidental or consequential damages, so the above may not apply to you.

SharkNinja

TWO (2) YEAR LIMITED BATTERY WARRANTY

The 2-Year Limited Warranty applies to purchases made from authorized retailers of SharkNinja Operating LLC. Warranty coverage applies to the original owner and to the original battery only and is not transferable. SharkNinja warrants that the battery shall be free from defects in material and workmanship for a period of 2 years from the date of purchase when it is used under normal household conditions and maintained according to the requirements outlined in this instruction manual, subject to the following conditions and exclusions.

What is covered in my warranty?

  1. The original battery, deemed defective, in SharkNinja's sole discretion, will be replaced for up to 2 years from the original purchase date.
  2. In the rare event that a replacement battery is issued, the warranty coverage for the replacement battery ends six months following the receipt date of the replacement battery or the remainder of the existing warranty, whichever is greater.

What is not covered in my warranty?

Our Customer Service/Product Specialists are available to provide all the warranty service options available to you.
1. Normal wear and tear of battery, which requires optimal temperature storage and operation to ensure the proper functioning of your battery, is not covered by this warranty.
2. Any battery that has been tampered with or used for commercial purposes.
3. Damage caused by misuse, abuse, or negligent handling, or damage due to mishandling in transit.
4. Consequential and incidental damages.
5. Defects caused by or resulting from damages from shipping or repairs, service, or alteration to the product or any of its parts which have been performed by a repair person not authorized by SharkNinja.

  1. Products purchased, used or operated outside of North America

Problems with your battery

If your battery fails to operate properly while in use under normal household conditions within the warranty period, visit sharkclean.com/support for product care/maintenance self-help. Our Customer Service and product specialists are also available at 800-798-7398 to assist with product support and warranty service options. SharkNinja will cover the cost for the customer to send in the battery to us for replacement. A fee of $19.95 for return shipping costs will be charged at the time of return shipment of the replacement battery. Shipping fee is subject to change.

How to Initiate a warranty claim

You can call 800-798-7398 to have a Customer Care specialist assist you. Please note, you must call 800-798-7398 to initiate a warranty claim. Return and packing instruction information will be provided at that time.

Replacement batteries are available for purchase at sharkclean.com/batteries

How state law applies

This warranty gives you specific legal rights, and you also may have other rights that vary from state to state. Some states do not permit the exclusion or limitation of incidental or consequential damages, so the above may not apply to you.

REGISTER YOUR PURCHASE

SHARK ION P50 IC162 - REGISTER YOUR PURCHASE - 1

registryourshark.com

SHARK ION P50 IC162 - REGISTER YOUR PURCHASE - 2

1-800-798-7398

SHARK ION P50 IC162 - REGISTER YOUR PURCHASE - 3

RECORD THIS INFORMATION

Model Number:

Date Code:

Date of Purchase:

(Keep receipt)

Store of Purchase

Tip: You can find the model and serial numbers on the QR code label which is located on the bottom of the back of the vacuum pod and battery.

TECHNICAL SPECIFICATIONS

Voltage: 28.8V

Watts: 260w

Amps: 9A

BATTERY REMOVAL AND DISPOSAL

This product uses a lithium-ion rechargeable and recyclable battery. When the battery no longer holds a charge, it should be removed from the vacuum and recycled. DO NOT incinerate or compost the battery.

When your lithium-ion battery needs to be replaced, dispose of it or recycle it in accordance with local

ordinances or regulations. In some areas, it is illegal to place spent lithium-ion batteries in the trash or in a municipal solid waste stream. Return spent battery to an authorized recycling center or to retailer for recycling Contact your local recycling center for information on where to drop off the spent battery.

The RBRC (Rechargeable Battery Recycling Corporation) seal on the lithium-ion battery indicates that the costs to recycle the battery at the end of its useful life have already been paid by SharkNinja. In some areas, it is illegal to place spent lithium-ion batteries in the trash or municipal solid waste stream and the RBRC program provides an environmentally conscious alternative.

RBC, in cooperation with SharkNinja and other battery users, has established programs in the United States and Canada to facilitate the collection of spent lithium-ion batteries. Help protect our environment and conserve natural resources by returning the spent lithium-ion battery to an authorized SharkNinja service center or to your local retailer for recycling. You may also contact your local recycling center for information on where to drop off the spent battery, or call 1-800-798-7398.

IMPORTANT CONSIGNES DE SECURITÉ

POUR UN USAGE DOMESTIQUE SEULEMENT · VEUILLEZ LIRE ATTENITIVEMENT LES INSTRUCTIONS AVANT D'UTILISER L'APPAREL

REEMPLACEMENT DES FILTRES

detected. Eteignez I'appareil et retirez I'obstruction.

SHARK ION P50 IC162 - REEMPLACEMENT DES FILTRES - 1

PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

This Owner's Guide is designed to help you keep your vacuum running at peak performance. If you should have a question, please call the Customer Service line at 1-800-798-7398.

SharkNinja Operating LLC

US: Needham, MA 02494

CAN: Ville St-Laurent, QC H4S 1A7

1-800-798-7398

sharkclean.com

Illustrations may differ from actual product. We are constantly striving to improve our products; therefore the specifications contained herein are subject to change without notice.

For SharkNinja U.S. Patent information, visit www.sharkninja.com/USPatents

VEUILLEZ LIRE ATTENTIVEMENT LE PRESENT MODE D'EMPLOI ET LE CONSERVER À TITRE INFORMATIF.

SharkNinja Operating LLC

SharkNinja Operating LLC

2018 SharkNinja Operating LLC. DUOCLEAN, LIFT-AWAY, MULTIFLEX, POWERED LIFT-AWAY, and SHARK are registered trademarks of SharkNinja Operating LLC. SHARK ION is a trademark of SharkNinja Operating LLC. RBRC is a trademark of Rechargeable Battery Recycling Corporation. PRINTED IN CHINA

Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : SHARK

Model : ION P50 IC162

Category : Vacuum Cleaner
