USER MANUAL RM4020 REMINGTON

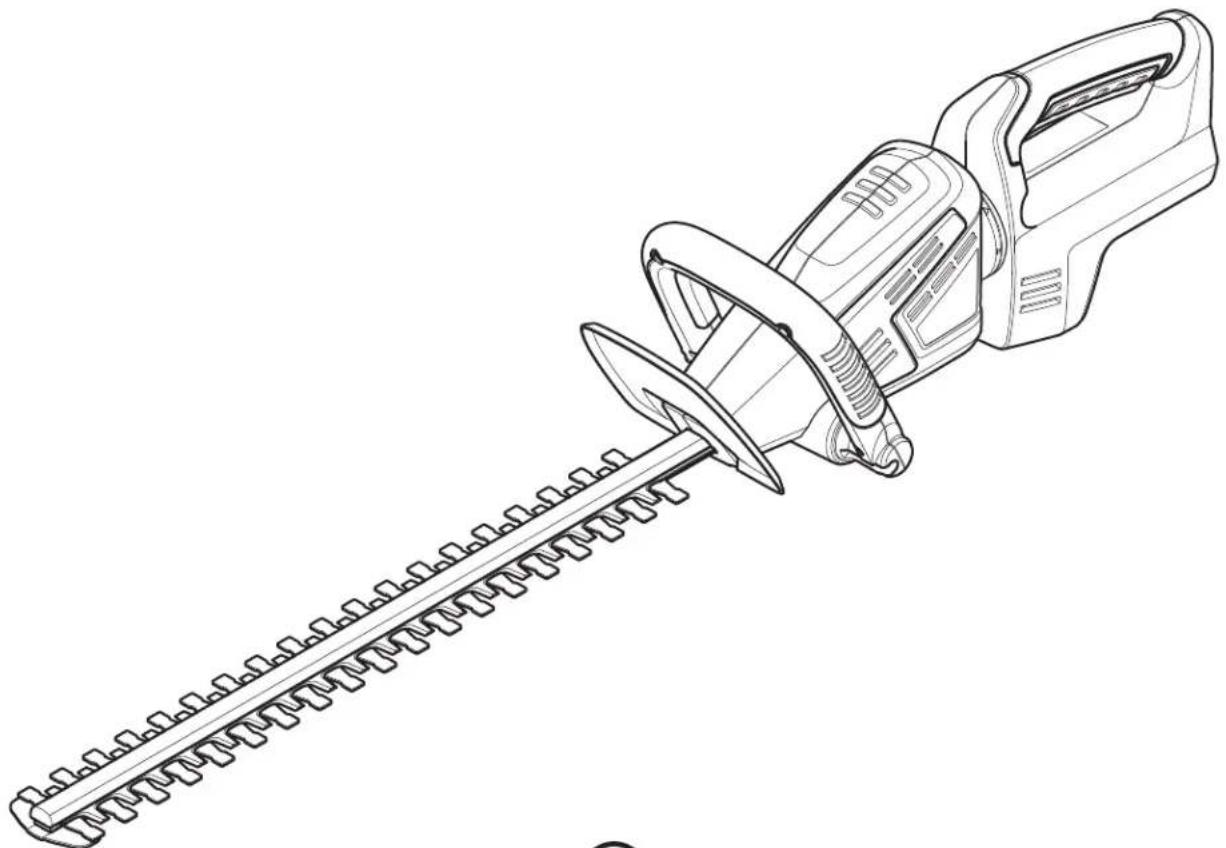

Cordless Hedge Trimmer

Line drawing of a hair clip with a diagonal line extending from it, no text or symbols present

BC

SAVE THESE INSTRUCTIONS

IMPORTANT: Read this manual thoroughly before using this product. Follow all instructions.

TABLE OF CONTENTS

Service	2
Safety	2

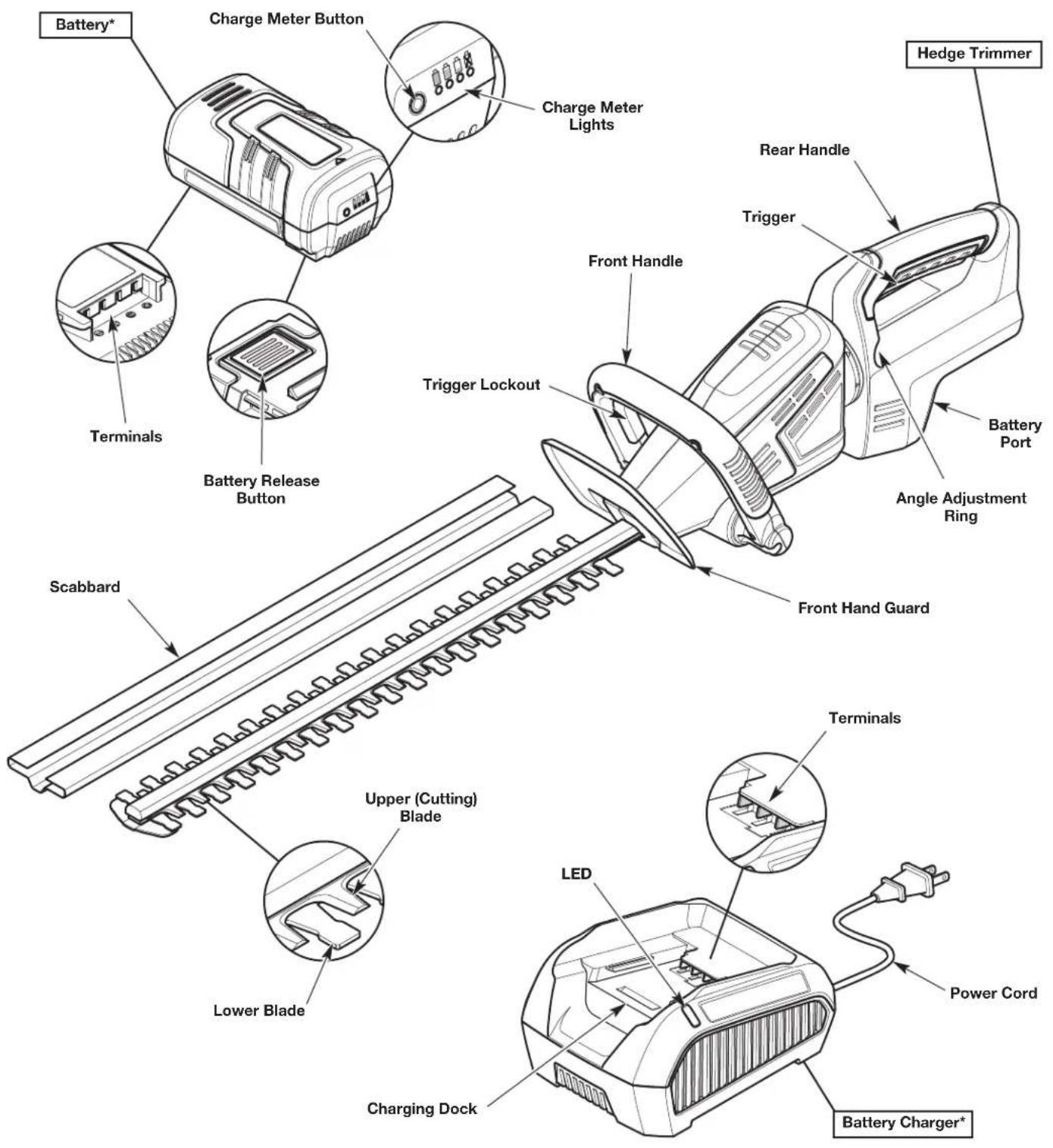

Know Your Unit	9
Specifications	10
Assembly	10
Starting and Stopping	12
Operation	12
Maintenance	14
Cleaning and Storage	15
Troubleshooting	16
Warranty	17

NOTE: This operator's manual covers multiple models. Features may vary by model. Not all features in this manual are applicable to all models. The model depicted may differ from yours.

All information, illustrations, and specifications in this manual are based on the latest product information available at the time of printing. We reserve the right to make changes at any time without notice.

The product may vary slightly from the illustrations contained in this manual.

Copyright© 2017 MTD SOUTHWEST INC, All Rights Reserved.

SERVICE

DO NOT RETURN THIS UNIT TO THE RETAILER. PROOF OF PURCHASE WILL BE REQUIRED FOR WARRANTY SERVICE.

For assistance regarding the assembly, operation or maintenance of the unit, please call 1-866-206-2707 (in the United States) or 1-877-696-5533 (in Canada). Additional information can be found at www.remingtonpowertools.com.

Warranty service is available through an authorized service center. To locate a service center in your area, please visit our website or call the number listed above. Service on this unit, both within and after the warranty period, should only be performed by an authorized and approved service center. When servicing, use only identical replacement parts.

SAFETY

The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and their explanations, deserve your careful attention and understanding. The safety warnings do not by themselves eliminate any danger. The instructions or warnings they give are not substitutes for proper accident prevention measures.

SYMBOL MEANING

DANGER: Signals an EXTREME hazard.

Failure to obey a safety DANGER symbol WILL result in serious injury or death to yourself or to others.

WARNING: Signals a SERIOUS hazard.

Failure to obey a safety WARNING symbol CAN result in serious injury to yourself or to others.

CAUTION: Signals a MODERATE hazard.

Failure to obey a safety CAUTION symbol MAY result in property damage or injury to yourself or to others.

NOTE: Advises you of information or instructions vital to the operation or maintenance of the equipment.

CALIFORNIA PROPOSITION 65

WARNING: This product contains a chemical known to the state of California to cause cancer, birth defects or other reproductive harm.

Read the operator's manual and follow all warnings and safety instructions. Failure to do so can result in serious injury to the operator and/or bystanders.

• IMPORTANT SAFETY INSTRUCTIONS •

GENERAL POWER TOOL SAFETY WARNINGS

WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work Area Safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical Safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of electric shock.

3) Personal Safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) Power Tool Use and Care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

6) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Hedge Trimmer Safety Warnings

DANGER: KEEP HANDS AWAY FROM BLADE. Contact with blade will result in serious personal injury.

• Use both hands when operating the hedge trimmer. Using one hand could cause loss of control and result in serious personal injury.
• Keep all parts of the body away from the cutter blade. Do not remove cut material or hold material to be cut when blades are moving. Make sure the switch is off when clearing jammed material. Blades coast after turn off. A moment of inattention while operating the hedge trimmer may result in serious personal injury.
• Carry the hedge trimmer by the handle with the cutter blade stopped. When transporting or storing the hedge trimmer always fit the cutting device cover. Proper handling of the hedge trimmer will reduce possible personal injury from the cutter blades.
• Hold the power tool by insulated gripping surfaces only, because the cutter blade may contact hidden wiring or its own cord. Cutter blades contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

READ ALL INSTRUCTIONS BEFORE OPERATING

1. SAVE THESE INSTRUCTIONS - This manual contains important safety and operating instructions.
2. Before using this product, read all instructions and cautionary markings on the battery, battery charger, and the unit(s) powered by the battery.
3. Do not handle the charger, including the charger plug and charger terminals, with wet hands.
4. Do not charge the unit outdoors.

WARNING: Only use RM4130, RM4140 or RM4150 batteries with this unit. DO NOT use any other type of battery, attachment or accessory with this unit. Other types of batteries, attachments or accessories could lead to serious injury, property damage or damage to the unit.

WARNING: Only charge RM4130, RM4140 or RM4150 batteries with an RM4110 battery charger. DO NOT attempt to use any other battery charger to charge RM4130, RM4140 or RM4150 batteries. Other types of battery chargers may cause the batteries to burst, resulting in fire, personal injury or property damage.

WARNING: Only use an RM4110 battery charger to charge RM4130, RM4140 or RM4150 batteries. DO NOT attempt to charge any other batteries with an RM4110 battery charger. Other types of batteries may burst, causing fire, personal injury or property damage.

GENERAL SAFETY WARNINGS

• Read the instructions carefully. Be familiar with the controls and proper use of the unit. Know how to stop the unit and disengage the controls quickly.
• Stay alert. Do not operate this unit when tired, ill or under the influence of alcohol, drugs or medication.
• Never allow children to operate the unit. Teens must be trained, accompanied and supervised by an adult. Never allow adults to operate the unit without proper instruction.
• All guards and safety attachments must be installed properly before operating the unit.
• Inspect the unit before use. Check for damaged parts. Make sure all parts operate properly. Make sure all fasteners are in place and secure. Make sure all moving parts are properly aligned and are not bound. Replace parts that are cracked, chipped, or damaged in any way. Have all damaged or improperly working parts repaired or replaced by an authorized service center. Do not operate the unit with loose or damaged parts.
• Be aware of risk of injury to the head, hands and feet.
• Carefully inspect the area before starting the unit. Remove rocks, broken glass, nails, wire, string and other objects that may be thrown or become entangled with the unit.
• Clear the area of children, bystanders and pets; keep them outside a 50-foot (15 m) radius, at a minimum. Even then, they are still at risk from thrown objects. Encourage bystanders to wear eye protection. If you are approached, stop the unit immediately.
• This unit is intended for occasional, household use only.
• Do not allow the unit to be used as a toy.

SAFETY WARNINGS FOR ELECTRIC UNITS

General Electric Safety

• Do not expose the unit to rain or wet conditions. Store the unit indoors.
• Do not handle the unit with wet hands.
• Avoid dangerous environments. Do not operate the unit in the rain, in wet conditions or on wet surfaces. Moisture is a shock hazard.
• To reduce the risk of electric shock, avoid body contact with grounded conductors, such as metal pipes or wire fences.
• Do not operate the unit in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.

Battery Charger Safety

• Follow all charging instructions. Do not charge the battery outside the temperature range specified in these instructions. Improperly charging the battery or charging the battery outside of the specified temperature range may damage the battery and increase the risk of fire.
• A nameplate on the unit indicates the voltage used. Never connect the unit to an AC voltage that differs from this voltage.
• An extension cord should not be used unless absolutely necessary. Use of an improper extension cord could result in a risk of fire, electric shock or electrocution.
• Do not use multiple extension cords.
• Make sure the extension cord is heavy enough to carry the current drawn by the unit. An undersized extension cord will cause a drop in line voltage, resulting in a loss of power and overheating. If in doubt, use the next heavier gauge cord. The smaller the gauge number, the heavier the cord.

MINIMUM WIRE SIZE FOR EXTENSION CORDS FOR 120 VOLT APPLIANCES USING 0-6 AMPS

Cord Length (ft.) 25 50 100 150
Wire Size (AWG) 16 16 16 14

• Make sure the cords are in good condition. Inspect the power cord and extension cord periodically. Look closely for deterioration, cuts or cracks in the insulation. If a cord is damaged in any manner while plugged in, disconnect the cord from both the outlet and the unit. Do not use a damaged cord. Damaged cords should be repaired or replaced.
• Do not abuse cords. Never pull or carry the unit by a cord. Keep cords away from heat, oil, water, sharp edges, and moving objects. Always grasp the plug when disconnecting a cord.
• Never modify a plug, cord or outlet in any way.
• Ground Fault Circuit Interrupter (GFCI) protection should be provided on the circuit(s) or outlet(s) to be used with this unit. For an extra measure of safety, use receptacles with built-in GFCI protection.
• Do not place the battery charger where cords might be stepped on, tripped over or subjected to damage.
• Do not charge batteries in the rain or in wet conditions. Keep the battery charger in a cool and dry area.
• Keep the battery charger away from all liquid.
• Do not allow small metal items or material such as steel wool, aluminum foil or other foreign particles into the charger port.
• Do not probe the charger with conductive material. There is a risk of electric shock.
• Do not cover the battery charger. The battery charger may overheat.
• Do not allow the battery or battery charger to overheat. If they are warm, allow them to cool down. Only charge batteries in temperatures between 32^ and 104^ ( 0^ and 40^ ).
• Always unplug the battery charger before cleaning it. Always unplug the battery charger when it is not in use.

Battery Safety

• Do not expose the battery to fire or to temperatures over 176^ (80°C). Doing so could cause an explosion.
• Handle batteries with care. Do not short the battery with conductive materials, such as rings, bracelets, keys, etc. Shorting the battery may cause personal injury, damage to the battery or a fire.
• When the battery is not in use, keep it away from small metal objects, such as paper clips, coins, nails, etc. These items could connect one terminal to another and short the battery.
• Do not attempt to charge a cracked or damaged battery.
• Do not use a damaged or modified battery. Doing so could result in a fire, explosion or personal injury.

WARNING: The battery may present a risk of fire or chemical burn if mistreated. Do not disassemble, overheat or incinerate the battery. The battery may develop a small leak under extreme usage or temperature conditions.

If battery fluid contacts skin:

• Immediately wash the area with soap and water.
• Neutralize the battery fluid with a mild acid (lemon juice, vinegar, etc.).
• Seek immediate medical attention.

If battery fluid gets in the eyes:

• Immediately flush the eyes with clean water for at least 15 minutes.
• Seek immediate medical attention.

DISPOSING OF DAMAGED OR WORN-OUT BATTERIES

WARNING: The following toxic and corrosive material is used in this unit's battery: LITHIUM-ION, a toxic material.

WARNING: To prevent contamination of the environment, contact your local waste disposal agency for specific instructions before disposing of damaged or worn-out lithium-ion batteries. Take batteries to a local recycling and/or disposal center, certified for lithium-ion battery disposal.

WARNING: Do not use broken or cracked batteries, even if there isn't leakage. Replace damaged or worn-out batteries with new batteries. DO NOT ATTEMPT TO REPAIR BATTERIES! Repair attempts may result in severe personal injury, due to explosion or electrical shock

To avoid personal injury and damage to the environment:

• Do not attempt to remove or destroy any of the battery components. Do not open or mutilate the battery. If a leak develops, released electrolytes are corrosive and toxic. Do not get the solution in your eyes or on your skin, and do not swallow it.
• Do not dispose of the battery in the regular household trash.
• Do not dispose of the battery in a fire. The cell may explode.
• Do not dispose of the battery where it will become part of any waste landfill or municipal solid waste stream.
• Cover the battery terminals with heavy-duty adhesive tape.
• Dispose of the battery according to local, state and federal regulations.
• Dispose of the battery promptly.

About Call2Recycle Battery Seals

Call2Recycle's industry steward program helps battery and product manufacturers fulfill recycling requirements in the U.S. and Canada, including compliance with extensive state, provincial and federal regulations, such as the Mercury-Containing and Rechargeable Battery Act (The Battery Act). Call2Recycle® Licensees/Industry

Stewards, participating battery and product manufacturers and marketers, purchase the rights to imprint the Call2Recycle Battery Seals on their rechargeable batteries and products. When you see the Call2Recycle Battery Seal, you can feel confident knowing that your battery or product can be safely and responsibly recycled.

About Call2Recycle

Since 1994, Call2Recycle has diverted more than 75 million pounds of rechargeable batteries from local landfills and established a network of 30,000 recycling drop-off locations. More than 200 battery and/or product manufacturers, Call2Recycle Industry Stewards, have united to ensure that batteries are responsibly recycled when they reach their end of life and fund the program that is operated by Call2Recycle, Inc., a 501(c)4 nonprofit public service organization.

To locate the nearest recycling center, please call 1-800-822-8837.

FCC STATEMENT

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.

WHILE OPERATING

WARNING: To reduce the risk of electric shock, do not expose the unit to rain or wet conditions. Store the unit indoors.

• Wear safety glasses or goggles that meet current ANSI / ISEA Z87.1 standards and are marked as such. Wear ear/hearing protection when operating this unit. Wear a face mask or dust mask if the operation is dusty.
• Wear heavy long pants, boots, gloves and a long sleeve shirt. Do not wear loose clothing, jewelry, short pants, sandals or go barefoot. Secure hair above shoulder level.
• Use the unit only in daylight or good artificial light.
• Use the right tool. Only use this tool for its intended purpose.
• Always hold the unit with a firm grip when operating.
• Do not overreach. Always keep proper footing and balance. Take extra care when working on stairs, steep slopes or inclines. To avoid serious injury, do not operate the unit while on a ladder or a roof.
• Keep hair, face, hands, feet and all other body parts away from moving parts and openings. Do not touch or try to stop moving parts.
• Do not operate the unit faster than the speed needed to do the job. Do not run the unit at high speed when not in use.
• Do not force the unit. It will do a better, safer job when used at the intended rate.
• Always turn the unit off when operation is delayed or when carrying the unit from one location to another.
• Before setting the unit down, always turn the unit off and wait for all moving parts to come to a complete stop.

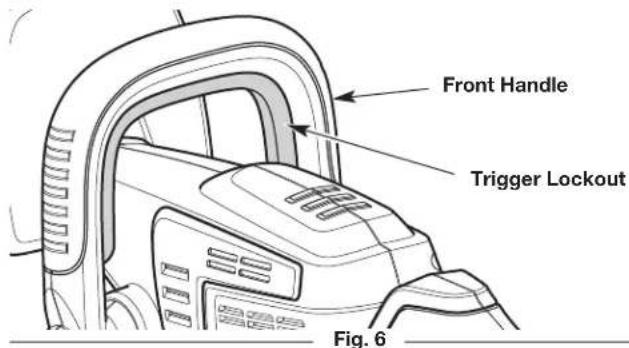

• Avoid starting the unit unintentionally. Make sure the trigger lockout is in the locked position before installing or removing the battery. Never carry the unit with fingers on the trigger.

• Remove the battery from the unit when it is not in use.

• Do not use the unit if the trigger and trigger lockout do not start and stop the unit.

• If the unit strikes or becomes entangled with a foreign object, stop the motor immediately, remove the battery and check for damage. If damaged, do not restart or operate the unit until it is repaired. Do not operate the unit with loose or damaged parts.
• Use only original equipment manufacturer (OEM) replacement parts and accessories for this unit. These are available from your authorized service dealer. Use of any other parts or accessories could lead to serious injury to the user, or damage to the unit, and void the warranty.
• Keep the unit clean. Stop the motor, remove the battery and allow the unit to cool. Carefully remove vegetation and other debris that could block moving parts.
• If the unit starts to vibrate abnormally, stop the motor, remove the battery and allow the unit to cool. Inspect the unit for the cause of the vibration. Vibration is generally an indicator of trouble.

HEDGE TRIMMER SAFETY

DANGER: Keep all body parts (hands, feet, face, etc.) away from moving blades. Contact with moving blades will result in serious personal injury.

• Make sure the blades are not in contact with anything before starting the unit.
• Always hold the unit with both hands when operating. Using only one hand could lead to a loss of control and result in serious personal injury.
• DO NOT remove cut material, or hold material to be cut, while the blades are moving Always stop the unit and remove the battery before attempting to remove debris or jammed material.
• Allow time for moving parts to stop after turning the unit off. Blades coast for a short time.
  • DO NOT cut above shoulder height.
• DO NOT use the front guard as a handle.
• Keep the blades sharp and clean.
• Follow all lubrication instructions provided in this manual.
• The blades become very sharp from use. Always wear heavy gloves when handling, replacing or cleaning the blades.

OTHER SAFETY WARNINGS

• Maintain the unit with care. Follow all maintenance instructions in this manual.
• Do not perform maintenance procedures other than those described in this manual. Do not attempt to repair the unit; there are no user-serviceable parts inside. All service, other than the maintenance procedures described in this manual, should be performed by an authorized service center.
• Do not use the unit if it is not working correctly, has been dropped, damaged, left outdoors or dropped into water. Have the unit serviced by an authorized service center.
• Never remove, modify or make inoperative any safety device furnished with the unit.
• Before inspecting, maintaining, cleaning, storing, transporting or replacing any parts on the unit:
• Stop the motor. Refer to Starting and Stopping.
• Wait for all moving parts to stop.
• Remove the battery.
• Allow the unit to cool.
• Secure the unit while transporting.
• Store the unit in a dry place, secured or at a height to prevent unauthorized use or damage. Keep the unit out of the reach of children.
• Never douse or squirt the unit with water or any other liquid. Avoid getting water in the motor and electrical connections. Keep handles dry and clean (free from debris, oil and grease). Clean the unit after each use. Refer to Cleaning and Storage. Do not use solvents or strong detergents.
• Keep these instructions. Refer to them often and use them to instruct other users. If you loan this unit to others, also loan them these instructions.

SAVE THESE INSTRUCTIONS

• SAFETY & INTERNATIONAL SYMBOLS •

This operator's manual describes safety and international symbols and pictographs that may appear on this product. Read the operator's manual for complete safety, assembly, operating and maintenance and repair information.

SYMBOL MEANING SYMBOL MEANING

	• SAFETY ALERT SYMBOLIndicates danger, warning or caution. May be used in conjunction with other symbols or pictographs.
	• READ OPERATOR'S MANUALWARNING: Read the operator's manual(s) and follow all warnings and safety instructions. Failure to do so can result in serious injury to the operator and/or bystanders.
	• WEAR EYE AND HEARING PROTECTIONWARNING: Thrown objects and loud noise can cause severe eye injury and hearing loss. Wear eye protection meeting current ANSI / ISEA Z87.1 standards and ear protection when operating this unit. Use a full face shield when needed.
	• WEAR FOOT PROTECTIONAlways wear heavy-duty, non-slip footwear when operating this unit.
	• WEAR HAND PROTECTIONAlways wear heavy-duty, non-slip gloves when handling this unit.
V	• VOLTS - Voltage
A	• AMPERES - Current
Hz	• HERTZ - Frequency (cycles per second)
AC	• ALTERNATING CURRENT - Type of current
--- or DC	• DIRECT CURRENT - Type of current
Ah	• AMPERE-HOUR - Measure of charge capacity
Wh	• WATT-HOUR - Measure of energy

	• THROWN OBJECTS CAN CAUSE SEVERE INJURYWARNING: Small objects can be propelled at high speed, causing injury.
	• KEEP BYSTANDERS AWAYWARNING: Keep all bystanders, especially children and pets, at least 50 feet (15 m) from the operating area.
	• KEEP AWAY FROM MOVING BLADESDANGER: Keep all body parts (hands, feet, face, etc.) away from moving blades. Contact with moving blades will result in serious personal injury.
	• DO NOT USE IN THE RAINWARNING: Avoid dangerous environments. Never operate the unit in the rain or in damp or wet conditions. Moisture is a shock hazard.
	• DO NOT DISPOSE IN HOUSEHOLD TRASHRecycle the battery or dispose of the battery according to local, state and federal regulations.

KNOW YOUR UNIT

APPLICATIONS

NO ASSEMBLY TOOLS REQUIRED

• Trimming hedges and bushes

Battery* Charge Meter Button Charge Meter Lights Hedge Trimmer Rear Handle Trigger Terminals Battery Release Button Front Handle Trigger Lockout Battery Port Angle Adjustment Ring Front Hand Guard Scabbard Upper (Cutting) Blade Lower Blade LED Power Cord Charging Dock Battery Charger*

* The battery and battery charger are not included with model RM4020B.

SPECIFICATIONS

Approximate Unit Weight (without the battery)	5 - 6 lbs. (2.3 - 2.7 kg)
Blade Length	22 in. (55.8 cm)
Maximum Cutting Diameter	0.75 in. (1.9 cm)
Battery Type (Model RM4130)	40V, 2.5 Ah Lithium-Ion
Battery Type (Model RM4140)	40V, 4.0 Ah Lithium-Ion
Battery Type (Model RM4150)	40V, 5.0 Ah Lithium-Ion
Approximate Battery Weight (Model RM4130)	1.9 - 2.4 lbs. (0.9 - 1.1 kg)
Approximate Battery Weight (Model RM4140)	2.9 - 3.4 lbs. (1.3 - 1.5 kg)
Approximate Battery Weight (Model RM4150)	3.0 - 3.5 lbs. (1.4 - 1.6 kg)
Optimum Battery Charging Temperature	32° to 104°F (0° to 40°C)
Optimum Battery Storage Temperature	64° to 73°F (18° to 23°C)
Optimum Battery In-Use Temperature	32° to 113°F (0° to 45°C)
Battery Charger Input	120 V 60 Hz AC only
Battery Charger Output	1.8 A 40 V DC
Approximate Charging Time (Model RM4130)	105 minutes
Approximate Charging Time (Model RM4140)	135 minutes
Approximate Charging Time (Model RM4150)	162 minutes
Approximate Battery Charger Weight	1.25 - 1.75 lbs. (0.6 - 0.8 kg)

All specifications are based on the latest product information available at the time of printing. We reserve the right to make changes at any time without notice.

ASSEMBLY

WALL-MOUNTING THE CHARGER (OPTIONAL)

The battery charger can be mounted to a permanent surface, such as a wall or work bench. Use mounting fasteners (not included) capable of supporting the combined weight of the battery and battery charger. Wall-mounting holes are located on the bottom of the charger (Fig. 1).

60mm*2.36in Wall-Mounting Holes Fig. 1

CHARGING THE BATTERY

NOTE: The battery is not shipped fully charged.

NOTE: Lithium-ion batteries will not develop a memory and may be charged at any time.

For maximum run time, fully charge the battery before each use.

1. Plug the battery charger into an appropriate power outlet. The LED should turn red (constant) (Fig. 3). If it does not:

2. Make sure the battery charger is fully plugged into an appropriate power outlet.

3. Make sure the power outlet is functioning by testing it with another electrical device.

4. Insert the battery into the charging dock (Fig. 2). Push the battery firmly until it locks into place.

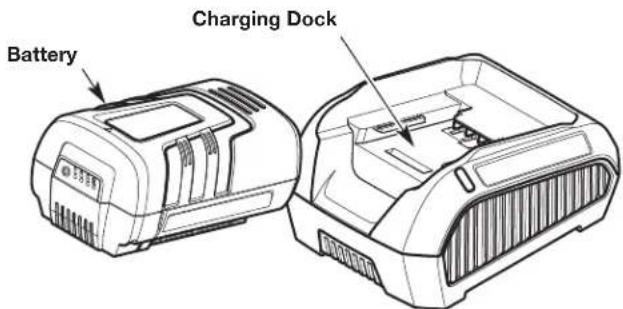

Battery Charging Dock

Fig. 2

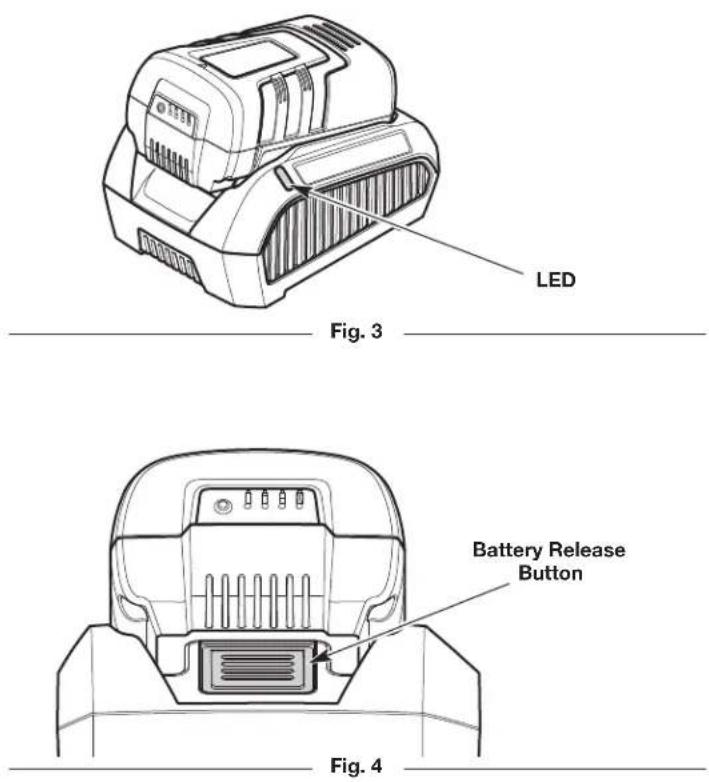

1. Examine the LED. The LED will indicate the battery status:

2. Green (blinking): The battery is charging. Charge the battery until the green light stops blinking.

3. Green (constant): The battery is fully charged.
4. Red (blinking - slow): The battery and/or charger are too hot or too cold. Make sure the battery and charger are in an environment between 32^ and 104^ ( 0^ and 40^ ). Allow time for the battery and/or charger to warm up or cool down.
5. Red (blinking - fast): The battery is no longer functional. Refer to the Warranty section for replacement information.

6. Red (constant): The battery is not charging. Remove the battery. Make sure the terminals on the battery and battery charger are clean. Re-insert the battery into the charging dock. Push the battery firmly until it locks into place.

7. To maximize the life of the battery, the battery charger will turn off when charging is complete. Once the battery is fully charged, remove it from the battery charger. Optionally, the battery can be stored in the battery charger, but the battery charger should be unplugged from the power outlet.

To remove the battery: Hold the battery charger in place with one hand. Press the battery release button with the other hand (Fig. 4). Slide the battery out of the charging dock.

INSTALLING AND REMOVING THE BATTERY

WARNING: Avoid accidentally starting the unit. To prevent serious injury, DO NOT squeeze the trigger lockout and DO NOT squeeze the trigger when installing or removing the battery. Refer to Starting and Stopping. Remove the battery from the unit when it is not in use.

Installing the Battery

1. Grasp the rear handle firmly (Fig. 5). DO NOT squeeze the trigger. Refer to Starting and Stopping.
2. Slide the battery into the battery port (Fig. 5). Push the battery firmly until the battery locks into place (Fig. 5). There should be an audible "click."
3. Gently pull the battery to make sure it is securely locked in place.

Removing the Battery

1. Grasp the rear handle firmly (Fig. 5). DO NOT squeeze the trigger. Refer to Starting and Stopping.
2. Press the battery release button to unlock the battery (Fig. 5).
3. Pull the battery out of the battery port (Fig. 5).

NOTE: It may require a strong pull to remove the battery.

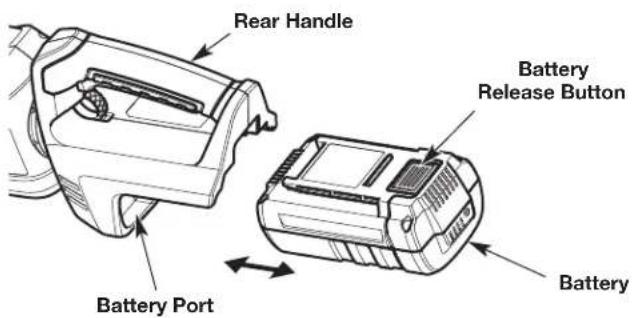

Rear Handle Battery Release Button Battery Port Battery

Fig. 5

STARTING AND STOPPING

STARTING INSTRUCTIONS

To prevent the motor from starting accidentally, this unit has a trigger lockout. The trigger cannot be squeezed unless the trigger lockout is also engaged.

1. Install the battery. Refer to Installing the Battery.
2. Squeeze the trigger lockout into the front handle and hold it in place (Fig. 6).
3. Continue to hold the trigger lockout. Squeeze and hold the trigger to start the unit (Fig. 7).
4. Continue to squeeze the trigger lockout. Squeeze the trigger to the degree needed for the operation.

Front Handle Trigger Lockout Fig. 6

STOPPING INSTRUCTIONS

1. Release the trigger and/or trigger lockout (Fig. 6 & 7).
2. Wait for all moving parts to come to a complete stop.

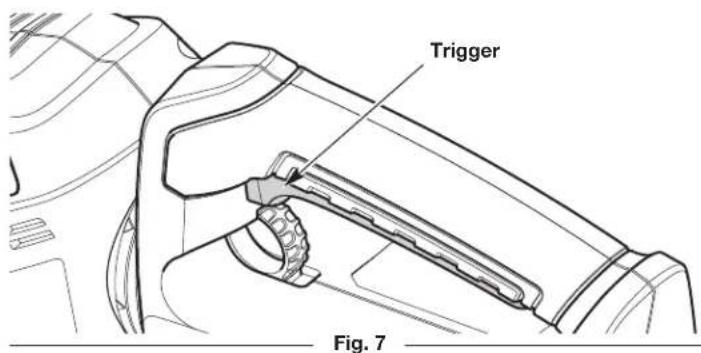

Trigger Fig. 7

OPERATION

WARNING: Do not expose power tools to rain or wet conditions.

CHECKING THE BATTERY CHARGE LEVEL

1. Press the charge meter button (Fig. 8).

2. One or more of the charge meter lights should illuminate (Fig. 8). The number and color of the lights will indicate the current battery charge level:
   • 3 Green Lights = 66 - 100% Charge
   • 2 Green Lights = 33 - 66% Charge
   • 1 Green Light = 1 - 33% Charge
   • 1 Red Light = 0% Charge

3. If the red light illuminates, charge the battery before any further use.

NOTE: While in use, lithium-ion batteries provide power with minimal power fade. When the battery is fully discharged, it will immediately cut power to the unit and require charging.

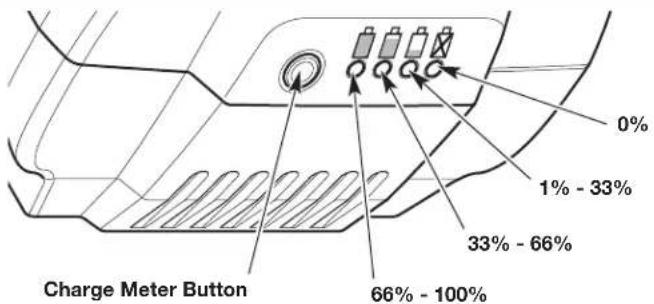

Charge Meter Button 0% 1% - 33% 33% - 66% 66% - 100%

Fig. 8

WARNING: Always wear eye, hearing, hand, foot and body protection to reduce the risk of injury when operating this unit. Wear a face mask or dust mask if the operation is dusty.

DANGER: Keep all body parts (hands, feet, face, etc.) away from moving blades. Contact with moving blades will result in serious personal injury.

HOLDING THE UNIT

• Stand in the operating position (Fig. 9). Stand up straight. Do not bend over.
• Keep feet apart and firmly planted.
• Hold the unit with a firm grip.
• Hold the rear handle with the right hand. Keep the right arm slightly bent.
• Hold the front handle with the left hand. Keep the left arm straight.
  • DO NOT cut above shoulder height.

Line drawing of a person using a power tool (no text or symbols)

Fig. 9

ADJUSTING THE CUTTING ANGLE

WARNING: To avoid serious personal injury and damage to the unit, turn the unit off and wait for all moving parts to stop before adjusting the cutting angle.

Adjust the cutting angle, as needed:

1. Pull and hold the angle adjustment ring (Fig. 10).

2. Rotate the motor housing to the desired angle. There are several predefined positions. Each position is marked by an arrow (Fig. 11).

3. Release the angle adjustment ring.

4. Make sure the motor housing and handle are securely locked in place.

NOTE: The unit will not start if the handle is not securely locked into one of the marked positions.

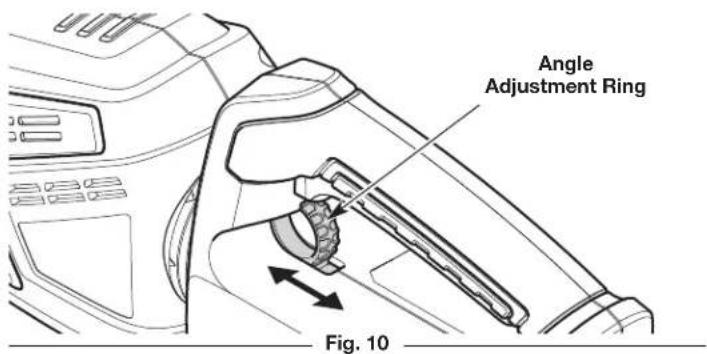

Angle Adjustment Ring Fig. 10

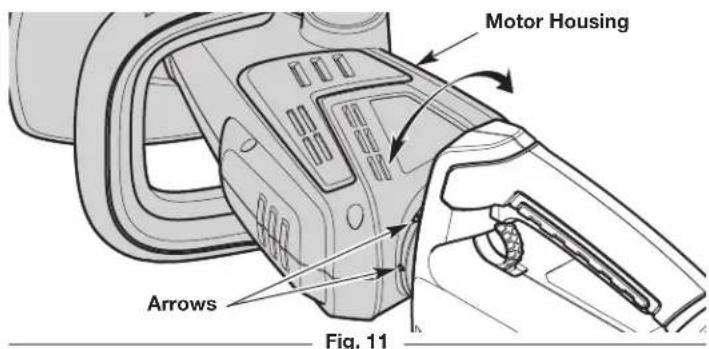

Motor Housing Arrows Fig. 11

TIPS FOR BEST RESULTS

• Keep the blades sharp and clean. Refer to Maintaining the Blades in the Maintenance section.
• Keep the blades properly lubricated. Refer to Lubricating the Blades in the Maintenance section.
• To trim new growth, use a wide sweeping motion with a slight downward tilt of the blade.
• To trim old growth with thicker stems, use a sawing motion.
• Do not try to cut stems larger than 0.75 inches (1.9 cm) in diameter. Use a non-powered hand saw or pruning saw to trim large stems.
• Use a string to obtain a level hedge. Stretch a string along the top of the hedge at the desired height and trim the hedge just above the level of the string (Fig. 12).
• To trim the sides of the hedge, sweep the hedge trimmer upward from the bottom of the hedge to the top. Trim the sides of the hedge to be slightly narrower at the top.
• Clean up after operation. Dispose of debris appropriately.
• Remove the battery from the unit when it is not in use.

WARNING: DO NOT remove cut material, or hold material to be cut, while the blades are moving Always stop the unit and remove the battery before attempting to remove debris or jammed material. Allow time for moving parts to stop after turning the unit off. Blades coast for a short time.

Isometric illustration of a rectangular container with textured fill and metal frame (no text or symbols)

Fig. 12

MAINTENANCE

WARNING: To prevent serious injury, never perform maintenance on the unit while it is running. Always remove the battery to prevent the unit from starting accidentally. Always allow the unit to cool before maintaining the unit. Before maintaining the battery charger, always unplug it from the power outlet.

NOTE: Some maintenance procedures may require special tools or skills. If you are unsure about these procedures, take the unit to an authorized service dealer.

MAINTAINING THE BATTERY CHARGER

• Keep the battery charger clean and clear of debris. Do not allow foreign material into the charging dock or onto the terminals (Fig. 13). Inspect the battery charger for foreign material before each use.
• Make sure the charger has not been shorted by debris. Inspect the terminals for soot and signs of melting. Do not attempt to use a shorted charger.

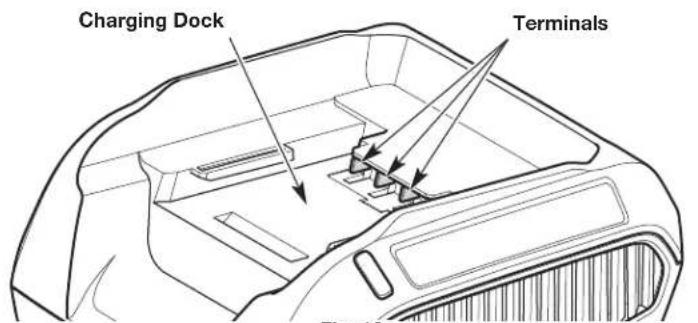

Charging Dock Terminals Fig. 10

Fig. 13

LUBRICATING THE BLADES

For easier operation and longer blade life, lubricate the blades BEFORE and AFTER each use. Never lubricate the blades while the motor is running or the blades are moving.

1. Stop the motor, wait for all moving parts to stop, remove the battery, and allow the unit to cool.
2. Turn the unit upside down (Fig. 14).
3. Apply a light machine oil between the upper blade and lower blade (Fig. 14). Apply oil along the full length of the blades.

Upper Blade Lower Blade Fig. 14

MAINTAINING THE BLADES

The cutting blades are made of high-quality, hardened steel. During normal use, they will not require resharpening unless they become nicked by contact with hard objects, such as wire fencing, glass, stones or bricks.

If a nick occurs and it interferes with operation:

1. Stop the motor, wait for all moving parts to stop, remove the battery, and allow the unit to cool.
2. Use a fine-toothed file or sharpening stone to remove the nick.

CLEANING AND STORAGE

CLEANING

WARNING: To prevent serious injury, never clean the unit while it is running. Always remove the battery to prevent the unit from starting accidentally. Always allow the unit to cool before cleaning the unit. Always unplug the battery charger before cleaning the battery charger.

WARNING: To prevent serious injury, do not use water to clean the unit, battery or battery charger. Do not douse the unit with water. Do not submerge the unit in water or any other liquid. Do not use strong detergents. Household cleaners that contain aromatic oils such as pine and lemon, and solvents such as kerosene, can damage plastic.

• Use a small brush or clean, dry cloth to clean the outside of the unit, battery and battery charger.
• Clean the blades with water. Wipe the blades with a light machine oil to prevent rust.

STORAGE

• Remove the battery from the unit.
• Allow the unit, battery and/or battery charger to cool.
• Thoroughly clean the unit, battery and battery charger. Inspect them for any loose or damaged parts. Replace damaged parts and tighten loose screws, nuts or bolts.
• Lock up the unit, battery and battery charger to prevent unauthorized use or damage.
• Store the unit, battery and battery charger indoors, in a dry, well-ventilated area.
• Store the battery and battery charger in an area that is between 65 and 75^ (18 and 24^ ).
• Always unplug the battery charger when it is not in use.
• Store the unit, battery and battery charger out of the reach of children.
• If the battery is left unused for more than two months, fully charge the battery before use.

TROUBLESHOOTING

PROBLEM SOLUTION
THE BATTERY WILL NOT CHARGE
The battery charger is not plugged in Plug the battery charger into a	120V 60hz AC source
The battery is not fully inserted into the battery charger	Remove and then reinsert the battery into the battery charger completely
The battery and/or charger are too hot or too cold	Make sure the battery and charger are in an environment between 32^ and 104^ F ( 0^ and 40^ C). Allow time for the battery and/or charger to warm up or cool down.
The battery and/or battery charger are no longer functional	Refer to the Warranty section for replacement information
THE BATTERY DIES QUICKLY
The battery is not fully charged Charge the battery completely
The battery and/or battery charger are no longer functional	Refer to the Warranty section for replacement information
THE MOTOR WILL NOT RUN
The battery lacks sufficient charge Charge the battery completely
The battery is not installed correctly Remove and reinstall the battery
The trigger lockout was not engaged Press and hold the trigger lockout before squeezing the trigger
THE MOTOR STOPS WHILE IN USE, BUT THE BATTERY STILL HAS SUFFICIENT CHARGE
Device protection systems have engaged	Remove the battery, allow it to cool for 30 seconds, then reinstall the battery
THE MOTOR RUNS, BUT THE BLADES WILL NOT MOVE
The blades are jammed by debris	Stop the motor, wait for all moving parts to stop, remove the battery, and allow the unit to cool. Carefully remove the debris
The blades are damaged Have the unit repaired by an authorized service center

If further assistance is required, contact an authorized service center.

WARRANTY

REMINGTON®

REMINGTON LLC

LIMITED WARRANTY

Limited Warranty

The limited warranty set forth herein is given by Remington LLC with respect to new battery-powered, Remington-branded products (hereinafter “Product”) purchased and used in the United States and/or Canada to the Initial Purchaser (as defined herein). This Product is not intended for rental or commercial use.

Scope Of The Limited Warranty

Remington LLC offers the following limited warranty to the Initial Purchaser for residential or otherwise non-commercial use: except for the Exclusions (defined herein), during the Warranty Period (as defined herein), this Product (exclusive of the battery and the battery charger) will be free from manufacturing defects, including workmanship and materials. The “Initial Purchaser” is the first person to purchase this new Product from an authorized Remington dealer, distributor and/or retailer of such products. This limited warranty is non-transferable. Subject to the Exclusions and except as otherwise set forth herein, the limited warranty period for this new Product purchased by the Initial Purchaser is three (3) years from the date of purchase, as shown on the original sales receipt for the Product (“Warranty Period”).

Defects In Workmanship Or Materials

Subject to the Exclusions and except as otherwise set forth herein, this Product is warranted to be free from manufacturing defects in either workmanship or materials for the Warranty Period. During the Warranty Period, Remington LLC will, at its option, either repair or replace any original part that is covered by this limited warranty and is determined to be defective in workmanship or material.

To Qualify For This Limited Warranty, This Product:

1. Must have been purchased from an authorized retailer.
2. Must have been purchased within the United States or Canada by the Initial Purchaser.
3. Must have been used for residential (non-commercial) purposes only.
4. Must have been used in a manner consistent with the normal and proper intended use for this Product.

Who Can Perform Repairs Under This Warranty?

In order to qualify for the limited warranty as set forth herein, the repairs made under this warranty must be performed by an authorized Remington warranty service provider.

How To Get Service Under This Limited Warranty.

To locate a Remington warranty service provider, contact your authorized Remington dealer, distributor, or retailer or contact Remington LLC at P.O. Box 361032, Cleveland, Ohio 44136-0019 or call 1-866-206-2707 or log on to our website at www.remingtonpowertools.com. In Canada, contact MTD Products Limited, 97 Kent Avenue, Kitchener, ON N2G 3R2, or call 1-877-696-5533 or log on to the above website. This limited warranty is provided by Remington LLC and is the only product warranty provided by Remington LLC for this Product. A COPY OF YOUR SALES RECEIPT IS REQUIRED FOR WARRANTY SERVICE.

What This Limited Warranty Does Not Cover.

This Limited Warranty Does Not Cover The Following (the "Exclusions"):

1. Product purchased outside of the United States or Canada.
2. Damage due to lack of maintenance and/or improper maintenance as described in the operator's manual.

3. Normal wear and tear resulting from use of the Product.

4. Normal Wear Parts (as defined herein) are warranted to be free from defects in material and workmanship for a period of thirty (30) days from the date of original purchase by the Initial Purchaser. For the purpose of this Limited Warranty, "Normal Wear Parts" include, but are not limited to items such as: bump knobs, outer spools, cutting line, inner reels, starter pulleys, starter ropes, drive belts, saw chains, guide bars, cultivator tines and/or blades.

5. Use of the Product that is not consistent with the intended use thereof, as described in the operating instructions, including, but not limited to, abuse, misuse and/or neglect of the Product or any use inconsistent with and/or non-compliant with instructions contained in the operator's manual.
6. Any Product that has been altered or modified in a manner not consistent with the original design of the Product or in a manner not approved by Remington LLC.
7. Wheel rims (when so equipped), are covered for a period of three (3) months from the date of original purchase by the Initial Purchaser for manufacturing defects.
8. The battery supplied with this Product is warranted to be free from defects in material and workmanship for a period of three (3) years from the date of original purchase by the Initial Purchaser.
9. The battery charger supplied with this Product is warranted to be free from defects in material and workmanship for a period of three (3) years from the date of original purchase by the Initial Purchaser.

This Warranty Does Not Cover And Remington LLC Disclaims Any Responsibility For Matters Including, But Not Limited To, The Following:

1. Loss of time or loss of use of the Product.
2. Transportation costs and other expenses incurred in connection with the transport of the Product to and from the authorized Remington warranty service provider.
3. Any loss or damage to other equipment or personal items.
4. Damages caused by improper maintenance or the use of other than the specified fuel, oil or lubricants as approved in the operator's manual.
5. Damage resulting from the installation or use of any accessory or part not approved by Remington LLC for use with the Product.

Limitations:

1. THERE ARE NO IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. NO WARRANTY SHALL APPLY AFTER THE APPLICABLE WARRANTY PERIOD AS SET FORTH ABOVE AS TO THE PARTS AS IDENTIFIED. NO OTHER EXPRESS WARRANTY OR GUARANTY, WHETHER WRITTEN OR ORAL, EXCEPT AS MENTIONED ABOVE, GIVEN BY ANY PERSON OR ENTITY, INCLUDING A DEALER OR RETAILER, WITH RESPECT TO ANY PRODUCT SHALL BIND REMINGTON LLC. DURING THE WARRANTY PERIOD, THE EXCLUSIVE REMEDY IS REPAIR OR REPLACEMENT OF THE DEFECTIVE PART, AS SET FORTH ABOVE. (SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.)
2. THE PROVISIONS AS SET FORTH HEREIN PROVIDE THE SOLE AND EXCLUSIVE REMEDY ARISING FROM THE SALE. REMINGTON LLC SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL LOSS OR DAMAGES INCLUDING, WITHOUT LIMITATION, FOR TRANSPORTATION OR FOR RELATED EXPENSES, OR FOR RENTAL EXPENSES TO TEMPORARILY REPLACE A WARRANTED PRODUCT. (SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE EXCLUSION OR LIMITATION MAY NOT APPLY TO YOU.)
3. In no event shall recovery of any kind be greater than the amount of the purchase price of the Product sold. Alteration of the safety features of the Product shall void this limited warranty. You assume the risk and liability for loss, damage, or injury to you and your property and/or to others and their property arising out of the use or misuse or inability to use the Product.

How State Law Relates To This Warranty.

This limited warranty gives you specific legal rights, and you may also have other rights, which vary from state to state.

REMINGTON®

Line drawing of a hair clip with a diagonal line extending from it (no text or symbols)

BC

CONSERVEZ CES INSTRUCTIONS

INSTRUCTIONS D'ARRÊT

Line drawing of a person using a power tool (no text or symbols)

Fig. 9

RÉGLAGE DE L'ANGLE DE COUPE

Isometric illustration of a rectangular material with layered texture and vertical supports (no text or symbols)

Fig. 12

ENTRETIEN

Line drawing of a mechanical tool with a diagonal groove and serrated edge (no text or symbols)

CONSERVE ESTAS INSTRUCCIONES

Line drawing of a person using a long tool or power shaver (no text or symbols present)

Fig. 9

AJUSTE DEL ÁNGULO DE CORTE

Illustration of a rectangular concrete block with embedded soil layers and metal frame (no text or symbols)

Fig. 12

MANTENIMIENTO
