USER MANUAL Blaze RM4522TH REMINGTON

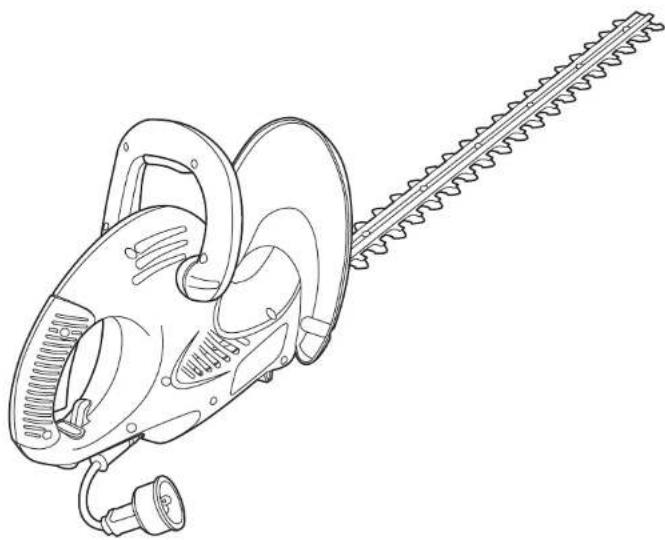

Electric Hedge Trimmer

RM4522TH

Operator's Manual

TABLE OF CONTENTS

Service Information 1

Safety Information. 1

Know Your Unit

Assembly Instructions

Starting and Stopping Instructions

Operating Instructions

Maintenance and Repair Instructions

Cleaning and Storage

Troubleshooting

Specifications

Warranty Information 16

All information, illustrations and specifications in this manual are based on the latest product information available at the time of printing. We reserve the right to make changes at any time without notice.

Copyright © 2013 MTD SOUTHWEST INC, All Rights Reserved.

SAVE THESE INSTRUCTIONS

SERVICE INFORMATION

DO NOT RETURN THIS UNIT TO THE RETAILER. PROOF OF PURCHASE WILL BE REQUIRED FOR WARRANTY SERVICE.

For assistance regarding the assembly, controls, operation or maintenance of the unit, please call the Customer Support Department: 1-866-206-2707 (U.S.) or 1-877-696-5533 (Canada)

Additional information about the unit can be found on our website: www.remingtonpewortools.com For service, please call the Customer Support Department to obtain a list of authorized service dealers near you. Service on this unit, both within and after the warranty period, should only be performed by an authorized and approved service dealer. When servicing, use only identical replacement parts.

SAFETY INFORMATION
SYMBOL	MEANING
A	DANGER: Signals an EXTREME hazard. Failure to obey a safety DANGER signal WILL result in serious injury or death to yourself or to others.
A	WARNING: Signals a SERIOUS hazard. Failure to obey a safety WARNING signal CAN result in serious injury to yourself or to others.
A	CAUTION: Signals a MODERATE hazard. Failure to obey a safety CAUTION signal MAY result in property damage or injury to yourself or to others.

IMPORTANT! Signals special mechanical information.

NOTE: Signals additional important general information.

CALIFORNIA PROPOSITION 65

WARNING: Battery posts, terminals and certain finished components contain lead, lead compounds and chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.

- IMPORTANT SAFETY INSTRUCTIONS

GENERAL POWER TOOL SAFETY WARNINGS

WARNING: Read all safely warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and Instructions for future reference.

The term " power tool " in the warnings refers to your mains-operated (corded) power tool .

1) WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c> Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
DO NOT start the operation until the work area is clear and free from obstructions and there is secure footing.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GECL) protected supply. Use of a GECL reduces the risk of electric shock.
NOTE: The term "ground fault circuit interrupter (GFC)" may be replaced by the term residual current device (RCD) or "earth leakage circuit breaker (ELCB)".
- Make sure the extension cord is heavy enough to carry the current drawn by the unit. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. If in doubt, use the next heavier gauge cord. The smaller the gauge number, the heavier the cord.

MINIMUM WIRE SIZE FOR EXTENSION COBDS
FOR 120 VOLT APPLIANCES USING 0-10 AMPS

CORD LENGTH (FEET)	25	50	100	150
WIRE SIZE (AWG)	18	18	16	14

WARNING: To reduce the risk of electric shock, only use extension cords.

suitable for outdoor use, such as SW, SOW, STW, STOW, SJW, SJOW, SJTW or SJTOW cord types.

DO NOT handle the unit, plug(s) or cord(s) with wet hands.
DO NOT operate the unit on wet surfaces.
DO NOT cut near electrical cables or power lines.
DO NOT use multiple extension cords.
- Keep the cords away from the cutting area and position the cords so that they will not be caught on branches or other obstacles that may bind or entangle the cords during operation.
- Keep the cords away from the operator's feet to prevent tripping.
Make sure the cords are in good condition. Inspect the power cord and extension cord periodically. Look closely for deterioration, cuts or cracks in the insulation. If the power cord is damaged, have it repaired by an authorized service center. If the extension cord is damaged, replace it. Do not use a damaged cord or plug.
- If the extension cord is damaged in any manner while plugged in, disconnect the extension cord from the receptacle.
- Since the unit is double-insulated, a 2-wire extension cord suitable for outdoor use (one without a ground) may be used. However, a 3-wire extension cord suitable for outdoor use (one with a ground) that uses a NEMA-type connector (parallel blade, U ground) can be used. Extension cords are available from local retailers.
- To reduce the risk of electrical shock, this unit has a polarized plug (one blade is wider than the other) and will require the use of a polarized extension cord. The power cord plug will fit into a polarized extension cord only one way. If the plug does not fit fully into the extension cord, reverse the plug. If the plug still does not fit, obtain another polarized extension cord. A polarized extension cord will require the use of a polarized wall outlet. This plug will fit into the polarized wall outlet only one way. If the plug does not fit fully into the wall outlet, reverse the plug. If the plug still does not fit, contact a qualified electrician to install the proper wall outlet.
- A nameplate on your unit indicates the voltage used. Never connect the unit to an AC voltage that differs from this voltage.
Ground Fault Circuit Interrupter (GFCI) protection should be provided on the circuit(s) or outlet(s) that will be used with the unit. For an extra measure of safety, use receptacles with built-in GFCI protection.
- To reduce the likelihood of disconnecting the extension cord from the unit, be sure to use the cord restraint provided.

3) PERSONAL SAFETY

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skiid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards
DO NOT rely exclusively upon the safety devices built into the unit.
DO NOT allow the unit to be used as a toy.
DO NOT attempt operations beyond the operator's capacity or experience.
- DO NOT leave the unit unattended while the unit is connected to the power source. Unplug the unit from the power source when not in use.
- Be thoroughly familiar with the controls and the proper use of the unit. Know how to stop the unit and disengage the controls quickly.
- Never allow children to operate the unit.
- Make sure that all guards and safety attachments are properly installed before operating the unit. - Never allow bystanders to contact the unit or extension cord.
- Wear safety goggles, or safety glasses with side shields, that are marked as meeting ANSI ZB7.1-1989 standards. Failure to do so could result in serious eye injury caused by thrown or falling objects.
- Wear non-slip protective gloves and boots.

SAFETY INFORMATION

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
Only use the manufacturer's recommended attachments with this unit.

5) SERVICE

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
DO NOT operate a unit that is damaged, improperly adjusted or not completely and securely assembled.
- If the unit is not working as it should, has been dropped, damaged, left outdoors or dropped into water, do not use the unit. Have the unit serviced by an authorized service center.
- All service, other than the maintenance procedures described in this manual, should be performed by an authorized service center. Do not attempt to repair; there are no user servicoable parts inside.
- Follow all maintenance instructions in this manual.
Before Inspecting, servicing, cleaning, storing, transporting or replacing any parts on the unit

1. Make sure the switch is in the OFF position.
2. Make sure all moving parts have stopped.

3. Disconnect the unit from the power source.

4. Allow the unit to cool

5. Never remove, modify or make inoperative any safety device furnished with the unit.

6. Frequently inspect the unit for damage. Before further use, any damaged part should be carefully checked to determine that it will operate properly and perform its intended function.

7. If the unit starts to vibrate abnormally, stop the motor, disconnect the unit from the power source and allow the unit to cool. Then inspect the unit for the cause of the vibration. Vibration is generally an indicator of trouble.

8. Unplug the unit from the power source when not in use.

9. Be sure to secure the unit while transporting.
10. When not in use, store the unit indoors in a locked-up and dry, or high and dry, place to prevent unauthorized use or damage.
11. Keep the handles dry, clean and free from debris, oil and grease. Clean the unit after each use. Never douse or spray the unit with water or any other liquid. Do not wash the unit with a hose; avoid getting water in the motor and electrical connections. Do not use solvents or strong detergents.

Servicing a Double-insulated Unit

This is a double-insulated unit. Two systems of insulation are provided instead of grounding. There is no grounding provided and no means of grounding should be added to the unit. Servicing a double-insulated unit requires extreme care and knowledge of the system and should only be done by qualified service personnel. Replacement parts for a double-insulated unit must be identical to the parts they replace. Failure to have a double-insulated unit repaired by an authorized service technician with identical replacement parts could result in serious injury.

Hedge trimmer safety warnings:

DANGER:

serious personal injury.

• Keep all parts of the body away from the cutter blade. Do not remove cut material or hold material to be cut when blades are moving. Make sure the switch is off when clearing jammed material. Blades coast after turn off. A moment of inattention while operating the hedge trimmer may result in serious personal injury.
• Carry the hedge trimmer by the handle with the cutter blade stopped. Proper handling of the hedge trimmer will reduce possible personal injury from the cutter blades.
• Hold the power tool by insulated gripping surfaces only, because the cutter blade may contact hidden wiring or its own cord. Cutter blades contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
• Keep cable away from cutting area. During operation the cable may be hidden in shrubs and can be accidentally cut by the blade.
  DO NOT cut above shoulder height.
  DO NOT use the front hand guard as a handle.
  DO NOT operate the unit on unstable surfaces, such as trees, ladders, slopes or rooftops. Be very careful when using the unit on stairs.
• Inspect the work area before using the unit. Remove any hard and/or sharp objects, such as glass, wire, etc. If thrown or caught in the trimmer blade, such objects could cause property damage or injury to the operator or bystanders.
• If the unit strikes or becomes entangled with a foreign object, stop the motor immediately, disconnect the unit from the power source and check for damage. Do not restart or operate the unit before repairing damage.
• Before starting the unit, make sure the trimmer blade is not contacting anything.
  Always begin a cut with the motor running at full speed.
  Always stop the motor when operation is delayed, before setting down the unit or when walking from one location to another. Make sure the unit comes to a complete stop.
  This unit is intended for infrequent use by homeowners. It is not intended for prolonged use.
• Follow all lubrication instructions.
• Use both hands when operating the hedge trimmer. Using one hand could cause loss of control and result in serious personal Injury.

WARNING:

WARNING: Only use with handle and guard properly assembled to hedge trimmer. The use of the hedge trimmer without the proper guard or handle provided may result in serious personal injury.

SAVE THESE INSTRUCTIONS

SAFETY INFORMATION

SAFETY AND INTERNATIONAL SYMBOLS

This operator's manual describes safety and international symbols and pictographs that may appear on this product. Read the operator's manual for complete safety, assembly, operating, maintenance and repair information.

SYMBOL MEANING

SAFETY ALERT SYMBOL

Indicates danger, warning or caution. May be used in conjunction with other symbols or pictographs.

• READ OPERATOR'S MANUAL

WARNING: Read the operator's manual(s) and follow all warnings and safety instructions. Failure to do so can result in serious injury to the operator and/or bystanders.

• WEAR EYE AND HEARING PROTECTION

WARNING: Thrown objects and loud noise can cause severe eye injury and hearing loss. Wear eye protection meeting ANSI Z87.1-1989 standards and ear protection when operating this unit. Use a full face shield when needed.

• WEAR SAFETY GLOVES

Wear non-slip, heavy-duty protective gloves when handling the unit.

• WEAR SAFETY FOOTWEAR

Wear non-slip safely footwear when using this equipment.

• KEEP BYSTANDERS AWAY

WARNING: Keep all bystanders, especially children and pets, at least 50 feet (15 m) from the operating area. If anyone enters the work area, stop the unit!

SHARP BLADE

WARNING: The blade on this unit is sharp. To prevent serious injury, do not touch the blade. Keep both hands away from the blade while operating the unit.

DO NOT EXPOSE TO RAIN

WARNING: Avoid dangerous environments. Never operate your unit in the rain or in damp or wet conditions. Moisture is a shock hazard.

DO NOT USE A DAMAGED CORD

Remove plug from mains immediately if the cable is damaged.

• DOUBLE INSULATED

Two systems of insulation are provided instead of grounding. There is no grounding provided and no means of grounding should be added to the unit.

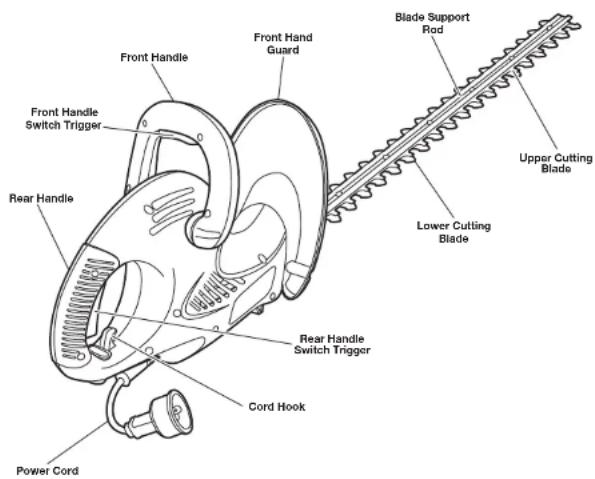

KNOW YOUR UNIT

APPLICATION

• For trimming of bushes and hedges.

NO TOOLS REQUIRED!

ASSEMBLY INSTRUCTIONS

CONNECTING AND DISCONNECTING THE POWER SOURCE

Connecting the Power Source

1. Connect the power cord plug to the extension cord (Fig. 1).

2. Make a narrow loop with the extension cord and push the loop through the cord hole in the rear handle (Fig. 2).

NOTE: If the extension cord does not fit through the cord hole, cross the extension cord over the power cord and connect the plugs (Fig. 3). Proceed to step 4.

1. Move the loop over and onto the cord hook and pull the cord gently to secure the loop into the hook (Fig. 2). This helps prevent accidental disconnection.
2. Connect the extension cord plug to the outlet.

Fig.1
Fig. 2

Disconnecting the Power Source

1. Disconnect the extension cord plug from the outlet. NOTE: DO NOT pull the cord out of the wall. Always remove the cord from the power source by the plug head.

2. Remove the loop in the extension cord from the cord hook (Fig. 2).

3. Disconnect the power cord plug from the extension cord (Fig. 1).

Fig.6Fig-3

STARTING AND STOPPING INSTRUCTIONS

STARTING THE UNIT

To help prevent accidental start-ups, this unit has a front handle switch trigger and a rear handle switch trigger that must be used together to start the unit.

Connect the unit to the power so Connecting the Power Source.

1. Hold the front handle with one hand and squeeze the front handle switch trigger (Fig. 4).
2. Hold the rear handle with the other hand and squeeze the rear handle switch trigger (Fig. 4). The unit should start immediately.
3. Continue to squeeze both switch triggers for continued operation.

STOPPING THE UNIT

1. Release one or both of the switch triggers.

NOTE: It is normal for the trimmer blade to coast to a stop once a switch trigger is released.

OPERATING INSTRUCTIONS

WARNING: To reduce the risk of electric shock, using a Ground Fault Circuit Interrupter (GFC) with a tripping current of 30mA or less is recommended.

WARNING: Do not allow familiarity with this unit to promote carelessness. Remember that a careless fraction of a second is enough to inflit serious injury.

WARNING: If any parts are damaged or missing, do not operate the unit until the parts are replaced. Failure to heed this warning could result in serious personal injury.

WARNING: Always wear appropriate eye and ear/hearing protection when operating this unit. Wear safety goggles, or safety glasses with side shields, that are marked as meeting ANSI 287.1-1989 standards. Failure to do so could result in serious eye Injury caused by thrown objects. If the operation is dusty, wear a facemask or dust mask.

WARNING: Wear non-slip gloves for maximum grip and protection. Refer to the Safety Information section for appropriate safety equipment.

WARNING: Do not expose the unit to rain. Do not use the unit in damp or wet locations or conditions.

HOLDING THE UNIT

Hold the unit firmly with both hands. Always keep one hand on the front handle and the other hand on the rear handle (Fig. 5).
- Maintain a proper grip on the unit whenever the motor is running. The fi ngers should encircle the handle and the thumb should wrap under the handle. This grip is least likely to be broken. Any grip in which the thumb and fi ngers are on the same side of the handle is dangerous because a slight kick of the unit can cause loss of control.
- Keep hands away from the trimmer blade. Keep both hands on the handles and behind the protective guard whenever the motor is running.
Balance body weight securely, with both feet on solid ground (Fig. 5).

WORK AREA PRECAUTIONS

• Keep everyone - helpers, bystanders, children and animals - at least 50 feet (15 m) away from the work area. If anyone enters the work area, stop the unit!
• Only operate the unit when visibility and light are adequate to see clearly.
• Keep the work area clean. Do not start the operation until the work area is clear and free from obstructions. Remove all cords, lights, wires, strings or other objects that could become entangled in the trimmer blade.

BASIC OPERATING PROCEDURES

DANGER: If the trimmer blade gets caught on an electrical cord or wire, DO NOT TOUCH THE BLADE! IT MAY BE ELECTRICALLY LIVE AND EXTREMELY DANGEROUS. Release the trimmer in the quickest and safest way. If possible, disconnect the damaged electrical cord or wire from its power source. If that is not possible, call an electrician, electrical contractor, or the power company for assistance. Failure to heed this danger warning will cause serious personal injury or possible death.

WARNING: Do not attempt to remove cut material or hold material to be cut while the trimmer blade is moving. Do not grasp the trimmer blade when picking up or holding the unit. Make sure the unit is disconnected from the power source before clearing any jammed material from the trimmer blade.

IMPORTANT: Lubricate the trimmer blade before and after each use. Ignoring this step will decrease the life of the trimmer blade and hamper operation. Refer to Maintenance and Repair Instructions.
- Use the hedge trimmer for trimming and formling hedges, shrubs and bushes with a branch diameter of up to 3/4 of an inch (19 mm). For larger branches, use a non-powered saw or pruning saw.
Work slowly, while maintaining a proper grip and stance.
- Allow the unit to do the cutting. Forcing the unit through dense growth, or attempting to trim too much at one time, can cause the blade to bind and slow, reducing the cutting efficiency. Forcing the unit can also result in damage to the blade and can increase the chance of personal injury.

• When trimming new growth, use a wide sweeping action, so that stems are fed directly into the trimer blade (Fig. 6). Older growth will have thicker stems and will be trimmed easiest by using a sawing motion.
• Release the switch trigger(s) as soon as the cut is completed. Allow the trimmer blade to come to a complete stop. Unnecessary wear may occur if the unit is run without a cutting load.
• After completing the cut, wait for the trimmer blade to stop before moving the unit. Always stop the motor before moving from hedge to hedge.
• If desired, use a string to help cut hedges level. Determine the desired height of the hedge, then stretch a length of string along the hedge at that height. Trim the hedge to just above the string line. Trim the side of the hedge so that it will be slightly narrower at the top. More of the hedge will be exposed when shaped this way, and it will appear more uniform.
• Do not cut from a ladder; this is extremely dangerous.
• Do not cut above shoulder height, as a hedge trimmer held higher is more difficult to control.

MAINTENANCE INSTRUCTIONS

WARNING: To avoid possible serious injury, never touch or adjust the trimmer blade while the motor is running. The trimmer blade is very sharp; always wear protective gloves when performing maintenance to the trimmer blade.

MAINTENANCE

Follow all maintenance instructions in this manual.

NOTE: All service, other than the maintenance procedures described in this manual, should be performed by an authorized service center. Do not attempt to repair; there are no user serviceable parts inside.

Before inspecting, servicing, cleaning, storing, transporting or replacing any parts on the unit, make sure: 1. The switch triggers are released.

1. All moving parts have stopped.
2. The unit is disconnected from the power source.
3. The unit is cool.

The cutting blades are made from high-quality, hardened steel and with normal usage will not require sharpening. However, if the trimmer blade accidentally hits wire fencing, stones, glass, nails or other hard objects, the blade may become nicked. There is no need to remove this nick unless it interferes with the movement of the trimmer blade. If it does interfere, or if the performance of the unit has diminished due to blade dullness, have the trimmer blade sharpened by an authorized service center.

LUBRICATING THE BLADE

• For easier operation and longer blade life, lubricate the trimmer blade before and after each use.
• During use, occasionally stop the motor and lubricate the trimmer blade as needed. Ensure that the switch triggers are released and the unit is unplugged prior to lubricating the blade.
• Apply light machine oil along the edge of the top blade (Fig. 7).

Fig.7

CAUTION: Some spray-on lubricants contain solvents and will cause some types of grease to break down. To prevent damage to the unit, only use a high-quality machine oil.

CLEANING AND STORAGE

WARNING: Do not let brake fluids, gasoline, petroleum-based products, penetrating oils, etc., come in contact with plastic parts. These chemicals may damage, weaken and destroy plastic, which may result in serious personal injury.

Before inspecting, servicing, cleaning, storing, transporting or replacing any parts on the unit, make sure: 1. The switch triggers are released.

1. All moving parts have stopped.
2. The unit is disconnected from the power source.
3. The unit is cool

CLEANING, STORAGE & TRANSPORTING

• Keep the handles dry, clean and free from debris, oil and grease. Clean the unit after each use. Never douse or spray the unit with water or any other liquid. Do not use solvents or strong detergents.

• Use a firm-bristled, non-wire, brush to remove debris from the trimmer blade.

• Wipe the unit down with a damp cloth.

• Lubricate the trimmer blade. Refer to Maintenance Instructions.

• When not in use, store the unit indoors in a locked and dry, or high and dry, place to prevent unauthorized use or damage. Keep out of the reach of children.

• Be sure to secure the unit while transporting.

TROUBLESHOOTING

PROBLEM SOLUTION
MOTOR WILL NOT START
Triggers / switches are not fully pressed	Make sure all switches / triggers are fully pressed
Extension cord connection is loose Check cord connections
Household circuit breaker is tripped or open Iline fuse	Check circuit breaker or line fuse
MOTOR RUNS, BUT BLADES DO NOT MOVE
The trimmer blade is jammed with debris Clean the trimmer blade
Blades damaged	DO NOT USE. Contact an authorized service center.
UNIT SMOKES DURING OPERATION
Unit damaged	DO NOT USE. Contact an authorized service center.

SPECIFICATIONS*

Motor Type	Electric, Corded
Motor Voltage	120 VAC
Motor Amperage	4.5 Amps
Reciprocating Speed	3500 SPM (Strokes Per Minute)
Blade Length	22 in. (55.9 cm)
Maximum Cutting Diameter	3/4 In. (19 mm)
Approximate Unit Weight	6.5 lbs. (2.9 kg)

All specifications are based on the latest product information available at the time of printing. We reserve the right to make changes at any time without notice.

技能 SW, SOW, STW, STOW, SJW, SJOW, SJTW, SJTOW.

The limited warranty sel forth below is given by Remington LLC with respect to new merchandise purchased and used in the United States, its possessions and territories.

Remington LLC warrants this product against defects in material and workmanship for a period of two (2) years commencing on the date of original purchase and will, at its option, repair or replace, free of charge, any part to be defective in material or workmanship. This limited warranty shall only apply if this product has been operated and maintained in accordance with the Operator's Manual furnished with the product, and has not been subject to misuse, abuse, commercial use, neglect, accident, improper maintenance, alteration, vandalism, theft, fire, water or damage because of other peril or natural disaster. Damage resulting from the installation or use of any accessory or attachment not approved by Remington LLC for use with the product(s) covered by this manual will void your warranty as to any resulting damage.

How To Obtain SERVICE: Warranty service is available, WITH PROOF OF PURCHASE THROUGH YOUR LOCAL AUTHORIZED SERVICE DEALER. To locate the dealer In your area, visit our website at www.remingtonpowertools.com, check for a listing in the Yellow Pages, call 1-866-206-2707 in the United States or 1-877-696-5533 in Canada, or write to P.O. Box 361032, Cleveland, OH 44136.

This limited warranty does not provide coverage in the following cases:

A. Tune-ups - Spark Plugs, Carburetor Adjustments, Filters
B. Wear items - Bump Knobs, Outer Spools, Cutting Line, Inner Reels, Starter Pulley, Starter Ropes, Drive Belts, Saw Chains, Guide Bars, Cultivator Tines.
C. Remington LLC does not extend any warranty for products sold or exported outside of the United States of America, its possessions and territories, except those sold through Remington's authorized channels of export distribution.

Remington LLC reserves the right to change or improve the design of any Remington Product without assuming any obligation to modify any product previously manufactured.

No implied warranty, including any implied warranty of merchantability or fitness for a particular purpose, applies after the applicable period of express written warranty above as to the parts as identified. No other express warranty or guaranty, whether written or oral, except as mentioned above, given by any person or entity, including a dealer or retailer, with respect to any product shall bind Remington LLC. During the period of the Warranty, the exclusive remedy is repair or replacement of the product as set forth above. (Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.)

The provisions as set forth in this Warranty provide the sole and exclusive remedy arising from the sales. Remington LLC shall not be liable for incidental or consequential loss or damages including, without limitation, expenses incurred for substitute or replacement lawn care services, for transportation or for related expenses, or for rental expenses to temporarily replace a warranted product. (Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.)

for loss, damage, or injury to you and your property and/or to others and their property arising out of the use or misuse or inability to use the product.

This limited warranty shall not extend to anyone other than the original purchaser, original lessee or the person for whom it was purchased as a gift.

How State Law Relates to this Warranty: This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

To locate your nearest service dealer dial 1-866-206-2707 in the United States or 1-877-696-5533 in Canada.
