USER MANUAL HFN20 Royal Sovereign

www.royalsovereign.com Royal Sovereign International, Inc. HFN-20 OSCILLATING FAN HEATER Owner's Manual Please read and retain these instructions.To register your product, please go to www.royalsovereign.com USA. Click the Customer Support Tab then Registration Tab.www.royalsovereign.comPage en Français 9 HFN-20 E+F manual(10-05-13).indd 跨页 1/8 - 页面 (16, 1)HFN-20 E+F manual(10-05-13).indd 跨页 1/8 - 页面 (16, 1) 2010.5.17 2:48:30 PM2010.5.17 2:48:30 PMOSCILLATING FAN HEATER Model HFN-20 Series INTRODUCTION Thank you for choosing Royal Sovereign to provide you and your family with all of the “Home Comfort” requirements for your home, apartment, or office. This Heater can be set-up in just minutes and can be easily moved from room to room. It is a multi-functional room air comfort system that offers you Heating and Fan Only modes. This manual will provide you with valuable information necessary for the proper care and maintenance for your new heater. Please take a few moments and read the instructions thoroughly. If properly maintained, your heater will give you many years of trouble free operation. HFN-20

• Do not block or cover air outlets. Electrical Specifications and Power Cord Check to ensure that the electrical service being used is adequate for the model you’ve chosen. The electrical rating of your new heater is defined on the serial sticker on the unit. Please refer to the rating when checking electrical requirements to ensure they meet the electrical codes of your location.

• Do not use this appliance if it malfunctions or is dropped or damaged in any manner.

• Do not use outdoors. Do not place on or near a hot gas, electric burner, a microwave, or a heated oven.

• To protect against fire, electric shock or injury, do not place cord, plug, or appliance in water or other liquid.

• The wrong use conflicting with the safeguards voids the customer of the right for warranty service.

• Do not modify any part of this product.

• Do not insert any objects into the product or block the airflow in any way.

• Ensure that the power supply you use has an appropriate voltage rating.

• If the electrical outlet you intend to use is not adequately grounded or protected by a time delay fuse or circuit breaker, you should have a qualified electrician install the proper outlet.

• Do not use this unit with any extension cords or adapter plugs.

• If the cord or plug is damaged in any way, please call the Royal Sovereign Service Department

• Turn the unit off and unplug, when cleaning the heater or when the heater will not be used for an extended time period.

• When overheating should occur the built-in overheating safety device will shut the appliance off. General Use

• Do not block air outlets with any obstacles.

• Do not insert any objects into the heater.

• Do not pour water on the housing or control panel.

• Do not place heavy items or sit on the heater.

• Never pull or damage the power cord in any way.

• Don’t let your children use the appliance.

• The repair of the appliance must be performed by a professional. Mistakes in repair are dangerous and can bring great hazard to the user. HFN-20

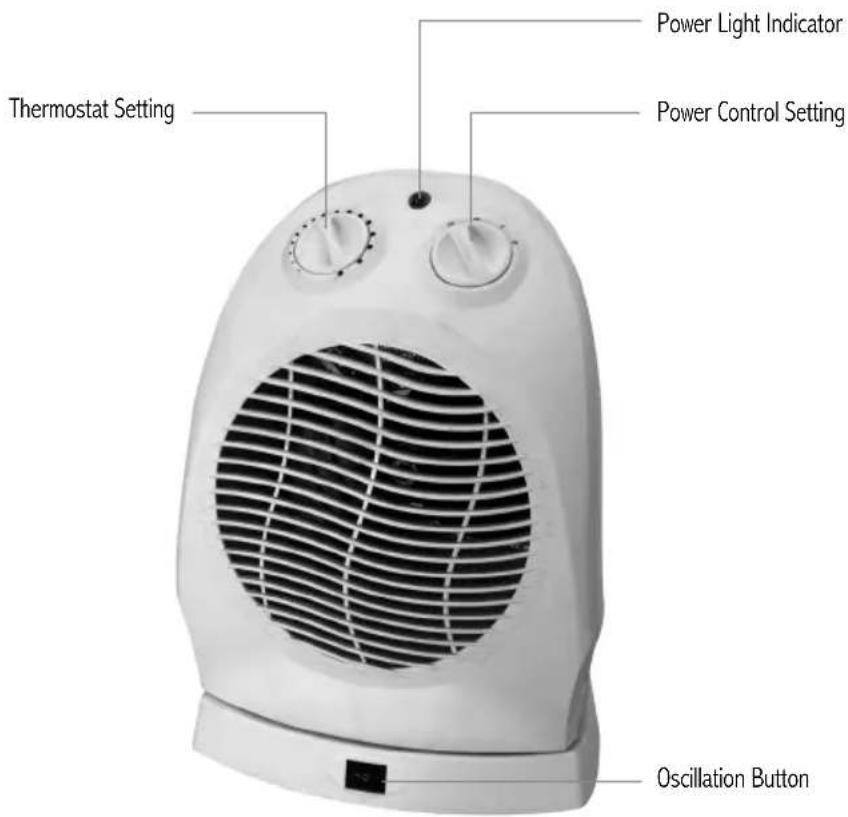

Description Thermostat Setting Power Light Indicator Power Control Setting Oscillation Button HFN-20 E+F manual(10-05-13).indd 跨页 5/8 - 页面 (12, 5)HFN-20 E+F manual(10-05-13).indd 跨页 5/8 - 页面 (12, 5) 2010.5.17 2:48:34 PM2010.5.17 2:48:34 PM6 OPERATION Keep combustible materials, such as furniture, beddings, papers, clothes, and curtains at least 1.2m (4 feet) away from the front, the sides and rear of the heater. Not suitable for use in a bathroom or near water. Unwind the power cord and plug in unit. Turn the Control Setting clockwise to the ‘* ’position for fan, ‘I’ position for heating selection with low power, ’II’ position for heating selection with maximum power. Turn the Thermostat setting clockwise to the maximum setting. To regulate temperature, when the room has reached the desired comfort level, slowly turn the Thermostat setting counter-clockwise just to the point where the heater switches off and not beyond. The temperature fixed in this way will be automatically regulated and kept at a constant level by the thermostat. Press Oscillation Button at the front bottom and the heater will oscillate. Press it again and the oscillation will stop. Turn the Power Control setting to ‘O’ position to turn the power OFF. Unplug the unit to turn the power OFF. The power light will go off. SAFETY FEATURES This heater has a built in safety features including overheat protection & thermal fuse. TROUBLESHOOTING If your heater shuts off or fails to operate unexpectedly, one of the safety features may have been activated to prevent overheating. Please follow next steps to reset the heater.

1. Turn the Power Control setting to ‘O’ position.

2. Unplug the power cord and allow 5~10 minutes for heater to cool completely.

3. Be sure the power cord is plugged into a working electrical outlet, and that the unit is not obstructed.

4. Check your Thermostat setting. The unit may simply be off because the Thermostat setting equals room temperature.

• Before cleaning, unplug the appliance and let it cool down. Wipe the unit with a soft wet cloth. Don’t use solvents or abrasives.

• Allow sufficient drying time before operating again.

• To prevent damage, don’t scrape the heater or coils with a sharp instrument

• We recommend that the heater be cleaned and packed in its original packaging and stored in a cool, dry place.

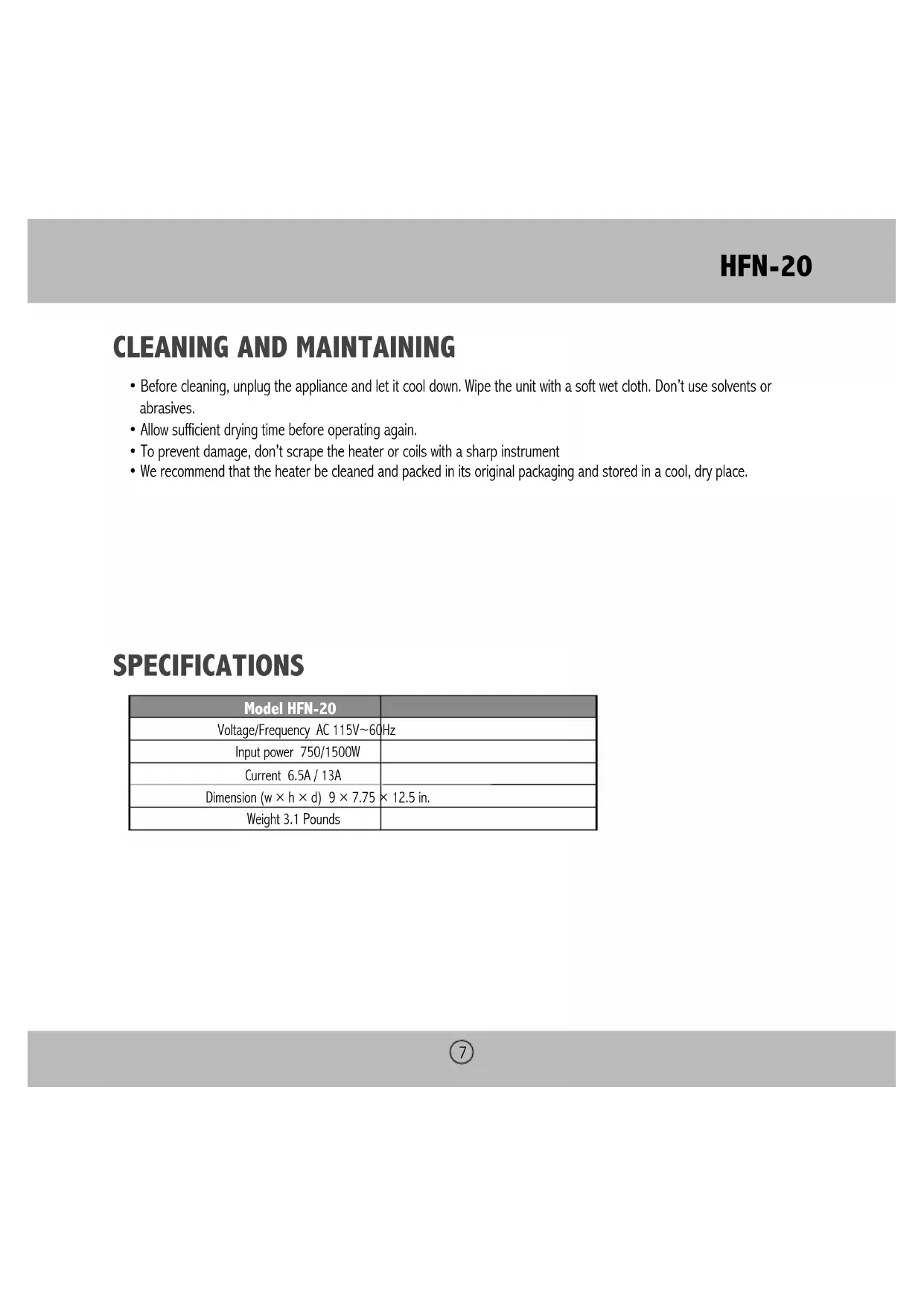

CLEANING AND MAINTAINING

SPECIFICATIONS Model HFN-20 Voltage/Frequency AC 115V~60HzInput power 750/1500WCurrent 6.5A / 13ADimension (w × h × d) 9 × 7.75 × 12.5 in.Weight 3.1 Pounds HFN-20 E+F manual(10-05-13).indd 跨页 7/8 - 页面 (10, 7)HFN-20 E+F manual(10-05-13).indd 跨页 7/8 - 页面 (10, 7) 2010.5.17 2:48:35 PM2010.5.17 2:48:35 PM8 WARANTY Royal Sovereign warrants each heater to be free from defects in material and workmanship. Our obligation under this warranty is limited to the repair or replacement, free of charge, when delivered to an authorized Royal Sovereign service center, of any defective part(s) thereof, other than parts damaged in transit. This warranty is in effect to the original purchaser, for a period of one year from the date of purchase and is not transferable. This warranty shall apply only if the heater is used in accordance with the factory provided instructions which accompany it. EXCLUSIONS This warranty excludes and does not cover defects, malfunctions or failures of your Royal Sovereign Heater, caused by repairs by unauthorized persons or service centers,mishandling, improper installation, modification or unreasonable use including incorrect voltage, acts of God, or failure to provide reasonable and necessary maintenance. This warranty is in lieu of any and all expressed warranties. In no event shall Royal Sovereign be liable for consequential or incidental damages. This limitation would not apply if you live in a location that does not permit the exclusion of limitation of incidental or consequential damages. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.ROYAL SOVEREIGN INTERNATIONAL, INC. RS CANADA INC.2 Volvo Drive Rockleigh, NJ 07647 USA 1025 Westport Crescent, Mississauga On L5T 1E8 CANADATEL : +1) 800-397-1025 FAX : +1) 201-750-1022 TEL : +1) 905-461-1095 TF # : +1) 866-961-6673 FAX : +1) 905-461-1096 www.royalsovereign.com Royal Sovereign International, Inc. HFN-20 VENTILATEUR DE CHAUFFAGE OSCILLANT Guide de l'utilisateur Veuillez lire et conserver ces instructions. Pour enregistrer votre produit, allez à www.royalsovereign.com États-Unis. Cliquez sur « Customer Support » (service à la clientèle), puis sur l'onglet « Registration » (Enregistrement). www.royalsovereign.com Page en Français 9 HFN-20 E+F manual(10-05-13).indd 跨页 8/8 - 页面 (8, 9)HFN-20 E+F manual(10-05-13).indd 跨页 8/8 - 页面 (8, 9) 2010.5.17 2:48:36 PM2010.5.17 2:48:36 PM8 WARANTY Royal Sovereign warrants each heater to be free from defects in material and workmanship. Our obligation under this warranty is limited to the repair or replacement, free of charge, when delivered to an authorized Royal Sovereign service center, of any defective part(s) thereof, other than parts damaged in transit. This warranty is in effect to the original purchaser, for a period of one year from the date of purchase and is not transferable. This warranty shall apply only if the heater is used in accordance with the factory provided instructions which accompany it. EXCLUSIONS This warranty excludes and does not cover defects, malfunctions or failures of your Royal Sovereign Heater, caused by repairs by unauthorized persons or service centers,mishandling, improper installation, modification or unreasonable use including incorrect voltage, acts of God, or failure to provide reasonable and necessary maintenance. This warranty is in lieu of any and all expressed warranties. In no event shall Royal Sovereign be liable for consequential or incidental damages. This limitation would not apply if you live in a location that does not permit the exclusion of limitation of incidental or consequential damages. This warranty gives you specific legal rights and you may also have other rights which vary from state to state. ROYAL SOVEREIGN INTERNATIONAL, INC. RS CANADA INC. 2 Volvo Drive Rockleigh, NJ 07647 USA 1025 Westport Crescent, Mississauga On L5T 1E8 CANADA TEL : +1) 800-397-1025 FAX : +1) 201-750-1022 TEL : +1) 905-461-1095 TF # : +1) 866-961-6673

• Before cleaning, unplug the appliance and let it cool down. Wipe the unit with a soft wet cloth. Don’t use solvents or abrasives.

• Allow sufficient drying time before operating again.

• To prevent damage, don’t scrape the heater or coils with a sharp instrument

• We recommend that the heater be cleaned and packed in its original packaging and stored in a cool, dry place.

CLEANING AND MAINTAINING

SPECIFICATIONS Model HFN-20 Voltage/Frequency AC 115V~60Hz Input power 750/1500W Current 6.5A / 13A Dimension (w × h × d) 9 × 7.75 × 12.5 in. Weight 3.1 Pounds HFN-20 E+F manual(10-05-13).indd 跨页 7/8 - 页面 (10, 7)HFN-20 E+F manual(10-05-13).indd 跨页 7/8 - 页面 (10, 7) 2010.5.17 2:48:35 PM2010.5.17 2:48:35 PM6 OPERATION Keep combustible materials, such as furniture, beddings, papers, clothes, and curtains at least 1.2m (4 feet) away from the front, the sides and rear of the heater. Not suitable for use in a bathroom or near water. Unwind the power cord and plug in unit. Turn the Control Setting clockwise to the ‘* ’position for fan, ‘I’ position for heating selection with low power, ’II’ position for heating selection with maximum power. Turn the Thermostat setting clockwise to the maximum setting. To regulate temperature, when the room has reached the desired comfort level, slowly turn the Thermostat setting counter-clockwise just to the point where the heater switches off and not beyond. The temperature fixed in this way will be automatically regulated and kept at a constant level by the thermostat. Press Oscillation Button at the front bottom and the heater will oscillate. Press it again and the oscillation will stop. Turn the Power Control setting to ‘O’ position to turn the power OFF. Unplug the unit to turn the power OFF. The power light will go off. SAFETY FEATURES This heater has a built in safety features including overheat protection & thermal fuse. TROUBLESHOOTING If your heater shuts off or fails to operate unexpectedly, one of the safety features may have been activated to prevent overheating. Please follow next steps to reset the heater.

1. Turn the Power Control setting to ‘O’ position.

2. Unplug the power cord and allow 5~10 minutes for heater to cool completely.

3. Be sure the power cord is plugged into a working electrical outlet, and that the unit is not obstructed.

4. Check your Thermostat setting. The unit may simply be off because the Thermostat setting equals room temperature.

• Do not block or cover air outlets. Electrical Specifications and Power Cord Check to ensure that the electrical service being used is adequate for the model you’ve chosen. The electrical rating of your new heater is defined on the serial sticker on the unit. Please refer to the rating when checking electrical requirements to ensure they meet the electrical codes of your location.

• Do not use this appliance if it malfunctions or is dropped or damaged in any manner.

• Do not use outdoors. Do not place on or near a hot gas, electric burner, a microwave, or a heated oven.

• To protect against fire, electric shock or injury, do not place cord, plug, or appliance in water or other liquid.

• The wrong use conflicting with the safeguards voids the customer of the right for warranty service.

• Do not modify any part of this product.

• Do not insert any objects into the product or block the airflow in any way.

• Ensure that the power supply you use has an appropriate voltage rating.

• If the electrical outlet you intend to use is not adequately grounded or protected by a time delay fuse or circuit breaker, you should have a qualified electrician install the proper outlet.

• Do not use this unit with any extension cords or adapter plugs.

• If the cord or plug is damaged in any way, please call the Royal Sovereign Service Department

• Turn the unit off and unplug, when cleaning the heater or when the heater will not be used for an extended time period.

• When overheating should occur the built-in overheating safety device will shut the appliance off. General Use

• Do not block air outlets with any obstacles.

• Do not insert any objects into the heater.

• Do not pour water on the housing or control panel.

• Do not place heavy items or sit on the heater.

• Never pull or damage the power cord in any way.

• Don’t let your children use the appliance.

• The repair of the appliance must be performed by a professional. Mistakes in repair are dangerous and can bring great hazard to the user. HFN-20
