USER MANUAL RPH260G Royal Sovereign

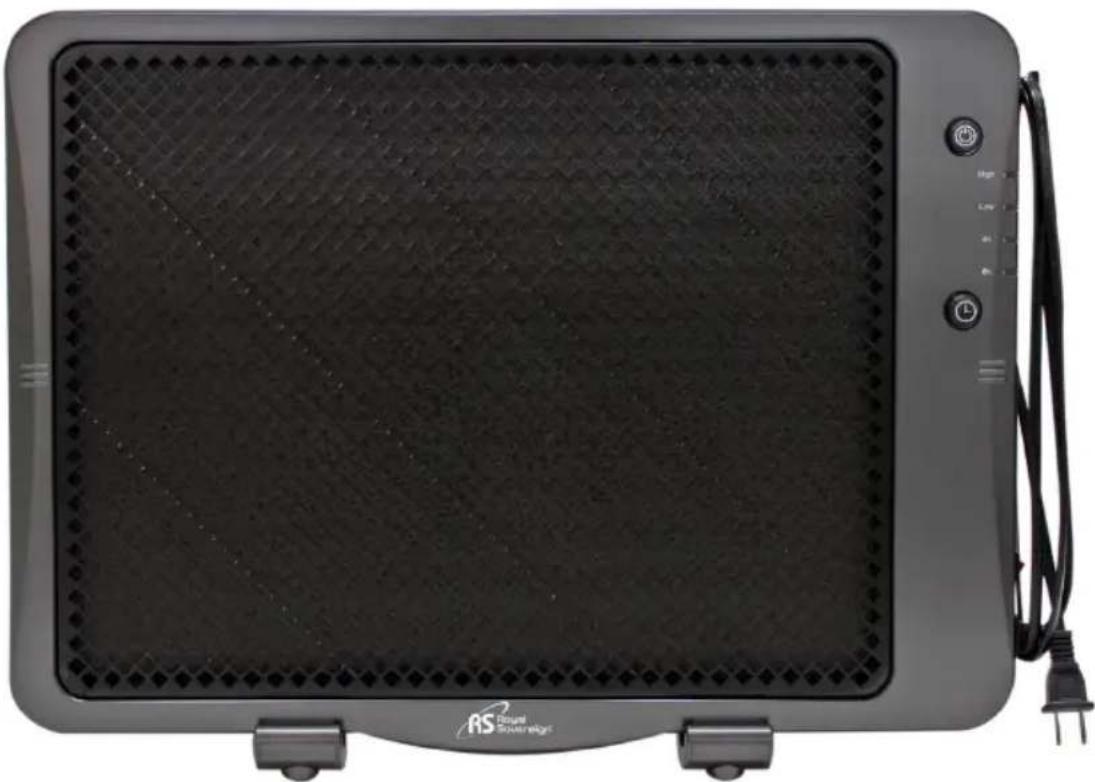

Energy Efficient Panel Heater

Front view of a black square electronic device with a mesh grille and power cord, no visible text or symbols on the device itself.

RPH-260G

Royal Sovereign International Inc.

Please read and retain these instructions. Because our products are subject to continuous improvement, Royal Sovereign reserves the right to modify product design and specifications without notice and without incurring any obligation.

CONTENTS

Safety Instructions 2

Important Instructions 3

Description 4

Operation 4

Installation 5

Cleaning and Maintenance 6

Specifications 6

Warranty 7

Page en français 8

IMPORTANT: Please read all instructions and warnings carefully before installation and use. Failure to follow these instructions may result in a possible electric shock, injury to persons, or possible fire hazard. It will also void the warranty.

Safety Instructions

- Do not block or cover air outlets.

Electrical Specifications and Power cord

Check to ensure that the electrical specifications is adequate for this unit. The electrical rating of this heater is outlined on the serial sticker placed on the unit. Please refer to the electrical rating when checking electrical requirements to ensure they meet the electrical codes of where it is used.

• Do not use this unit if it malfunctions or is dropped or damaged in any manner.
• Do not use outdoors. Do not place on or near a hot gas, electric burner, a microwave, or a heated oven.
• To protect against fire, electric shock or injury, do not place cord, plug or appliance in water or other types of liquid.

- Incorrect use of the safeguards will void the warranty of this product.

- Do not modify any part of this unit

- Do not insert any objects into the unit or block the airflow in any way.

- Ensure that the power supply you use has an appropriate voltage rating.

- If the electrical outlet you intend to use is not adequately grounded or protected by a time delay fuse or circuit breaker, you should have a qualified electrician install the proper outlet before use.

- Do not use this unit with any extension cords or adapter plugs.

- If the cord or plug is damaged in any way, please call the Royal Sovereign Service Center

- Turn the unit off and unplug it when cleaning the unit or when/if the heater is not be used for an extended time period.

- If overheating should occur, the built-in overheating safety device in the unit will shut the unit off.

General Use

- Do not block air outlets with any obstacles.

- Do not pour water on the housing or control panel.

- Never pull or damage the power cord in any way.

- Do not insert any objects into the unit.

- Do not place heavy items or sit on the unit.

- Don't let your children use the unit

The repair of the unit must be performed by a professional. Mistakes in repair are dangerous and can bring great hazard to the user.

Read & Fully Understand This Owner's Manual Before Using This Unit

Important Instructions

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

1. Read all instructions before using this unit.
2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 4 feet (1.2m) from the front of the unit and keep them away from the sides and rear. Not suitable for use in a bathroom or near water.
3. Extreme caution is necessary when any heater is used by or near children and whenever the heater is left operating and unattended.
4. Always unplug heater when not in use and when moving this unit
5. Do not operate this unit with a damaged cord or plug or after a heater malfunction, or the unit has been dropped or damaged in any manner. Discard the unit, or return to authorized service facility for examination and/or repair.
6. This unit is not intended for use in bathrooms, laundry areas and similar indoor locations. Never locate the unit where it may fall into a bathtub or other water container.
7. Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange the cord away from busy traffic area and where it will not be tripped over.
8. To disconnect the unit, turn the controls to the OFF position and then remove the plug from the electrical outlet.
9. Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
10. To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, where openings may become blocked.
11. A heater has hot and potentially sparking parts inside. Do not use it in areas where gasoline, paint, or flammable liquids are used or stored.
12. Use this heater only as described in this manual. Any other use not recommended by Royal Sovereign and may cause fire, electric shock, or injury to persons.
13. Always plug heaters directly into a wall outlet/receptacle. Never use with an extension cord or relocatable power tap (outlet/power strip).

SAVE THESE INSTRUCTIONS

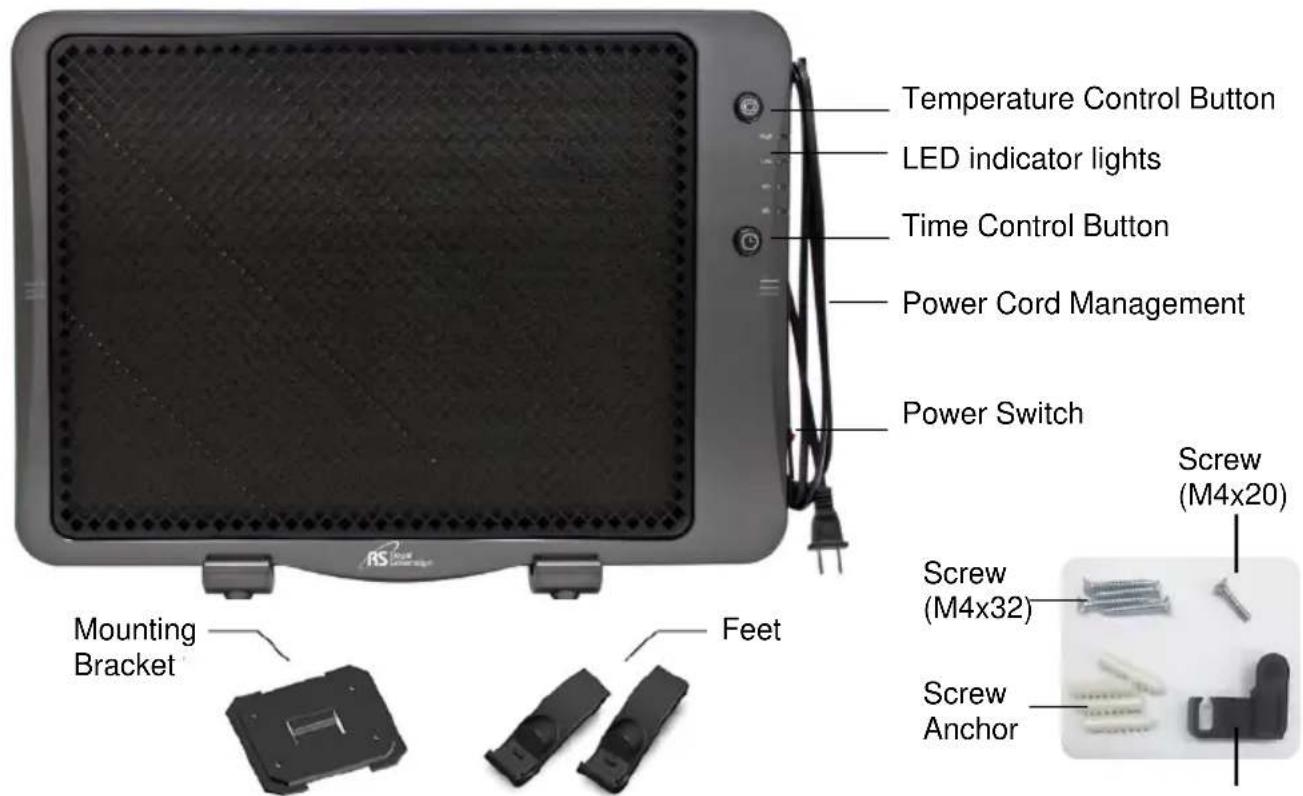

Description

Temperature Control Button LED indicator lights Time Control Button Power Cord Management Power Switch Mounting Bracket Feet Screw (M4x20) Screw (M4x32) Screw Anchor

Operation

1. Unwind the power cord and plug the cord into electrical outlet. Ensure the plug fits tightly in outlet. Turn ON the Power Switch
2. Press the temperature control button to adjust high, low or Off setting. The unit is defaulted at 4 Hour / High setting.
3. Press the Timer control button to adjust the timer - 4 hour or 8 hour setting

Note: If there are issues with the unit, all four LED lights will flicker ON and OFF and the unit will not operate.

SAFETY FEATURES

This unit has a built in safety features including overheat protection, current fuse and safety tip over feature.

The temp/control button and control button provides safety tip over feature in the event the unit falls over. The temp/control and control button when tipped over will be pushed in as the unit falls, to automatically turn the heater off.

※ Important Note: When using this heater under a desk or table, it is recommended that Low setting be used due to the possibility of the heater having direct contact with the user (e.g. clothes).

Please refer to the installation section of the manual for details.

Installation

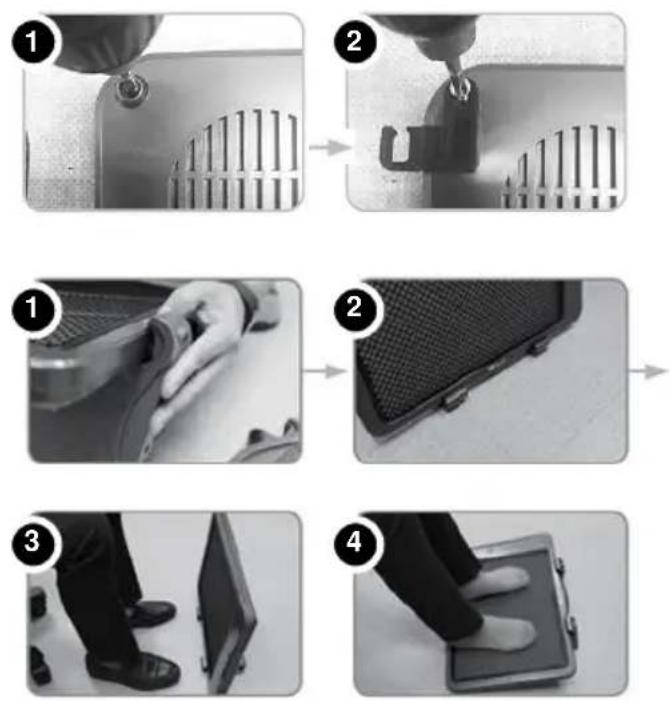

Power Cord Management

For added convenience, this unit comes with a power cord winder.

1. Remove the screw (located at the back of the unit at the top)
2. Use the supplied screw (M4x20) to connect the power cord winder to the unit

Installation with feet

1. Locate the hole at the bottom of the heater.
2. Attach the two supplied stand brackets to the heater
3. Place the heater under a desk or table or other area where the heater is to be used.
4. Turn the unit ON and select the setting to be used (Refer to Operation)

Installation (Continued)

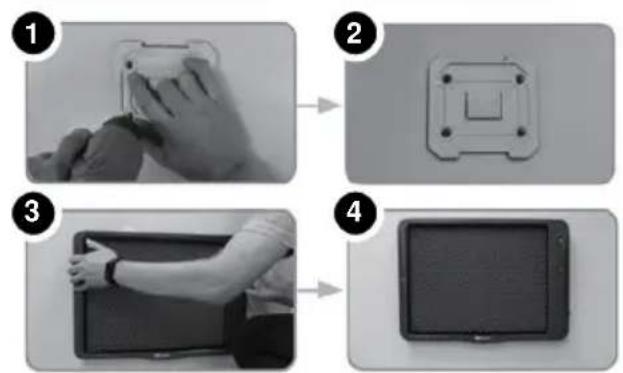

Installation with the mounting bracket

1. Ensure the location is sufficient for this panel heater to be used.
   2 Use the supplied screws (M4x32) and anchors if needed and attach the mounting bracket to the wall, desk or table
   3 Slide the heater into to the mounting bracket
   4 Turn the unit ON and select the setting to be used (Refer to Operation)

※ Important Note: If placing under a desk or table to ensure that it can hold the weight of this heater.

Cleaning and Maintenance

• Unplug the unit and let it cool down before cleaning. Wipe the unit with a soft wet cloth. Do not use solvents or abrasives.
• Allow sufficient drying time before turning the unit on again
• To prevent damage, don't scrape the heater or coils with any sharp instruments
• If not used for an extended period of use, it is recommended that the unit be cleaned and packed in the original box and stored in a cool, dry place.

Specifications

Model RPH-260G
Voltage AC 120 V, 50 / 60 Hz
Input power High : 260 W, Low : 130 W
Dimensions (W x D x H) 20.6" x 15.2" x 1.1" (522 x 385 x 28mm)
Weight 5 lbs (2.3 kg)

Warranty (One Year Limited)

Royal Sovereign International, Inc. (and its affiliated companies) warranties this product to be free from defects in material and workmanship for a period of one (1) year. This warranty is extended to the original purchaser only.

This warranty only covers products that are properly installed, properly maintained, and properly operated in accordance with the instructions provided. This limited warranty does not cover any failures or operating difficulties due to normal wear and tear, accident, abuse, misuse, alteration, misapplication, improper installation, or improper maintenance and service by you or any third party.

Returned product will not be accepted without a Return Authorization number. To request a Return Authorization number, please visit us at www.royalsovereign.com. All transportation costs for the return of damaged product or parts will be the responsibility of the purchaser. Return defective product, in original packaging, to the address below.

Royal Sovereign International Inc. requires reasonable proof of your date of purchase from an authorized retailer or distributor. Therefore, you should keep your receipt, invoice, or canceled check from the original purchase. The limited warranty shall be limited to the repair or replacement of parts which prove defective under normal use and service within the warranty period.

Royal Sovereign International, Inc. SHALL HAVE NO LIABILITY WHATSOEVER TO PURCHASER OR ANY THIRD PARTY FOR ANY SPECIAL, INDIRECT, PUNITIVE, INCIDENTAL, OR CONSEQUENTIAL DAMAGES. Some states do not allow the exclusion or limitation of incidental or consequential damages so the above exclusion and limitations may not apply to you.

Royal Sovereign International, Inc.

2 Volvo Dr., Rockleigh, NJ 07647 USA

Email: [e-mail]

www.royalsovereign.com

RS International Canada Inc.

191 Superior Blvd. Mississauga, Ontario, L5T 2L6

TEL: [phone]

Email: [e-mail]

www.royalsovereign.ca
