HIR22T - Heating Royal Sovereign - Free user manual and instructions

Product Type	Electric Heater
Brand	Royal Sovereign
Model	HIR22T
Dimensions (L x W x H)	18.3 cm x 31.0 cm x 57.4 cm
Weight	3.2 kg
Power Supply	120 V AC, 60 Hz
Rated Power	1500 watts
Heat Settings	Low and High
Thermostat	Adjustable
Safety - Tip-over Shut-off	Yes, tip switch
Safety - Overheat Protection	Yes, automatic shut-off
Safety - Power Cord	Do not use with an extension cord
Power Indicator Light	Yes, lights up when operating
Maintenance	Wipe with a soft, dry cloth; do not use liquids
Cleaning	Do not immerse in water; avoid alcohol, gasoline, abrasive powder
Storage	In a cool place, preferably in the original packaging
Warranty	1 year, parts and labor (excluding transport)
Repairability	Entrust to a qualified technician; do not modify the unit
Intended Use	Indoor use only
Note	Do not obstruct the ventilation openings

Frequently Asked Questions - HIR22T Royal Sovereign

What is the maximum power of the HIR22T heater?

The rated power is 1500 watts at 120 V AC.

How do I adjust the temperature?

Turn the thermostat knob to the desired position. The maximum position corresponds to the highest heat.

Is there an automatic shut-off in case of tipping?

Yes, the heater is equipped with a tip switch that cuts the power if it is tipped over.

What should I do if the appliance does not turn on?

Check that the cord is plugged into a working outlet. Make sure the switch is in the 'On' position and the thermostat is not at the minimum.

How do I clean the heater?

Unplug it and let it cool. Use a soft, dry cloth. Never use water, alcohol, or abrasive products.

Can I use an extension cord?

No, it is not recommended to use an extension cord or adapter. Plug directly into a wall outlet.

What should I do in case of overheating?

The heater automatically turns off thanks to the overheat protection. Unplug it and let it cool before using it again.

How should I store the heater in summer?

Store it in a cool, dry place, ideally in its original packaging, to avoid dust accumulation.

Is the warranty transferable?

No, the one-year warranty is valid only for the original purchaser and is not transferable.

Can I repair the appliance myself?

No, any repair must be carried out by a qualified technician. Any unauthorized modification or repair voids the warranty.

USER MANUAL HIR22T Royal Sovereign

Please read and retain these instructions. To register your product, please go to www.royalsovereign.com USA. Click the Customer Support Tab then Registration Tab.

www.royalsovereign.ca

Royal Sovereign International, Inc.

INFRARED TOWER HEATER

Model HIR-22T

INTRODUCTION

Thank you for choosing Royal Sovereign to provide you and your family with all of the "Home Comfort" requirements for your home, apartment, or office. This Heater can be set-up in just minutes and can be easily moved from room to room. This manual will provide you with valuable information necessary for the proper care and maintenance for your new heater. Please take a few moments and read the instructions thoroughly. If properly maintained, your heater will give you many years of trouble free operation.

Because our products are subject to continuous improvement, RS Canada reserves the right to modify product design and specifications without notice and without incurring any obligation. E&OE

CONTENTS

Precautions 4
Description 5
Operation 6
Specifications 7
Warranty 8
Exclusions 8
Page en Francais 9

Precautions for use

• Do not block or cover air outlets.

Electrical Specifications and Power Cord

Check to ensure that the electrical service being used is adequate for the model you've chosen. The electrical rating of your new heater is defined on the serial sticker on the unit. Please refer to the rating when checking electrical requirements to ensure they meet the electrical codes of your location.

• Do not use this appliance if it malfunctions or is dropped or damaged in any manner.
• Do not use outdoors. Do not place on or near a hot gas, electric burner, a microwave, or a heated oven.
• To protect against fire, electric shock or injury, do not place cord, plug, or appliance in water or other liquid.
• The wrong use conflicting with the safeguards voids the customer of the right for warranty service.
• Do not modify any part of this product.
• Do not insert any objects into the product or block the airflow in any way.
• Ensure that the power supply you use has an appropriate voltage rating.
• If the electrical outlet you intend to use is not adequately grounded or protected by a time delay fuse or circuit breaker, you should have a qualified electrician install the proper outlet.
• Do not use this unit with any extension cords or adapter plugs.
• If the cord or plug is damaged in any way, please call the Royal Sovereign Service Department
• Turn the unit off and unplug, when cleaning the heater or when the heater will not be used for an extended time period.
• When overheating should occur the built-in overheating safety device will shut the appliance off.

General Use

• Do not block air outlets with any obstacles.
• Do not insert any objects into the heater.
• Do not pour water on the housing or control panel.
• Do not place heavy items or sit on the heater.
• Never pull or damage the power cord in any way.
• Don't let your children use the appliance.
• The repair of the appliance must be performed by a professional. Mistakes in repair are dangerous and can bring great hazard to the user.

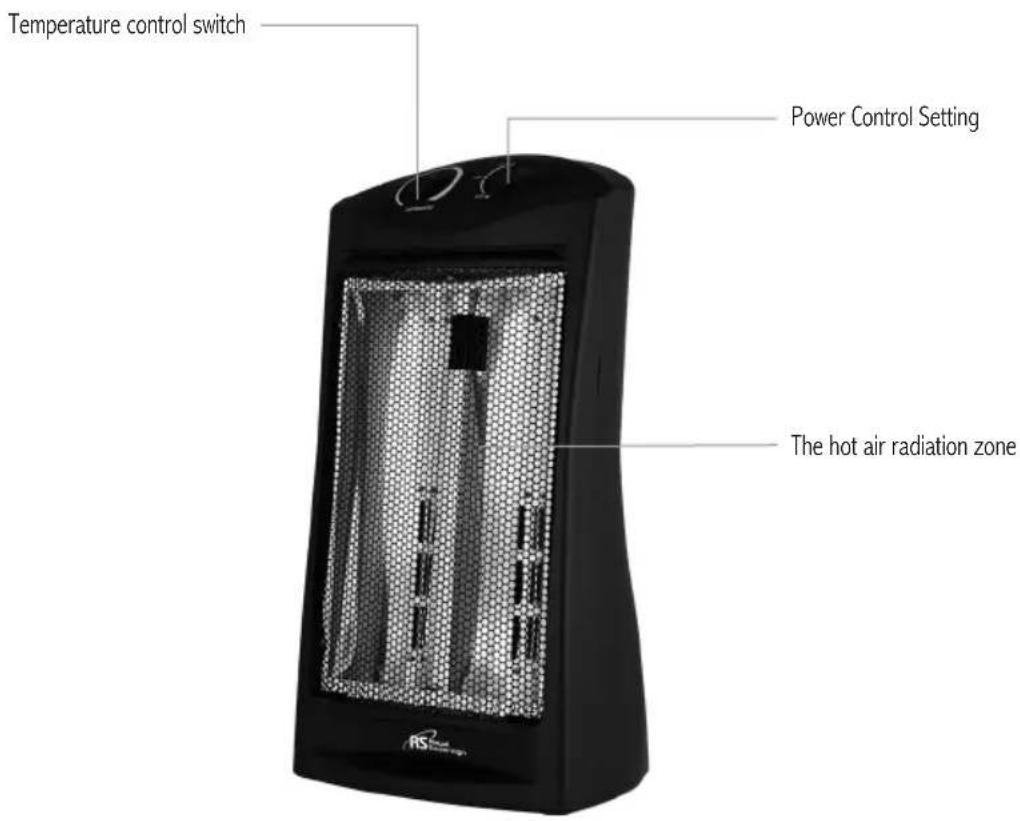

Description

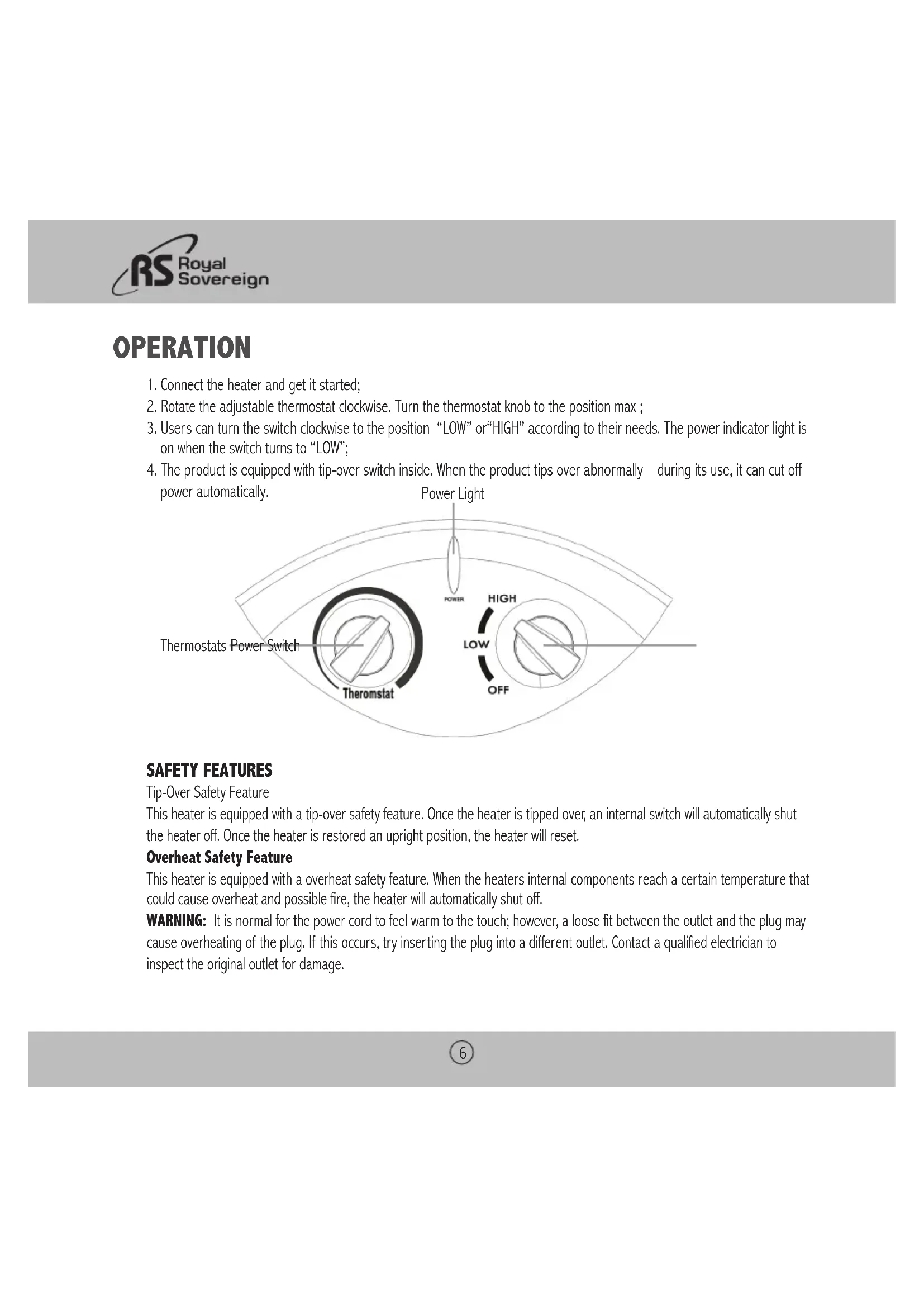

OPERATION

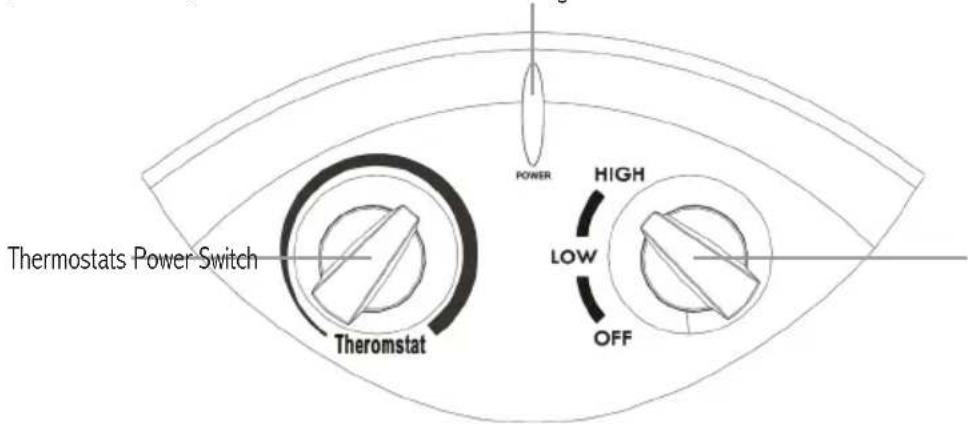

1. Connect the heater and get it started;
2. Rotate the adjustable thermostat clockwise. Turn the thermostat knob to the position max;
3. Users can turn the switch clockwise to the position "LOW" or "HIGH" according to their needs. The power indicator light is on when the switch turns to "LOW";
4. The product is equipped with tip-over switch inside. When the product tips over abnormally during its use, it can cut off power automatically. Power Light

SAFETY FEATURES

Tip-Over Safety Feature

This heater is equipped with a tip-over safety feature. Once the heater is tipped over, an internal switch will automatically shut the heater off. Once the heater is restored an upright position, the heater will reset.

Overheat Safety Feature

This heater is equipped with a overheat safety feature. When the heaters internal components reach a certain temperature that could cause overheat and possible fire, the heater will automatically shut off.

WARNING: It is normal for the power cord to feel warm to the touch; however, a loose fit between the outlet and the plug may cause overheating of the plug. If this occurs, try inserting the plug into a different outlet. Contact a qualified electrician to inspect the original outlet for damage.

MAINTENANCE

1. Turn off the power switch in the rear of the unit.
2. Unplug the unit and let it cool completely.
3. To keep the heater clean, the outer shell may be cleaned with a soft, damp cloth. You may use a mild detergent if necessary. After cleaning, dry the unit with a soft cloth. CAUTION: DO NOT let liquid enter the heater.
4. DO NOT use alcohol, gasoline, abrasive powders, furniture polish, or rough brushes to clean the heater. This may cause damage or deterioration to the surface of the heater.
5. DO NOT immerse the heater in water.
6. Wait until the unit is completely dry before use.

STORAGE

Store the heater in a cool, dry location when not in use. To prevent dust and dirt build-up, use the original packaging to repack the unit.

TROUBLESHOOTING

If the heater will not operate, please check the following before seeking repair of service:

1. Check if the power cord is plugged into an electrical outlet, if not, plug in.
2. Check if electricity to the main fuse is working.

SPECIFICATIONS

Model HIR-22T
Voltage/Frequency AC 120V~60Hz
Input power 1500W
Dimension (w × h × d) 7.2 in. (W)× 12.2 in.	(D) × 22.6in. (H)
Weight 7 lbs

WARANTY

Royal Sovereign warrants each heater to be free from defects in material and workmanship. Our obligation under this warranty is limited to the repair or replacement, free of charge, when delivered to an authorized Royal Sovereign service center, of any defective part(s) thereof, other than parts damaged in transit. This warranty is in effect to the ozriginal purchaser, for a period of one year from the date of purchase and is not transferable. This warranty shall apply only if the heater is used in accordance with the factory provided instructions which accompany it.

EXCLUSIONS

This warranty excludes and does not cover defects, malfunctions or failures of your Royal Sovereign Heater, caused by repairs by unauthorized persons or service centers, mishandling, improper installation, modification or unreasonable use including incorrect voltage, acts of God, or failure to provide reasonable and necessary maintenance. This warranty is in lieu of any and all expressed warranties. In no event shall Royal Sovereign be liable for consequential or incidental damages. This limitation would not apply if you live in a location that does not permit the exclusion of limitation of incidental or consequential damages. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

ROYAL SOVEREIGN INTERNATIONAL, INC.

2 Volvo Drive Rockleigh, NJ 07647 USA

TEL: [phone] FAX: [phone]

www.royalsovereign.com

RS INTERNATIONAL CANADA INC.

5610 Timberlea Blvd, Mississauga Ontario L4W 4M6 CANADA

TEL: [phone] TF #: [phone]

FAX: [phone]

www.royalsovereign.ca

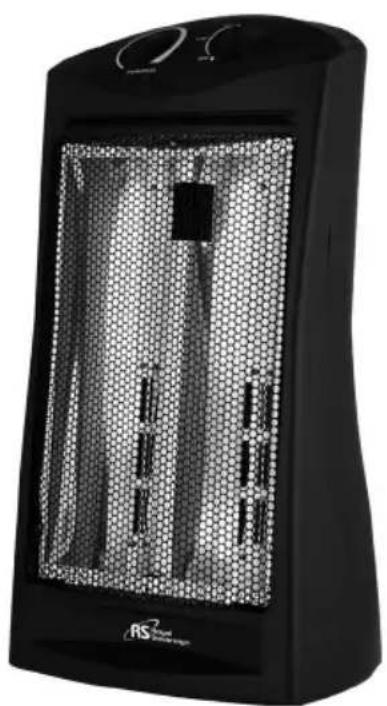

Guide d'utilisation

HIR-22T

RADIATEUR TOUR INFRAROUGE

www.royalsovereign.ca (Canada)

Royal Sovereign International, Inc.

RADIATEUR TOUR INFRAROUGE

Modèle HIR-22T

INTRODUCTION
