USER MANUAL Blend X Fresh BLP404 KENWOOD

Line drawing of a blender with control knobs and a side panel (no text or symbols)

English 2-9

Nederlands 10 - 18

Français 19 - 27

Deutsch 28 - 35

Italiano 36 - 43

Português 44 - 52

Español 53 - 61

Dansk 62 - 69

Svenska 70 - 77

Norsk 78 - 85

Suomi 86 - 93

Türkçe 94 - 101

Česky 102 - 109

Magyar 110 - 118

Polski 119 - 128

ΕΛληνικά 129 - 138

Slovenčina 139 - 147

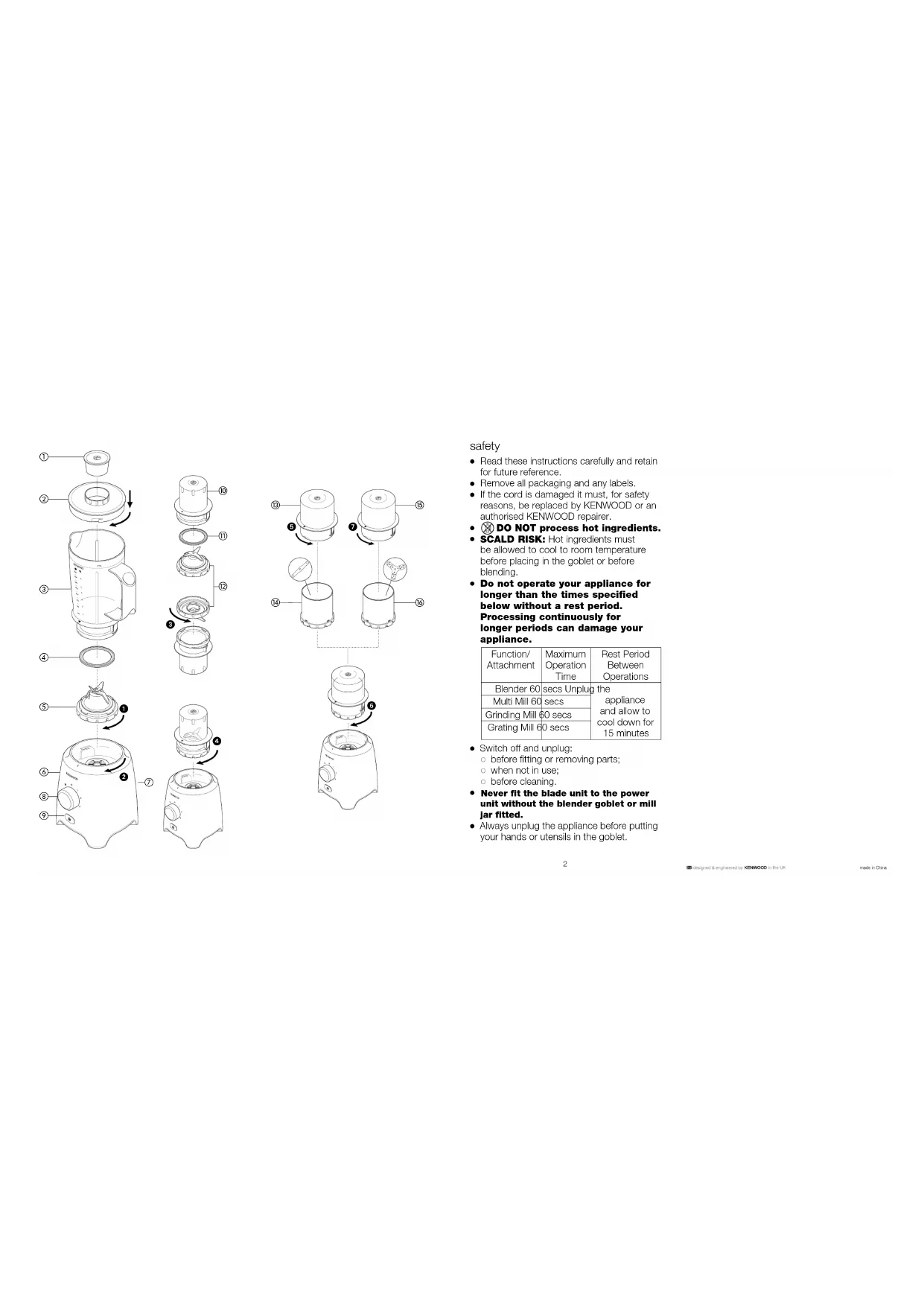

Exploded view diagram of a blender with numbered parts for identification and assembly steps

safety

• Read these instructions carefully and retain for future reference.
• Remove all packaging and any labels.
• If the cord is damaged it must, for safety reasons, be replaced by KENWOOD or an authorised KENWOOD repairer.
  • DO NOT process hot ingredients.
• SCALD RISK: Hot ingredients must be allowed to cool to room temperature before placing in the goblet or before blending.
• Do not operate your appliance for longer than the times specified below without a rest period. Processing continuously for longer periods can damage your appliance.

Function/ Attachment	Maximum Operation Time	Rest Period Between Operations
Blender 60 secs Unplug the appliance and allow to cool down for 15 minutes
Multi Mill 60 secs
Grinding Mill 60 secs
Grating Mill 60 secs

• Switch off and unplug:
• before fitting or removing parts;
• when not in use;
• before cleaning.
• Never fit the blade unit to the power unit without the blender goblet or mill jar fitted.
• Always unplug the appliance before putting your hands or utensils in the goblet.

- Always take care when handling the blade assembly and avoid touching the cutting edge of the blades when cleaning.

- Only operate the blender with the lid in place.

- Only use the goblet with the blade assembly supplied.

- Never let the power unit, cord or plug get wet.

- Never use a damaged appliance. Get it checked or repaired: see ‘service and customer care’.

- Never use an unauthorised attachment.

- Never leave the appliance unattended when it is operating.

- When removing the blender or mill from the power unit:

- wait until the blades have completely stopped; - do not accidentally unscrew the goblet or mill jar/lid from the blade assembly.

- Never run the blender empty.

- Never blend more than the maximum capacity stated in the recommended usage chart.

- Smoothie recipes - never blend frozen ingredients that have formed a solid mass during freezing, break it up before adding to the goblet.

- Do not process hard spices such as Nutmeg or Turmeric root as they may damage the blade.

- Do not use the blender as a storage container. Keep it empty before and after use.

- Always use the blender on a secure, dry level surface.

- Never place this appliance on or near a hot gas or electric burner or where it could touch a heated appliance.

- Misuse of your appliance can result in injury.

- This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

- Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

- Only use the appliance for its intended domestic use. Kenwood will not accept any liability if the appliance is subject to improper use, or failure to comply with these instructions.

before plugging in

● Make sure your electricity supply is the same as the one shown on the underside of the appliance.

- This appliance conforms to EC Regulation 1935/2004 on materials and articles intended to come into contact with food.

before using for the first time

- Wash the parts: see ‘care and cleaning’.

key

blender

① filler cap
② locking lid
③ goblet
④ blender sealing ring
⑤ blender blade unit
⑥ power unit
⑦ cord storage
⑧ speed + pulse control
⑨ ice crushing button

multi mill (if supplied)

⑩ multi mill jar
⑪ multi mill sealing ring
⑫ multi mill blade unit

grinding mill (if supplied)

⑬ mill lid
⑭ grinding mill blade assembly

grating mill (if supplied)

⑮ mill lid
⑯ grating mill blade assembly

to use your blender

Use your blender for soups, drinks, pâtés, mayonnaise, breadcrumbs, biscuit crumbs, chopping nuts and crushing ice.

1 Fit the blender sealing ring ④ into the blender blade unit ⑤ - ensuring the seal is located correctly in the grooved area.

- Leaking will occur if the seal is damaged or incorrectly fitted.

2 Screw the blade assembly onto the goblet – ensuring the blade assembly is fully tightened ①. Refer to the graphics on the underside of the blade unit as follows:

- unlocked position

- locked position

3 Put your ingredients into the goblet.

4 Put the filler cap in the lid.

5 Fit the lid to the goblet and turn clockwise to lock.

6 Place the blender onto the power unit with the handle situated to the right hand side and lock by turning clockwise until you hear a "click"

- The appliance will not work if the blender is incorrectly fitted.

7 Select a speed (refer to the recommended usage chart).

blender hints

- To blend dry ingredients - cut into pieces, remove the filler cap, then with the appliance running, drop the pieces down one by one. Keep your hand over the opening. For best results empty regularly.

- The processing of spices is not recommended as they may damage the plastic parts.

- When making mayonnaise, put all the ingredients, except the oil, into the blender. Remove the filler cap. Then, with the appliance running, add the oil slowly through the hole in the lid.

- Thick mixtures, e.g. pâtés and dips, may need scraping down. If the mixture is difficult to process, add more liquid.

blender recommended usage chartDo not operate your appliance for longer than the times specified below without a rest period. Processing continuously for longer periods can damage your appliance.
speed	usage/food items max. quantity
1 Frothing milk 1 litre
Light mixes e.g. batters, milkshakes, scrambled egg 1 litre
2 - 3 Thicker Soups & drinks mixes e.g. pâtés		1.6 litres
Mayonnaise 3 eggs +		450ml oil
Smoothie drinksPlace the fresh fruit and liquid ingredients in first (includes yoghurt, milk and fruit juices) 800mlThen add ice or frozen ingredients (includes frozen fruit, ice or ice cream)
	Ice crushing - operate in short bursts until crushed to the desired consistency.	6 cubes(125g)
(P) pulse	Operates the motor in a start/stop action.The pulse will operate for as long as it is held in position.	-

to use your multi mill

(if supplied)

Use your multi mill for milling herbs, nuts, coffee beans and purees.

1 Put your ingredients into the jar ⑩. Fill it no more than half full.
2 Fit the multi mill sealing ring ⑪ into the multi mill blade unit ⑫ - ensuring the seal is located correctly in the grooved area.
- Ensure that the seal is fitted correctly.
3 Turn the blade unit ⑫ upside down. Lower it into the jar, blades down ③. Turn anti-clockwise to lock.
4 Place the mill onto the power unit and lock by turning clockwise until you hear a "click" ④.
5 Select a speed or use the pulse control.

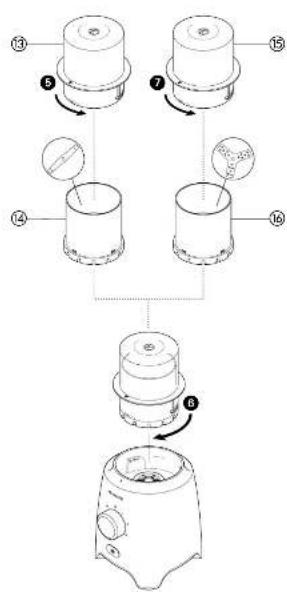

to use your grinding mill (if supplied)

Suitable for grinding spices, coffee beans and processing ginger, garlic and chillies.

1 Place your ingredients into the blade assembly ⑭.
2 Fit the lid ⑬ and turn anti-clockwise to lock ⑤.
3 Place the mill onto the power unit and lock by turning clockwise until you hear a "click" 6.
4 Select a speed or use the pulse (P) control.

to use your grating mill (if supplied)

Suitable for grating parmesan cheese, nutmeg, coconut and dried fruit.

1 Place your ingredients into the blade assembly ⑯.
2 Fit the lid ⑮ and turn anti-clockwise to lock ⑦.
3 Place the mill onto the power unit and lock by turning clockwise until you hear a "click" 6.
4 Select a speed or use the pulse (P) control.

mill recommended usage chartDo not operate your appliance for longer than the times specified below without a rest period. Processing continuously for longer periods can damage your appliance.
ingredients mill max time	qty speed operating
Herbs - best chopped Multi when clean and dry	15g 3 5 – 10 secs
Nuts Multi or Grinding 50g 3 10 – 15 secs
Coffee Beans	Multi or Grinding	50g 3	30 secs
Baby Foods & Purees	Multi 50g 3	30 secs
Spices – such as black peppercorns, cardamom seeds, cumin seeds, coriander seeds, fennel seeds, whole cloves etc.	Grinding	50g	3	30 – 60 secs
Chillies	Grinding	30g 3	10 secs
Fresh Root Ginger	Grinding	30g	3	10 secs
Garlic	Grinding	4 cloves	3	10 secs
Parmesan Cheese – cut into 1cm cubes	Grating 60g 3	10secs
Dried Fruit	Grating	50g 3	10 secs
Coconut	Grating	50g 3	20 secs
Nutmeg	Grating	2	3	40 secs

hints

• For optimum performance when processing spices we recommend that you do not process more than 50g at a time in the mill.
  ● Whole spices retain their flavour for a much longer time than ground spices so it is best to grind a small quantity fresh at a time to retain the flavour.
• To release the maximum flavour and essential oils whole spices are best roasted prior to milling.
• Baby food/purees - allow cooked food to cool to room temperature before processing in the mill.

care and cleaning

● Always switch off, unplug and dismantle before cleaning.
● Empty the goblet before unscrewing it from the blade unit.
- Do not immerse the blade unit in water.

power unit

• Wipe with a damp cloth, then dry.
• Do not immerse the power unit in water.
• Store excess cord in the storage area at the back of the power unit ⑦.

blade assemblies blender and multi mill

- Remove the blade unit from the goblet or mill by turning to the unlock position 🔔 to release.

grinding and grating mills

- Remove the lid from the blade assembly by turning in a clockwise direction.

1 blender/multi mill: remove and wash the sealing ring.
2 Do not touch the sharp blades – brush them clean using hot soapy water, then rinse thoroughly under the tap. Do not immerse the blade unit in water.
3 Leave to dry upside down.

other parts

Wash by hand, then dry.

Item Suitable	fordishwashing
Filler cap	√
Locking lid	√
Goblet	√
Blender sealing ring	√
Multi mill sealing ring	√
Blade unit	×
Multi mill jar	√
Mill lid	√
Grinding mill blade assembly	×
Grating mill blade assembly	×

service and customer care

• If you experience any problems with the operation of your appliance, before requesting assistance refer to the “troubleshooting guide” section in the manual or visit www.kenwoodworld.com.
• Please note that your product is covered by a warranty, which complies with all legal provisions concerning any existing warranty and consumer rights in the country where the product was purchased.

• If your Kenwood product malfunctions or you find any defects, please send it or bring it to an authorised KENWOOD Service Centre. To find up to date details of your nearest authorised KENWOOD Service centre visit www.kenwoodworld.com or the website specific to your Country.

• Designed and engineered by Kenwood in the UK.

• Made in China.

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH THE EUROPEAN DIRECTIVE ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE)

At the end of its working life, the product must not be disposed of as urban waste.

It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.

Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.

troubleshooting guide

Problem Cause Solution
The Blender will not No Power operate. plugged in.Blender not assembled correctly. fully tightened to the goblet.	Power Check blenderCheck blade unit is
Blender leaking from blade assembly. Seal incorrectly Seal damaged.a replacement seal see “service & customer care”.	Seal missing. Check seal is fitted.fitted. correctly and not damaged. To obtain	fitted
Blender seal missing from blade unit when removed from packaging.To obtain a replacement seal see “service & customer care”.	The seal is packed pre-fitted to the blade unit.	Unscrew goblet and check that seal is fitted to blade unit.
If none of the above solve the problem see “Service & Customer Care”.
