Vision Master™ 1451 LS902UT

USER MANUAL

TABLE OF CONTENTS

FOR YOUR SAFETY 1

SAFETY PRECAUTIONS 1

CUSTOMER SERVICE 3

CLEANING 3

CONNECTOR PIN ASSIGNMENT 13

ENGLISH

DEUTSCH

FRANCAIS

NEDERLANDS

SVENSKA

Thank you very much for choosing the iiyama Vision Master color monitor.

We recommend that you take a few minutes to read carefully through this brief but comprehensive manual before installing and switching on the monitor. Please keep this manual in a safe place for your future reference.

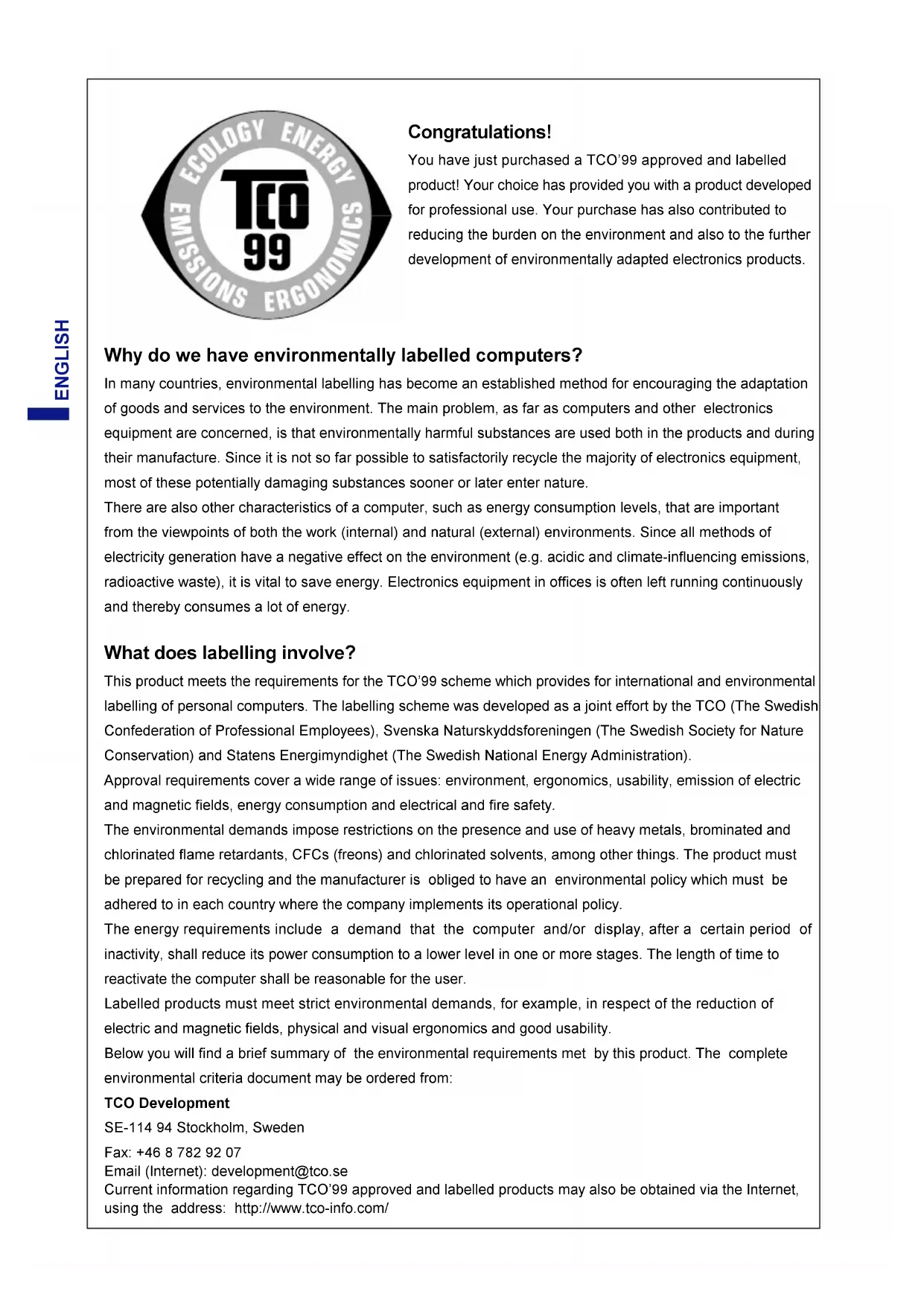

Congratulations!

You have just purchased a TCO'99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.

Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during their manufacture. Since it is not so far possible to satisfactorily recycle the majority of electronics equipment, most of these potentially damaging substances sooner or later enter nature.

There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (internal) and natural (external) environments. Since all methods of electricity generation have a negative effect on the environment (e.g. acidic and climate-influencing emissions, radioactive waste), it is vital to save energy. Electronics equipment in offices is often left running continuously and thereby consumes a lot of energy.

What does labelling involve?

This product meets the requirements for the TCO'99 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation) and Statens Energimyndighet (The Swedish National Energy Administration).

Approval requirements cover a wide range of issues: environment, ergonomics, usability, emission of electric and magnetic fields, energy consumption and electrical and fire safety.

The environmental demands impose restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental policy which must be adhered to in each country where the company implements its operational policy.

The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability.

Below you will find a brief summary of the environmental requirements met by this product. The complete environmental criteria document may be ordered from:

TCO Development

SE-114 94 Stockholm, Sweden

Fax: [phone]

Email (Internet): [e-mail]

Current information regarding TCO'99 approved and labelled products may also be obtained via the Internet, using the address: http://www.tco-info.com/

Environmental requirements

Flame retardants

Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs. Both the flame retardants containing bromine or chloride and the PCBs are suspected of giving rise to severe health effects, including reproductive damage in fish-eating birds and mammals, due to the bio-accumulative processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur.

The relevant TCO'99 demand requires that plastic components weighing more than 25 grams must not contain flame retardants with organically bound bromine or chlorine. Flame retardants are allowed in the printed circuit boards since no substitutes are available.

Cadmium**

Cadmium is present in rechargeable batteries and in the colour-generating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries, the colour-generating layers of display screens and the electrical or electronics components must not contain any cadmium.

Mercury**

Mercury is sometimes found in batteries, relays and switches. It damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries may not contain any mercury. It also demands that mercury is not present in any of the electrical or electronics components associated with the labelled unit.

CFCs (freons)

The relevant TCO'99 requirement states that neither CFCs nor HCFCs may be used during the manufacture and assembly of the product. CFCs (freons) are sometimes used for washing printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on earth of ultraviolet light with e.g. increased risks of skin cancer (malignant melanoma) as a consequence.

Lead\*

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning. The relevant TCO'99 requirement permits the inclusion of lead since no replacement has yet been developed.

FCC DECLARATION OF CONFORMITY

Model Number: LS902UT

Trade Name: iiyama

Responsible party: liyama North America, Inc.

Address: 1560 Brookhollow Drive, Suite 208, Santa Ana, CA 92705 U.S.A.

Telephone number: 714-437-5111

This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This equipment may not cause harmful interference, and (2) this equipment must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential environment. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If you determine the equipment does cause harmful interference to radio or television reception (this may be determined by monitoring the interference while turning the equipment off and on), you are encouraged to try to correct the interference by one of the following measures:

Reorient or relocate the receiving antenna.
■Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
■Consult the dealer or an experienced radio or TV technician for help.

CAUTION

Changes or modifications not expressly approved by liyama Electric Co., Ltd. could void the user's authority to operate the equipment.

CANADIAN DEPARTMENT OF COMMUNICATIONS COMPLIANCE STATEMENT

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the radio interference regulation of the Canadian department of communications.

CE MARKING DECLARATION OF CONFORMITY

This Color Data Monitor complies with the requirements of the EC Directive 89/336/EEC "EMC Directive" and 73/23/EEC "Low Voltage Directive" as amended by Directive 93/68/EEC.

The electro-magnetic susceptibility has been chosen at a level that gives correct operation in residential areas, business and light industrial premises and small-scale enterprises, inside as well as outside of the buildings.

All places of operation are characterized by their connection to the public low voltage power supply system.

■We reserve the right to change specifications without notice.
All trademarks used in this user manual are the property of their respective owners.
■As an ENERGY STAR® Partner, iiyama has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

SAFETY PRECAUTIONS

WARNING

STOP OPERATING THE MONITOR WHEN YOU SENSE TROUBLE

If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the monitor and contact your dealer or iiyama service center immediately. Further use may be dangerous and can cause fire or electric shock.

NEVER REMOVE THE CABINET

High voltage circuits are inside the monitor. Removing the cabinet may expose you to the danger of fire or electric shock.

DO NOT PUT ANY OBJECT INTO THE MONITOR

Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fire, electric shock or damage.

INSTALL THE MONITOR ON A FLAT, STABLE SURFACE

The monitor may cause an injury if it falls or is dropped.

DO NOT USE THE MONITOR NEAR WATER

Do not use the monitor where water may be splashed or spilt on the monitor as it may cause fire or electric shock.

OPERATE UNDER THE SPECIFIED POWER SUPPLY

Be sure to operate the monitor only with the specified power supply. Use of an incorrect voltage will cause malfunction and may cause fire or electric shock.

PROTECT THE CABLES

Do not pull or bend the power cable and signal cable. Do not place the monitor or any other heavy objects on the cables. If damaged, the cables may cause fire or electric shock.

ADVERSE WEATHER CONDITIONS

It is advisable not to operate the monitor during a heavy thunder storm as the continual breaks in power may cause malfunction. It is also advised not to touch the plug in these circumstances as it may cause electric shock.

CAUTION

INSTALLATION LOCATION

Do not install the monitor where sudden temperature changes may occur, or in humid, or dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor.

DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION

The monitor may topple and cause injury if not suitably located. Please also ensure that you do not place any heavy objects on the monitor, and that all cables are routed such that children may not pull the cables and possibly cause injury.

CAUTION

MAINTAIN GOOD VENTILATION

Ventilation slots are provided to keep the monitor from overheating. Covering the slots may cause fire. To allow adequate air circulation, place the monitor at least 10cm (or 4 inches) from any walls. Do not remove the stand when operating the monitor. Ventilation slots on the cabinet bottom will be blocked and the monitor may overheat if the stand is removed. This may cause fire or damage. Operating the monitor on its back, side, upside down or on a carpet or any other soft material may also cause damage.

DISCONNECT THE CABLES WHEN YOU MOVE THE MONITOR

When you move the monitor, turn off the power switch, unplug the monitor and be sure the signal cables are disconnected. If you do not disconnect them, it may cause fire or electric shock. It is recommended that two people are used when moving the monitor.

UNPLUG THE MONITOR

If the monitor is not in use for a long period of time it is recommended that it is left unplugged to avoid accidents.

HOLD THE PLUG WHEN DISCONNECTING

To disconnect the power cable or signal cable, always pull it by the plug. Never pull on the cable itself as this may cause fire or electric shock.

DO NOT TOUCH THE PLUG WITH WET HANDS

Pulling or inserting the plug with wet hands may cause electric shock.

DO NOT PUT FLOPPY DISKS NEAR THE MONITOR

Magnetic data recordings such as on a floppy disk may disappear if they are placed on or near the monitor as the degauss circuit causes a strong momentary magnetic field.

WHEN YOU INSTALL THE MONITOR ON YOUR COMPUTER

Be sure the computer is strong enough to hold the weight of the monitor, otherwise, you may damage your computer.

OTHERS

ERGONOMIC RECOMMENDATIONS

To eliminate eye fatigue, do not operate the monitor against a bright background or in a dark room. For optimal viewing comfort, the monitor should be just below eye level and 40-60 cm (16-24 inches) away from your eyes. When using the monitor over a prolonged time, a ten minute break every hour is recommended as looking at the screen continuously can cause eye strain.

MAGNETIC FIELD INFLUENCE

Place the monitor away from TV, speaker systems or any other source of strong magnetic fields. The monitor may be noisy or the screen's output may be distorted as a result of interference from other appliances.

CUSTOMER SERVICE

NOTE

If you have to return your unit for service and the original packaging has been discarded, please contact your dealer or iiyama service center for advice or replacement packaging.

CLEANING

WARNING

If you drop any materials or liquids such as water into the monitor when cleaning, unplug the power cable immediately and contact your dealer or iiyama service center.

CAUTION

■ For safety reasons, turn off the power switch and unplug the monitor before you clean it.

NOTE

The CRT screen is protected by an anti-reflection & anti-static coating. Do not scratch or rub the screen with a hard object, as this could damage the coating.

• Never use any of the following strong solvents. These will damage the cabinet and the CRT.

Thinner

Spray-type cleaner

Benzine

Wax

Abrasive cleaner

Acid or Alkaline solvent

CABINET Stains can be removed with a cloth lightly moistened with a mild detergent solvent. Then wipe the cabinet with a soft dry cloth.

CRT It is recommended that a soft clean cloth be used to remove smudges (such as fingerprints) from the CRT.

K Crisp, Clear Display for Windows or Macintosh
K Supports Resolutions up to 1600 × 1200
K Supports Refresh Rate up to 85Hz at 1280 × 1024
K Windows 95/98/Me/2000 Plug & Play Compliant
K Power Management (ENERGY STAR® and VESA DPMS Compliant)
K Space Saving, Compact Case Design
K Ergonomic Design: TCO '99 and MPR 2 Approved

ACCESSIONS

The following accessories should be included in the Vision Master packaging. Please ensure that all of them are enclosed.

Power Cable*
Tilt and Swivel Stand
■User Manual

CAUTION \* TO USERS IN 120V AREA

The rating of the Power Cable enclosed in 120V area is 10A / 125V. If you are using a power supply higher than this rating, then a power cable with a rating of 10A / 250V must be used.

FOR WINDOWS 95/98/ME/2000 USERS

Windows 95/98/Me/2000 Monitor Information File for iiyama monitors may be obtained via the Internet, using the address: http://www.iiyama.com (U.S.A.)

http://www.iiyama.co.uk (U.K.)

NOTE

For additional information on how to download the driver for your monitor, please access one of the internet sites noted above.

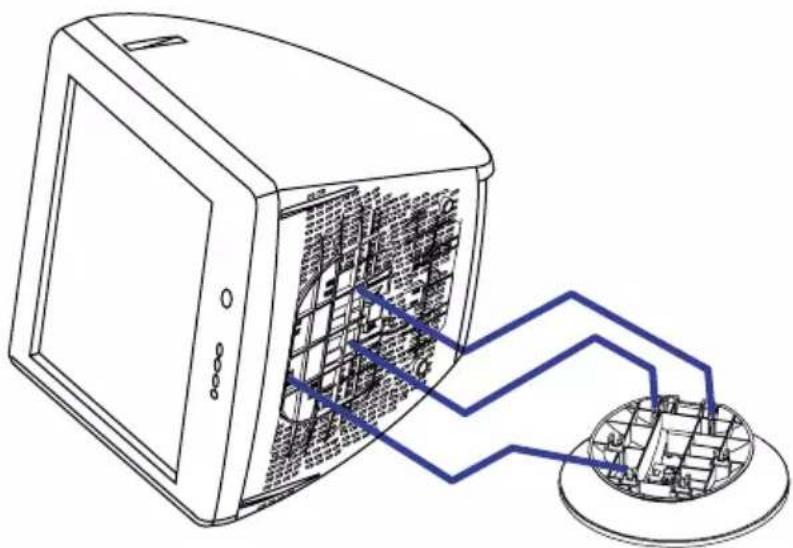

INSTALLATION OF TILT AND SWIVEL STAND

The monitor is designed to be used with the stand installed. Be sure to install the stand before operating the monitor.

CAUTION

Install the stand on a stable surface. The monitor may cause injury or damage if it falls or is dropped.
- Do not give a strong impact to the monitor. It may cause damage. - Unplug the monitor before installation to avoid electric shock or damage.

① Ensure that the monitor is switched off.
② Carefully turn the monitor on its side or upside down.
③ Locate the cavities at the bottom front of the monitor.
④ Insert the pegs on the stand into these cavities. Push the stand forward until the stand locks in place.
⑤ To remove the stand, hold the bottom of the stand, then push it out.

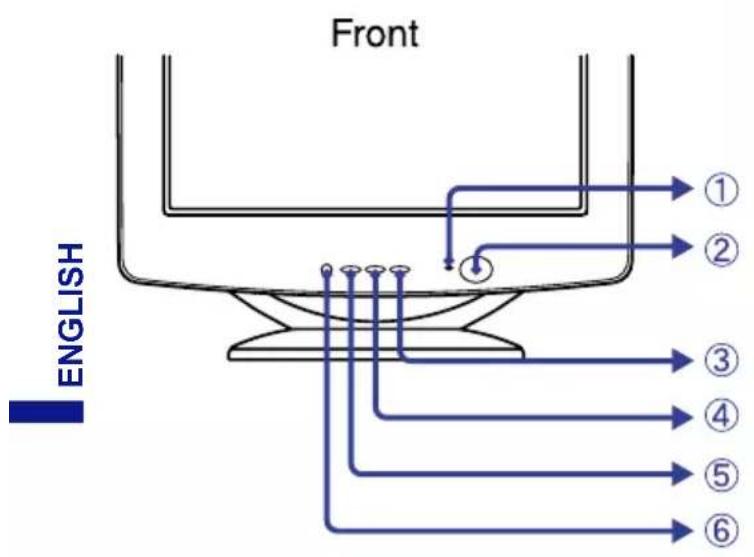

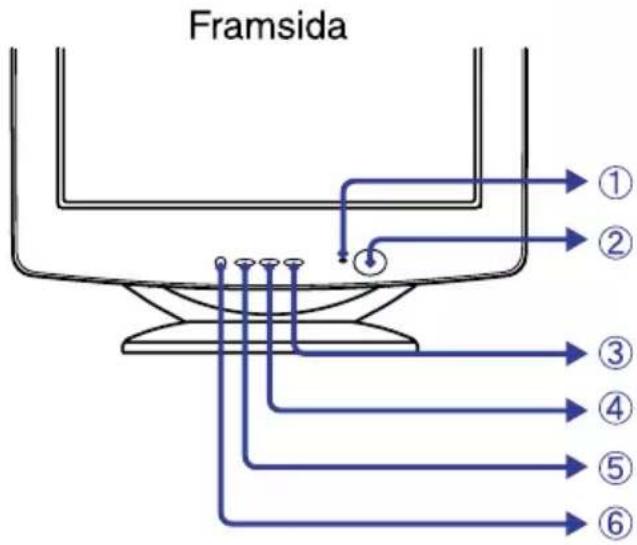

① Power Indicator
② Power Switch
③ Menu Button
④ Contrast ^+ Button
⑤ Brightness/-Button
⑥ Exit Button

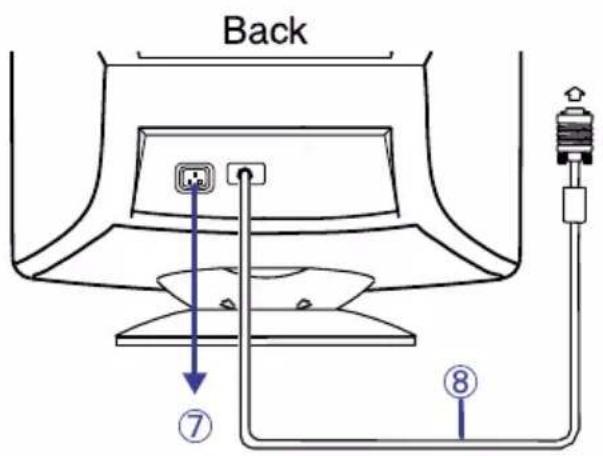

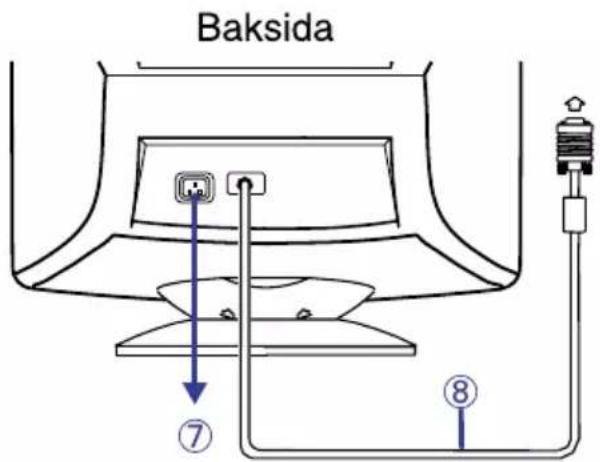

⑦ AC Connector (AC IN)
⑧ Signal Cable for D-Sub Connection (Fixed)

CONNECTING YOUR MONITOR

① Ensure that both the computer and the monitor are switched off.
② Connect the computer to the monitor with the signal cable. (See page 13 for CONNECTOR PIN ASSIGNMENT.)
③ Connect the Power Cable to the monitor first and then to the power supply.

NOTE

• The signal cables used for the connection vary by the type of computers you use. An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard 15 pin D-Sub connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office.
  ■ For connection to Macintosh computers, contact your local iiyama dealer or regional iiyama office for a suitable adaptor.
  Make sure you tighten the finger screws at each end of the signal cable.

The iiyama Vision Master has been preset at the factory with the signal timings listed on page 13 in PRESET MODES to create the best picture. If an incorrect picture appears during the operation, adjust the image by following the procedure below to get the desired picture.

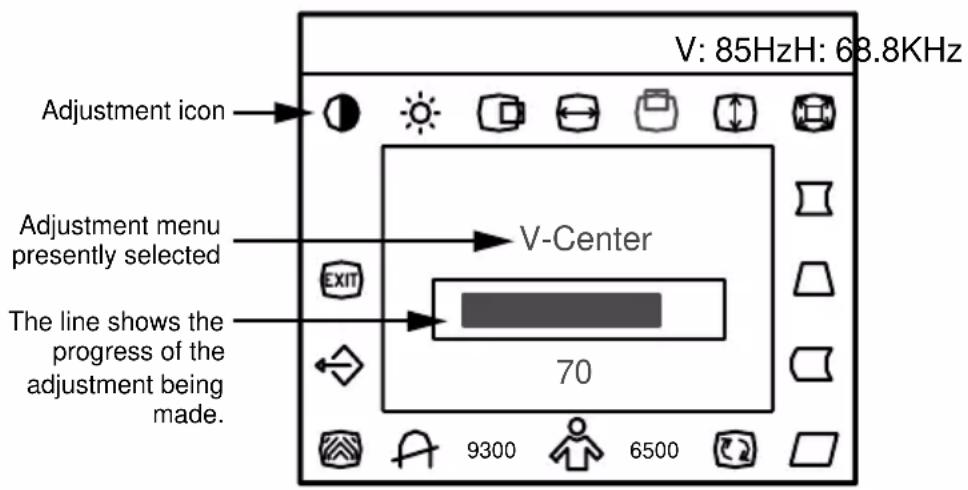

① Main Menu appears on the screen when you press the Menu Button.
② For example, to adjust the vertical position, select (V-Center) on the Main Menu by using the +/- Buttons.

③ An adjustment scale will turn red when you press the Menu Button. Use the +/- Buttons to adjust the vertical position. See ADJUSTMENT MENU CONTENTS on next page for further information.

NOTE

The On Screen Display disappears several seconds after you stop pressing the buttons while performing an adjustment. The Exit Button can be used to exit OSD window immediately.
- Any changes are automatically saved in the memory when the On Screen Display disappears. Turning off the power should be avoided while using the Menu.
Adjustments for Size, Position, Pincushion, Trapezoid, Pin Balance, Parallelogram and Moire are saved for each signal timing. Except for these adjustments, all other adjustments such as Contrast, Brightness, Color and Rotation have only one setting which applies to all signal timings.

ADJUSTMENT MENU CONTENTS

Direct Contrast: Press the Contrast / + Button.

Brightness: Press the Brightness / - Button.

Menu	Problem / Option Button to Press	Menu	Problem / Option Button to Press
Contrast*	Too dull	6500 6500K: Warmer white
	Too intense	9300 9300K: Normal white
Brightness*	Too dark	(Color Temperature) in K: Kelvin	NOTE The setting by User Color function is changed to 6500K or 9300K when you perform this operation.
	Too bright
H-Center	Too far to the left	+	Red/Blue → MENU → +
	Too far to the right	+
H-Size	Too small	+	Every time the monitor is switched on, the monitor is automatically degaussed. But occasionally the colors change when moving or swiveling the monitor. In this case, first try the tilt adjustment. If the problem persists, select Degauss.
	Too large	+
V-Center	Too low	+	NOTE Degauss should not be repeated continuously. Wait at least 30 minutes between degaussing operations. While degaussing, the picture shakes and a low sound occurs but this does not indicate a problem, it is normal.
	Too high	+
V-Size	Too small	+
	Too large	+
Zoom	Too small	+	H-Moire Reduce
	Too large	+	V-Moire Reduce
Pincushion	To correct distortion	+	NOTE Moire is the result of interference between the phosphor layout and the video signal. In some case, you may find the moire very noticeable. Press OSD menu to enter in the moire reduce setting. Please adjust the level to the optimum condition. Too high of a setting will cause the picture to shake.
Trapezoid	To correct distortion	+
Pin Balance	To correct distortion	+	Factory-preset data is restored. NOTE Performing this operation resets any adjustment data made by the user to the factory-preset frequencies. The following settings remain unchanged. Color Moire
Parallelogram	To correct distortion	+
Rotation	To correct tilt	+	Exit Exit Color Moire Close OSD window. NOTE Exit Button also can be used.

POWER MANAGEMENT FEATURE

The power management feature of this product complies with every power saving requirement of ENERGY STAR® and VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use.

To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. There is a power management step the monitor takes as described below. The power management function, including any timer settings is configured by the operating system. Check your operating system manual for information on how this can be configured.

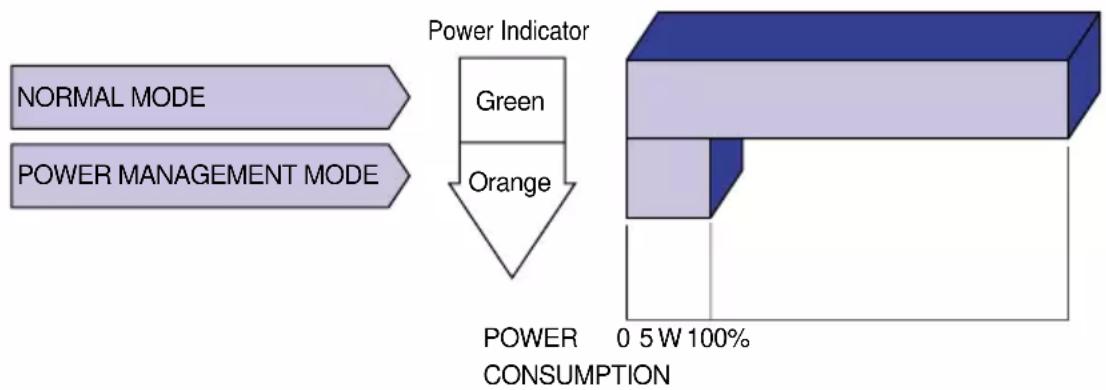

Power Management Mode

When the H-sync signal / V-sync signal / H and V sync signals from the computer are off, the monitor enters into Power Management Mode which reduces the power consumption to less than 5W. The screen becomes dark, and the power indicator turns to orange. From Power Management Mode, the image reappears in 10 seconds when either the keyboard or the mouse are touched again.

NOTE

Even when using the power management mode, the monitor consumes electricity. Turn off the Power Switch whenever the monitor is not used, during the night and weekends, to avoid unnecessary power consumption.
It is possible that the video signal from the computer may be on while the H or V sync signal is missing. In this instance, the POWER MANAGEMENT feature may not work properly.

TROUBLE SHOOTING

If the monitor fails to operate correctly, please follow the steps below for a possible solution.

1. Perform the adjustments described in OPERATING THE MONITOR, depending on the problem you have.
2. Consult the following charts if you cannot find an appropriate adjustment item in OPERATING THE MONITOR or if the problem persists.
3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance.

ProblemCheck

① The picture does not appear.

(Power indicator does not light up.)

The Power Cable is firmly seated in the socket.
The Power Switch is turned ON.
The AC socket is live. Please check with another piece of equipment.

(Power indicator is green.)

□ If the blank screen saver is in active mode, touch the keyboard or the mouse.
- Increase the Contrast and/or Brightness.
The computer is ON.
The Signal Cable is properly connected.
The signal timing of the computer is within the specification of the monitor.

(Power indicator is orange.)

□ If the monitor is in power management mode, touch the keyboard or the mouse.
The computer is ON.
The Signal Cable is properly connected.
The signal timing of the computer is within the specification of the monitor.

② The screen is not synchronized.

The Signal Cable is properly connected.
The signal timing of the computer is within the specification of the monitor.
The video output level of the computer is within the specification of the monitor.

③ The screen position is not in the center.

The signal timing of the computer is within the specification of the monitor.

The screen is too bright or too dark.

The video output level of the computer is within the specification of the monitor.

The screen may be too bright due to the video output level difference of the computer. In this case, adjust the Contrast.

⑤ The screen is shaking.

Check if there are any sources of strong magnetic fields such as TV, speakers, etc. nearby. If yes, remove them from the area of the monitor or change the position/ direction of the monitor to avoid magnetic field interference.
The power voltage is within the specification of the monitor.
The signal timing of the computer is within the specification of the monitor.
Moiré correction is working properly.

NOTE

A color bar or single color test pattern is displayed on the screen when turning ON the monitor with no signal.

APPENDIX

SPECIFICATIONS

CRT	19" (18.0" / 45.7cm viewable), Dot pitch: 0.26mm (Horizontal: 0.22mm, Vertical: 0.13mm), Flat square tube, 90 degree deflection, Short persistence phosphor, Anti-reflection & Anti-static coating
Sync Frequency	Horizontal: 30.0-96.0kHz, Vertical: 50-160Hz
Video Bandwidth	200MHz dot clock
	1280 × 1024 at 85HzRecommended Resolution
Input Connector	D-Sub mini 15pin
Plug & Play	VESA DDC1/2BTM
Input Sync Signal	Separate sync: TTL, Positive or Negative
Input Video Signal	Analog: 0.7Vp-p (Standard), 75Ω, Positive
Number of Signal Storage	Factory-presets: 8 User defined settings: 20 maximum
Standard Screen Size	346mm W × 260mm H / 13.6" W × 10.2" H
Power Source Power Consumption	100-240VAC, 50/60Hz, 2.5A 130W maximum in normal use Power management mode: 5W maximum

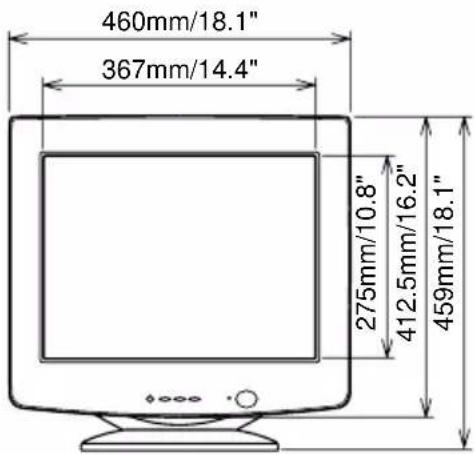

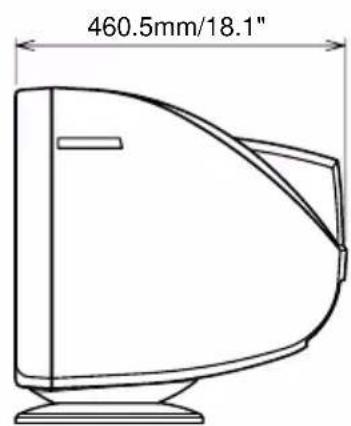

Dimensions, Net Weight	460 × 459 × 460.5mm / 18.1 × 18.1 × 18.1" (W × H × D), 18kg / 39.7lbs
Tilt-Swivel Angle	Right / Left: 90 degrees each, Up: 10 degrees, Forward: 5 degrees
Environmental Considerations	Operating: Temperature 0 to 35°C / 32 to 95°F Humidity 10 to 80% (no condensation) Storage: Temperature -20 to 60°C / -4 to 140°F Humidity 5 to 90% (no condensation)
Approvals	TCO '99, MPR II, CE, TÜV-GS, PTB, FCC-B, UL, CSA, DHHS, Department of Health (Canada)

PRESET MODES

The following chart indicates the Factory Preset Modes.

	Resolution	Horizontal Frequency	Vertical Frequency	Sync Polarity
				H	V
IBM	720×400	31.33kHz 70.0Hz Negative			Positive
VGA	640×480	31.47kHz Negative9.9Hz			Negative
VESA	640×480	43.27kHz	85.0Hz	Negative	Negative
	800×600				PositivePo
	1024×768	68.68kHz Positive85.0Hz			Positive
	1280×960	85.94kHz Positive85.0Hz			Positive
	1280×1024	91.15kHz Positive85.0Hz			Positive
	1600×1200	93.75kHz Positive5.0Hz			Positive

NOTE

Additional adjustments may be required to the factory-presets, because the signal timings vary depending on the type of graphics board you use.

CONNECTOR PIN ASSIGNMENT

Pin	Input Signal	Pin	Input Signal
1	Red video	9
2	Green video	10	Ground
3	Blue video	11	Ground
4	Ground	12	Data line (SDA) *
5	Ground	13	H-Sync
6	Red video ground	14	V-Sync / V-Clock *
7	Green video ground	15	Clock line (SCL) *
8	Blue video ground	* Compliant to VESA DDC.

Vision Master™ 1451 LS902UT

BEI GEFAHR ABSCHALTEN

DECLARATION DE CONFORMITE AU MARQUAGE CE

VOORZORGSGMAATREGELEN

WAARSCHUWING

GEBRUIK DE MONITOR NIET ALS U PROBLEMEN VERMOEDT

(Power-indicator is groen.)

(Power-indicator is orange.)

KNAPPARNAS PLACERING 6

KNAPPARNAS PLACERING

① Strömindikator
② Strömbrytare
③ Menyknapp
④ Kontrast / + Knapp
⑤ Ljusstyrka / - Knapp
⑥ Exitknapp

Power Management lage

This manual is printed on recycled paper.
