USER MANUAL Premium PR:O 18 S HK AUDIO

• Read all of these instructions!

• Save these instructions for later use!

• Follow all warnings and instructions marked on the product!

• Do not use this product near water, i.e. bathtub, sink, swimming pool, wet basement, etc.

• Do not place this product on an unstable cart, stand or table. The product may fall, causing serious damage to the product or to persons!

• Slots and openings in the cabinet and the back or bottom are provided for ventilation; to ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered. This product should not be placed in a built- in installation unless proper ventilation is provided.

• This product should not be placed near a source of heat such as a stove, radiator, or another heat producing amplifier.

• Use only the supplied power supply or power cord. If you are not sure of the type of power available, consult your dealer or local power company.

• Do not allow anything to rest on the power cord. Do not locate this product where persons will walk on the cord.

• Never break off the ground pin on the power supply cord.

• Power supply cords should always be handled carefully. Periodically check cords for cuts or sign of stress, especially at the plug and the point where the cord exits the unit.

• The power supply cord should be unplugged when the unit is to be unused for long periods of time.

• If this product is to be mounted in an equipment rack, rear support should be provided.

• This product should be used only with a cart or stand that is recommended by HK AUDIO

• Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in risk of fire or electric shock. Never spill liquid of any kind on the product.

• Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to qualified service personnel.

• Clean only with dry cloth.

• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for the safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

• Place the product always in a way that the mains switch is easily accessible.

• Unplug this product from the wall outlet and refer servicing to qualified service per- sonnel under the following conditions:

• When the power cord or plug is damaged or frayed.

• If liquid has been spilled into the product.

• If the product has been exposed to rain or water.

• If the product does not operate normally when the operating instructions are followed.

• If the product has been dropped or the cabinet has been damaged.

• If the product exhibits a distinct change in performance, indicating a need of service!

• Adjust only these controls that are covered by the operating instructions since impro- per adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation.

• Exposure to extremely high noise levels may cause a permanent hearing loss.

• Individuals vary considerably in susceptibility to noise induced hearing loss, but nearly everyone will lose some hearing if exposed to sufficiently intense noise for a sufficient time. The U.S. Government´s Occupational Safety and Health Administration (OSHA) has specified the following permissible noise level exposures: Duration Per Day In Hours Sound LeveldBA, Slow Response

• According to OSHA, any exposure in excess of the above permissible limits could result in some hearing loss.

• Ear plug protectors in the ear canals or over the ears must be worn when operating this amplification system in order to prevent a permanent hearing loss if exposure is in excess of the limits as set forth above. To ensure against potentially dangerous exposure to high sound pressure levels, it is recommended that all persons exposed to equipment capable of producing high sound pressure levels such as this amplification system be protected by hearing protectors while this unit is in operation.

• Fuses: Replace with IEC 127 (5x 20 mms) type and rated fuse for best performance only. TO PREVENT THE RISK OF FIRE AND SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO MOISTURE OR RAIN. DO NOT OPEN CASE; NO USER SERVICE-ABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Version 1.1 11/2006

• The unit has been built by HK AUDIO

in accordance with IEC 60065 and left the factory in safe working order. To maintain this condition and ensure non-risk opera- tion, the user must follow the advice and warning comments found in the operating instructions. The unit conforms to Protection Class 1 (protectively earthed).

• Assembly, extension, re-adjustment, modifications or repairs are carried out by HK AUDIO

or by persons authorized to do so.

• The electrical installation of the relevant area complies with the requirements of IEC (ANSI) specifications.

• The unit is used in accordance with the operating instructions.

• The unit is regularly checked and tested for electrical safety by a competent technician.

• If covers are opened or sections of casing are removed, except where this can be done manually, live parts can become exposed.

• If it is necessary to open the unit this must be insulated from all power sources. Please take this into account before carrying out adjustments, maintenance, repairs and before replacing parts.

• The appliance can only be insulated from all power sources if the mains connection is unplugged.

• Adjustment, maintenance and repairs carried out when the unit has been opened and is still live may only be performed by specialist personnel who are authorized by the manuf- acturer (in accordance with VBG 4) and who are aware of the associated hazards.

• Loudspeaker outputs which have the IEC 417/5036 symbol (Diagram 1, below) can carry voltages which are hazardous if they are made contact with. Before the unit is switched on, the loudspeaker should therefore only be connected using the lead recommended by the manufacturer.

• Where possible, all plugs on connection cables must be screwed or locked onto the casing.

• Replace fuses only with IEC127 type and specified ratings.

• It is not permitted to use repaired fuses or to short-circuit the fuse holder.

• Never interrupt the protective conductor connection.

• Surfaces which are equipped with the "HOT" mark (Diagram 2, below), rear panels or covers with cooling slits, cooling bodies and their covers, as well as tubes and their covers are purposely designed to dissipate high temperatures and should therefore not be touched.

• High loudspeaker levels can cause permanent hearing damage. You should therefore avoid the direct vicinity of loudspeakers operating at high levels. Wear hearing protection if continuously exposed to high levels. MAINS CONNECTION:

• The unit is designed for continuous operation.

• The set operating voltage must match the local mains supply voltage.

• The unit is connected to the mains via the supplied power unit or power cable.

• Power unit: Never use a damaged connection lead. Any damage must be rectified by a competent technician.

• Avoid connection to the mains supply in distributor boxes together with several other power consumers.

• The plug socket for the power supply must be positioned near the unit and must be easily accessible. PLACE OF INSTALLATION:

• The unit should stand only on a clean, horizontal working surface.

• The unit must not be exposed to vibrations during operation.

• Place the product always in a way that the mains switch is easily accessible.

• Keep away from moisture and dust where possible.

• Do not place the unit near water, baths, wash basins, kitchen sinks, wet areas, swim- ming pools or damp rooms. Do not place objects containing liquid on the unit - vases, glasses, bottles etc.

• Ensure that the unit is well ventilated.

• Any ventilation openings must never be blocked or covered. The unit must be positi- oned at least 20 cm away from walls. The unit may only be fitted in a rack if adequate ventilation is ensured and if the manufacturer's installation instructions are followed.

• Keep away from direct sunlight and the immediate vicinity of heating elements and radiant heaters or similar devices.

• If the unit is suddenly moved from a cold to a warm location, condensation can form inside it. This must be taken into account particularly in the case of tube units. Before switching on, wait until the unit has reached room temperature.

• Accessories: Do not place the unit on an unsteady trolley, stand, tripod, base or table. If the unit falls down, it can cause personal injury and itself become damaged. Use the unit only with the trolley, rack stand, tripod or base recommended by the manufacturer or purchased together with the unit. When setting the unit up, all the manufacturer's instructions must be followed and the setup accessories recommended by the manuf- acturer must be used. Any combination of unit and stand must be moved carefully. A sudden stop, excessive use of force and uneven floors can cause the combination of unit and stand to tip over.

• Additional equipment: Never use additional equipment which has not been recommended by the manufacturer as this can cause accidents.

• To protect the unit during bad weather or when left unattended for prolonged periods, the mains plug should be disconnected. This prevents the unit being damaged by lightning and power surges in the AC mains supply. Diagram 1 Diagram 2

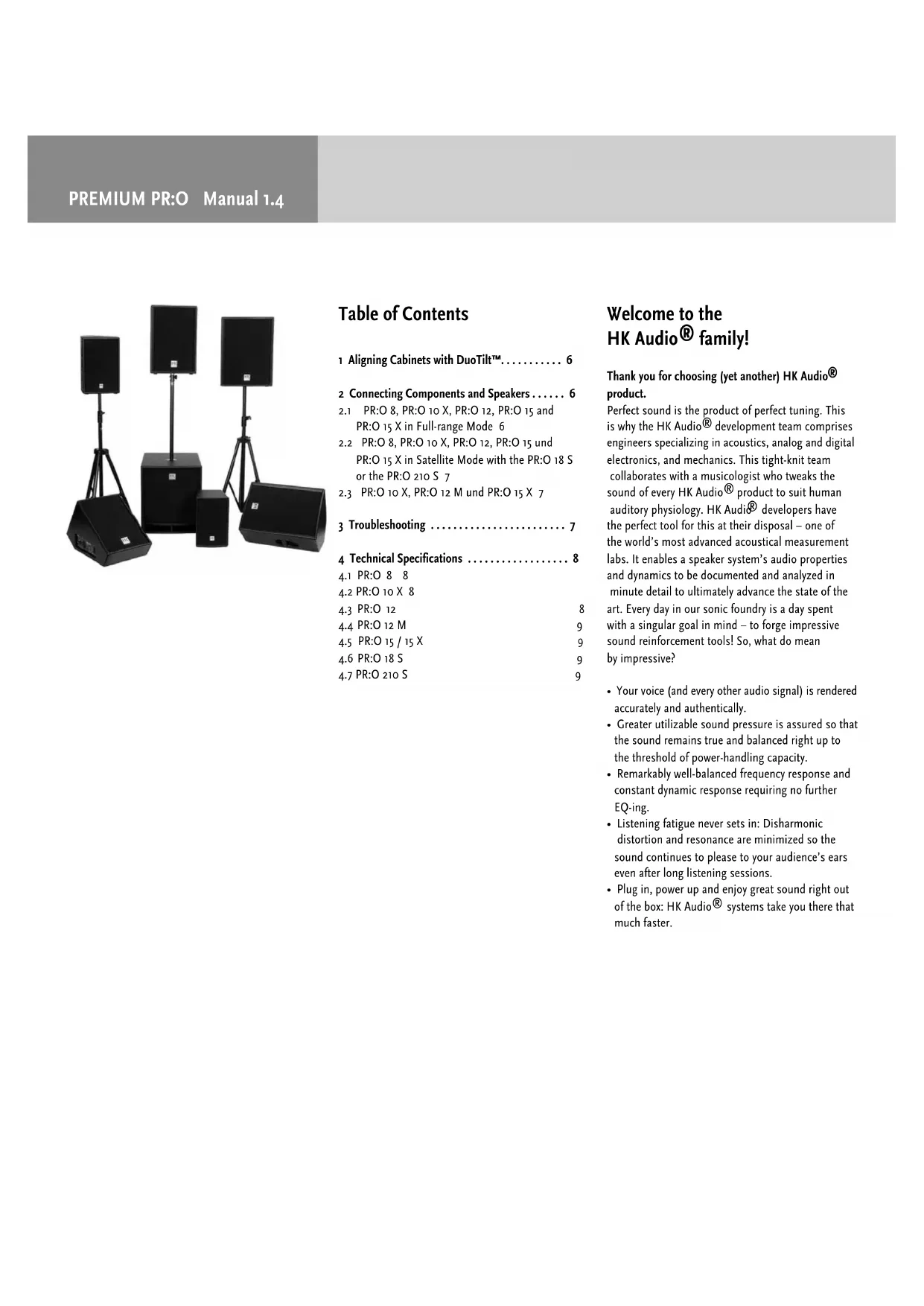

PR:O 15 X in Full-range Mode 6

2.2 PR:O 8, PR:O 10 X, PR:O 12, PR:O 15 und

PR:O 15 X in Satellite Mode with the PR:O 18 S or the PR:O 210 S 7

family! Thank you for choosing (yet another) HK Audio

product. Perfect sound is the product of perfect tuning. This is why the HK Audio

development team comprises engineers specializing in acoustics, analog and digital electronics, and mechanics. This tight-knit team collaborates with a musicologist who tweaks the sound of every HK Audio

product to suit human auditory physiology. HK Audio

developers have the perfect tool for this at their disposal – one of the world’s most advanced acoustical measurement labs. It enables a speaker system’s audio properties and dynamics to be documented and analyzed in minute detail to ultimately advance the state of the art. Every day in our sonic foundry is a day spent with a singular goal in mind – to forge impressive sound reinforcement tools! So, what do mean by impressive?

• Your voice (and every other audio signal) is rendered accurately and authentically.

• Greater utilizable sound pressure is assured so that the sound remains true and balanced right up to the threshold of power-handling capacity.

• Remarkably well-balanced frequency response and constant dynamic response requiring no further EQ-ing.

• Listening fatigue never sets in: Disharmonic distortion and resonance are minimized so the sound continues to please to your audience’s ears even after long listening sessions.

• Plug in, power up and enjoy great sound right out of the box: HK Audio

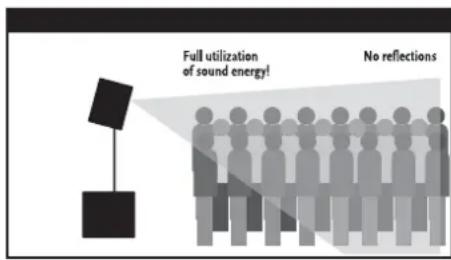

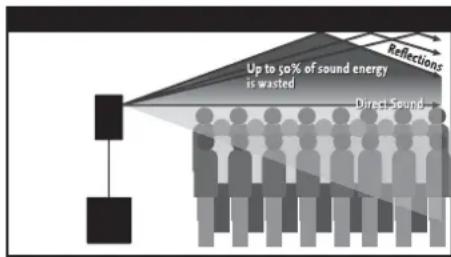

systems take you there that much faster.5 English Facts & Features DuoTilt™ – making the most of sonic energy The novel DuoTilt ™ pole mount allows sound energy to be utilised far more efficiently. DuoTilt™ offers 3° and 7° angles of tilt, enabling precise speaker-to-audience alignment. Acoustic interference from ceiling reflections is minimized, leaving the sound cleaner, tighter, and much more articulate. Mono Tilt 3™ (PR:O 8 A) offers one angle of tilt. Passive Crossover in Bass Systems The two PREMIUM PR:O bass bins sport a sophisti- cated cross over that sends all low-end frequencies to the woofer and all mid-range and high frequencies to the connected satellite. This frequency separation affords you the audio benefits of a truly homogenous sound system, free of the pitfalls of overlapping pha- ses that frequently plague lesser PAs. Modular System The PREMIUM PR:O Series is modular so that mid/- high units may be combined with the PR:O 18 S / PR:O 210 S bass bin at will. This modularity extends to the acoustic domain: Like every HK Audio

system, PREMIUM PR:O Series components are meticulously matched. Regardless of the PREMIUM PR:O Series configuration, you are sure to enjoy that trademark excellent HK Audio

sound! Dynamic Protective Circuitry for the High-frequency Driver PREMIUM PR:O Series mid/high units and monitors are equipped with special protective circuitry. Located in the high-frequency signal path, it limits output levels whenever the high-frequency signal level approaches the 1" driver’s overload threshold. The PREMIUM PR:O Series comprises PR:O 8, PR:O 12 and PR:O 15 fullrange speaker cabinets, PR:O 18 S and PR:O 210 S subwoofers and PR:O 10 X, PR:O 12 M and PR:O 15 X monitors.2 Connecting Components and Speakers HK Audio

speaker cords with a diameter of 2 x 2.5 sq. mm are recommended for connecting cabinets, power amps or powered mixing consoles. Cords are available in the following lengths:

Recommended Amplifier Power Output Connect amps rated from 600 W @ 4 W RMS to 800 W RMS @ 4 W per amp channel to power the PREMIUM PR:O cabinets. To have enough headroom available for dynamic musical signals, the power amp should deliver peak performance of at least 1,200 W @ 4 W per channel. Note: An electrical connection between the cord and input jack is not established until the Speakon connector locks into place. Twist the Speakon connector clock- wise until it engages.

2.1 PR:O 8, PR:O 10 X, PR:O 12, PR:O 15 and

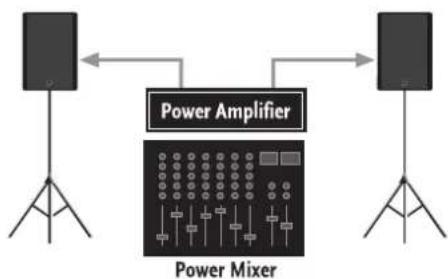

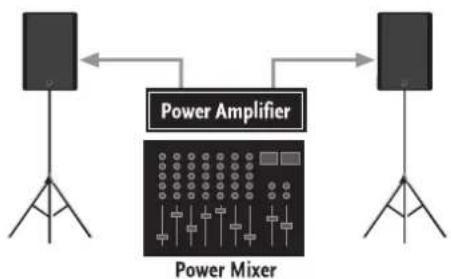

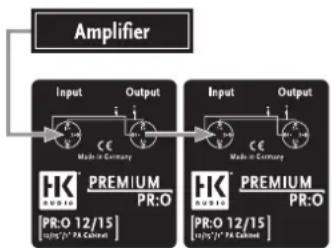

PR:O 15 X in Full-range Mode Connect the speaker output from the powered mixer or power amp to the input (IN) of the PR:O 8, PR:O 10 X, PR:O 12, PR:O 15 and PR:O 15 X full-range speaker cabinet. PREMIUM PR:O Manual 1.4 1 Aligning Cabinets with DuoTilt™ The novel integrated DuoTilt™ pole mount allows sound energy to be utilized far more efficiently. With two angles of tilt to choose from, 3° and 7°, the enclosure can be aimed directly at the audience. The cabinet is stabilized at its center of gravity – no wobbling, unwanted tilting, or unintentional turning. Your choice of DuoTilt™ angle – 3° or 7° – depends on the required speaker height and the size of the room. If you set mid/high units on fully extended tripods or mounting poles, select 7° to minimize ceiling reflections. If you want to address an audience where more listeners are farther away from the speakers, use the HK Audio® DuoTilt™ at the 3° angle. Mono Tilt 3™ (PR:O 8 A) offers one angle of tilt. Figure 1: 3° and 7° angles of tilt Figure 2.1: Powered mixer and/or mixer and a power amp7 English Figure 2.2: Powered mixer and/or mixer and a power amp (Fullrange) Figure 2.3: PR:O 12 M and PR:O 15 X monitors in action

2.2 PR:O 8, PR:O 10 X, PR:O 12, PR:O 15

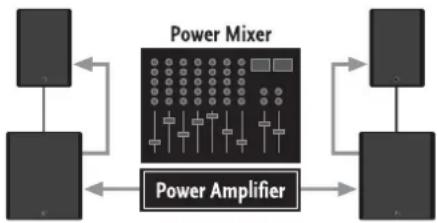

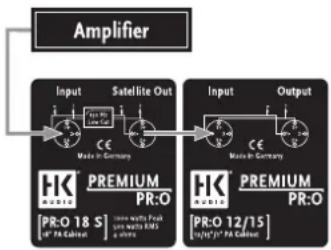

and PR:O 15 X in Satellite Mode with the PR:O 18 S or the PR:O 210 S First connect the speaker output of the powered mixer or power amp to the subwoofer’s input, and then connect the subwoofer’s SATELLITE OUT to the PR:O 8, PR:O 10 X, PR:O 12, PR:O 15 and PR:O 15 X full-range cabinet’s input (IN). Note: The nominal impedance of systems consisting of a combination of PR:O 18/210 S and PR:O 8, PR:O 10 X, PR:O 12, PR:O 15 and PR:O 15 X cabinets is 4 ohms!

2.3 PR:O 10 X, PR:O 12 M und PR:O 15 X

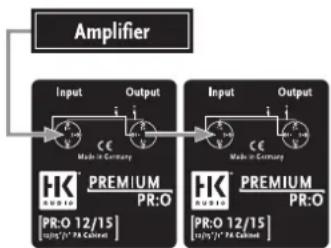

Connect the monitor power amp’s speaker output to the PR:O 10 X, PR:O 12 M und PR:O 15 X monitor’s input (IN). Depending on the type of power amp or powered mixer that you are using, several PR:O 10 X, PR:O 12 M und PR:O 15 X monitors can be connected in parallel to one power amp channel. Note:

• When two PR:O 10 X, PR:O 12 M and PR:O 15 X monitors are -connected in parallel, overall impedance is 4 ohms.

• When three PR:O 10 X, PR:O 12 M and PR:O 15 X monitors are connected in parallel, overall impedance is 2.7 ohms.

• When four PR:O 10 X, PR:O 12 M and PR:O 15 X monitors are connected in parallel, overall impedance is 2 ohms. Caution: Do not allow the overall nominal impedance of the connected monitors to fall below the power amp channel’s minimum impedance! If it does, you risk destroying the power amp! 3 Troubleshooting All speaker cords are connected, but no sound is audible! 1 Check if the power amp is switched on and the mixing console is connected to the power amp. 2 Check if the Speakon connectors that are plugged into the input jacks are locked into place. Twist the connector clockwise until it engages. You have set up a satellite system and the mid/high units are working fine but no low-end signal is heard from the subwoofers! 1 Check if the PR:O 8, PR:O 10 X, PR:O 12, PR:O 15 or PR:O 15 X full-range cabinets are connected to the subwoofer’s SATELLITE OUT. Be sure to connect the cords in the proper sequence! First connect the speaker output of the powered mixer or power amp to the subwoofer’s input, and then connect the subwoofer’s SATELLITE OUT to the PR:O 8, PR:O 10 X, PR:O 12, PR:O 15 or PR:O 15 X fullrange cabinet’s input (IN). For more on this, see the chapter, Connecting Components and Speakers.PREMIUM PR:O Manual 1.4 This is to certify that PR:O 8, PR:O 10 X, PR:O 12, PR:O 12 M, PR:O 15, PR:O 15 X, PR:O 18 S, PR:O 210 S complies with the provisions of the Directive of the Council of the European Communities on the appro- ximation of the laws of the Member States relating to electromagnetic compatibility according to EMC directive 2004/108/EC and low voltage directive 2006/95/EC. This declaration of conformity of the European Com- munities is the result of an examination carried out by the Quality Assurance Department of STAMER GmbH in accordance with European Standards EN61000-6-1, EN61000-6-2, and EN 60065 for low voltage. Magdeburger Str. 8, 66606 St. Wendel Lothar Stamer Dipl.Ing. Managing Director St. Wendel, August/2008 Version 2.0 08/2008 4 Technical Specifications

Power handling nominal (RMS): 300 W Power handling program: 600 W Frequency response +/- 3 dB: 89 Hz - 19 kHz Frequency response -10 dB: 67 Hz - 19 kHz Axial sensitivity 1W/1m (half space): 97 dB Maximum SPL @ 1m , 10% THD: 122 dB Loudspeaker: 1 x 8" Impedance: 8 ohms HF driver: 1" HF protection: Dynamic protection circuitry Horn characteristics: 80° x 80° CD horn Crossover frequency, passive crossover: 2,5 kHz, 12 dB/octave Connections: 1 Input Speakon® NL 4, 1 Parallel Out Speakon® NL 4, Pin assignments: pin 1+ = +; pin 1– = – Pole-mount cup: HK Audio® MonoTilt™ Angles of inclination: 3° Rigging points: 3 M8 recessed threaded inserts Weight: 9,1 kg/ 21.4 lbs. Dimensions (W x H x D): 27 cm 42 cm x 27 cm 10 1/2" x 16 1/2" x 10 1/2"

Power handling nominal (RMS): 300 W Power handling program: 600 W Frequency response +/- 3 dB: 95 Hz – 19 kHz Frequency response -10 dB: 80 Hz – 19 kHz Axial sensitivity 1 W/1 m (half space): 99 dB Maximum SPL @ 1 m, 10% THD: 126 dB Loudspeaker: 1x 10" Impedance: 8 ohms HF driver: 1" HF protection: Dynamic protection circuitry Horn characteristics: 90° x 60° CD horn Crossover frequency, passive crossover: 2,2 kHz, 12 dB/octave Connections: 1 Input Speakon® NL 4, 1 Parallel Out Speakon® NL 4, Pin assignments: pin 1+ = +; pin 1– = – Pole-mount cup: HK Audio® DuoTilt™ Angles of inclination: 3° and 7° Rigging points: 3 M8 recessed threaded inserts Weight: 13,9 kg/ 30.6 lbs. Dimensions (W x H x D): 32 cm 48 cm x 29 cm 12 1/2" x 19" x 11 1/2"

Power handling nominal (RMS): 400 W Power handling program: 800 W Frequency response +/- 3 dB: 68 Hz – 19 kHz Frequency response -10 dB: 60 Hz – 19 kHz Axial sensitivity 1 W/ 1 m (half space): 104 dB Maximum SPL @ 1 m , 10% THD: 128 dB Loudspeaker: 1 x 12" Impedance: 8 ohms HF driver: 1" HF protection: Dynamic protection circuitry Horn characteristics: 60° x 40° CD horn Crossover frequency, passive crossover: 2 kHz, 12 dB/octave Connections: 1 Input Speakon® NL 4, 1 Parallel Out Speakon® NL 4, Pin assignments: pin 1+ = +; pin 1– = – Pole-mount cup: HK Audio® DuoTilt™ Angles of inclination: 3° and 7° Rigging points: 3 M8 recessed threaded inserts Weight: 18.2 kg/ 40.1 lbs. Dimensions (W x H x D): 39 cm 57 cm x 36 cm 15 1/4" x 22 1/2" x 14 1/4"9 English

Power handling nominal (RMS): 400 W Power handling program: 800 W Frequency response +/- 3 dB: 60 Hz – 19 kHz Frequency response -10 dB: 53 Hz – 19 kHz Axial sensitivity 1W/1m (half space): 104 dB Maximum SPL @ 1m , 10 % THD: 128 dB Loudspeaker: 1x 15" Impedance: 8 ohms HF driver: 1" HF protection: Dynamic protection circuitry Horn characteristics: 60° x 40° CD Horn Crossover frequency, passive crossover: 2 kHz, 12 dB/octave Connections: 1 Input Speakon® NL 4 1 Parallel Out Speakon® NL 4, Pin assignments: pin 1+ = +; pin 1– = – Pole mount: HK Audio® DuoTilt™ Angles of tilt: 3° and 7° Rigging points: 3 M8 recessed threaded inserts Weight: 21.1 kg/ 46.5 lbs. (PR:O 15)

Power handling nominal (RMS): 500 W Power handling program: 1000 W Frequency response +/- 3 dB: 48 Hz – 150 Hz (via internal crossover) Frequency response -10 dB: 38 Hz – 150 Hz (via internal crossover) Axial sensitivity 1 W/ 1 m (half space): 104 dB Maximum SPL @ 1 m (half space): 129 dB Loudspeaker: 1 x 18" Impedance: 4 ohms Crossover frequency, passive crossover: 150 Hz, 12dB/octave Connections: 1 Input Speakon® NL 4, Pin assignments: pin 1+ = +; pin 1– = – 1 Satellite Out Speakon® NL 4, Pin assignments: pin 1+ = +; pin 1- = - Pole mount: M20 thread base plate Castors: 4 x 100 mm (optional) Weight: 41.6 kg/ 91.7 lbs. Dimensions (W x H x D): 53 cm x 61 cm x 64 cm 20 3/4" x 24" x 25 1/4"
