USER MANUAL F4 E Fiorenzato

EN Coffee grinder-doser and coffee-grinder

Warnings for installation and electrical connections ..... 20

Operating the grinder-doser .... 20

Preliminaries....20

Switching on and off ..... 20

Adjusting grinding ..... 20

F4A....21

Coffee dose adjustment and operating the grinder-doser...21 Pressing 21

F4E V2 21

Selection buttons....21 Display....21 Operating the grinder-doser..21 Menù....22

Settings Menù....22

Coffe Dose adjustment ..... 22

Mills replacement ..... 22

Safety devices....22

Noise level. 22

Maintenance 23

Cleaning the appliance. . . . . . . 23

DEUTSCH....25

Warnungen....6

Einleitung. 26

Abmessungen 26

Verpackung 26

Entsorgung 26

• Read thoroughly and stick closely to the instructions and warnings.
• Before use, ensure that the mains voltage is the same as the voltage indicated on the data plate of the machine.
• Connect the grinder-doser only to 10 A sockets that are efficiently earthed.
• Always remove the plug from the socket before carrying out any maintenance or cleaning of the grinder-dosers.
• Singlephase models are supplied complete with cable and plug for connection to the socket.
• Any tampering with the grinder-doser or connections not complying with the above indications invalidate the manufacturer's guarantee.
• Do not operate the grinder-doser without coffee in the hopper.
• Never tamper with the machines in any way.
• For any intervention on the machines, always apply only to the authorized service centre.
• Never pull the power cable to remove the plug from the socket.
• Only use the grinder-doser for the purposes it is meant for.
• Position the grinder-doser a minimum of 5 cm from walls so as to allow good ventilation.
• Keep the grinder-doser away from sinks and jets of water.
• Never leave the grinder-doser unguarded when switched on.
• This grinder-doser is not to be used by people with limited mental or physical abilities or by children less than aged 8, or by people lacking in the appropriate knowledge or experience, unless properly supervised by someone responsible for their safety.
• Children must be supervised to make sure they don't play with the appliance.
• Cleaning and maintenance must not be done by children without supervision.
• Never switch on the grinder-doser if it seems to be faulty.
• Use only original accessories and parts.

• To avoid the danger of fire, never cover the grinder-doser.

• If the power cable is damaged, it must be replaced by the manufacturer, its technical department or a person with similar experience in order to avoid any risk.

• Unplug the grinder-doser from the mains when not in use for a long period.
• Let the grinder-doser cool down before moving it.
• In the interest of safety, the grinder-doser must always be considered connected and live.
• Take care, as the grinding blades may continue rotating for a short while even after the grinder-doser is switched off.
• Do not let liquids of any kind come into contact with the internal or external parts of the grinder-doser.
• Never put ground coffee in the hopper intended only for coffee beans.
• Do not tamper with the grinder-doser.
• Do not touch the grinder-doser with damp or wet hands or feet.
• The hopper must be fastened to the grinder-dosers grinding system by means of the relevant screw which must be inserted in the threaded hole located on the upper grinding blade holder and in the hole on the neck of the hopper.
• Make sure that the coffee outlet is free from any obstruction otherwise the appliance will stop.
• The manufacturer cannot be held responsible for bodily injury or damage to property if these regulations are not complied with.
• Operating temperature: -10^ + 60^ - Storage temperature: -40^ + 70^
• USA & CANADA - duty cycle: 25s "ON" | 60s "OFF"

If the grinder-doser is to remain inactive for a long period, clean it carefully, wash and dry the hopper and leave it open.

ATTENTION: Moving parts.

DE -WARNUNGEN

Clifton Golden

INTRODUZIONE

Line drawing of a manual coffee maker with handle and spout (no text or labels)

Line drawing of a coffee maker with control panel and side buttons (no text or symbols)

Illustration of a hand using a tool to press or adjust a mechanical component (no text or symbols visible)

Cartoon illustration of a hand holding a cup and a smiling face with an arrow, no text or symbols present

Line drawing of a manual manual pump or filter device with an arrow indicating direction (no text or symbols present)

F4E V2

Tasti di selezione

Symbol of a trash bin crossed with diagonal lines, representing no waste or discharge (no text or labels)

Fig. A

LA DIRETTIVA 2002/96EC (RAEE): INFORMAZIONI AGLI UTENTI

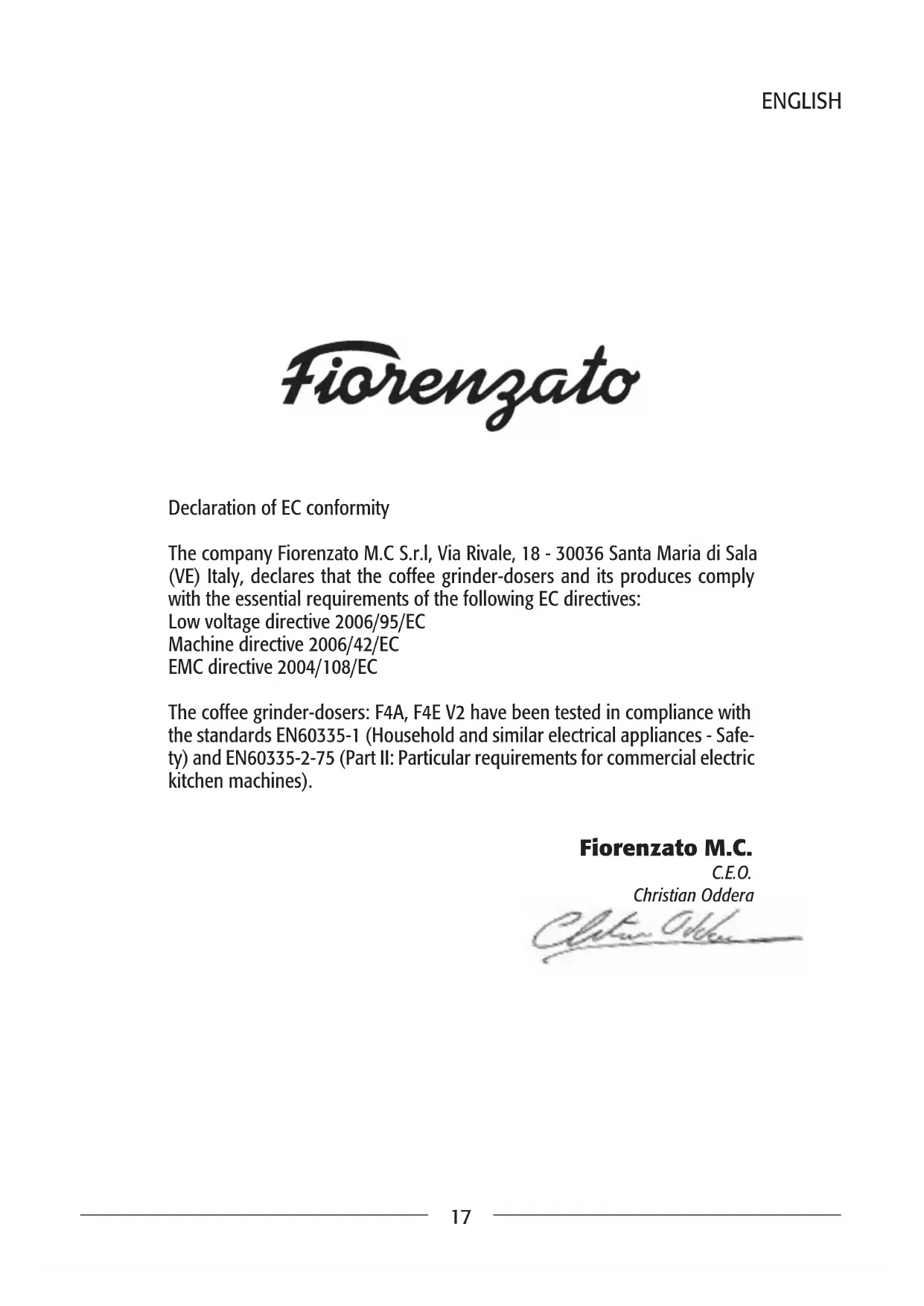

Declaration of EC conformity

The company Fiorenzato M.C S.r.l, Via Rivale, 18 - 30036 Santa Maria di Sala (VE) Italy, declares that the coffee grinder-dosers and its produces comply with the essential requirements of the following EC directives:

Low voltage directive 2006/95/EC

Machine directive 2006/42/EC

EMC directive 2004/108/EC

The coffee grinder-dosers: F4A, F4E V2 have been tested in compliance with the standards EN60335-1 (Household and similar electrical appliances - Safety) and EN60335-2-75 (Part II: Particular requirements for commercial electric kitchen machines).

Fiorenzato M.C.

C.E.O.

Christian Oddera

Clifton Golden

INTRODUCTION

Making coffee is an art. Precise rules need to be followed in order to succeed. The formula for a perfect cup of expresso coffee involves various steps and the coffee machine plays a very important role. For a successful result and unquestionable quality, it is necessary to correctly combine three factors:

• A high-quality blend.
- The appropriate use of available appliances.
- The skill and professionalism of the person who makes it. Contrary to belief, to enjoy a good cup of coffee, it is not enough to choose the right blend.

The operator's experience and skills in following the right procedures for making a coffee and the use of suitable appliances strongly influence the creation of a small masterpiece. Therefore, professionals place crucial importance on the espresso machine and grinder-doser. Knowing how to use these appliances well, maintaining them in perfect working order and using them at their best, is a skill belonging to professional coffee makers. The quality of a good espresso coffee comes from a series of operations, including grinding which plays an important role. Therefore, for the operator, the grinder-doser is one of the fundamental appliances, whose structure must meet certain characteristics of sturdiness, resistance and functionality.

DIMENSIONS

F4A

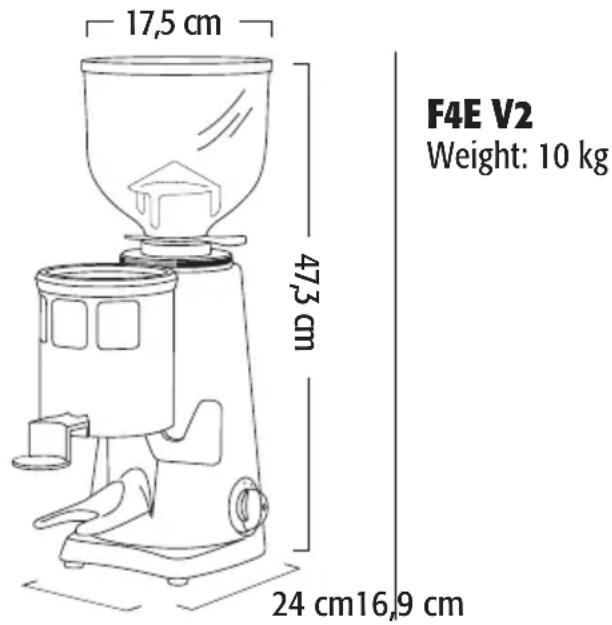

Weight: 10 kg

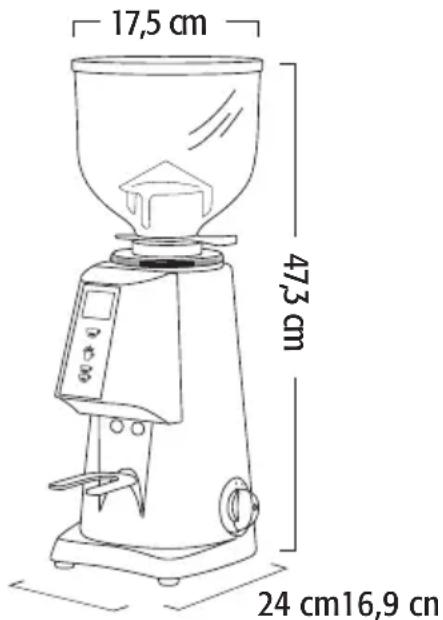

17,5 cm 473 cm 24 cm 16,9 cm F4E V2 Weight: 10 kg

17,5 cm 473 cm 24 cm 16,9 cm

PACKAGING

On opening the packaging, check carefully to make sure the grinder-doser is intact and that there are no signs of damage. If in any doubt, do not use the appliance and contact personnel with the appropriate professional skills. Packaging materials must be kept out of the reach of children, as they are a potential source of danger. Keep the packaging until the warranty has expired.

DISPOSAL

Do not, dispose of the packaging materials in any way other than according to the laws in force. If you decide not to use the grinder-doser anymore, remember to unplug it so it cannot be used, and then cut the cable at the point where it comes out of the grinder-doser. Contact specialized fi rms for information on the disposal of the grinder-doser components.

GENERALDESCRIPTION

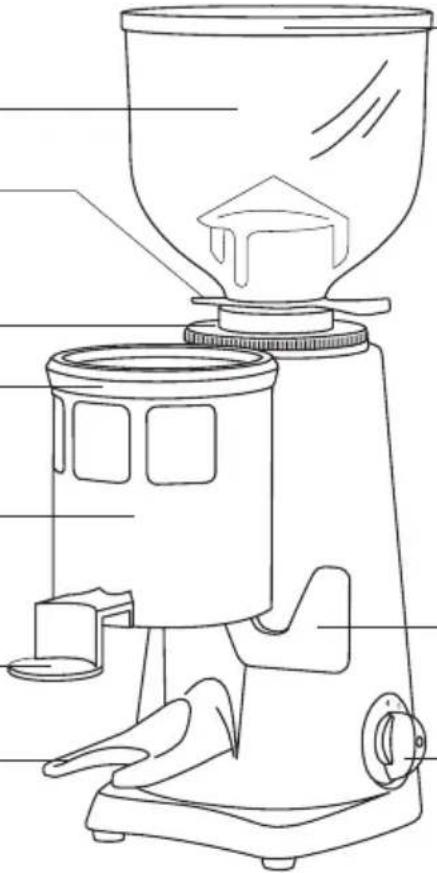

F4A

Hopper cover

Hopper (coffee bean container)

Locking slide

Coffee grinding adjustment disk

Doser cover

Doser

Coffee pressing device

Filter holder fork

Line drawing of a manual coffee maker with handle and spout (no text or labels)

Dosing level

On/Off switch

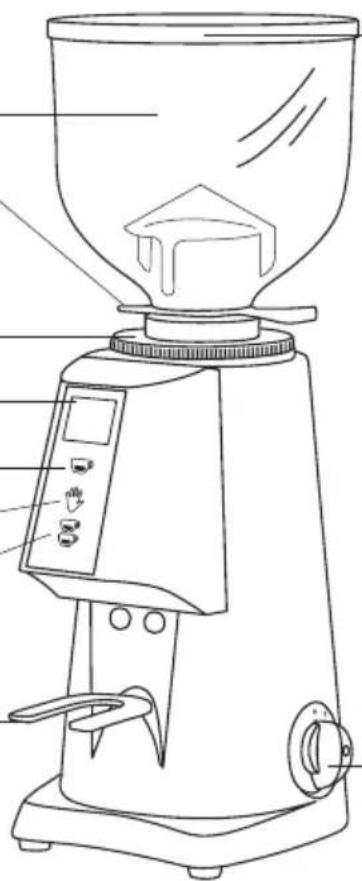

F4E V2

Hopper cover

Hopper (coffee bean container)

Locking slide

Coffee grinding adjustment disk

Display

Single dose

Grinding

Double dose

Filter holder fork

Line drawing of a coffee maker with handle and control panel (no text or symbols)

On/Off switch

USE

This grinder-doser has been designed solely for grinding coffee beans. Any other use must be understood as improper, and consequently hazardous. The manufacturer cannot be held responsible for any damage as a result of improper or incorrect use. Do not use the grinder-doser for grinding other types of food, or anything else. The grinder-dosers and coffee grinders manufactured by our company are intended for skilled personnel for professional use only, not for household use.

WARNINGS FOR INSTALLATION AND ELECTRICAL CONNECTIONS

The grinder-doser must be installed by skilled technical personnel in compliance with the safety regulations in force. Incorrect installation may result in injury to people, animals or things, for which the manufacturer cannot be held responsible.

• The grinder-doser must be placed on a stable, flat surface.
• Before plugging in the grinder-doser, make sure the voltage and frequency values of the supply mains correspond to the ratings indicated on the label featuring the grinder-doser technical data.
• The wall socket must be fitted with an efficient earth contact. Consequently, it is essential to make sure the earth system is efficient and in conformity with current safety regulations. If in any doubt, have the system thoroughly checked by personnel with the appropriate professional skills.
• It is compulsory to earth the grinder-doser. The manufacturer cannot be held responsible in the event of non-observance of this regulation.
• It is essential to make sure the ratings of the system are suitable for the power absorbed by the grinder-doser (as indicated on the label featuring the technical data) and that the wall socket is protected against over currents.
• Do not use extension cables, plug adapters for multiple sockets or makeshift connections.
• The motor must rotate clockwise. If the rotation of three-phase motors is to be inverted,

by inverting the two power supply wires inside the plug, this must be carried out by skilled personnel.

OPERATING THE GRINDER-DOSER Preliminaries

Make sure the hopper is positioned correctly on the coffee grinder-doser and is fastened to the upper grinding blade holder by means of the relevant screw. Close the locking slide and fill the hopper with coffee beans. Open the locking slide so that the beans are allowed to drop into the grinding system.

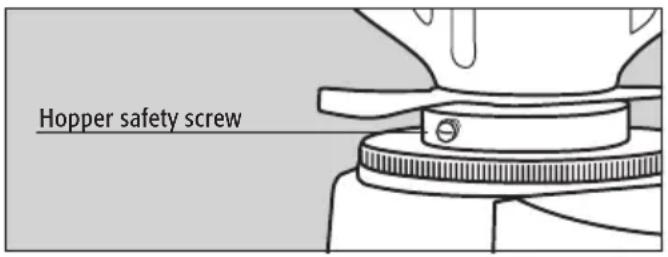

Hopper safety screw

Switching on and off

On: set the switch to 1.

Off: set the switch to 0.

ADJUSTING GRINDING

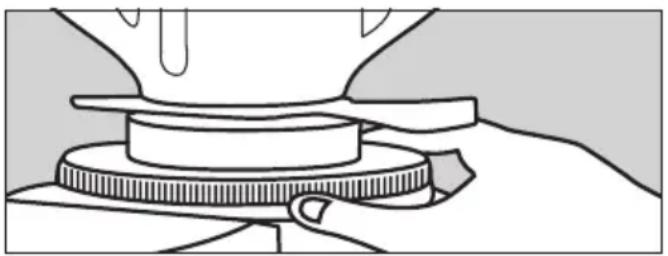

In order to achieve finer or coarser grinding and therefore vary the granulometry, use the adjustment disk located under the hopper. To increase the coarseness of the ground coffee, the adjustment disk must be rotated clockwise, pressing the adjustment disk lock downwards, to decrease turn the disk anticlockwise. The adjustment must be performed with the motor on, and possibly without coffee between the grinding blades.

It is advisable to grind small amounts of coffee to facilitate a visual check of optimum granulometry and, if required, adjust the grinding adjustment disk. If the coffee comes out of the espresso coffee machine very quickly, it means

Illustration of a hand using a funnel to press a circular object on a base, no text or symbols present

that the coffee is ground too coarse. Vice versa, if it comes out too slowly, it means the coffee is ground too fine. Nonetheless, bear in mind that there are many conditions liable to influence the correct supply, such as the weight of the portions, the compacting, the espresso machine settings and the cleaning of the filters.

F4A

COFFEE DOSE ADJUSTMENT AND OPERATING THE GRINDER-DOSER

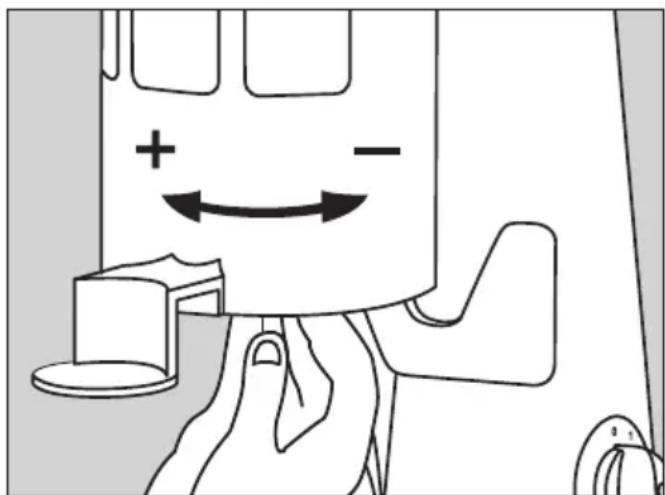

In order to adjust the size of the portion dispensed, the small knob located in the centre of the ground coffee storage container must be turned while holding still the star shaped dosing unit. By turning the small knob anti-clockwise, the portion is reduced. Turning it clockwise results in an increase. In order to collect the portions of ground coffee dispensed, insert the coffee machine's filter holder all the way onto the fork-shaped support under the ground coffee outlet. In order to release a portion of ground coffee, the doser lever must be pulled all the way (never only partly) and allowed to return on its own. Pull twice in a row for a double portion.
