Product Type	Air Purifier
Brand	AeraMax
Model	Pro AM 3 PC
Dimensions (H x W x D)	50.8 x 53.3 x 22.8 cm
Weight	9.16 kg (20.2 lbs)
Power Supply	120 V, 60 Hz, 2 A
Power Consumption (5 speeds)	5, 8, 11, 21, 100 W
Airflow (5 speeds)	76, 93, 112, 140, 220 CFM
Noise Level (5 speeds)	38, 41, 48, 52, 67 dB
Display	Capacitive touch, internal access only
Sensors	EnviroSmart™ (air quality, motion, sound)
Operating Modes	Auto, Silent, Manual
Included Filters	1 HEPA AeroSafe™ filter (1-year life), 1 activated carbon filter with pre-filter (6-month life)
Replacement HEPA Filters	Ref. 9416601 (pack of 2), 2-year life each
Replacement Carbon Filters	Ref. 9416501 (pack of 4), 6-year life each
Purification Technology	HEPA filter 99.97% at 0.3 µm, activated carbon, PlasmaTRUE™ bipolar ionizer
Fan Speeds	5 (Silent, Low, Medium, High, Turbo)
Filter Replacement Indicators	Flashing red at 90% wear, solid red at 100%
Warranty (PC Model)	Particle counters and display: 3 years; other parts: 5 years
Maintenance	Wipe with a soft, dry cloth; do not wash filters
Safety	Grounding required; do not block air inlets/outlets
Spare Parts and Repairability	Replacement filters available; no user-serviceable parts
General Information	Colors: stainless steel, white, graphite; customizable finish upon request

Frequently Asked Questions - Pro AM 3 PC AeraMax

How to reset the filter replacement indicator after changing the filter?

Press and hold the illuminated indicator (HEPA, carbon, or accessory) for 3 seconds until a beep, then release. Press again for 3 seconds until a second beep. The light flashes green then turns off. Perform this within 10 seconds after the first step.

What are the different operating modes?

Three modes: Auto Mode (blue icon) uses EnviroSmart™ sensors to adjust speed; Silent Mode (purple icon) uses the 3 lowest speeds; Manual Mode (solid blue icon) allows manually selecting one of 5 speeds.

How to activate or deactivate the PlasmaTRUE technology?

Press and hold the PLASMA indicator until the blue light turns on (activated) or off (deactivated). This technology produces ions to suppress pollutants.

What to do if the unit does not start?

Check that the unit is plugged into a working electrical outlet. Ensure filters are genuine AeroMax® PRO filters (unit will not operate with other brands). Verify the front panel is fully closed and the power switch is in the ON position.

How often should filters be replaced?

The included HEPA filter lasts about 1 year, the activated carbon filter with pre-filter about 6 months. Replacement HEPA filters (ref. 9416601) last 2 years each, carbon filters (ref. 9416501) last 6 years each. Replace when the indicator is solid red.

Can I wash the filters for reuse?

No, never wash the filters. This reduces their effectiveness. Use only genuine AeroMax® PRO replacement filters.

What does the flashing red light on the filter indicator mean?

Flashing red indicates the filter is 90% worn. It is recommended to order a new filter. Solid red means 100% wear, replace the filter immediately.

How to clean the unit?

Wipe the exterior with a soft, dry cloth. For stubborn stains, use a cloth slightly dampened with warm water. Do not use volatile products (benzene, thinners) or abrasive powders. Clean the air inlet and outlet grilles with a dry cloth.

What are the sensor types and their role?

The unit uses EnviroSmart™ technology which combines air quality, motion, and sound sensors to automatically adjust fan speed and maintain clean air.

What is the warranty for the Pro AM 3 PC model?

Limited warranty: particle counters and display screen are warranted for 3 years from date of purchase; all other parts are warranted for 5 years. The warranty does not cover consumable filters or damage caused by non-approved filters.

USER MANUAL Pro AM 3 PC AeraMax

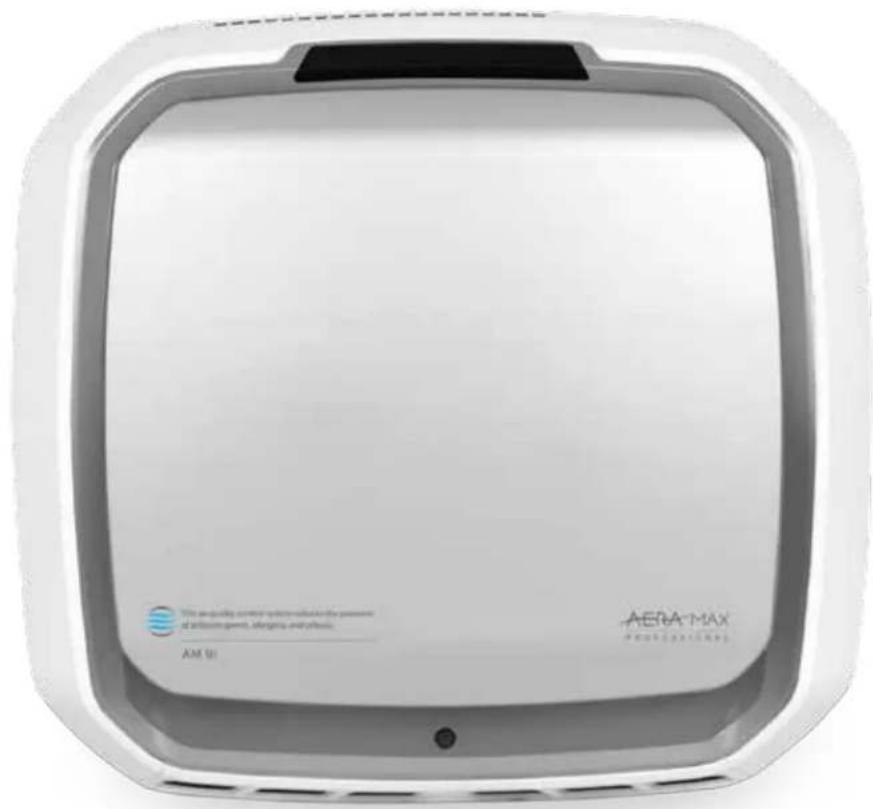

AeraMax® Pro AM III and AM3 PC

AERA MAX

PROFESSIONAL

Air Purifier | Purificateur d'air | Purificador de aire

PLEASE READ THESE INSTRUCTIONS BEFORE USE.

DO NOT DISCARD: KEEP FOR FUTURE REFERENCE.

VEUILLEZ LIRE CES INSTRUCTIONS AVANT D'UTILISER L'APPAREIL.

NE PAS JETER: CONSERVER AFIN DE CONSULTER LES DIRECTIVES ULTE

RIEUREMENT, EN CAS DE BESOIN.

*For a copy of the manual please visit www.aeramaxpro.com

SAFETY INSTRUCTIONS/WARNING

Thank you for purchasing the AeroMax® PRO AM III.

Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain this product. Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage. Retain instructions for future reference.

IMPORTANT CAUTIONS AND INSTRUCTIONS FOR USING AIR PURIFIER:

WARNING: Follow the instructions in this manual to reduce the risk of electric shock, short circuit, and/or fire:

• Do not use this air purifier as sole protection against harmful pollutants.
• Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
• Installation work and electrical wiring must be done by qualified person(s). All electrical installation work must be conducted and carried out in accordance with all federal, state and local codes and regulations.
• Before servicing or cleaning the unit, switch power off at service panel. Lock service panel, or affix a warning tag, to prevent power from being switched back on accidentally.
• The AeroMax® PRO air quality control system must be grounded.

• Use only the electrical power (voltage and frequency) specified for the model air purifier being installed.

• Do not obstruct the air inlet or air outlet of the air purifier.

• When drilling into mounting surface, do not damage electrical wiring and other hidden utilities.
• Do not use unit without filters installed.
• Do not wash and reuse any of the filters.
• Do not use attachments or filters other than AeraMax® PRO brand, as unit will not function.
• Do not spray aerosols on, or into the unit.
• Do not use detergent to clean the unit.
• Do not insert fingers, liquids, or foreign objects into the air intake or outlet.
• Do not use the unit for anything other than air purification.

LIMITED PRODUCT WARRANTY

Limited Warranty: Fellowes, Inc. ("Fellowes") warrants the AeroMax® PRO air quality control system (the "Product") to be free of defects in material and workmanship for the time periods as set forth below.

For PC units only: The particle counters and display screen for a period of three (3) years from the date of original purchase of the Product.
For standard and PC units: All other parts for a period of five (5) years from the date of original purchase of the Product.

In the event that the Product is installed into new construction, the warranty period shall commence on the date of the occupancy permit or one year after the date of purchase, whichever is earlier. If any part is found to be defective during the warranty period, your sole and exclusive remedy will be repair or replacement, at Fellowes' option and expense, of the defective part. This warranty does not cover damage caused by use of non-Fellowes approved filters or failure to follow the recommended replacement schedule. This warranty does not apply in cases of abuse, mishandling, failure to comply with product usage standards, operation using an improper power supply (other than listed on the label), or unauthorized repair. Fellowes reserves the right to charge the consumers for any additional costs incurred by Fellowes to provide parts or services outside of the country where the Product was initially sold by an authorized reseller. This warranty does not cover replaceable filters. In the event that the Product is not readily accessible to Fellowes designated service personnel, Fellowes reserves the right to supply customer with replacement parts or Product in full satisfaction of its obligations under this warranty and any service obligations. ANY IMPLIED WARRANTY, INCLUDING THAT OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, IS HEREBY LIMITED IN DURATION TO THE APPROPRIATE WARRANTY PERIOD SET FORTH ABOVE. In no event shall Fellowes be liable for any consequential, incidental, indirect or special damages. This warranty gives you specific legal rights. The duration, terms, and conditions of this warranty are valid worldwide, except where different limitations, restrictions, or conditions may be required by local laws.

PACKAGING CONTENTS

AeraMax® PRO Air Quality Control System
True HEPA Filter with AeroSafeTM Antimicrobial Treatment (1 filter)
- Activated Carbon Filter w/Pre-Filter (1 of each filter)
- Keys for Locking Front Panel (2)

• Mounting Template
  Pan Head Phillips Screws - M6 x 50mm (4)
• Drywall Anchors - 10mm OD (4)
• Registration information

PRODUCT SPECIFICATIONS

AeraMax® PRO AM III
Dimensions (H x W x D) 20 x 21 x 9 inches / 50	0.8 x 53.3 x 22.8 cm
Weight of System (including filters) 20.2 lbs. / 9.16 kg
Power Requirements 120V, 60Hz, 2A
Power Consumption (5 fan speeds) 5, 8, 11, 21,	100 watt
Air Delivery (5 fan speeds) 76, 93, 112, 140, 220 CFM
Decibels 38, 41, 48, 52, 67 dB
Display Capacitive Touch, Internal Access Only
Sensors EnviroSmart™
Sensor Controlled Operation Modes 2 Primary modes - Normal Mode and Quiet Mode
Supplied Filters	1 True HEPA Filter with AeroSafe™ Antimicrobial Treatment with an estimated average filter life of 1 year, 1 Activated Carbon Filter with Pre-Filter, estimated average filter life 6 months.
Cleaning System	High Efficiency Particulate Air (HEPA) filter rated efficiency of 99.97% of airborne particulate at 0.3 microns. Carbon Filter adsorbs odor and volatile organic compounds, PlasmaTRUE™ bipolar ionizer.
Color	• Stainless (item# 9416201), • White (item# 9436201), • Graphite (item #9446201), • Custom finish available, call for more details

REPLACEMENT FILTERS
HEPA	True HEPA filter replacement with AeraSafe™ treatment. Average filter life 2 years: 9416601 – 2 pack
Carbon	Granular activated carbon replacement filter with pre-filter. Average filter life 6 months: 9416501 – 4 pack

For additional replacement filter and accessory information please visit: www. aeramaxpro.com

INFORMATION TO THE USER

This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in an installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna
- Increase the separation between the equipment and receiver
- Connect the equipment on a circuit different from that to which the receiver is connected.
- Consult the dealer or experienced radio/TV technician for help.

WARNING: Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment and warranty.

NOTE: after the unit is turned on the "AQ" light will flash for a few minutes while the system self-calibrates.

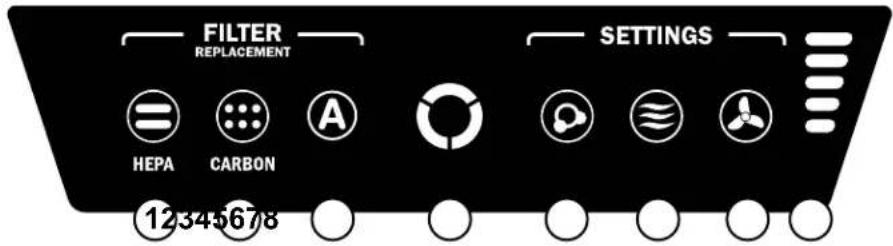

1 HEPA FILTER REPLACEMENT INDICATOR - This indicator will show its status when the access panel is open or closed. If the light is red this indicates the filter needs replacing. The replacement period will vary depending on the filters used, hours of use, air quality, and rate of air flow. For filter replacement indicator descriptions see FILTER REPLACEMENT INDICATORS section.
2 CARBON FILTER REPLACEMENT INDICATOR - This indicator will show its status when the access panel is open or closed. If the light is red this indicates the filter needs replacing. The replacement period will vary depending on the filters used, hours of use, air quality, and rate of air flow. For filter replacement indicator descriptions see FILTER REPLACEMENT INDICATORS section.
3 ACCESSORY INDICATOR - This indicator will show its status when the access panel is open or closed. This indicator will only be used if an accessory filter is installed in the unit. If the light is red this indicates the filter needs replacing. The replacement period will vary depending on the filters used, hours of use, air quality, and rate of air flow. For filter replacement indicator descriptions see FILTER REPLACEMENT INDICATORS section.
AIR QUALITY SENSOR - This indicator will show its status when the access panel is open or closed. This indicator monitors the air quality and adjusts the fan speed to keep your air purified. Blue, amber, and red lights indicate the purity of your air.

5 PlasmaTRUETM TECHNOLOGY - This indicator will show its status when the access panel is open or closed. Creates an ionized field to help safely remove airborne pollutants. To turn on and off the PlasmaTRUETM TECHNOLOGY, touch and hold the PLASMA indicator. A blue light illuminates when the PlasmaTRUETM TECHNOLOGY is enabled. To disable the PlasmaTRUETM TECHNOLOGY, press and hold "Plasma" indicator until light is off.
6 AUTO MODE - To select, press and hold the button until the icon illuminates. This mode uses the EnviroSmart™ technology to monitor the air quality, motion and noise level to adjust the fan speed in order to purify your air as quickly as possible. This button also includes QUIET MODE. To select, press and hold until the button turns purple. The machine will continue to use EnviroSmart™ but only utilizes the 3 lowest, most quiet of the 5 fan speeds.
7 MANUAL MODE - To select, press the button until the icon illuminates. This mode allows you to choose one of the 5 fan speeds and keep the unit at this speed until AUTO MODE is chosen again. The internal sensors will not adjust the fan speed in this mode.
8 FAN SPEED INDICATORS - The fan has 5 speeds and can reach turbo speed to clean the room in case of high levels of contaminants. The number of bars illuminated indicates fan speed.

1-whisper 4-high
2-low 5-turbo
3 - medium

OPERATION

The air purifier continuously works in automatic mode; the user can select which preference they would like the purifier to use based on the location or desired operation of the air purifier. The purifier will operate through a minimized range of speeds, not exceeding the maximum level selected, in order to run quietly while cleaning the room of contaminants. Once air is cleaned, and no sensors are activated, the unit lowers to energy saving mode to reduce energy consumption and extend the life of the filters.

When Auto Mode is selected, the Auto mode indicator will be blue. This mode uses the EnviroSmart™ technology to monitor the air quality, motion and noise level to adjust the fan speed in order to purify your air as quickly as possible. Once air is cleaned, and no sensors are activated, the unit lowers to energy saving mode to reduce energy consumption and extend the life of the filters.

When Quiet Mode is selected, the Auto Mode indicator will be purple. The machine will continue to use EnviroSmart™ but only utilizes the 3 lowest, most quiet of the 5 fan speeds.

When Manual Mode is selected, the Manual mode indicator will be blue. This mode allows you to choose one of the 5 fan speeds and keep unit at this speed until Auto Mode is chosen/selected. EnviroSmart™ sensors will NOT adjust the fan speed in this mode.

CARE AND MAINTENANCE

CLEANING:

• Clean external housing as necessary by wiping with a dry, soft cloth; for stains, use a warm, damp cloth.

• Do not use volatile fluids such as benzene, paint thinner, scouring powder or other cleaners that may damage the unit surface.

• Clean intake and exhaust vents by wiping with a dry, soft cloth.

FILTER REPLACEMENT INDICATORS:

The replacement filter indicators will signal when to replace the HEPA Filter and/or Carbon with Pre-Filter. The replacement period will vary depending on the hours of use, air quality, and rate of air flow. However, under normal usage, most HEPA Filters need to be replaced every 2 years, and Carbon with Pre-Filter every 6 months. When a filter needs to be replaced the following color will be shown on any one of the HEPA, CARBON, or ACCESSORY filter replacement indicators:

Red flashing = 90% filter wear (recommendation to order new filters)

Red steady = 100% filter wear (replace with new filters)

Do not wash and reuse any of the filters - they will not work effectively. Only use AeraMax® PRO brand replacement filters as units will not function using any other replacements.

FILTER REPLACEMENT PROCEDURE:

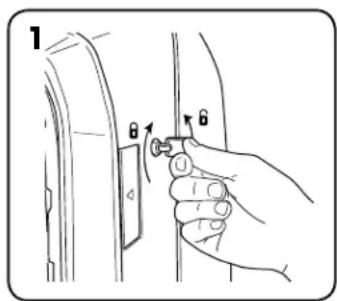

Unlock access panel: to unlock, insert the key provided and rotate counter-clockwise 14 turn.

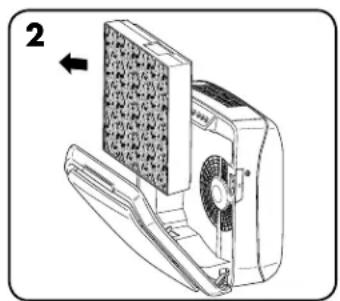

Open front access panel by pressing latches on both sides of unit. Allow panel to open fully. Remove filter(s) to be replaced.

Remove any packaging wrap from the new filters(s) and re-install the filters.

FILTER REPLACEMENT:

When installing a new filter the unit will automatically detect the filter type but the user will have to manually reset the filter replacement indicators. To reset any of the filter replacement indicators use the following procedure:

Touch and hold the illuminated indicator for three seconds until a beep is heard and the indicator is flashing green.

2 Release finger from indicator.

3 Touch and hold the indicator for three seconds until a beep is heard and the indicator light turns off.

Note: If you do not complete step three within 10 seconds of completing step 1 then the indicator light will not be reset.

TROUBLESHOOTING

PROBLEM: POSSIBLE SOLUTION:
The air quality control system fails to start.	·Check to assure unit is connected to power supply. ·Make sure filters are genuine AeroMax® PRO filters, as unit will not function with other brands. IMPORTANT: Make sure filter detection area on genuine AeroMax® PRO replacement filter aligns with window in filter frame. ·Review “Re-Installing Filters” section for further detail. ·Make sure front access panel is closed completely. ·Make sure power switch is on.
The unit makes a faint ticking sound.	·This indicates that the “PlasmaTRUETM®” bipolar ionizer is working.
The HEPA and/or Carbon Filter replacement indicator light remain lit after replacing the filter(s).	·Repeat filter light reset instruction.
