Product Type	Air Purifier
Brand	AeraMax (Fellowes)
Model	9790101 (AeraMax 90)
Coverage Area	90 sq ft (8 m²)
Power Supply	120 V AC / 60 Hz
Nominal Power	37 W (low) / 51 W (high)
Fan Speed	3 speeds (low, medium, high)
Control Type	Auto / Manual / Aera+
Air Quality Sensor	AeroSmart™ (blue, amber, red)
Filtration System	4 stages: carbon filter, True HEPA filter, AeraSafe™ antimicrobial treatment, PlasmaTRUE™ technology
True HEPA Filter	Captures 99.97% of particles as small as 0.3 microns (allergens, viruses, dust mites, etc.)
CADR (Smoke / Dust / Pollen)	68 / 65 / 75
Aera+ Mode	Increases airflow by 35% for allergies
Filter Replacement Indicators	Yes (red/amber for HEPA and carbon)
True HEPA Filter Replacement Frequency	Every 12 months under normal conditions
Carbon Filter Replacement Frequency	Every 3 months under normal conditions
Replacement Parts (Replacement Filters)	True HEPA AeraSafe™ Filter: 9287001; Carbon Filter: 9324001
Limited Warranty	3 years (parts)
Maintenance and Cleaning	Wipe with a soft, dry cloth; do not use benzene or thinner
Safety	Do not use without filter, do not insert objects into openings, unplug before cleaning

Frequently Asked Questions - 9790101 AeraMax

How to change the filters of the AeraMax 9790101 air purifier?

Unplug the unit, remove the back panel, replace the True HEPA filter (ref. 9287001) then the carbon filter (ref. 9324001). Put the panel back, plug in, then reset the indicator by pressing the filter replacement icon for 3 seconds until a beep, select the changed filter and hold for 3 to 5 seconds.

What does the red indicator on the panel mean?

The red indicator signals that air quality is poor (high levels of pollutants). The AeroSmart™ sensor automatically adjusts the fan speed to purify the air.

How to activate Aera+ mode?

Press the Aera+ icon (P) on the control panel. This mode increases airflow by 35% to combat allergies. To return to automatic mode, press the icon again.

How often should the filters be replaced?

The True HEPA filter should be replaced every 12 months or so, and the carbon filter every 3 months, under normal use conditions. Follow the replacement indicators (amber then red).

What to do if the unit emits a clockwork mechanism noise?

This noise is normal and indicates that PlasmaTRUE™ technology is operating. If the noise is bothersome, you can deactivate PlasmaTRUE™ by pressing its icon for 5 seconds until a beep.

Can I use the air purifier without filter?

No, it is strictly forbidden to operate the unit without a filter. This could damage the device and reduce purification efficiency.

How to clean the exterior of the purifier?

Wipe the unit with a soft, dry cloth. For stubborn stains, use a cloth dampened with warm water. Never use benzene, paint thinner, or detergent.

Why does the filter indicator stay on after changing filters?

You must reset the indicator after the change: press the filter replacement icon for 3 seconds until a beep, select the changed filter, then hold for 3 to 5 seconds. Repeat for each filter.

What are the part numbers for replacement filters?

True HEPA filter with AeraSafe™ antimicrobial treatment: 9287001; Carbon filter: 9324001. You can order them at www.fellowes.com.

What to do if radio/TV interference occurs?

Adjust the TV/radio antenna, move the purifier away from the affected device, or plug it into an outlet different from the TV/radio's power cord.

USER MANUAL 9790101 AeraMax

Please read these instructions before use. Do not discard: keep for future reference.

Warranty. 2
Package Contents 2
Safety Instructions 3
Product Specifications. 4
Air Purifier Features. 5
Air Purifier Set-Up 6

Display Panel 7
Operation. 8
Care and Maintenance. 9-10
Troubleshooting 11

LIMITED PRODUCT WARRANTY

Limited Warranty: Fellowes, Inc. ("Fellowes") warrants the parts of the machine to be free of defects in material and workmanship and provides service and support for 3 years from the date of purchase by the original consumer. If any part is found to be defective during the warranty period, your sole and exclusive remedy will be repair or replacement, at Fellowes' option and expense, of the defective part. This warranty does not cover damage caused by use of non-Fellowes approved filters or failure to follow the recommended replacement schedule. This warranty does not apply in cases of abuse, mishandling, failure to comply with product usage standards, operation using an improper power supply (other than listed on the label), or unauthorized repair. Fellowes reserves the right to charge the consumers for any additional costs incurred by Fellowes to provide parts or services outside of the country where the air purifier is initially sold by an authorized reseller. This warranty does not include the air cleaner's replaceable filters, this is an expendable part that can wear out from normal use before three years expire. ANY IMPLIED WARRANTY, INCLUDING THAT OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, IS HEREBY LIMITED IN DURATION TO THE APPROPRIATE WARRANTY PERIOD SET FORTH ABOVE. In no event shall Fellowes be liable for any consequential or incidental damages attributable to this product. This warranty gives you specific legal rights. The duration, terms, and conditions of this warranty are valid worldwide, except where different limitations, restrictions, or conditions may be required by local law. For more details or to obtain service under this warranty, please contact us or your dealer.

PACKAGE CONTENTS

• Fellowes® AeraMax™ Air Purifier
  True HEPA Filter with AeroSafeTM
  Antimicrobial Treatment (1 filter)

Carbon Filter (1 filter)
- Instruction Sheet
Survey Card

SAFETY INSTRUCTIONS

Thank you for purchasing a Fellowes® Air Purifier. Please read this manual carefully before using. This product is for indoor use only.

IMPORTANT CAUTIONS AND INSTRUCTIONS FOR USING YOUR AIR PURIFIER

WARNING: Follow the instructions in this manual to reduce the risk of electric shock, short circuit, and/or fire;

• Do not repair or modify the unit unless specifically recommended in this manual. All repairs should be completed by a qualified technician.
• The plug for this unit is polarized with one blade wider than the other. Do not force the plug into an electrical outlet.
• Do not alter the plug in any way. If the plug does not fit into the outlet, reverse the plug. If it still does not fit, contact a qualified technician to install a proper outlet.
• Do not use if the power cord or plug is damaged or the connection to the wall outlet is loose.
• Use AC 120V only.
• Do not damage, break, forcefully bend, pull, twist, bundle, coat, pinch, or place heavy objects on the power cord.
  Periodically remove dust from the power plug. This will reduce the chance that humidity will accumulate, which increases the risk of electric shock.
• If the power plug is damaged, it must be replaced by the manufacturer or a qualified technician.

• Remove the power plug from the outlet before cleaning the unit. When removing the power plug, grasp by holding the plug itself, never hold by the cord.

• Remove the power plug from the outlet when the unit is not in use.

• Do not handle the power plug with wet hands.
• Do not operate the unit when using indoor smoke-generating insecticides.
• Do not clean unit with benzene or paint thinner. Do not spray insecticides on the unit.
• Do not use the unit where it is humid or where the unit may get wet, such as in a bathroom.
• Do not insert fingers or foreign objects into the air intake or outlet.
• Do not use the unit near flammable
  gases. Do not use near cigarettes, incense, or other spark-creating ite
• Unit will not remove carbon monoxide emitted from heating appliances or other sources.
• Do not block the intake or outlet vents.
• Do not use near hot objects, such as a stove. Do not use where the unit may come into contact with steam.
• Do not use the unit on its side.
• Keep away from products that generate oily residue, such as a deep fryer.
• Do not use detergent to clean the unit.
• Do not operate without a filter.
• Do not wash and reuse the True HEPA Filter.
• Do not run power cord under carpets or cover with throw rugs.
• When moving machine, always lift using handle.

PRODUCT SPECIFICATIONS

	AeraMaxTM 90 Air Purifier
Room Area Served	90 sq. ft./8 sq. m.
Power Supply AC 120V/60Hz
Power Rate Low 37W, High 51W
Fan Speed 3 Speeds
Display Touch Screen
Control Type Auto/Manual/Aera+TM
Air Quality Sensor Yes
Filters	1 True HEPA Filter with AeraSafeTM Antimicrobial Treatment1 Carbon Filter
Cleaning System	Carbon FilterTrue HEPA Filter with AeraSafeTM Antimicrobial TreatmentPlasmaTRUE™
CADR 68 Smoke/ 65 Dust/ 75 Pollen
Color Black

FILTER SPECIFICATIONS

True HEPA Filter Replacement with AeraSafe™ Antimicrobial Treatment	9287001
Carbon Filter Replacement	9324001

For replacement filters please visit: www.fellowes.com

Warning

Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment.

AIR PURIFIER FEATURES

- Ultra-Qiet Operation

This Fellowes AeraMax Air Purifier has a three-speed fan with ultra-quiet operation that is ideal for 24 hour use.

- Easy Maintenance

For optimum performance, replace the True HEPA Filter when the HEPA Filter indicator has changed to red, or approximately every 12 months under normal usage conditions. Change the Carbon Filter when the Carbon Filter indicator has changed to red or approximately every 3 months under normal usage conditions.

AeraSmartTM Sensor

This air purifier is equipped with an air quality sensor that automatically adjusts the fan speed to keep your air purified. Blue, amber and red lights indicate the purity of your air.

- Three-Speed Setting

From LOW for quiet, energy-efficient operation to HIGH for the most effective cleaning.

Aera+TM Mode

Designed for peak allergy season conditions. Increases air turnover rate by 35% versus low fan setting mode to remove even more allergens from your air.

- Replacement Filter Indicator Lights

Indicate when to replace the True HEPA Filter and Carbon Filter, depending on usage.

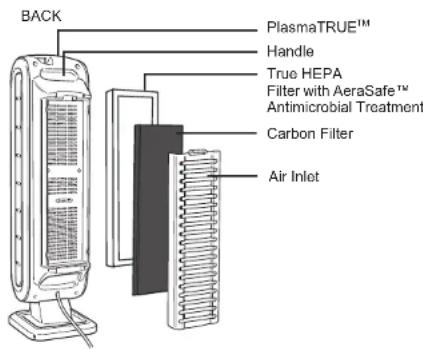

FOUR-STAGE PURIFICATION SYSTEM

Removes 99.97% of airborne pollutants.

- Carbon Filter

Removes odors and captures large airborne particulates.

True HEPA Filter

Captures 99.97% of particles as small as 0.3 microns, including ragweed and other allergens, viruses, germs, dust mites, mold spores, pet dander and cigarette smoke.

AeraSafeTM Antimicrobial Treatment Built-in protection from the growth of odor causing bacteria, mildew and fungi on the True HEPA Filter.

- PlasmaTRUE™ Technology

In the final stage of purification, Fellowes® PlasmaTRUE™ Technology creates an ionized field to help safely remove airborne pollutants.

5

AIR PURIFIER SET-UP

NOTE: Follow these instructions for best results.
- Place unit at least 2 feet (1/2 meter) from the wall.
- Keep unit away from drafty areas.
- Keep curtains away from unit, as they may interfere with air intake/outlet.
- Place unit on a stable surface with plenty of air circulation.
1. Remove protective film from the control panel.
2. Compress tab and pull out back panel.

1. Remove bag from filters. Place filters back in unit.

1. Insert True HEPA Filter first and then Carbon Filter.

2. Fully insert filter panel bottom tabs first, then insert top tab until click is heard.

1. Plug in the power cord to a wall outlet.

2. Turn unit on. Unit will beep.

For approximately the first 4 minutes after turning the unit on, the auto icon will flash while the unit measures air quality.

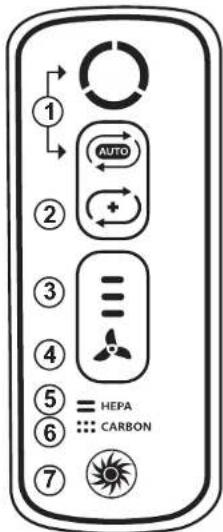

DISPLAY PANEL

1. AeroSmart™ SENSOR - Monitors the air quality and automatically adjusts the fan speed to keep your air purified. Blue, amber and red lights indicate the purity of your air. The unit is set to default to automatic operation when it is first turned on. If in manual operation, go back to auto at any time by pressing the auto icon.
2. AeraTM MODE -Designed for peak allergy season conditions. Increases air turnover rate by 35% versus low fan setting mode to remove even more allergens from your air. Switch to Aera^+m mode by pressing the icon. To return to auto operation, press the icon once more to turn off.
3. FAN SPEED INDICATOR - Shows current fan speed setting: low, medium or high speed.
4. MANUAL FAN SPEED ADJUSTMENT - Tap fan icon to manually select fan speed.
5. TRUE HEPA FILTER CHANGE INDICATOR - Amber and red lights indicate when to replace filter. The red indicator light will signal when to replace filter. (Recommended to replace filter every twelve months under normal usage conditions.) For replacement filters, see page 4.
6. CARBON FILTER CHANGE INDICATOR - Amber and red lights indicate when to replace filter. The red indicator light will signal when to replace filter. (Recommended to replace filter every three months under normal usage conditions.) For replacement filters, see page 4.
7. PlasmaTRUE™ TECHNOLOGY - Creates an ionized field to help safely remove airborne pollutants.

OPERATION

CARE AND MAINTENANCE

AUTOMATIC OPERATION

The unit is set to default to automatic operation when it is first turned on. The air purifier will automatically sense the amount of impurities in the air, and adjust the fan speed to keep your air purified.

MANUAL OPERATION

After you turn on the unit, you can switch to manual operation by tapping the fan icon to manually select the fan speed.

LOW, MEDIUM, OR HIGH SETTINGS
LOW

MEDIUM HIGH

AeraSmart™ SENSOR

Air quality indicator shows levels of air quality.

Blue level indicates air is clean.

Amber level indicates air quality is poor.

Red level indicates high level of pollutants in the air.

Aera+TM MODE

After you turn on the unit, you can switch to Aera+TM mode by pressing the Aera+TM mode icon (To go back to auto operation, press Aera+TM mode icon) to turn off.

CLEANING

• Clean unit as necessary by wiping with a dry, soft cloth; for stubborn stains, use a warm, damp cloth.
• Do not use volatile fluids such as benzene, paint thinner, or scouring powder, as they may damage the unit surface.
• Keep the unit dry.

Filter Replacement

The replacement filter indicators will signal when to replace the True HEPA Filter and/or Carbon Filter. The replacement period will vary depending on the hours of use and air quality. However, under normal usage, most True HEPA Filters need to be replaced annually, and Carbon Filters every three months.

Do not wash and reuse the True HEPA or Carbon Filters—they will not work effectively. Only use Fellowes brand AeraMaxTM replacement filters.

WARNING: Before replacing any filters, make sure to remove the power plug from the wall outlet.

Replacement Procedure

1. Compress tab and pull out back panel.

2. Pull out the filters that need to be changed.

3. Remove any packaging wrap from the new filter(s).

For replacement filter part numbers, see page 4.

1. Place the new filters in the main unit. (True HEPA Filter should always be inserted first, then the Carbon Filter)

1. To reset the filter light once a new True HEPA and/or Carbon Filter is installed:

a. Be sure that back panel is snapped in place.
b. Turn on the unit.
c. Locate the filter replacement icon on the display panel.
d. Press and hold the filter replacement icon for 3 seconds until unit beeps. HEPA Filter icon will flash amber. Press filter icon area to alternate between HEPA and Carbon.
e. Once desired filter is illuminated, press and hold for 3-5 seconds. A short beep will be heard and the light should turn off. Repeat process for each filter as needed.

1010 11

AeraMax-90_870326_Rev_BSL_032117.IND 10-114/21/17 9:48 AM

TROUBLESHOOTING

Before you call

Solutions to Common Problems

Review this list before you call for service. This list covers problems that are not the result of defective materials or workmanship.

PROBLEM	POSSIBLE SOLUTION
The unit leaves smoke and odors in the air.	Make sure the sensor is not blocked or clogged.Move the unit closer to the offending odors.Replace the filters as needed.
The unit seems to produce odors.	Replace the filters as needed.
The unit makes a faint ticking sound.	This indicates that the PlasmaTRUETM function is working.
The unit interferes with radio or television reception.	Because this unit radiates radio frequency energy, we suggest you try one or more of the following:- For better reception, adjust the television/radio antenna.- Move the unit away from the affected television/radio.- Plug the unit power cord into an outlet different from the television/radio power cord.
The True HEPA and Carbon Filter indicators remain lit after replacing the True HEPA and/or Carbon Filter.	Repeat filter light reset instructions from page 10.
The PlasmaTRUETM icon is not illuminated.	Touch and hold PlasmaTRUETM icon for five seconds until unit beeps.
The wrong filter replacement light was reset.	In the case of unintended filter reset, repeat the filter reset procedure on page 10 within 5 minutes of unintended reset.The filter counter and indicator will return to the status previous to the reset.
