Product Type	Wired in-ear headphones with ear hook
Brand	Monster
Model	Powerbeats
Category	Earplug
Connectivity	3.5mm stereo jack (1/8 inch)
Cable Length	Approximately 1.2 m
Weight	Approximately 23 g
Provided Ear Tips	Multiple sizes (S, M, L) in silicone
Remote Control Functions	Play/Pause, next/previous track, fast forward/rewind, volume control, answer/end call, reject call, voice command
Microphone	Integrated in remote control
Intended Use	Sports, music listening, phone calls
Maintenance and Cleaning	Remove ear tips, clean with a cloth moistened with warm water and mild soap, dry completely before reassembly
Storage	In the provided protective case, a clean and dry place, avoid extreme temperatures
Safety	Reduce volume before connecting, avoid prolonged exposure above 85 dB, do not use while driving
Replacement Parts	Replacement ear tips available
Compatibility	iPod, iPhone, iPad, HTC, Blackberry, Android (some functions may vary)

Frequently Asked Questions - Powerbeats MONSTER

How to install the Powerbeats earphones?

Place the rubber hook over your ear, insert the silicone ear tip into your ear, then press the 'b' button to adjust. Repeat for the other ear.

How to clean the earphone tips?

First remove the ear tips from the earphones. Clean them with a cloth moistened with warm water and mild soap, rinse and dry completely before putting them back.

How to use the remote for playback?

Press the center button to play/pause. Press twice for next track, three times for previous. To fast forward/rewind, press twice and hold the second press.

How to adjust volume with the remote?

Use the top button on the remote to increase volume and the bottom button to decrease. This function may vary by device.

How to answer or end a call?

Press the center button once to answer. Repeat to hang up. To reject a call, hold the button for 2 seconds.

How to use voice command?

Hold the center button until voice command activates. Availability depends on device.

What hearing safety precautions?

Reduce volume before connecting earphones. Exposure to sounds of 85 dB or higher can damage hearing. Limit listening time at high volumes.

Can I use the earphones while driving?

No, it is dangerous and illegal in many areas. Use an FM transmitter to listen to music in the car.

How to store the earphones?

Always store them in the provided protective case, in a clean and dry place. Avoid extreme temperatures and humidity.

Which ear tips to use for better sound?

Try all provided sizes. A well-fitted ear tip improves bass, tonal balance, and comfort. It should neither plug nor be too loose.

USER MANUAL Powerbeats MONSTER

Abstract black circular logo with a stylized 'b' shape (no text or symbols)

Powerbeats

User Guide

Table of Contents

EN Important Safety Information 2

Putting on Powerbeats 5

Eartips and Maintenance 6

Using the Remote Mic 9

Care and Storage 11

Select, Connect, Listen 11

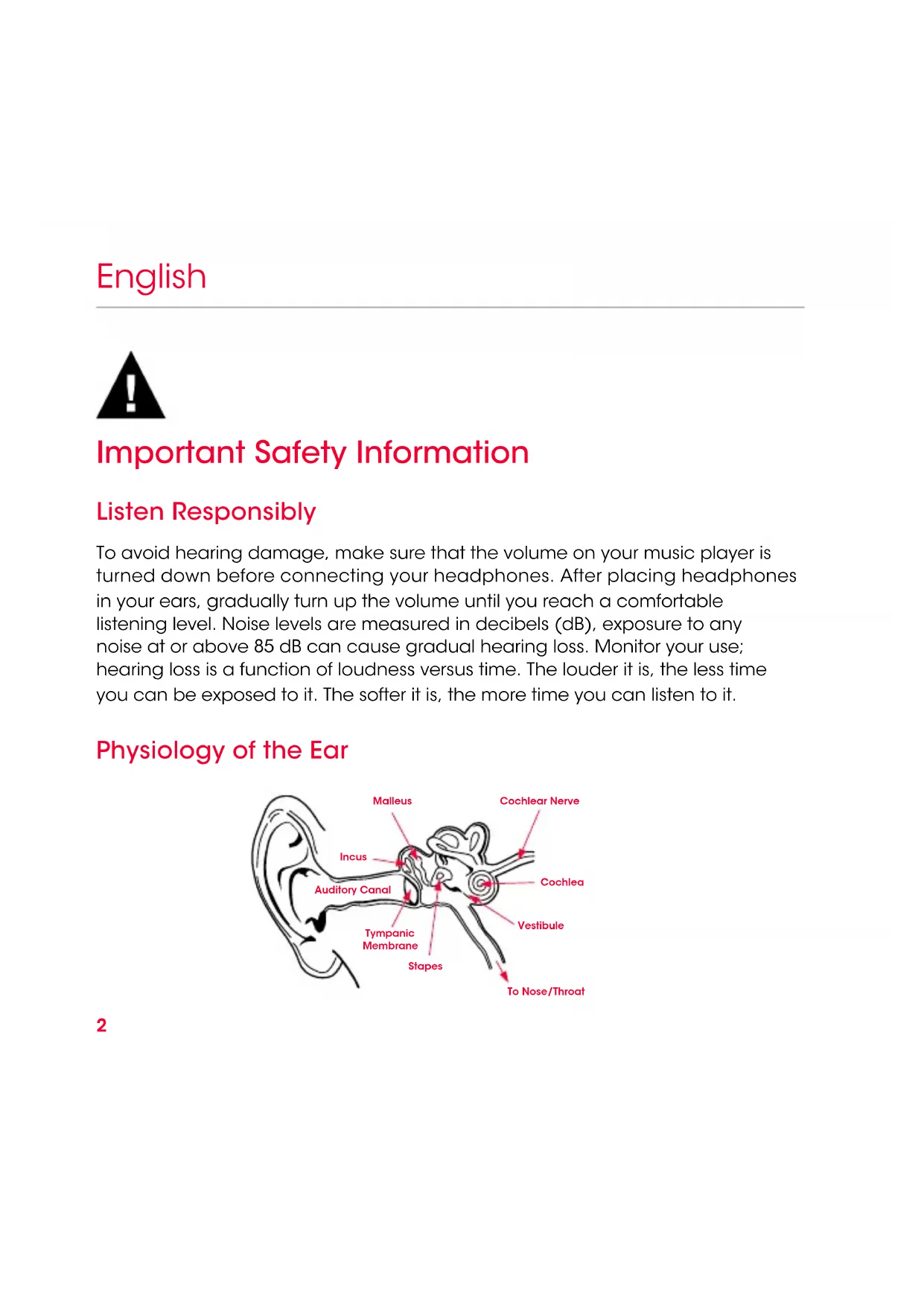

To avoid hearing damage, make sure that the volume on your music player is turned down before connecting your headphones. After placing headphones in your ears, gradually turn up the volume until you reach a comfortable listening level. Noise levels are measured in decibels (dB), exposure to any noise at or above 85 dB can cause gradual hearing loss. Monitor your use; hearing loss is a function of loudness versus time. The louder it is, the less time you can be exposed to it. The softer it is, the more time you can listen to it.

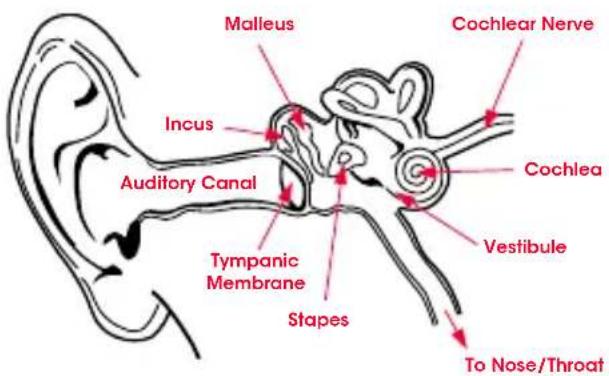

Physiology of the Ear

Malleus Cochlear Nerve Incus Auditory Canal Cochlea Vestibule Tympanic Membrane Stapes To Nose/Throat

This decibel (dB) table compares some common sounds and shows how they rank in potential harm to hearing.

SOUND NOISE LEVEL	(dB)	EFFECT
Whisper 30 Very quiet
Quiet Office 50-60 Comfortable hearing levels are under 60dB
Vacuum Cleaner, Hair Dryer	70 Intrusive; interferes with telephone conversations
Food Blender 85-90 85 dB is the level at which hearing damage (8 hrs.) begins
Garbage Truck, Cement Mixer	100 No more than 15 minutes of unprotected exposure recommended for sounds between 90-100 dB
Power Saw, Drill/Jackhammer	110 Regular exposure to sound over 100 dB of more than 1 minute risks permanent hearing loss
Rock Concert (varies)	110-140	Threshold of pain begins around 125 dB

* Chart information from http://www.nidcd.nih.gov/health/education/teachers/pages/common_sounds.aspx

“.... a typical person can safely listen to an iPod for 4.6 hours per day at 70% volume.”

“.... knowing the levels one is listening to music at, and for how long is extremely important.”

From http://www.cbc.ca/health/story/2006/10/19/music-earphones.html

Get the most out of your equipment and enjoy great audio performance even at safe levels. Our headphones will allow you to hear more details at lower volume levels than ever before.

Use Responsibly

Do not use headphones when it's unsafe to do so—while operating a vehicle, crossing streets, or during any activity or in an environment where your full attention to your surroundings is required. It's dangerous to drive while wearing headphones, and in many places, illegal because it decreases your chances of hearing life-saving sounds outside of your vehicle, such as another car's horn and emergency vehicle sirens. Please avoid wearing your headphones while driving. Use an FM transmitter to listen to your mobile media devices instead. Learn how to establish a safe listening level and review other important safety guidelines from the Consumer Electronics Association at www.ce.org and the Deafness Research Foundation at www.drf.org.

English

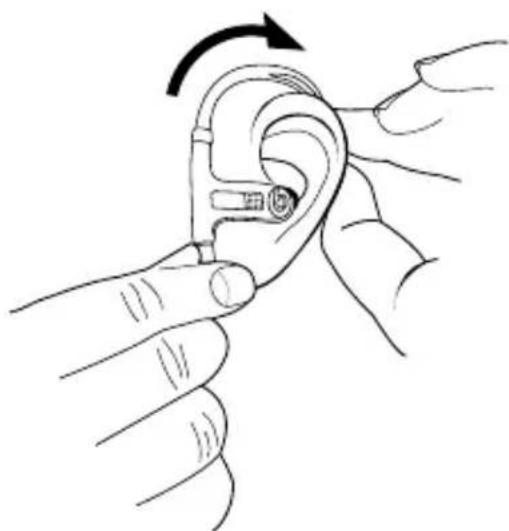

Putting on Powerbeats

1. Each headphone is marked with either an R, for right, or an L, for left.
2. Hook the rubber sport hook over the back of your ear and insert the silicon eartip into your ear.
3. Push on the "b" and make any other necessary adjustments to get the silicone eartip further into your ear until you get a good seal.
4. Repeat with the other ear.

Illustration of hands performing a finger massage on an ear with a curved arrow indicating rotation (no text or symbols)

Eartips and Maintenance

Eartip Selection

Simple line drawing of seven identical egg-shaped objects with no text or symbols

The tips on your Powerbeats make the difference between good sound and great sound. With the right fit, you'll get increased bass response, better tonal balance and the headphones will be more comfortable. Because everyone's ears are unique, Beats supplies several sizes of eartips. Getting the perfect fit with the correct tip is a matter of experimentation. Try out all the eartips included with your Powerbeats headphones to find the best fit for the size of your ear canal.

Eartip Fit

Unlike many in-ear headphones, Powerbeats are not designed to completely seal out external noise. With Powerbeats, you will be able to hear the outside world while running and biking in or alongside traffic. However, eartip fit is still important for sound performance. The eartip you use shouldn't feel like they're "over-stuffing" your ears, yet they shouldn't feel like they're loose within your ear canal.

English

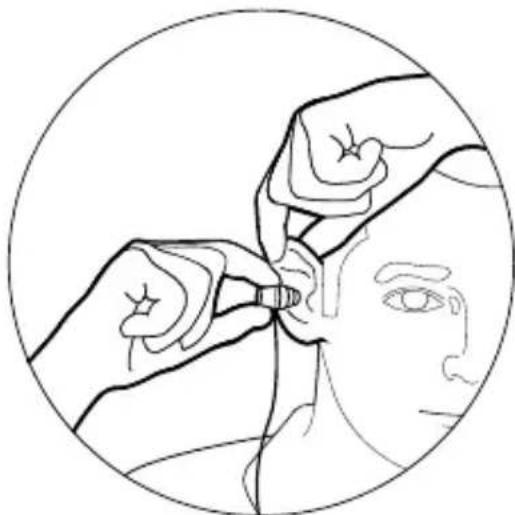

Proper Insertion and Removal of Eartips

1. You may wish to lightly moisten your eartips for easier insertion.
2. Using your right hand, grasp the right headphone.

3. With your left hand, pull up and back on your right ear to straighten your ear canal.

4. Carefully insert your right headphone, rubber eartip first, so that it seals completely and comfortably in your ear. DO NOT insert the eartip so deeply that your ear canal feels completely "plugged."

5. Repeat this procedure for your left ear.

6. When you've finished your listening session, remove your in-ear headphones slowly with a twisting motion to gradually break the seal.

Illustration of a medical procedure on a patient's head, showing hands performing injection or insertion (no text or symbols present)

Eartip Cleaning

Keeping your Powerbeats eartips clean is essential for safe, hygienic use. IMPORTANT: DO NOT attempt to clean the eartips without first removing them from the headphones. Getting the delicate circuitry inside your Powerbeats headphones wet may cause permanent damage.

1. Firmly grip the eartip with one hand and the earphone with the other. Carefully remove the eartip from the ear tube.
2. Use warm water and mild soap on a damp cloth to remove dirt and earwax from the eartip. Do NOT use harsh cleaning agents.
3. Rinse and completely dry your eartips before placing them back on your headphones.
4. Carefully push the eartips back onto the Powerbeats headphones, making sure they are on the ear tube completely.

Using the Remote Mic

Powerbeats has a built-in remote mic feature for use with phones and music players.

Functions include:

- Play

iPod, iPhone & iPad HTC, Blackberry & Android

- Pause II

- Skip Forward/ Backward >>> ◀◀

- Scan Forward/ Backward

- Answer

- End Call

- Voice Command

• Volume Control + -

- + - ▶, ∥, ↔, ↔, ↔, ↔ ◆, ◆, νε - -

- ▶, 11, ⋅, ⋅, ♂

Note: Functionality varies by device.

Play or pause a song or video: Press and release the center button. Repeat to resume.

Skip track or backward to next song or video: Press and release the center button twice quickly to skip forward. Press and release three times quickly to skip back.

Scan forward or backward through a song or video: In quick motion, press the center button twice, hold on the second press to scan forward. Release when you want to stop scanning. To scan backward, press the center button three times, holding on the third press.

Answer or end a call: Press and release the center button once to answer. Repeat to end the call.

Decline an incoming call: Press and hold the center button for two seconds, then release. There will be two beeps when you let go to indicate successful operation.

Voice Command: Press and hold the center button until voice activation starts up. Functionality will vary by device.

Control volume: Press the top button to increase volume. Press the bottom button to decrease volume. Functionality will vary by device.

Care and Storage

• Keeping Powerbeats headphones clean is essential for safe, hygienic use.
• Never wear in-ear headphones if they appear dirty.
• When not in use, always store your Powerbeats headphones in the protective case provided.
• Keep case closed, and store in a clean, dry environment.
• Do not store other items in the case, as this may result in contamination.
• Avoid storage in extreme heat or cold.
• Avoid exposure to liquids, temperature extremes and high humidity.
• Never pull on the cable to disconnect Powerbeats headphones from your music player. Grasp the plug at the end of the cable and pull to disconnect.

Select, Connect, Listen

Select

Beats in-ear headphones feature multiple pairs of ear tips, designed to fit securely and block out external sound. Choose the pair that fits most comfortably and best seals out noise.

Connect

Plug the Powerbeats cable into the 1/8" (3.5mm) stereo plug on your music player.

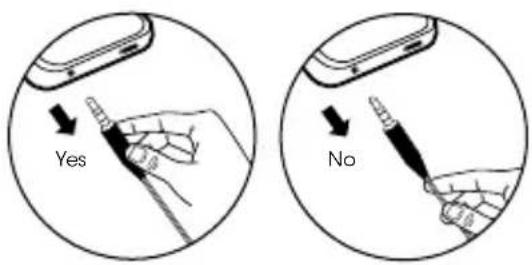

Listen

Turn down the volume on your music player before inserting Powerbeats headphones. IMPORTANT: Left and Right Headphone: Having the correct headphone side in the correct ear does affect the listening experience. Note the "L" and "R" markings on the side of each headphone. "L" is for the left ear. "R" is for the right ear. Excessive listening levels can cause permanent hearing damage. Avoid loud listening, especially for extended periods of time.

Yes No

R ®

Register Your Beats Today

www.beatsbydre.com/register
