USER MANUAL urBeats MONSTER

Red circular logo with white lowercase 'b' (no text or symbols)

urbeats.

USER GUIDE

Table of Contents

EN Important Safety Information 2

Eartips and Maintenance 5

Using the Remote Mic 9

Care and Storage 11

Select, Connect, Listen 12

To avoid hearing damage, make sure that the volume on your music player is turned down before connecting your headphones. After placing headphones in/on your ears, gradually turn up the volume until you reach a comfortable listening level. Noise levels are measured in decibels (dB), exposure to any noise at or above 85 dB can cause gradual hearing loss. Monitor your use; hearing loss is a function of loudness versus time. The louder it is, the less time you can be exposed to it. The softer it is, the more time you can listen to it.

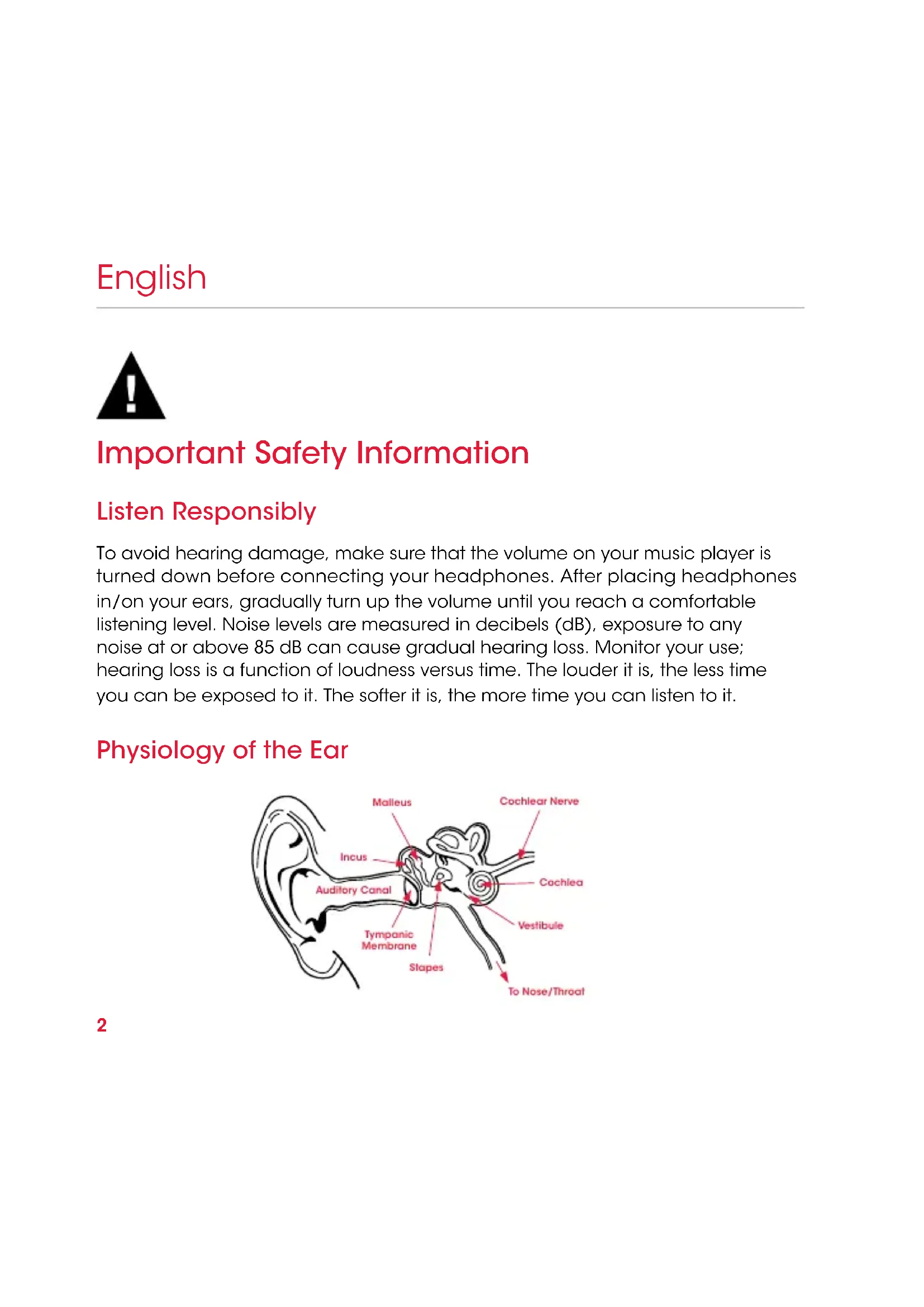

Physiology of the Ear

Malleus Cochlear Nerve Incus Auditory Canal Cochlea Vestibule Tympanic Membrane Slapes To Nose/Throat

This decibel (dB) table compares some common sounds and shows how they rank in potential harm to hearing.

SOUND NOISE LEVEL	(dB)	EFFECT
Whisper 30 Very quiet
Quiet Office 50-60 Comfortable hearing levels are under 60dB
Vacuum Cleaner, Hair Dryer	70 Intrusive; interferes with telephone conversations
Food Blender 85-90 85 dB is the level at which hearing damage (8 hrs.) begins
Garbage Truck, Cement Mixer	100 No more than 15 minutes of unprotected exposure recommended for sounds between 90-100 dB
Power Saw, Drill/Jackhammer	110 Regular exposure to sound over 100 dB of more than 1 minute risks permanent hearing loss
Rock Concert (varies)	110-140	Threshold of pain begins around 125 dB

* Chart information from http://www.nidcd.nih.gov/health/education/teachers/pages/common_sounds.aspx

“.... a typical person can safely listen to an iPod for 4.6 hours per day at 70% volume.”

“.... knowing the levels one is listening to music at, and for how long is extremely important.”

From http://www.cbc.ca/health/story/2006/10/19/music-earphones.html

Get the most out of your equipment and enjoy great audio performance even at safe levels. Our headphones will allow you to hear more details at lower volume levels than ever before.

Use Responsibly

Do not use headphones when it's unsafe to do so—while operating a vehicle, crossing streets, or during any activity or in an environment where your full attention to your surroundings is required. It's dangerous to drive while wearing headphones, and in many places, illegal because it decreases your chances of hearing life-saving sounds outside of your vehicle, such as another car's horn and emergency vehicle sirens. Please avoid wearing your headphones while driving. Use an FM transmitter to listen to your mobile media devices instead. Learn how to establish a safe listening level and review other important safety guidelines from the Consumer Electronics Association at www.ce.org and the Deafness Research Foundation at www.drf.org.

Eartips and Maintenance

Eartip Selection

Simple line drawings of dome-shaped objects and a separate rounded object (no text or symbols)

The tips on the ends of urBeats ™ headphones make the difference between good sound and great sound. With the right fit, you’ll get better isolation from unwanted outside noise, increased bass response, better tonal balance and the headphones will stay in your ears better. Of course, the right fit will also feel more comfortable. Because everyone’s ears are unique, Beats supplies several sizes and designs of eartips. Getting the perfect fit with the correct tip is a matter of experimentation. Try out all the eartips included with your urBeats ™ headphones to find the best fit for the size and shape of your ear canal. We recommend that you try the smallest tip first and work upwards in size until you find a comfortable fit that has a good seal and also stays in your ears without falling out. Also try different style tips to see which works best for you.

Eartip Fit Testing

A good way to gauge whether or not the eartip is sealing properly in your ear canal is by snapping your fingers right next to your ear. If the seal is proper, your ear will not feel “plugged,” yet the snapping of your fingers will sound dull and distant. If you hear your finger snaps distinctly, the seal is probably not adequate. If the sound of your finger snapping is dull and distant, but your ear feels plugged up, like you’re on an airplane preparing to land, then you’ve over-inserted the eartip.

English

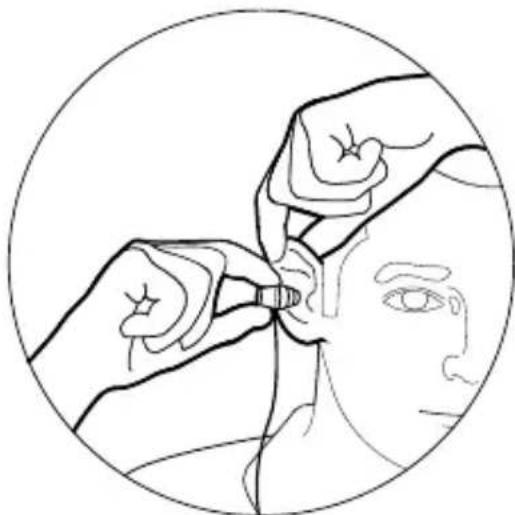

Proper Insertion and Removal of Eartips

1. You may wish to lightly moisten your eartips for easier insertion.
2. Using your right hand, grasp the right headphone.

3. With your left hand, pull up and back on your right ear to straighten your ear canal.

4. Carefully insert your right headphone, rubber eartip first, so that it seals completely and comfortably in your ear. DO NOT insert the eartip so deeply that your ear canal feels completely "plugged."

5. Repeat this procedure for your left ear.

6. When you've finished your listening session, remove your in-ear headphones slowly with a twisting motion to gradually break the seal.

Line drawing of a medical procedure on a patient's head, showing hands adjusting a tool near the ear (no text or symbols present)

Eartip Cleaning

Keeping urBeats™ eartips clean is essential for safe, hygienic use. IMPORTANT: DO NOT attempt to clean the eartips without first removing them from the headphones. Getting the delicate circuitry inside your UrBeats™ headphones wet may cause permanent damage.

1. Firmly grip the eartip with one hand and the earphone with the other. Carefully remove the eartip from the ear tube.
2. Use warm water and mild soap on a damp cloth to remove dirt and earwax from the eartip. Do NOT use harsh cleaning agents.
3. Rinse and completely dry your eartips before placing them back on your headphones.
4. Carefully push the eartips back onto the urBeats ^™ headphones, making sure they are on the ear tube completely.

English

Using the Remote Mic

urBeats™ comes equipped with an audio cable featuring a built-in remote mic for use with your smartphone, music player or tablet device.

Functions include:

• Play
• Pause II
• Skip Forward/ Backward >>> ◀◀
• Scan Forward/ Backward
  -Answer
• End Call
• Voice Command
  • Volume Control + -

iPod ^® , iPhone ^® & iPad ^®

- + - ▶, 11, ↔, ↔, ↔, ↔ + , + , ↔

HTC™, Blackberry® & Android™

Note: Functionality varies by device

Play or pause a song or video: Press and release the center button. Repeat to resume.

Skip track or backward to next song or video: Press and release the center button twice quickly to skip forward. Press and release three times quickly to skip back.

Scan forward or backward through a song or video: In quick motion, press the center button twice, hold on the second press to scan forward. Release when you want to stop scanning. To scan backward, press the center button three times, holding on the third press.

Answer or end a call: Press and release the center button once to answer. Repeat to end the call.

Decline an incoming call: Press and hold the center button for two seconds, then release. There will be two beeps when you let go to indicate successful operation.

Voice Command: Press and hold the center button until voice activation starts up. Functionality will vary by device.

Control volume: Press the top button to increase volume. Press the bottom button to decrease volume. Functionality will vary by device.

Care and Storage

• Keeping urBeats™ headphones clean is essential for safe, hygienic use.
• Never wear in-ear headphones if they appear dirty.
• When not in use, always store your urBeats™ headphones in the protective case provided.
• Keep case closed, and store in a clean, dry environment.
• Do not store other items in the case, as this may result in contamination.
• Avoid storage in extreme heat or cold.
• Avoid exposure to liquids, temperature extremes and high humidity.
• Never pull on the cable to disconnect urBeats headphones from your music player. Grasp the plug at the end of the cable and pull to disconnect.

Select, Connect, Listen

Select

Beats ^® in-ear headphones feature multiple pairs of ear tips, designed to fit securely and block out external sound. Choose the pair that fits most comfortably and best seals out noise.

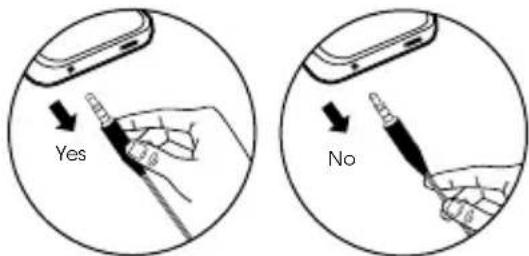

Connect

Plug the urBeats™ cable into the 1/8" (3.5mm) stereo plug on your music player.

Yes No

Listen

Turn down the volume on your music player before inserting urBeats™ headphones. IMPORTANT: Left and Right Headphone: Having the correct headphone side in the correct ear does affect the listening experience. Note the "L" and "R" markings on the side of each headphone. "L" is for the left ear. "R" is for the right ear. Excessive listening levels can cause permanent hearing damage. Avoid loud listening, especially for extended periods of time.

Register Your Beats® Today

www.beatsbydre.com/register

Utilisation responsible

Tiré du site http://www.cbc.ca/health/story/2006/10/19/music-earphones.html

Utilisation responsible

Simple line drawings of eight dome-shaped objects with varying top and bottom shapes (no text or symbols)

Line drawing of a medical procedure on a patient's ear, showing hands performing a procedure (no text or symbols present)

De http://www.cbc.ca/health/story/2006/10/19/music-earphones.html

Simple line drawings of dome-shaped objects and a separate base (no text or symbols)

Illustration of a medical procedure on eye anatomy, showing hands performing a procedure (no text or symbols present)

Fonte http://www.cbc.ca/health/story/2006/10/19/music-earphones.html

Simple line drawings of various dome-shaped objects with varying top and bottom shapes (no text or symbols)

Line drawing of a person receiving medical or surgical procedures from a tool, enclosed in a circular frame (no text or symbols)

Beats Electronics, LLC

1601 Cloverfield Blvd

Suite 5000N

Santa Monica

CA 90404

beats by dr. dre.
