Brand	LG
Model	ARNU15GQAA2
Product type	Water pump (reversible air conditioning)
Main functions	Cooling, heating, dehumidification, ventilation, automatic mode
Cooling capacity	Approximately 1.5 kW (5,120 BTU/h)
Heating capacity	Approximately 1.7 kW (5,800 BTU/h)
Power supply	230 V / 50 Hz, dedicated circuit
Indoor unit dimensions (W x H x D)	Approximately 998 x 315 x 215 mm
Indoor unit weight	Approximately 11.5 kg
Remote control type	Wireless + wired (accessory)
Air filter	Washable filter + anti-allergy filter (solar exposure)
Filter cleaning indicator	LED indicator on indoor unit
Fan speed	4 speeds: low, medium, high, Chaos
Special functions	Jet Cool, sleep mode, timer, vane oscillation
Protection	Automatic restart, anti-freeze protection
Installation	By a certified professional, grounding mandatory
Maintenance and cleaning	Clean filter every 2 weeks, do not use water on electrical parts
Safety instructions	Turn off power before maintenance, do not block air inlets/outlets
Available spare parts	Filters, remote control, power cable
Manual pages	266 pages

Frequently Asked Questions - ARNU15GQAA2 LG

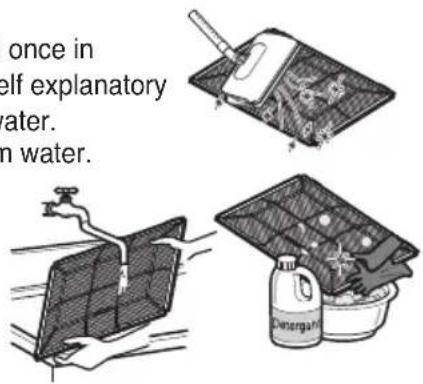

How to clean the air filter?

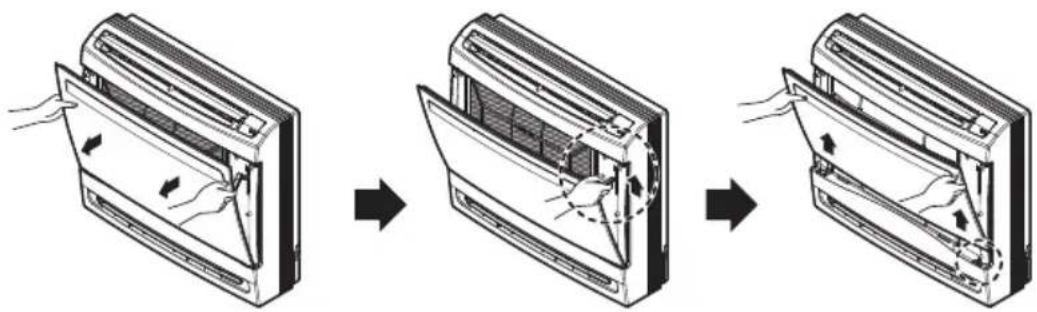

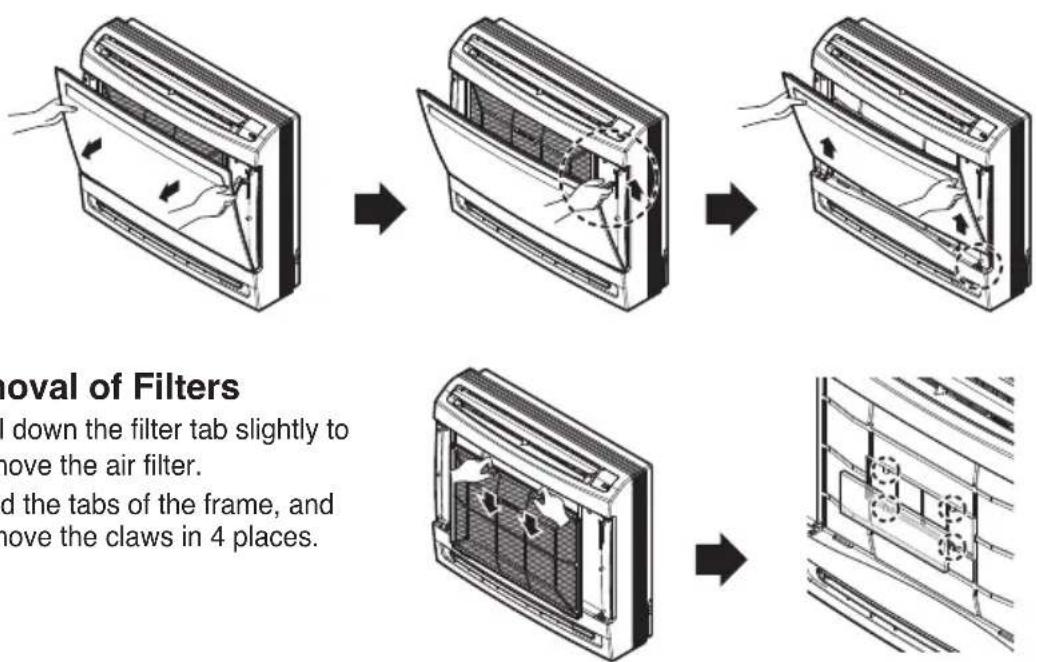

Remove the front panel, take out the filter, wash it with lukewarm soapy water or vacuum it, dry it in the shade and put it back. Clean it every two weeks.

What to do if the filter indicator is on?

Clean the filter, then press the Timer and ◀ buttons on the wired remote control simultaneously for 3 seconds to turn off the indicator.

How to use the quick cooling mode (Jet Cool)?

Press the JET COOL button on the remote control. The unit blows cool air at high speed to quickly cool the room.

Why doesn't the air conditioner restart immediately?

This is a compressor protection feature. Wait about 3 minutes before it restarts.

How to set the on/off timer?

Use the ON TIMER and OFF TIMER buttons on the remote control, then adjust the time with the up/down buttons. Confirm with SET/CLEAR.

What to do in case of flammable gas leak?

Turn off the gas supply, open windows for ventilation, do not use any electrical switch, and contact emergency services.

How to use the dehumidification function?

Select the DRY mode on the remote control. The unit operates at low speed to reduce humidity.

What maintenance to perform before long inactivity?

Run the unit in ventilation mode for 2-3 hours to dry the interior, then turn off the circuit breaker. Clean the filter before next use.

How to replace the remote control batteries?

Open the compartment at the back of the remote control, insert two AAA batteries respecting polarities (+/-), and close. Use batteries of the same model.

What to check if the unit does not cool properly?

Check that the filter is not dirty, that the air inlets/outlets are not obstructed, that the set temperature is correct, and that the room was not too hot initially. If the problem persists, contact a technician.

USER MANUAL ARNU15GQAA2 LG

Please read this manual carefully before operating your set and retain it for future reference.

TYPE : CONSOLE

TABLE OF CONTENTS

Safety Precautions......3

Prior to Operation ....7

Operating Instructions......8

Maintenance and Service ....11

Before you Call for Service 13

FOR YOUR RECORDS

Write the model and serial numbers here:

Model #

Serial #

You can find them on a label on the side of each unit.

Dealer's Name

Date Purchased

■Staple your receipt to this page in the event you need it to prove date of purchase or for warranty issues.

READ THIS MANUAL

Inside you will find many helpful hints on how to use and maintain your air conditioner properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your air conditioner.

You'll find many answers to common problems in the chart of troubleshooting tips. If you review our chart of

Troubleshooting Tips first, you may not need to call for service at all.

PRECAUTION

• Contact the authorized service technician for repair or maintenance of this unit.
• Contact the installer for installation of this unit.
• The air conditioner is not intended for use by young children or invalids without supervision.
• Young children should be supervised to ensure that they do not play with the air conditioner.
• When the power cord is to be replaced, replacement work shall be performed by authorized personnel only using only genuine replacement parts.
• Installation work must be performed in accordance with the National Electric Code by qualified and authorized personnel only.

Simple line drawing of people enjoying a meal at a table with sun and palm trees in the background (no text or symbols)

Safety Precautions

To prevent injury to the user or other people and property damage, the following instructions must be followed.

■ Incorrect operation due to ignoring instruction will cause harm or damage. The seriousness is classified by the following indications.

WARNING

This symbol indicates the possibility of death or serious injury.

CAUTION

This symbol indicates the possibility of injury or damage to properties only.

■Meanings of symbols used in this manual are as shown below.

Be sure not to do.

Be sure to follow the instruction.

WARNING

Installation

Do not use a defective or underrated circuit breaker. Use this appliance on a dedicated circuit.

- There is risk of fire or electric shock.

Install the panel and the cover of control box securely.

- There is risk of fire or electric shock.

Do not modify or extend the power cable.

- There is risk of fire or electric shock.

For installation, always contact the dealer or an Authorized Service Center.

• There is risk of fire, electric shock, explosion, or injury.

For electrical work, contact the dealer, seller, a qualified electrician, or an Authorized Service Center.

- Do not disassemble or repair the product. There is risk of fire or electric shock.

Always install a dedicated circuit and breaker.

- Improper wiring or installation may cause fire or electric shock

Do not install, remove, or re-install the unit by yourself (customer).

- There is risk of fire, electric shock, explosion, or injury.

Do not install the product on a defective installation stand.

- It may cause injury, accident, or damage to the product.

Always ground the product.

- There is risk of fire or electric shock.

Use the correctly rated breaker or fuse.

- There is risk of fire or electric shock.

Be cautious when unpacking and installing the product.

- Sharp edges could cause injury. Be especially careful of the case edges and the fins on the condenser and evaporator.

Be sure the installation area does not deteriorate with age.

- If the base collapses, the air conditioner could fall with it, causing property damage, product failure, and personal injury.

■Operation
Do not let the air conditioner run for a long time when the humidity is very high and a door or a window is left open.	Take care to ensure that power cable could not be pulled out or damaged during operation.	Do not place anything on the power cable.
• Moisture may condense and wet or damage furniture.	• There is risk of fire or electric shock.	• There is risk of fire or electric shock.
Do not plug or unplug the power supply plug during operation.	Do not touch(operate) the product with wet hands.	Do not place a heater or other appliances near the power cable.
• There is risk of fire or electric shock.	• There is risk of fire or electrical shock.	• There is risk of fire and electric shock.
Do not allow water to run into electric parts.	Do not store or use flammable gas or combustibles near the product.	Do not use the product in a tightly closed space for a long time.
• It may cause There is risk of fire, failure of the product, or electric shock.	• There is risk of fire or failure of product.	• Oxygen deficiency could occur.
When flammable gas leaks, turn off the gas and open a window for ventilation before turn the product on.	If strange sounds, or small or smoke comes from product. Turn the breaker off or disconnect the power supply cable.	Stop operation and close the window in storm or hurricane. If possible, remove the product from the window before the hurricane arrives.
• Do not use the telephone or turn switches on or off. There is risk of explosion or fire	• There is risk of electric shock or fire.	• There is risk of property damage, failure of product, or electric shock.
Do not open the inlet grill of the product during operation. (Do not touch the electrostatic filter, if the unit is so equipped.)	When the product is soaked (flooded or submerged), contact an Authorized Service Center.	Be cautious that water could not enter the product.
• There is risk of physical injury, electric shock, or product failure.	• There is risk of fire or electric shock.	• There is risk of fire, electric shock, or product damage.

Ventilate the product from time to time when operating it together with a stove, etc.

• There is risk of fire or electric shock.

When the product is not be used for a long time, disconnect the power supply plug or turn off the breaker.

- There is risk of product damage or failure, or unintended operation.

Turn the main power off when cleaning or maintaining the product.

• There is risk of electric shock.

Take care to ensure that nobody could step on or fall onto the outdoor unit.

- This could result in personal injury and product damage.

CAUTION

Installation

Always check for gas (refrigerant) leakage after installation or repair of product.

- Low refrigerant levels may cause failure of product.

Install the drain hose to ensure that water is drained away properly.

- A bad connection may cause water leakage.

Keep level even when in- stalling the product.

• To avoid vibration or water leakage.

Do not install the product where the noise or hot air from the outdoor unit could damage the neighborhoods.

- It may cause a problem for your neighbors.

Use two or more people to lift and transport the product.

- Avoid personal injury.

Do not install the product where it will be exposed to sea wind (salt spray) directly.

- It may cause corrosion on the product. Corrosion, particularly on the condenser and evaporator fins, could cause product malfunction or inefficient operation.

Operation

Do not expose the skin directly to cool air for long periods of time. (Don't sit in the draft.)

• This could harm to your health.

Do not use the product for special purposes, such as preserving foods, works of art, etc. It is a consumer air conditioner, not a precision refrigeration system.

• There is risk of damage or loss of property.

Do not block the inlet or outlet of air flow.

• It may cause product failure.

Use a soft cloth to clean. Do not use harsh detergents, solvents, etc.

• There is risk of fire, electric shock, or damage to the plastic parts of the product.

Do not touch the metal parts of the product when removing the air filter. They are very sharp!

• There is risk of personal injury.

Do not step on or put any- ing on the product. (outdoor units)

• There is risk of personal injury and failure of product.

Always insert the filter securely. Clean the filter every two weeks or more often if necessary.

- A dirty filter reduces the efficiency of the air conditioner and could cause product malfunction or damage. (Grill Type)

Do not insert hands or other objects through the air inlet or outlet while the product is operated.

• There are sharp and moving parts that could cause personal injury.

Do not drink the water drained from the product.

• It is not sanitary and could cause serious health issues.

Use a firm stool or ladder when cleaning or maintaining the product.

Replace the all batteries in the remote control with new ones of the same type. Do not mix old and new batteries or different types of batteries.

Do not recharge or disassemble the batteries. Do not dispose of batteries in a fire.

- Be careful and avoid personal injury.

• There is risk of fire or explosion

• They may burn or explode.

If the liquid from the batteries gets onto your skin or clothes, wash it well with clean water. Do not use the remote if the batteries have leaked.

- The chemicals in batteries could cause burns or other health hazards.

If you eat the liquid from the batteries, brush your teeth and see doctor. Do not use the remote if the batteries have leaked.

- The chemicals in batteries could cause burns or other health hazards.

Prior to Operation

Preparing for Operation

1. Contact an installation specialist for installation.
2. Use a dedicated circuit.

Usage

1. Being exposed to direct airflow for an extended period of time could be hazardous to your health. Do not expose occupants, pets, or plants to direct airflow for extended periods of time.
2. Due to the possibility of oxygen deficiency, ventilate the room when used together with stoves or other heating devices.
3. Do not use this air conditioner for non-specified special purposes (e.g. preserving precision devices, food, pets, plants, and art objects). Such usage could damage the items.

Cleaning and Maintenance

1. Do not touch the metal parts of the unit when removing the filter. Injuries can occur when handling sharp metal edges.
2. Do not use water to clean inside the air conditioner. Exposure to water can destroy the insulation, leading to possible electric shock.
3. When cleaning the unit, first make sure that the power and breaker are turned off. The fan rotates at a very high speed during operation. There is a possibility of injury if the unit's power is accidentally triggered on while cleaning inner parts of the unit.

Service

For repair and maintenance, contact your authorized service dealer.

Operating Instructions

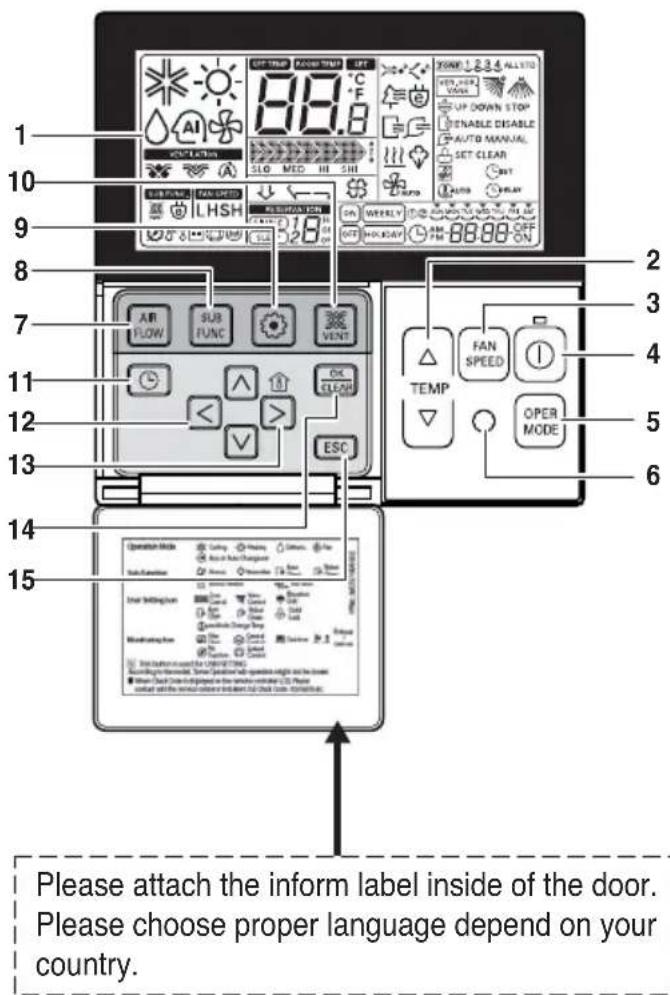

Name and Function of Wired Remote Controller(Accessory)

PQRCVSLO

1. Operation indication screen
2. Set temperature button
3. Fan speed button
4. ON/OFF button
5. Opration mode selection button
6. Wireless remote controller receiver
7. Some products don't receive the wireless signals.
8. Air flow button
9. Subfunction button
10. Function setting button
11. Ventilation button
12. Reservation
13. Up,down,left,right button
14. To check the indoor temperature, press 🖱 button.
15. Room temperature button
16. Setting/Cancel button
17. Exit button

*Some functions may not be operated and displayed depending on the product type.

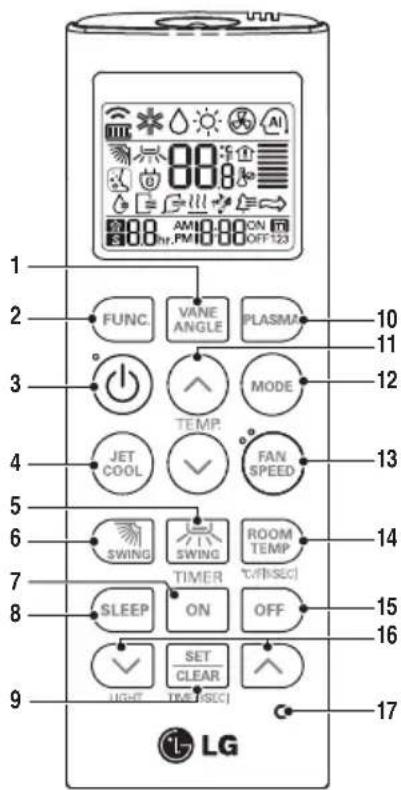

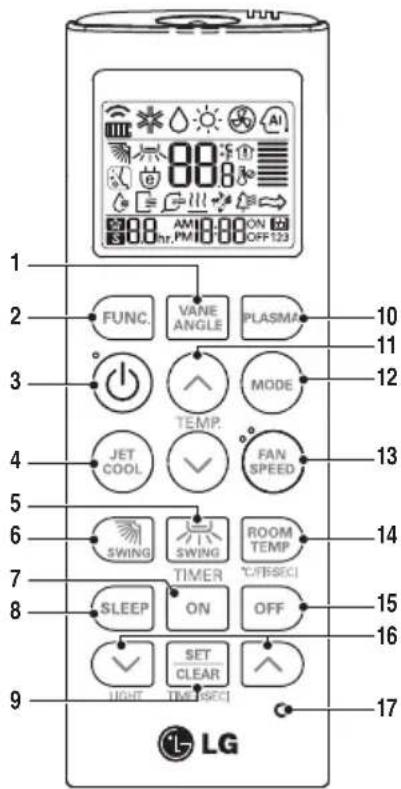

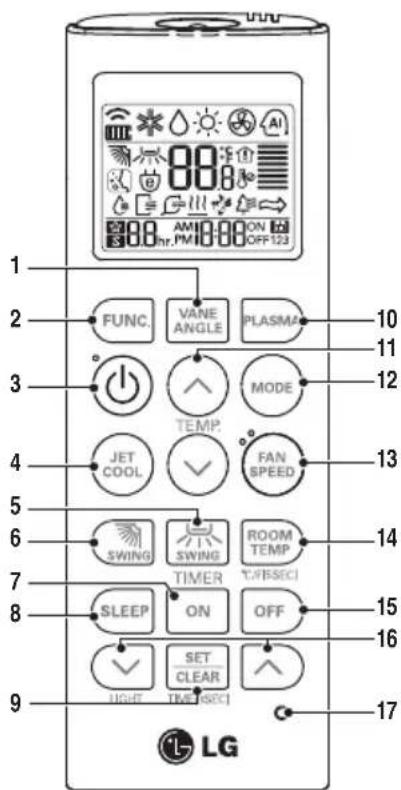

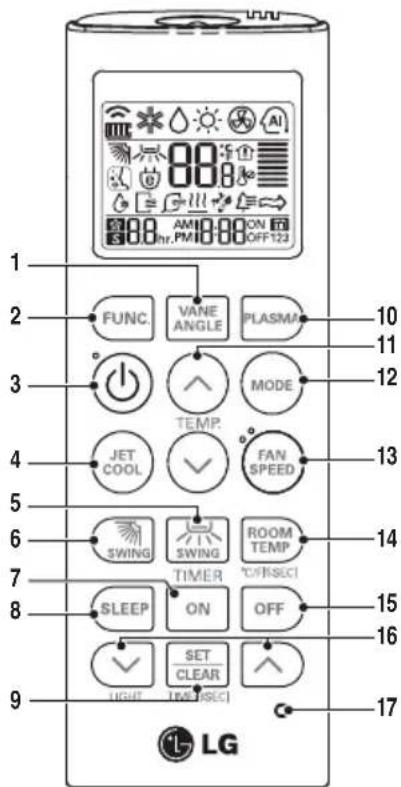

Name and Function of Wireless Remote Controller(Accessory)

PQWRCQ0FDB (Cooling only) PQWRHQ0FDB (Heat pump)

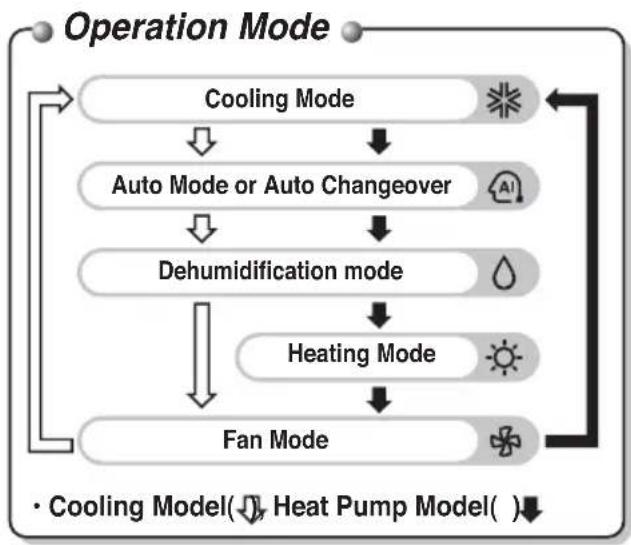

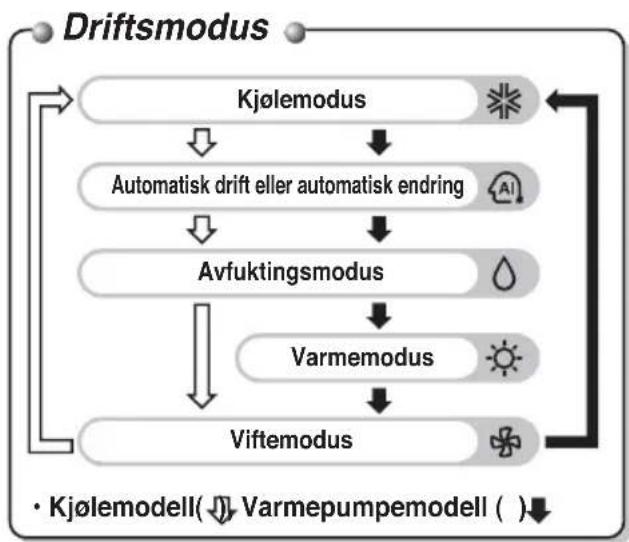

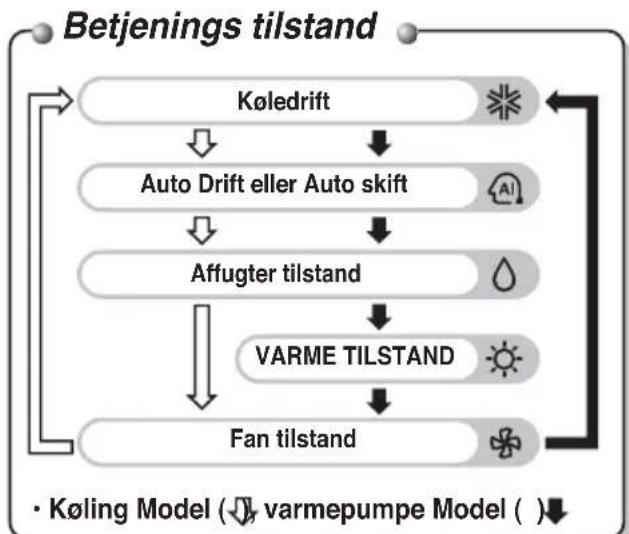

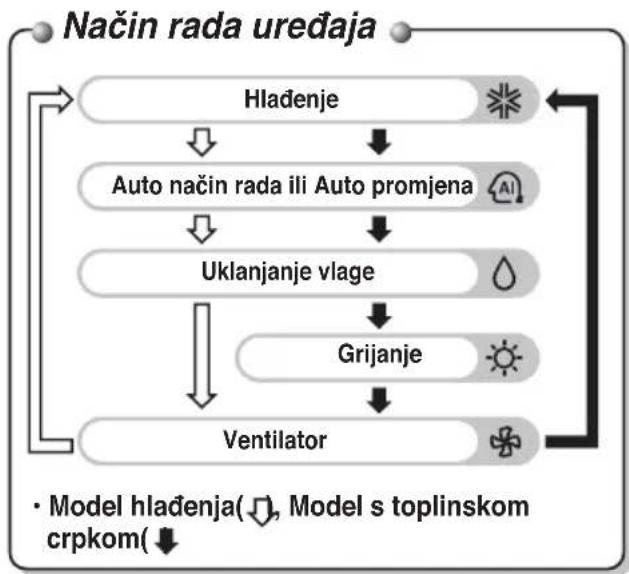


1. VANE ANGLE Button
   Used to set each vane angle.
2. FUNCTION SETTING Button
   Used to set or clear Auto Clean, Smart Clean, Electric heater or Individual vane angle control.
3. ON/OFF Button
   Used to turn on/off the unit.
4. JET COOL Button
   Speed cooling operates super high fan speed.
5. LEFT/RIGHT AIRFLOW Button (OPTIONAL)
   Used to set the desired left/right(horizontal) airflow direction.
6. UP/DOWN AIRFLOW Button
   Used to stop or start louver movement and set the desired up/down airflow direction.
7. ON TIMER Button
   Used to set the time of starting operation.
8. SLEEP TIMER Button
   Used to set the time of sleeping operation.
9. SET / CLEAR Button
   Used to set/clear the timer.
   Used to set the current time(if it input for 3sec.)
10. PLASMA Button (OPTIONAL)
    Used to start or stop the plasma-purification function.
11. ROOM TEMPERATURE SETTING Button
    Used to select the room temperature.
12. OPERATION MODE SELECTION Button
    Used to select the operation mode.
13. INDOOR FAN SPEED SELECTION Button
    Used to select fan speed in four steps low, medium, high and chaos.
14. ROOM TEMPERATURE CHECKING Button
    Used to check the room temperature.
15. OFF TIMER Button
    Used to set the time of stopping operation.
16. TIMER SETTING(Up/Down)/LIGHT Button
    Used to set the timer.
    Used to adjust the brightness.(if it is not time adjust mode)
17. RESET Button
    Used to reset the remote controller.

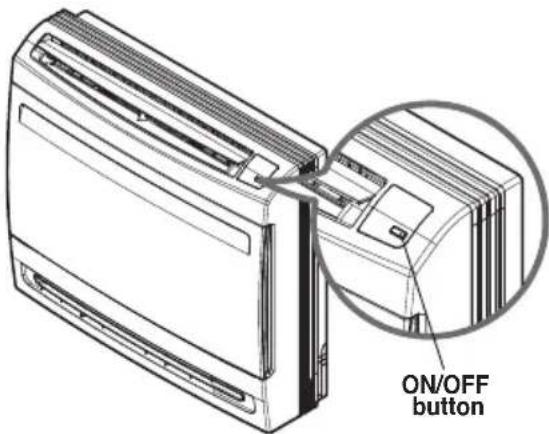

Forced Operation

Operation procedures when the remote control can't be used.

Press the tact switch (forced operation) for 2 seconds. If you want to stop operation, press again the tact switch. In case the power comes on again after power failure on the forced operation mode, the operating conditions are automatically set as follows:

During forced operation, the initial mode continues.

	Cooling model	Heat pump model
		Room temperature ≥ set temperature -2°C	Room temperature < set temperature -2°C
Operating mode Cooling	Cooling Heating
Indoor fan Speed High	Set available Set available
Setting temperature 22°C	Set available Set available

Auto Restart Function

In case the power comes on again after a power failure, auto restarting operation is the function to operate procedures automatically to the previous operating conditions.

Tips for Filter Sign LED (Grille Type)

1. Filter sign lamp (LED) is on.

2. If LED indicating filter sign lamp is on, clean the filter.

3. After cleaning the filter, press the timer button and ◀ button of wired remote controller at the same time for 3 seconds. Then filter sign LED is off.

Maintenance and Service

CAUTION

Before performing any maintenance, turn off the main power to the system, disconnect the circuit breaker and unplug the power cord.

Cleaning of Panel and filters

Clean the unit with a soft dry cloth. Do not use bleach or abrasives.

CAUTION

Never use any of these

• Water hotter than 40^ . It may cause deformation and discoloration.
• Volatile substances. They may damage the surface of the air conditioner.

Air Filters

The air filters behind the front panel / grill should be checked and cleaned once in every 2 weeks or more often if necessary. To remove the filters see the self explanatory diagrams below. Clean the filters with a vacuum cleaner or warm soapy water. If dirt is not easily removed, wash with a solution of detergent in luke warm water. Dry well in shade after washing and reinstall the filters back in place.

Allergy Filter

Remove the Allergy Filter behind the air filter and expose them in direct sunlight for 2 hours. And then insert these filters into original position.

Removal of Grille

1. Open the front grille by pulling forward
2. Then pull out the link of grille from groove in front panel.
3. Then pull out 2 hinges of grille from grooves in front panel.

Removal of Filters

1. Pull down the filter tab slightly to remove the air filter.
2. Hold the tabs of the frame, and remove the claws in 4 places.

When the air conditioner is not going to be used for a long time.

When it is not going to be used for a long time.

Operate the air conditioner at the following settings for 2 to 3 hours.

• Type of operation: Fan operation mode.
• This will dry out the internal mechanisms.

Turn off the breaker.

CAUTION

Turn off the breaker when the air conditioner is not going to be used for a long time.

Dirt may collect and may cause a fire.

Helpful information

The air filters and your electric bill. If the air filters become clogged with dust, the cooling capacity will drop, and 6% of the electricity used to operate the air conditioner will be wasted.

When the air conditioner is to be used again.

Clean the air filter and install it in the indoor unit.

Check that the air inlet and outlet of the indoor/outdoor unit are not blocked.

Check that the ground wire is connected correctly. It may be connect to the indoor unit side.

Operation Tips

Do not overcool the room. Ke

This is not good for the health and wastes electricity.

Make sure that the doors and windows are shut tight.

Avoid opening doors and windows as much as possible to keep the cool air in the room.

- blinds or curtains closed.

Do not let direct sunshine enter the room when the air conditioner is in operation.

Clean the air filter regularly. Ve

Blockages in the air filter reduce the airflow and lower cooling and dehumidifying effects. Clean at least once every two weeks.

Keep the room temperature uniform.

Adjust the vertical and horizontal airflow direction to ensure a uniform temperature in the room.

tilate the room occasionally.

Since windows are kept closed, it is a good idea to open them and ventilate the room now and then.

Before you call for service...

Troubleshooting Tips! Save time and money!

Check the following points before requesting repairs or service.... If the malfunction persist, please contact your dealer.

The air conditioner does not operate.	The room has a peculiar odor.	It seems that condensation is leaking from the air conditioner.	Air conditioner does not operate for about 3 minutes when restart.
Have you made a mistake in timer operation?Has the fuse blown or has the circuit breaker been tripped?	Check that this is not a damp smell exuded by the walls, carpet, furniture or cloth items in the room.	Condensation occurs when the airflow from the air conditioner cools the warm room air.	This is the protector of the mechanism.Wait about three minutes and operation will begin.
Does not cool or heat effectively.	The air conditioner operation is noisy.	Crack sound is heard.	Remote control display is faint, or no display at all.
Is the air filter dirty?See air filter cleaning instructions.The room may have been very hot when the room air conditioner was first turned on. Allow time for it to cool down.Has the temperature been set incorrectly?Are the indoor unit's air inlet or outlet vents obstructed?	For a noise that sounds like water flowing.- This is the sound of freon flowing inside the air conditioner unit.For a noise that sounds like the compressed air releasing into atmosphere.- This is the sound of the dehumidifying water being processed inside the air conditioning unit.	This sound is generated by the expansion/constriction of the front panel, etc. due to changes of temperature.Filter sign lamp (LED) is ON.(Grill Type)Cleaning the filter, press the Timer button and ◀button of wired remote controller at the same time for 3 sec.	Are the batteries depleted?Are the batteries inserted in the opposite (+) and (-) directions?

WATER RESISTANT: The outdoor side of this appliance is WATER RESISTANT.

The indoor side is not water resistant and should not be exposed to excess water.

MANUALE DELL'UTENTE

Illustration of people enjoying a picnic at a table with sun and palm trees in the background (no text or symbols)

Misure di sicurezza

Illustration showing a water tap and a bag of detergent with a container (no text or symbols)

Diagram showing airflow or ventilation system transformation from a fan to a grid panel (no text or symbols)

Illustration of people enjoying a meal at a table with sun and palm trees in the background (no text or symbols)

Diagram showing airflow or ventilation system transformation from a fan to a grid panel (no text or symbols)

Simple line drawing of a family enjoying a meal at a table with sun and palm trees in the background (no text or symbols)

If you eat the liquid from the batteries, brush your teeth and see doctor. Do not use the remote if the batteries have leaked.

Illustration of a solar panel being cleaned with a water tap and a bag labeled 'Detergents' (no text or symbols on the diagram itself)

Dépose de la grille

Retrait des filtres

Diagram showing airflow or ventilation system inside a car air conditioner unit, before and after assembly (no text or symbols)

LESEN SIE DIESES HANDBUCH

Simple line drawing of a family enjoying a picnic at a table with sun, palm tree, and cups (no text or symbols)

Sicherheitshinweise

Illustration of a solar panel being cleaned with a bag of detergent, showing water flow and cleaning steps (no text or symbols)

Diagram showing airflow or ventilation system inside a car air conditioner unit, before and after assembly (no text or symbols)

Simple line drawing of people enjoying a meal at a table with drinks and toppings, no text or symbols present.

Illustration of a solar panel being cleaned with a water tap and a bag labeled 'Discharge' (no text or symbols on the diagram itself)

Illustration of people sitting at a table with food and drinks, no text or symbols present

Name and Function of Wireless Remote Controller(Accessory)

Odebrání filtrů

Diagram showing airflow or ventilation system transformation from a fan-like device to a grid-patterned panel (no text or symbols)

Illustration of a solar panel being cleaned with a water tap and a bag of water, no text or symbols present.

Allergiefilter

Filters verwijderen

Diagram showing airflow or ventilation system transformation from a fan-shaped device to a grid-patterned panel (no text or symbols)

Three-step diagram showing the installation of a air conditioner unit, with arrows indicating motion direction (no text or symbols present)

Wyjmowanie filtrów

Diagram showing a device's internal structure before and after assembly, with no visible text or symbols.

Illustration of a person sitting on a table with hands eating, surrounded by food items (no text or symbols)

Măsuri de siguranță

Three-step diagram showing the installation of a air conditioner unit, with arrows indicating airflow direction (no text or symbols present)

Scoaterea filtrelor

Diagram showing airflow or ventilation system inside a refrigerated unit, before and after assembly (no text or symbols)

Illustration of people enjoying a meal at a table with sun and palm trees in the background (no text or symbols)

Por favor coloque a etiqueta informativa no lado de dentro da porta.

Diagram showing airflow or ventilation system transformation from a fan-shaped device to a grid-patterned panel (no text or symbols)

Simple line drawing of a dining table with people and drinks (no text or symbols)

Used to set each vane angle.

1. FUNCTION SETTING Button

Used to set or clear Auto Clean, Smart Clean, Electric heater or Individual vane angle control.

1. ON/OFF Button

Used to turn on/off the unit.

1. JET COOL Button

Speed cooling operates super high fan speed.

1. LEFT/RIGHT AIRFLOW Button (OPTIONAL)

Used to set the desired left/right(horizontal) airflow direction.

1. UP/DOWN AIRFLOW Button

Used to stop or start louver movement and set the desired up/down airflow direction.

1. ON TIMER Button

Used to set the time of starting operation.

1. SLEEP TIMER Button

Used to set the time of sleeping operation.

1. SET / CLEAR Button

Used to set/clear the timer.

Used to set the current time(if it input for 3sec.)

1. PLASMA Button (OPTIONAL)

Used to start or stop the plasma-purification function.

1. ROOM TEMPERATURE SETTING Button

Used to select the room temperature.

1. OPERATION MODE SELECTION Button

Used to select the operation mode.

1. INDOOR FAN SPEED SELECTION Button

Used to select fan speed in four steps low, medium, high and chaos.

1. ROOM TEMPERATURE CHECKING Button

Used to check the room temperature.

1. OFF TIMER Button

Used to set the time of stopping operation.

Used to set the timer.

Used to adjust the brightness.(if it is not time adjust mode)

1. RESET Button

Used to reset the remote controller.

Diagram showing airflow or ventilation system transformation from a rectangular chamber to a grid-patterned panel (no text or symbols)

Used to set each vane angle.

1. FUNCTION SETTING Button

Used to set or clear Auto Clean, Smart Clean, Electric heater or Individual vane angle control.

1. ON/OFF Button

Used to turn on/off the unit.

1. JET COOL Button

Speed cooling operates super high fan speed.

1. LEFT/RIGHT AIRFLOW Button (OPTIONAL)

Used to set the desired left/right(horizontal) airflow direction.

1. UP/DOWN AIRFLOW Button

Used to stop or start louver movement and set the desired up/down airflow direction.

1. ON TIMER Button

Used to set the time of starting operation.

1. SLEEP TIMER Button

Used to set the time of sleeping operation.

1. SET / CLEAR Button

Used to set/clear the timer.

Used to set the current time(if it input for 3sec.)

1. PLASMA Button (OPTIONAL)

Used to start or stop the plasma-purification function.

1. ROOM TEMPERATURE SETTING Button Used to select the room temperature.

2. OPERATION MODE SELECTION Button

Used to select the operation mode.

1. INDOOR FAN SPEED SELECTION Button

Used to select fan speed in four steps low, medium, high and chaos.

1. ROOM TEMPERATURE CHECKING Button

Used to check the room temperature.

1. OFF TIMER Button

Used to set the time of stopping operation.

Used to set the timer.

Used to adjust the brightness.(if it is not time adjust mode)

1. RESET Button

Used to reset the remote controller.

Принудителна работа

Diagram showing airflow or heat transfer from a rectangular device into a grid-like structure, with no visible text or symbols.

Simple line drawing of people enjoying a meal at a table with sun and palm trees in the background (no text or symbols)

Preparing for Operation

1. Za instalaciju se obratite stručnom monteru.
2. Koristite struju predviđenog napona.

Korišćenje

1. Izlaganje direktnom protoku vazduha tokom dužeg vremenskog perioda može biti opasno po zdravlje. Vodite računa da ukućani, kućni ljubimci ili biljke ne budu izloženi direktnom protoku vazduha tokom dužeg vremenskog perioda.
2. Zbog mogućnosti smanjenja količine kiseonika, provetravajte prostoriju kada koristite i šporet ili neki uređaj za zagrevanje.
3. Nemojte koristiti klima uređaj za nepredviđene posebne namene (npr. za konzerviranje preciznih uređaja, hrane, kućnih ljubimaca i umetničkih dela.) Takvom upotrebom može doći do njihovog oštećenja.

Used to set each vane angle.

1. FUNCTION SETTING Button

Used to set or clear Auto Clean, Smart Clean, Electric heater or Individual vane angle control.

1. ON/OFF Button

Used to turn on/off the unit.

1. JET COOL Button

Speed cooling operates super high fan speed.

1. LEFT/RIGHT AIRFLOW Button (OPTIONAL)

Used to set the desired left/right(horizontal) airflow direction.

1. UP/DOWN AIRFLOW Button

Used to stop or start louver movement and set the desired up/down airflow direction.

1. ON TIMER Button

Used to set the time of starting operation.

1. SLEEP TIMER Button

Used to set the time of sleeping operation.

1. SET / CLEAR Button

Used to set/clear the timer.

Used to set the current time(if it input for 3sec.)

1. PLASMA Button (OPTIONAL)

Used to start or stop the plasma-purification function.

1. ROOM TEMPERATURE SETTING Button

Used to select the room temperature.

1. OPERATION MODE SELECTION Button

Used to select the operation mode.

1. INDOOR FAN SPEED SELECTION Button

Used to select fan speed in four steps low, medium, high and chaos.

1. ROOM TEMPERATURE CHECKING Button

Used to check the room temperature.

1. OFF TIMER Button

Used to set the time of stopping operation.

Used to set the timer.

Used to adjust the brightness.(if it is not time adjust mode)

1. RESET Button

Used to reset the remote controller.

Prinudni rad

Operativne procedure kada daljinski upravljač ne može da se koristi.

Pritisnite taster (Forced operation - prinudni rad) i zadržite 2 sekunde.

Ako želite da ga isključite, ponovo pritisnite taster.

Illustration of people enjoying a picnic at a table with sun and palm trees in the background (no text or symbols)

Mjere opreza

*Some functions may not be operated and displayed depending on the product type.

PQWRHDF0 (Samo hlađenje) PQWRCDF0 (Toplinska crpka)

1. VANE ANGLE Button

Used to set each vane angle.

1. FUNCTION SETTING Button

Used to set or clear Auto Clean, Smart Clean, Electric heater or Individual vane angle control.

1. ON/OFF Button

Used to turn on/off the unit.

1. JET COOL Button

Speed cooling operates super high fan speed.

1. LEFT/RIGHT AIRFLOW Button (OPTIONAL)

Used to set the desired left/right(horizontal) airflow direction.

1. UP/DOWN AIRFLOW Button

Used to stop or start louver movement and set the desired up/down airflow direction.

1. ON TIMER Button

Used to set the time of starting operation.

1. SLEEP TIMER Button

Used to set the time of sleeping operation.

1. SET / CLEAR Button

Used to set/clear the timer.

Used to set the current time(if it input for 3sec.)

1. PLASMA Button (OPTIONAL)

Used to start or stop the plasma-purification function.

1. ROOM TEMPERATURE SETTING Button

Used to select the room temperature.

1. OPERATION MODE SELECTION Button

Used to select the operation mode.

1. INDOOR FAN SPEED SELECTION Button

Used to select fan speed in four steps low, medium, high and chaos.

1. ROOM TEMPERATURE CHECKING Button

Used to check the room temperature.

1. OFF TIMER Button

Used to set the time of stopping operation.

Used to set the timer.

Used to adjust the brightness.(if it is not time adjust mode)

1. RESET Button

Used to reset the remote controller.

Skidanje rešetke

1. Otvorite prednju rešetku tako da ju povučete naprijed.
2. Zatim izvucite vodilicu rešetke iz žljeba ba prednjoj ploči.
3. Zatim izvucite 2 okova rešetke iz žljeba na prednjoj ploči.

Skidanje filtera

Diagram showing a device interior with heat exchanger and internal components, before and after assembly (no text or symbols)

Simple line drawing of people enjoying a meal at a table with sun and palm trees in the background (no text or symbols)

Säkerhetsinformation

Used to set each vane angle.

1. FUNCTION SETTING Button

Used to set or clear Auto Clean, Smart Clean, Electric heater or Individual vane angle control.

1. ON/OFF Button

Used to turn on/off the unit.

1. JET COOL Button

Speed cooling operates super high fan speed.

1. LEFT/RIGHT AIRFLOW Button (OPTIONAL)

Used to set the desired left/right(horizontal) airflow direction.

1. UP/DOWN AIRFLOW Button

Used to stop or start louver movement and set the desired up/down airflow direction.

1. ON TIMER Button

Used to set the time of starting operation.

1. SLEEP TIMER Button

Used to set the time of sleeping operation.

1. SET / CLEAR Button

Used to set/clear the timer.

Used to set the current time(if it input for 3sec.)

1. PLASMA Button (OPTIONAL)

Used to start or stop the plasma-purification function.

1. ROOM TEMPERATURE SETTING Button Used to select the room temperature.

2. OPERATION MODE SELECTION Button

Used to select the operation mode.

1. INDOOR FAN SPEED SELECTION Button

Used to select fan speed in four steps low, medium, high and chaos.

1. ROOM TEMPERATURE CHECKING Button

Used to check the room temperature.

1. OFF TIMER Button

Used to set the time of stopping operation.

Used to set the timer.

Used to adjust the brightness.(if it is not time adjust mode)

1. RESET Button

Used to reset the remote controller.

Forcerad drift

Fjärmande av filter

Diagram showing airflow or ventilation system transformation from a fan-like device to a grid-patterned panel (no text or symbols)

Name and function of wired remote controller(Optional)

PQWRCQ0FDB (Kun kjøling) PQWRHQ0FDB (Varmepumpe)

1. VANE ANGLE Button
   Used to set each vane angle.
2. FUNCTION SETTING Button
   Used to set or clear Auto Clean, Smart Clean, Electric heater or Individual vane angle control.
3. ON/OFF Button
   Used to turn on/off the unit.
4. JET COOL Button
   Speed cooling operates super high fan speed.
5. LEFT/RIGHT AIRFLOW Button (OPTIONAL)
   Used to set the desired left/right(horizontal) airflow direction.
6. UP/DOWN AIRFLOW Button
   Used to stop or start louver movement and set the desired up/down airflow direction.
7. ON TIMER Button
   Used to set the time of starting operation.
8. SLEEP TIMER Button
   Used to set the time of sleeping operation.
9. SET / CLEAR Button
   Used to set/clear the timer. Used to set the current time(if it input for 3sec.)
10. PLASMA Button (OPTIONAL)
    Used to start or stop the plasma-purification function.
11. ROOM TEMPERATURE SETTING Button
    Used to select the room temperature.
12. OPERATION MODE SELECTION Button
    Used to select the operation mode.
13. INDOOR FAN SPEED SELECTION Button
    Used to select fan speed in four steps low, medium, high and chaos.
14. ROOM TEMPERATURE CHECKING Button
    Used to check the room temperature.
15. OFF TIMER Button
    Used to set the time of stopping operation.
16. TIMER SETTING(Up/Down)/LIGHT Button
    Used to set the timer.
    Used to adjust the brightness. (if it is not time adjust mode)
17. RESET Button
    Used to reset the remote controller.

Tvunget bruk

Tips for filtertegn LED (Grilltype)

Diagram showing three-step installation of a car air conditioner panel, with arrows indicating motion direction (no text or symbols)

Å fjerne filtre

Diagram showing airflow or ventilation system inside a car air conditioner unit, before and after assembly (no text or symbols)

Name and function of wired remote controller(Optional)

1. VANE ANGLE Button
   Used to set each vane angle.
2. FUNCTION SETTING Button
   Used to set or clear Auto Clean, Smart Clean, Electric heater or Individual vane angle control.
3. ON/OFF Button
   Used to turn on/off the unit.
4. JET COOL Button
   Speed cooling operates super high fan speed.
5. LEFT/RIGHT AIRFLOW Button (OPTIONAL)
   Used to set the desired left/right(horizontal) airflow direction.
6. UP/DOWN AIRFLOW Button
   Used to stop or start louver movement and set the desired up/down airflow direction.
7. ON TIMER Button
   Used to set the time of starting operation.
8. SLEEP TIMER Button
   Used to set the time of sleeping operation.
9. SET / CLEAR Button
   Used to set/clear the timer.
   Used to set the current time(if it input for 3sec.)
10. PLASMA Button (OPTIONAL)
    Used to start or stop the plasma-purification function.
11. ROOM TEMPERATURE SETTING Button
    Used to select the room temperature.
12. OPERATION MODE SELECTION Button
    Used to select the operation mode.
13. INDOOR FAN SPEED SELECTION Button
    Used to select fan speed in four steps low, medium, high and chaos.
14. ROOM TEMPERATURE CHECKING Button
    Used to check the room temperature.
15. OFF TIMER Button
    Used to set the time of stopping operation.
16. TIMER SETTING(Up/Down)/LIGHT Button
    Used to set the timer.
    Used to adjust the brightness. (if it is not time adjust mode)
17. RESET Button
    Used to reset the remote controller.

Pakkotoiminta

Diagram showing airflow or ventilation system inside a car air conditioner unit, before and after assembly (no text or symbols)

Illustration of people relaxing at a table with sun and palm trees in the background (no text or symbols)

Name and function of wired remote controller(Optional)

PQWRCQ0FDB (kun køling) PQWRHQ0FDB (Varmepumpe)

1. VANE ANGLE Button
   Used to set each vane angle.
2. FUNCTION SETTING Button
   Used to set or clear Auto Clean, Smart Clean, Electric heater or Individual vane angle control.
3. ON/OFF Button
   Used to turn on/off the unit.
4. JET COOL Button
   Speed cooling operates super high fan speed.
5. LEFT/RIGHT AIRFLOW Button (OPTIONAL)
   Used to set the desired left/right(horizontal) airflow direction.
6. UP/DOWN AIRFLOW Button
   Used to stop or start louver movement and set the desired up/down airflow direction.
7. ON TIMER Button
   Used to set the time of starting operation.
8. SLEEP TIMER Button
   Used to set the time of sleeping operation.
9. SET / CLEAR Button
   Used to set/clear the timer.
   Used to set the current time(if it input for 3sec.)
10. PLASMA Button (OPTIONAL)
    Used to start or stop the plasma-purification function.
11. ROOM TEMPERATURE SETTING Button
    Used to select the room temperature.
12. OPERATION MODE SELECTION Button
    Used to select the operation mode.
13. INDOOR FAN SPEED SELECTION Button
    Used to select fan speed in four steps low, medium, high and chaos.
14. ROOM TEMPERATURE CHECKING Button
    Used to check the room temperature.
15. OFF TIMER Button
    Used to set the time of stopping operation.
16. TIMER SETTING(Up/Down)/LIGHT Button
    Used to set the timer.
    Used to adjust the brightness. (if it is not time adjust mode)
17. RESET Button
    Used to reset the remote controller.

Forceret drift

Tips for Filter signal-LED (Rist type)

Illustration of three steps of cleaning a solar panel: surface cleaning, cleaning with a container, and dust removal (no text or symbols)

Fjernelse af Grille

Fjernelse af filter

Diagram showing airflow or ventilation change from a fan to a window, with no text or symbols present.
