USER MANUAL DCD709 DEWALT

– 15.0 Uncertainty K = m/s

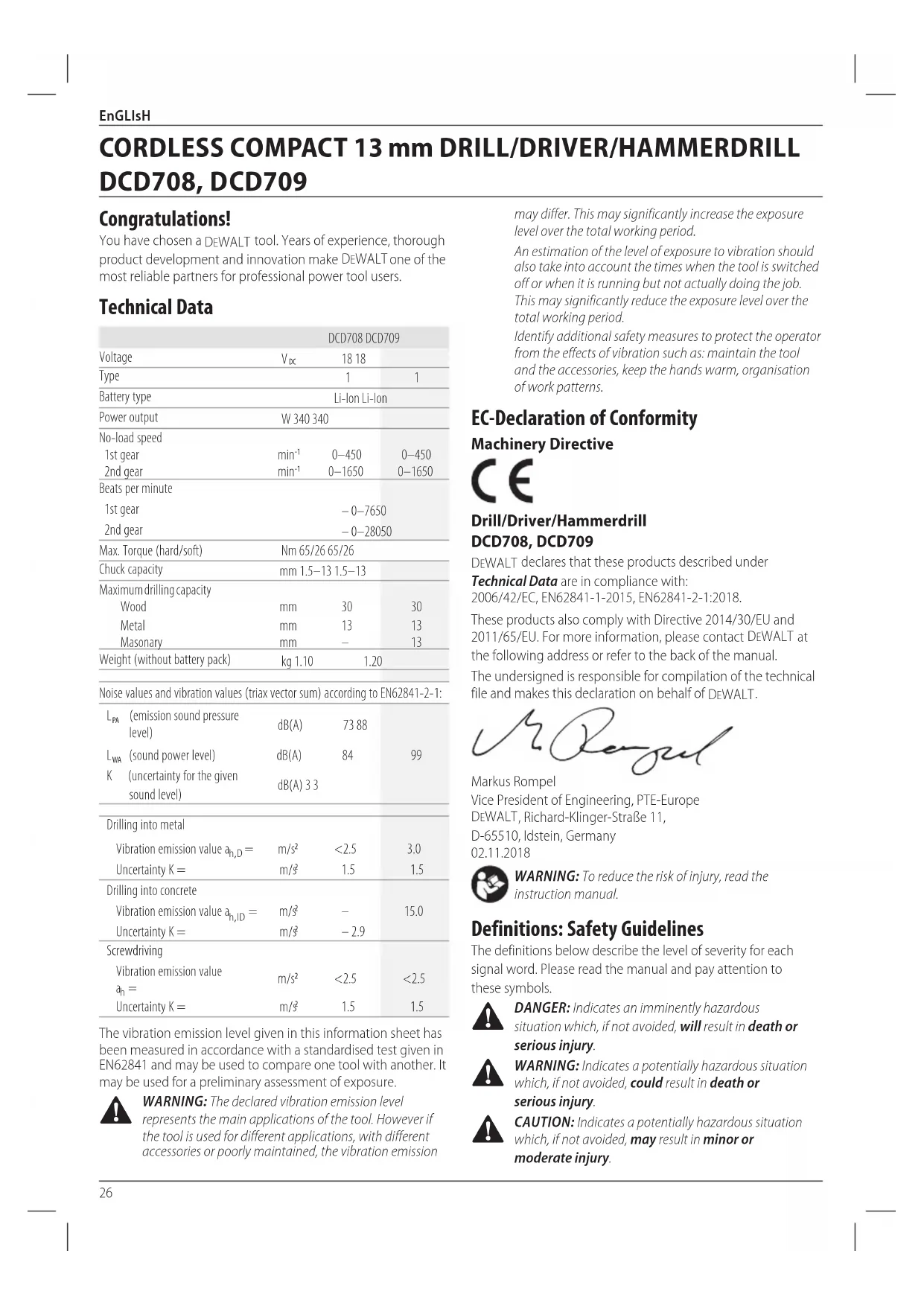

Battery type Li-Ion Li-Ion Power output W 340 340 No-load speed 1st gear 2nd gear min

0–450 0–1650 0–450 0–1650 Beats per minute 1st gear – 0–7650 2nd gear – 0–28050 Max. Torque (hard/soft) Nm 65/26 65/26 Chuck capacity mm 1.5–13 1.5–13 Maximum drilling capacity Wood Metal Masonary

Weight (without battery pack) kg 1.10 1.20 Noise values and vibration values (triax vector sum) according to EN62841-2-1:

(emission sound pressure level) dB(A) 73 88

(sound power level) dB(A) 84 99 K (uncertainty for the given sound level) dB(A) 3 3 Drilling into metal Vibration emission value a h,D = m/s

Drilling into concrete Vibration emission value a h,ID = m/s

– 15.0 Uncertainty K = m/s

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN62841 and may be used to compare one tool with another. It may be used for a preliminary assessment ofexposure.

WARNING: The declared vibration emission level

represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total workingperiod. An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total workingperiod. Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of workpatterns. EC-Declaration of Conformity Machinery Directive Drill/Driver/Hammerdrill DCD708, DCD709 DeWALT declares that these products described under Technical Data are in compliance with: 2006/42/EC, EN62841-1-2015, EN62841-2-1:2018. These products also comply with Directive 2014/30/EU and 2011/65/EU. For more information, please contact DeWALT

the following address or refer to the back of themanual. The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of DeWALT

WARNING: To reduce the risk of injury, read the

instructionmanual. Definitions: Safety Guidelines The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to thesesymbols.

DANGER: Indicates an imminently hazardous

situation which, if not avoided, will result in death or seriousinjury.

WARNING: Indicates a potentially hazardous situation

which, if not avoided, could result in death or seriousinjury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderateinjury. English (original instructions) CORDLESS COMPACT 13 mm DRILL/DRIVER/HAMMERDRILL DCD708, DCD70927 EnGLIsH NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in propertydamage.

Denotes risk of electricshock.

Denotes risk offire.

WARNING: Read all safety warnings, instructions,

illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or seriousinjury.

SAVE ALL WARNINGS AND INSTRUCTIONS

FOR FUTUREREFERENCE. The term “power tool” in the warnings refers to your mains- operated (corded) power tool or battery-operated (cordless) powertool.

a ) Keep work area clean and well lit. Cluttered or dark areas inviteaccidents. b ) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust orfumes. c ) Keep children and bystanders away while operating a power tool. Distractions can cause you to losecontrol.

2) Electrical Safety

a ) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electricshock. b ) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed orgrounded. c ) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electricshock. d ) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electricshock. e ) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electricshock. f ) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electricshock.

a ) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personalinjury. b ) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personalinjuries. c ) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invitesaccidents. d ) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personalinjury. e ) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpectedsituations. f ) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in movingparts. g ) If devices are provided for the connection of dust extraction and collection facilities, ensure these are Batteries Chargers/Charge Times (Minutes) Cat # V

Weight *Date code 201811475B or later **Date code 201536 or later28 EnGLIsH connected and properly used. Use of dust collection can reduce dust-relatedhazards. h ) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of asecond.

4) Power Tool Use and Care

a ) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it wasdesigned. b ) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must berepaired. c ) Disconnect the plug from the power source and/ or the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power toolaccidentally. d ) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrainedusers. e ) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained powertools. f ) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier tocontrol. g ) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardoussituation. h ) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpectedsituations.

5) Battery Tool Use and Care

a ) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another batterypack. b ) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury andfire. c ) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or afire. d ) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation orburns. e ) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk ofinjury. f ) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may causeexplosion. g ) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

a ) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool ismaintained. b ) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized serviceproviders. Safety Instructions for All Operations

• Wear ear protectors when impact drilling. Exposure to noise can cause hearing loss.

• Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory or the fastener may contact hidden wiring. Cutting accessory or the fastener contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electricshock. Safety Instructions When Using Long DrillBits

• Never operate at higher speed than the maximum speed rating of the drill bit. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personalinjury.

• Always start drilling at low speed and with the bit tip in contact with the workpiece. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personalinjury.

• Apply pressure only in direct line with the bit and do not apply excessive pressure. Bits can bend causing breakage or loss of control, resulting in personalinjury. Additional Safety Warnings for Drill/ Driver/ Hammerdrill

• Use clamps or other practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body is unstable and may lead to loss ofcontrol.29 EnGLIsH

• Accessories and tool may get hot during operation. Wear gloves when handling them if performing heat producing applications such as drillingmetals.

• Air vents often cover moving parts and should be avoided. Loose clothes, jewelry or long hair can be caught in movingparts.

• Wear safety goggles or other eye protection. Hammering and drilling operations cause chips to fly. Flying particles can cause permanent eye damage.

• Wear ear protectors when impact drilling. Exposure to noise can cause hearing loss.

• Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.

• Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.

• Do not operate this tool for long periods of time. Vibration caused by tool action may be harmful to your hands and arms. Use gloves to provide extra cushion and limit exposure by taking frequent rest periods. Residual Risks In spite of the application of the relevant safety regulations and the implementation of safety devices, certain residual risks cannot be avoided. These are:

• Impairment ofhearing.

• Risk of personal injury due to flyingparticles.

• Risk of burns due to accessories becoming hot duringoperation.

• Risk of personal injury due to prolongeduse.

SAVE THESE INSTRUCTIONS

Chargers DeWALT chargers require no adjustment and are designed to be as easy as possible tooperate. Electrical Safety The electric motor has been designed for one voltage only. Always check that the battery pack voltage corresponds to the voltage on the rating plate. Also make sure that the voltage of your charger corresponds to that of yourmains. Your DeWALT charger is double insulated in accordance with EN62841; therefore no earth wire isrequired. If the supply cord is damaged, it must be replaced by a specially prepared cord available through the DeWALT

serviceorganisation. Mains Plug Replacement (U.K. & Ireland Only) If a new mains plug needs to be fitted:

• Safely dispose of the oldplug.

• Connect the brown lead to the live terminal in theplug.

• Connect the blue lead to the neutralterminal.

WARNING: No connection is to be made to the

earthterminal. Follow the fitting instructions supplied with good quality plugs. Recommended fuse: 3A. Using an Extension Cable An extension cord should not be used unless absolutely necessary. Use an approved extension cable suitable for the power input of your charger (see Technical Data). The minimum conductor size is 1mm

; the maximum length is30m. When using a cable reel, always unwind the cablecompletely. Important Safety Instructions for All Battery Chargers SAVE THESE INSTRUCTIONS: This manual contains important safety and operating instructions for compatible battery chargers (refer to TechnicalData).

• Before using charger, read all instructions and cautionary markings on charger, battery pack, and product using batterypack.

WARNING: Shock hazard. Do not allow any liquid to get

WARNING: We recommend the use of a residual current

device with a residual current rating of 30mA orless.

CAUTION: Burn hazard. To reduce the risk of injury, charge only DeWALT rechargeable batteries. Other types of batteries may burst causing personal injury anddamage.

CAUTION: Children should be supervised to ensure that they do not play with theappliance. NOTICE: Under certain conditions, with the charger plugged into the power supply, the exposed charging contacts inside the charger can be shorted by foreign material. Foreign materials of a conductive nature such as, but not limited to, steel wool, aluminum foil or any buildup of metallic particles should be kept away from charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug charger before attempting to clean

• DO NOT attempt to charge the battery pack with any chargers other than the ones in this manual. The charger and battery pack are specifically designed to worktogether.

• These chargers are not intended for any uses other than charging DeWALT rechargeable batteries. Any other uses may result in risk of fire, electric shock orelectrocution.

• Do not expose charger to rain orsnow.

• Pull by plug rather than cord when disconnecting charger. This will reduce risk ofdamage to electric plug andcord.

• Make sure that cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage orstress.

• Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in risk of fire,electric shock, orelectrocution.30 ENGLISH

• Do not place any object on top of charger or place the charger on a soft surface that might block the ventilation slots and result in excessive internal heat. Place the charger in a position away from any heat source. The charger is ventilated through slots in the top and the bottom of thehousing.

• Do not operate charger with damaged cord or plug— have them replacedimmediately.

• Do not operate charger if it has received a sharp blow, been dropped, or otherwise damaged in any way. Take it to an authorised servicecentre.

• Do not disassemble charger; take it to an authorised service centre when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution orfire.

• In case of damaged power supply cord the supply cord must be replaced immediately by the manufacturer, its service agent or similar qualified person to prevent anyhazard.

• Disconnect the charger from the outlet before attempting any cleaning. This will reduce the risk of electric shock. Removing the battery pack will not reduce thisrisk.

• NEVER attempt to connect two chargerstogether.

• The charger is designed to operate on standard 230V household electrical power. Do not attempt to use it on any other voltage. This does not apply to the vehicularcharger. Charging a Battery (Fig. B)

1. Plug the charger into an appropriate outlet before inserting

into the charger, making sure the battery pack is fully seated in the charger. The red (charging) light will blink repeatedly indicating that the charging process hasstarted.

3. The completion of charge will be indicated by the red

light remaining ON continuously. The battery pack is fully charged and may be used at this time or left in the charger. To remove the battery pack from the charger, push the battery release button

on the batterypack. NOTE: To ensure maximum performance and life of lithium-ion battery packs, charge the battery pack fully before firstuse. Charger Operation Refer to the indicators below for the charge status of the batterypack. Charge Indicators Charging Fully Charged Hot/Cold Pack Delay*

• The red light will continue to blink, but a yellow indicator light will be illuminated during this operation. Once the battery pack has reached an appropriate temperature, the yellow light will turn off and the charger will resume the chargingprocedure. The compatible charger(s) will not charge a faulty battery pack. The charger will indicate faulty battery by refusing tolight. NOTE: This could also mean a problem with acharger. If the charger indicates a problem, take the charger and battery pack to be tested at an authorised servicecentre. Hot/Cold Pack Delay When the charger detects a battery pack that is too hot or too cold, it automatically starts a Hot/Cold Pack Delay, suspending charging until the battery pack has reached an appropriate temperature. The charger then automatically switches to the pack charging mode. This feature ensures maximum battery packlife. A cold battery pack will charge at a slower rate than a warm battery pack. The battery pack will charge at that slower rate throughout the entire charging cycle and will not return to maximum charge rate even if the battery packwarms. The DCB118 charger is equipped with an internal fan designed to cool the battery pack. The fan will turn on automatically when the battery pack needs to be cooled. Never operate the charger if the fan does not operate properly or if ventilation slots are blocked. Do not permit foreign objects to enter the interior of thecharger. Electronic Protection System XR Li-Ion tools are designed with an Electronic Protection System that will protect the battery pack against overloading, overheating or deepdischarge. The tool will automatically turn off if the Electronic Protection System engages. If this occurs, place the lithium-ion battery pack on the charger until it is fullycharged. Wall Mounting These chargers are designed to be wall mountable or to sit upright on a table or work surface. If wall mounting, locate the charger within reach of an electrical outlet, and away from a corner or other obstructions which may impede air flow. Use the back of the charger as a template for the location of the mounting screws on the wall. Mount the charger securely using drywall screws (purchased separately) at least 25.4mm long with a screw head diameter of 7–9mm, screwed into wood to an optimal depth leaving approximately 5.5mm of the screw exposed. Align the slots on the back of the charger with the exposed screws and fully engage them in theslots. Charger Cleaning Instructions

WARNING: Shock hazard. Disconnect the charger

from the AC outlet before cleaning. Dirt and grease may be removed from the exterior of the charger using a cloth or soft non-metallic brush. Do not use water or any cleaning solutions. Never let any liquid get inside the tool; never immerse any part of the tool into aliquid. Battery Packs Important Safety Instructions for All Battery Packs When ordering replacement battery packs, be sure to include catalogue number andvoltage.31 ENGLISH The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below. Then follow charging proceduresoutlined.

READ ALL INSTRUCTIONS

• Do not charge or use battery in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery from the charger may ignite the dust orfumes.

• Never force battery pack into charger. Do not modify battery pack in any way to fit into a non-compatible charger as battery pack may rupture causing serious personalinjury.

• Charge the battery packs only in DeWALT chargers.

• DO NOT splash or immerse in water or otherliquids.

• Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 40 ˚C (104 ˚F) (such as outside sheds or metal buildings insummer).

• Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic fumes and materials are created when lithium-ion battery packs areburned.

• If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation ceases. If medical attention is needed, the battery electrolyte is composed of a mixture of liquid organic carbonates and lithiumsalts.

• Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persists, seek medicalattention.

WARNING: Burn hazard. Battery liquid may be flammable

if exposed to spark orflame.

WARNING: Never attempt to open the battery pack for

any reason. If battery pack case is cracked or damaged, do not insert into charger. Do not crush, drop or damage battery pack. Do not use a battery pack or charger that has received a sharp blow, been dropped, run over or damaged in any way (i.e., pierced with a nail, hit with a hammer, stepped on). Electric shock or electrocution may result. Damaged battery packs should be returned to service centre forrecycling.

WARNING: Fire hazard. Do not store or carry the

battery pack so that metal objects can contact exposed battery terminals. For example, do not place the battery pack in aprons, pockets, tool boxes, product kit boxes, drawers, etc., with loose nails, screws, keys,etc.

CAUTION: When not in use, place tool on its side on a stable surface where it will not cause a tripping or falling hazard. Some tools with large battery packs will stand upright on the battery pack but may be easily knockedover. Transportation

WARNING: Fire hazard. Transporting batteries can

possibly cause fire if the battery terminals inadvertently come in contact with conductive materials. When transporting batteries, make sure that the battery terminals are protected and well insulated from materials that could contact them and cause a shortcircuit. NOTE: Lithium-ion batteries should not be put in checkedbaggage. DeWALT batteries comply with all applicable shipping regulations as prescribed by industry and legal standards which include UN Recommendations on the Transport of Dangerous Goods; International Air Transport Association (IATA) Dangerous Goods Regulations, International Maritime Dangerous Goods (IMDG) Regulations, and the European Agreement Concerning The International Carriage of Dangerous Goods by Road (ADR). Lithium-ion cells and batteries have been tested to section 38.3 of the UN Recommendations on the Transport of Dangerous Goods Manual of Tests andCriteria. In most instances, shipping a DeWALT battery pack will be excepted from being classified as a fully regulated Class 9 Hazardous Material. In general, only shipments containing a lithium-ion battery with an energy rating greater than 100 Watt Hours (Wh) will require being shipped as fully regulated Class 9. All lithium-ion batteries have the Watt Hour rating marked on the pack. Furthermore, due to regulation complexities, DeWALT

does not recommend air shipping lithium-ion battery packs alone regardless of Watt Hour rating. Shipments of tools with batteries (combo kits) can be air shipped as excepted if the Watt Hour rating of the battery pack is no greater than 100Whr. Regardless of whether a shipment is considered excepted or fully regulated, it is the shipper's responsibility to consult the latest regulations for packaging, labeling/marking and documentationrequirements. The information provided in this section of the manual is provided in good faith and believed to be accurate at the time the document was created. However, no warranty, expressed or implied, is given. It is the buyer’s responsibility to ensure that its activities comply with the applicableregulations. Transporting the FLEXVOLT

Battery The DeWALT FLEXVOLT

battery has two modes: Use andTransport. Use Mode: When the FLEXVOLT

battery stands alone or is in

DeWALT 18V product, it will operate as an 18V battery. When the FLEXVOLT

battery is in a 54V or a 108V (two 54V batteries) product, it will operate as a 54Vbattery. Transport Mode: When the cap is attached to the FLEXVOLT

battery, the battery is in Transport mode. Keep the cap for shipping. When in Transport mode, strings of cells are electrically disconnected within the pack resulting in 3 batteries with a lower Watt hour (Wh) rating as compared to 1 battery with a higher Watt hour rating. This increased quantity of 3 batteries with the lower Watt hour rating can exempt the pack from32 EnGLIsH certain shipping regulations that are imposed upon the higher Watt hour batteries. For example, the Transport Wh rating might indicate 3x36 Wh, meaning 3 batteries of 36 Wh each. The Use Wh rating might indicate 108Wh (1batteryimplied). Storage Recommendations

1. The best storage place is one that is cool and dry away

from direct sunlight and excess heat or cold. For optimum battery performance and life, store battery packs at room temperature when not inuse.

2. For long storage, it is recommended to store a fully charged

battery pack in a cool, dry place out of the charger for optimalresults. nOTE: Battery packs should not be stored completely depleted of charge. The battery pack will need to be recharged beforeuse. Labels on Charger and Battery Pack In addition to the pictographs used in this manual, the labels on the charger and the battery pack may show the following pictographs: Read instruction manual beforeuse. See Technical Data for chargingtime. Do not probe with conductiveobjects. Do not charge damaged batterypacks. Do not expose to water. Have defective cords replacedimmediately. Charge only between 4 ˚C and 40 ˚C. Only for indooruse. Discard the battery pack with due care for theenvironment. Charge DeWALT battery packs only with designated DeWALT chargers. Charging battery packs other than the designated DeWALT batteries with a DeWALT charger may make them burst or lead to other dangeroussituations. Example of Use and Transport Label Marking Do not incinerate the batterypack. USE (without transport cap). Example: Wh rating indicates 108 Wh (1 battery with 108 Wh). TRANSPORT (with built-in transport cap). Example: Wh rating indicates 3 x 36 Wh (3batteries of 36Wh). Battery Type The DCD708/DCD709 operates on an 18 volt batterypack. These battery packs may be used: DCB181, DCB182, DCB183, DCB183B, DCB184, DCB184B, DCB185, DCB187, DCB189, DCB546, DCB547, DCB548. Refer to Technical Data for moreinformation. Package Contents The package contains: 1 Drill/driver (DCD708) or Hammerdrill (DCD709) 1 Charger 1 Belt hook (included with some models) 1 Magnetic bit holder (included with some models) 1 Li-Ion battery pack (C1, D1, L1, M1, P1, S1, T1, X1, Y1 models) 2 Li-Ion battery packs (C2, D2, L2, M2, P2, S2, T2, X2, Y2 models) 3 Li-Ion battery packs (C3, D3, L3, M3, P3, S3, T3, X3, Y3 models) 1 Instruction manual

• Check for damage to the tool, parts or accessories which may have occurred duringtransport.

• Take the time to thoroughly read and understand this manual prior tooperation. Markings on Tool The following pictograms are shown on the tool: Read instruction manual beforeuse. Wear earprotection. Wear eyeprotection. Visible radiation. Do not stare intolight. Date Code Position (Fig. A) The date code

, which also includes the year of manufacture, is printed into thehousing. Example: 2018 XX XX Year of Manufacture Description (Fig. A)

WARNING: Never modify the power tool or any part of it.

Damage or personal injury couldresult.

Battery pack33 ENGLISH

Battery pack release button

Variable speed trigger

Mode selection collar

Belt hook (included with some models)

Magnetic bit holder (included with some models)

Date code Intended Use These drills/drivers/hammerdrills are designed for professional drilling, percussion drilling and screwdrivingapplications. DO NOT use under wet conditions or in the presence of flammable liquids orgases. These drills/drivers/hammerdrills are professional powertools. DO NOT let children come into contact with the tool. Supervision is required when inexperienced operators use thistool.

• Young children and the infirm. This appliance is not intended for use by young children or infirm persons withoutsupervision.

• This product is not intended for use by persons (including children) suffering from diminished physical, sensory or mental abilities; lack of experience, knowledge or skills unless they are supervised by a person responsible for their safety. Children should never be left alone with thisproduct.

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal

injury, turn tool off and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start-up can causeinjury.

DeWALT battery packs andchargers. Inserting and Removing the Battery Pack from the Tool (Fig. B) NOTE: Make sure your battery pack

is fullycharged. To Install the Battery Pack into the Tool Handle

with the rails inside the tool’s handle (Fig.B).

2. Slide it into the handle until the battery pack is firmly seated

in the tool and ensure that you hear the lock snap intoplace. To Remove the Battery Pack from the Tool

1. Press the release button

and firmly pull the battery pack out of the toolhandle.

2. Insert battery pack into the charger as described in the

charger section of thismanual. Fuel Gauge Battery Packs (Fig. B) Some DeWALT battery packs include a fuel gauge which consists of three green LED lights that indicate the level of charge remaining in the batterypack. To actuate the fuel gauge, press and hold the fuel gauge button. A combination of the three green LED lights will illuminate designating the level of charge left. When the level of charge in the battery is below the usable limit, the fuel gauge will not illuminate and the battery will need to berecharged. NOTE: The fuel gauge is only an indication of the charge left on the battery pack. It does not indicate tool functionality and is subject to variation based on product components, temperature and end-userapplication. Belt Hook and Magnetic Bit Holder (Fig.A) (Optional Accessories)

WARNING: To reduce the risk of serious personal

injury, DO NOT suspend tool overhead or suspend objects from the belt hook. ONLY hang tool’s belt hook from a workbelt.

WARNING: To reduce the risk of serious personal

injury, ensure the screw holding the belt hook issecure. IMPORTANT: When attaching or replacing a belt hook or magnetic bit holder, use only the screw that is provided. Be sure to securely tighten thescrew. A belt hook

and magnetic bit holder

can be be attached to either side of the tool using only the screw

provided, to accommodate left- or right-handed users. If the hook or magnetic bit holder is not desired at all, it can be removed from thetool. To move belt hook or magnetic bit holder, remove the screw

that holds it in place then reassemble on the opposite side. Be sure to securely tighten thescrew. Installing a Bit or Accessory into a KeylessChuck (Fig.D)

WARNING: Do not attempt to tighten drill bits (or

any other accessory) by gripping the front part of the chuck and turning the tool on. Damage to the chuck and personal injury may result. Always lock off trigger switch and disconnect tool from power source when changingacces sories.

WARNING: Always ensure the bit is secure before starting

the tool. A loose bit may eject from tool causing possible personalinjury. Your tool features a keyless chuck

with one rotating sleeve

for one-handed operation of the chuck. To insert a drill bit or other accessory, follow thesesteps.

1. Turn tool off and remove batterypack.

2. Grasp the black sleeve of the chuck with one hand

and use the other hand to secure the tool. Rotate the sleeve counterclockwise far enough to accept the desiredaccessory.

3. Insert the accessory about 19 mm into the chuck and

tighten securely by rotating the chuck sleeve clockwise with34 ENGLISH one hand while holding the tool with the other. Your tool is equipped with an automatic spindle lock mechanism. This allows you to open and close the chuck with onehand. Be sure to tighten chuck with one hand on the chuck sleeve and one hand holding the tool for maximumtightness. To release the accessory, repeat steps 1 and 2above. Speed Selection (Fig.A) The tool features two speed settings for greaterversatility. NOTE: Do not change speeds when the tool is running. Always allow the tool to come to a complete stop before changingspeed.

1. To select speed 1 (high torque setting), turn the tool off and

permit it to stop. Slide the speed selector

back (away from thechuck).

2. To select speed 2 (high speed setting), turn the tool off and

permit it to stop. Slide the speed selector

forward (toward thechuck). If the tool does not change speeds, confirm that the speed selection switch is completely engaged in the forward or backposition. Mode Selection (Fig. A) The mode selection collar

can be used to select the correct operating mode depending upon the plannedapplication. To select, rotate the collar until the desired symbol aligns with thearrow. Symbol Mode Drilling 1–15 Screwdriving (higher number = greater torque) Hammerdrilling (DCD709 only) Variable Speed Trigger and Forward/Reverse Control Button (Fig. A, E) The drill is turned on and off by pulling and releasing the variable speed trigger

. The farther the trigger is depressed, the higher the speed of the drill. Your tool is equipped with a brake. The chuck will stop as soon as the trigger switch is fullyreleased. A forward/reverse control button

determines the rotational direction of the tool and also serves as a lock-offbutton.

• To select forward rotation, release the trigger and depress the forward/reverse control button on the right side of thetool.

• To select reverse, depress the forward/reverse control button on the left side of thetool. NOTE: The centre position of the control button locks the tool in the off position. When changing the position of the control button, be sure the trigger isreleased. NOTE: Continuous use in variable speed range is not recommended. It may damage the switch and should beavoided. NOTE: The first time the tool is run after changing the direction of rotation, you may hear a click on start up. This is normal and does not indicate aproblem. OPERATION Instructions for Use

WARNING: Always observe the safety instructions and

applicableregulations.

WARNING: To reduce the risk of serious personal

injury, turn tool off and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start-up can causeinjury. Proper Hand Position (Fig. C)

WARNING: To reduce the risk of serious personal injury,

WARNING: To reduce the risk of serious personal

injury, ALWAYS hold securely in anticipation of a suddenreaction. Proper hand position requires one hand on the main handle

and one hand on the batterypack. Worklight (Fig.A) There is a worklight

located on the foot of the tool. The worklight is activated when the trigger switch is depressed. When the trigger is released, the worklight will stay illuminated for up to 20seconds. NOTE: The worklight is for lighting the immediate work surface and is not intended to be used as aflashlight. Performing an Application (Fig.A, D)

WARNING: To reduce the risk of personal injury,

ALWAYS ensure workpiece is anchored or clampedfirmly.

WARNING: Always wait until the motor has come to

a complete standstill before changing the direction ofrotation. Prior to performing work:

• Set the speed selector

. Refer to SpeedSelection.

• Install the appropriate bit or accessory into the chuck. Refer to Installing a Bit or Accessory into a KeylessChuck.

• Do not mix or stir flammable liquids labeledaccordingly. Screwdriving Your tool has a clutch with adjustable torque for driving and removing a wide array of fastener shapes and sizes. The numbers on the mode selection collar

are used to set a torque range for screwdriving. The higher the number on the35 ENGLISH collar, the higher the torque and the larger the fastener which can bedriven.

1. Turn the mode selection collar

to the desiredposition. Refer to Mode Selection.

2. Pull the trigger switch applying pressure in a straight line

with the bit until the fastener is seated at the desired depth in theworkpiece. Recommendations for Screwdriving

• Start with lower torque settings, then advance to higher torque settings to avoid damage to the workpiece orfastener.

• Make some practice runs in scrap or on unseen areas of the workpiece to determine the proper position of the mode selectioncollar. Drilling

1. Turn the mode selection collar

to the drillsymbol. Refer to ModeSelection.

2. Place drill bit in contact with theworkpiece.

NOTE: Use sharp drill bitonly.

3. Pull the trigger applying pressure in a straight line with the

bit until it reaches the desireddepth.

WARNING: Drill may stall if overloaded causing a sudden

twist. Always expect the stall. Grip the drill firmly to control the twisting action and avoidinjury.

4. Keep the motor running when pulling the bit back out of a

drilled hole to preventjamming. Recommendations for Drilling

• When drilling, always apply pressure in a straight line with the bit, but do not push hard enough to stall the motor or deflect thebit.

• IF THE DRILL STALLS: - RELEASE TRIGGER SWITCH IMMEDIATELY, remove drill bit from work, and determine cause ofstalling. - DO NOT DEPRESS TRIGGER SWITCH ON AND OFF IN AN ATTEMPT TO START A STALLED DRILL—THIS CAN DAMAGE THEDRILL. - To minimize stalling or breaking through the material, reduce pressure on drill and ease the bit through the last fractional part of thehole.

• Large holes (7.9 mm to 12.7 mm) in steel can be made easier if a pilot hole (4 mm to 4.8mm) is drilledfirst.

• If drilling thin material or material that is prone to splinter, use a wood “back-up” block to prevent damage to theworkpiece. Hammerdrilling

residual dust with a vacuum or dust collection system designed for the application. DCD709 Only IMPORTANT: Use carbide-tipped or masonry bits rated for percussion drillingonly.

1. Select the desired speed/torque range using the speed

to match the speed and torque to the planned operation. Turn the mode selection collar

2. Pull the trigger, applying just enough pressure on the

hammer to keep it from bouncing excessively or "rising" off the bit. Recommendations for Hammerdrilling

• Too much force will cause slower drilling speeds, overheating, and a lower drillingrate.

• A smooth even flow of material indicates the proper drillingrate.

• Drill straight, keeping the bit at a right angle to the work. Do not exert side pressure on the bit when drillling as this will cause clogging of the bit flutes and a slower drillingspeed.

• When drilling deep holes, if the hammer speed starts to drop off, pull the bit partially out of the hole with tool still running to help clear debris from thehole. MAINTENANCE Your DeWALT power tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regularcleaning.

WARNING: To reduce the risk of serious personal

injury, turn tool off and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start-up can causeinjury. The charger and battery pack are notserviceable. Lubrication Your power tool requires no additionallubrication. Cleaning

WARNING: Blow dirt and dust out of the main housing

with dry air as often as dirt is seen collecting in and around the air vents. Wear approved eye protection and approved dust mask when performing thisprocedure.

WARNING: Never use solvents or other harsh chemicals

for cleaning the non-metallic parts of the tool. These chemicals may weaken the materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into aliquid. Optional Accessories

WARNING: Since accessories, other than those offered

DeWALT , have not been tested with this product, use of such accessories with this tool could be hazardous.36 EnGLIsH To reduce the risk of injury, only DeWALT recommended accessories should be used with thisproduct. Consult your dealer for further information on the appropriateaccessories. Protecting the Environment Separate collection. Products and batteries marked with this symbol must not be disposed of with normal householdwaste. Products and batteries contain materials that can be recovered or recycled reducing the demand for raw materials. Please recycle electrical products and batteries according to local provisions. Further information is available at www.2helpU.com. Rechargeable Battery Pack This long life battery pack must be recharged when it fails to produce sufficient power on jobs which were easily done before. At the end of its technical life, discard it with due care for our environment:

• Run the battery pack down completely, then remove it from thetool.

– 15,0 Incertidumbre K = m/s

– 15,0 Incertezza K = m/s

BEWAAR ALLE WAARSCHUWINGEN

bakover (bort frachucken).

– 15,0 Vaihtelu K = m/s

– 15,0 Belirsizlik K = m/s
