USER MANUAL Estate 2398 HW STIGA

171506066/8V 04/2021 MP 84 Series MP 98 Series SD 98 Series SD 108 Series

Ride-on lawnmower with seated operator

WARNING: read thoroughly the instruction booklet before using the machine.

ENGLISH - Translation of the original instruction

DATI TECNICI MP 84 Series MP 98 Series

(solo per modelli MP series)

45-0267 45-02681 ST-1402 (solo per modelli SD series) (solo per modelli SD series)

[14] Hydrostatic transmission Forward speed (approximate) at 3000 min

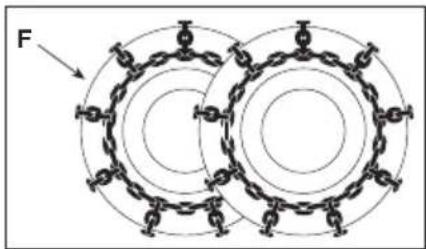

[15] Speed limit with snow chains (if available) [16] Dimensions [17] Length [18] Length with grass catcher (length without grass catcher) [19] Width [20] Width with side discharge chute (Width without side discharge chute) [21] Height [22] Cutting means code [23] Fuel tank capacity [24] Admissible load on towing device (maximum vertical weight) [25] Admissible load for towing device (maximum towing weight) [26] Maximum admissible tilt [27] Acoustic pressure level [28] Measurement uncertainty [29] Measured acoustic power level [30] Guaranteed acoustic power level [31] Operator position vibration level [32] Steering wheel vibration level [33] Table for correct accessory combi- nations [33.A] Rear accessories [33.B] Front accessories [42] Accessories available on request [42.A1, 42.A2] “Mulching” kit [42.B] Maintenance battery charger [42.C] Towing kit [42.D] Cloth cover [42.E] Rear discharge guard kit (only for MP series) [42.F] Snow chains (18”) [42.G] Mud / Snow wheels (18”) [42.H] Trailer [42.I] Sprinkler [42.J] Lawn roller [42.K] Snow shovel [42.L] Leaf and grass catcher (only for SD series)

• Please refer to the data indicated on the machine’s identication plate for the exact gure.

6.5 PRACOVNÍ ČINNOST

3. Slip gradvist pedalen for at aktivere

15.1 KIT TIL "MULTICLIP"

15.5 KIT HINTERER AUSWURFSCHUTZ

3.1 Description of the machine and planned

4.4 Mounting and connecting the battery .... 7

4.5 Mounting the rear bumper ..................... 7

4.6 Side discharge chute assembly (for

models with side discharge only) .......... 7

4.7 Mounting the cutting-means assembly

side reinforcements (for side discharge models only, if foreseen). ....................... 8

4.8 Rear plate assembly and completion (for

rear collection models only) .................. 8

5.6 Brake pedal (hydrostatic drive) .............. 9

5.7 Drive pedal (hydrostatic drive) ............... 9

5.8 Hydrostatic transmission disengagement

lever (hydrostatic transmission) .......... 10

5.9 Cutting means engage and disengage

5.12 Acoustic alarm indicator light and device

(for rear collection models only) .......... 10

5.13 Grass catcher tipping lever (if foreseen,

for rear collection models only) ........... 10

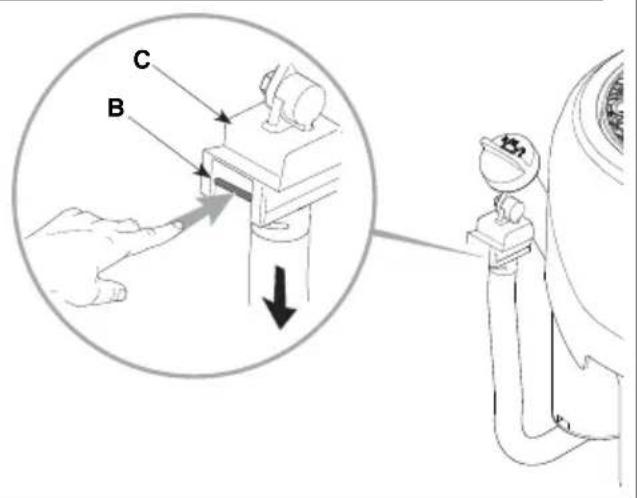

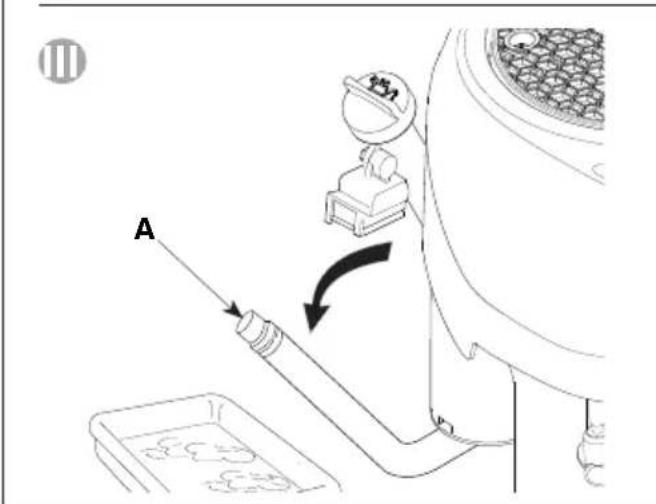

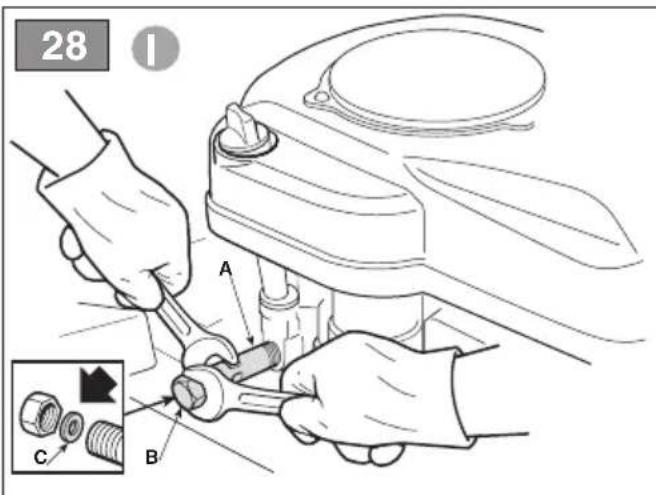

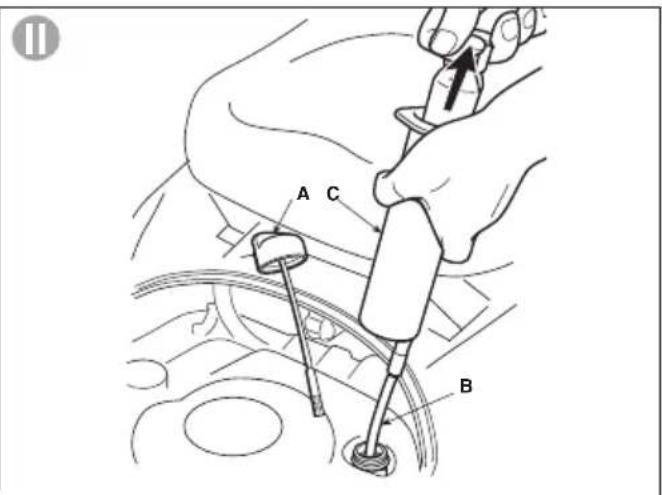

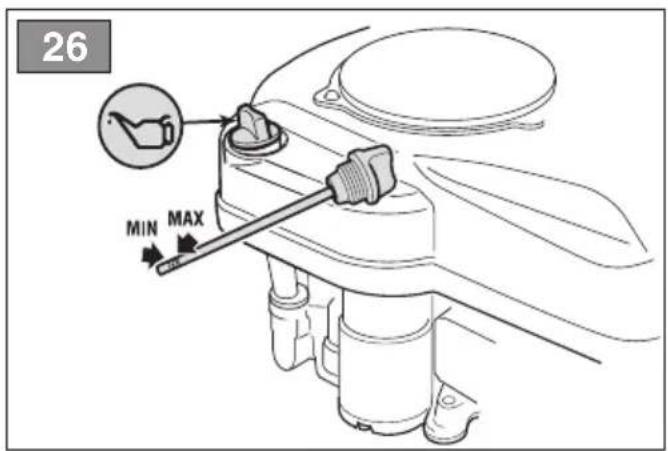

7.3 Check, top up, draining of engine oil ... 16

8.2 Cutting-means assembly / cutting means

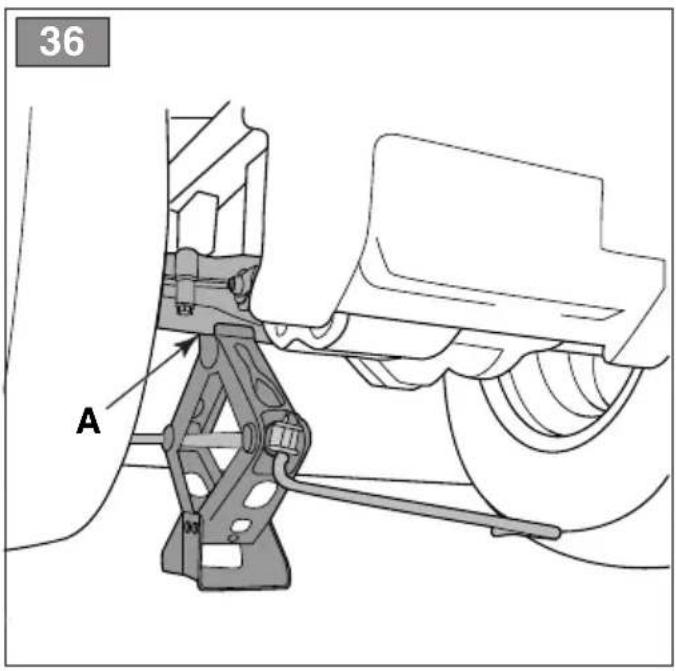

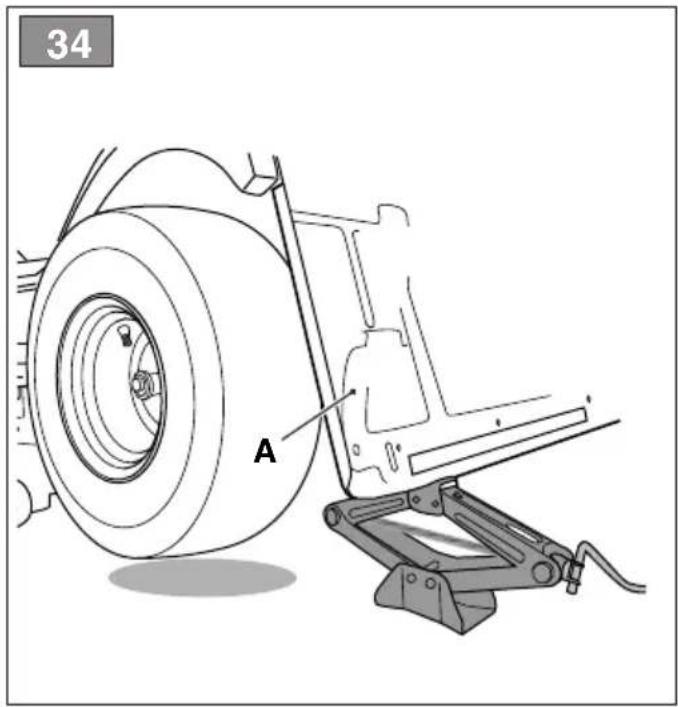

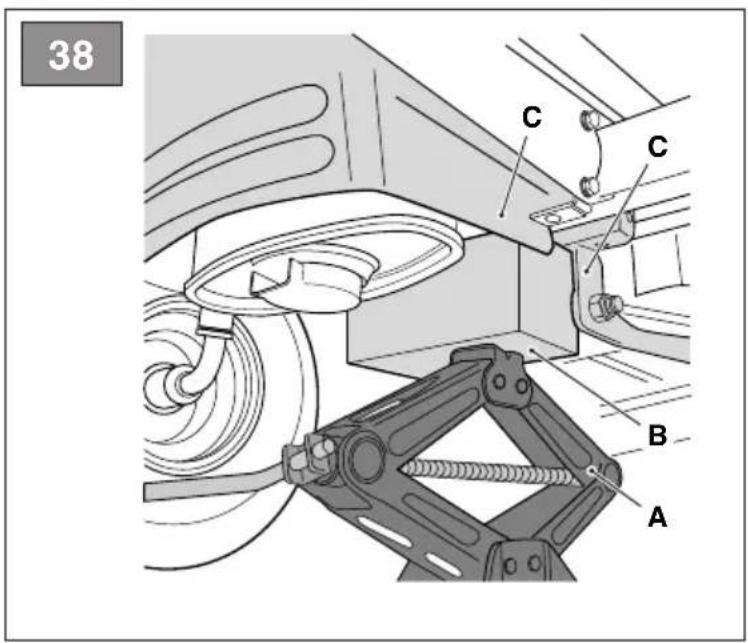

8.3 Replacing of front / rear wheels ........... 18

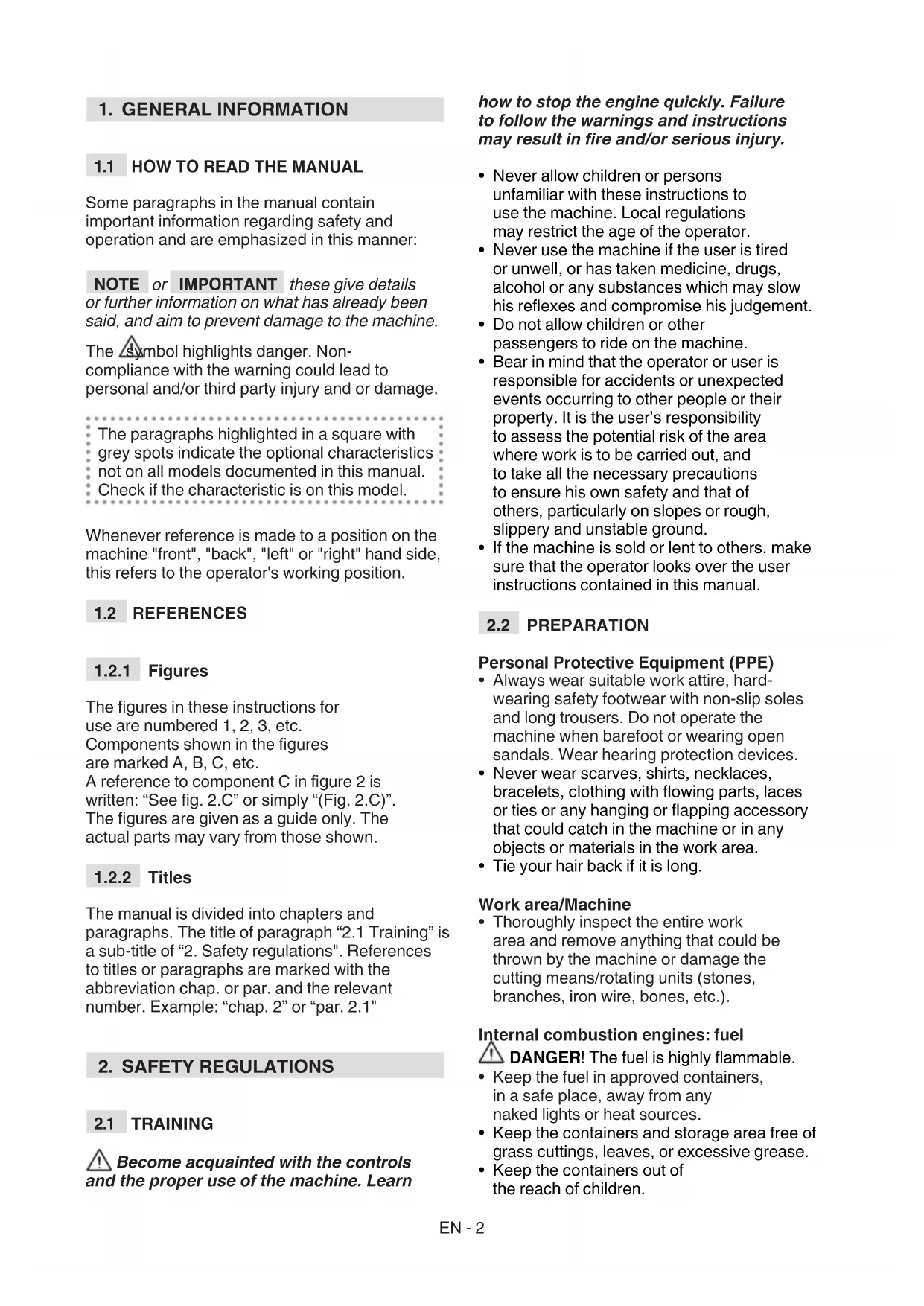

1.1 HOW TO READ THE MANUAL

Some paragraphs in the manual contain important information regarding safety and operation and are emphasized in this manner: NOTE or IMPORTANT these give details or further information on what has already been said, and aim to prevent damage to the machine. The symbol highlights danger. Non- compliance with the warning could lead to personal and/or third party injury and or damage. The paragraphs highlighted in a square with grey spots indicate the optional characteristics not on all models documented in this manual. Check if the characteristic is on this model. Whenever reference is made to a position on the machine "front", "back", "left" or "right" hand side, this refers to the operator's working position.

The gures in these instructions for use are numbered 1, 2, 3, etc. Components shown in the gures are marked A, B, C, etc. A reference to component C in gure 2 is written: “See g. 2.C” or simply “(Fig. 2.C)”. The gures are given as a guide only. The actual parts may vary from those shown.

The manual is divided into chapters and paragraphs. The title of paragraph “2.1 Training” is a sub-title of “2. Safety regulations". References to titles or paragraphs are marked with the abbreviation chap. or par. and the relevant number. Example: “chap. 2” or “par. 2.1"

Become acquainted with the controls and the proper use of the machine. Learn how to stop the engine quickly. Failure to follow the warnings and instructions may result in re and/or serious injury.

• Never allow children or persons unfamiliar with these instructions to use the machine. Local regulations may restrict the age of the operator.

• Never use the machine if the user is tired or unwell, or has taken medicine, drugs, alcohol or any substances which may slow his reexes and compromise his judgement.

• Do not allow children or other passengers to ride on the machine.

• Bear in mind that the operator or user is responsible for accidents or unexpected events occurring to other people or their property. It is the user’s responsibility to assess the potential risk of the area where work is to be carried out, and to take all the necessary precautions to ensure his own safety and that of others, particularly on slopes or rough, slippery and unstable ground.

• If the machine is sold or lent to others, make sure that the operator looks over the user instructions contained in this manual.

Personal Protective Equipment (PPE)

• Always wear suitable work attire, hard- wearing safety footwear with non-slip soles and long trousers. Do not operate the machine when barefoot or wearing open sandals. Wear hearing protection devices.

• Never wear scarves, shirts, necklaces, bracelets, clothing with owing parts, laces or ties or any hanging or apping accessory that could catch in the machine or in any objects or materials in the work area.

• Tie your hair back if it is long. Work area/Machine

• Thoroughly inspect the entire work area and remove anything that could be thrown by the machine or damage the cutting means/rotating units (stones, branches, iron wire, bones, etc.). Internal combustion engines: fuel DANGER! The fuel is highly ammable.

• Keep the fuel in approved containers, in a safe place, away from any naked lights or heat sources.

• Keep the containers and storage area free of grass cuttings, leaves, or excessive grease.

• Keep the containers out of the reach of children.EN - 3

• Do not smoke when lling up with fuel or when handling the fuel.

• Use a funnel to top up with fuel only in the open air.

• Do not inhale fuel fumes.

• Never remove the tank cap or add fuel while the engine is running or when the engine is hot.

• Open the fuel tank slowly to allow the pressure inside to decrease gradually.

• Do not approach the tank opening with a naked ame to check its contents.

• If you have spilled some fuel, do not attempt to start the engine but move the machine away from the area of spillage and avoid creating any source of ignition until the fuel has evaporated and fuel vapours have dissipated.

• Immediately clean up all traces of fuel spilt on the machine or on the ground.

• Replace caps of all fuel tanks and containers securely.

• Never start the machine in the same place in which you relled it with fuel; the engine must be started in an area at least 3 metres from where you refuelled.

• If fuel is spilt on clothing, change clothing before starting the engine.

• Do not operate the engine in a conned space where dangerous carbon monoxide fumes can develop. All starting operations have to be eected in an open or well ventilated area. Always remember that exhaust gases are toxic!

• When starting up the machine, do not direct the silencer and therefore the exhaust fumes towards ammable materials.

• Do not use the machine in environments at risk of explosion, in the presence of ammable liquids, gas or powder. Electrical contacts and mechanical friction can generate sparks that can ignite the powder or vapours.

• Work only in daylight or with good articial light in good visibility conditions.

• Keep persons, children and animals away from the working area. Instruct another adult to supervise any children in the vicinity.

• Avoid working with wet grass, in the rain and when there is a risk of a thunderstorm, especially lightening.

• Pay careful attention to uneven ground (hills, dips), slopes, hidden hazards and obstacles than could limit visibility.

• Be very careful near ravines, ditches or embankments. The machine could overturn if a wheel slides over the edge or if the earth gives way.

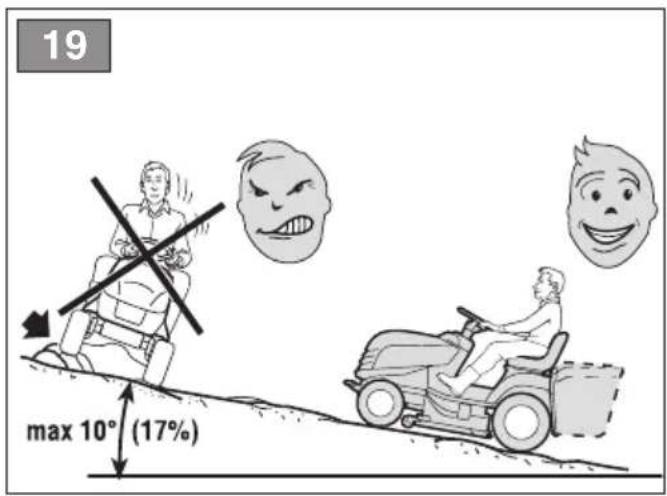

• Pay attention on sloping ground which requires particular care to prevent overturning or loss of control of the machine. The main reasons for loss of control are: – Insucient wheel grip – Excessive speed – Inadequate braking – Type of machine unsuitable for its task – Lack of awareness of the eect of ground conditions, especially slopes – Incorrect use as a towing machine. Behaviour

• When working behind the wheel, do not become distracted and maintain the required level of concentration.

• Exercise caution when reversing or moving backwards. Look behind you to make sure there are no obstacles before and during operations in reverse gear.

• Use care when pulling loads or using heavy equipment: – Use approved drawbar hitch points only when towing; – Do not turn sharply. Take care when reversing; – Use counterweight(s) or wheel weights whenever advised in the instructions manual.

• Pay attention when using the grass catcher and attachments that can alter the stability of the machine, especially on slopes.

• Always keep hands and feet away from the cutting means, when starting and when using the machine.

• Attention: the cutting means will continue to rotate for a few seconds after disengagement or after you have switched o the engine.

• Pay attention to cutting-means assemblies with more than one cutting means, as a rotating cutting means can trigger the rotation of the others,

• Keep away from the discharge opening.

• Do not touch the engine parts which heat up during use. Burns hazard.

• To avoid the risk of re, do not leave the machine standing in high grass with the engine running. If something breaks or an accident occurs during work, turn o the engine immediately and move the machine away to prevent further damage; if an accident occurs with injuries or third parties are injured, carry out the rst aid measures most suitable for the situation immediately and contact the medical authorities for any necessary health care. Carefully remove any debris which could cause damage or injury to persons or animals if ignored.EN - 4 Use limitations

• Never operate the machine with guards damaged, missing or incorrectly assembled (grass catcher, side discharge guards rear discharge guards)

• Don’t use the machine if the attachments/ tools are not installed in their seats.

• Never disengage, deactivate, remove or tamper with the safety systems/ microswitches installed.

• Do not strain the machine too much and do not use a small machine for heavy- duty work. If you use the right machine, you will reduce the risk of hazards and improve the quality of your work.

• The machine has not been approved for use on public roads. It must be used (as indicated by the highway code) in private areas closed to trac.

2.4 MAINTENANCE, STORAGE

Ensure regular maintenance and correct storage to maintain machine safety and high performance levels. Maintenance

• Never use the machine with worn or damaged parts. Faulty or worn-out parts must always be replaced and never repaired.

• To reduce the risk of re, regularly check the machine for oil and/or fuel leaks.

• Be careful during adjustment of the machine to prevent entrapment of the ngers between moving parts of the cutting means and xed parts of the machine. The noise and vibration levels shown in these instructions are the maximum levels for use of the machine. The use of an unbalanced cutting element, the excessive speed of movement, or the absence of maintenance have a signicant inuence on noise emissions and vibrations. Consequently, it is necessary to take preventive steps to eliminate possible damage due to high levels of noise and stress from vibration. Maintain the machine well, wear ear protection devices, and take breaks while working. Storage

• Do not store the machine with fuel in the tank in an area where fuel vapours could reach a naked light, a spark or a strong heat source.

• To reduce re risks, do not leave containers with debris inside a room.

2.5 ENVIRONMENTAL PROTECTION

Safeguarding the environment must be a relevant and priority aspect of machine use, of benet to the community and the environment we live in.

• Avoid being a disturbance to the neighbourhood. Use this machine at reasonable times of the day only (not early morning or late evening when the noise could cause disturbance).

• Adhere strictly to the local regulations governing the disposal of packaging, oil, fuel, lters, damaged parts or any other element which may have an impact on the environment; this waste should not be disposed of along with standard household waste, but must be disposed of separately and sent to special waste disposal facilities for handling and recycling.

• Scrupulously comply with local regulations for the disposal of waste materials

• When the machine is withdrawn from service, do not dump it in the environment, but take it to a waste disposal facility in accordance with the local regulations in force.

This machine is a ride-on lawn mower with seated operator. The machine is equipped with an engine which drives a cutting unit protected by a casing, as well as a transmission unit that moves the machine. This machine is tted with rear traction. The rear axle can also be tted with: – mechanical drive with 5 forward gears and 1 reverse gear. – hydrostatic drive with innite ("Hydro") forward and reverse gears. The operator is able to operate the machine and use the main controls, always seated in the operator's position. The safety devices installed on the machine will disengage the engine and cutting means in a couple of seconds (par. 6.2.2).

This machine was designed and built to cut grass. Generally speaking this machine can:

• MP 84 / MP 98 Series can:EN - 5

1. mow the grass and collect it

in the grass catcher

2. mow the grass and discharge it on

the ground from the rear section

3. mow, chop and deposit the grass

on the ground (mulching eect).

• SD 98 / 108 Series can:

4. mow the grass and discharge it from the side

5. mow, chop and deposit the grass

on the ground (mulching eect). The use of special attachments provided for by the Manufacturer as original equipment or which may be purchased separately, allows this work to be done in various operating modes, illustrated in this manual or the instructions that accompany the single attachments. Likewise, the intended use can be extended to include other functions by applying supplementary attachments (if provided for by the Manufacturer), abiding by the restrictions and conditions indicated in the instructions accompanying the attachment.

• Any other usage not in keeping with the afore-mentioned ones may be hazardous and harm persons and/or damage things. Examples of improper use may include, but are not limited to: – allowing children, animals or other passengers to ride on the machine as they could fall o and injure themselves or compromise safe driving by the operator; – towing or pushing loads without the use of the specied attachment for towing; – using the machine for riding over unstable, slippery, icy, stony, rough, marshy ground or puddles that do not allow the consistency of the ground to be assessed; – using the cutting means on surfaces other than grass; – using of the machine for leaf or debris collection. IMPORTANT Improper use of the machine will invalidate the warranty, relieve the Manufacturer from all liabilities, and the user will consequently be liable for all and any damage or injury to himself or others.

This machine is intended for use by consumers, i.e. non-professional operators. The machine is intended for "DIY" use only. IMPORTANT The machine must be used by one operator.

The machine has various symbols on it (g. 2 ). They are used to remind the operator of the behaviour to follow to use it with the necessary attention and caution. Meaning of symbols:

Warning: Read the instruc-

tions before operating the machine.

Warning: Disconnect the

key and read the instructions before carrying out any maintenance or repair work. Danger! Ejected objects: Do not operate without either the rear discharge guard or the grass catcher being in place. (for models with rear collection only) Danger! Ejected objects: do not operate without side discharge chute in place. (for models with side discharge only) Danger! Ejected objects: Keep bystanders at a safe distance Danger! Machine rollover: Do not use this machine on slopes greater then 10° Danger! Dismemberment: Make sure that children stay clear of the machine all the time when engine is running Cutting hazard. Cutting means in motion. Do not put hands or feet near or under the opening of the cutting means housing. Warning! Keep away from hot surfaces. max xxx N (xx kg) max xxx N (xxx kg) When using the towing kit, do not exceed the recommended loads stated on the label and follow the safety instructions.EN - 6 Warning! Never use pressure lances to wash the transmis- sion system. IMPORTANT Any damaged or illegible decals must be replaced. Order replacement decals from an authorised assistance centre.

3.3 IDENTIFICATION LABEL

The identication label holds the following data (g. 1 ):

1. Acoustic power level

2. CE Conformity marking

3. Year of manufacture

4. Operating engine power and speed

9. Name and address of Manufacturer

10. Type of transmission

Write the identication data of the machine in the specic space on the label on the back of the cover page. IMPORTANT Quote the information on the product identication label whenever you contact an authorized service workshop. IMPORTANT The example of the Declaration of Conformity is provided on the last pages of the manual.

The machine is composed of a series of main components that have the following functions (g.1): A. Cutting-means assembly: this is the assembly comprising the casing that houses the rotating cutting means, and the cutting means. B. Cutting means: these are what cut the grass; the ns at the ends help convey the cut grass towards the discharge chute. C. Side discharge chute: a safety device to prevent objects drawn up by the cutting means from being hurled by the machine (for side discharge models only). D. Discharge chute: this is the part connecting the cutting-means assembly to the grass catcher (for models with rear collector only). E. Grass catcher: as well as collecting the grass cuttings, this is also a safety element that stops any objects drawn up by the cutting devices from being hurled away from the machine (for rear collection models only). F. Rear discharge guard (available upon request): this can be tted in place of the grass catcher and prevents objects from being drawn up by the cutting means and hurled away from the machine. (for rear collection models only). G. Driving seat: this is where the machine operator sits. It has a sensor connected to safety devices for detecting the presence of the operator. H. Battery: provides the energy for starting the engine. Its specications and regulations for use are described in a specic manual.

I. Engine: this moves the cutting

means and drives the wheels. Its specications and regulations for use are described in a specic manual. J. Front bumper: this protects the front section of the machine. K. Steering wheel: turns the front wheels.

The safety regulations to follow are described in chap. 2. Strictly comply with these instructions to avoid serious risks or hazards. For storage and transport purposes, some components of the machine are not installed in the factory and have to be assembled after unpacking. Follow the instructions below. Unpacking and completing the assembly should be done on a at and stable surface, with enough space for machine handling and its packaging, always making use of suitable equipment. Do not use the machine until all the indications provided in the “ASSEMBLY” section have been carried out.

4.1 ASSEMBLY COMPONENTS

The packaging holds the components needed for assembly as listed in the table below: Description 1 Steering wheel 2 Dashboard cover and steering wheel assembly parts 3 Driving seat 4 BatteryEN - 7 5 Front bumpers 6 Anti-chipping wheels 7 Grass catcher with relative assembly screws and instructions (for models with rear collection only) 8 Lower part of the rear plate, the grass catcher brackets and attachments nec- essary for completing and assembly (for rear collection models only) 9 Side discharge chute (for models with side discharge only) 10 Cutting-means assembly side reinforcements (for side discharge models only, if foreseen). 11 Envelope containing: - the instruction manuals and documents - driving seat assembly screws - side discharge chute assembly ttings (for models with side discharge only) - the connection screws for the battery cables - 2 starter keys - 1 spare 10 A fuse

1. Cautiously open the packaging, paying

attention not to lose components.

2. Consult the documentation in the

box, including these instructions.

4. Remove the machine from the packaging

taking the following precautions: – move the cutting-means assembly to its maximum height (par. 5.10) to protect it against damage when the machine is lifted o the base pallet; – Lift the machine o the base pallet. For hydrostatic drive models, move the rear drive release lever to the locked position (par. 5.13).

4.2 STEERING WHEEL ASSEMBLY

1. Put the machine on a at surface

and straighten the front wheels.

2. Mount the hub (g. 3.A) on the shaft

(g. 3.B), making sure that the plug (g. 3.C) is correctly tted into the hub seat.

3. Fit the dashboard cover (g. 3.D) clicking

the seven fasteners into place.

4. Fit the steering wheel (g. 3.E) onto

the hub (g. 3.A) with the spokes directed towards the seat. 5a. For type "l" steering wheel only - Fit the spacer (g. 3.F) and fasten the steering wheel in place using the screws supplied (g. 3.G) in the indicated order. 5b. For type "ll" steering wheel only - Fasten the steering wheel in place using the screws (g. 3.F, 3.G) supplied, in the indicated order.

6. Fit the steering wheel cover (g. 3.H)

by clicking the fasteners into place.

4.4 MOUNTING AND CONNECTING

THE BATTERY The battery (g. 5.A) is housed under the seat and secured by a spring (g. 5.B).

1. First connect the red wire (g. 5.C) to

the positive pole (+) and then the black wire (g. 5.D) to the negative pole (–), using the screws supplied as shown.

2. Apply silicone grease to the terminals

and check that the protective cap for the red wire (g. 5.E) is in place. IMPORTANT Always fully charge the battery according to the instructions in the battery book- let. IMPORTANT To prevent the safety device in the electronic circuit board from cutting in, never start the engine until the battery is fully charged!

6.B) to the bottom of the frame (g. 6.C) following the direction of assembly indicated in the gure: R= right; L= left.

2. fully tighten the screws (g. 6.D).

3. Attach the front bumper (g. 6.E) to the

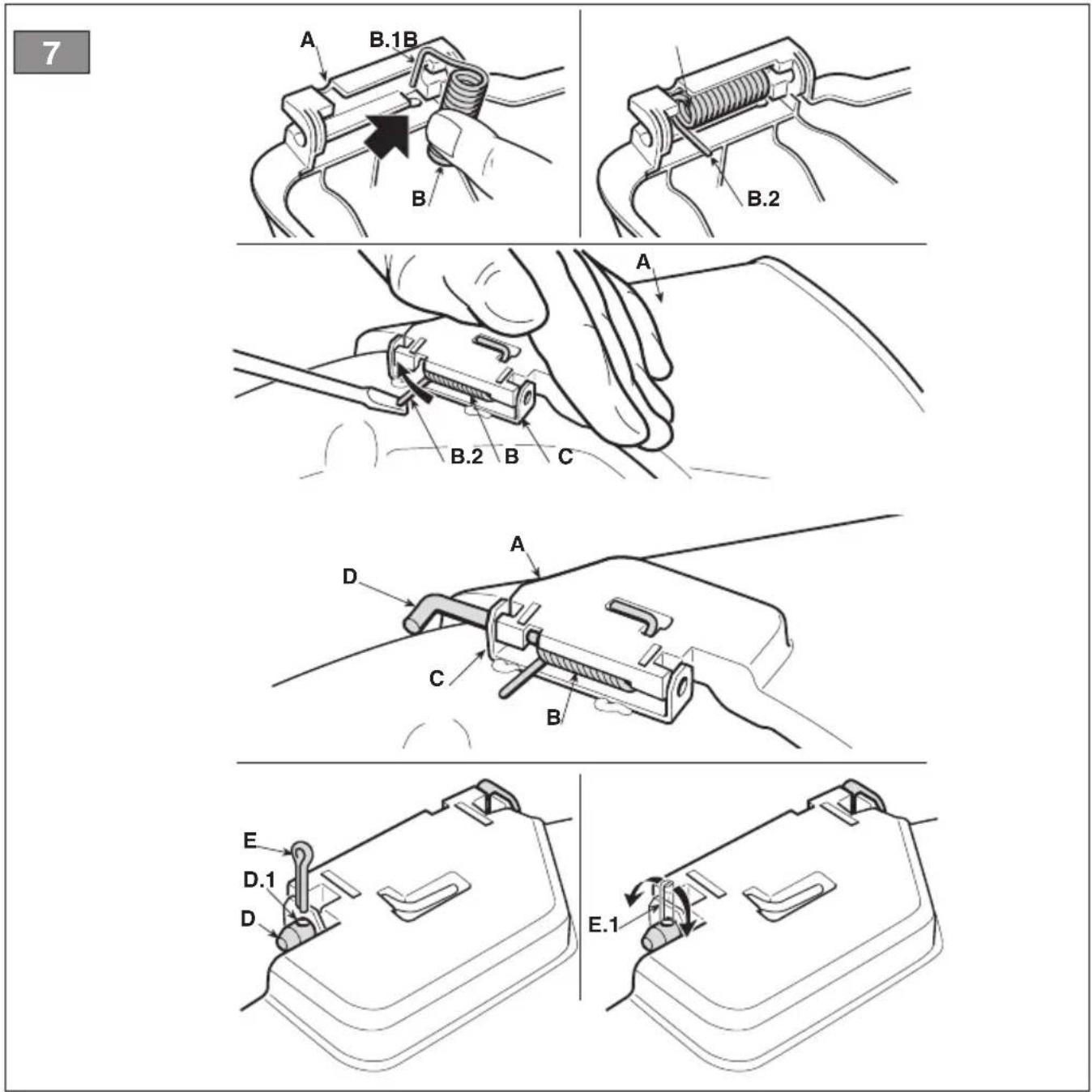

ASSEMBLY (FOR MODELS WITH

SIDE DISCHARGE ONLY)

1. From the inside of the side discharge

chute (g. 7.A), t the spring (g. 7.B) by inserting the terminal (g. 7.B.1) into the hole and turning it so that both the spring (g. 7.B) and the terminal (g. 7.B.2) are securely positioned in their seatings.EN - 8

2. Position the side discharge chute (g.

7.A) in line with the cutting-means assembly brackets (g. 7.C). Using a screwdriver, turn the second terminal (g. 7.B.2) of the spring (g. 7.B) to bring it outside the side discharge chute.

3. Fit the pin (g. 7.D) in the holes on the

brackets (g. 7.C) and on the side discharge chute, so that it passes through the coils of the spring (g. 7.B) and the drilled end comes out of the inner most bracket.

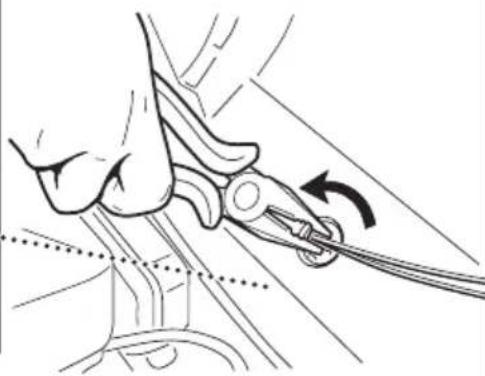

4. Insert the cotter pin (g. 7.E) in the pin

(g. 7.D) hole (g. D.1) and rotate the pin until it is possible to bend the two ends (g. 7.E.1) of the cotter pin, (with the aid of a pair of pliers), so it cannot slide out and cause the pin to fall out (g. 7.D). Check that the spring works correctly and keep the side discharge chute securely lowered. Make sure that the pin is fitted properly to prevent it from falling out accidentally. IMPORTANT For models with optional side unloading: make sure that the side unloading guard (Fig. 13.A) is lowered and locked by the safety lever (Fig. 13.B). IMPORTANT Before disassembling or servicing the deector, always push the safety lever (Fig. 14.B) and lift the side unloading guard (Fig. 14.A) to allow disassembly. NOTE To remove the deector, perform assembly steps in reverse order.

Complete the mounting of the cutting-means assembly by tting the side reinforcements on the cutting-means assembly prole using the screws supplied (g. 8)

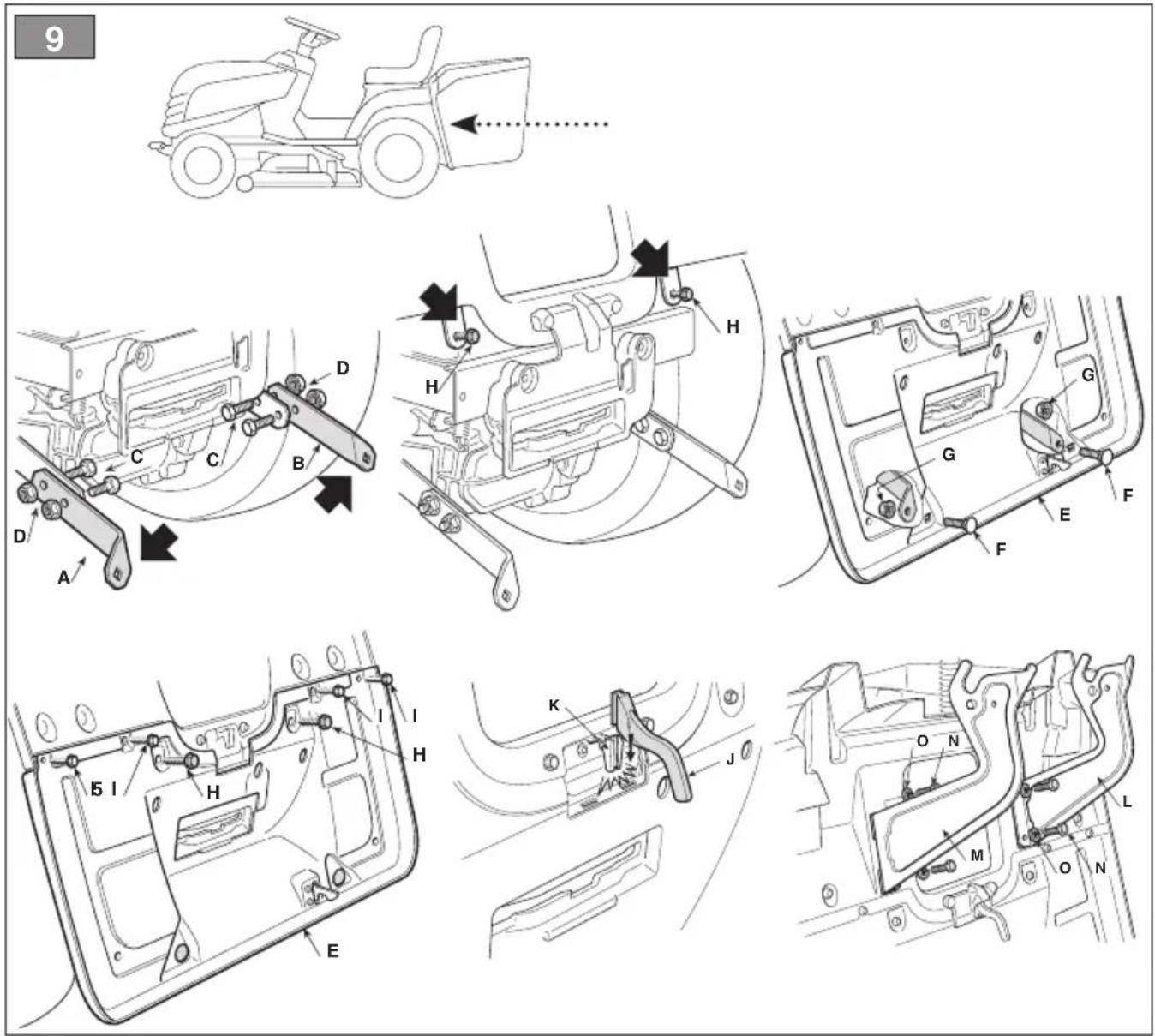

1. Assemble the two lower brackets (g.

9.A) and (g. 9.B), following the assembly direction as shown in the illustration, and fasten them with the screws (g.9.C) and nuts (g. 9.D), tightening them completely.

2. Remove the two screws (g. 9.H),

which will be used later.

3. Assemble the lower part (g. 9.E) of the

rear plate and fasten it to the lower brackets with the screws (g. 9.F) and bolts (g. 9.G), without tightening them completely.

4. Finish fastening the lower part (g. 9.E) of

the rear plate, completely tightening the two central screws (g. 9.H) that you previously removed and the four upper screws (g. 9.l)

catcher full” indicator into its seat (g. 9.K) and push it down until you hear a click.

7. Assemble the two grass catcher brackets

(g. 9.L) and (g. 9.M), following the assembly direction as shown in the illustration, and fasten them with the screws (g. 9.N) and snap washers (g. 9.O), tightening them rmly.

The key turns the machine and headlamps (if tted) On and O. It has four dierent positions (g. 10.A):

1. Stop position. The machine

turns o immediately.

After turning the engine on, turn the lights on by turning the key to this position. To switch them o, turn the key to On.

3. On position. All services

4. Start position. Switch on the

starter motor to start the machine. If you release the key on start it will automatically return to On.

5.2 THROTTLE CONTROL

Regulates the engine's r.p.m. There are two types of throttle control according to the engine type: A. Type “I” with separate Choke command (Fig. 10.E + Fig. 10.E.1) Type “II” (Fig. 10.E) The positions indicated correspond to:EN - 9

1. Choke Command - Cold start.

Used to turn on the engine when cold. The «CHOKE» position enriches the mixture so it must only be used for the time necessary for cold starts.

1. Maximum engine speed. To

be used always when starting the machine, while it is On and during grass cutting operations.

2. Minimum engine speed. Used

when the machine is suciently warm during stationary periods of operation. NOTE When moving from one area to another, put the lever in a position between «tortoise» and «hare».

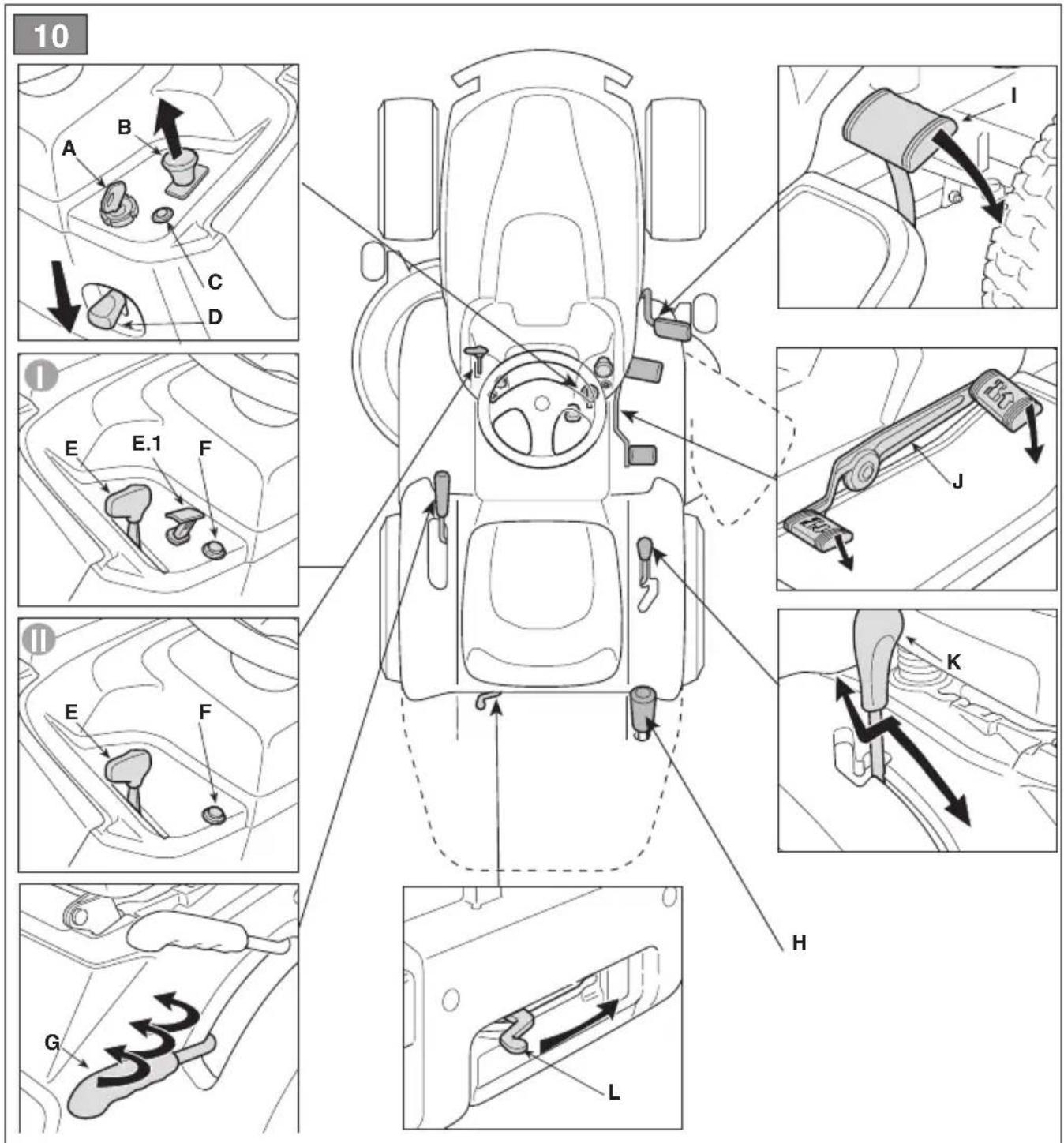

5.3 PARKING BRAKE LEVER

This lever stops the machine from moving when it has been parked. This lever has two positions (g. 10.D), corresponding to:

1. Brake disengaged. Press the

pedal to disengage the parking brake (g. 10.1). The lever returns to the brake disengaged position.

2. Brake engaged. Press the pedal all

the way down to engage the parking brake (g. 10.1) and shift the lever to brake engaged position. When you take your foot o the pedal it will be blocked in the lowered position.

1. during the rst part of its travel it

acts as a clutch, engaging and disengaging drive to the wheels.

2. in the second part it works the

brake on the rear wheels. IMPORTANT Do not keep the pedal half way between clutch engagement or disengagement, as this can cause overheating and damage the transmission belt. NOTE When the machine is in movement, keep your foot o the pedal.

5.5 SPEED CHANGE LEVER

(MECHANICAL DRIVE) This lever has seven positions (g. 10.K):

Gear must only be engaged when the machine has stopped.

Reverse must only be engaged when the machine has stopped. To change gear, press the pedal halfway down (Fig. 10.1) and move the lever according to the indications on the label.

This pedal engages drive in the wheels and controls the machine's forward and reverse speed (g. 10.J):

1. Forward drive gear. To

insert the forward drive gear, press the front pedal with the tip of your foot. Increasing the pressure on the pedal progressively increases the speed of the machine.

2. Reverse gear. Reverse gear

is engaged by pressing the rear pedal with your heel. Reverse must only be engaged when the machine has stopped.EN - 10

3. Neutral position. The pedal

automatically goes into neutral position when released. NOTE If the drive pedal is used, whether forwards or for reverse, when the parking brake (g. 10.D) is engaged, the engine stops.

5.8 HYDROSTATIC TRANSMISSION

DISENGAGEMENT LEVER (HYDROSTATIC TRANSMISSION) This lever has two positions, as shown on the plate (g. 10.L):

1. Drive engaged : for all uses,

when moving and during cutting.

2. Drive disengaged : this makes

it much easier to move the machine by hand, with the engine turned o. IMPORTANT To avoid damaging the transmission unit, this operation must be carried out only when the engine has stopped with the pedal (g. 10.J) at neutral position.

1. Cutting means engaged.

Mushroom switch pulled

2. Cutting means disengaged.

Mushroom switch engaged.

• On disengaging the cutting means, a brake is simultaneously activated which stops their rotation within a few seconds. NOTE If you engage the cutting means without taking the necessary safety precautions, the engine shuts down and cannot be restarted (see par. 6.2.2)

5.10 REVERSE GEAR CUTTING

CONSENT BUTTON By pressing and holding this button (g. 10.F), it is possible to switch to reverse gear with the cutting means engaged without causing the engine to stop.

5.11 CUTTING HEIGHT ADJUSTER LEVER

Use this lever to raise and lower the cutting-means assembly to one of the 7 dierent cutting heights (g. 10.G). The seven positions for this lever, shown as «1» to «7» on the label, correspond to various cutting heights between 3 and 8 cm. To go from one position to another, move the lever sideways and put it back in one of the stop notches.

• This light (g. 10.C) comes on when the key (g. 10.A) is in the “ON” position and stays on while the machine is running.

• When it ashes, it means that it is not ready to be started (see par. 6.2.2).

• The sound warning signals that the grass catcher is full (see par. 6.5.5).

COLLECTION MODELS ONLY) This pull-out lever tips and empties the grass catcher. This means less work for the operator (g. 10.H).

6. USING THE MACHINE

The safety regulations to follow are described in chap. 2. Strictly comply with these instructions to avoid serious risks or hazards.EN - 11

Before starting to mow, it is necessary to carry out several checks and operations to ensure you can work eciently and in maximum safety.

6.1.1 Filling with oil and fuel

IMPORTANT The machine is supplied without engine oil or fuel. Before using the machine check for fuel and the oil level (par. 7.2, par. 7.3). For refuelling and oil top-up methods and precautionsent follow the instructions given in (par. 7.2, par. 7.3) and in the engine handbook.

6.1.2 Seat adjustment

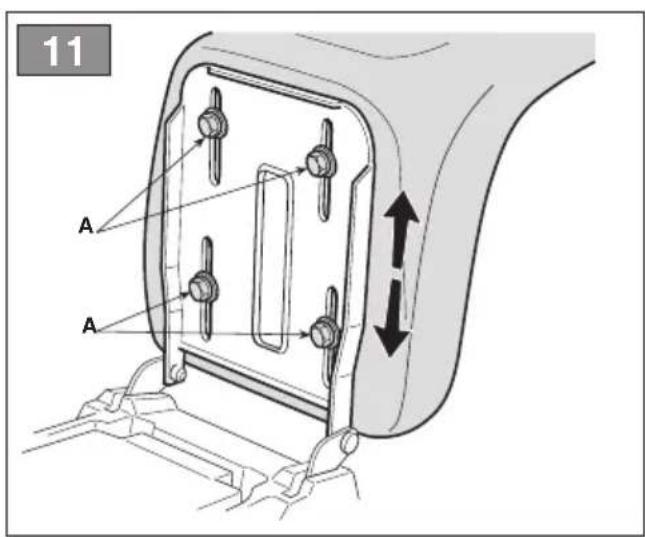

To change the seat position, loosen the four xing bolts (g. 11.A) and slide it along the slots. Once you have found the right position, tighten the four screws (g. 11.A) thoroughly.

Having the right tyre pressure is the main condition for ensuring that the cutting-means assembly is horizontal and mows evenly.

1. Unscrew the valve caps

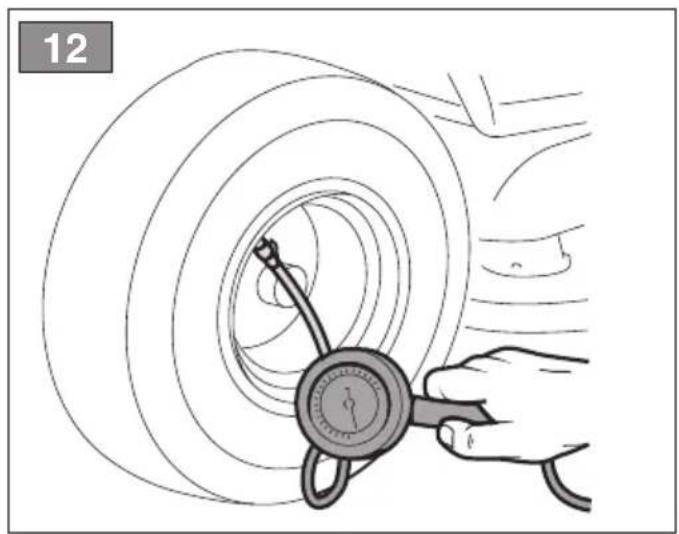

2. Connect a compressed air line with

a gauge to the valves (g. 12)

3. Adjust the pressure according to the values

indicated in the "Technical Data" chart.

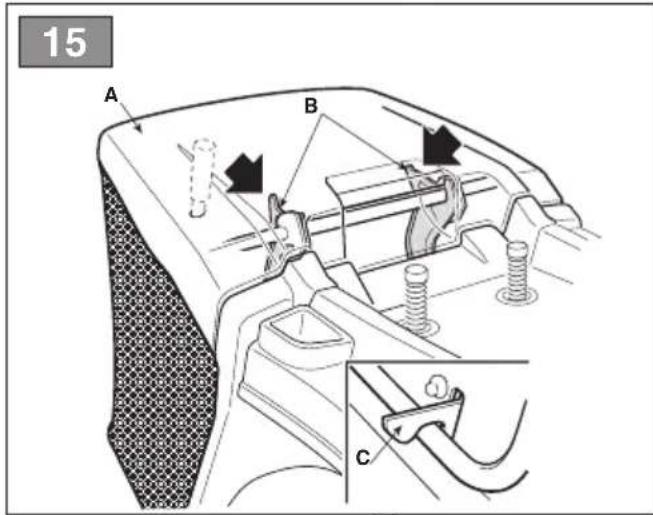

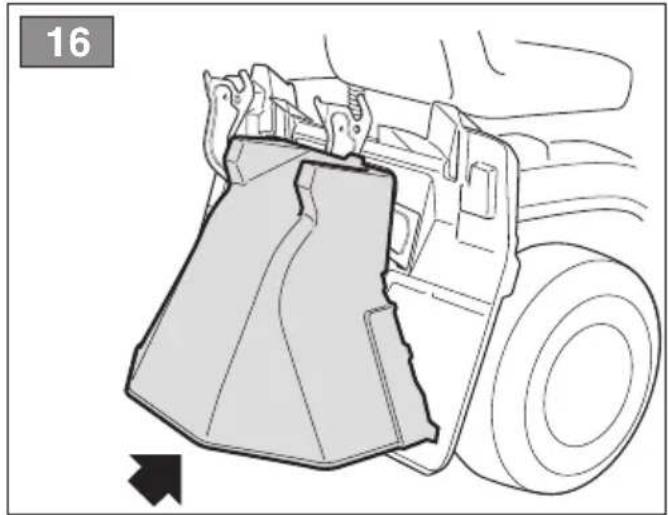

6.1.4 Preparing the machine

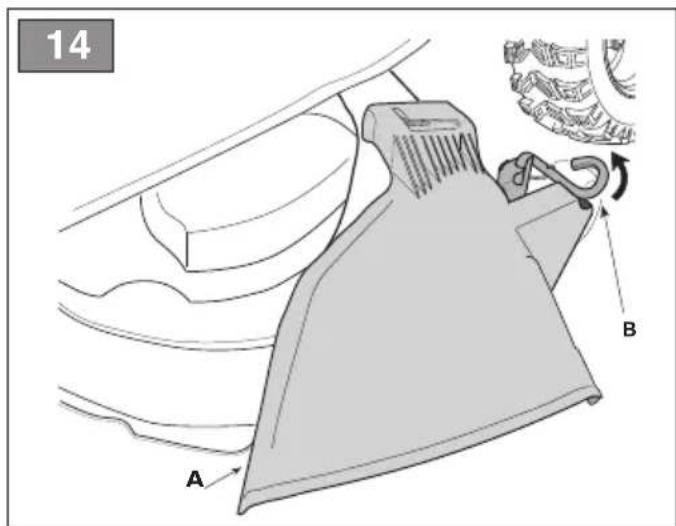

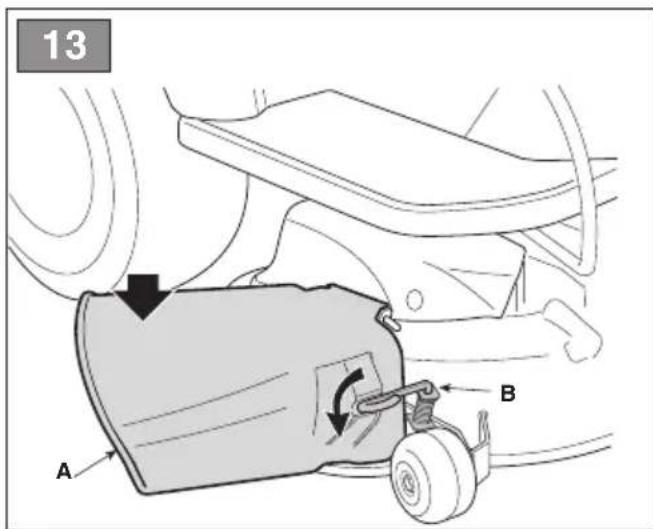

before starting work NOTE This machine can be used to mow lawns in a number of dierent ways; before starting work, prepare the machine based on how the lawn is to be mowed. a. Prepare the machine for side cutting and discharge of the grass onto the oor (for models with side discharge only) – Always make sure that the spring inside the deector (Fig. 13.A) and the safety lever (Fig. 13.B, 14.B) operate correctly, holding it rmly in the lowered position. b. Preparation for grass cutting and collection in the grass catcher (for rear collection models only) – Fasten the grass catcher (g. 15.A) onto the supports (g. 15.B) and centre it up with the rear plate. Centring is ensured by using the right bracket as lateral support. – Make sure that the lower pipe of the grass catcher opening is attached to the pawl (g. 15.C). c. Prepare the machine for rear cutting and discharge of the grass onto the oor (for models with rear collection only) – If you decide to work without the grass catcher, a rear discharge guard kit (g. 16; chap. 15.5) is available upon request. This has to be attached to the rear plate as indicated in the instructions. d. Preparation for mowing and mulching of grass – If you decide to mow the grass, mulching it and leaving it on the grass, a "mulching" kit is available upon request (chap. 15.1). This has to be attached to the rear plate as indicated in the instructions.

6.1.5 Positioning the anti-scalp wheels

The anti-chipping wheels are used to reduce the risk of tearing up sections of lawn, which can occur when the edge of the cutting-means assembly drags over irregular ground. Position the wheels as indicated (par. 7.4).

Run the following safety checks and check that the results correspond to those outlined on the tables. Always carry out the safety checks before use.

6.2.1 General safety check

Object Result Battery No damage to the casing, cover or terminals Rear discharge guard, grass catcher Good condition. No damage. Properly installed. Side discharge guard, suction grid Good condition. No damage. Properly installed. Fuel lines and connections. No leaks. Electrical cables. All insulation intact. No mechanical damage. Oil lines No leaks. No damage.EN - 12 Drive the machine forwards and backwards, shift to neutral / release the drive pedal (par. 5.5; par. 5.7) The machine slows down and stops Press the brake pedal (par. 5.4; par. 5.6) The machine stops Test driving No abnormal vibrations. No abnormal sound Safety devices Proceed as indicated in par. 6.2.2

6.2.2 Control of safety devices

The safety devices work in two ways: A. they prevent the engine from starting if all the safety requirements have not been met; B. by stopping the engine if even just one of the safety requirements is lacking. Action Result

1. gear in “neutral”;

The engine starts the operator leaves his seat The engine stops the grass catcher is lifted or the rear discharge guard removed without disengaging the cutting means (for rear collection models only) The engine stops the parking brake is engaged without disengaging the cutting means The engine stops the speed change is activated or the drive pedal with the parking brake engaged The engine stops the reverse gear is engaged with the cutting means engaged, without pressing the consent button (par. 5.9) The engine stops If any of the results fails to match the indications provided in the tables, do not use the machine! Contact a service centre to have it checked and repaired if necessary. IMPORTANT Always bear in mind that the safety devices prevent the engine from starting if safety requirements have not been met. In these cases, once the start consent has been reinstated, the ignition key (g. 10.A) must rst be turned back to Of before the engine can be restarted.

Comply with the limits indicated in the "Technical Data" Tables ad in "g. 19" regardless of the mowing direction. Remember there is no such thing as a "safe” slope. Driving on grass slopes requires particular care. To prevent overturning or loss of control over the machine:

• Never mow across the face of the slope. Lawns on a slope have to be mowed moving up and down and never across them. When changing direction, take great care that the wheels facing the slope do not hit any obstacles (such as stones, branches, roots, etc.) that may cause the machine to slide sideways, tip over or make you lose control.

• Do not stop or start suddenly when going up or downhill;

• Shift to drive gear very gently paying particular attention to prevent the machine from tipping up.

• Reduce speed: – before changing direction and during tight turns – before facing a slope, particularly downhill

• Never switch to reverse gear to decrease speed when going downhill: this could cause loss of control of the machine, especially on slippery ground.

• Always engage the parking brake before leaving the machine at a standstill and unattended.

• For models with mechanical drive only Never ride the machine on slopes in neutral or with the clutch out! Always shift into a low gear before leaving the machine at a standstill and unattended.

• For models with hydrostatic drive only: Drive down slopes with your foot o the drive pedal to use the braking eect of the hydrostatic transmission when the transmission is not engaged.

2. Sit in the operator’s position.

6. Shift the throttle control to maximum

8. Insert the ignition key and turn to On

to make electrical contact, then turn it to Start to start the engine.

9. Release the ignition key once

the engine has started.

10. If cold starting: as soon as the

engine ticks over regularly: 10a. Disengage the choke (par. 5.2 type "ll"), shift the throttle control to maximum "hare" speed position. 10b. Disengage the choke (par. 5.2, type “I”). NOTE Using the choke when the engine is already warm can foul the spark plugs and cause the engine to run erratically.

11. When the engine has started, shift

the throttle control to the minimum «tortoise» speed position. NOTE If there are engine starting problems, do not insist as you can risk running the battery at and ooding the engine. Turn the key to the O position, wait for a few seconds and then repeat the operation. If the malfunction persists, refer to the engine manual and chapter «14» in this manual.

6.5.1 Forward gear and riding

without mowing When moving the machine:

• disengage the cutting means (par. 5.8);

• bring the cutting-means assembly to the highest position (position «7»);

• shift the throttle control to a point midway between the «tortoise» and «hare» speed positions.

• For models with mechanical drive only:

3. Slowly release the pedal which will turn

from «brake» to «clutch» mode, thus operating the rear wheels (par. 5.4). The pedal has to be released gradually, as a sudden engagement may cause the vehicle to tip over and the driver to lose control.

4. Gradually reach the desired speed

using the throttle and gear lever. To change gear, press the clutch halfway down (par. 5.4; par. 5.5). IMPORTANT Gear must be engaged when the machine has stopped.

• For models with hydrostatic drive only:

1. Disengage the parking brake and

in the "forward drive" direction and reach the required speed by gradually increasing pressure on the pedal and working the throttle. Drive can only be engaged following the procedure illustrated (par. 5.7 to prevent sudden engagement which may cause the vehicle to tip over and the driver to lose control, especially on slopes.

First reduce the machine’s speed by reducing the engine’s r.p.m., and then press the brake pedal (par. 5.4; par. 5.6) to slow down the machine until it stops. For models with hydrostatic drive only: The machine already slows down considerably by just releasing the drive pedal (par. 5.7)

IMPORTANT Reverse must be engaged when the machine has stopped.EN - 14 For models with mechanical drive only:

1. Press the pedal (par. 5.4) until

the machine comes to a stop;

2. Shift the gear lever to "R"

3. Gradually release the pedal to engage the

clutch and then begin moving in reverse. For models with hydrostatic drive only:

1. Press the pedal (par. 5.6) until

the machine comes to a stop;

2. start reversing by pressing the drive

To operate with the machine proceed as described below:

1. shift the throttle to the maximum speed

position ("hare"); this position is always used when using the machine;

2. bring the cutting-means assembly

to the highest position;

3. engage the cutting means (par. 5.8) only on

grass lawns; avoid engaging them on stony ground or when the grass is very high;

4. regulate the forward speed and the

cutting height (par. 5.10) considering the conditions of the lawn (the height, density and dampness of the grass).

5. start moving forwards on the

grass very slowly and with utmost caution, as already described; IMPORTANT To proceed in reverse gear with the cutting means engaged, it is necessary to press and hold the consent button (par. 5.9) so as not to cause the engine to stop. Lower the speed whenever you note a drop in engine speed, since a forward speed that is too fast compared to the amount of grass being cut will never mow the grass well. Disengage the cutting means and move the cutting-means assembly to the highest position: – When moving between work areas – When driving on grass free surfaces – Every time it is necessary to overcome an obstacle.

6.5.5 Suggestions for maintaining

1. To keep a lawn green and soft with a good

appearance, it should be cut regularly. A lawn can be composed of dierent types of grass. If the lawn is cut frequently, grass and roots grow more vigorously, forming a solid grassy bed. If the lawn is cut is less frequently, higher grass and weeds start growing (clover and daisies, etc.).

2. It is always better to cut the grass when dry.

3. The cutting means must be in good

condition and well sharpened so that the grass is cut straight without a ragged edge that leads to yellowing at the ends.

4. The engine must run at full speed, both

to ensure a sharp cut of the grass and to get the necessary thrust to push the cuttings through the collector channel.

5. The frequency of mowing should be in

relation to the rate of growth of the grass, which should not be left to grow too much between one cut and the next.

6. During hot and dry periods, the grass

should be cut a little higher to prevent the ground from drying out.

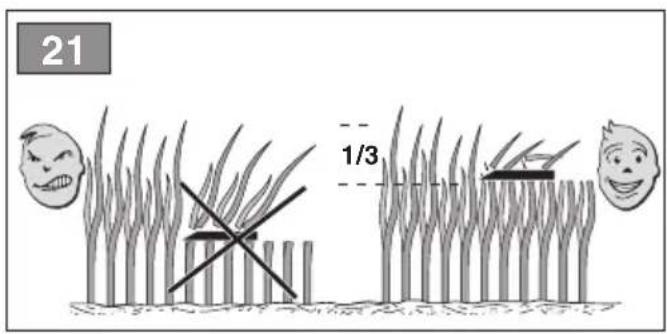

7. The best height of the grass on a well-

kept lawn is approx. 4-5 cm. and with one mowing, you do not need to remove more than a third of the total height. If the grass is very tall, it should be cut twice in a twenty- four hour period. The rst time with the cutting means at maximum cutting height, possibly reducing the cutting width and the second cut at the height desired (g. 21).

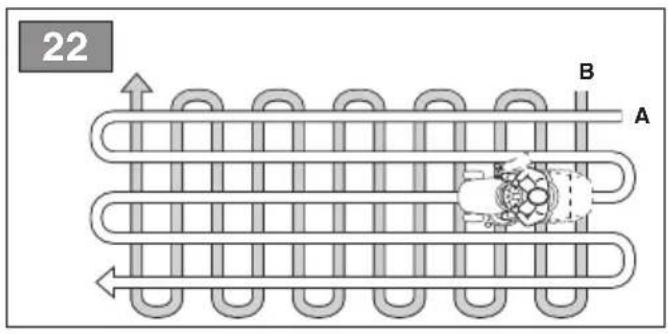

8. The appearance of the lawn will

improve if you alternate the cutting in both directions (g. 22).

9. If the discharge chute tends to get blocked

with grass, you should reduce the forward speed as it may be too high for the condition of the grass. If the problem persists, the probable causes are either badly sharpened cutting means or deformed ns.

10. Be very careful when mowing near

bushes or kerbs as these could distort the horizontal position of the cutting- means assembly and damage its edge as well as the cutting means.

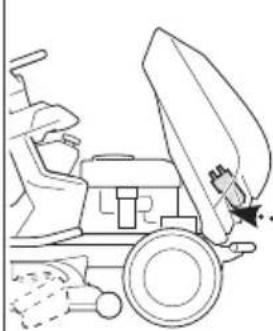

6.5.6 Emptying the grass catcher (for

rear collection models only) NOTE The emptying of the grass catcher can only be done with the cutting means disengaged, otherwise the engine stops.

• Do not let the grass catcher become too full as this may block the collection channel.

• When the grass catcher is full you will hear a warning sound:

1. disengage the cutting means (par.

5.8) and the audible signal will stop;

2. shift the throttle control to minimum

"tortoise" speed position (par.

3. stop moving forward and switch

to neutral (par. 5.5; par. 5.7);EN - 15

4. engage the parking brake;

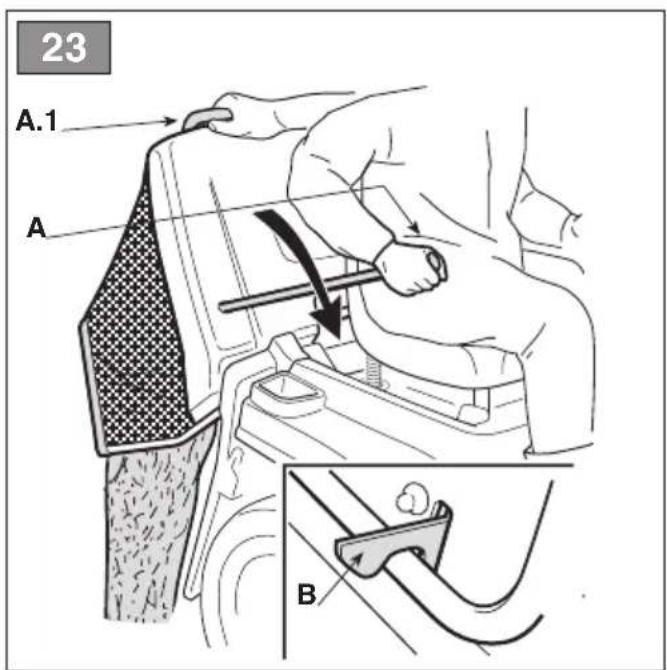

grasp the rear handle (g. 23.A1) and tip up the grass catcher to empty it;

7. close up the grass catcher so that it

hooks onto the pawl (g. 23.B).

6.5.7 Cleaning the discharge chute (for

rear collection models only)

• Cutting very tall or wet grass, particularly at excessively high speed, can clog up the discharge chute. If it clogs, follow the instructions provided in chap. 7.4.2.

6.5.8 Mowing completed

When mowing has been completed:

1. disengage the cutting means;

2. decrease the engine's r.p.m.

3. drive back with the cutting-means

assembly in its highest position:

"tortoise" speed position To avoid backre, leave the throttle in the minimum "tortoise" speed position for 20 seconds before switching o the engine.

2. switch o the engine by turning

the ignition key to O;

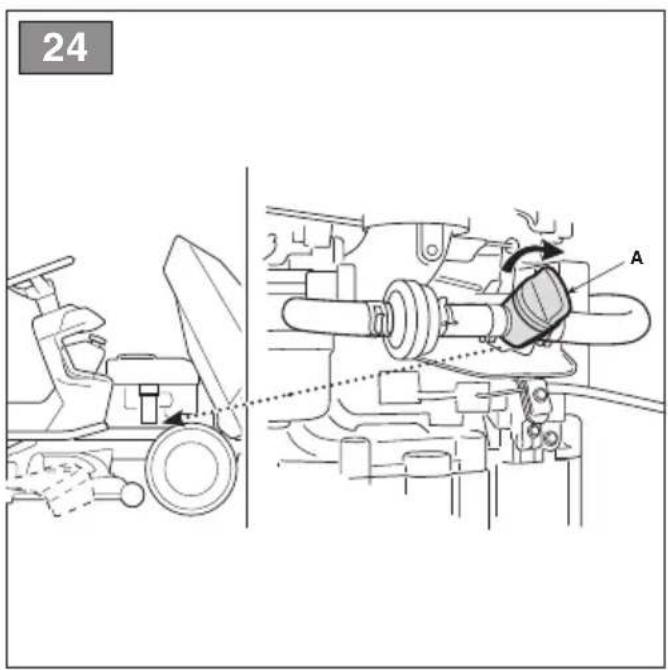

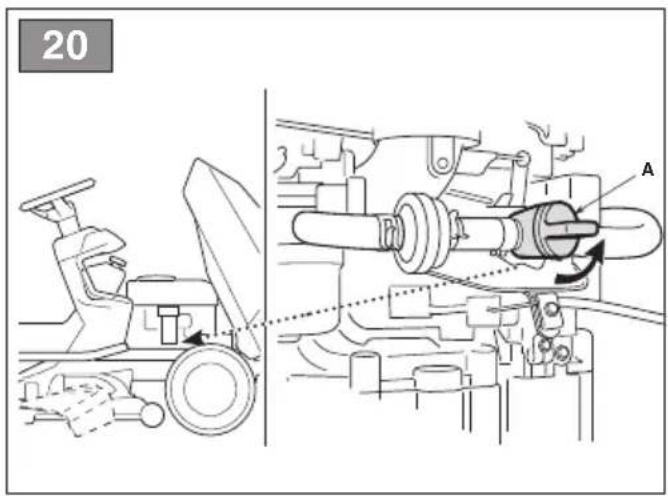

3. with the engine turned o, close the

fuel tap (g. 24.A) (if provided).

4. remove the key from the ignition

IMPORTANT To keep the battery charged, do not leave the ignition key in the «on» or «headlights on» position when the engine is not running. The engine may be very warm immediately after it is shut o. Do not touch the exhaust or adjacent parts. This can cause burn injuries.

1. Allow the engine to cool before

storing in an enclosed space.

to neutral, engage the parking brake, turn o the engine and remove the ignition key (checking that all moving parts are completely stationary): – whenever the machine is left unattended, the operator dismounts from the driving seat, or parks the machine;

The safety regulations to follow are described in chap. 2. Strictly comply with these instructions to avoid serious risks or hazards. Before conducting any inspections, cleaning or maintenance/adjustment interventions on the machine:

• disengage the cutting means;

• engage the parking brake;

• remove the key, (never leave the keys in the ignition or within reach of children or unauthorised persons);

• make sure that all moving parts have come to a complete stop;

• read the relevant instructions;

• Use suitable clothing, protective gloves and goggles

• The frequency and types of maintenance are summarised in the "Maintenance Table". The table will help you maintain your machine’s safety and performance. It lists the main maintenance tasks and how often they need to be performed. Carry out the relevant task as soon as it is scheduled to be performed.

• The use of non-genuine and/or incorrectly assembled spare parts and attachments could adversely aect machine operation and safety. The manufacturer shall decline all liability in the event of injuries or damages caused by such parts.

• Genuine spare parts are supplied by authorized assistance workshops and dealers.

NOTE The type of fuel to use is given in the engine manual. IMPORTANT The machine is delivered to the client without fuel. Follow all the instructions in the engine manual.EN - 16

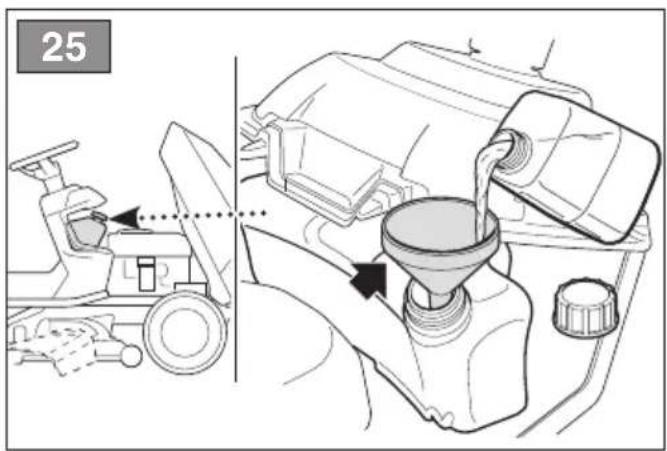

1. Unscrew the tank closure cap

3. Refuel being careful not to

completely ll the tank.

4. Remove the funnel.

5. Close the fuel cap securely after

refuelling and clean away any spills. IMPORTANT Do not drip petrol onto the plastic parts to avoid ruining them. In the event of accidental leaks, rinse immediately with water. The warranty does not cover for damage to plastic parts of the bodywork or the engine caused by petrol.

7.2.2 Emptying the fuel tank

NOTE Fuel is perishable and should not remain in the tank for more than 30 days. Empty the fuel tank before storing the machine for long periods of time (chap. 9). Allow the engine to cool before emptying the fuel tank.

1. Place the machine on a at

surface, in the open air.

2. Place a suitable container under

4. Open the fuel tap (if provided)

5. Collect the fuel in a suitable container.

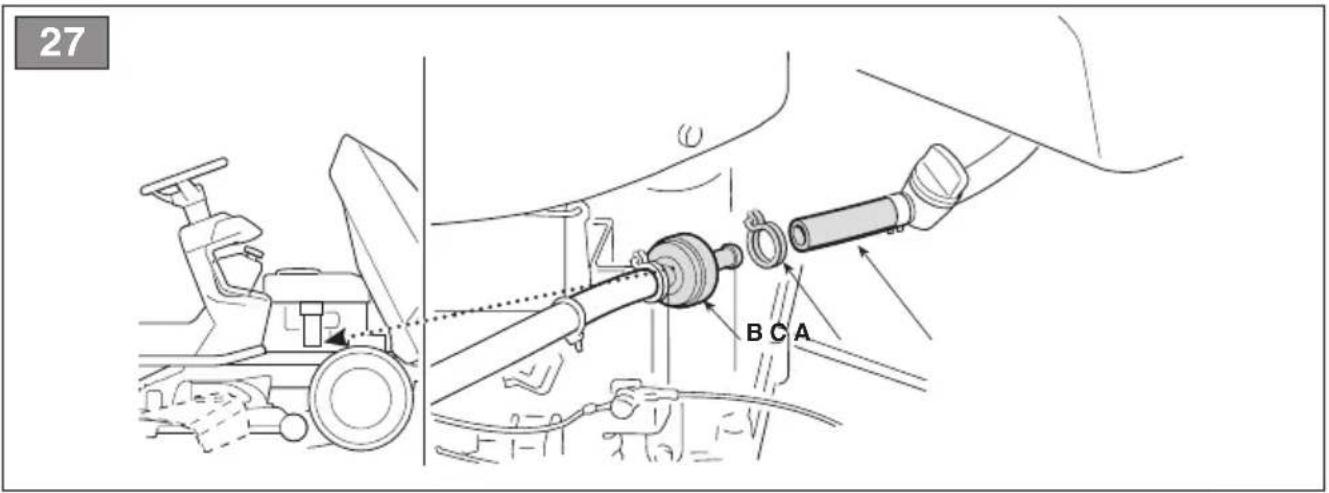

6. Reconnect the tube (g. 27.A) making sure

The next time the machine is used, check that there are no fuel leaks from the tubes, fuel stopcock or carburettor.

NOTE The type of oil to use is given in the engine manual. IMPORTANT The machine is delivered to the client without engine oil. IMPORTANT Follow all the instructions in the engine manual.

Always check the oil level before use.

• Check the oil level: according to the instructions in the engine manual, this must be between the MIN and MAX marks on the dipstick (g. 26). Do not overll as this could cause the engine to overheat. If the oil level exceeds the “MAX” mark, drain until the correct level is achieved.

The oil may be very hot if removed just after the engine has been switched o. Consequently allow the engine to cool down for a few minutes before proceeding to drain o the oil. Replace the engine oil according to the frequency indicated in the engine instruction manual. Proceed as follows:

1. Place the machine on a at surface.

2. Place a suitable container under

the extension tube (g. 28.A).

3. Hold the extension tube (g. 28.A) rmly in

place and unscrew the drain plug (g. 28.B).

4. Collect the oil in a suitable vessel.

5. Replace the drain plug (g. 28.B)

making sure that the gasket is in the right position (g. 28.C).

6. Fully tighten holding the extension

tube rmly in place (g. 28.A).

7. Clean up any spills.

syringe (g. 28.C) and insert it as far as possible into the hole.

3. Using the syringe (g. 28.C), suck up

all the engine oil, bearing in mind that you need to repeat this operation a few times before all the oil is removed.

1. Place the machine on a at surface.

2. Place a suitable container under

4. Release the extension tube from the

support by moving it downwards;

5. Bend the extension tube and drain

the oil into a suitable container.EN - 17

6. Ret the extension tube (g. 28.A) on the

support (g. 28.C) before topping up the oil.

7. Clean up any spills.

IMPORTANT Hand the spent oil over to a disposal facility in accordance with local provisions.

7.4 ANTI-CHIPPING WHEELS

The dierent heights of the wheels allow you to maintain a safe distance "H" between the cutting-means assembly and the ground (g. 17.A, g. 18.A). Adjust the position of the anti-chipping wheels according to how irregular the ground is. This should always be performed on both wheels, positioning them at the same height WITH THE ENGINE OFF AND CUTTING MEANS DISENGAGED. a. for models with side discharge only To change the position:

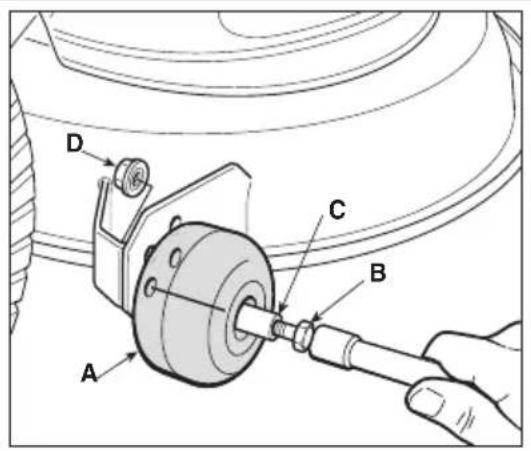

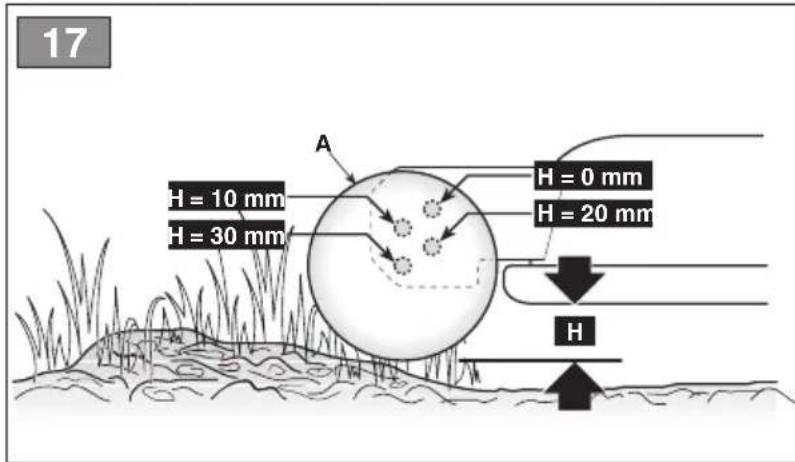

1. unscrew and remove the screw (g. 17.B)

2. reposition the wheel (g. 17.A) with

onto the nut (g. 17.D). b. for models with rear collection only To change the position:

in the desired position

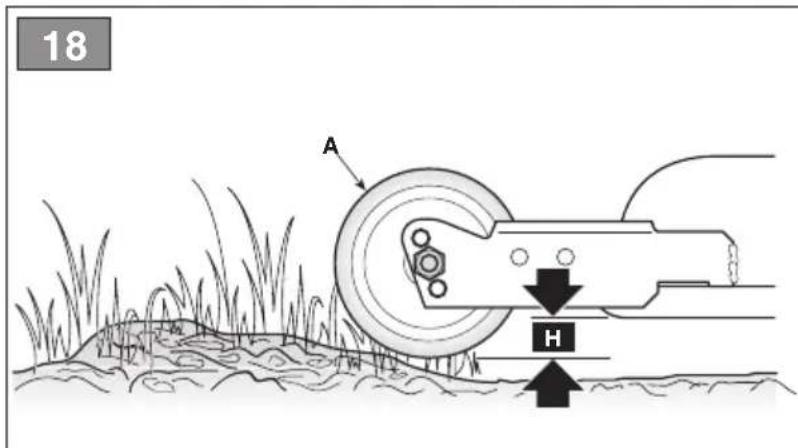

3. reassemble the pin (g. 18.C), making

sure the pin (g. 18.C) head is facing toward the inside of the machine

4. then tighten the nut completely (g. 18.B).

Clean thoroughly following the instructions below every time it is used.

7.5.1 Cleaning the machine

• Clean the outside of the machine washing the plastic parts of the bodywork with a damp sponge using water and detergent, taking care not to wet the engine, the electrical parts or the electronic circuit board located under the dashboard.

• To reduce re hazards, keep the engine, silencer, battery compartment and petrol storage area free of grass, leaves, or excessive grease. IMPORTANT Never use hose-nozzles or harsh detergents for cleaning the body and engine! IMPORTANT Do not wash the transmission system when it is hot. Never use pressure lances to wash the transmission system.

7.5.2 Cleaning the discharge chute (for

rear collection models only) If the discharge chute is clogged:

1. remove the grass catcher or the

rear discharge guard;

2. remove the grass cuttings; you can reach

them from the channel discharge opening.

7.5.3 Cleaning the grass catcher (for

rear collection models only)

1. Empty the grass catcher

2. Shake it to remove grass

cuttings and soil residue

3. Replace the grass catcher and clean

the interior of the cutting-means assembly (par. 7.4.4-a), now remove the grass catcher, empty and rinse it, then place it where it can dry quickly.

7.5.4 Cleaning the cutting-

means assembly Clean the cutting-means assembly thoroughly to remove any grass remains or debris. Keep people or animals away from the surrounding area when cleaning the cutting-means assembly. a. Cleaning the interiors When washing the inside of the cutting- means assembly and the discharge chute, the machine must be on rm ground with: – the grass catcher or the rear discharge guard mounted in place (for rear collection models only) – the side discharge chute mounted (for models with side discharge only); – the operator seated; – the cutting-means assembly in position «1»; – the engine running – the transmission in neutral – the cutting means engaged

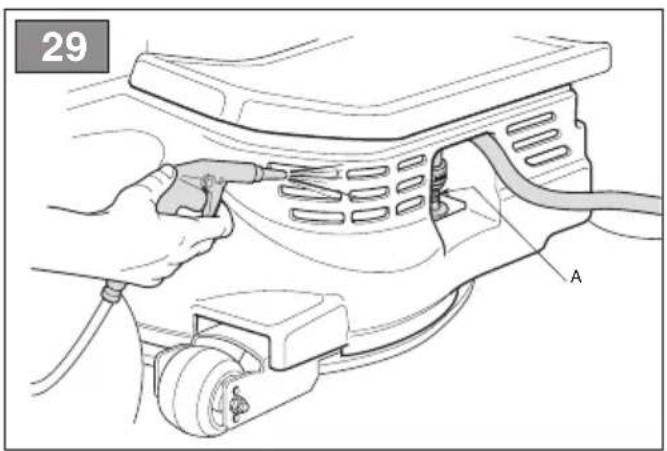

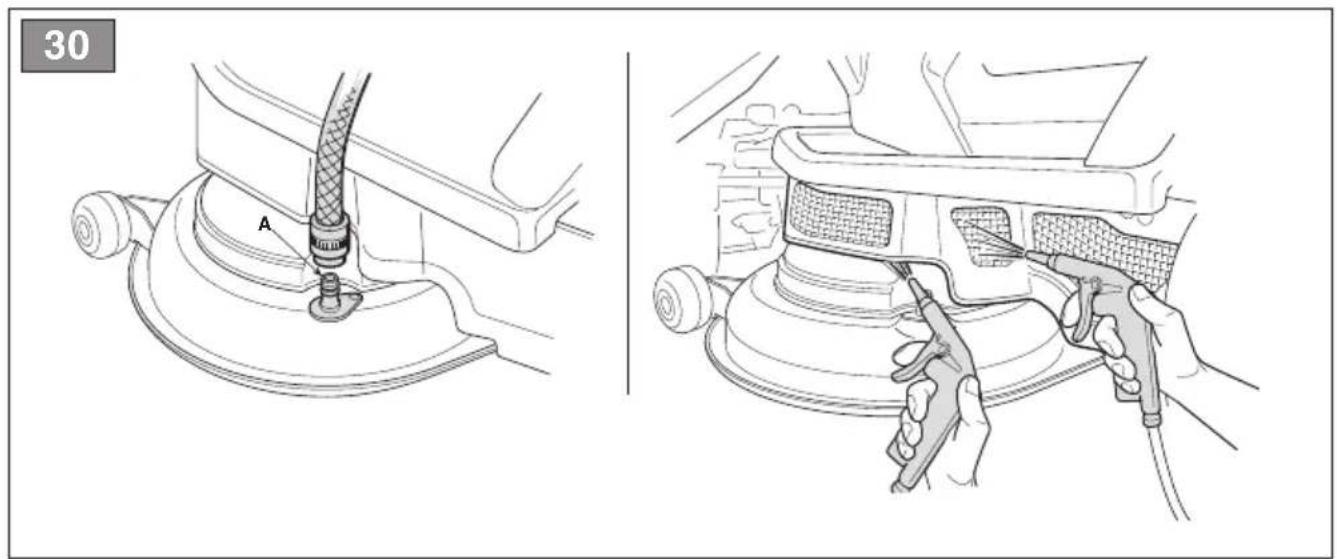

• Connect a water hose to each of the pipe ttings (g. 29.A; g. 30.A) one at a time and run water through each one for a few minutes, with the cutting means moving.EN - 18 IMPORTANT In order not to compromise the eciency of the electromagnetic clutch: - do not let the clutch come into contact with oil; - do not spray pressurised water directly on the clutch unit; - do not clean the clutch with petrol. b. Cleaning the exterior Do not let debris and dried grass accumulate in the upper part of the cutting-means assembly in order to maintain maximum machine eciency and safety levels. To clean the upper part of the cutting-means assembly:

• lower the cutting-means assembly completely (position «1»);

• blow a jet of compressed air through the right and left guard openings (g. 29; g. 30).

To ensure long life to the battery it is essential to keep it carefully maintained. The machine battery must always be charged:

• before using the machine for the rst time after purchase;

• before leaving the machine disused for a long period (over 30 days) (par. 9);

• before starting up the machine after a prolonged period of inactivity. Carefully read and observe the battery recharging instructions in the booklet provided with the battery. Failure in following the procedure or in charging the battery could permanently damage the battery elements. A at battery must be recharged as soon as possible. IMPORTANT Recharging must be done using a battery charger at constant voltage. Other recharging systems can irreversibly damage the battery.

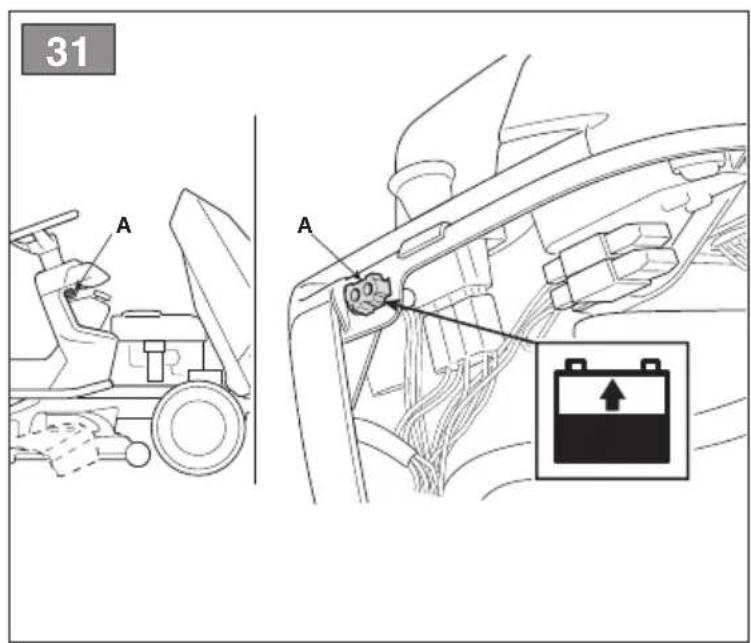

• The machine comes with a connector (g. 31.A) for recharging; this is connected to the corresponding connector for the special maintenance battery-charger supplied (if included) or available on request (par. 15.2). IMPORTANT This connector must only be used for connection to the maintenance battery-charger indicated by the Manufacturer. For its use: – follow the instructions given in the relative instructions manual; – follow the instructions in the battery manual;

• Keep all nuts, bolts and screws tight to be sure the equipment is in safe working condition.

You must go to a specialized Service Centre or contact your Dealer if the following are malfunctioning: - the brake - the cutting means engage and disengage functions - switching the drive to forward or reverse gears.

The cutting-means assembly should be properly adjusted to obtain an evenly mown lawn (g. 32). If mowing is uneven, check the tyre pressure (par. 6.1.3). If this is not sucient to achieve an even cut, please contact your Dealer to adjust the alignment of the cutting-means assembly.

A badly sharpened cutting means pulls at the grass and causes the lawn to turn yellow. All work on the cutting means (disassembly, sharpening, balancing, repairing, reassembly and/or replacing) are demanding jobs that require special skills as well as special tools. For safety reasons, these jobs are best carried out at a Specialised Centre. Make sure damaged, misshapen or worn cutting means are replaced as a whole unit, together with its own screws in place to preserve balance. IMPORTANT Cutting means should be replaced in pairs, especially when there are marked dierences in wear.EN - 19 IMPORTANT Always use original cutting means bearing the code indicated in the “Technical Data”. Given product evolution, the cutting means listed in the "Technical Data" table may be replaced in time with others having similar interchangeable and operating safety features.

IMPORTANT Use a suitable lifting device, for example a scissor jack. Before changing the wheels it is necessary to complete some preliminary operations:

• Remove all attachments.

• Position the machine on a solid and even surface that guarantees stability of the machine.

• Engage the parking brake;

• Remove the key from the ignition;

• Position the jack in the lifting position near the wheel to be changed (par. 8.3.2; par. 8.3.3).

• Check that the jack is perfectly perpendicular to the ground.

8.3.2 Choice and positioning of the

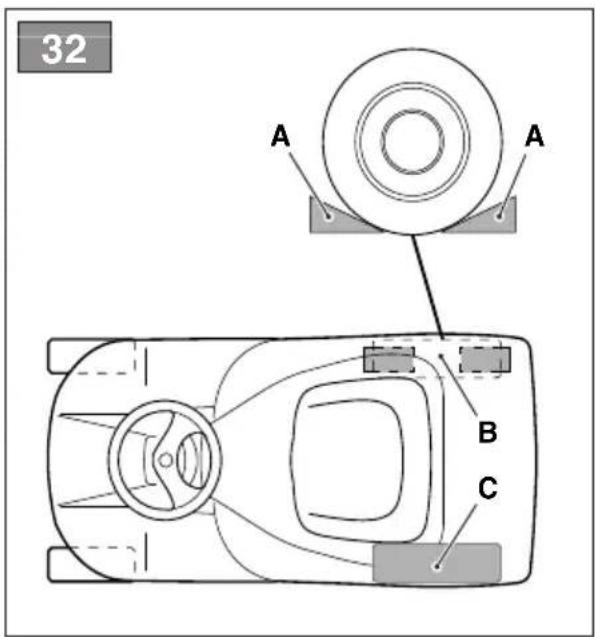

jack on the rear wheels Position some wooden wedges (g. 33.A) to the wheel base (g. 33.B) to the side of the wheel to be changed (g. 33.C). For models with rear collection:

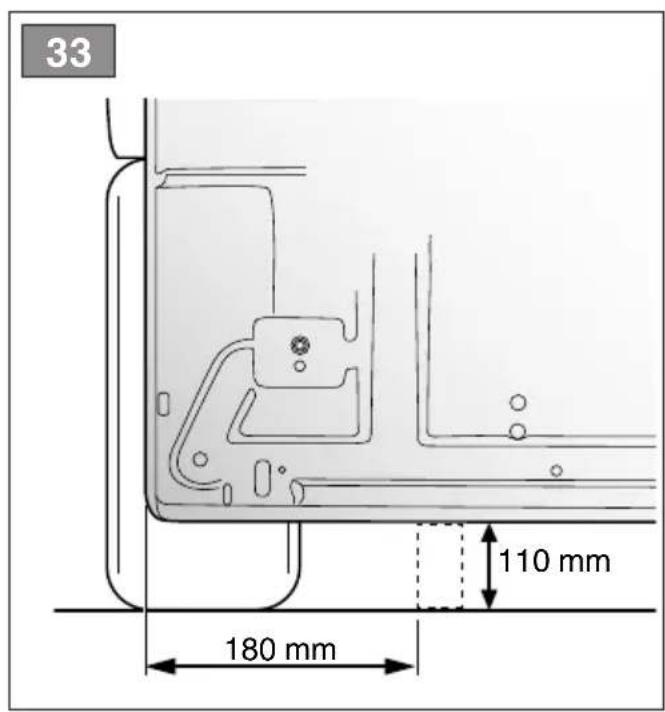

• The maximum possible jack height when closed is 110 mm. (g. 33).

• Position the jack under the rear plate (g. 34.A) at 180 mm from the side edge. For side discharge models:

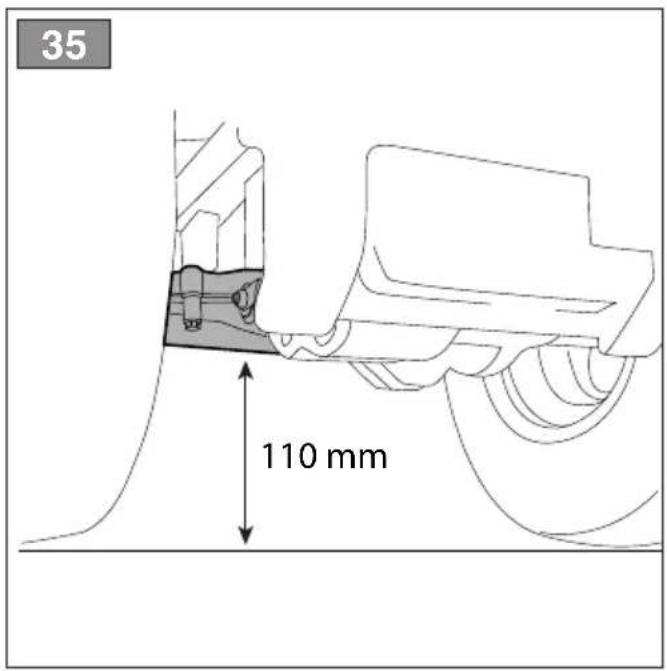

• The maximum possible jack height when closed is 110 mm. (g. 35).

• Position the jack under the rear axle, in the point indicated in the diagram (g. 36.A). NOTE In this position the jack allows you to only raise the wheel to be changed.

8.3.3 Choice and positioning of the

jack on the front wheels

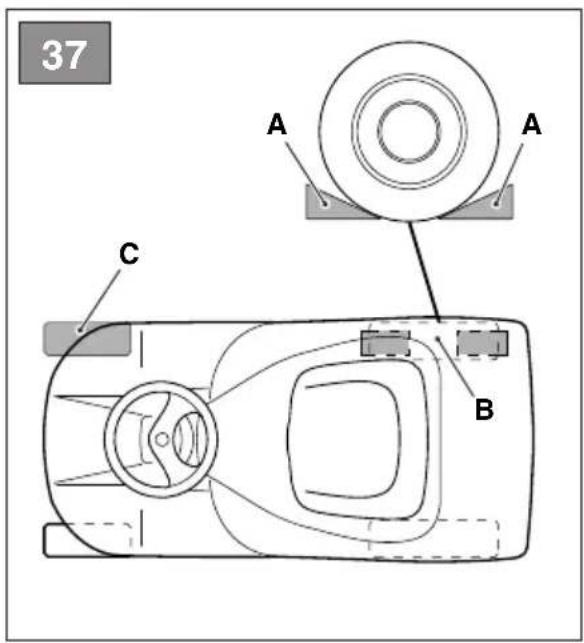

1. Position some wooden wedges (g. 37.A)

to the wheel base (g. 37.B) behind the wheel to be changed (g. 37.C).

2. The maximum possible jack height

when closed is 110 mm.

4. Raise the jack so that the wedge

rests against the chassis and structural parts (g. 38.C). NOTE During this phase use your hand to keep the wedge balanced correctly on the jack. NOTE In this position the jack allows you to raise the entire front axle.

8.3.4 Changing the wheel

IMPORTANT Make certain the machine remains still and stable during the lifting process. If you notice anything out of the ordinary, lower the jack immediately, check and resolve any problems and lift the machine again.

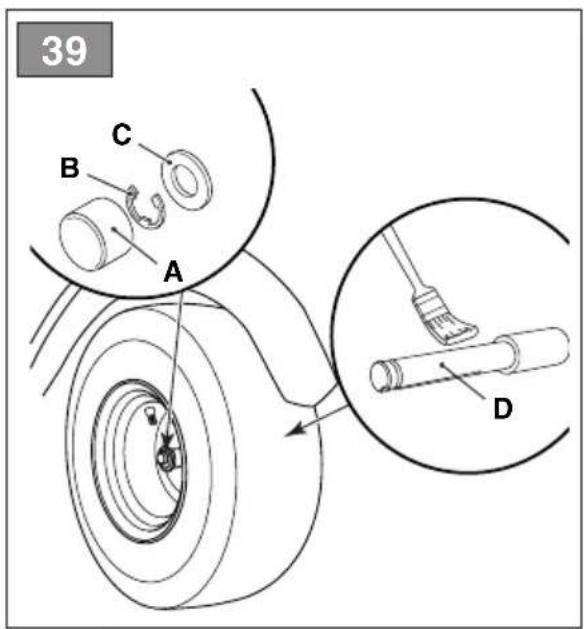

1. Remove the cover (g. 39.A).

2. Raise it enough to extract the wheel easily.

3. Using a screwdriver, remove

the snap ring (g. 39.B) and the shoulder washer (g. 39.C).

4. Remove the wheel to be changed.

5. Coat the axle (g. 39.D) with grease.

6. Mount the spare wheel.

7. Carefully replace the shoulder

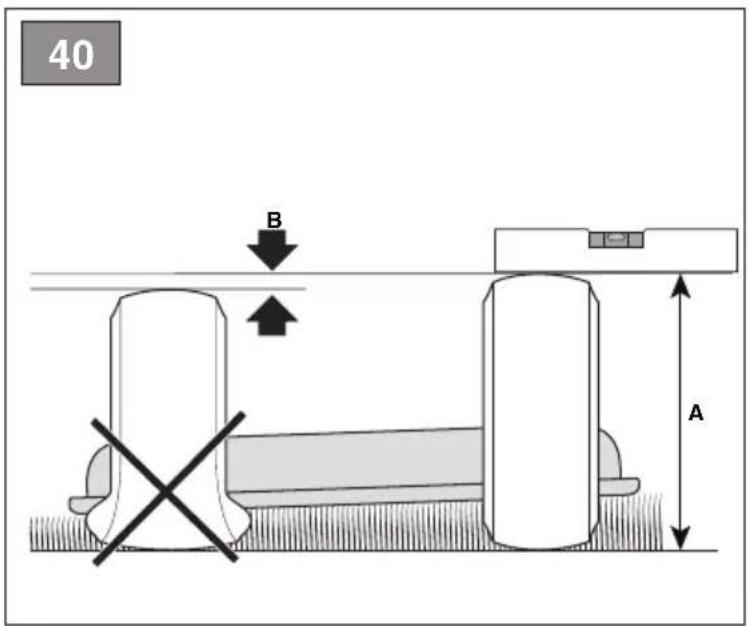

washer and snap ring. IMPORTANT Check that the two rear wheels are the same height (g. 40.A) and that the dierence between the external diameters of the two wheels (g. 40.B) is no greater than 8-10 mm. On the contrary, to avoid uneven mowing, the cutting-means assembly must be aligned by an authorised service centre.

8.3.5 Repairing or changing tyres

The tyres are “Tubeless” and so all punctures must be repaired by a tyre repairer following the procedures required for this kind of tyre.EN - 20

8.4 ELECTRONIC CIRCUIT BOARD

The electronic circuit board is a component tted below the dashboard which manages all machine safety devices.

8.4.1 Electronic circuit board

protection device (for rear collection models only)

• The electronic circuit board is located below the dashboard and tted with a self-setting protection which breaks the circuit if there is a fault or short circuit on the electrical system (chap. 14).

8.4.2 Electronic circuit board protection

fuse (for side discharge models only)

• The electronic circuit board is located below the dashboard and tted with a fuse which breaks the circuit if there is a fault or short circuit on the electrical system (chap. 14).

8.5 REPLACING A FUSE

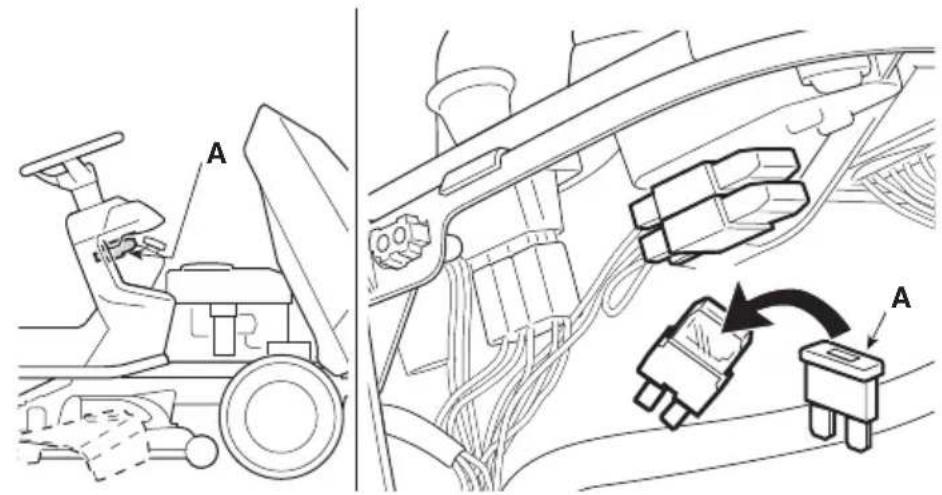

The machine is tted with fuses (g. 41.A) with dierent capacities and functions. Specically: – 10 A fuse = protects the main and power circuits of the electronic circuit board. When it blows, the machine stops and the dashboard light switches o (for rear discharge models only (par. 5.11) – 25 A fuse = protects the battery recharge circuit. When it blows, the battery gradually runs down and the machine will have problems starting. The fuse capacity is indicated on the fuse. IMPORTANT A blown fuse must always be replaced by one of the same type and ampere rating, and never with one of another rating. If you are unable to understand why it has blown , contact Your Dealer.

• The bulbs (18W) have a bayonet tting and are installed in the bulb holder which can be taken out by turning it anti-clockwise with pliers (g. 42).

• This is a sealed single unit that does not require maintenance. It is permanently lubricated and its lubricant does not need changing or topping up.

9. STORING THE MACHINE

When you intend to put your machine away for more than 30 days:

1. Wait for the engine to cool

2. Disconnect the battery cables and

store it in a cool and dry place.

3. Empty the fuel tank (par. 7.2.2) and follow

all the instructions in the engine manual.

4. Clean the machine thoroughly.

5. Check the machine for any

– with the cutting-means assembly lowered – in a dry place – protected from inclement weather – and covered with a sheet where possible (par. 15.4) – in a place where children cannot get to it – making sure that keys or tools used for maintenance are removed. Before starting to use the machine again:

• check that there are no fuel leaks from the tubes, fuel stopcock or carburettor.

• prepare the machine as described in chapter "6. Using the machine" .EN - 21

10. HANDLING AND TRANSPORTATION

• When handling the machine, always: – disengage the cutting means; – bring the cutting-means assembly to the highest position; – stop the engine;

• When transporting the machine on a vehicle or trailer, always: – use an access ramp of suitable strength, width and length; – load the machine with the engine switched o, with the key removed from the ignition, without a driver and pushed by an adequate number of people; – close the fuel tap (if provided); – lower the cutting-means assembly; – engage the parking brake; – position it so that it can not cause a hazard for anybody; – fasten rmly to the means of transport using ropes or chains to prevent it from tipping over causing damage and fuel leaks.

11. ASSISTANCE AND REPAIRS

This manual provides all the necessary information to run the machine and for correct basic maintenance operations which can be performed by the user. Any regulations and maintenance operations not described herein must be carried out by your Dealer or Authorized Service Centre, which have the necessary knowledge and equipment to ensure that the work is carried out correctly, maintaining the correct degree of safety and the original operating conditions of the machine. Any operations performed in unauthorized centres or by unqualied persons will totally invalidate the Warranty and all obligations and responsibilities of the Manufacturer.

• Only authorized service workshops can carry out guaranteed repairs and maintenance.

• The authorized service workshops only use genuine spare parts. Genuine spare parts and attachments have been designed specically for machines.

• Non-original parts and attachments are not approved; use of non-original spare parts and attachments will jeopardize the safety of the machine and relieve the Manufacturer from all obligations or liabilities.

• It is advisable to send your machine once a year to an authorized service workshop for servicing, assistance and safety device inspection.

12. WARRANTY COVERAGE

The warranty covers all material and manufacturing defects. The user must follow all the instructions provided in the accompanying documentation. The warranty does not cover damages caused by:

• Failure to become familiar with the documentation accompanying the machine.

• Incorrect or prohibited use or assembly.

• Use of non-genuine spare parts.

• Use of attachments not supplied or approved by the manufacturer. The warranty does not cover:

• Normal wear and tear of consumables, such as drive belts, headlights, wheels, blades, safety bolts and wires.

• Normal wear and tear.

• Engines. Engines are covered by the warranty provided by the relative manufacturer in compliance with the specied terms and conditions. The purchaser is protected by his own national legislation. The purchaser’s rights envisaged by the national laws in his own country are not in any way restricted by this warranty.

13. MAINTENANCE TABLE

The boxes at the side are for you to mark the date or number of working hours at which the intervention was made.EN - 22 Operation Frequency (hours) Completed (Date or Hours) Notes MACHINE Safety checks/check controls Before each use par. 6.2 Tyre pressure check Before each use par. 6.1.3 Assembly/Checking of outlet guards Before each use par. 6.1.4 General cleaning and inspection After each use par. 7.4 Checking for any damage to the machine. If necessary, contact the authorised assistance centre. After each use

Battery power reserve Before storage par. 7.5 Complete bolt and screw check

Cutting means positioning and sharpening check 25 *** Transmission belt check 25 *** Cutting means control belt check 25 *** Brake regulation and check 25 *** Drive regulation and check 25 *** Cutting means gear and brake check 25 *** General lubrication 25 **** Replacing cutting means 100 *** Replacing the transmission belt

Replacing the cutting means control belt

ENGINE Checking/topping up fuel level Before each use par 7.2 Check/top-up engine oil Before each use par 7.3 Replacement of the engine oil ... * Air lter cleaning and check ... * Air lter replacement ... * Fuel lter check ... * Fuel lter replacement ... * Spark plug points cleaning and check ... * Replace the spark plug ... *

• See the engine manual for the full list and frequency ** At the rst signs of any malfunction, contact your Dealer immediately *** The operation must be carried out by your Dealer or a specialized Service Centre *** General lubrication of all joints should also be carried out whenever the machine is to be left unused for a long period.

1. With the key turned to

«ON», the light stays o (for rear collection models only The safety device of the electronic circuit board has cut in due to: Turn the ignition key to «STOP» position and look for the cause of the problem: badly connected battery check the connections (par. 4.4) battery terminals crossed check the connections (par. 4.4). at battery recharge the battery (par. 7.5) fuse blown replace fuse (10 A) (par. 8.5). wet circuit board dry using luke warm air

2. With the key turned

to «START» the light ashes and the starter motor does not run (for rear collection models only) starting conditions have not been met check that all starting conditions are met (par. 6.2.2)

3. With the key turned

to «START» the light is on but the starter motor does not run (for rear collection models only) insuciently charged battery recharge the battery (par. 7.5) malfunction on the starter relay contact your Dealer If problems persist after having performed the above operations, contact your dealer.EN - 24

PROBLEM PROBABLE CAUSE REMEDY

4. With the key turned to

«START» the starter motor does not run (for side discharge models only) Turn the ignition key to «STOP» position and look for the cause of the problem: starting conditions have not been met check that all starting conditions are met (par. 6.2.2) badly connected battery check the connections (par. 4.4) battery terminals crossed check the connections (par. 4.4) at battery recharge the battery (par. 7.5) fuse blown replace fuse (10 A) (par. 8.5). wet circuit board dry using luke warm air malfunction on the starter relay contact your Dealer

«START» the starter motor runs but the engine does not start insuciently charged battery recharge the battery (par. 7.5) faulty fuel supply check the level in the tank (par. 7.2.1) open the fuel stopcock (if foreseen) (par. 6.4) check the fuel lter faulty ignition check that spark plug cap is securely tted check that the electrodes are clean and have the correct gap

6. Starting is dicult or the

engine runs erratically carburation problems clean or replace the air lter empty the fuel tank and rell with fresh fuel check and replace the fuel lter if necessary

performance during cutting forward speed too high in relation to cutting height reduce the forward speed and/or raise the cutting height (par. 6.5.4)

down whilst working the safety devices have cut in check that all starting conditions are met (par. 6.2.2) blown fuse due to a short circuit or electrical system faults (for side discharge models only) The cause of the fault should be ascertained and dealt with to avoid reactivating the protection device Replace the fuse (10 A) (par. 8.5). Contact your Dealer if such interruptions continue

9. The engine stops whilst

operating and the indicator light switches o (for rear collection models only) The safety device of the electronic circuit board has cut in due to: Turn the ignition key to «STOP», wait for a couple of seconds to allow the circuit to reset automatically and: battery terminals crossed check the connections (par. 4.4) faults in the battery charging regulator check the battery connections (par. 4.4) check the battery is tted short circuit contact your Dealer

10. The cutting means do

not engage or do not stop promptly when they are disengaged problems with engagement mechanism contact your Dealer If problems persist after having performed the above operations, contact your dealer.EN - 25

insucient collection (for rear collection models only) cutting-means assembly is not parallel to the ground check the tyre pressure (par. 6.1.3) reinstate the alignment of the cutting-means assembly in relation to the ground (par. 8.2.1) inecient cutting means contact your Dealer forward speed too high compared to height of grass reduce the forward speed and/or raise the cutting-means assembly (par. 6.5.4) wait for the grass to dry collector channel is blocked remove the grass catcher and empty the discharge chute (par. 7.4.2)

for side (discharge models only) cutting-means assembly is not parallel to the ground check the tyre pressure (par. 6.1.3) reinstate the alignment of the cutting-means assembly in relation to the ground (par. 8.2.1) inecient cutting means contact your Dealer

13. Unusual vibrations

while working cutting-means assembly is full of grass clean the cutting-means assembly (par. 7.4.4) the cutting means are unbalanced or loose contact your Dealer loose bolts and screws check and tighten all the engine and frame bolts

ineective braking the brake is not adjusted correctly contact your Dealer

movement, poor drive when going uphill or if the machine has a tendency to rear up problems with the belt or the engagement device contact your Dealer

running, the machine does not move when the drive pedal is pressed (hydrostatic transmission models) release lever in the gear disengagement position return it to the gear engaged position (par. 5.13)

17. The machine starts to

vibrate abnormally and/ or has hit an object damaged or loose parts stop the machine and remove the ignition key inspect for damage check for and tighten any loose parts have all checks, repair work and replacements carried out by a specialized Centre only. If problems persist after having performed the above operations, contact your dealer.EN - 26

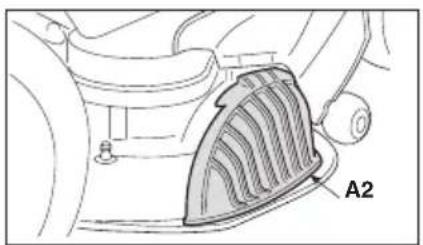

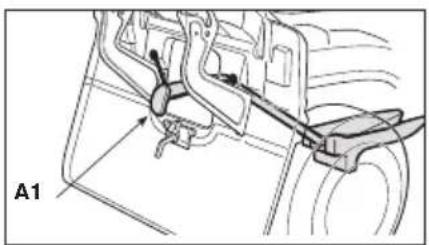

It nely chops the grass cuttings and leaves them on the lawn (g. 43.A1; g 43.A2).

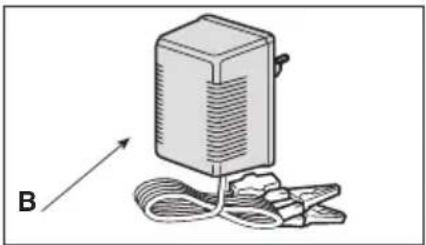

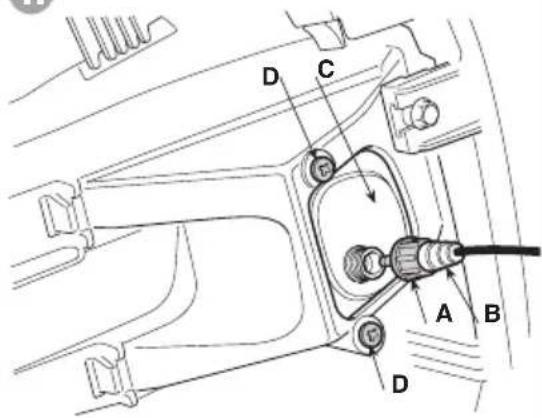

15.2 MAINTENANCE BATTERY CHARGER

This keeps the battery in good working order when the machine is in storage, guaranteeing an optimum level of charge and longer battery life (g. 43.B).

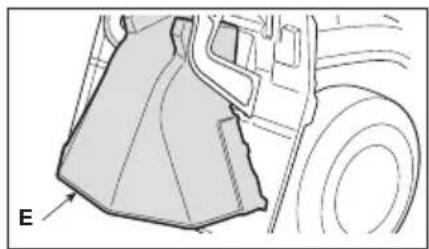

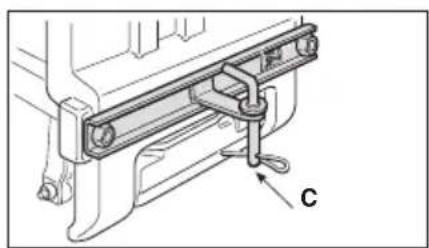

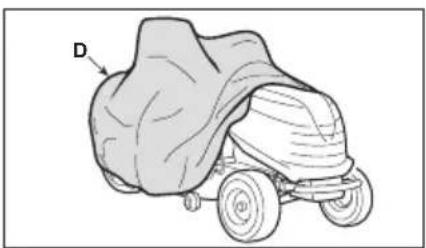

Used instead of the grass catcher when the cuttings are not collected (g.43.E). (For rear discharge models only).

15.6 18" SNOW CHAINS

These improve front wheel adherence on snow-covered sections of road and allow the snow shovel equipment to be used (g. 43.F).

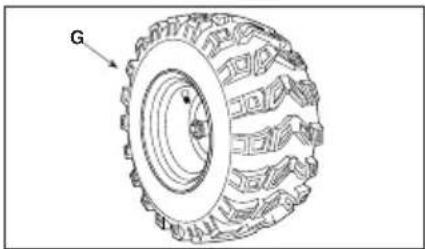

15.7 18" MUD / SNOW WHEELS

These improve drive performance on snow and mud.

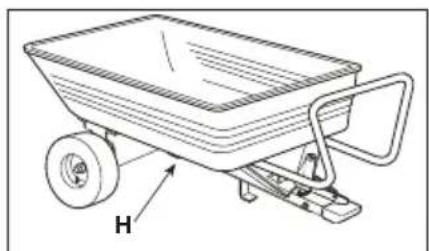

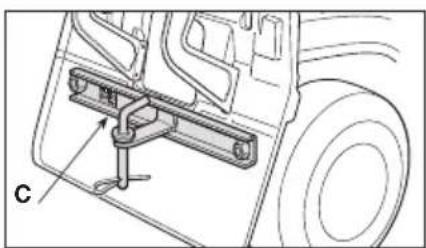

For transporting tools and other objects within the allowed load limits (g. 43.H).

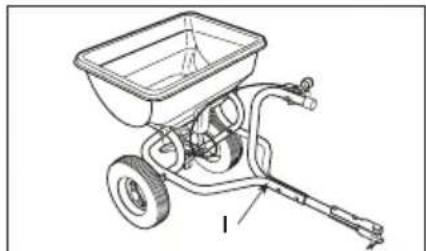

To make the soil compact after seeding or to atten the grass (g. 43.J).

Shovels and accumulates removed snow to the side (g. 43.K).

15.1 KIT PARA "MULCHING"

5.6 Pédale de frein (transmission

hydrostatique) ..................................... 10

5.7 Pédale de traction (transmission

2.5 BESCHERMING VAN DE OMGEVING

• MP 84 / MP 98 Series kan:

AFLAATDEFLECTOR (ENKEL

1. transmissie in "vrij";

15.1 KIT VOOR "MULCHING"

2.4 VEDLIKEHOLD OG LAGRING

• MP 84 / MP 98 Series kan:

15.1 KIT PARA "MULCHING"

6.5 PRACOVNÁ ČINNOSŤ

INNEHÅLLSFÖRTECKNING

5.4 KOPPLINGS- /BROMSPEDAL

15.1 SATS FÖR "MULCHING"

EC Declaration of Conformity (Machine Directive 2006/42/EC, Annex II, part A)

2. Herby declares under its own responsibility

that the machine: ride-on lawnmower with seated operator/ Grass cutting a) Type / Base Model b) Month / Year of manufacture c) Serial number d) Motor: petrol

3. Conforms to directive specifications:

e) Certifying body f) EC examination of Type

4. Reference to harmonised Standards

g) Sound power level measured h) Sound power level guaranteed

EC Declaration of Conformity (Machine Directive 2006/42/EC, Annex II, part A)

2. Herby declares under its own responsibility

that the machine: ride-on lawnmower with seated operator/ Grass cutting a) Type / Base Model b) Month / Year of manufacture c) Serial number d) Motor: petrol

3. Conforms to directive specifications:

e) Certifying body f) EC examination of Type

4. Reference to harmonised Standards

g) Sound power level measured h) Sound power level guaranteed

EC Declaration of Conformity (Machine Directive 2006/42/EC, Annex II, part A)

2. Herby declares under its own responsibility

that the machine: ride-on lawnmower with seated operator/ Grass cutting a) Type / Base Model b) Month / Year of manufacture c) Serial number d) Motor: petrol

3. Conforms to directive specifications:

e) Certifying body f) EC examination of Type

4. Reference to harmonised Standards

g) Sound power level measured h) Sound power level guaranteed

EC Declaration of Conformity (Machine Directive 2006/42/EC, Annex II, part A)

2. Herby declares under its own responsibility

that the machine: ride-on lawnmower with seated operator/ Grass cutting a) Type / Base Model b) Month / Year of manufacture c) Serial number d) Motor: petrol

3. Conforms to directive specifications:

e) Certifying body f) EC examination of Type

4. Reference to harmonised Standards

g) Sound power level measured h) Sound power level guaranteed

EC Declaration of Conformity (Machine Directive 2006/42/EC, Annex II, part A) 1. The Company 2. Herby declares under its own responsibility that the machine: ride-on lawnmower with seated operator/ Grass cutting a) Type / Base Model b) Month / Year of manufacture c) Serial number d) Motor: petrol 3. Conforms to directive specifications: e) Certifying body f) EC examination of Type 4. Reference to harmonised Standards g) Sound power level measured h) Sound power level guaranteed i) Range of cut n) Person authorised to create the Technical Folder: o) Place and Date DE ( Übersetzung der Originalbetriebsanleitung
