BTBH020 - Earplug Boltune - Free user manual and instructions

Product Type	Bluetooth Wireless Earbuds (True Wireless)
Brand	Boltune
Model	BT-BH020
Connectivity Technology	Bluetooth
Power Source	Built-in rechargeable lithium-ion battery
Earbuds Charging	Via charging case (contacts)
Case Charging	USB-C port
Earbuds Battery Life	Approximately 5 hours (estimated)
Total Battery Life with Case	Several additional charges (estimated)
Controls	Multifunction button on each earbud
Main Functions	Play/pause, volume control, previous/next track, call management, voice activation
LED Indicators	Yes, on earbuds and case
Box Contents	2 earbuds, charging case, USB cable, 8 ear tips, manual
Care and Cleaning	Soft dry cloth; do not use chemical products
Safety	Do not expose to water, excessive heat; avoid prolonged high volume
Repairability	Do not disassemble; contact a professional

Frequently Asked Questions - BTBH020 Boltune

How to pair the Boltune BTBH020 earbuds for the first time?

Open the charging case lid to turn on the earbuds. They will automatically connect to each other. Enable Bluetooth on your device and select Boltune BT-BH020 from the device list.

How to use a single earbud (mono mode)?

Remove one earbud from the case and close the lid. It will connect to the last paired device or enter pairing mode. To switch to stereo mode, simply remove the other earbud.

What to do if the earbuds do not turn on?

Check that the earbuds are charged. Place them in the charging case and close the lid. If the problem persists, charge the case using the USB-C cable.

How to reset the earbuds (clear pairing list)?

Open the lid, remove one earbud and press and hold its button for 5 seconds to turn it off. Then press and hold for 10 seconds until the indicator stays white for 3 seconds then turns off. Repeat for the other earbud. Close and reopen the lid.

How to control volume and music?

Double-press the left earbud to decrease volume, double-press the right to increase. Single-press for play/pause. Triple-press left for previous track, triple-press right for next track.

How to answer or reject a call?

Single-press the button on one earbud to answer. Press and hold for 2 seconds to hang up or reject an incoming call.

How to activate the voice assistant?

Once the earbuds are paired, press and hold the button on one earbud for 1.5 seconds until you hear a beep.

What to do if the sound quality is poor or the connection is unstable?

Wear the earbuds correctly, bring the connected device closer, remove obstacles, and turn off other Bluetooth devices. Clean any dirt on the earbuds.

How to clean the earbuds and case?

Use a soft dry cotton cloth to wipe the device. Do not use detergent, alcohol, or abrasive products. Clean regularly.

Can I use the earbuds in the rain or while exercising?

The earbuds are not waterproof. Avoid exposure to water, rain, or prolonged humidity to prevent damage.

USER MANUAL BTBH020 Boltune

US Distributor: SUNVALLEYTEK INTERNATIONAL INC.

Address: 46724 Lakeview Blvd, Fremont, CA 94538

MANUFACTURER

Shenzhen NearbyExpress Technology Development Co., Ltd.

Address: 333 Bulong Road, Shenzhen, China, 518129

MADE IN CHINA

Boltune

Line drawing of a smart earbuds with two front-mounted buttons and a closed lid (no text or symbols)

MODEL: BT-BH020

TRUE WIRELESS STEREO EARBUDS

User Guide

BT-BH020_V1.8

CONTENTS

English

Deutsch

Français

Español

Italiano

日本語

01-11

12-23

24-36

37-51

52-63

64-74

PACKAGE CONTENTS (Fig. 1)

1

①

②

③

④

⑤

EN

① Boltune True Wireless Stereo Earbuds (BT-BH020)

② 8 x Ear Tips (two are equipped on the earbuds)
③ 1 x USB Charging Cable
④ 1 x User Manual
⑤ 1 x Quick Start Guide

DE

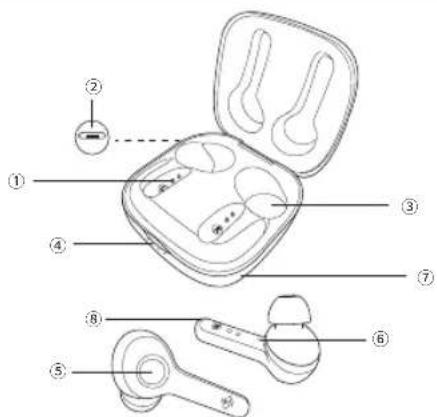

PRODUCT DIAGRAM (Fig. 2)

2

EN

① Charging Contacts
② USB-C Charging Port
③ Charging Slot
④ Charging Indicators
⑤ Multifunction Button
⑥ LED Indicator
⑦ Charging Case
⑧ Microphone

ProduktdiagrammProduct Diagram

IMPORTANT SAFETY INSTRUCTIONS

Please read the instructions thoroughly before using this product and retain it for future reference.

Hearing Safety

• Do not wear earbuds with high volume for a long time to avoid damaging your hearing.
• Set the earbuds to low volume before you put them on, then increase the volume gradually as per your preference.
• Do not set volume too high to stay aware of your surroundings.
• Please refer to local laws and regulations if you want to answer phone calls via this device during driving.
• For your safety, avoid distraction from music or phone calls when you are driving or doing other activities with potential dangers.

Warning: Please set the volume to proper level to avoid hearing damages.

Caution

• Do not expose this product to high temperatures.
• Do not immerse the earbuds into water or expose them to humidity for a long time.
• Do not clean the product with detergent containing alcohol, ammonia, benzene or abrasives.
• Avoid dropping.
• Place the earbuds back into the charging case when not in use and keep it away from children and pets to avoid choking hazard.
• Unauthorized disassembly of any parts of this product is forbidden, which 01 02

may cause fire hazard, warranty voidance, and/or property loss.

• Close attention is needed when using near children.
• Keep the charging case away from water, rain or any other liquid.
• Don't use the product in thunderstorm to avoid malfunction or electric shock.
  • Always ask a professional technician or authorized personnel for repair.

This product contains lithium battery. Never expose it to excessive heat such as direct sunlight or fire to avoid explosion.

HOW TO WEAR

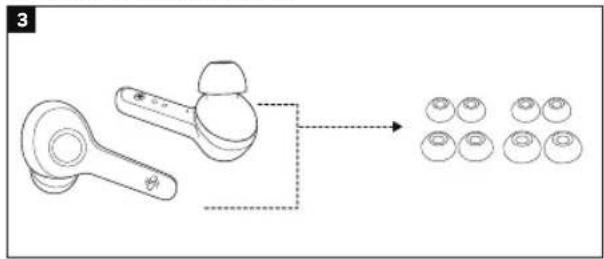

Choose the Right Tips (Fig. 3)

Ear tips with different sizes are included in the package, try all sizes and choose the ones fitting you best.

Wear the Earbuds (Fig. 4)

Please wear the earbuds as shown below.

Illustration of two earbuds with different sizes and accessories, labeled ① and ② (no text or symbols on the devices themselves)

Pictures only for reference.

Bluetooth Caution

• When the device is connected wirelessly to another device, place the two devices close to each other to achieve their normal functionalities and avoid possible signal interference.
• When using a wireless connection, make sure there are no obstacles between the two devices. Obstacles including walls and fences may shorten the effective range.

USING YOUR EARBUDS

Charging

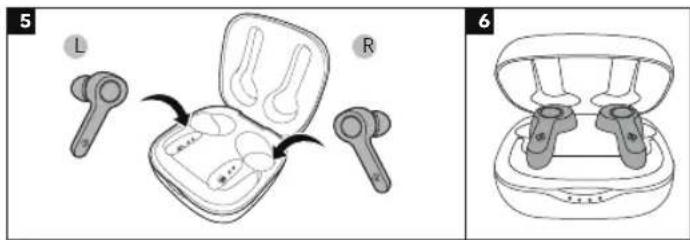

Charging the Earbuds

1. Put the earbuds into the charging case as per the L (left) and R (right) marks (Fig. 5).
2. Cover the lid and charging will start automatically (Fig. 6).

03 04

Note:

• Please fully charge the earbuds when using them for the first time.
• When battery is low, a "Battery low" voice prompt will be heard (if you are wearing the earbuds). Please charge it in time or the earbuds will turn off automatically around 10 minutes later.
• Charge the earbuds at least once every 3 months when not using for a long time.

Charging the Charging Case

1. Connect the charging port with any USB charging adapter or active computer USB port (Fig. 7).

2. The four charging indicators will light up progressively.

Note: Unplug the charging cable (timely) when fully charged.

Power On (Fig. 8)
Uncover the lid and they will power on automatically.

Diagram of a smart home device with labeled ports (L, R) and control panel (no text or symbols beyond labels)

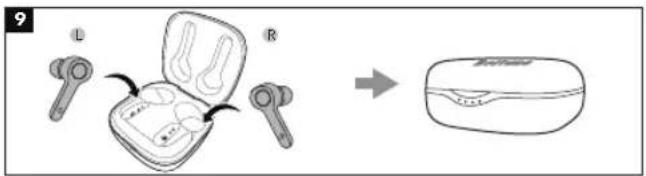

Power Off (Fig. 9)

Put the earbuds into the charging case and close the lid, they will turn off automatically.

Pairing

• You can use one earbud or both earbuds as per your preference. Please refer to the corresponding pairing instructions.
• Before pairing, please turn off other Bluetooth devices and place the device to be connected close to the earbuds.

- When the earbuds are disconnected from your device for more than 10 minutes, they will turn off automatically.

Couple Earbuds Mode

1. Uncover the lid to turn on the earbuds, they will connect with each other automatically. Once connected, The LED indicators on both earbuds will flash blue and white alternately indicating the earbuds are in pairing mode now.
2. Turn on the Bluetooth function on your device and search for nearby devices. Find "Boltune BT-BH020" in the searching results, tap on the name to connect.
3. Once connected, the LED indicators on both earbuds will flash blue slowly.

Note:

• We recommend you to take out the earbuds from the charging case only when the earbuds complete automatic pairing in the charging case.
• If the earbuds failed to pair with each other, please disconnect the Bluetooth connection with your device, put them back into the charging case, close the lid then open it to pair again.
• It is not recommended to wear the two earbuds on different people. If needed, please keep the 2 earbuds within 3 meters / 9.8 feet in couple earbuds mode.

Single Earbud Mode

1. Take out one earbud from the charging case, and make sure the other one is placed in the charging case and the lid is covered.
2. It will try to pair with the last paired device first then enter pairing mode with its LED indicator flashing blue and white alternately if pairing failed.
3. Turn on the Bluetooth function on your device and search for nearby devices. Find "Boltune BT-BH020" in the searching results, tap

on the name to connect.

1. Once connected, the LED indicator will flash blue slowly.

Note:

If you want to change to couple mode, simply take out the other earbud from the charging case, they will pair with each other automatically.

Clear Pairing List

If you failed to pair your device with the earbuds, please clear the pairing history as instructed below:

1. Uncover the lid.
2. Take out one of the earbuds, press and hold its Multifunction Button for 5 seconds to turn it off. When it is off, press and hold its Multifunction Button for 10 seconds until the LED indicator stays solid white for 3 seconds then off. Place it back into the charge case.
3. Take out the other earbud, press and hold its Multifunction Button for 10 seconds until the LED indicator stays solid white for 3 seconds then off. place it back into the charging case.
4. Close the lid then uncover the lid to pair again.

Note:

If you want to pair the earbuds with another device when you have already paired them with a device, deactivate the Bluetooth function on the paired device or clear "Boltune BT-BH020" from its Bluetooth list. Restore the earbuds to factory settings as instructed above if pairing failed.

OPERATION AND FUNCTIONS

Function Operation
Answer Phone Call	Press the Multifunction Button on either of the earbuds once
Hang up Phone Call	Press and hold the Multifunction Button on either of the earbuds for 2s
Reject Incoming Call	Press and hold the Multifunction Button on either of the earbuds for 2s
Previous Track	Press the Multifunction Button on the left earbud three times
Next Track	Press the Multifunction Button on the right earbud three times
Play / Pause	Press the Multifunction Button on either of the earbuds once
Volume -	Press the Multifunction Button on the left earbud twice
Volume +	Press the Multifunction Button on the right earbud twice
Turn On / Off Voice Control	When the earbuds are paired with your device successfully, press and hold the Multifunction Button on either earbud for 1.5s until a beep is heard
Redial	Press the Multifunction Button on either of the earbuds three times in non-music playback state

CLEANING AND MAINTENANCE

1. Clean the earbuds and the charging case on a regular basis.
2. Use dry and soft cotton cloth to wipe the unit.

Note: Do not insert anything into the product.
3. Keep away from sharp objects to avoid scratches.
4. Put the unit in a dry and shady place if it is to be idle for a long time.
5. Do not clean the product with detergent or chemicals.

TROUBLESHOOTING

No.	Problem Solution
1	Failed to turn on the earbuds	Earbuds low battery, please charge them
2	Failed to charge the earbuds	Place the earbuds into the charging case properlyMake sure the charging case is charged fully
3	Can't charge the charging case	Make sure the charging cable is intact and plugged in properly
4	Can't find"Boltune BT-BH020" in the Bluetooth device list	The earbuds reconnected with previously paired device automatically:Deactivate the Bluetooth function of previously paired device or clear "Boltune BT-BH020" from its Bluetooth device list, and then search again

5	Failed to pair the earbuds with your device	Turn on the device and activate its Bluetooth function before pairingBring the earbuds into pairing mode as instructed in the "Pairing" section
6	No sound in one of the earbuds in couple earbuds mode	Place both earbuds back to the charging case then take them out, they will pair with each other automatically. If pairing failed, restore them back to the factory settings as instructed in the "Clear Pairing List" section
7	Poor sound quality	Wear the earbuds properly and keep them close to each other.Place the connected device close to the earbuds or remove the obstacles between themClear the debris on the earbuds
8	Unstable connection	The effective distance may shorten with obstacles in the wayTurn off other Bluetooth devices to decrease the interference
9	Can't hear the other party during a phone call	Set the volume to higher level
10	The other party can't hear your voice during a phone call	Free the built-in microphone of any covers
11	Multifunction Button of the earbuds is unresponsive	Place the two earbuds into the charging case and cover the lid, disconnect the Bluetooth connection. Uncover the lid to turn on the earbuds and pair again.

WARRANTY AND SERVICE

If any problems occur, please contact the Boltune Customer Care Centre in your country via the contact information listed in this User Guide.

DE

Line drawing of a pair of earbuds with open case (no text or symbols)

Laden der Ladehülle

Koppeln

Line drawing of a pair of electronic devices with no visible text or symbols

Charger le Boîtier

Marche (Fig. 8)

Diagram of a smart home control device with two motors and a power switch (no text or symbols)

Arrêt (Fig. 9)

Illustration of two earbuds with labeled parts, showing different types of device placement (no text or symbols present)

Encender (Figura. 8)

Diagram of a device with two motors and a switch, labeled L and R (no text or symbols on the devices themselves)

Apagar (Figura. 9)

Line drawing of an open electronic device with two buttons and a lid (no text or symbols)

Ricaricare la Custodia

Diagram of a device with two legs and a switch, no text or symbols present

Accoppiamento

Line drawing of a smart earbuds with two buttons, no text or symbols present

ケースの充電

67 68

電源オン(図.8)

蓋を開くと自動的に電源が入ります。

Diagram of a smart home appliance with two controllers and a power button, labeled L and R (no text or symbols on the device itself)

電源オフ(図.9)

Bluetooth® EN The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Sunvalleytek International Inc. is under license. Other trademarks and trade names are those of their respective owners.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

WEEE Compliance

Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.
