| Product type | Hammer drill |
| Brand | Black & Decker |
| Model | KR702 |
| Supply voltage | 230 V AC |
| Power consumption | 710 W |
| No-load speed | 0 - 3,100 rpm |
| Max drilling capacity - Steel/Concrete | 13 mm |
| Max drilling capacity - Wood | 25 mm |
| Weight | 1.95 kg |
| Chuck | Keyless with spindle lock (or keyed depending on version) |
| Side handle | Yes, adjustable |
| Depth stop | Yes, adjustable |
| Reversible rotation direction | Yes, right/left |
| Variable speed | Yes, by trigger pressure |
| Hammer mode | Yes, selectable |
| Double insulation | Yes |
| Intended use | Drilling of wood, metal, plastic, masonry, and screwdriving |
| Warranty | 24 months |
| Sound pressure level (LpA) | 103 dB(A), uncertainty K=3 dB(A) |
| Sound power level (LWA) | 114 dB(A), uncertainty K=3 dB(A) |
| Vibration - Percussion drilling in concrete | 24.1 m/s², uncertainty K=1.5 m/s² |
| Vibration - Drilling in metal | 6.4 m/s², uncertainty K=2.0 m/s² |
| Maintenance and cleaning | Clean the ventilation slots with a soft brush or dry cloth; clean the motor compartment with a damp cloth. Do not use abrasive or solvent-based products. |
| Spare parts and repairability | Only have repairs carried out by qualified personnel using original spare parts. |
Frequently Asked Questions - KR702 BLACK & DECKER
How to install a drill bit or screwdriver bit?

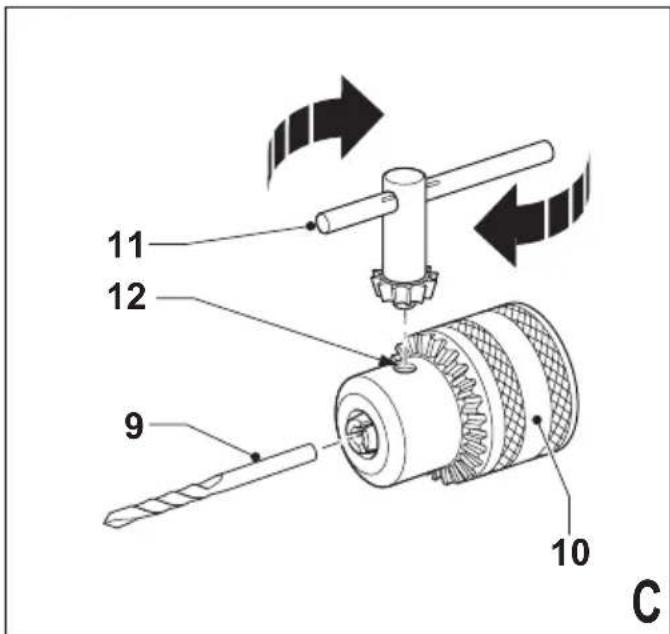

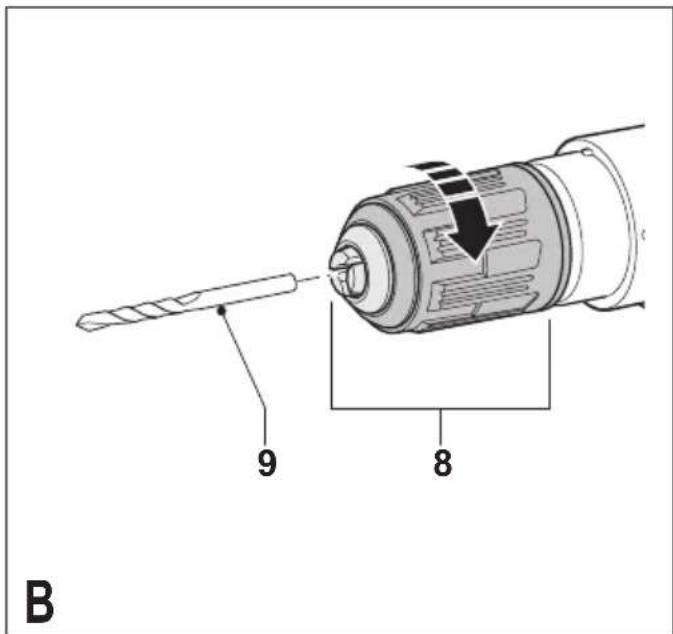

For a keyless chuck, open the chuck by turning the sleeve counterclockwise, insert the bit shaft, then tighten by turning clockwise. For a keyed chuck, open the chuck, insert the bit, then use the chuck key to tighten by turning clockwise in each hole.

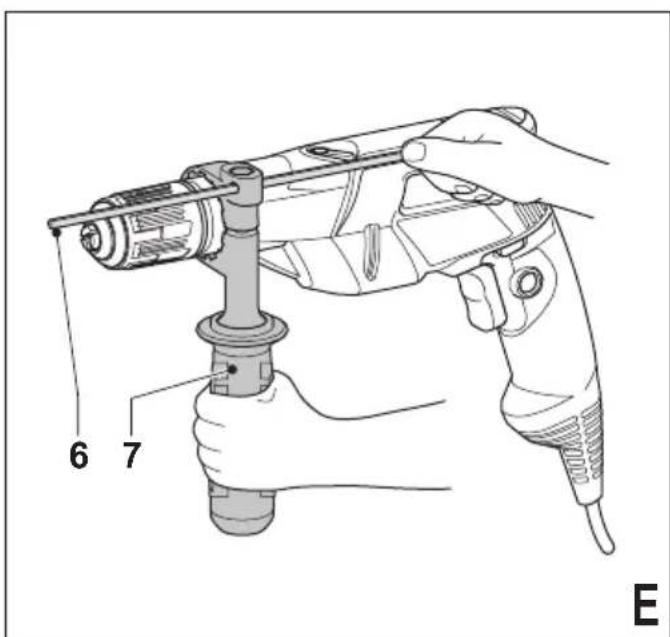

How to set the drilling depth?

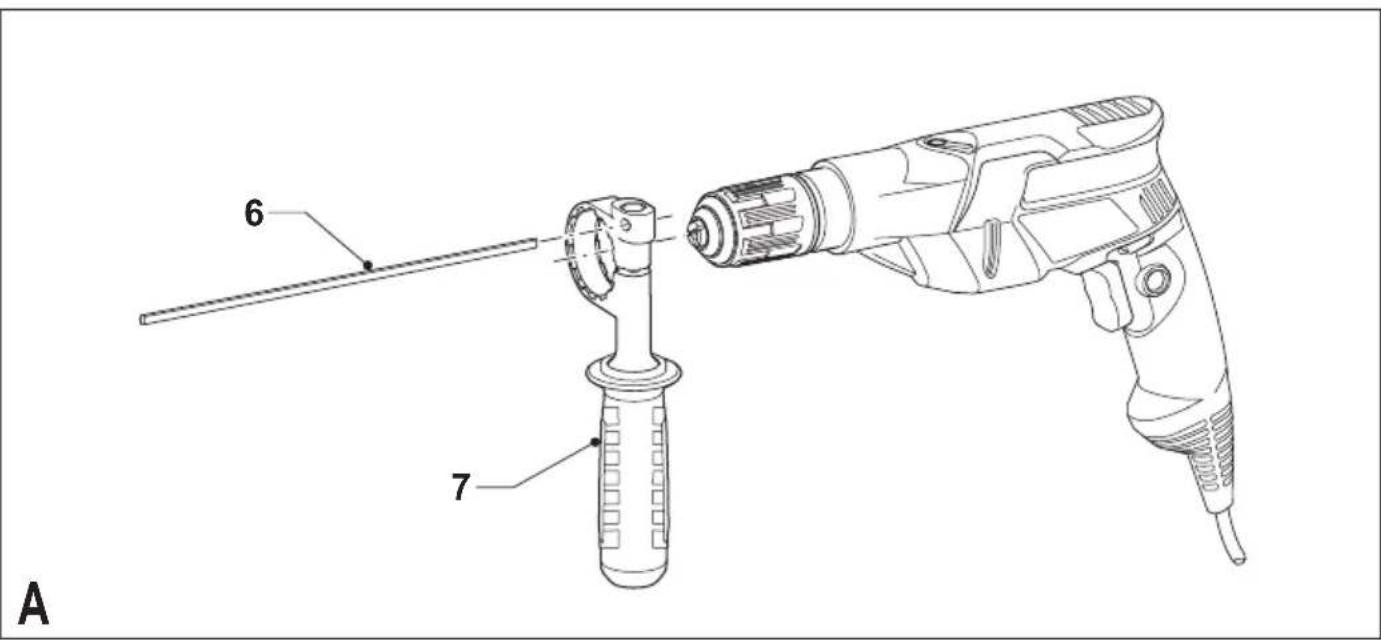

Loosen the side handle by turning it counterclockwise. Position the depth stop at the desired setting, then retighten the side handle by turning clockwise.
How to reverse the rotation direction?
Use the right/left rotation selector. Push it to the left for forward rotation (clockwise) and to the right for reverse rotation (counterclockwise). Never change the rotation direction while the motor is running.
Which drilling mode to use for masonry?
Set the drilling mode selector to position T (hammer) for drilling into masonry. For other materials and screwdriving, use position 1 (normal drilling).
How to clean and maintain the KR702?
Before any maintenance, switch off and unplug the tool. Regularly clean the ventilation slots with a soft brush or dry cloth. Clean the motor compartment with a damp cloth. Do not use abrasive or solvent-based products.
What are the essential safety precautions?

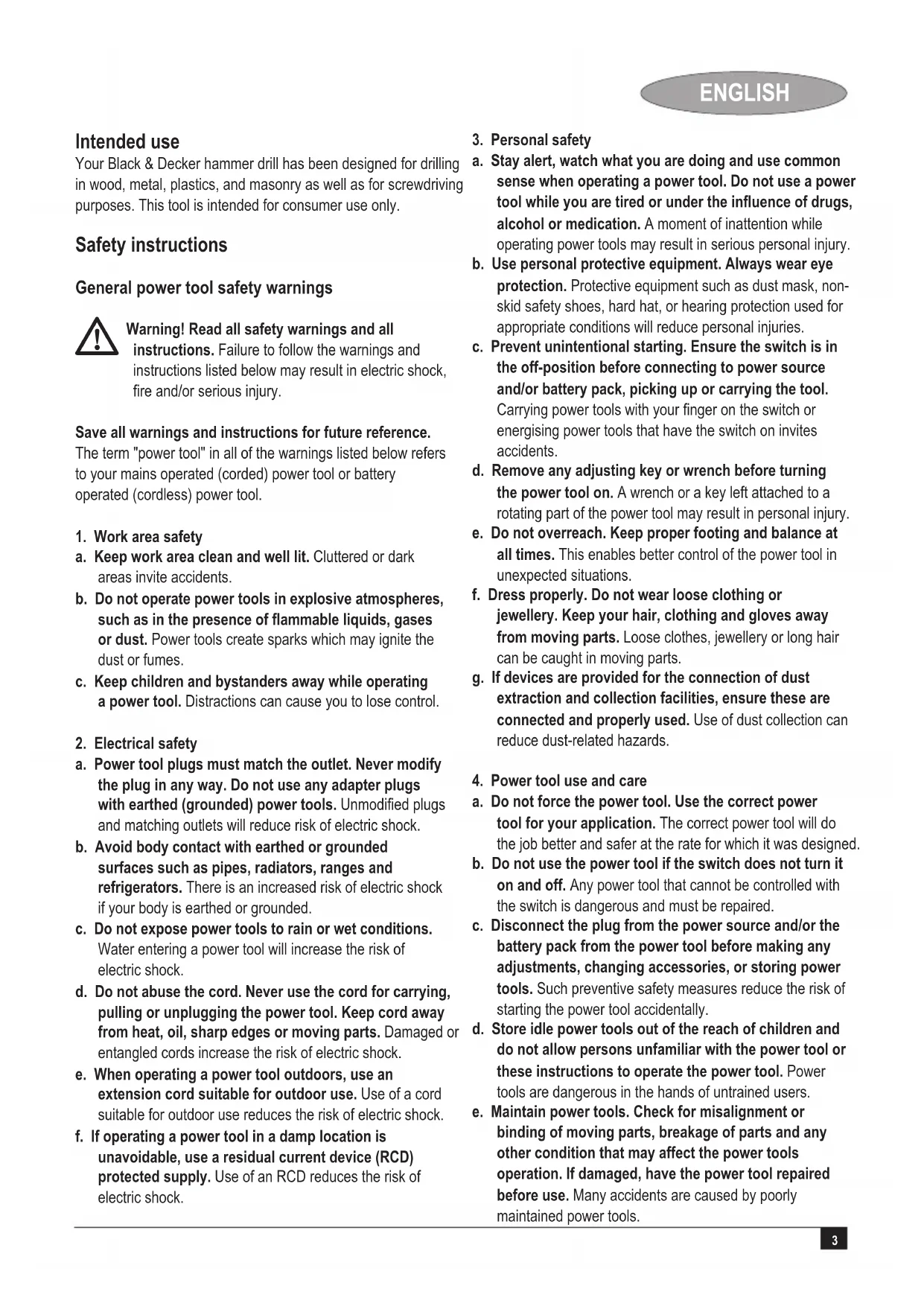

Always wear eye protection and hearing protection. Use the supplied side handle. Hold the tool by insulated gripping surfaces if the accessory may contact hidden cables. Check the location of wires and pipes before drilling.
What materials can be drilled with the KR702?
The KR702 can drill wood (up to 25 mm), metal (up to 13 mm), plastic, and masonry (up to 13 mm). It can also be used as a screwdriver/driver.
What to do if the chuck is stuck or difficult to loosen?

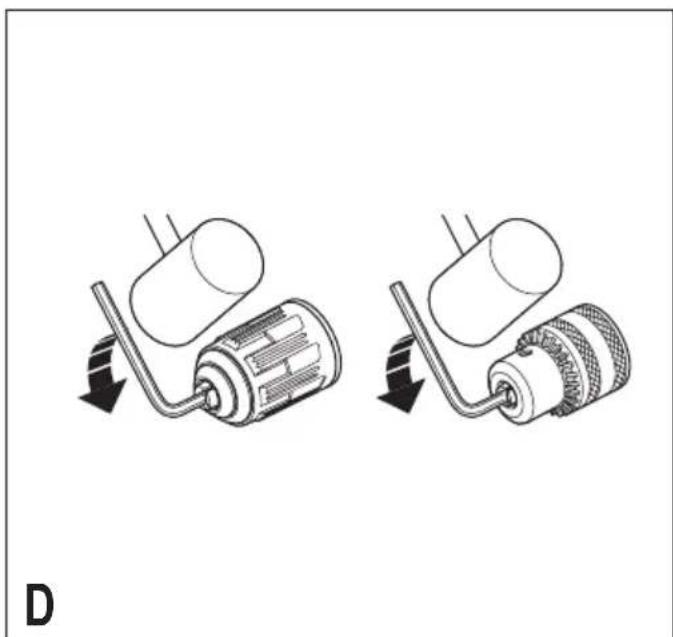

To remove the chuck, open it fully, remove the retaining screw (turn it clockwise), then insert an Allen key into the chuck and tap the key with a hammer to loosen it. Then unscrew the chuck counterclockwise.
Is the KR702 suitable for professional use?
No, this tool is designed for exclusively domestic use. The 24-month warranty does not apply to professional, commercial, or rental use.
How does the variable speed control work?
The speed is controlled by the pressure on the variable speed trigger. Light pressure gives a slow speed, suitable for large diameter bits; heavy pressure gives a fast speed for small bits.
