USER MANUAL IBS930MAT Pelgrim

Instructions for use
Cooker hood

NL Handleiding NL 3 - NL 11

Mounting the cooker hood

Gebrachte pictogrammen - Pictogrammes utilisés Verwendete Symbole - Pictograms used

Belangrijk om te weten - Important à savoir
Wissenswertes - Important information

Tip - Conseil - Tipp - Tip

INHOUD

Uw afzuigkap

	Introduction				4
	Exhaust	systems			4
	Description				5
	Operation				5
Maintenance
	Cleaning				6
	Removing	grease	filters
	Fitting	the	carbon	filter
	LED	lighting				8
Installation
	General				9
	Electric	connection				10
	Mounting the cooker hood	10

Environmental aspects

Disposal of the appliance and packaging 11

Mounting the cooker hood 12

Register your appliance for warranty purposes

We are convinced of the quality of our products. This is why we offer a warranty period of up to 8 years*. All you need to do is register your appliance on pelgrim.nl (when purchased in the Netherlands) and pelgrim.be (when purchased in Belgium).

*Visit www.pelgrim.nl or www.pelgrim.be for full warranty terms and conditions.

Introduction

Congratulations on choosing this Pelgrim cooker hood. This product is designed with simple operation and optimum comfort in mind.

The cooker hood works silently and extracts at maximum efficiency. With this hood, cooking odours are a thing of the past.

First read the separate safety instructions before using the appliance!

Read this user manual thoroughly before you first use the appliance, and store the manual safely for future use.

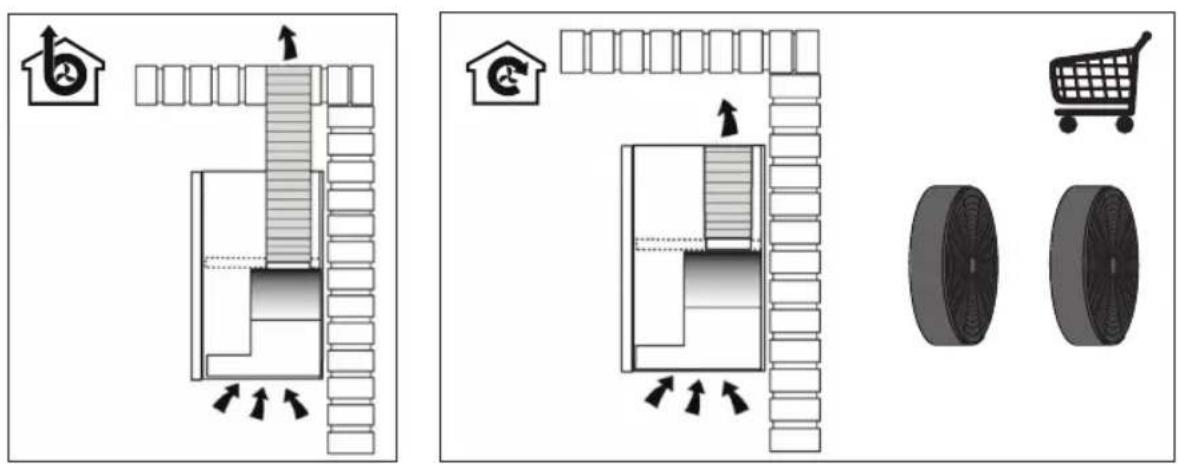

Exhaust systems

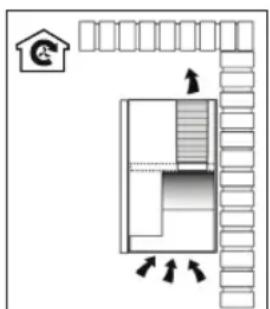

The cooker hood can be connected in two ways:

1. As a cooker hood connected to an exhaust duct. The extracted and filtered cooking vapours are removed to the outdoors.

1. As a recirculation cooker hood. The grease particles and the odour from the extracted cooking vapours are filtered. The extracted air is not removed but is returned to the kitchen. Therefore, you must fit a carbon filter.

Note!

The carbon filter must be ordered separately.

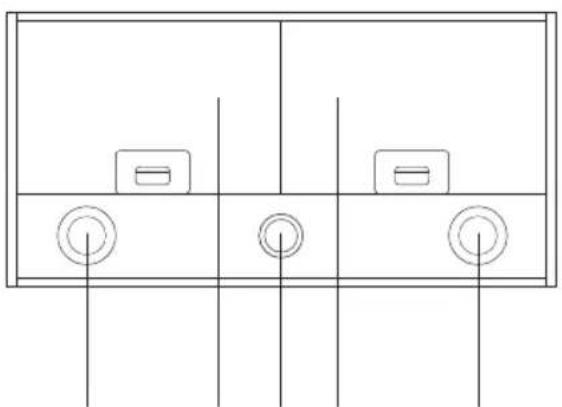

Description

ACBBACD

A. Lighting.
B. Grease filter.
C. Operation (rotary knob); press it to release it from the hood.
D. Glass visor; open the glass visor before using the extractor hood.

Operation

0

Off

	Lighting on
1	Speed 1 / Lighting on
2	Speed 2 / Lighting on
3	Speed 3 / Lighting on

1	Speed 1
2	Speed 2
3	Speed 3

Cleaning

Note! Before each servicing, first disconnect the cooker hood by removing the plug from the wall socket or by switching off the main switch of the residence. The hood must be cleaned regularly, both inside as well as outside (with at least the same regularity as used for cleaning the grease filters). Do not use any products that contain abrasive materials.

Do not use alcohol!

Note! If you do not follow these instructions with regards to the cleaning of the appliance and the cleaning or replacement of the filters, this can lead to fire. It is essential to follow these instructions! The manufacturer is not liable for damage to the motor or damage as a result of fire that is due to improper servicing or not following the above safety requirements.

Cooker hood

Clean the cooker hood with soapy water and a soft cloth. Then treat with clean water. Do not use any aggressive cleaning agents such as soda. The lacquer of the cooker hood will remain in good condition if you rub the lacquer with wax once in a while.

Metal grease filters

Metal filters must be cleaned once per month. Clean the filters by hand with neutral cleaning agents.

The saturation of the filter depends on the intensity of use, the manner of cooking and the regularity with which the grease filters are cleaned.

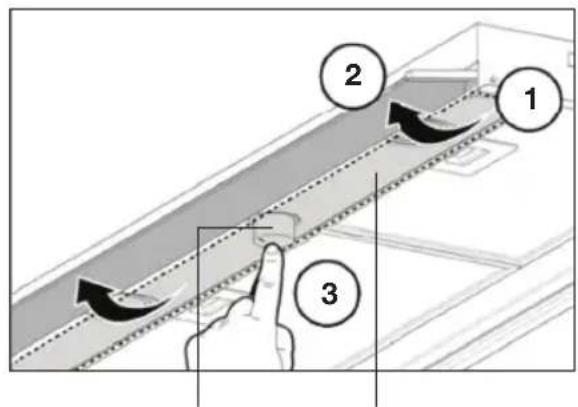

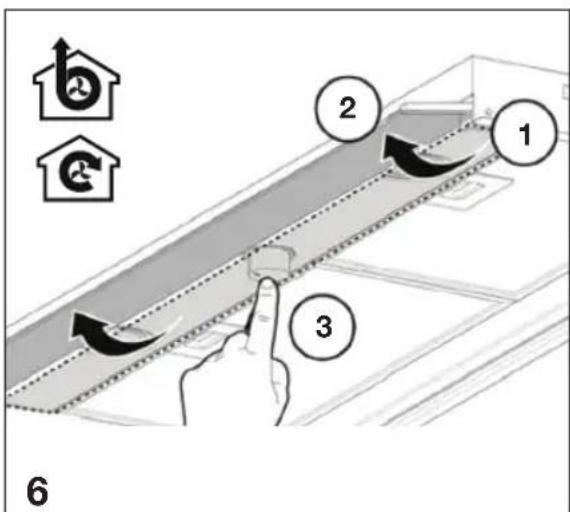

Removing grease filters

1. Switch off the motor and lighting.
2. Open the glass screen completely.
3. Push in the handle of the filter and remove the grease filter.

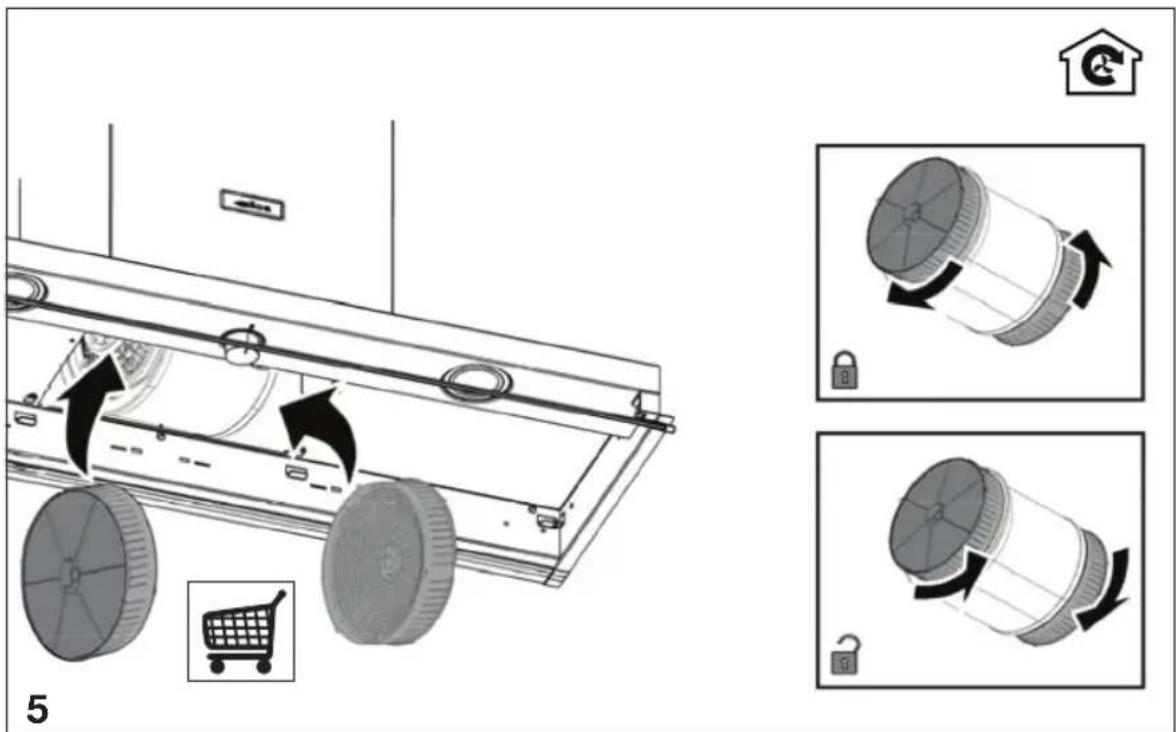

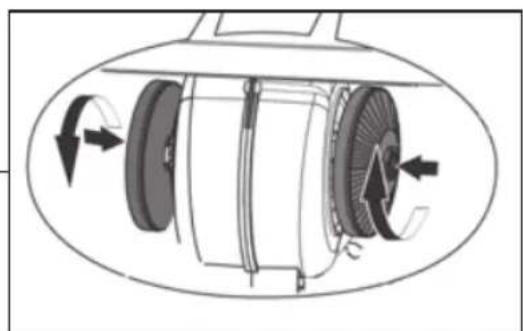

Replacing the carbon filter

Use a carbon filter if the cooker hood is not connected to an exhaust duct.

Centre the carbon filter on the motor frame and turn it to mount it to the motor frame.

Important:

• The saturation of the filter depends on the intensity of use, the manner of cooking and the regularity with which the grease filters are cleaned.
  The carbon filter must be replaced or cleaned at least every six months.
• The regenerable activated carbon filters can be washed by hand or in the dishwasher up to max. 4 times at a maximum temperature of 65^ . The washing cycle must be done without other dishes and without dishwasher detergent. Do not use any cleaning agents!
• Remove excess water. Be careful to avoid damaging the filter. Let the filter dry in the oven for at least 1 hour at a maximum temperature of 80^ . After a maximum of 3 years (or when the filter is damaged), the filter will need to be replaced.
• It is important that the grease filters and the regenerable activated carbon filter are properly dried before installation.

The functioning:

• More noise is produced when a carbon filter is used than when the cooker hood is used with an exhaust vent.
• A carbon filter functions optimally at a lower motor speed. For this reason, avoid speed 3.
• Dispose of the old carbon filter properly, with non-recyclable waste.

LED lighting

LED lighting may only be replaced by a qualified technician.

The lamp in this household appliance is intended exclusively for lighting this appliance. The lamp is not suitable for lighting a household area.

General

This appliance should be connected to the power supply by a recognized fitter who is familiar with, and works according to the correct safety regulations. This appliance meets the European requirements.

Important that you know:

• The minimum distance between the supporting surface for the cooking vessels on the gashob and the lowest part of the range hood must be not less than 65~cm . For use with an electric, ceramic or induction hob, this distance must be at least 55~cm .
• If the cooker hood is to be fitted to an existing duct no other appliances, such as a geyser or heater, may be connected to that same duct.
• Consider local regulations with respect to the ventilation of gas appliances.
• The shorter the duct, and the fewer the bends in it, the better the cooker hood will work.
• Before you start drilling check that there are no installation cables present.
• The connecting pipe for the cooker hood has a diameter of 120, 125 or 150~mm . It is best also to use a flue pipe of the same diameter.
• The installation material supplied with this range hood is designed for fixing to reinforced concrete or masonry walls. For some types of walls you may need special plugs and screws.

INSTALLATION

Electric connection

Electric connection

The appliance has been manufactured as a class II, therefore no earth cable is necessary.

Make sure the supply voltage ratings correspond with those stated on the appliance data plate. The connection to the mains is carried out as follows:

BROWN = phase L

BLUE = phase N

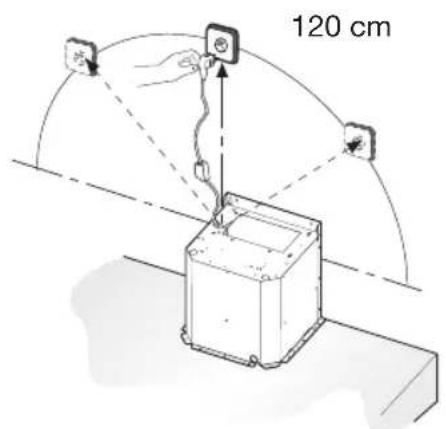

This cooker hood has been provided with a power plug. When installing the hood, make sure that this plug remains accessible. We recommend installing the wall socket out of view, behind the chimney cover.

Attention:

If you want to make a fixed connection, ensure that a multi-pole switch with a distance between contacts of 3mm is installed in the supply cable.

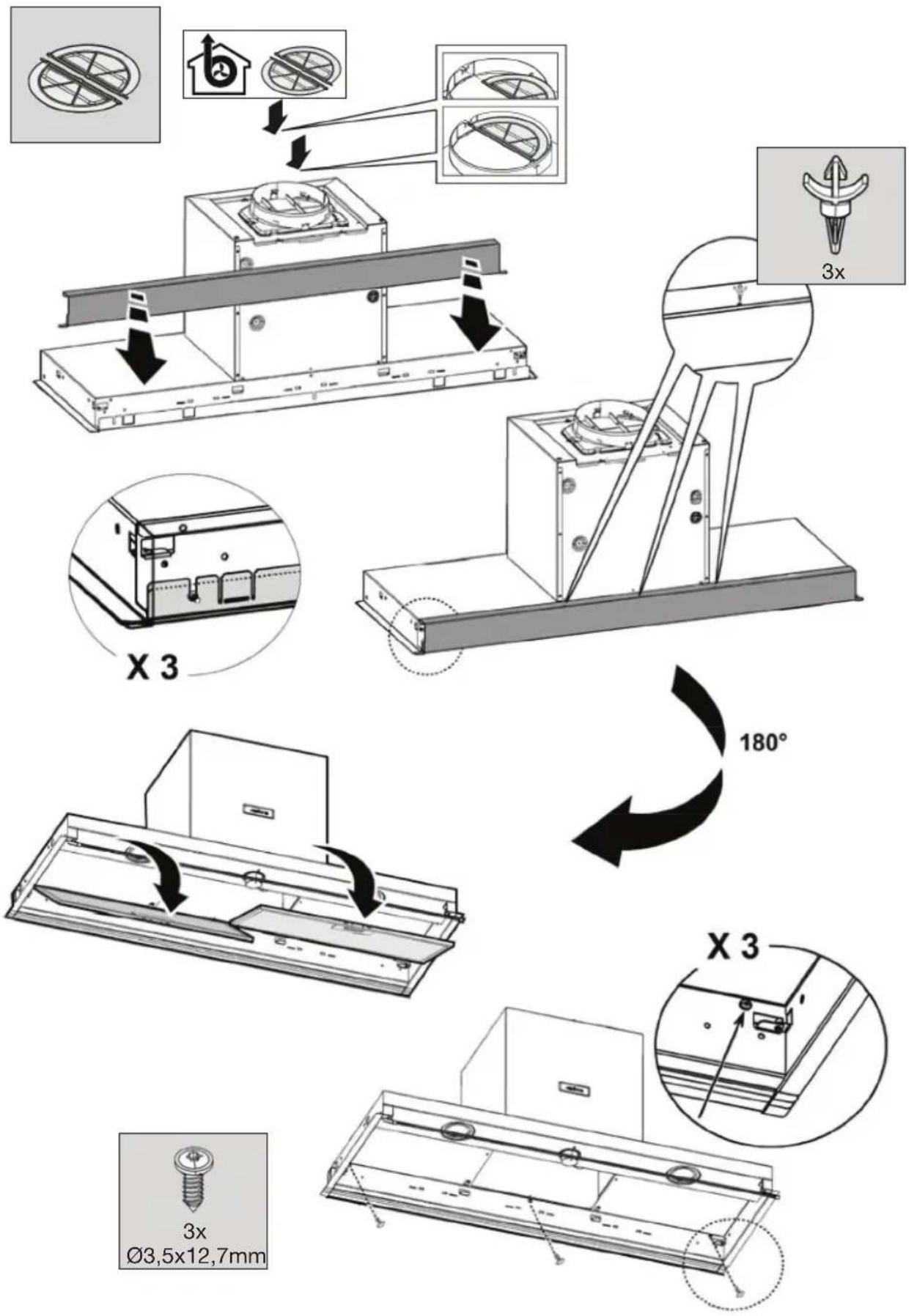

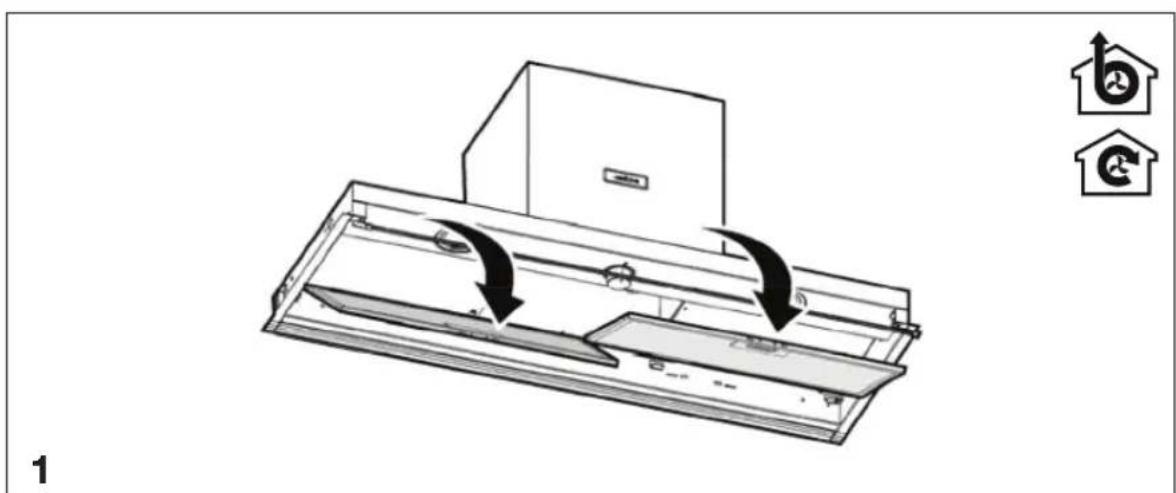

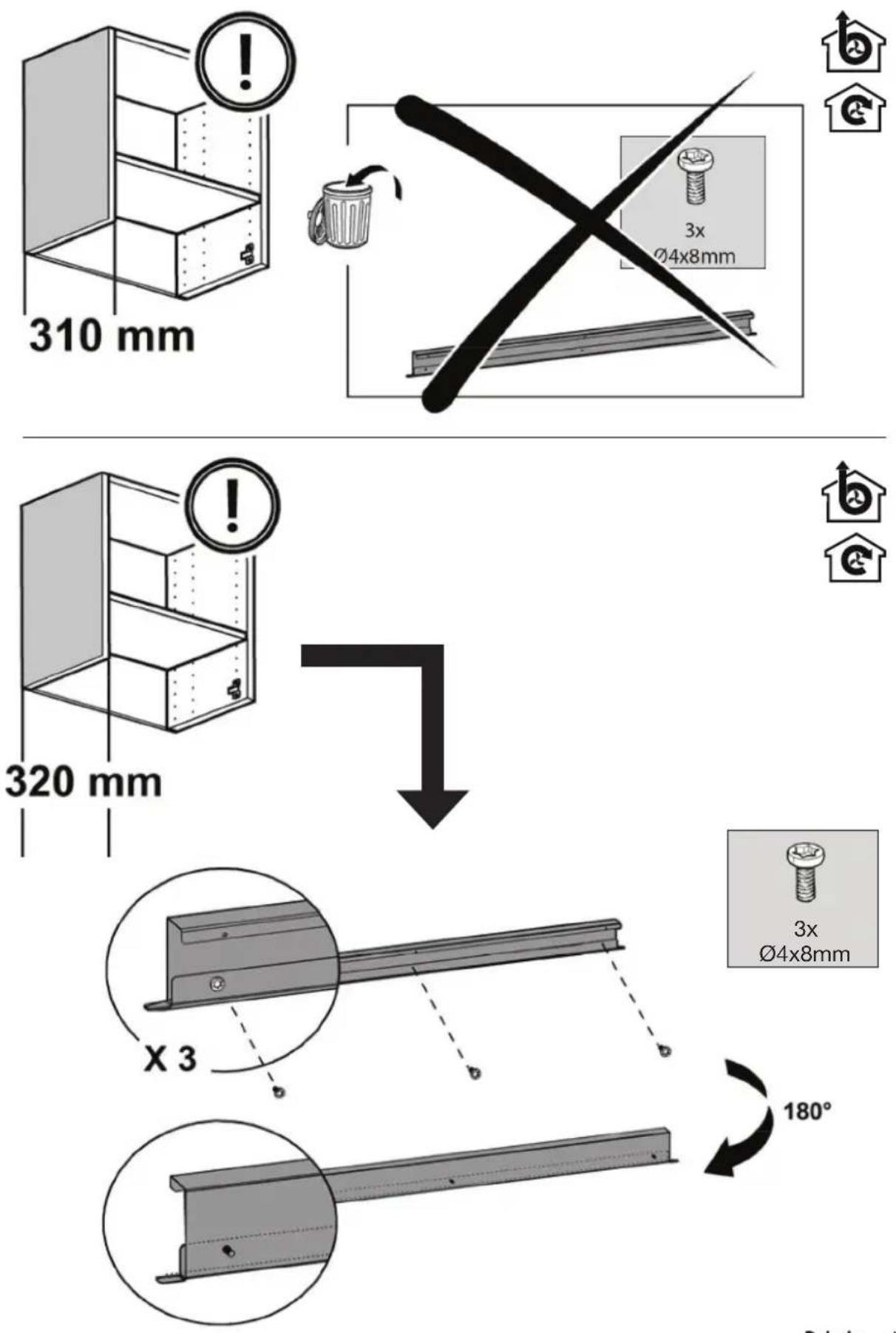

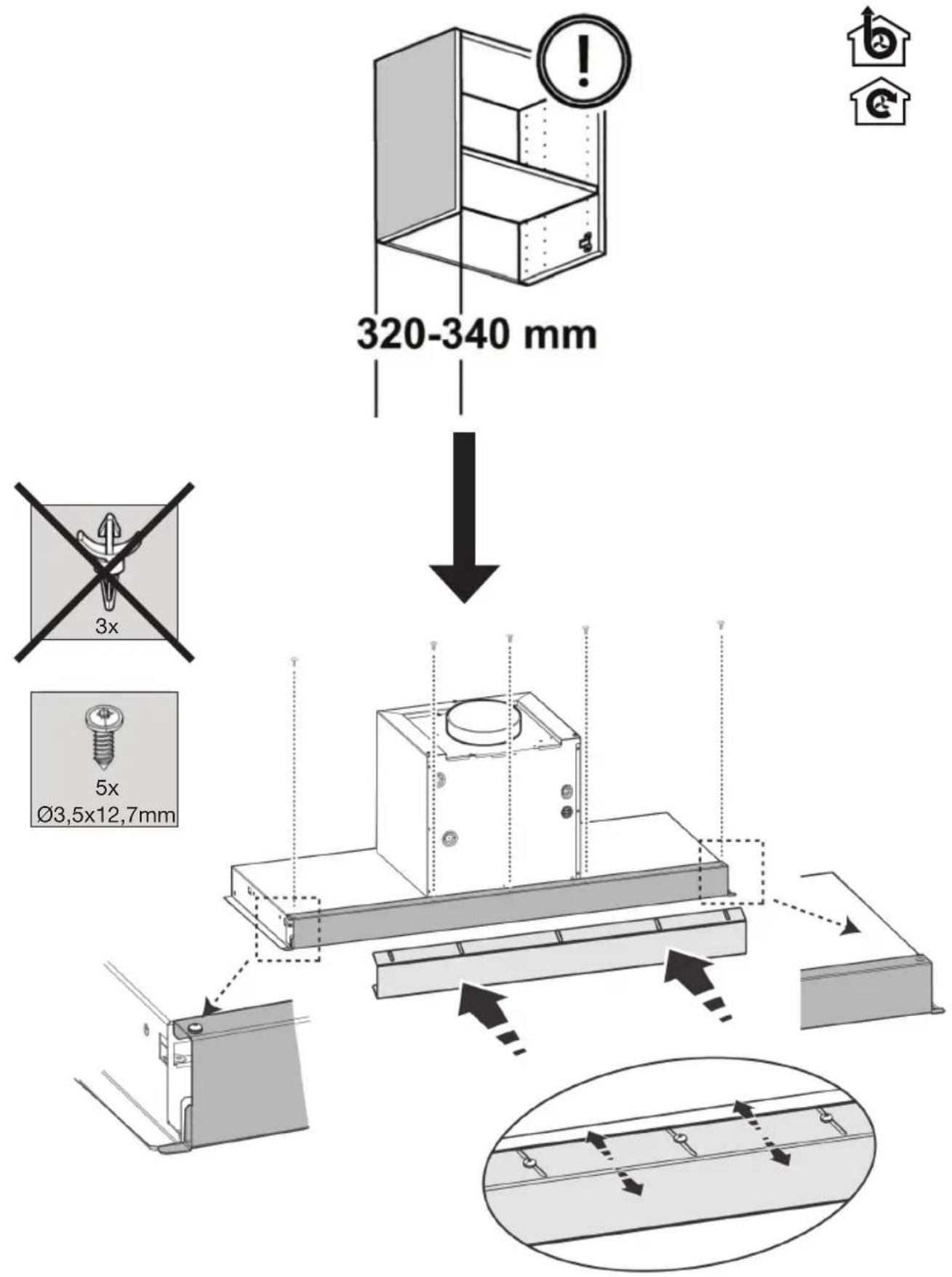

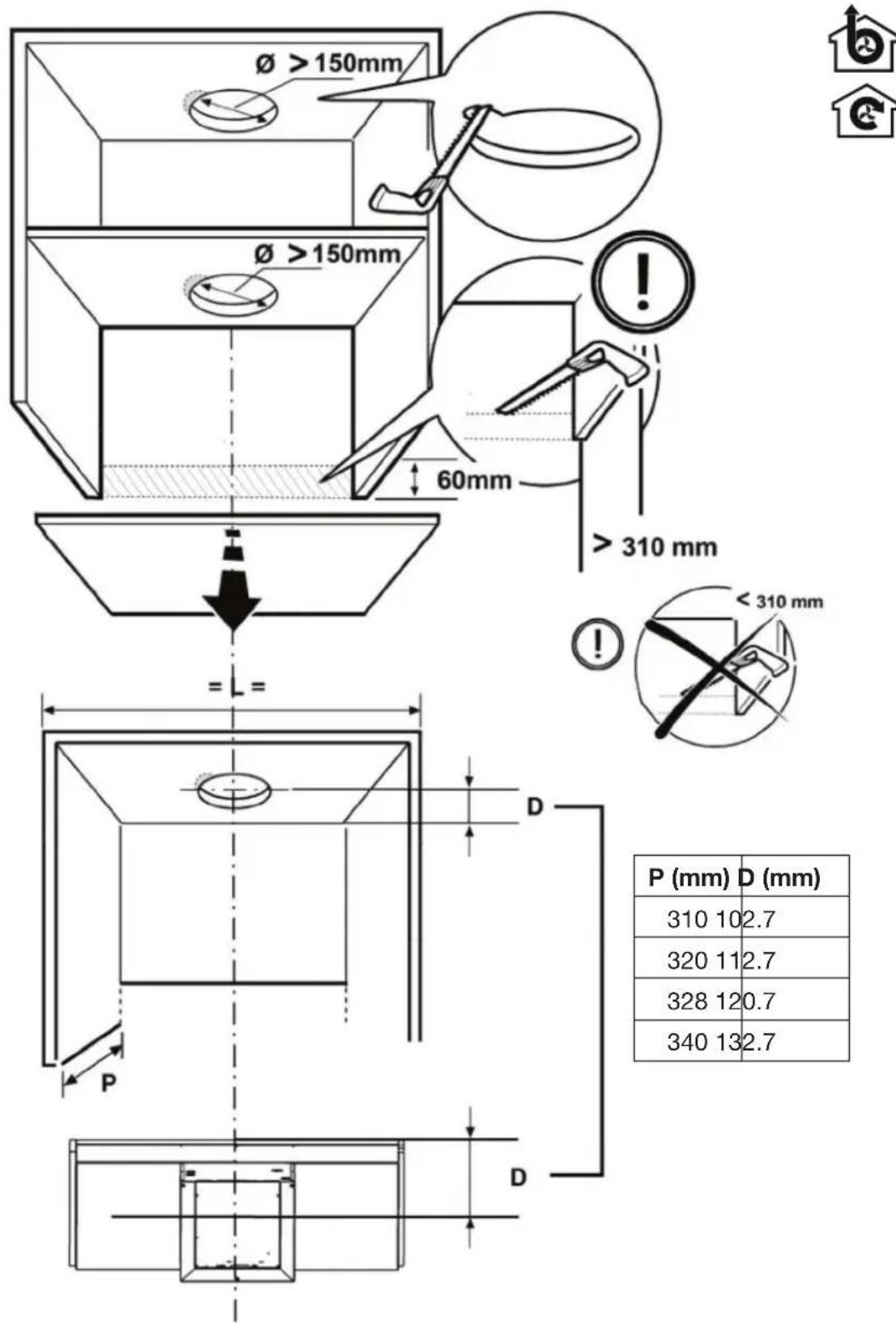

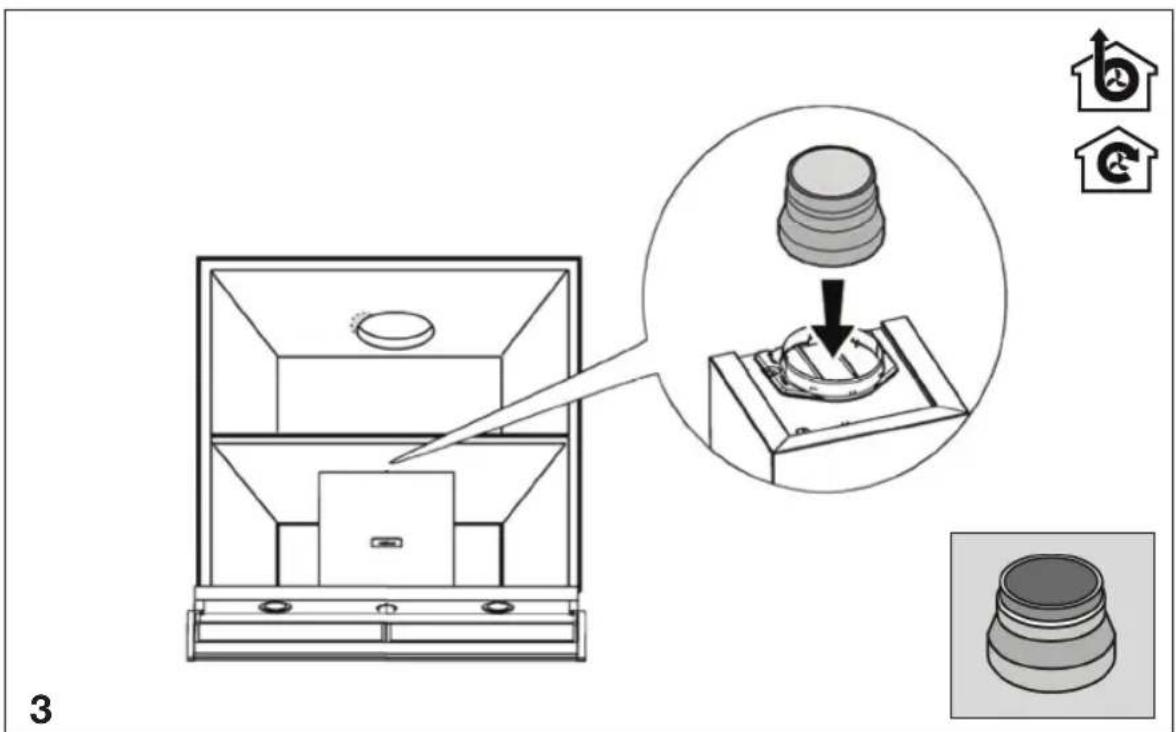

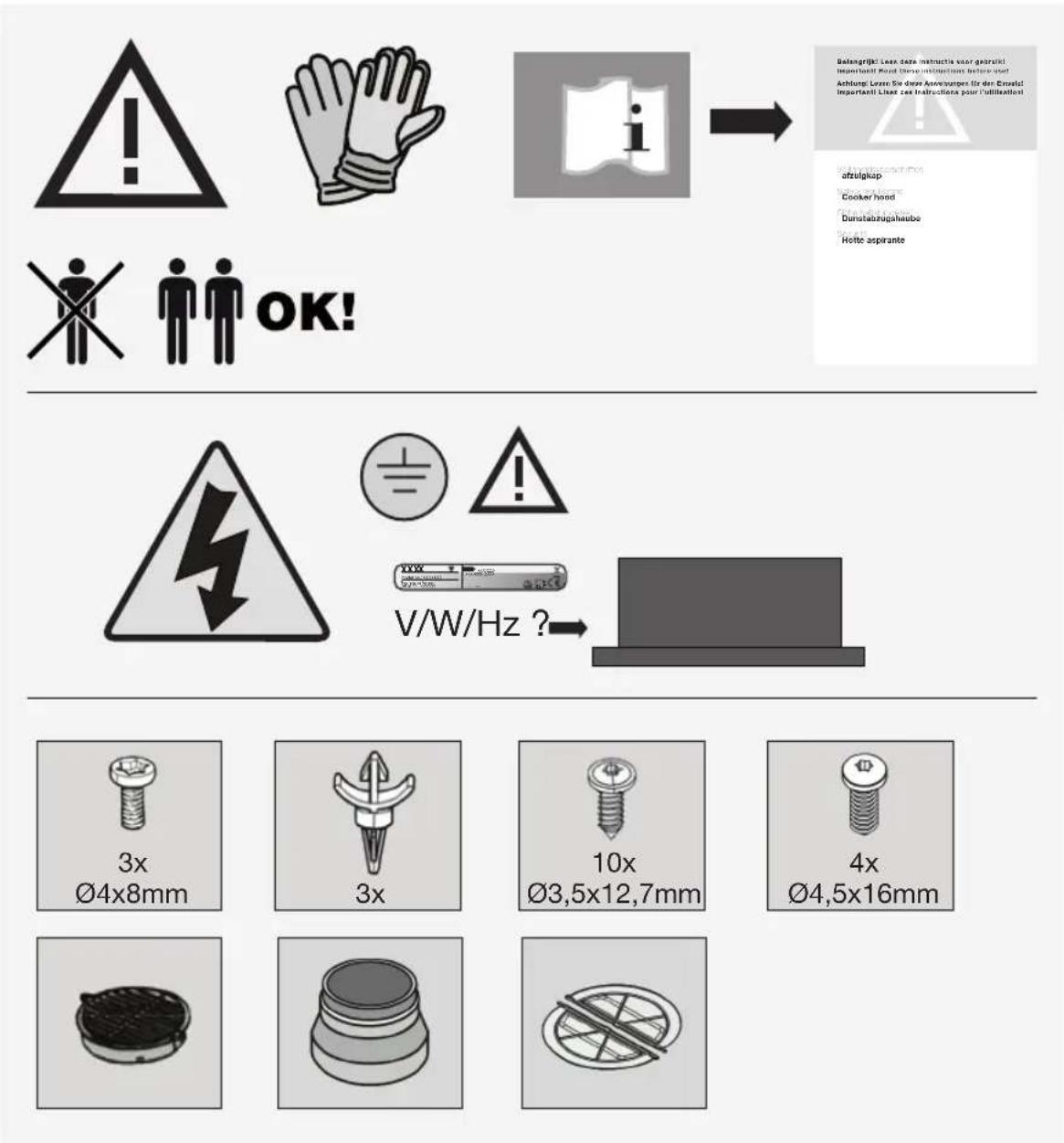

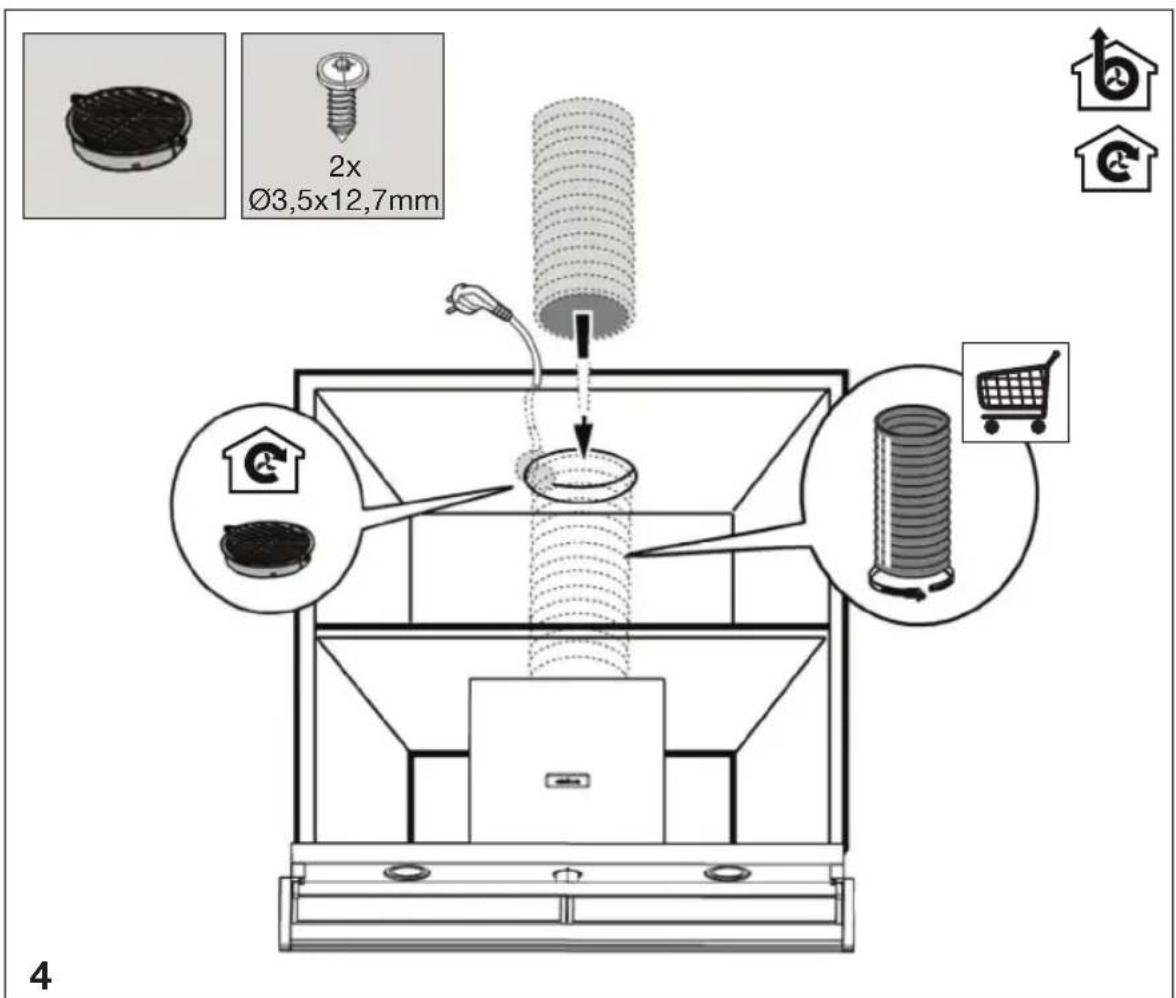

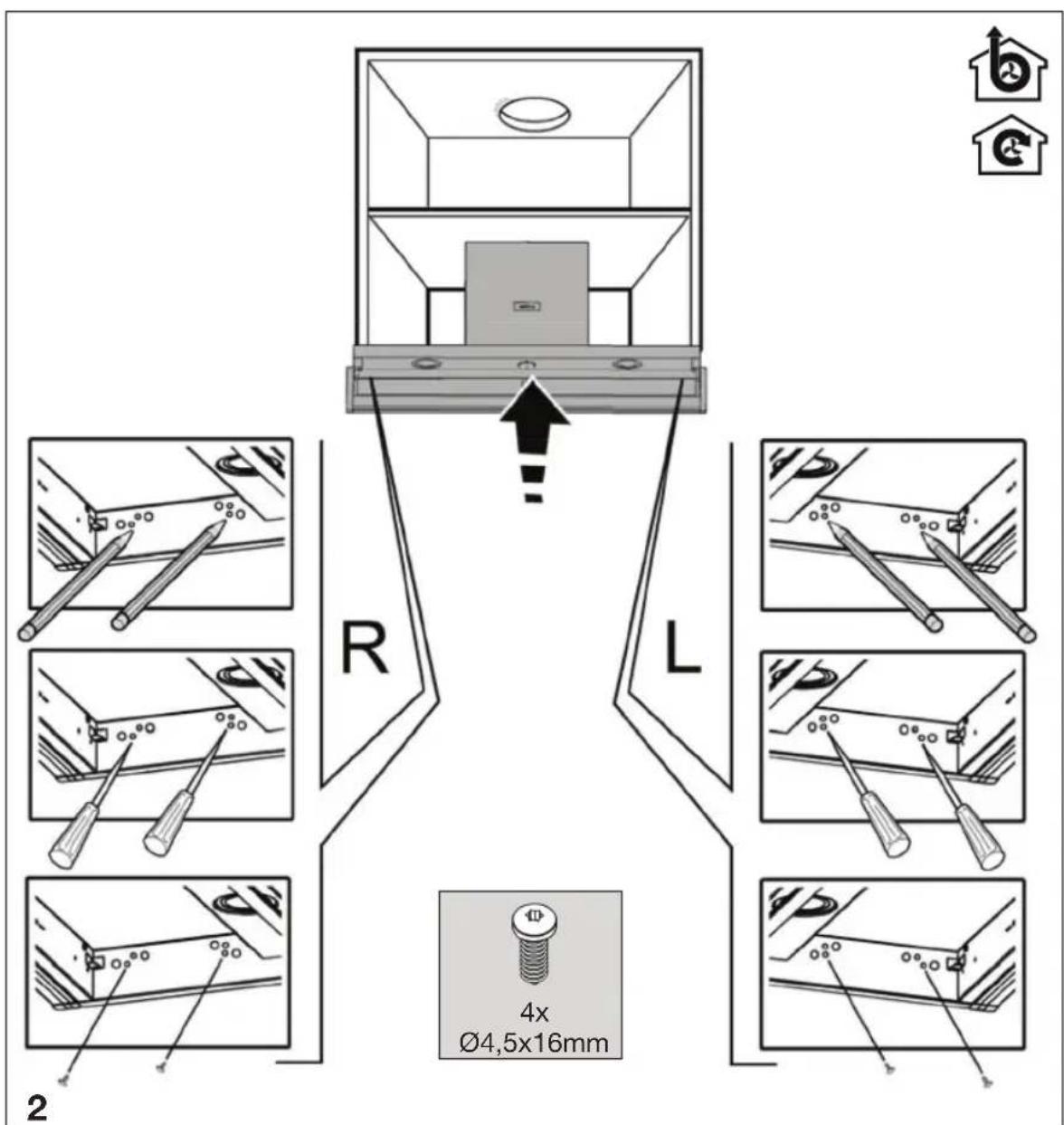

Mounting the cooker hood

The last pages of this manual show the steps for mounting the cooker hood.

Disposal of the appliance and packaging

This product is made from sustainable materials. However, the appliance must be disposed of responsibly at the end of its useful life. The government can provide you with information about this.

The appliance packaging can be recycled. The following materials have been used:

cardboard;
polyethylene foil (PE);
CFC-free polystyrene (hard PS foam).

Disposethestematerialsresponsiblyinaccordancewithlegalprovisions.

The product has a pictogram of a crossed-out waste container. This indicates that household appliances must be disposed of separately. This means that the appliance may not be processed via the regular waste flow at the end of its useful life. You should take it to a special municipal waste depot or a sales outlet that offers to do this for you.

Collecting household equipment separately prevents harm to the environment and public health. The materials used in manufacturing this appliance can be recycled, which provides considerable savings in energy and raw materials.

Declaration of conformity

We hereby declare that our products comply with the relevant European directives, standards and regulations as well as all requirements referred to in the standards.

INSTALLATIE - INSTALLATION

INSTALLATIE - INSTALLATION

INSTALLATIE - INSTALLATION

INSTALLATIE - INSTALLATION

INSTALLATIE - INSTALLATION
