USER MANUAL NAV8805EWW WHIRLPOOL

Important Safety Instructions 1-2

Operating Tips .... 3-4

Using the Controls

2 Speed Combo Models ..... 5-6

3 Speed Combo Models ..... 7-8

Electronic Control Models .....9-11

Special Features ..... 12-13

Care & Cleaning .... 13

Troubleshooting ..... 14

Service & Warranty ..... 15

Guide d'utilisation

Installer: Please leave this guide with this appliance.

Consumer: Please read and keep this guide for future reference. Keep sales receipt and/or canceled check as proof of purchase.

Model Number ____

Serial Number ____

Date of Purchase

If you have questions, call:

Customer Assistance

1-800-688-9900 U.S.A.

1-800-688-2002 Canada

(Mon.-Fri., 8am-8pm Eastern Time)

Internet: http://www.amana.com

U.S. Customers using TTY for deaf, hearing impaired or speech impaired, call 1-800-688-2080.

In our continuing effort to improve the quality and performance of our appliances, it may be necessary to make changes to the appliance without revising this guide.

For service information, see page 15.

What You Need to Know About Safety Instructions

Warning and Important Safety Instructions appearing in this guide are not meant to cover all possible conditions and situations that may occur. Common sense, caution and care must be exercised when installing, maintaining or operating appliance.

Always contact the manufacturer about problems or conditions you do not understand.

Recognize Safety Symbols, Words, Labels

WARNING

WARNING – Hazards or unsafe practices which COULD result in severe personal injury or death.

CAUTION

CAUTION – Hazards or unsafe practices which COULD result in minor personal injury.

WARNING! FIRE HAZARD

Do not add gasoline, dry-cleaning solvents, or other flammable or explosive substances to the wash water. These substances give off vapors that could ignite or explode.

Do not wash articles which have been previously cleaned, washed, soaked, or spotted with gasoline, dry-cleaning solvents, oil, waxes, chemical solvents, alcohol, turpentine, or other flammable or explosive materials. These substances will be retained in articles, and articles which still contain these flammable or explosive substances give off vapors that could ignite or explode.

Observe these precautions when using cleaning fluids, spot or stain removers, etc. These products should be labeled “nonflammable.” Use according to manufacturers directions in a well ventilated area or outdoors. Thoroughly rinse articles by hand before placing them in the washer. Some of these products – rust removers for example – will damage components and the finish of the washer.

Keep area around and underneath washer free from the accumulation of combustible materials, such as lint, paper, rags, gasoline, and all other flammable vapors and liquids.

HYDROGEN GAS IS EXPLOSIVE! Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. If the hot water system has not been used for such a period, before using the washer, turn on all the hot water faucets and let the water flow from each faucet for several minutes. This will release any accumulated hydrogen gas. As this gas is flammable, do not smoke or use an open flame during this time.

Recent studies have shown that if vegetable oil contaminated materials are incompletely washed, a carry-over and buildup of the oil may contribute to a chemical reaction (spontaneous combustion) that could cause a load to catch fire by itself. This would be more likely to happen if the load were left in the dryer after tumbling stopped or if items were folded and stacked while warm.

WARNING

To reduce the risk of fire, explosion, electric shock, or personal injury when using your washer, follow basic safety precautions, including the following:

1. Read all instructions before using the appliance.
2. As with any equipment using electricity and having moving parts, there are potential hazards. To use this appliance safely, the operator should become familiar with the instructions for operation of the appliance and always exercise care when using it.
3. Do not install or store this appliance where it will be exposed to the weather.
4. Install and level washer on a floor that can support the weight.

5. This appliance must be properly grounded. Never plug the appliance cord into a receptacle which is not grounded adequately and in accordance with local and national codes. See installation instructions for grounding this appliance.

6. To avoid the possibility of fire or explosion:

a. Do not wash items that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, other flammable or explosive substances as they give off vapors that could ignite or explode. Hand wash and line dry any items containing these substances.

Any material on which you have used a cleaning solvent, or which is saturated with flammable liquids or solids, should not be placed in the washer until all traces of these liquids or solids and their fumes have been removed.

These items include acetone, denatured alcohol, gasoline, kerosene, some liquid household cleaners, some spot removers, turpentine, waxes and wax removers.

b. Do not add gasoline, dry-cleaning solvents, or other flammable or explosive substances to the wash water. These substances give off vapors that could ignite or explode.

c. Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using a washing machine or combination washer-dryer, turn on all hot water faucets and let the water flow from each for several minutes. This will release any

accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.

d. Do not wash or dry items that are soiled with vegetable or cooking oil. These items may contain some oil after laundering. Due to the remaining oil, the fabric may smoke or catch fire by itself.

1. Do not reach into the appliance if the tub or agitator is moving.

2. Do not allow children or pets to play on, in, or in front of the appliance. Close supervision is necessary when the appliance is used near children and pets.

3. Do not tamper with controls.

4. Do not repair or replace any part of the appliance or attempt any servicing unless specifically recommended in published user-repair instructions that you understand and have the skills to carry out.

5. Unplug power supply cord before attempting to service your washer. Service is to be done only by qualified service personnel.

6. The agitator should not be removed. If the agitator is removed, it must be replaced by pushing down completely and the locking screw tightened before the washer is operated.

7. Keep all laundry aids such as detergents, bleach, etc., out of the reach of children, preferably in a locked cabinet. Use laundry aids only as directed by the manufacturer. Observe all warnings on container labels.

8. Keep the area around and underneath washer free from the accumulation of combustible materials, such as lint, paper, rags, gasoline, and all other flammable vapors and liquids.

9. Do not use chlorine bleach and ammonia or acids (such as vinegar or rust remover) in the same wash. Hazardous fumes can form.

10. Do not machine wash fiberglass materials. Small particles can stick to fabrics washed in following loads and cause skin irritation.

11. For flame resistant finishes - follow garment manufacturer's instructions carefully. Improper laundering could remove the finish.

12. Before the appliance is removed from service or discarded, remove the door to the washing compartment.

13. Inlet hoses are subject to damage and deterioration over time. Check the hoses periodically for bulges, kinks, cuts, wear or leaks and replace them every five years.

Operating Tips

Detergent

• Use either liquid or granular laundry detergent. For best results, be sure detergent is added to the washer BEFORE the load and be sure the wash water is above 60° F.
• Use the correct amount of detergent for the load size, soil level and water conditions. Use more detergent if you have hard water and very soiled loads.
  If you have soft water or a lightly soiled load, use less detergent. (See manufacturer's instructions.)
• Wipe up any detergent spills on the washer.

Loading

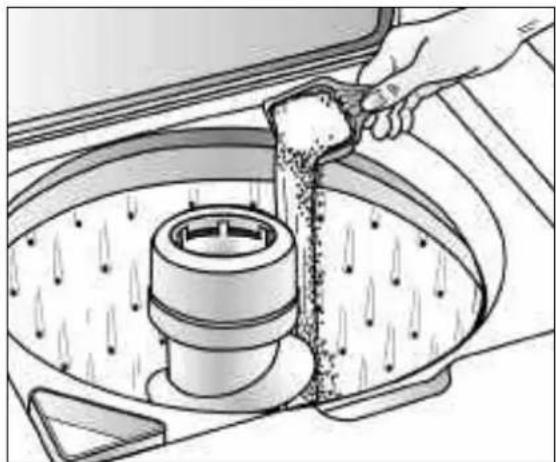

• For best results add the detergent to the washtub before adding the load.
• Put dry, unfolded clothes loosely in the tub, up to the top row of holes for a maximum load.

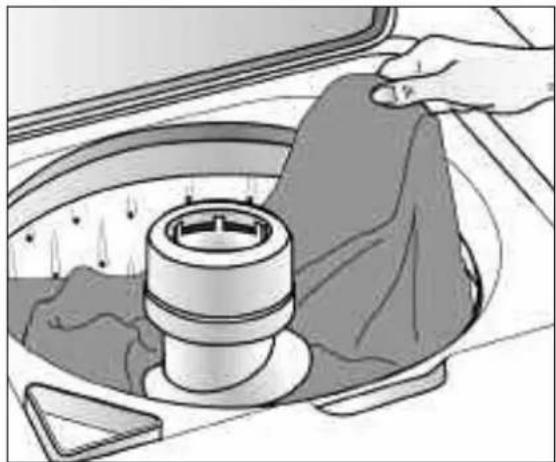

• Do not wrap large items like sheets around the agitator.
• Mix large and small items for best circulation. Wash bulky items like blankets separately.
• When laundering wrinkle free items or items of delicate construction, washable woolens or loosely knit items, never use less than the MEDIUM water level setting. This will minimize shrinkage, wrinkling and pulling of seams.
• Close lid carefully to avoid slamming.

Illustration of a hand pouring granular material into a circular tank with a lid, showing liquid flow (no text or symbols)

Illustration of a hand cleaning a kitchen sink with a cloth and cloth cover (no text or symbols)

Operating Tips

Additional Tips

• During the spin, it is possible for the load to become unevenly distributed in the tub. If this happens, push in the control dial, open the lid, redistribute the load, close the lid and restart the washer. The spin will resume at the point it was interrupted.
• The washer will pause briefly throughout each cycle. These pauses are normal.

- This washer is designed so that it will not agitate or spin when the lid is open. It will, however, fill with the lid open so water is available for pretreating stains or diluting fabric softener.

- If you open the lid during a spin cycle, the washer will stop. When the lid is closed and the washer is restarted, the washer will continue the cycle at the point it was interrupted.

Heavy Duty - Lifetime Tub - Super Capacity Plus - 10 Cycles - 2 Speed Combo

Medium Large Small Super Reset Load Size Water Level

Warm Warm Warm Cold Hot Cold Cold Cold Temperature Wash/Rinse

STEP 1

Select Water Level

Determine the selected setting based on clothes load size. Selection should provide sufficient water to permit clothes to circulate freely during agitation.

It may become necessary, due to bulky fabrics, to adjust the water level after agitation begins. To adjust the water level, turn the control to reset and then back to the desired setting.

WATER LEVEL SETTING	LOAD SIZE
Small	1/4 - 1/3
Medium	1/3 - 1/2
Large	1/2 - 2/3
Super	2/3 - Full

Note: Items must circulate freely for best results.

STEP 2

Select Wash/Rinse Temperature

Your washer gives you a choice of hot, warm or cold water for washing and cold or warm water (select models) for rinsing. Use the chart below as a guide.

WASH/RINSE TEMPS	LOAD TYPE
Hot/Cold	White and heavily soiled, color-fast items.
Warm/Warm	Moderately soiled, colored items.
Warm/Cold	Moderately soiled, colored items; most permanent press items.
Cold/Cold	Brightly colored, lightly soiled items; washable woolens.

Note: In wash water temperatures below 60^ F, detergents do not dissolve well or clean well. Care labels define cold water as up to 85^ F.

STEP 3

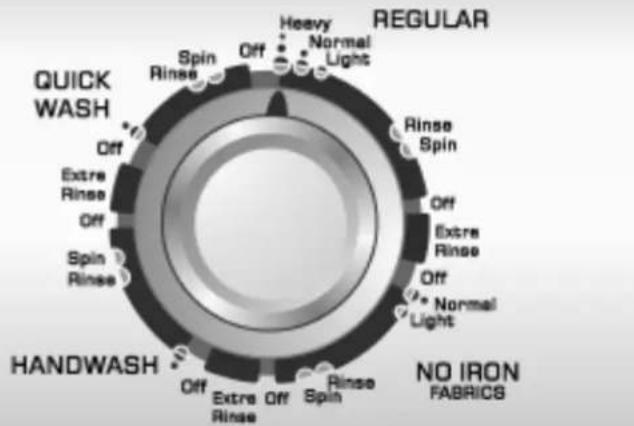

Select Cycle

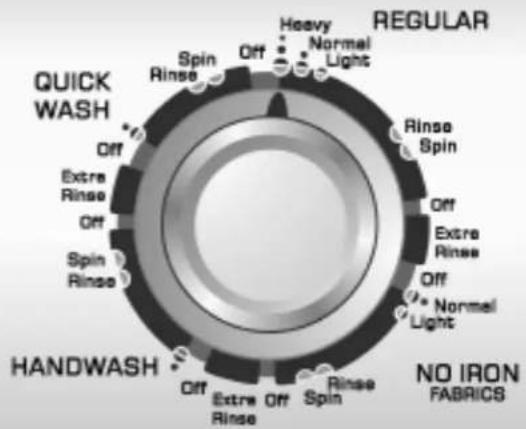

To select a cycle, push the control dial in (off position) and turn it to the right (clockwise) until the pointer is at the soil level needed for the wash load in the Regular, Handwash or No Iron Fabrics cycles.

Regular Cycle

Provides normal agitation and normal spin speeds to wash cottons and heavily soiled items. For maximum cleaning, set the dial at Extra Heavy.

No Iron Fabrics Cycle

Provides normal agitation and normal spin speeds with a spray rinse to reduce wrinkling.

Handwash Cycle

Provides intermittent agitation and soak for delicates and knits.

STEP 4

Pull Control Dial Out to Start

You may stop the washer at any time by simply pushing the control dial in. Therefore it is possible to obtain a non-agitated soak or to shorten, skip or repeat any part of a cycle. The control dial must be pushed in (off position) when you change the setting.

Note: Do not attempt to turn the control dial counterclockwise. Damage to the timer will result.

STEP 1

Select Water Level

Determine the selected setting based on clothes load size. Selection should provide sufficient water to permit clothes to circulate freely during agitation.

It may become necessary, due to bulky fabrics, to adjust the water level after agitation begins. To adjust the water level, turn the control to reset and then back to the desired setting.

WATER LEVEL SETTING	LOAD SIZE
Mini	1/4 Full
Small	1/4 - 1/3
Medium	1/3 - 1/2
Large	1/2 - 2/3
Super	2/3 - Full

Note: Items must circulate freely for best results.

STEP 2

Select Wash/Rinse Temperature

Your washer gives you a choice of hot, warm or cold water for washing and cold or warm water (select models) for rinsing.

WASH/RINSE TEMPS	LOAD TYPE
Hot/Cold	White and heavily soiled, color-fast items.
Warm/Warm	Moderately soiled, colored items.
Warm/Cold	Moderately soiled, colored items; most permanent press items.
Cold/Cold	Brightly colored, lightly soiled items; washable woolens.

Note: In wash water temperatures below 60^ F, detergents do not dissolve well or clean well. Care labels define cold water as up to 85^ F.

Heavy Duty - Lifetime Tub - Super Capacity Plus - 13

Small Medium Large Mini Super Reset Load Size Water Level

Warm Warm Warm Cold Hot Cold Cold Cold Temperature Wash/Rinse

STEP 3

Select Cycle

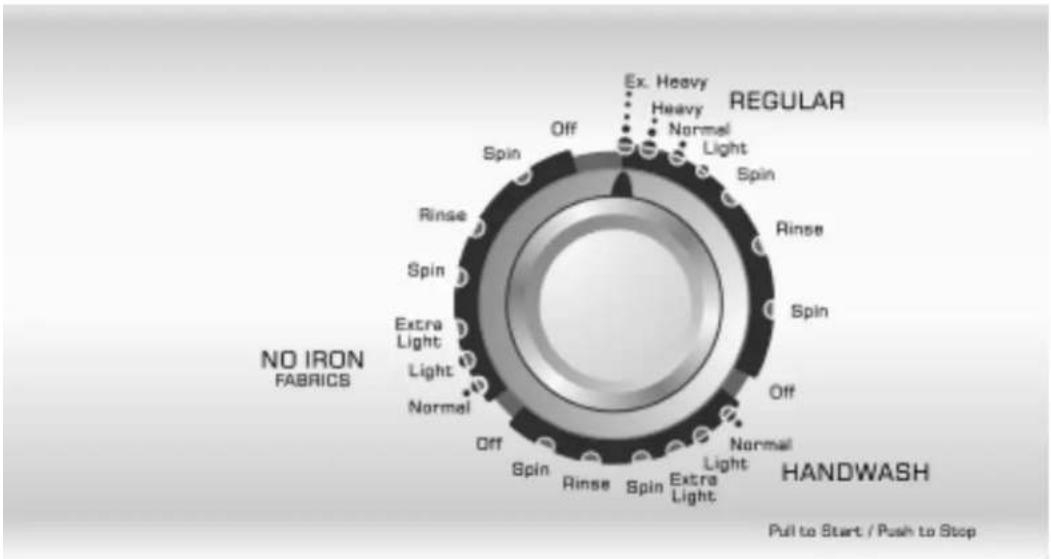

To select a cycle, push the control dial in (off position) and turn it to the right (clockwise) until the pointer is at the soil level needed for the wash load in the Regular, Handwash, No Iron Fabrics or Quick Wash cycles.

Regular Cycle

Provides normal agitation and normal spin speeds to wash cottons and heavily soiled items. For maximum cleaning, set the dial at Heavy.

No Iron Fabrics Cycle

Provides normal agitation and normal spin speeds with a spray rinse to reduce wrinkling.

Handwash Cycle

Provides intermittent agitation and soak for delicates and knits.

Quick Wash Cycle

Provides normal agitation and normal spin speeds. Use to quickly clean small, lightly soiled loads or to refresh items.

Cycles - 3 Speed Combo

Circular button with a stylized pen icon, labeled 'On' and 'Off' (no additional text or symbols)

Extra Rinse

Pull to Start / Push to Stop

STEP 4

Select Options (if desired)

Extra Rinse

When the switch or knob is in the On position, an additional rinse at the end of the Regular, No Iron Fabrics and Handwash cycles is provided to more completely remove laundry additives, suds, perfumes, etc.

STEP 5

Pull Control Dial Out to Start

You may stop the washer at any time by simply pushing the control dial in. Therefore it is possible to obtain a non-agitated soak or to shorten, skip or repeat any part of a cycle. The control dial must be pushed in (off position) when you change the setting.

Note: Do not attempt to turn the control dial counterclockwise. Damage to the timer will result.

Getting Started

1. Add detergent and additives to the washer.
2. Load the washer.
3. Close the lid.
4. Select the appropriate cycle and options for the load.
5. Press the Cycle Selector dial.
6. The Fill indicator light will illuminate and the washer will start to fill.

Note: The lid must be completely closed in order to operate the washer controls.

STEP 1

Select Water Level

Determine the selected setting based on clothes load size. Selection should provide sufficient water to permit clothes to circulate freely during agitation.

It may become necessary, due to bulky fabrics, to adjust the water level after agitation begins. To adjust the water level, turn the Infinite Water Level control to reset and then back to the desired setting.

WATER LEVEL SETTING	LOAD SIZE
Small	1/4 - 1/3
Medium	1/3 - 1/2
Large	1/2 - 2/3
Super	2/3 - Full

Heavy Duty - Lifetime Stainless Tub - Super Capacity

Small Super Reset

Infinite Winter Level

A.T.C. Cold Cold A.T.C. Warm Cold A.T.C. Hot Cold Cold Cold

Temperature Wash/Rinse Automatic Temperature Control

STEP 2

Select Wash/Rinse Temperature

Your washer gives you a choice of hot, warm or cold water for washing and cold water or warm water (select models) for rinsing. Use the chart below as a guide.

Automatic Temperature Control (A.T.C.) provides the optimal wash water temperature for cleaning. To save energy, this washer will regulate wash water temperatures by mixing hot and cold water to reach the proper water temperature.

WASH/RINSE TEMPS	LOAD TYPE
Cold/Cold(select models)	Brightly colored, lightly soiled items; washable woolens.
These settings feature Automatic Temperature Control:
ATC Hot/Cold, ATC Warm/Cold	Saves energy by adding cold water to the hot water from your water heater. Provides optimum cleaning at lower temperatures.
ATC Cold/Cold	May add hot water to the incoming cold water as the washer fills. This assures that the water will be warm enough to properly activate detergent.

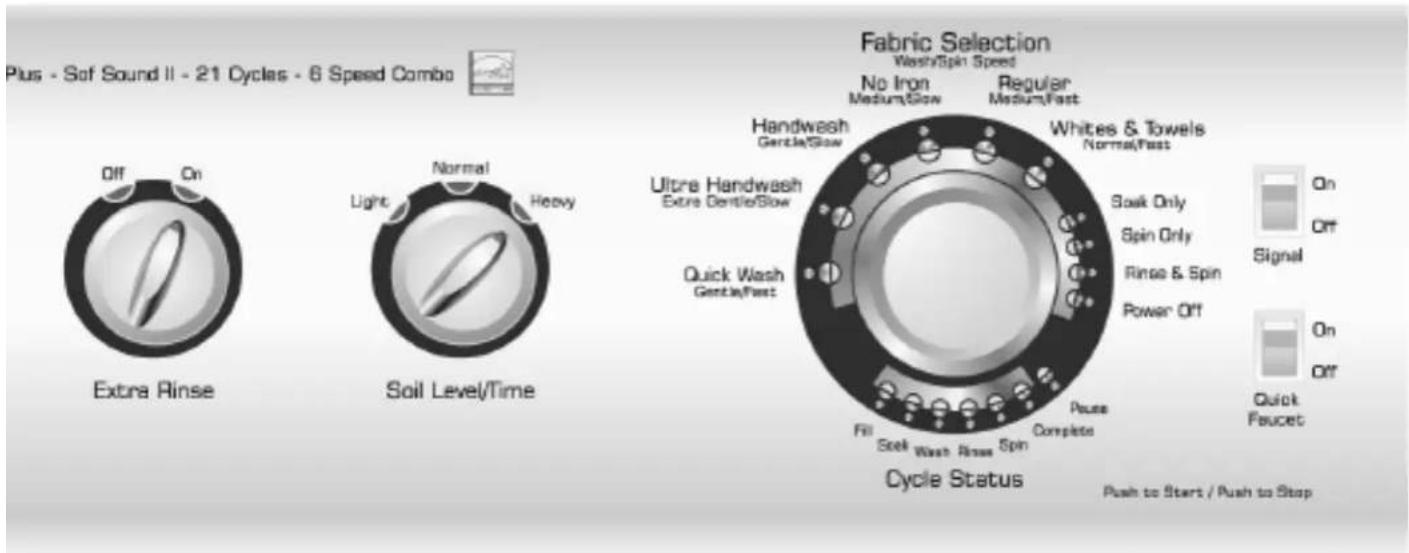

Plus - Sof Sound II - 21 Cycles - 6 Speed Comba Fabric Selection Wash/Spin Speed No Iron Medium/Slow Regular Medium/Fast Handwash Gentle/Slow Whites & Towels Normal/Fast Ultra Handwash Extra Gentile/Slow Slow Only Spin Only Rinse & Spin Power Off Quick Wash Gentle/Fast Pause Complete Fill Soil Wash Asse Spin Cycle Status Push to Start / Push to Stop On Off Signal On Off Quick Faucet

STEP 3

Select Options

Extra Rinse

When the knob is in the On position, an additional rinse at the end of all cycles is provided to more completely remove laundry additives, suds, perfumes, etc.

End of Cycle Signal

The End of Cycle Signal will sound once the cycle is completed. On select models, the End of Cycle Signal can be canceled by setting the switch to Off.

STEP 4

Soil Level/Time Selection

Your washer has selectable soil level/time settings.

SOIL SELECTION	LOAD	TYPE
Light Use for cleaning lightly soiled loads.
Normal Use for cleaning moderately soiled loads. This setting will be appropriate for most loads.
Heavy Use for cleaning heavily soiled loads.

STEP 5

Fabric Selection

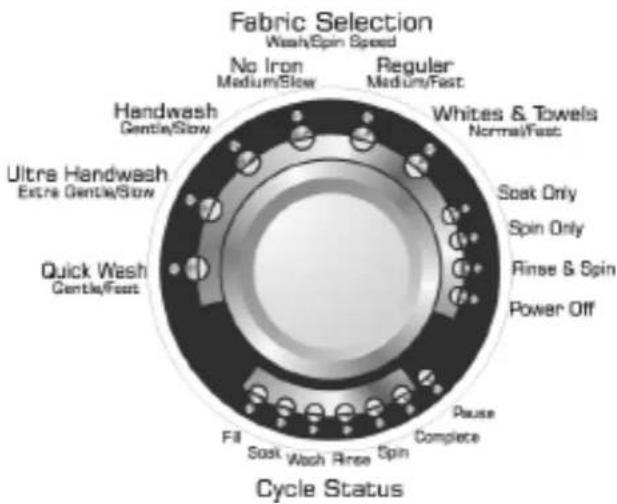

Select the appropriate fabric cycle for the type of load by turning the cycle selector dial until the indicator light by the desired fabric selection is illuminated.

WASH/SPIN SPEED	FABRIC SELECTION
Quick WashGentle/Fast	For lightly soiled or wrinkled garments needed quickly.
Ultra HandwashEx. Gentle/Slow	Provides intermittent agitation and soak. For wool, silk, and other hand-wash-only fabrics.
HandwashGentle/Slow	For sheer fabrics, bras and lingerie needing slower spin speed because of clothing construction.
No IronMedium/Slow	For “wash and wear” and synthetic fabrics and lightly to normally soiled garments needing a slower spin speed to reduce wrinkling.
RegularMedium/Fast	For most sturdy fabrics including cottons, linens and normally soiled garments needing maximum water extraction.
Whites & TowelsNormal/Fast	For sturdy fabrics and heavily soiled whites needing maximum water extraction.

Soak Only

Provides approximately 33 minutes of alternating periods of soaking with brief agitation at slow speed. At the end of the cycle, the Cycle Selector dial must be manually set to a wash cycle or spin cycle to drain the washer. Avoid extended soaking.

Spin Only

Provides a spin to remove more water from the load.

Rinse and Spin

Use for loads that need rinsing only or to add rinse-added fabric softener to a load.

Power Off

To cancel the cycle and turn off the washer, turn the Cycle Selector dial to Power Off and push the dial in.

STEP 6

Start the Washer

To start the washer, press the cycle selector dial.

Changing a Cycle

If an incorrect cycle has been accidentally selected:

1. Press the cycle selector dial.
2. Turn the cycle selector dial to the desired cycle.
3. Set the desired options for the cycle.
4. Press the cycle selector dial. The Wash indicator lights stop flashing and the new cycle starts.

Canceling a Cycle

To cancel a cycle:

1. Press the cycle selector dial.
2. Turn the cycle selector dial to Power Off and push the dial in.

To drain the washer:

1. Select the Rinse & Spin or Spin Only cycle.
2. Press the cycle selector dial. The Spin light illuminates and the washer starts the rinse or spin.

Special Features

Liquid Bleach Dispenser

The dispenser automatically dilutes liquid chlorine bleach before it reaches your wash load. To use, follow these steps:

1. Measure liquid chlorine bleach carefully, following the instructions on the bottle.
2. Pour liquid chlorine bleach into the bleach dispenser before adding the load. Avoid splashing or over-filling the dispenser.

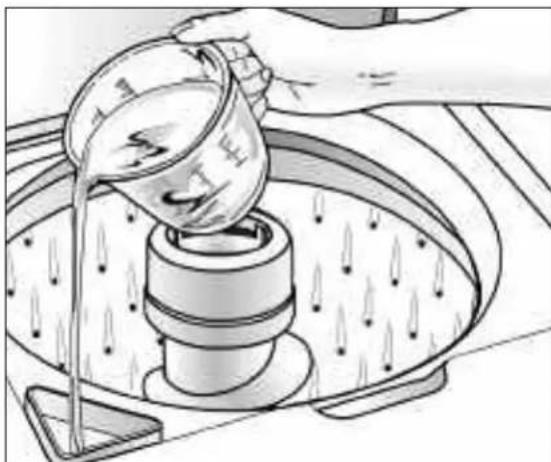

Illustration of a hand pouring liquid into a cylindrical container with arrows indicating flow (no text or symbols)

Pour liquid chlorine bleach into bleach dispenser.

Notes:

• Never pour undiluted liquid chlorine bleach directly onto the load or into the wash tub. It is a powerful chemical and can cause fabric damage, such as tearing or color loss, if not used properly.
• If you prefer to use color-safe, non-chlorine bleach, pour it into the wash tub with your detergent. Do not pour non-chlorine bleaches into the bleach dispenser.

Quick Faucet (select models)

Provides a flow of water when holding the switch in the On position.

Fabric Softener Dispenser

The dispenser automatically releases liquid fabric softener at the proper time during the cycle.

To use, follow these steps:

1. Pour a measured amount of fabric softener into the dispenser to fill line only.
2. If fabric softener comes below line, add warm water.

If it is necessary to clean the dispenser:

1. Pull the dispenser off of the top of the agitator.
2. Soak for one hour in sink or container in hot water and dishwashing liquid.

3. Hold hands over top and bottom of dispenser and shake to loosen buildup.

4. Rinse with clean, hot water.

5. Repeat process if necessary.
6. Replace dispenser on agitator.

Do not use dishwashing liquid inside the washer. Oversudsing can occur.

Technical line drawing of a mechanical connector or fitting (no text or symbols)

Automatic Lint Filtering System

The Lint Filtering System does not require cleaning.

Wash and rinse water is filtered and re-filtered continuously to trap lint shed by most fabrics during the agitation cycle before it can be redeposited on the wash load. The engineered hole design on the wash basket in conjunction with water flow produced by the agitator, traps lint away from the clothes between the inner wash basket and the outer tub. Lint is automatically flushed from the washer during the spin cycle.

Safety Spin

If for any reason you open the washer lid when the washer is in a spin or extract period, the operation will immediately stop. This is for your personal safety. If your washer does not stop, call your service technician immediately. When the lid is closed, the operation will automatically resume.

Special Features

Unbalanced Spin Load Compensator

Your new washer is designed to handle out-of-balance loads without shutting down or interrupting the washing cycle.

For this reason, the cycle will always be completed. If heavier fabrics in such out-of-balance loads should ever contain excessive moisture at the completion of the cycle, redistribute the clothes in the washer and reset the control dial for the final spin period.

Care & Cleaning

1. After washing, leave the lid open until the interior is dry.
2. Check hoses to be sure there are no kinks or knots.
3. Your washer should not be installed where temperatures will go below freezing, as damage to the washer could result.
4. To clean, occasionally wipe exterior with a clean damp sponge or cloth. Do not use polish on plastic parts.
5. Lifetime lubrication is done at the factory, so your washer never needs to be oiled or greased.
6. Do not lay heavy or sharp objects on top of your washer.
7. The top of the washer should not be used for removing stains from garments. Some stain removers, such as rust remover, will mar the finish.
8. Remove pins, buckles or other sharp objects from clothes to prevent scratching interior parts.
9. Clothes should not be stored in washer.
10. Bleach, detergent, solvents, etc. spilled on the top of your washer that are allowed to remain will remove the glossy finish. Remove all spills with a damp, soft cloth.
11. If you close your home for the winter, have a service technician drain the washer. Unplug cord from electrical outlet and disconnect hoses from faucets.

Overload Protector

A built-in protector automatically shuts off the washer motor in case of an overload. This can occur if:

• The load being washed is too heavy.
- Too many appliances are plugged into the line operating your washer.
- A low voltage condition exists on the line.
- Lid is opened and closed repeatedly.

The overload protector permits the washer to start again when the motor has cooled to a safe operating temperature. If the motor stops repeatedly, call your service technician.

Cleaning the Interior

Clean the interior of the washer periodically to remove any dirt, soil, odor, mold, mildew or bacteria residue that may remain in the washer as a result of washing clothes. We recommend taking the following steps every 60 to 120 days to clean and freshen your washer interior. The frequency with which the washer should be cleaned and freshened depends on factors such as usage, the amount of dirt, soil or bacteria being run through your washer, or the use of cold water. Failure to follow these instructions may result in unsatisfactory conditions, including unpleasant odor and/or permanent stains on the washer or washload.

To clean and freshen the washer interior:

1. Add a measured amount of chlorine bleach to the bleach dispenser, following package directions.
2. Add 1/4 cup of detergent to the tub.
3. Run the washer without a load through a complete cycle using hot water.
4. Repeat the process if necessary.

Won't Fill	Plug cord into live electrical outlet.Check fuse or reset circuit breaker.Turn the control dial to proper cycle and restart the washer.Turn both faucets on fully.Straighten inlet hoses.Disconnect hoses and clean screens. Hose filter screens may be plugged.
Won't Agitate	Check fuse or reset circuit breaker.Make sure the lid is completely closed.Turn the control dial to proper cycle and restart the washer.Pauses are normal. Wait and see if the washer will start again.
Won't Spin or Drain	Check fuse or reset circuit breaker.Straighten drain hoses. Eliminate kinked hoses. If there is a home drain restriction, call for drain service.Close lid and restart the washer. For your safety, washer will not spin unless the lid is closed.Suds lock - caused by too much suds. Rewash without detergent. Use correct amount of a low-sudsing detergent.
Load is Wet	Unevenly distributed load. Redistribute the load, close the lid and restart the washer. Check for leveling. Be sure water level is acceptable for load size.A normal spin speed is recommended for heavy loads like jeans or towels.
Stops	Plug cord into live electrical outlet.Check fuse or reset circuit breaker.Close lid and restart the washer. For your safety, washer will not agitate or spin unless lid is closed.This may be a pause in the cycle. Wait briefly and it may start.
Leaks Water	Make sure hose connections are tight.Make sure end of drain hose is correctly inserted and secured to drain facility.Avoid extended soaking - soak for 30 minutes or less.Avoid overloading.
Is Noisy	Be sure washer is leveled properly as outlined in installation manual.Weak floors can cause vibration and walking.Operating sounds will vary depending on agitation speed.
Fills with the Wrong Temperature Water	Turn both faucets on fully.If equipped with a temperature selector knob, be sure it is set directly on a temperature setting and not between settings.Make sure temperature selection is correct.While the washer is filling, you may notice just hot and/or just cold water entering the tub when cold or warm wash temperatures are selected. This is a normal function of the Automatic Temperature Control (select models) feature as the washer determines the temperature of the water.If Auto Temperature Control (select models) is selected, cold water may feel warmer than cold water from the tap.Make sure hoses are connected to correct faucets and inlet connections. Be sure water supply is regulated correctly. Flush water line before filling washer.Check the water heater. It should be set to deliver a minimum 120^ F ( 49^ C) hot water at the tap. Also check water heater capacity and recovery rate.Disconnect hoses and clean screens. Hose filter screens may be plugged.
Cycle Selector Advances Through Off	Extra Rinse (select models) is selected.

Warranty

Limited One Year Warranty - Parts and Labor

For one (1) year from the original retail purchase date, any part which fails in normal home use will be repaired or replaced free of charge.

Canadian Residents

The above warranties only cover an appliance installed in Canada that has been certified or listed by appropriate test agencies for a compliance to a National Standard of Canada unless the appliance was brought into Canada due to transfer of residence from the United States to Canada.

The specific warranties expressed above are the ONLY warranties provided by the manufacturer. These warranties give you specific legal rights, and you may also have other rights which vary from state to state.

CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. MAYTAG CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY STATE TO STATE OR PROVINCE TO PROVINCE.

What is Not Covered By These Warranties

1. Conditions and damages resulting from any of the following:

a. Improper installation, delivery, or maintenance.
b. Any repair, modification, alteration, or adjustment not authorized by the manufacturer or an authorized servicer.
c. Misuse, abuse, accidents, unreasonable use, or acts of God.
d. Incorrect electric current, voltage, electrical and/or gas supply.
e. Improper setting of any control.

1. Warranties are void if the original serial numbers have been removed, altered, or cannot be readily determined.
2. Light bulbs, water filters and air filters.
3. Products purchased for commercial or industrial use.
4. The cost of service or service call to:

a. Correct installation errors. For products requiring ventilation, rigid metal ducting must be used.

b. Instruct the user on the proper use of the product.

c. Transport the appliance to and from the servicer.

1. Any food loss due to refrigerator or freezer product failures.

2. Expenses for travel and transportation for product service in remote locations.

3. Outside of the United States and Canada this warranty does not apply. Contact your dealer to determine if another warranty applies.
4. Consequential or incidental damages sustained by any person as a result of any breach of these warranties. Some states do not allow the exclusion or limitation of consequential or incidental damages, so the above exclusion may not apply.

If You Need Service

First see the Troubleshooting section in your Use and Care Guide or call the dealer from whom your appliance was purchased or call Maytag Services, LLC, Customer Assistance at 1-800-688-9900 USA and 1-800-688-2002 Canada to locate an authorized servicer.

• Be sure to retain proof of purchase to verify warranty status. Refer to WARRANTY for further information on owner's responsibilities for warranty service.
• If the dealer or service company cannot resolve the problem, write to Maytag Services, LLC, Attn: CAIR® Center, P.O. Box 2370, Cleveland, TN 37320-2370, or call 1-800-6 88-9900 USA and 1-800-688-2002 Canada. U.S. customers using TTY for deaf, hearing impaired or speech impaired, call 1-800-688-2080.
• User's guides, service manuals and parts information are available from Maytag Services, LLC, Customer Assistance.

Notes: When writing or calling about a service problem, please include:

a. Your name, address and telephone number;
b. Model number and serial number;
c. Name and address of your dealer or servicer;
d. A clear description of the problem you are having;
e. Proof of purchase (sales receipt).

Amana®

NAV-1

Laveuse

Black and white photo of a water droplet creating ripples in a ripple (no text or symbols)

Illustration of a hand pouring granular material into a circular tank with liquid, no text or symbols present

Illustration of a hand cleaning a car interior with a cloth and tire (no text or symbols)

Fonctionnement

Medium Large Small Super Reset Load Size Water Level

Warm Warm Warm Cold Hot Cold Cold Cold Temperature Wash/Rise

ÉTAPE 1

Load Size Water Level

Warm Warm Warm Cold Hot Cold Cold Cold

Temperature Wash/Rise

ÉTAPE 3

Sélection du cycle

Heavy Duty - Lifetime Stainless Tub - Super Capacity P

Small Super & Reset

Infinite Water Level

A.T.C. Cold Cold A.T.C. Warm Cold A.T.C. Hot Cold Cold

Temperature Wash/Rins Automatic Temperature Control

STEP 2

Plus - Sof Sound II - 21 Cycles - 6 Speed Combo Fabric Selection Wash/Spin Speed No Iron Medium/Slow Regular Medium/Fast Whites & Towels Normal/Fast Handwash Gentle/Slow Ultra Handwash Extra Gentle/Slow Quick Wash Gentle/Fast Soak Only Spin Only Rinse & Spin Power Off Pause Compliance Fill Sask Wash Rinse Spin Push to Start / Push to Stop Cycle Status On Off Signal On Off Quick Feucret

STEP 3

STEP 6

Illustration of a hand pouring liquid into a cylindrical tank with arrows indicating flow (no text or symbols)

Technical line drawing of a mechanical connector or fitting (no text or symbols)

Black and white photo of a water droplet creating ripples in a liquid (no text or symbols)

Illustration of a hand pouring granular material into a circular tank with a filter (no text or symbols)

Illustration of a hand cleaning a kitchen sink with a cloth and cloth cover (no text or symbols)

Medium Large Small Super Reset Load Size Water Level

Warm Warm Hot Cold Warm Cold Cold Cold Temperature Wash/Rinse

PASO 1

Small Medium Large Mini Super Reset Load Size Water Level

Warm Warm Warm Cold Hot Cold Cold Cold Temperature Wash/Rinse

PASO 3

Selección del ciclo

Circular button with a metallic spoon icon, labeled 'On' and 'Off' (no additional text or symbols)

Extra Rinse

QUICK WASH Spin Rinse Off Extra Rinse Off Spin Rinse Handwash Off Heavy Normal Light Regular Rinse Spin Off Extra Rinse Off Normal Light No IRON FABRICS

Pull to Start / Push to Stop

PASO 4 5

Heavy Duty - Lifetime Stainless Tub - Super Capacity

Small Super Roast

Infinite Water Level

A.T.C. Cold Cold A.T.C. Warm Cold Dold Cold A.T.C. Hot Cold

Temperature Wash/Rins Automatic Temperature Control

PASO 2

Power Off (apagado)

Illustration of a hand pouring liquid into a container on a rotating platform (no text or symbols)

Technical line drawing of a mechanical connector or fitting (no text or symbols)
