Product Type	Top-loading washing machine
Brand	Whirlpool
Model	WTW4957PW
Nominal Capacity	Approximately 3.5 cubic feet (estimate)
Total weight with maximum load	315 lb (143 kg)
Power supply	120 V, 60 Hz, 15 A
Detergent type	High efficiency (HE) only
Cleaning cycle	Clean Washer (washing machine cleaning)
Recommended cleaning frequency	At least once a month or every 30 loads
Child safety	Remove door before disposal; supervision required
Grounding	Required on 3-prong outlet
Water inlet hoses	Replace every 5 years
Drain height	Between 39 in (990 mm) and 96 in (2.44 m)
Installation	Level floor, max slope 1 in (25 mm); do not install on carpet
Tools needed for installation	9/16 in (14 mm) flat or adjustable wrench, bubble level, pliers
Water consumption	Not specified (low water consumption cycle)
Recommended water temperature	Hot water set to 120 °F (49 °C)

Frequently Asked Questions - WTW4957PW WHIRLPOOL

What type of detergent to use in this washing machine?

Use exclusively a high efficiency (HE) detergent. The packaging bears the mention "HE" or "High Efficiency". Non-HE detergents produce too much foam with the low water consumption, which can prolong the cycles and reduce rinse performance.

How to clean the inside of the washer?

Run the Clean Washer cycle (if available) with an affresh® cleaning tablet or 1 cup (236 mL) of liquid chlorine bleach. If your model does not have this cycle, select the recommended cycle for cleaning. Leave the lid open after the cycle for drying.

What to do during extended absence?

Unplug the washer and close the water valves to prevent flooding due to pressure surges. If absence is during winter, follow the winterization procedure.

How to winterize the washer?

Close the valves, disconnect the inlet hoses, empty them. Add 1 liter of recreational vehicle antifreeze into the drum and run a Rinse & Spin cycle for 30 seconds. Then unplug the appliance.

Can I use bleach in this washing machine?

Yes, but only in the bleach dispenser and in the recommended quantity (1 cup / 236 mL). Do not exceed this quantity to avoid damaging the appliance in the long term.

How to install the washer in a closet?

Respect minimum clearances: at least 1 in (25 mm) on the sides, 3 in (76 mm) at the back, and ventilation openings of 48 in² (310 cm²) at the top and 24 in² (155 cm²) at the bottom of the door. The washer was tested with 0 in side clearance, but additional space makes installation easier.

Why is my washer vibrating strongly?

First check that the washer is level. Use a bubble level on the top edge and adjust the plastic leveling feet with pliers. Make sure all four feet are in contact with the floor.

When should I replace the water inlet hoses?

Replace the water inlet hoses every 5 years to reduce the risk of failure. Inspect them periodically; replace if bulging, deformed, cut, worn, or leaking.

What is the minimum height for the drain hose?

The top of the drain hose (or sink) must be at least 39 in (990 mm) above the floor. Do not exceed 96 in (2.44 m) without a drain pump. Insert the drain hose a maximum of 4.5 in (114 mm) into the conduit.

Is it necessary to use a water softener?

The manual does not mention a water softener. However, in hard water areas, using a water softener can reduce scale buildup. Follow the detergent manufacturer's recommendations.

USER MANUAL WTW4957PW WHIRLPOOL

TOP LOAD WASHER OWNER'S MANUAL MANUEL DE L'UTILISATEUR DE LA LAVEUSE À CHARGEMENT PAR LE DESSUS

Table of Contents

WasherSafety....2

Washer Maintenance and Care ....3

Water Inlet Hoses....3

Washer Care....3

Nonuse and Vacation Care 4

Winter Storage Care....4

Transporting Your Washer....4

Reinstalling/Using Washer Again......4

Installation Instructions....5

Requirements......5

Tools and Parts....5

Location Requirements....5

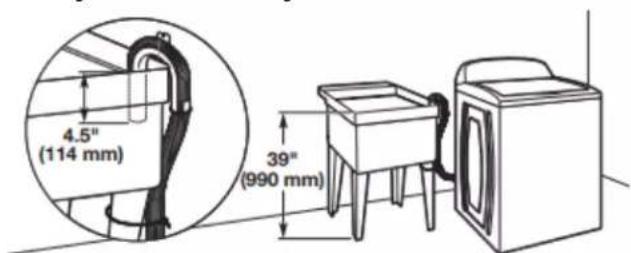

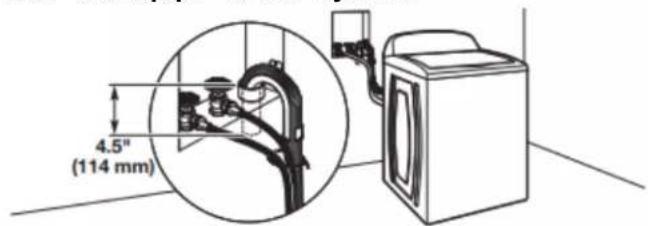

Drain System 6

Electrical Requirements....6

Installation....7

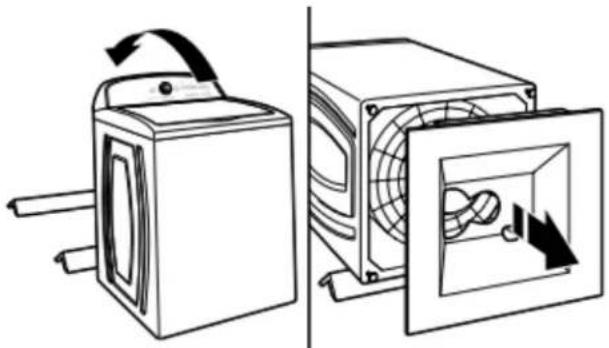

Unpacking 7

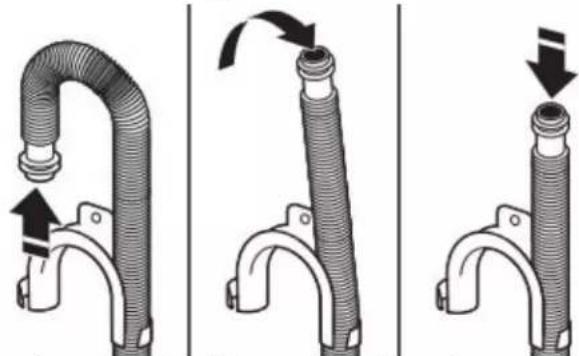

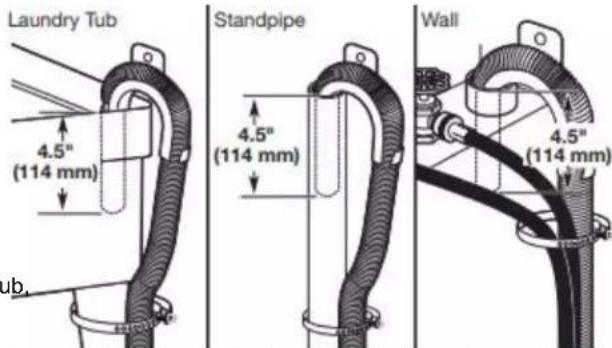

Connect Drain Hose 8

Connect Inlet Hoses....8

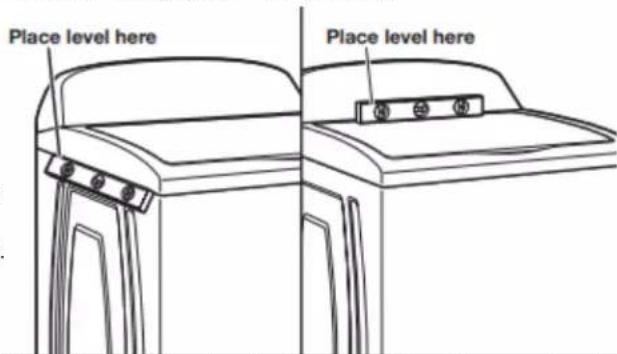

Level Washer....9

Complete Installation Checklist.... 10

Table des matières

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safet messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING," words mean:

These

DANGER

WARNING

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

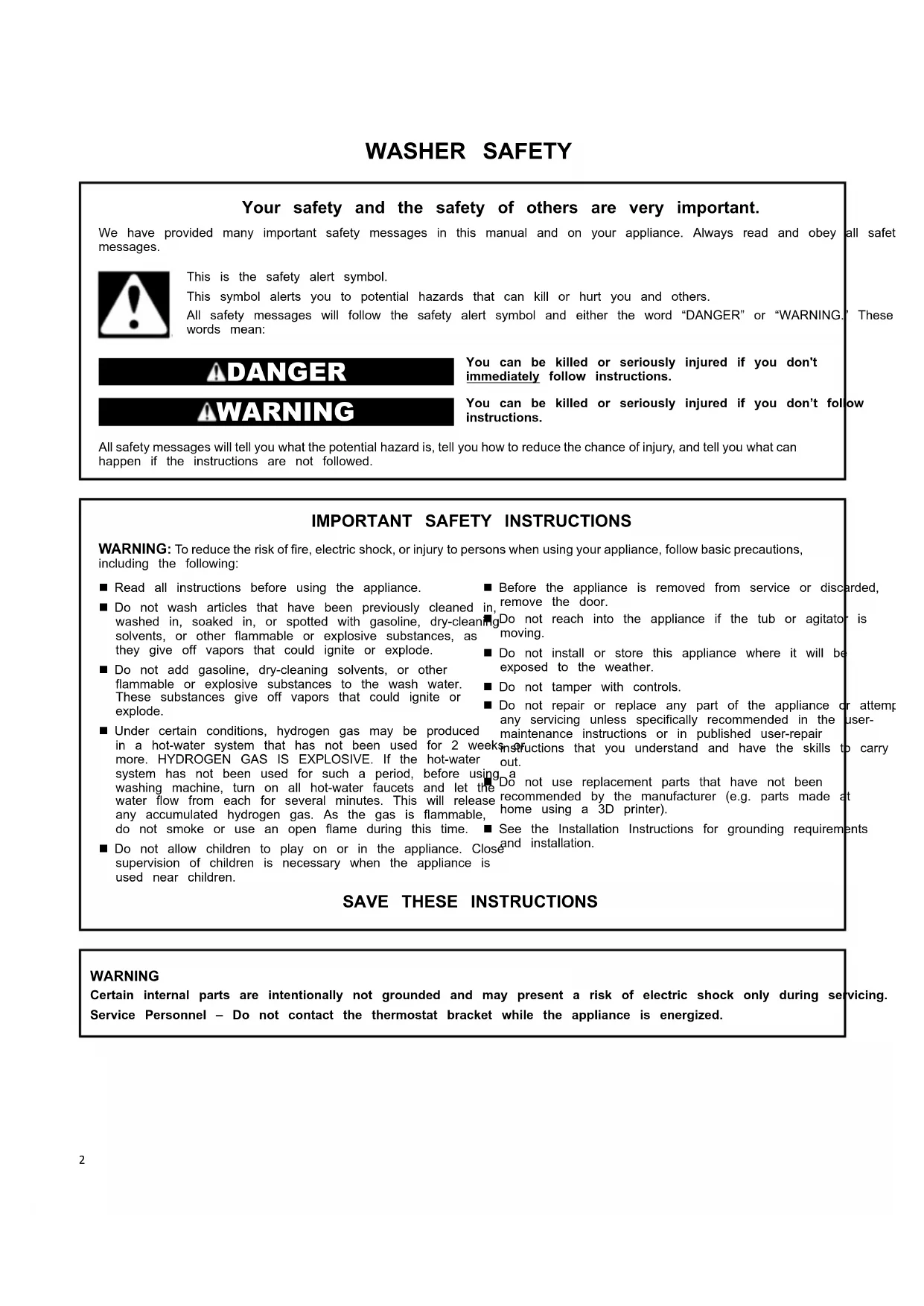

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following:

- Read all instructions before using the appliance.

■ Do not wash articles that have been previously cleaned washed in, soaked in, or spotted with gasoline, dry-clea solvents, or other flammable or explosive substances, as they give off vapors that could ignite or explode.

■ Do not add gasoline, dry-cleaning solvents, or other flammable or explosive substances to the wash water. These substances give off vapors that could ignite or explode.

■ Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used for 2 we more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not been used for such a period, before us washing machine, turn on all hot-water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable do not smoke or use an open flame during this time.

■ Do not allow children to play on or in the appliance. Clo supervision of children is necessary when the appliance is used near children.

■ Before the appliance is removed from service or discarded, in remove the door.
^1 Do not reach into the appliance if the tub or agitator is moving.
■ Do not install or store this appliance where it will be exposed to the weather.
■ Do not tamper with controls.
■ Do not repair or replace any part of the appliance or attempt any servicing unless specifically recommended in the user-

maintenance instructions or in published user-repair instructions that you understand and have the skills to carry out.

Do not use replacement parts that have not been recommended by the manufacturer (e.g. parts made at home using a 3D printer).

See the Installation Instructions for grounding requirements and installation.

SAVE THESE INSTRUCTIONS

WARNING

Certain internal parts are intentionally not grounded and may present a risk of electric shock only during servicing. Service Personnel – Do not contact the thermostat bracket while the appliance is energized.

CHOOSING THE RIGHT DETERGENT

Use only High Efficiency detergents. The package will be m "HE" or "High Efficiency." Low-water washing creates excessive sudsing with a non-HE detergent. Using non-HE detergent w likely result in longer cycle times and reduced rinsing performance. It may also result in component malfunction an over time, buildup of mold or mildew. HE detergents should low-sudsing and quick-dispersing to produce the right amount suds for the best performance. They should hold soil in suspension so it is not redeposited onto clean clothes. Not detergents labeled as High Efficiency are identical in formula and their ability to reduce suds. For example, natural, organ homemade HE detergents may generate a high level of sud Always follow the detergent manufacturer's instructions to determine the amount of detergent to use. Do not go over Line on the dispenser. See Quick Start Guide for more information.

WASHER MAINTENANCE AND CARE

Water Inlet Hoses

Replace inlet hoses after 5 years of use to reduce the risk failure. Periodically inspect and replace inlet hoses if bulges, kinks, cuts, wear, or leaks are found.

When replacing your inlet hoses:

■ Mark the date of replacement on the label with a permanent marker.
- Check that the old washers are not stuck on the washer in valves.
■ Use new washers in the new inlet hoses to ensure a proper seal.

NOTE: This washer may not include inlet hoses. See the Installation Instructions for more information.

Washer Care

Recommendations to help keep your washer clean and performing at its best

1. Always use High Efficiency (HE) detergents and follow the HE detergent manufacturer's instructions regarding the amount of HE detergent to use. Never use more than the recommended amount because that may increase the rate at which detergent and soil residue accumulate inside your washer, which in turn may result in undesirable odor.
2. Use warm and hot wash water settings sometimes (not exclusively cold water washes), because they do a better of controlling the rate at which soils and detergent accumulate.
3. Always leave the washer lid open between uses to help dry out the washer and prevent the buildup of odor-causing residue.

Cleaning your top-loading washer

Read these instructions completely before beginning the routin cleaning processes recommended below. This Washer Maintenance Procedure should be performed, at a minimum, once per month or every 30 wash cycles, whichever occurs sooner, to control the rate at which soils and detergent may otherwise accumulate in your washer.

Cleaning the inside of the washer

To keep your washer odor-free, follow the usage instructions provided above and use this recommended monthly cleaning procedure:

Recommended cycle for cleaning the asher

Some models have a "Clean Washer" cycle that uses higher water volumes in combination with affre Washer Cleaner or liquid chlorine bleach to clean the inside of the washer.

If your model does not have a "Clean Washer" cycle, refer to the online Cycle Guide for the optimal cycle for cleaning the inside the washer. Use this cycle with Weather Cleaner or liquid chlorine bleach as described below.

Description of Clean Washer with affreysable operation:

This cycle will fill to a washer level high than in normal wash cycles to provide rinsing than in normal wash cycles to provide rinsing at a level above the water line for normal wash.

1. During this cycle, there will be some agitation and spinning to the increase the removal of soils.

After this cycle is complete, leave the lid open to allow for better ventilation and drying of the washer interior.

Begin procedure

1. Affresh ^® washer cleaner cycle procedure (recommended for best performance):

a. Open the washer lid and remove any clothing or items.
b. Place an affres® Washer Cleaner tablet in the bottom of hoshe washer basket.
c. Do not place an affre Washer Cleaner tablet in the detergent dispenser.

d. Do not add any detergent or other chemical to the washe when following this procedure.

e. Close the washer lid.

f. Select the cycle recommended for cleaning the inside of the washer.

g. Press the Start button to start the cycle.

NOTE: For best results, do not interrupt cycle. If cycle must be interrupted, press Power/Cancel. (For models with no Power/Cancel button, press and hold Start/Pause for three seconds.) After the cycle has stopped, run a Rinse & Spin cycle to rinse cleaner from washer.

2. Chlorine bleach procedure (alternative):

a. Open the washer lid and remove any clothing or items.
B. Add 1 cup (236 mL) of liquid chlorine bleach to the bleach compartment.
NOTE: Use of more liquid chlorine bleach than is recommended above could cause washer damage over time.
c. Close the washer lid.
3d. Do not add any detergent or other chemical to the washe when following this procedure.
e. Select the cycle recommended for cleaning the inside of the washer.
f. Press the Start button to start the cycle.

NOTE: For best results, do not interrupt cycle. If cycle must be interrupted, press Power/Cancel. (For models with no Power/Cancel button, press and hold Start/Pause for three seconds.)

After the cycle has stopped, run a Rinse & Spin cycle to rinse cleaner from washer.

Cleaning the dispensers

After a period of using your washer, you may find some residue buildup in the washer's dispensers.

IMPORTANT: Dispensers are not dishwasher-safe.

For non-removable dispensers:

To remove residue from the dispensers, wipe them with an affresh® Machine Cleaning Wipe or a damp cloth and towel d Do not attempt to remove the dispensers or trim for cleaning dispensers and trim are not removable.

For removable dispensers:

If your model has a dispenser drawer, press tab(s) to remove drawer and clean it with an off-meshine Cleaning Wipe or a damp cloth and towel dry before or after you run the Clean Washer cycle. Use an all-purpose surface cleaner, if needed.

Cleaning the outside of the washer

IMPORTANT: To avoid damaging the washer's finish, do not abrasive products.

Use an affreshMachine Cleaning Wipe, a soft, damp cloth, or sponge to wipe away any spills. Use an® Machine

Cleaning Wipe or only mild soaps or cleaners when cleaning external washer surfaces.

Nonuse and Vacation Care

Operate your washer only when you are home. If moving, or using your washer for a period of time, follow these steps:

1. Unplug or disconnect power to washer.

2. Turn off water supply to washer to avoid flooding due to pressure surge.

Winter Storage Care

IMPORTANT: To avoid damage, install and store washer whe will not freeze. Because some water may stay in hoses, free can damage washer. If storing or moving during freezing wea winterize your washer.

To winterize washer:

1. Shut off both water faucets; disconnect and drain water hoses.
2. Put 1 L (1 qt.) of R.V.-type antifreeze in basket and on Rinse & Spin cycle for about 30 seconds to mix and remaining water.
3. Unplug washer or disconnect power.

Transporting Your Washer

1. Shut off both water faucets. Disconnect and drain water inlet hoses.
2. If washer will be moved during freezing weather, follow "Winter Storage Care" directions before moving.
3. Disconnect drain hose from drain system and drain any remaining water into a pan or bucket. Disconnect drain hose from back of washer.
4. Unplug power cord.
5. Place inlet hoses and drain hose inside washer basket.
6. Drape power cord over edge and into washer basket.
7. Place original shipping materials back inside washer. If you do not have shipping materials, place heavy blankets or towels into basket opening. Close lid and place tape over lid and down front of washer. Keep lid taped until washer is placed in new location. Transport washer in the upright position.

Reinstalling/Using Washer Again

WARNING

e the

use

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

To reinstall washer after nonuse, vacation, winter storage, or moving:

1. Refer to Installation Instructions to locate, level, and connect washer.
2. Before using again, run washer through the following recommended procedure:

ere it to use washer again:

freezing weather. Flush water pipes and hoses.

1. Reconnect water inlet hoses.
2. Turn on both water faucets.
3. Plug into a grounded 3 prong outlet or reconnect power.
   See your online Cycle Guide for information about which cycle(s) to run your washer through to clean washer and

In washove antifreeze, if used. Use only HE High Efficiency ifreezetergent. Use half the manufacturer's recommended amount for a medium-size load.

INSTALLATION INSTRUCTIONS REQUIREMENTS

Tools and Parts

Gather required tools and parts before starting installation.

Tools Needed:

Simple line drawing of a wrench (no text or symbols)

Adjustable or open end wrench 9/16" (14 mm)

Simple diagram of three circular symbols inside a rectangular box (no text or labels)

Level

4" min (102 mm)

Wood block Ruler or measuring tape

Simple line drawing of a tape measure (no text or symbols)

Simple line drawing of a flashlight with a bulb and handle (no text or symbols)

Line drawing of a pair of pliers (no text or symbols)

Adjustable pliers that open to 1 3/4" (45 mm)
Flashlight

Simple line drawing of a bucket with a handle (no text or symbols)

Bucket

Parts Supplied:

NOTE: All parts supplied for installations are in the washer.

Drain hose with clamp, U-form, and cable tie

Parts Needed: (if not supplied with washer)

Coiled black hoses with connectors and small black dots below (no text or symbols)

Inlet hoses with flat washers
NOTE: Various inlet hose options are available; check your Quick Start Guide for ordering information.

Alternate Parts: (not supplied with washer)

Your installation may require additional parts. To order, please refer to the contact information referenced in your Quick Start Guide.

If you have:

Overhead sewer

You will need:

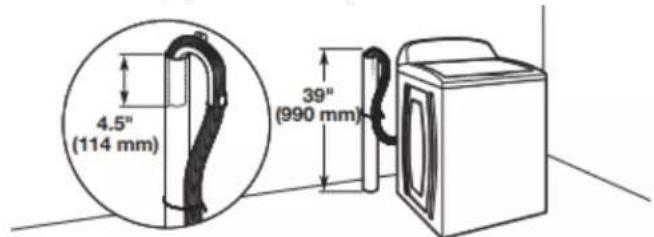

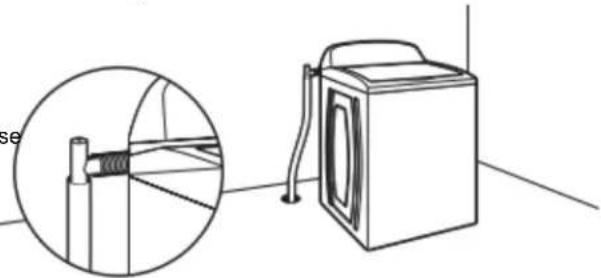

Standard 20 gal. (76 L) 39" (990 mm) tall drain tub or utility sink, sump pump, and connectors (available from local plumbing suppliers)

1" (25 mm) standpipe

2" (51 mm) diameter to 1" (25mm) diameter standpipe adapter and connector kit

Drain hose too short

Extension drain hose and connector kit

Lint-clogged drain Drain protector and connector kit

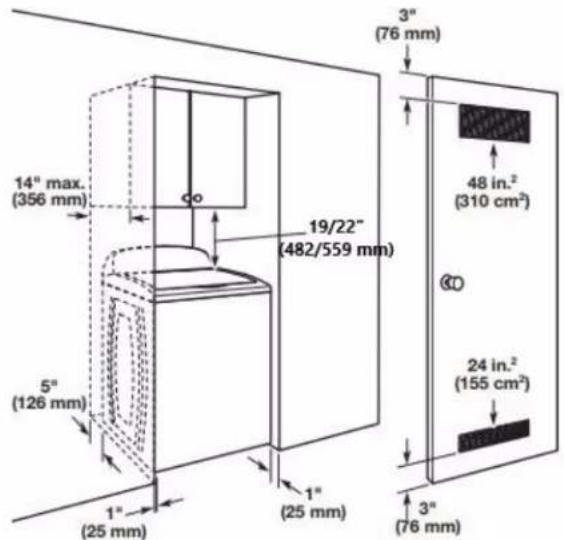

Location Requirements

Select proper location for your washer to improve performance and minimize noise and possible "washer walk." Install your washer in a basement, laundry room, closet, or recessed area.

IMPORTANT: Do not install, store, or operate washer where it will be exposed to weather or in temperatures below 32^ F ( 0^ C). Water remaining in washer after use may cause damage in low temperatures. See “Washer Maintenance and Care” for winterizing information.

Proper installation is your responsibility.

You will need:

■ A water heater set to 120^ F ( 49^ C).
■ A grounded electrical outlet located within 4 ft. (1.2 m) of power cord on back of washer.
■ Hot and cold water faucets located within 3 ft. (0.9 m) of hot and cold water fill valves on washer, and water pressure of 20–100 psi (138–690 kPa).
A level floor with maximum slope of 1" (25 mm) under entire washer. Installing on carpet or surfaces with foam backing is not recommended.
■ Floor must support washer's total weight (with water and load) of 315 lbs. (143 kgs).

Recessed area or closet installation

14" max. (356 mm) 5" (126 mm) 1" (25 mm) 19/22" (482/559 mm) 1" (25 mm) 3" (76 mm) 48 in.² (310 cm²) 24 in.² (155 cm²) 3" (76 mm)

NOTE: All 27" wide washers should have 19" clearance, while all 29" wide washers should have 22" clearance.

All dimensions show recommended spacing allowed, except for Floor Drain System

closet door ventilation openings, which are the minimum required. This washer has been tested for installation with spacing of 0" (0 mm) clearance on the sides. Consider allowing more space for ease of installation and servicing, and spacing for companion appliances and clearances for walls, doors, and floor moldings. Add spacing of 1" (25 mm) on all sides of washer to reduce no transfer. If a closet door or louvered door is installed, top and bottom air openings in door are required.

*For additional details (or information) specific to your model, refer to your Quick Start Guide.

Line drawing of a washing machine with a close-up inset showing its side profile (no text or symbols)

Drain System

Floor drain system requires a Siphon Break Kit, 2 Connector Kits pipe, an Extension Drain Hose that may be purchased separately; refer to the Quick Start Guide for online ordering information.

Drain system can be installed using a floor drain, wall standpipe, an Extension Drain Hose that may be purchased separately; floor standpipe, or laundry tub. Select the method you need, refer to the Quick Start Guide for online ordering information. IMPORTANT: To avoid siphoning, no more than 4.5" (114 mm) of drain hose should be inside standpipe or below the top of wash Minimum siphon break height: 28" (710 mm) from bottom of washer (additional hoses may be needed).

tub. Secure drain hose with cable tie.

Floor standpipe drain system

4.5" (114 mm) 39" (990 mm)

Minimum diameter for a standpipe drain: 2" (51 mm). Minimum carry-away capacity: 17 gal. (64 L) per minute. Top of standpipe must be at least 39" (990 mm) high; install no higher than 90 (2.44 m) from bottom of washer. If you must install higher than (2.44 m), you will need a sump pump system.

Wall standpipe drain system

4.5" (114 mm)

See requirements in the "Floor standpipe drain system" section.

Laundry tub drain System

4.5" (114 mm) 39" (990 mm)

Minimum capacity: 20 gal. (76 L). Top of laundry tub must least 39" (990 mm) above floor; install no higher than 96" from bottom of washer.

Electrical Requirements

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

aDo96" not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

A 120 V, 60 Hz, AC-only, 15 or 20 A, fused electrical supply required. A time-delay fuse or circuit breaker is recommended. It is recommended that a separate circuit breaker serving only this appliance be provided.
■ This washer is equipped with a power supply cord having a on. 3-prong grounding plug.
■ To minimize possible shock hazard, the cord must be plugged into a mating, 3-prong, grounding-type outlet, grounded in accordance with local codes and ordinances. If a mating outlet is not available, it is the personal responsibility and obligation of the customer to have the properly grounded outlet installed by a qualified electrician.
■ If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.
■ Do not ground to a gas pipe.
■ Check with a qualified electrician if you are not sure the washer is properly grounded.
2.4Dom not have a fuse in the neutral or ground circuit.

GROUNDING INSTRUCTIONS

For a grounded, cord-connected appliance:

This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.

WARNING: Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt as to whether the appliance is properly grounded. Do not modify the plug provided with the appliance: If it will not fit the outlet, have a proper outlet installed by a qualified electrician.

For a permanently connected appliance:

This appliance must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the appliance.

SAVE THESE INSTRUCTIONS

INSTALLATION

Unpacking

WARNING

Excessive Weight Hazard

Use two or more people to move and install or uninstall appliance.

Failure to do so can result in back or other injury.

Before you start: remove shipping materials.

It is necessary to remove all shipping materials for proper operation and to avoid excessive noise from washer.

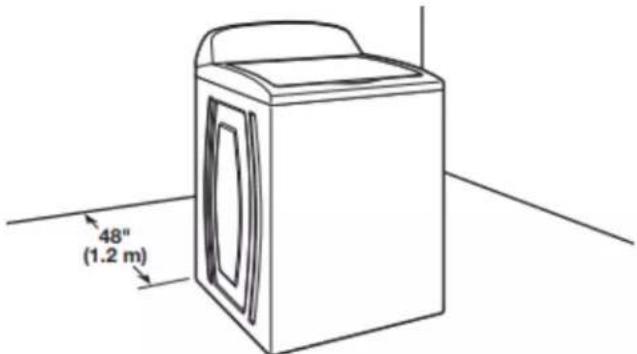

1. Move Washer

48" (1.2 m)

Move washer to within 4 ft. (1.2 m) of its final location; it be in a fully upright position.

NOTE: To avoid floor damage, set washer onto cardboard before moving it and make sure lid is taped shut.

2. Remove shipping base

IMPORTANT: Removing shipping base is necessary for proper operation. If your washer includes a sound shield, please refer to the instructions included with the sound shield to install it at this time.

Diagram showing a washing machine and its side view of a fan or vent (no text or symbols present)

To avoid damaging floor, place cardboard supports from shipping carton on floor behind washer. Tip washer back and place on cardboard supports. Remove shipping base (some models require shipping base to be rotated 90° to the right before pulling off). Set washer upright.

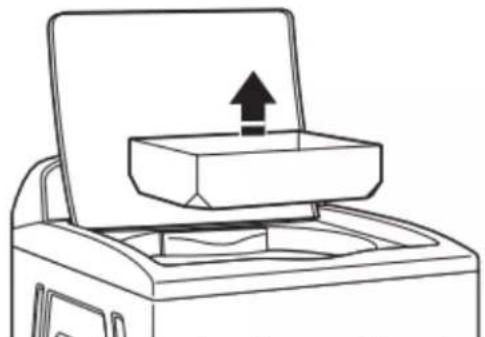

3. Remove packaging material from inside washer

Line drawing of a printer with an open lid and an upward arrow indicating upload or loading (no text or symbols)

Remove tape from washer lid, open lid, and remove packaging material from washer tub. Be sure that all parts have been removed from inside washer.

NOTE: Keep packaging material for inside washer in case you need to move washer later.

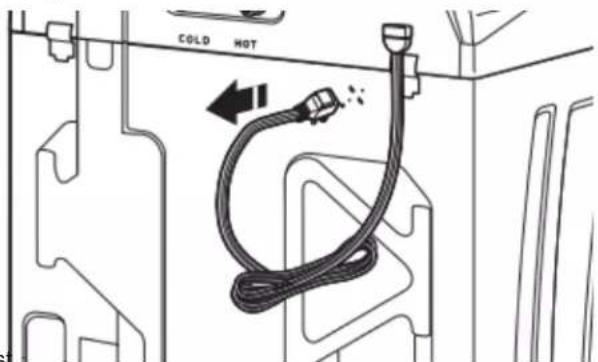

4. Free power cord

COLD HOT

must Firmly grasp power cord plug and pull to free from rear par Gently place power cord over console to allow free access t back of washer.

Connect Drain Hose

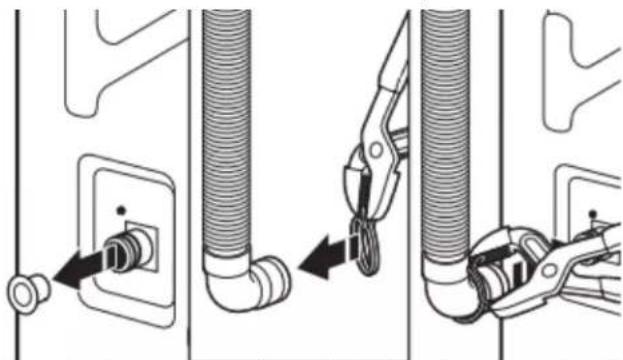

5. Attach drain hose to drain port

Diagram showing mechanical assembly steps with hoses and clips (no text or symbols)

If applicable, remove the red plastic plug from the black drain port on the back of the washer.

If clamp is not already in place on elbow end of drain hose parts."

slide it over end as shown. Squeeze clamp with pliers and slide black elbow end of drain hose onto black drain port secure with clamp.

For a laundry tub or standpipe drain, go to step 6.

For a floor drain, remove the pre-installed drain hose shown in step 7. You may need additional parts with directions. See the "Alternate Parts" section.

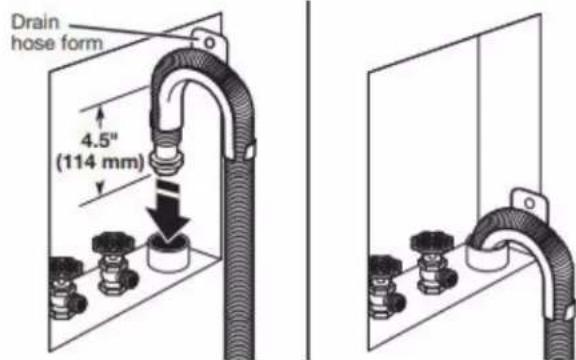

6. Place drain hose in standpipe

Drain hose form 4.5" (114 mm)

IMPORTANT: 4.5" (114 mm) of drain hose should be inside standpipe; do not force excess hose into standpipe or lay on bottom of laundry tub. Drain hose form must be used.

Place hose into standpipe (shown in picture) or over side of laundry tub.

7. Remove drain hose form (floor drain installations only)

Three-panel diagram showing a U-shaped pipe being inserted into a housing, with arrows indicating direction of movement (no text or symbols)

For floor drain installations, you will need to remove the drain hose form from the end of the drain hose. You may need additional parts with separate directions. See "Tools and

It is the responsibility of the installer to install and secure the drain hose into the provided plumbing/drain in a manner that will avoid the drain hose coming out of and leaking from the plumbing/drain.

Connect Inlet Hoses

Washer must be connected to water faucets with new inlet hoses with flat washers (not provided). Do not use old hoses.

NOTE: Both hoses must be attached and have water flowing to inlet valves. If you are only connecting to a cold water faucet, I must use a Y-adapter (not provided).

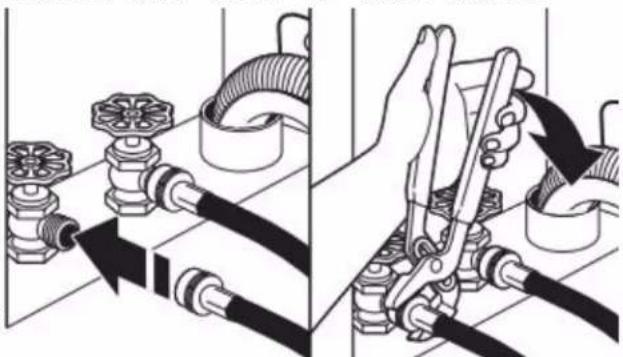

8. Connect inlet hoses to water faucets

Illustration of two mechanical pipe fittings with arrows indicating assembly or maintenance (no text or symbols present)

IMPORTANT: Do not overtighten hose or use tape or sealants on valve. Damage to the valves can result.

Attach hose to hot water faucet. Screw on coupling by hand until it is seated on washer. Use adjustable pliers to tighten couplings an additional two-thirds turn. Repeat this step with second hose for cold water faucet.

9. Clear water lines

Simple line drawing of a bucket with two buckets (no text or symbols)

Run water for a few seconds through hoses into a laundry tub, drainpipe, or bucket to prevent clogs. Water should run until clear.

Make note of which hose is connected to hot water to help attaching hoses to washer correctly.

12. Secure drain hose

Laundry Tub 4.5" (114 mm) Standpipe 4.5" (114 mm) Wall 4.5" (114 mm)

Secure drain hose to laundry tub leg, drain standpipe, or inl hoses for wall standpipe with cable tie.

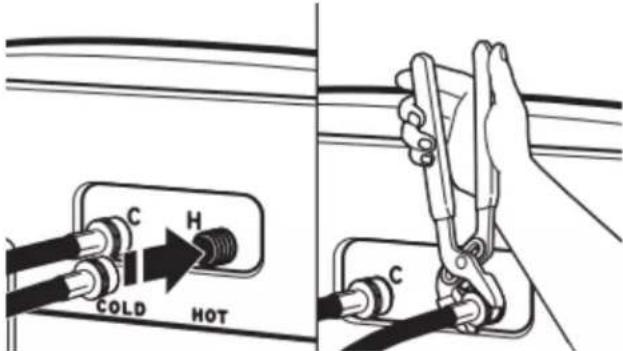

10. Connect inlet hoses to washer

C H COLD HOT C

IMPORTANT: To reduce risk of hose failure, replace the hoses every 5 years. Record hose installation or replacement dates for future reference.

■ Do not overtighten hose or use tape or sealants on valve. Damage to the valves can result.
■ Periodically inspect and replace hoses if bulges, kinks, cuts, wear, or leaks are found.

Attach hot water hose to red hot water inlet valve. Screw coupling by hand until it is snug. Use pliers to tighten couplings an additional two-thirds turn. Repeat with cold water inlet valve.

It is the responsibility of the installer to install and secure tl drain hose into the provided plumbing/drain in a manner that will avoid the drain hose coming out of or leaking from the plumbing/drain.

Level Washer

NOTE: Level washer properly to reduce excess noise and vibration.

13. Check levelness of washer

Place level here Place level here

Move the washer to its final location. Place a level on top edges of washer. Use side seam as a guide to check levelness of sides. Check levelness of front using lid, as shown. Rock washer back and forth to make sure all four f make solid contact with floor. If washer is level, skip to step 15.

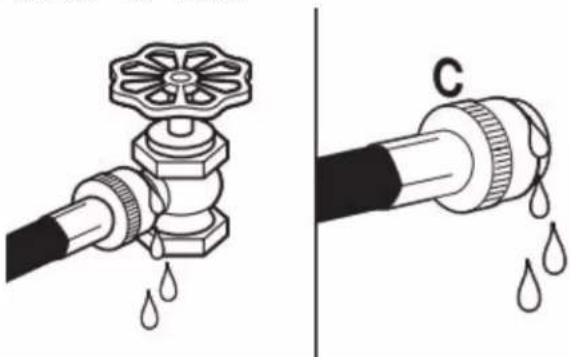

11. Check for leaks

Diagram showing a pipe valve being dissolved from water, with no text or symbols present

Turn on water faucets to check for leaks. A small amount of water may enter washer. It will drain later.

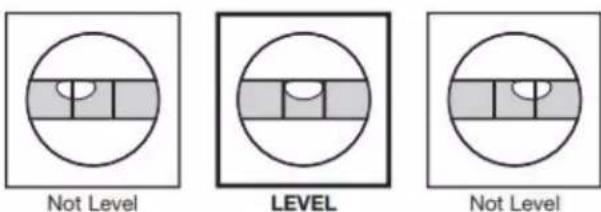

Not Level LEVEL Not Level

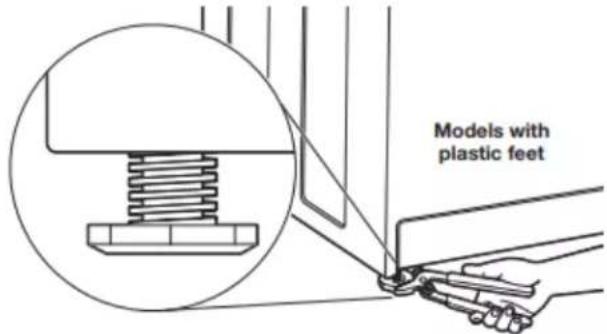

14. Adjust leveling feet

Models with plastic feet

If washer is not level:

Use adjustable pliers to turn the plastic leveling foot counterclockwise to lower the washer or clockwise to the washer.

Recheck levelness of washer and repeat as needed.

HELPFUL TIPS:

■ You may need to adjust two different feet to level your unit. Ensure each foot remains secured to the washer's base.
■ You may want to prop up front of washer about 4" (102 mm) with a wood block or similar object that will support weight of washer.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

15. Plug into a grounded 3-prong outlet

Illustration of an electrical outlet with a plug inserted, showing internal socket and power outlet (no text or symbols)

Complete Installation Checklist

• Check electrical requirements. Be sure you have correct electrical supply and recommended grounding method.
• Check that all parts are now installed. If there is an extra page back through steps to see what was skipped.
  ☐ Check that you have all of your tools.
  ☐ Check that shipping materials were completely removed from washer.
  ☐ Check that the washer is level.
  ☐ Check that water faucets are on.
  ☐ Check for leaks around faucets and inlet hoses.
  ☐ Remove protective film from console and any tape remaining on washer.
  ☐ Check that washer is plugged into a grounded 3-prong outlet.
  ☐ Dispose of/recycle all packaging materials.
  se Read the "Washer Maintenance and Care" section.
  ☐ To test and clean your washer, measure 1/2 of normal recommended amount of powdered or liquid HE detergent and pour it into washer basket or detergent dispenser (on some models). Close lid. Select any cycle. Start washer and allow the full cycle.

SÉCURITÉ DE LA LAVEUSE

CHOIX DU DÉTERGENT APPROPRIÉ

Simple line drawing of a wrench (no text or symbols)

Simple diagram with three circular symbols inside a rectangular box (no text or labels)

Niveau

4" min (102 mm)

Simple line drawing of a tape measure (no text or symbols)

Line drawing of a pair of pliers (no text or symbols)

Simple line drawing of a flashlight with a bulb and handle (no text or symbols)

Lampe de poche

Simple line drawing of a bucket with a handle (no text or symbols)

Seau

Pièces fournies :

Coiled black cable with multiple connectors and two small black dots nearby (no text or symbols)

Line drawing of a washing machine next to a vertical pipe fitting, with an inset showing the pipe connection (no text or symbols)

Diagram showing a washing machine and its side view of a fan or vent (no text or symbols present)

Line drawing of a printer with an open lid and an upward arrow indicating upload or loading (no text or symbols)

Mechanical assembly diagram showing pipe connection and clamp mechanism (no text or symbols)

Three-panel diagram showing a U-shaped pipe being inserted into a housing, with arrows indicating direction of movement (no text or symbols)

Illustration of two different pipe installation techniques: one using a valve and the other with a tool, both showing mechanical components without any text or symbols.

Simple line drawing of a bucket with two buckets (no text or symbols)

C H COLD HOT

Diagram showing a pipe valve with liquid dripping into a hose, labeled 'C' (no text or symbols on the diagram itself)

Three identical diagrams showing concentric circles with shaded segments, no text or symbols present

Simple line drawing of an electrical outlet with a plug inserted, showing internal socket and outlet (no text or symbols)
