USER MANUAL M2WL8HB Rockford Fosgate

— Installation assistance available at: — RFTECH www.rockfordfosgate.com/rftech

ELEMENT READY™ COLOR OPTIX™

600 South Rockford Drive • Tempe, Arizona 85281 United States Direct: [phone] • Toll Free: [phone]

Dear Customer,

Congratulations on your purchase of the world's finest brand of audio products. At Rockford Fosgate we are fanatics about musical reproduction at its best, and we are pleased you chose our product. Through years of engineering expertise, hand craftsmanship and critical testing procedures, we have created a wide range of products that reproduce music with all the clarity and richness you deserve.

For maximum performance we recommend you have your new Rockford Fosgate product installed by an Authorized Rockford Fosgate Dealer. Please read your warranty and retain your receipt and original carton for possible future use.

Great product and competent installations are only a piece of the puzzle when it comes to your system. Make sure that your installer is using 100% authentic installation accessories from Rockford Fosgate in your installation. Rockford Fosgate has everything from RCA cables and speaker wire to power wire and battery connectors. Insist on it! After all, your new system deserves nothing but the best.

To add the finishing touch to your new Rockford Fosgate image, order your Rockford accessories, which include everything from T-shirts to hats.

Visit our web site for the latest information on all Rockford products; www.rockfordfosgate.com

or, in the U.S. call 1-800-669-9899 or FAX [phone]. For all other countries, call +001-480-967-3565 or FAX [phone].

Table of Content

2 Introduction

3 Specifications

4-5 Diagrams

6 Wiring

Installation Considerations

Mounting

7-8 Additional Languages

French

Spanish

German

Italian

12 Limited Warranty Information

If, after reading your manual, you still have questions regarding this product, we recommend that you see your Rockford Fosgate dealer. If you need further assistance, you can call us direct at 1-800-669-9899. Be sure to have your serial number, model number and date of purchase available when you call.

Safety

This symbol with “WARNING” is intended to alert the user to the presence of important instructions. Failure to heed the instructions could result in severe injury or death.

WARNING

PRACTICE SAFE SOUND

Continuous exposure to sound pressure levels over 100dB may cause permanent hearing loss. High powered auto sound systems may produce sound pressure levels well over 130dB. Use common sense and practice safe sound.

PRATIQUEZ UNE ÉCOUTE SANS RISQUES

This symbol with "CAUTION" is intended to alert the user to the presence of important instructions. Failure to heed the instructions could result in injury or unit damage.

CAUTION

• To prevent injury and damage to the unit, please read and follow the instructions in this manual.
• If you feel unsure about installing this system yourself, have it installed by a qualified Rockford Fosgate technician.
• Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury.

Model	M2WL-8M2WL-8B	M2WL-8HM2WL-8HB
Nominal Diameter - inch (mm)	8(203mm).	8(203mm).
Description	2-Way 2-Way
Nominal Impedance (Ohms)	4Ω 4Ω
Frequency Response (Hz)	35-24kHz 35-25kHz
Power Handling - Watts (RMS/Peak)	250/1000 300/1200
Sensitivity (2.83V/1M)	93.1dB 94dB
Grille/Trim Ring	YES YES
LED Current Draw	.25 Amps .25 Amps
Recommended Fused Rating	1 Amp 1 Amp
LED Voltage Range	9-16 Volts 9-16 Volts
Overall Speaker (A) 9"	(230.4mm)	9"(230.4mm)
Bolt Diameter (B)	7.75"(197.0mm)	7.75"(197.0mm)
Overall Height (C)	12.75"(324.0mm)	12.75"(324.0mm)
Overall Length (D)	14.4"(365.7mm)	14.4"(365.7mm)

* Rockford Fosgate determines its rated frequency response range at -6 dB below its nominal sensitivity at upper and lower extents of a speaker's output.

VERIFIED WITH KLIPPEL

To adorn the 'Verified with Klippel' mark, the qualifying company's loudspeaker engineering personnel must be trained and certified by Klippel prior to using the three separate Klippel systems to design, develop and test. Rockford Fosgate has made the investment in Klippel to deliver the best possible speakers and subwoofers to their customers.

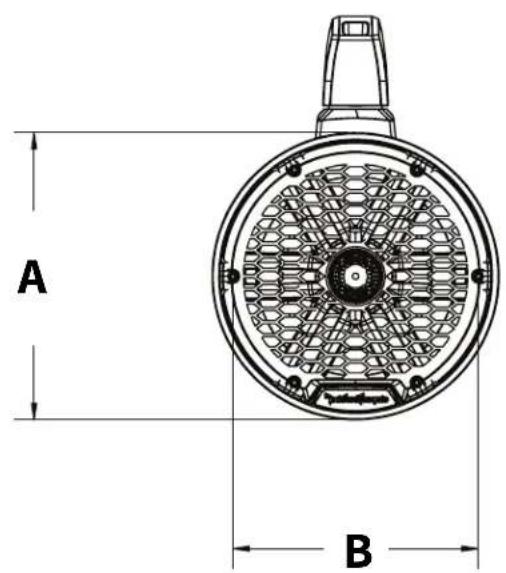

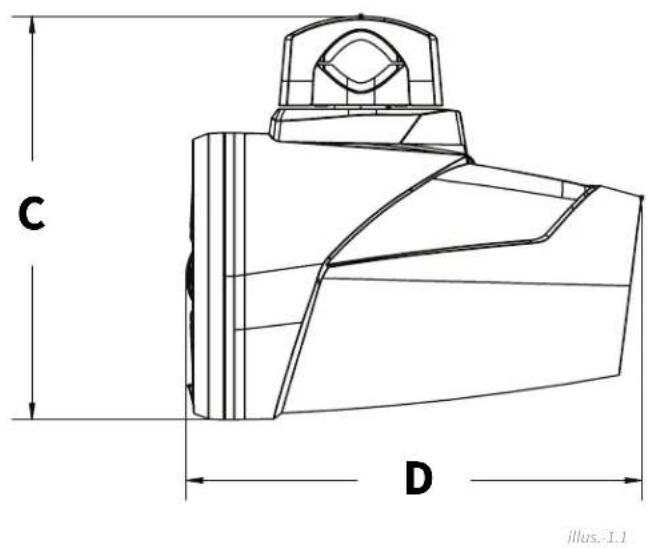

M2 Wake Can Dimensions

A B

C D Illus.1.1

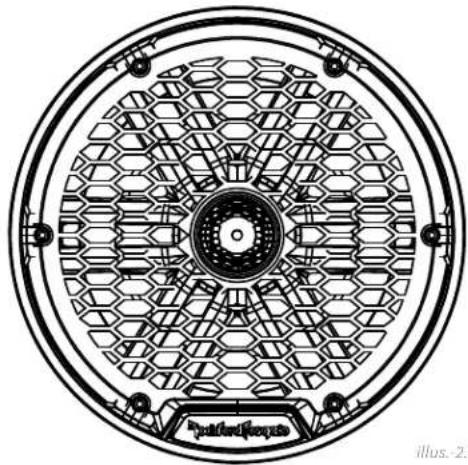

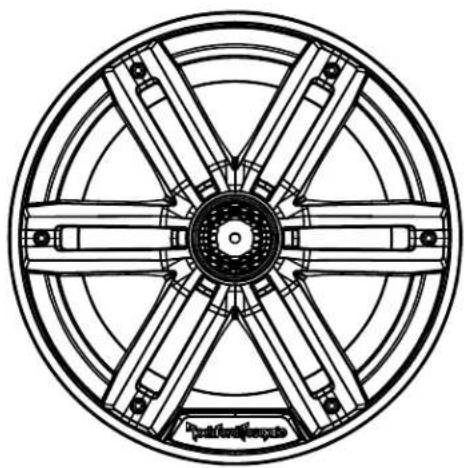

Grill Options (Included)

Technical line drawing of a wheel assembly with six spokes and central hub (no text or symbols)

Technical line drawing of a circular mechanical component with hexagonal lattice pattern and central hub (no text or symbols)

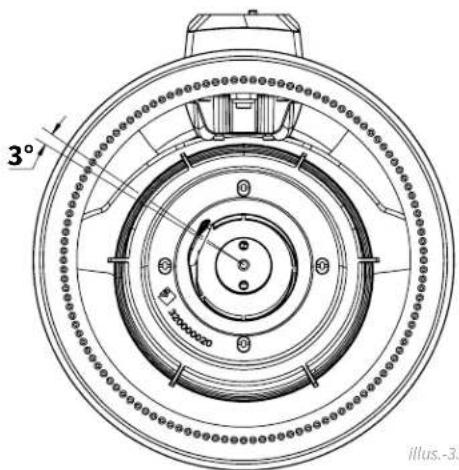

Speaker Adjustment

3° 20000000 illus.-3.

Remove the speaker to reveal the multi-point mounting option to make sure your speaker is mounted correctly. No matter what direction the speaker is mounted, it should always look like the image above.

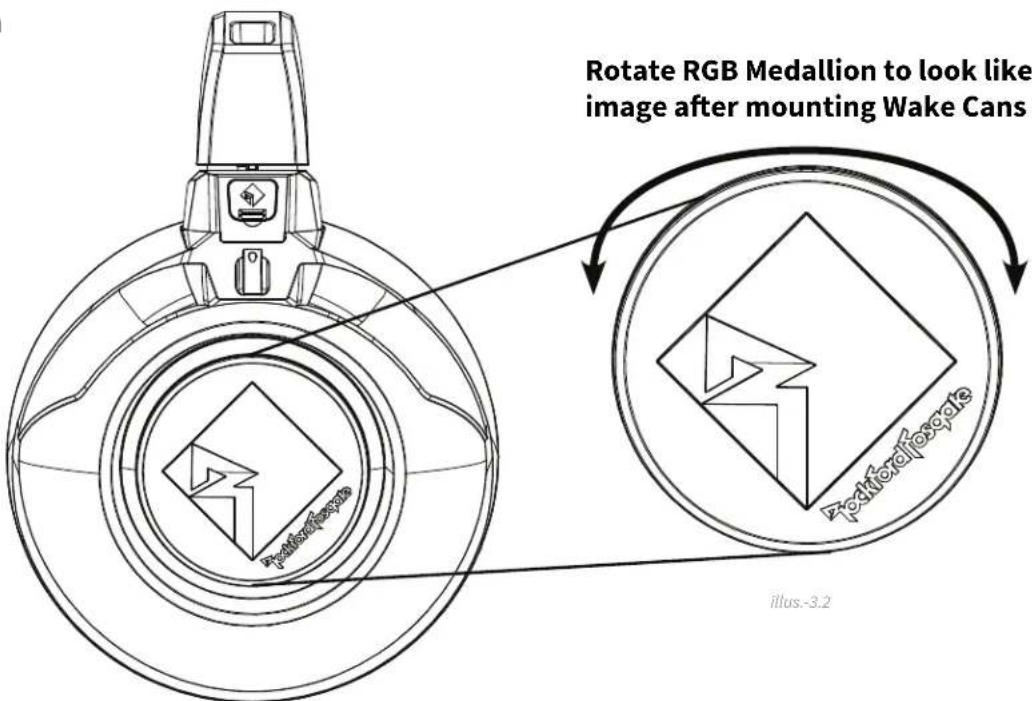

Rear LED Ring Rotation

Rotate RGB Medallion to look like image after mounting Wake Cans Pedtoroforegate Pederoforegate illus-3.2

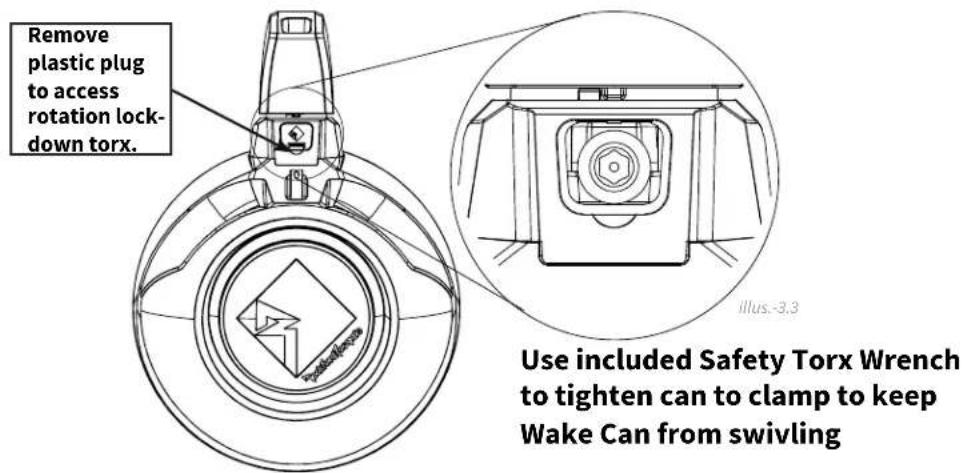

Rotation Lock-down

Remove plastic plug to access rotation lock-down torx. Use included Safety Torx Wrench to tighten can to clamp to keep Wake Can from swivling

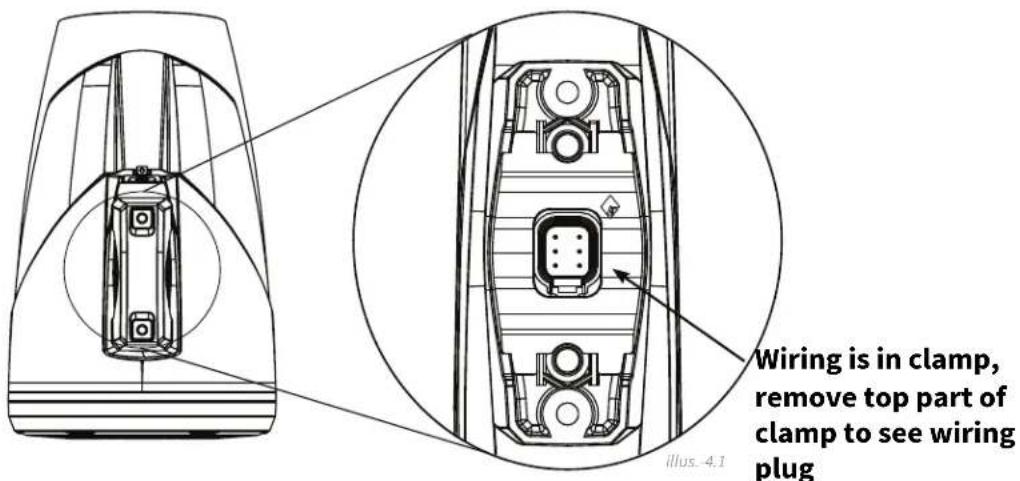

Inside Clamp Wiring

Wiring is in clamp, remove top part of clamp to see wiring plug llus_4.1

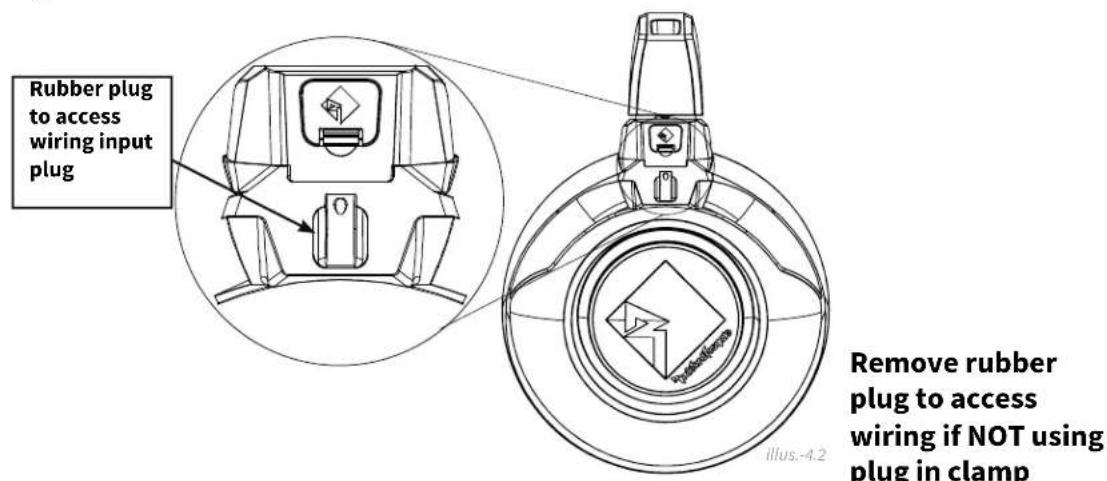

Outside Clamp Wiring

Rubber plug to access wiring input plug Remove rubber plug to access wiring if NOT using plug in clamp

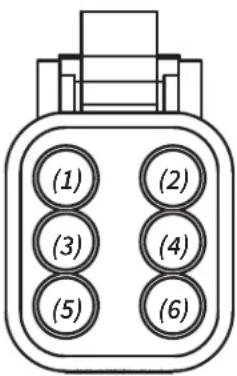

(1) (2) (3) (4) (5) (6)

1 - BLACK (Speaker Negative, 18 AWG)

2 - YELLOW (12V + Input, 22 AWG)

3 - RED (Speaker Positive, 18 AWG)

4 - GREEN (Ground Input, 22 AWG)

5 - RED (Ground Input, 22 AWG)

6 - BLUE (Ground Input, 22 AWG)

Included with speakers

Connector is DEUTSCH ^TM /Amphenol style DT06-4S

illus.-4.3

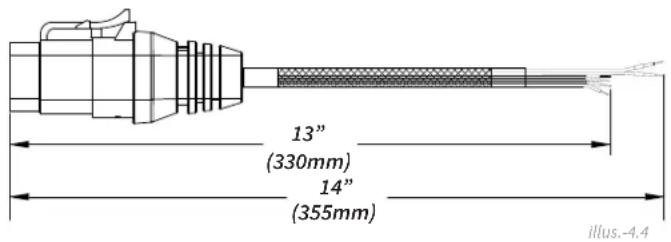

13" (330mm) 14" (355mm) illus.-4.4

Contents

• (1) Pair Wake Can Speakers

• (1) Pair Universal Clamps

• (4) Grommets

• (2) Spare Safety Inserts for Screw Clamp

• (2) 1.5" to 2.5" Rubber Clamp Inserts and Stainless Hardware

• (2) 2.5" to 3" Rubber Clamp Inserts and Stainless Hardware

Installation Considerations

Before beginning any installation, follow these simple rules:

1. Be sure to carefully read and understand the instructions before attempting to install these speakers.

2. For safety, disconnect the negative lead from the battery prior to beginning the installation.

3. For easier assembly, we suggest you run all wires prior to mounting your speakers in place.

4. Use high quality connectors for a reliable installation and to minimize signal or power loss.

5. Think before you drill! Be careful not to cut or drill into gas tanks, fuel lines, brake or hydraulic lines, vacuum lines or electrical wiring when working on any vehicle. If installation in a boat, take care not to cut or drill through the main hull.

6. Never run wires underneath the vehicle. Running the wires inside the vehicle or hull area provides the best protection.

7. Avoid running wires over or through sharp edges. Use rubber or plastic grommets to protect any wires routed through metal, especially the firewall.

Mounting

Rockford Corporation offers a limited warranty on Rockford Fosgate products on the following terms:

Length of Warranty

POWER Amplifiers - 2 Years

BMW® Direct Fit Speakers – 2 Years

PUNCH® & PRIME® Amplifiers - 1 Year

Speakers, Signal Processors, Accessories and Capacitors – 1 Year

All marine, motorcycle, motorsport products - 2 Years

Any Factory Refurbished Product – 90 Days (receipt required)

What is Covered

This warranty applies only to Rockford Fosgate products sold to consumers by authorized Rockford Fosgate dealers in the United States of America. Products purchased by consumers from an Authorized Rockford Fosgate Dealer in another country are covered only by that country's Distributor and not by Rockford Corporation.

Who is Covered

This warranty covers only the original purchaser of Rockford product purchased from an authorized Rockford Fosgate dealer in the United States. In order to receive service, the purchaser must provide Rockford with a copy of the receipt stating the customer name, dealer name, product purchased and date of purchase.

Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at Rockford's discretion.

What is Not Covered

1. Damage caused by accident, abuse, improper installation, operations, theft, water (on non-Element Ready products).
2. Any cost or expense related to the removal or reinstallation of product.
3. Service performed by anyone other than Rockford or an authorized Rockford Fosgate service center.
4. Any product which has had the serial number defaced, altered, or removed.
5. Subsequent damage to other components.
6. Any product purchased outside the U.S.
7. Any product not purchased from an authorized Rockford Fosgate dealer. Refer to rockfordfosgate.com dealer locator for more detail.

Limit on Implied Warranties

Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the period of the express warranty set forth above. Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Rockford Fosgate any other liability in connection with the sale of the product.

How to Obtain Service

Please call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.

EU Warranty

This product meets the current EU warranty requirements, see your Authorized dealer for details.
