USER MANUAL ACS082PP WHIRLPOOL

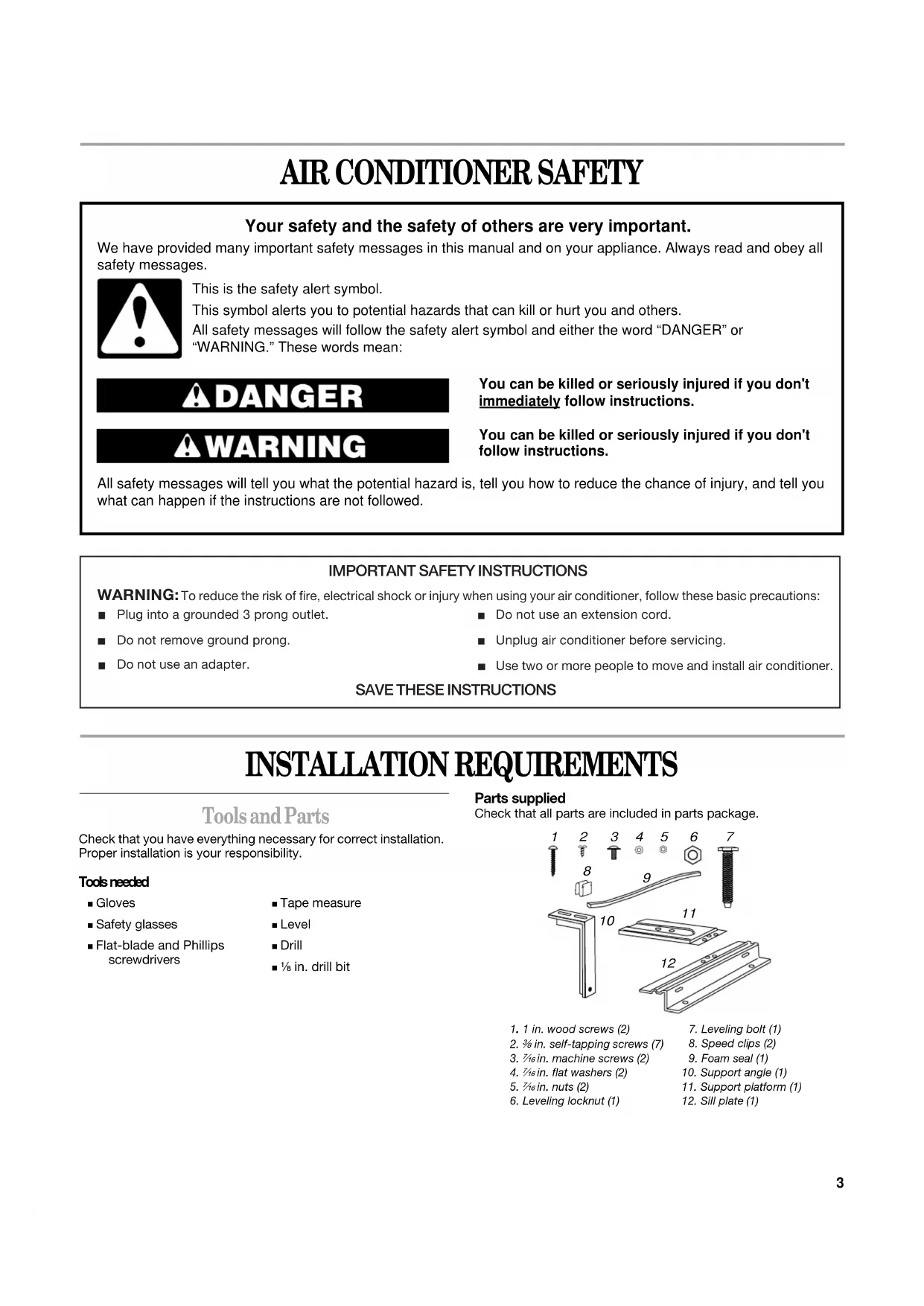

INSTALLATION REQUIREMENTS Tools and Parts Check that you have everything necessary for correct installation. Proper installation is your responsibility.Tools neededParts suppliedCheck that all parts are included in parts package. You can be killed or seriously injured if you don't immediately follow instructions. You can be killed or seriously injured if you don't follow instructions. All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed. Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.” These words mean:

To reduce the risk of fire, electrical shock or injury when using your air conditioner, follow these basic precautions:

SAVE THESE INSTRUCTIONS

Unplug air conditioner before servicing.Use two or more people to move and install air conditioner.Plug into a grounded 3 prong outlet.Do not remove ground prong.Do not use an adapter.Do not use an extension cord.■ Gloves■ Safety glasses■ Flat-blade and Phillips screwdrivers■ Tape measure■ Level■ Drill■ ¹⁄₈ in. drill bit

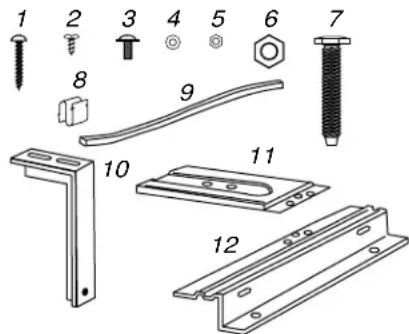

1. 1 in. wood screws (2)

in. self-tapping screws (7)

in. machine screws (2)

in. flat washers (2)

11. Support platform (1)

Parts needed ■ If metal casement window installation, a ³⁄₄ in. (19 mm) wood filler panel will be needed for opening greater than 15¹⁄₂ in. (39.4 cm) wide. See “Metal and Wood Casement Window Installation.”■ If wood casement window installation, a 1 in. (2.5 cm) wood frame will be needed. See “Metal and Wood Casement Window Installation.”NOTE: The installation of this air conditioner is intended to be permanent. When installed in an apartment or rental property, permission to make modifications should be obtained from owner or landlord of building prior to installation of unit. Location Requirements IMPORTANT: Observe all governing codes and ordinances.Check the location where the air conditioner will be installed. Proper installation is your responsibility. Make sure you have everything necessary for correct installation.The location should provide:■ A horizontal sliding or casement type window with a minimum width of 15¹⁄₂ in. (39.4 cm).■ Grounded electrical outlet within 4 ft (122 cm) of where the power cord exits the air conditioner. NOTE: Do not use an extension cord.■ Free movement of air to rooms to be cooled.■ Adequate window frame assembly and side of structure support for weight of air conditioner. Air conditioner weighs approximately 82 lbs (37.2 kg) to 100 lbs (45 kg).NOTE: Do not install the air conditioner in an area where the front panel will be exposed to heat sources that will raise the panel surface temperature above 120°F (50°C). Window Installation Window opening measurements: ■ 15¹⁄₂ in. (39.4 cm) minimum opening width ■ 42 in. (106.9 cm) minimum opening height Electrical Requirements In the U.S. only: If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.Check with a qualified electrician if you are not sure air conditioner is grounded.A three-wire, single-phase, 60-Hz, AC-only, electrical supply is required on a separate circuit. A 15-amp time-delay fuse or circuit breaker is required. Copper wire (14 gauge) is required. The fuse size must not exceed the circuit rating specified on the model and serial number label. The model and serial number label is located on the right-hand side of the cabinet.Specific electrical requirements are listed in the chart. Follow the requirements for the type of plug on the power supply cord. Recommended ground method For your personal safety, this air conditioner must be grounded. This air conditioner is equipped with a power supply cord having a grounded 3 prong plug. To minimize possible shock hazard, the cord must be plugged into a mating, grounded 3 prong outlet, grounded in accordance with all local codes and ordinances. If a mating outlet is not available, it is the customer's responsibility to have a properly grounded 3 prong outlet installed by a licensed installer.A. 15 in. (39.4 cm) minimumB. 42 in. (106.9 cm) minimum

Power supply cord plug outletWiring requirements■ 115 volt (103.5 min. - 126.5 max.)■ 0-12 amperes■ 15-amp time-delay fuse or circuit breaker■ 14 gauge copper wiring WARNING Electrical Shock Hazard Plug into a grounded 3 prong outlet. Failure to follow these instructions can result in death, fire, or electrical shock. Do not use an extension cord. Do not use an adapter. Do not remove ground prong.5 It is the customer's responsibility:■ To contact a qualified electrical installer.■ To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 - latest edition, and all local codes and ordinances.Copies of the standards listed may be obtained from:National Fire Protection AssociationBatterymarch ParkQuincy, Massachusetts 02269 INSTALLATION INSTRUCTIONS Unpack the Air Conditioner Remove packaging materials ■ Remove and properly dispose of packaging materials. Remove tape and glue residue from surfaces before turning on the air conditioner. Rub a small amount of liquid dish soap over the adhesive with your fingers. Wipe with warm water and dry.■ Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape or glue. These products can damage the surface of your air conditioner. Metal or Wood Sliding Window Installation ■ Handle air conditioner with care. Watch out for sharp metal fins on the rear coil.■ Be sure your air conditioner does not fall out of the opening during installation or removal.■ The place where the power cord exits the air conditioner should be no more than 4 ft (122 cm) from a grounded outlet.■ Do not block the louvers on the front panel.■ Do not block air movement on the outside of the air conditioner.■ The window frame assembly and side of structure must be adequate to support weight of air conditioner. Install support platform

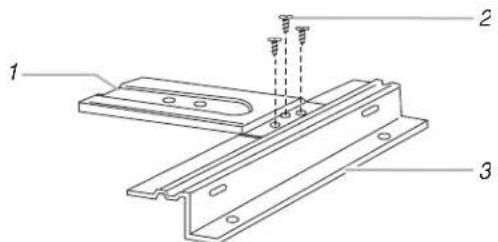

1. Slide open one window sash to install support platform.

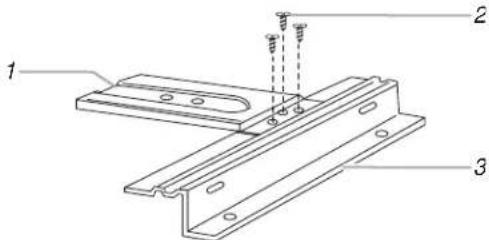

2. Attach support platform to sill plate with three ³⁄₈ in. self-

tapping screws.3. Loosely attach support angle to bottom of support platform using two ⁷⁄₁₆ in. machine screws, flat washers and nuts. 4. Place support platform against lower window track and firmly against vertical edge of window frame.5. Attach support platform to windowsill using two 1 in. wood screws.If required, overcome interference of support platform with window track or storm windows by securely attaching a shim strip to the windowsill. Shim strip should be as long as width of support platform and flush with back edge of sill. Thickness of shim strip should be controlled by amount of interference. Excessive Weight Hazard Use two or more people to move and install air conditioner. WARNING Failure to do so can result in back or other injury.

in. self-tapping screws3. Sill plate

6. Pull support angle against outside of structure. Tighten two

⁷⁄₁₆ in. machine screws on top of support platform.

7. Adjust leveling bolt to level support angle. Tighten leveling

bolt locknut. NOTE: Air conditioner must tilted back slightly to facilitate proper condensate disposal.

8. Cut 2 pieces of foam seal to height of window opening.

Remove backing and apply to window frame and sliding sash that will rest against air conditioner cabinet. Install air conditioner in window

1. Slide unit onto support platform. Check to be sure air

conditioner side channel fits securely against vertical edge of window frame. NOTE: If air conditioner side channel does not fit securely against window frame, remove unit and readjust leveling bolt.

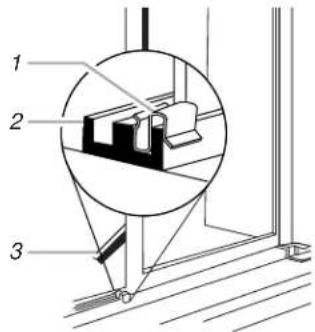

2. Drill two ¹⁄₈ in. holes through the window channel frame in

alignment with existing holes in bottom bracket. Install two ³⁄₈ in. self-tapping screws through these holes. NOTE: If window channel frame is not tall enough to use existing holes, drill 2 new holes off to the side of the existing holes to attach the air conditioner bottom bracket to the support platform. Air conditioner should be firmly anchored to window channel frame or support platform.

3. Slide inside window sash closed. Check to be sure vertical

edge of inside window sash is pressed firmly against side of air conditioner cabinet. Cut remaining foam seal to width of window opening. Remove backing and apply to top inside edge of window frame.

5. Using supplied plastic foam seal, cut to proper length, insert

between inside window sash and outside window.

6. See “Complete Installation.”

Metal or Wood Casement Window Installation ■ Handle air conditioner with care. Watch out for sharp metal fins on the rear coil. ■ Be sure your air conditioner does not fall out of the opening during installation or removal. ■ The place where the power cord exits the air conditioner should be no more than 4 ft (122 cm) from a grounded outlet. ■ Do not block the louvers on the front panel.■ Do not block air movement on the outside of the air conditioner. ■ The window frame assembly and side of structure must be adequate to support weight of air conditioner. This air conditioner is designed to fit into most casement-type windows. As shipped from factory, unit will fit into a minimum window opening 15¹⁄₂ in. (39.4 cm) wide and 21 in. (53.3 cm) high. The preferred method of installation is through a closed or stationary window. Installation in an open window frame is also possible where open window can be secured to outside of building or removed completely. Closed or stationary window Install unit in stationary sash to avoid crank handles or window latches. If unit is to be installed in or next to a movable sash, it may be necessary to remove catch, handle or both. ■ Remove crank handle and secure window in closed position. Remove glass panes and separating strips to a height sufficient to mount air conditioner.

1. Window channel frame

in. self-tapping screw3. Bottom bracket

1. Remove crank mechanism and catch handles.

2. Fold window sash back against exterior wall of building and

secure, or remove completely where possible. Wood casement window installation

1. Construct a frame, using at least 1 in. (2.5 cm) thick wood

panel with a 15¹⁄₂ in. (39.4 cm) wide opening.

2. Paint frame and fasten it securely, sealing it into window

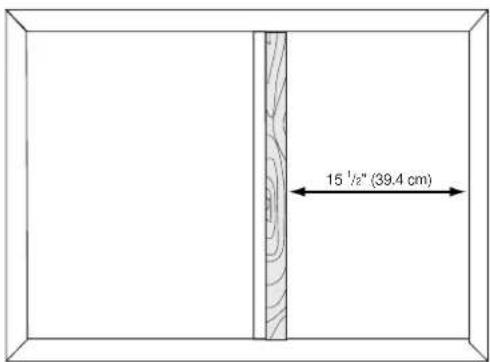

opening. If window opening width is greater than 15¹⁄₂ in. (39.4 cm):

1. Measure from side of window opening 15¹⁄₂ in. (39.4 cm).

From this point, measure to opposite side of window opening to find width of filler panel. Measure height of window. Cut a ³⁄₄ in. (19 mm) thick wood filler panel this width and the full height of the window opening.

2. Attach securely to side of opening.

3. Paint to desired color.

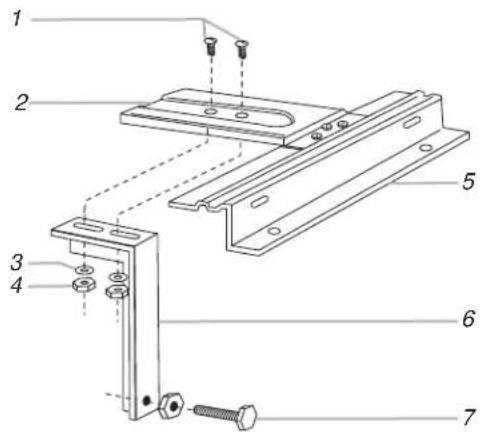

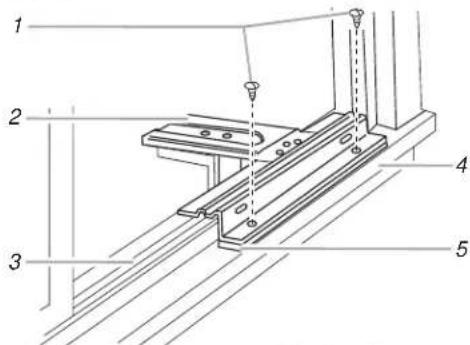

Install support platform

1. Attach support platform to sill plate with three ³⁄₈ in. self-

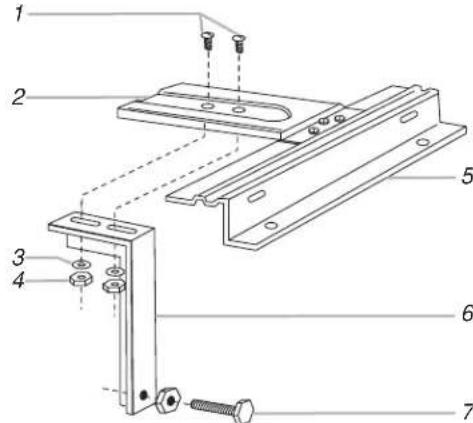

2. Loosely attach support angle to bottom of support platform

using two ⁷⁄₁₆ in. machine screws, flat washers and nuts.

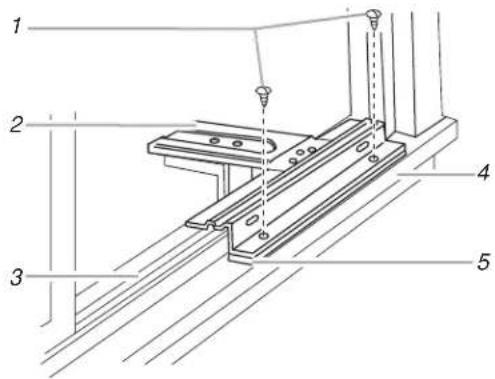

3. Place support platform against lower window track and firmly

against vertical edge of window frame.

4. Attach support platform to windowsill using 2 - 1 in. wood

screws. If required, overcome interference of support platform with window track or storm windows by securely attaching a shim strip to the windowsill. Shim strip should be as long as width of support platform and flush with back edge of sill. Thickness of shim strip should be controlled by amount of interference.

5. Pull support angle against outside of structure. Tighten two

⁷⁄₁₆ in. machine screws on top of support platform.

6. Adjust leveling bolt to position support angle in a level plane.

This will allow for proper angle. Tighten leveling bolt nut. NOTE: Air conditioner must tilted back slightly to facilitate proper condensate disposal.

7. Cut 2 pieces of foam seal to height of window opening.

Remove backing and apply to window frame on both sides.

in. (39.4 cm) from side of window to wood filler panel

in. self-tapping screws

1. 1 in. wood screws

3. Lower window track

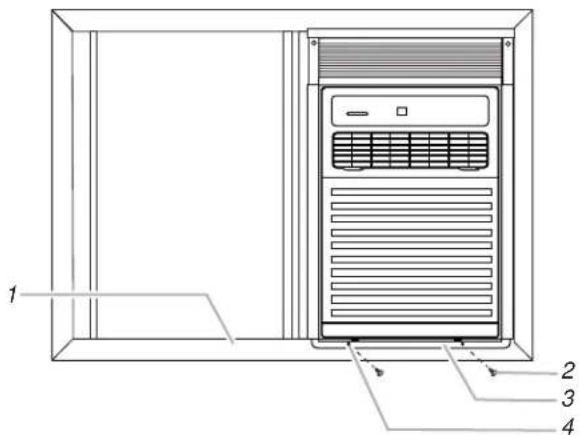

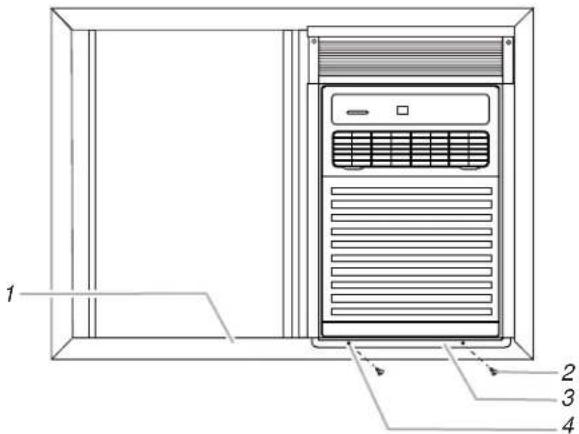

Install air conditioner in window 1. Slide unit onto support platform. Check to be sure air conditioner side channel fits securely against vertical edge of window frame.NOTE: If air conditioner side channel does not fit securely against window frame, remove unit and readjust leveling bolt.

2. Drill two ¹⁄₈ in. holes through the window channel frame in

alignment with existing holes in bottom bar. Install two ³⁄₈ in. self-tapping screws through these holes. NOTE: If window channel frame is not tall enough to use existing holes, drill 2 new holes off to the side of the existing holes to attach the air conditioner bottom bar to the support platform. Air conditioner should be firmly anchored to window channel frame or support platform. Complete Installation 1. Place top retainer on top edge of filler panel, then place the bottom edge of filler panel into groove of bottom retainer (mounted on unit). Filler panel may be trimmed with knife or scissors to fit window height. Slide sliders upward making sure filler panel aligns in sliders.

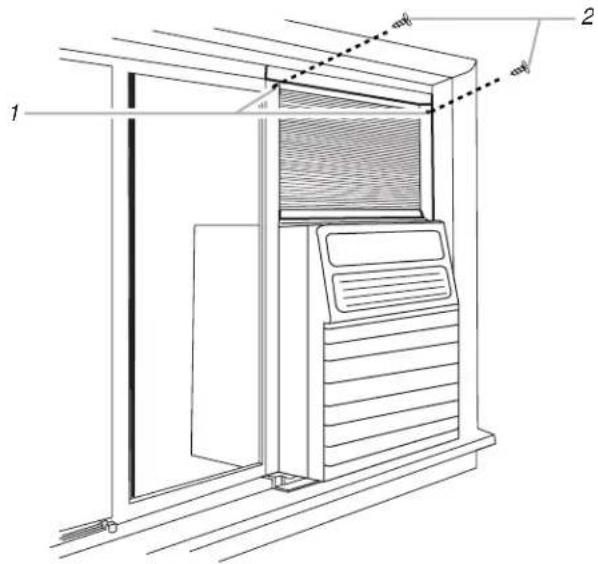

2. With sliders up against top retainer, drill ¹⁄₈ in. hole through

window frame in alignment with existing hole in slider. Install ³⁄₈ in. self-tapping screw in hole. Repeat for other slider.3. Check all seals and plug all air leaks around unit. Use sealant to fill any minor openings.

Operating your air conditioner properly helps you to obtain the best possible results. This section explains proper air conditioner operation.IMPORTANT: ■ If you turn off the air conditioner, wait at least 3 minutes before turning it back on. This prevents the air conditioner from blowing a fuse or tripping a circuit breaker.■ Do not try to operate your air conditioner in the cooling mode when outside temperature is below 66°F (19°C). The inside evaporator coil will freeze up, and the air conditioner will not operate properly.NOTES: ■ In the event of a power failure, your air conditioner will not automatically turn back on.■ If the electronic control will not respond to touch pad or remote control commands, it is necessary to unplug the unit from the electrical outlet for 5 seconds before plugging back in.1. Window channel frame

in. self-tapping screw3. Bottom bracket

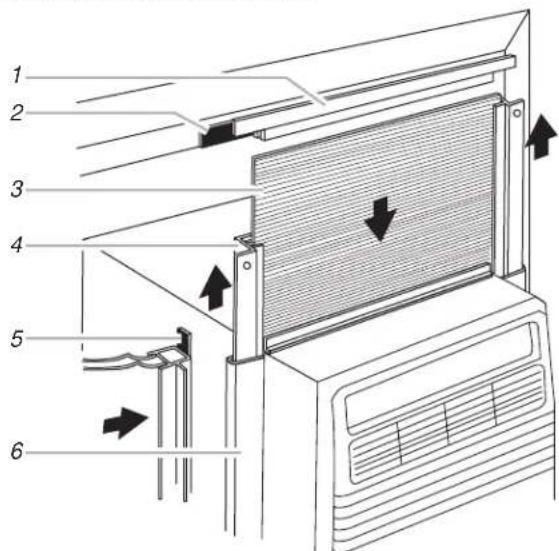

in. drilled holes1. Top retainer2. Foam seal under top retainer3. Filler board4. Slider5. Foam seal between side of cabinet and sliding sash (sliding window installation only)6. Side channel

in. self-tapping screw

1. Set air exchanger. See “Air Exchanger.”

2. Press POWER to turn on air conditioner.

NOTE: When the unit is turned on, it will display the previous settings for the Mode, Fan Speed and temperature.

3. Choose mode. See “Mode.”

4. Choose fan speed. See “Fan Speed.”

5. Choose temperature. See “Temperature.”

Air Exchanger Set the Air Exchanger control to CLOSED for maximum continuous cooling. The Air Exchanger set to OPEN circulates fresh air and draws stale or smoky air from the room. ■ Open - to exhaust room air to the outside ■ Closed - maximum air circulation and cooling Mode

■ Cool - Cools room. Press FAN SPEED to choose fan speed. Then adjust the temperature by pressing the up or down arrow buttons. ■ Fan Only- Operates the fan at Low, High or Turbo speed, without cooling. ■ Power Saver - The fan will switch from the set fan speed to LOW whenever the compressor turns off in response to the set temperature. When the compressor cycles back on, the fan will return to the set fan speed. Fan Speed

1. Press and hold FAN SPEED.

2. Choose AUTO, TURBO, HIGH or LOW.

When Auto is selected, the fan speed will change automatically as the temperature in the room changes. ■ 7º or more above the set temperature will use Turbo. ■ 4º - 7º above the set temperature will use High. ■ 4º or below the set temperature will use Low. Temperature ■ Press the TEMP plus pad to raise the temperature 1º until it reaches 88ºF (31ºC). ■ Press the TEMP minus pad to lower the temperature 1º until it reaches 66ºF (19ºC). NOTE: By pressing both pads at once, the display will switch from ºF to ºC. Timer Delay To set the Timer for a 1- to 24-hour delay until the air conditioner turns on (the air conditioner must be Off):

1. Press TIMER. Indicator light remain on.

2. Press the plus or minus pad to change the delay time from

To set the Timer delay for a 1- to 24-hour delay until the air conditioner turns off (air conditioner must be On):

1. Press TIMER. Indicator light will remain on.

2. Press the plus or minus pad to change the delay time from

1 to 24 hours. The display will automatically go back to the set temperature after 10 seconds.

To operate air conditioner with remote control NOTE: Two AAA batteries (included) power the remote control. Replace batteries after 6 months of use, or when the remote control starts to lose power. Be sure to install batteries with correct polarity. Screwdriver required to remove battery cover. To turn the air conditioner on or off: Press POWER. To raise the temperature: Press the TEMP plus pad to raise the temperature 1º until it reaches 88ºF (31ºC). To lower the temperature: Press the TEMP minus pad to lower the temperature 1º until it reaches 66ºF (19ºC). To select the mode: Press MODE. NOTE: Works the same as the air conditioner touch pad control. To select the fan speed: Press FAN SPEED. NOTE: Works the same as the air conditioner touch pad control. To set Timer for a 1- to 24-hour delay before air conditioner turns on (air conditioner must be Off):

2. Press the plus or minus pad to change the delay time from

1 to 24 hours. To set Timer for a 1- to 24-hour delay before air conditioner turns off (air conditioner must be On):

2. Press the plus or minus pad to change delay time from 1 to

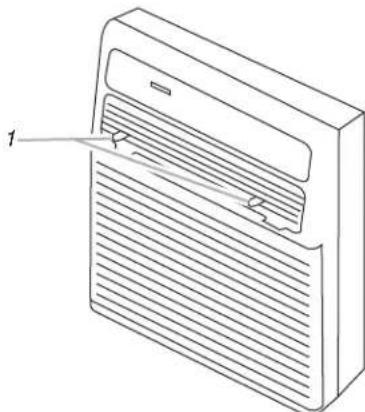

24 hours. Changing Air Direction Use levers to adjust louvers for desired airflow.

Saving Energy Along with using Power Saver, there are many things you can do to help save energy. ■ Improve your home’s insulation. Seal doors and windows. Close fireplace flue. ■ Close blinds or drapes on the sunny side of your house. Add awnings. ■ Make sure drapes or furniture do not block airflow from your air conditioner. ■ Turn off lights and appliances when they are not needed. ■ Ventilate your attic. High temperatures in the attic add to the air conditioner’s cooling load. ■ Try not to use heat-producing appliances during the hottest part of the day. ■ Keep heat registers and cool-air returns closed.■ Use exhaust vent fans while cooking, doing laundry, or bathing. Normal Sounds When your air conditioner is operating normally, you may hear sounds such as: ■ Droplets of water hitting the condenser, causing a pinging or clicking sound. The water droplets help cool the condenser. ■ Air movement from the fan.■ Clicks from the thermostat cycle.■ Vibrations or noise due to poor wall or window construction.■ A high-pitched hum or pulsating noise caused by the modern high-efficiency compressor cycling on and off.

AIR CONDITIONER CARE

Your new air conditioner is designed to give you many years of dependable service. This section tells you how to clean and care for your air conditioner properly. Call your local authorized dealer for an annual checkup. Remember… the cost of this service call is your responsibility. Cleaning the Air Filter The air filter is removable for easy cleaning. A clean filter helps remove dust, lint, and other particles from the air and is important for best cooling and operating efficiency. Check the filter weekly to see whether it needs cleaning. NOTE: Do not operate the air conditioner without the filter in place.

1. Unplug air conditioner or disconnect power.

2. Grasp both sides near top of intake grille and pull forward.

Intake grille will pivot forward to reveal air filter.

3. Remove air filter from tabs.

4. Carefully wash air filter with a mild detergent and warm water.

Rinse with clear water, squeeze dry and replace.

5. Replace intake grille.

6. Plug in air conditioner or reconnect power.

Cleaning the Intake Grille

1. Unplug air conditioner or disconnect power.

2. Clean intake grille with a soft, damp cloth.

3. Air dry intake grille completely.

4. Plug in air conditioner or reconnect power.

Paint Damage Repair Check once or twice a year for paint damage. This is very important, especially in areas near oceans or where rust is a problem. If needed, touch up with a good grade enamel paint.

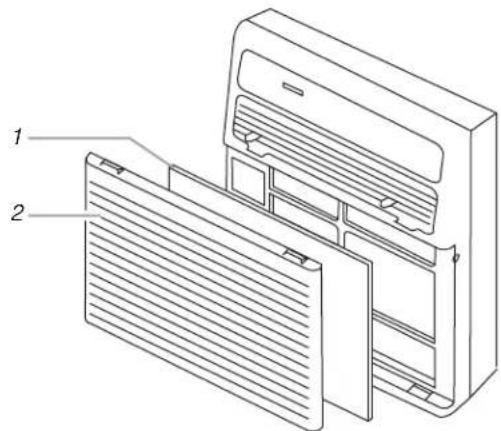

1. Filter2. Intake grille

TROUBLESHOOTING You can solve many common air conditioner problems easily, saving you the cost of a service call. Try the suggestions below to see whether you can solve your problem without outside help. Air conditioner will not operate. ■ The power supply cord is unplugged. Firmly plug the power supply cord into a properly grounded 3 prong outlet with proper voltage. See “Electrical Requirements.” ■ A household fuse has blown or circuit breaker has tripped. Replace the fuse or reset the circuit breaker. Make sure the air conditioner is plugged into a properly grounded 3 prong outlet. See “Electrical Requirements.” ■ The Power button has not been pressed. Press the POWER button. ■ The local power has failed. Wait for power to be restored. Air conditioner blows fuses or trips circuit breakers. ■ Too many appliances are being used on the same circuit. Unplug or relocate appliances that share the same circuit. ■ Time-delay fuse or circuit breaker of the wrong capacity is being used. Replace with a time-delay fuse or circuit breaker of the correct capacity. See “Electrical Requirements.” ■ An extension cord is being used. Do not use an extension cord with this or any other appliance. ■ You are trying to restart the air conditioner too soon after turning off the unit. Wait at least 3 minutes after turning off the unit before trying to restart the air conditioner. Air conditioner seems to run too much. ■ The current air conditioner replaced an older model. The use of more efficient components may cause the air conditioner to run longer than an older model, but the total energy consumption will be less. Newer air conditioners do not emit the “blast” of cold air you may be accustomed to from older units, but this is not an indication of lesser cooling capacity or efficiency. Refer to the efficiency rating (EER) and capacity rating (in BTUs/hr.) marked on the air conditioner. ■ The air conditioner is in a heavily occupied room, or heat- producing appliances are in use in the room. Use exhaust vent fans while cooking or bathing and try not to use heat- producing appliances during the hottest part of the day. A higher capacity air conditioner may be required, depending on the size of the room being cooled. Air conditioner cycles on and off too much. ■ The MODE is set to POWER SAVER. Use Power Saver only when you are away from home or asleep. Use COOL and a higher fan setting for your best comfort. ■ The air conditioner is not properly sized for your room. Check the cooling capabilities of your room air conditioner. Room air conditioners are not designed to cool multiple rooms. ■ The filter is dirty or obstructed by debris. Clean the filter. ■ There is excessive heat or moisture (open container cooking, showers, etc.) in the room. Use a fan to exhaust heat or moisture from the room. Try not to use heat- producing appliances during the hottest part of the day. ■ The louvers are blocked. Install the air conditioner in a location where the louvers are free from curtains, blinds, furniture, etc. ■ The outside temperature is below 66°F (19°C). Do not try to operate your air conditioner in the cooling mode when the outside temperature is below 66°F (19°C). ■ The temperature of the room you are trying to cool is extremely hot. Allow extra time for the air conditioner to cool off a very hot room. ■ Windows or doors to the outside are open. Close all windows and doors. ■ The Air Exchanger is set to OPEN (on some models). Set the Exhaust control to CLOSED for maximum cooling and/or heating. ■ Temperature control is not at a cool enough setting. Adjust the TEMPERATURE control to a cooler setting. Press the TEMP minus pad to reduce the temperature by 1º until it reaches 66ºF (19ºC). Set the FAN SPEED control to TURBO. ■ The air conditioner is installed on the sunny side of your house. Install your air conditioner in a more shaded window. Water drips from cabinet into your house. ■ The air conditioner is not properly leveled. The air conditioner should slope slightly downward toward the outside. Tilt the air conditioner to a downward slope to the outside to ensure proper drainage. See the Installation Instructions. Reposition or shim the cabinet as necessary. NOTE: Do not drill a hole in the bottom of the metal base and condensate pan. Air conditioner cooling, but room is too warm - Ice forming on cooling coil behind intake grille. ■ The outside temperature is below 66°F (19°C). Do not try to operate your air conditioner in the cooling mode when the outside temperature is below 66°F (19°C). ■ The filter is dirty or obstructed by debris. Clean the filter.13

ASSISTANCE OR SERVICE

Before calling for assistance or service, please check “Troubleshooting.” It may save you the cost of a service call. If you still need help, follow the instructions below. When calling, please know the purchase date and the complete model and serial number of your appliance. This information will help us to better respond to your request. If you need replacement parts If you need to order replacement parts, we recommend that you only use factory specified replacement parts. Factory specified replacement parts will fit right and work right because they are made with the same precision used to build every new WHIRLPOOL

appliance. To locate factory specified replacement parts in your area, call our Customer Interaction Center telephone number or your nearest Whirlpool designated service center. In the U.S.A. Call the Whirlpool Customer Interaction Center toll free: 1-800-253-1301. Our consultants provide assistance with: ■ Features and specifications on our full line of appliances.■ Installation information.■ Use and maintenance procedures.■ Accessory and repair parts sales.■ Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.). ■ Referrals to local dealers, repair parts distributors, and service companies. Whirlpool designated service technicians are trained to fulfill the product warranty and provide after- warranty service, anywhere in the United States. To locate the Whirlpool designated service company in your area, you can also look in your telephone directory Yellow Pages. For further assistance If you need further assistance, you can write to Whirlpool Corporation with any questions or concerns at: Whirlpool Brand Home Appliances Customer Interaction Center 553 Benson Road Benton Harbor, MI 49022-2692 Please include a daytime phone number in your correspondence. In Canada For product related questions, please call the Whirlpool Canada Inc. Customer Interaction Center toll free: 1-800-461-5681 Monday to Friday 8:00 a.m. - 6:00 p.m. (EST). Saturday 8:30 a.m. - 4:30 p.m. (EST). Our consultants provide assistance with: ■ Features and specifications on our full line of appliances.■ Referrals to local dealers. For parts, accessories and service in Canada Call 1-800-807-6777. Whirlpool Canada Inc. designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in Canada. For further assistance If you need further assistance, you can write to Whirlpool Canada Inc. with any questions or concerns at: Customer Interaction Center Whirlpool Canada Inc. 1901 Minnesota Court Mississauga, Ontario L5N 3A7 Please include a daytime phone number in your correspondence.14 WHIRLPOOL

ONE YEAR FULL WARRANTY

For one year from the date of purchase, if this air conditioner fails when operated and maintained according to instructions attached to or furnished with the product, Whirlpool Corporation or Whirlpool Canada Inc. will pay for replacement parts and repair labor costs to correct defects in materials or workmanship. Service must be provided by a Whirlpool designated service company. FIVE YEAR FULL WARRANTY ON SEALED REFRIGERATION SYSTEM For five years from the date of purchase, if this air conditioner fails when operated and maintained according to instructions attached to or furnished with the product, Whirlpool Corporation or Whirlpool Canada Inc. will pay for replacement parts to correct defects in materials or workmanship in the sealed refrigeration system, including the compressor, evaporator, condenser, dryer-strainer and connecting tubing. Service must be provided by a Whirlpool designated service company. Whirlpool Corporation or Whirlpool Canada Inc. will not pay for: 1. Service calls to correct the installation of your air conditioner, instruct you on how to use your air conditioner, to replace house fuses or correct house wiring or reset circuit breakers, or to clean or replace owner accessible air filters.

2. Repairs when your air conditioner is used in other than normal, single-family household use.

3. Damage resulting from accident, alteration, misuse, abuse, fire, floods, acts of God, improper installation not in accordance with local electrical and plumbing codes, or use of products not approved by Whirlpool Corporation or Whirlpool Canada Inc.

4. Replacement parts or repair labor costs for units operated outside the United States or Canada.

5. Pickup and delivery. Your air conditioner is designed to be repaired in the home.

6. The removal and reinstallation of your air conditioner if it is installed in an overhead or other inaccessible location or is not installed in accordance with published installation instructions.

7. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.

8. In Canada, travel or transportation expenses for customers who reside in remote areas.

WHIRLPOOL CORPORATION AND WHIRLPOOL CANADA INC. SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so this exclusion or limitation may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state and province to province. Outside the 50 United States or Canada, this warranty does not apply. Contact your authorized Whirlpool dealer to determine if another warranty applies. If you need service, first see “Troubleshooting.” Additional help can be found by checking “Assistance or Service,” or by calling our Customer Interaction Center at 1-800-253-1301, from anywhere in the U.S.A. or write: Whirlpool Corporation, Customer Interaction Center, 553 Benson Road, Benton Harbor, MI 49022-2692. In Canada, call 1-800-807-6777. For service in Canada, call 1-800-807-6777. Whirlpool Canada Inc. designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in Canada. If you need further assistance, you can write to Whirlpool Canada Inc. with any questions or concerns at: Customer Interaction Center, Whirlpool Canada Inc., 1901 Minnesota Court, Mississauga, Ontario L5N 3A7. Please include a daytime phone number in your correspondence. 8/03 Keep this warranty and your sales slip together for future reference. You must provide proof of purchase or installation date for in-warranty service. Write down the following information about your air conditioner to better help you obtain assistance or service if you ever need it. You will need to know your complete model number and serial number. Dealer name____________________________________________________ Address ________________________________________________________ Phone number__________________________________________________ Model number __________________________________________________ Serial number __________________________________________________ Purchase date __________________________________________________15 Notes16
