Product Type	Room Air Conditioner (Window/Through-the-Wall)
Brand	Whirlpool
Model	ACE184PT0
Cooling Capacity	18,000 BTU/h (estimated)
Weight	145–200 lbs (65–96 kg)
Window Opening Width	30–40 inches (76.2–101.6 cm)
Window Opening Height (min)	20 inches (50.8 cm)
Wall Opening Width (through‑the‑wall)	26.5 inches (66.1 cm) plus 2× wood frame thickness
Wall Opening Height (through‑the‑wall)	19.75 inches (50.2 cm) plus 2× wood frame thickness
Electrical Requirements	115 V or 230 V; 12–24 A; dedicated circuit; grounded 3‑prong outlet
Power Cord Type	LCDI (Leakage Current Detection Interrupter) with Test/Reset buttons
Control Type	Digital touch panel and remote control (AAA batteries included)
Modes	Cool, Fan Only, Power Saver; Heat/Cool on some models
Fan Speeds	Turbo, High, Low, Auto
Timer	1–24 hour delay on/off
Air Direction	Horizontal swing (via Air Swing button); vertical tabs
Filter Monitor	Indicator light after 360 hours of fan operation
Filter Cleaning	Every 2 weeks; vacuum or wash with mild detergent; dry before reinserting
Annual Maintenance	Recommended; contact authorized dealer
Safety Features	Ground wire, power cord GFCI, no extension cord or adapter allowed
Accessories Included	Remote control, support brackets, curtains, window lock brackets, foam seals, screws
Replacement Parts Available	Air filter (electrostatic or antimicrobial), heavy‑duty cover, wide window kit
Customer Support	1‑800‑253‑1301 (USA) for features, service, parts

Frequently Asked Questions - ACE184PT0 WHIRLPOOL

What is the cooling capacity of the Whirlpool ACE184PT0?

The Whirlpool ACE184PT0 is estimated at 18,000 BTU/h, suitable for medium‑to‑large rooms.

Can this air conditioner be installed in a window or through a wall?

Yes, it supports both window installation (double‑hung, 30–40 in. wide) and through‑the‑wall installation with a wood frame.

What are the electrical requirements?

The unit requires a grounded 3‑prong outlet on a dedicated circuit. Voltage can be 115 V or 230 V, with amperage ranging from 12 to 24 A depending on model. Do not use an extension cord or adapter.

How do I clean the air filter?

Turn off the unit, slide out the filter, and vacuum or wash with mild detergent and warm water. Let it dry completely before reinserting. Clean every 2 weeks.

What does the Filter Monitor indicator mean?

After 360 hours of fan operation, the indicator turns on. It flashes after an additional 180 hours if not reset. Press and hold the FILTER button for 3 seconds after cleaning to reset.

How do I use the timer function?

Press the TIMER button. Use +/- to set a delay from 1 to 24 hours. Press TIMER again or wait 10 seconds to confirm. To clear, press and hold TIMER for 3 seconds.

Why does my air conditioner trip the circuit breaker?

Possible causes: too many appliances on the same circuit, wrong fuse/capacity, or restarting too soon. Wait 3 minutes before restarting. Use a dedicated circuit and correct time‑delay fuse.

What should I do if the power cord test button trips?

Press and release the RESET button (listen for click). If it fails to reset, unplug and contact service. The cord is a safety device and must be replaced if damaged.

Can I use the remote control to operate the air conditioner?

Yes, the remote controls power, mode, fan speed, temperature, and timer. Use two AAA batteries (included). Replace after 6 months or when range decreases.

What accessories are available for the ACE184PT0?

Accessories include replacement air filters (electrostatic or antimicrobial), a heavy‑duty cover for winter, and a wide window kit for windows up to 54 inches. Order by calling 1‑800‑253‑1301.

USER MANUAL ACE184PT0 WHIRLPOOL

Illustration of a thermometer with snowflake patterns around it, no text or symbols present

AIR CONDITIONER

Use & Care Guide

For questions about features, operation/performance, parts, accessories or service, call: 1-800-253-1301 in the U.S.A.

Table of Contents/Índice 2

TABLE OF CONTENTS

AIR CONDITIONER SAFETY 2

INSTALLATION REQUIREMENTS....3

Tools and Parts ....3

Location Requirements....3

Electrical Requirements 4

INSTALLATION INSTRUCTIONS....5

Unpack the Air Conditioner....5

Window Installation (on some models)....6

Through-the-Wall Cabinet Installation....9

Complete Installation ....10

AIR CONDITIONER USE....11

Starting Your Air Conditioner—Digital Control 12

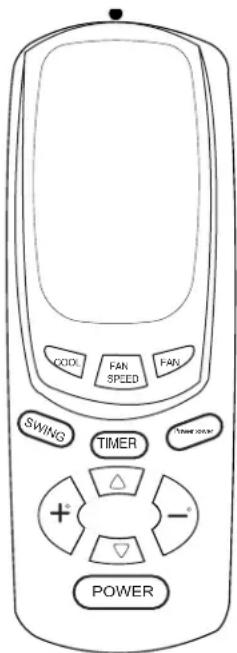

Using the Remote Control ....13

Starting Your Air Conditioner—Rotary Control—

Cool Only Models....14

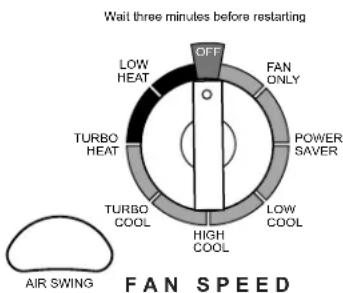

Starting Your Air Conditioner—Rotary Control—

Heat/Cool Models 15

Changing Air Direction 16

Normal Sounds....16

AIR CONDITIONER CARE ....16

Cleaning the Air Filter 16

Cleaning the Front Panel....16

Repairing Paint Damage 16

Annual Maintenance....16

TROUBLESHOOTING ....17

ASSISTANCE OR SERVICE....18

Accessories 19

ÍNDICE

SEGURIDAD DEL ACONDICIONADOR DE AIRE....19

AIR CONDITIONER SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electrical shock or injury when using your air conditioner, follow these basic precautions:

■ Plug into a grounded 3 prong outlet.

■ Do not use an extension cord.

■ Do not remove ground prong.

■ Unplug air conditioner before servicing.

■ Do not use an adapter.

■ Use two or more people to move and install air conditioner.

SAVE THESE INSTRUCTIONS

INSTALLATION REQUIREMENTS

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools Needed

■Flat-blade and Phillips screwdrivers

■Tape measure

■ Drill and 332 " or smaller bit

Level

Through-the-Wall Installation:

In addition to the tools listed above, the following tools are needed for through-the-wall installation.

■Saw

■1" (2.5 cm) or thicker lumber

■Wood preservative

■ #10 x 1" wood screws (7)

■Caulk

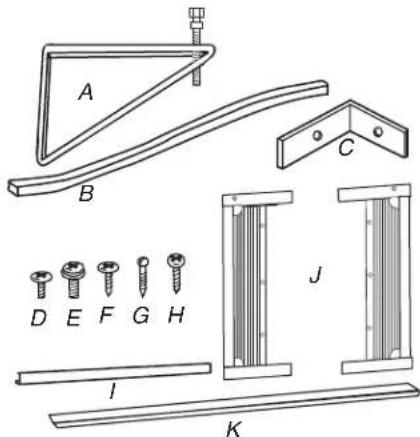

Parts Supplied (on some models)

Check that all parts are included in parts package.

A. Support brackets with adjustment bolts (2)
B. Foam window sash seal
C. Window lock bracket (2)
D. #10 x ¼" pan-head Phillips screws (6)
E. #10 x 3/8" washer-head Phillips thread-cutting screws (4)

F. #10 x ½" pan-head Phillips screws (8)

G. #10 x 3/4" round-head screws (6)

H. #10 x 3/8" painted round-head Phillips screw (2) (on some models)

I. Top channel

J. Side curtains (2)

K. Foam adhesive seal

NOTES:

■On some models, the front panel is not attached to the air conditioner. On these models, the 2 - #10 x ^3/4 " painted round-head Phillips screws (H) used to attach the front panel will be included in the parts bag.

■Installation parts are supplied for double-hung windows up to 40" (101.6 cm) wide. A special Wide Window Kit is available from your dealer or service center. See "Accessories."

Location Requirements

IMPORTANT: Observe all governing codes and ordinances.

Check the location where air conditioner will be installed. Proper installation is your responsibility. Make sure you have everything necessary for correct installation.

The location should provide:

■Grounded electrical outlet within 4 ft (122 cm) of where the power cord exits the air conditioner.

NOTE: Do not use an extension cord.

■Free movement of air in room to be cooled.
■A large enough opening for the air conditioner.
■Adequate wall support for weight of air conditioner. Air conditioner weighs between 145 and 200 lbs (65 to 96 kg).

NOTE: Cabinet louvers must not be obstructed. Air must be able to pass freely through the cabinet louvers.

Line drawing of a computer tower with labeled component A pointing to its side panel (no text or symbols beyond label)

A. Cabinet louvers

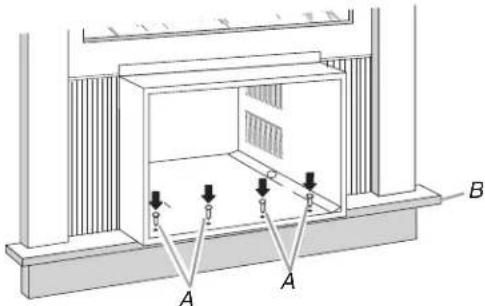

Window Installation

Window opening measurements:

■30" to 40" (76.2 cm to 101.6 cm) opening width.
■20" (50.8 cm) minimum opening height.

A. 30" (76.2 cm) minimum
B. 20" (50.8 cm) minimum

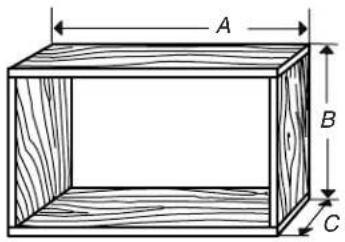

Through-the-Wall Installation

The wall opening measurements should be:

■ Width: 26½" (66.1 cm) plus twice thickness of wood used to build frame.
■ Height: 19 ^3/4 " (50.2 cm) plus twice thickness of wood used to build frame.
■Depth: Dimension for depth depends on the wall thickness and the type of molding.

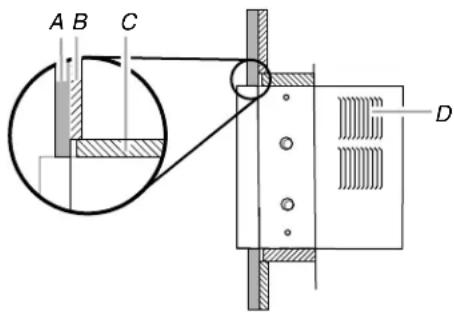

A. 19 ^3/4 " (50.2 cm)
B. 26½" (66.1 cm)
C. Wood thickness
D. Depth

Electrical Requirements

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

Ground wire must be connected to the ground screw located in the lower right corner of the air conditioner when the air conditioner is in the cabinet.

The electrical ratings for your air conditioner are listed on the model and serial number label. The model and serial number label is located behind the front panel on the flange below the control panel area.

Specific electrical requirements are listed in the chart below. Follow the requirements for the type of plug on the power supply cord.

Power Supply Cord Wiring Requirements

■115-volt (103.5 min. to 126.5 max.)
■0 to 12 amps
■15-amp time-delay fuse or circuit breaker
■Use on single outlet circuit only.

Power Supply Cord Wiring Requirements

^1/4 " (0.6 cm)

■230-volt (207 min. to 253 max.)
■0 to 12 amps
■15-amp time-delay fuse or circuit breaker
■Use on single outlet circuit only.

^1/2 " (1.3 cm)

■230-volt (207 min. to 253 max.)
■0 to 16 amps
■20-amp time-delay fuse or circuit breaker
■Use on single outlet circuit only.

■230-volt (207 min. to 253 max.)

■0 to 24 amps

■30-amp time-delay fuse or circuit breaker

■Use on single outlet circuit only.

Recommended Grounding Method

This air conditioner must be grounded. This air conditioner is equipped with a power supply cord having a grounded 3 prong plug. To minimize possible shock hazard, the cord must be plugged into a mating, grounded 3 prong outlet, grounded in accordance with all local codes and ordinances. If a mating outlet is not available, it is the customer's responsibility to have a properly grounded 3 prong outlet installed by a qualified electrical installer.

It is the customer's responsibility:

■To contact a qualified electrical installer.

■To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 - latest edition, and all local codes and ordinances.

Copies of the standards listed may be obtained from:

National Fire Protection Association

One Batterymarch Park

Quincy, MA 02269

Power Supply Cord

NOTE: Your unit's device may differ from the ones shown.

A. Test button
B. Reset button

This room air conditioner is equipped with a power supply cord required by UL. This power supply cord contains state-of-the-art electronics that sense leakage current. If the cord is crushed, the electronics detect leakage current and power will be disconnected in a fraction of a second.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

To test your power supply cord:

1. Plug the power supply cord into a grounded 3 prong outlet.
2. Press RESET.
3. Press TEST (listen for click; Reset button will trip and pop out).
4. Press and release RESET (listen for click; Reset button will latch and remain in). The power supply cord is ready for operation.

NOTES:

■The Reset button must be pushed in for proper operation.
■The power supply cord must be replaced if it fails to trip when the test button is pressed or fails to reset.
■Do not use the power supply cord as an off/on switch. The power supply cord is designed as a protective device.
■A damaged power supply cord must be replaced with a new power supply cord obtained from the product manufacturer and must not be repaired.
■The power supply cord contains no user serviceable parts. Opening the tamper-resistant case voids all warranty and performance claims.

INSTALLATION INSTRUCTIONS

Unpack the Air Conditioner

WARNING

Excessive Weight Hazard

Use two or more people to move and install air conditioner.

Failure to do so can result in back or other injury.

Remove packaging materials

■Remove and dispose of/recycle packaging materials.

Remove tape and glue residue from surfaces before turning on the air conditioner. Rub a small amount of liquid dish soap over the adhesive with your fingers. Wipe with warm water and dry.

■Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape or glue. These products can damage the surface of your air conditioner.
■Handle the air conditioner gently.

1. Remove the air conditioner from the carton and place it on cardboard.

2. On some models, remove the screws from the front panel.

Line drawing of a computer unit with ventilation grilles and directional arrows indicating airflow or movement (no text or symbols)

1. Remove the front panel from the air conditioner and set aside.
2. Remove the shipping lock bracket and screw from the air conditioner and set aside.

A. Shipping lock bracket screw
B. Shipping lock bracket

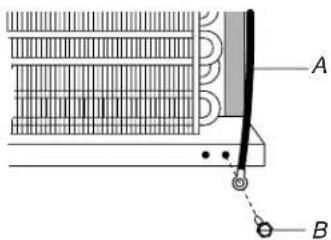

1. Remove the ground screw and ground wire from the front of the air conditioner. Save the ground screw.

A. Green ground wire
B. Ground screw

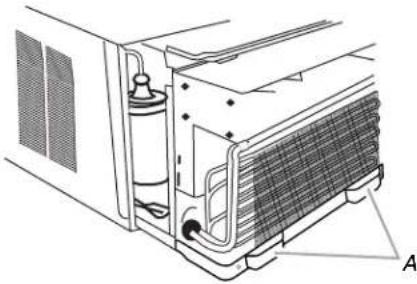

1. Pull on the handles to slide the air conditioner out of the cabinet. Place the air conditioner on cardboard.

Technical line drawing of an air conditioning unit with labeled component A (no text or symbols beyond label)

A. Handles

NOTE: Do not lift, push, pull or remove any expanded polystyrene (foam) from inside the air conditioner. It is not packing material.

Window Installation (on some models)

NOTES:

■Handle the air conditioner gently.
■Be sure your air conditioner cabinet does not fall out of the opening during installation or removal.
■The location where the power cord exits the air conditioner should be no more than 4 ft (122 cm) from a grounded 3 prong outlet.
■Do not block the louvers on the front panel.
■Do not block the louvers on the outside of the air conditioner.

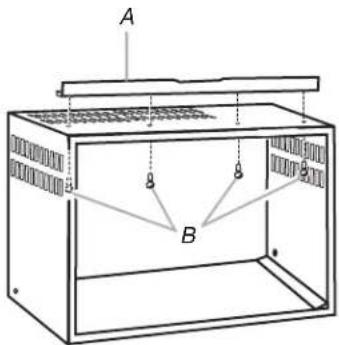

Attach Top Channel

NOTE: Attach the top channel and the side curtains to the air conditioner cabinet before placing the cabinet in the window.

1. Locate the bag of screws provided.

2. Place the top channel on top of the air conditioner cabinet, lining up the 4 holes in the top channel with the 4 holes on top of the air conditioner cabinet.

3. Using 4 - #10 x 38 " washer-head Phillips thread-cutting screws, attach the top channel to the air conditioner cabinet.

A. Top channel

B. #10 x 3/8" washer-head Phillips thread-cutting screws

Attach Side Curtains

1. Locate the bag of screws provided.
2. Insert the top and then the bottom of the right-hand curtain housing in the top and bottom curtain guides on the air conditioner.

Top view

Diagram of a vertical panel with labeled points A and B, showing internal structure and connection lines (no text or symbols beyond labels)

A. Curtain housing
B. Curtain guides

Bottom view

A. Curtain housing
B. Curtain guides

1. Extend the right-hand curtain outward so you may insert the first screw through the middle hole of the curtain. Using #10 x 1/4" pan-head Phillips screw, screw the curtain to the middle hole in the air conditioner cabinet.

NOTE: This screw is required to correctly attach the curtain (top to bottom) to the air conditioner cabinet.

Hand holding a pen inside a wooden cabinet with vertical bars (no text or symbols)

1. While the right-hand curtain is still extended, insert #10 x 1/4" pan-head Phillips screws into the top and bottom slots of curtain. Screw the curtain to the top and bottom holes in the air conditioner cabinet.

NOTE: Some curtains may have 2 slots at each end. You will be able to see a mounting hole through the correct slot.

1. Slide the curtain housing into the curtain guides as far as it will go.

2. Repeat the above steps for the left-hand curtain.

Attach foam adhesive seal

Attach the foam adhesive seal along the bottom of the bottom curtain guide.

A. Curtain housing
B. Foam adhesive seal

Install Cabinet into Window

NOTES:

■Handle the air conditioner gently.
■Be sure your air conditioner cabinet does not fall out of the opening during installation or removal.
■The location where the power cord exits the air conditioner should be no more than 4 ft (122 cm) from a grounded 3 prong outlet.

■Do not block the louvers on the front panel.

■Do not block the louvers on the outside of the air conditioner.

1. Center the empty cabinet in the window. Check that the lower rail of the air conditioner cabinet is behind and against the back side of the windowsill. Maintain a firm hold on the air conditioner cabinet. Lower the window sash to hold the cabinet in place.

2. Measure the distance between the right-hand side of the cabinet and the inside of the window channel.

3. Repeat for the left side. Adjust the cabinet until the distance on each side is the same.

A. Window sash
B. Empty cabinet
C. Window channel

1. Use a 332 " drill bit to drill 4 starter holes 38 " deep through the 4 holes in the cabinet and into the windowsill.
2. Attach cabinet to windowsill with 4 - #10 x 1/2" pan-head Phillips screws.

A. #10 x ½" pan-head Phillips screws
B. Windowsill

1. Check that air conditioner cabinet is tilted to the outside so that water will run to the outside.

Attach Side Curtains to Window Frame

1. Pull the left-hand curtain out until it fits into the window channel. Use a 332 " drill bit to drill a starter hole through the hole in the curtain housing and into the lower window sash.

Front View

Line drawing of a hand placing a panel into a window (no text or symbols)

Top View

A. Window channel
B. Left-hand curtain
C. #10 x 3/4" round-head screw

1. Insert one of the #10 x 3/4" round-head screws through the hole in the top of the curtain.
2. Insert one of the #10 x 3/4" round-head screws through the slotted hole in the bottom of the curtain.

A. #10 x 3/4 round-head screw
B. Slotted hole in the bottom of the curtain

1. Repeat for the right-hand curtain.

Attach Support Brackets

1. Attach the support bracket to the cabinet by aligning the holes in the bracket with the holes in the cabinet.

Pure technical line drawing of a structural beam or support structure without any text, numbers, or symbols

A. Holes in cabinet and support bracket

1. Using #10 x 1/2" pan-head Phillips screws, attach the bracket to the cabinet. Repeat for the other bracket.
2. Turn the adjustment bolt for each bracket until the bolt touches the wall.
3. Turn the locking nut on the adjustment bolt to lock in position.

A. Support bracket
B. Locking nut
C. Adjustment bolt

Complete Window Installation

1. Insert the foam window sash seal behind the top of the lower window sash and against the glass of the upper window.
2. Place one window-lock bracket on top of the lower window and against the upper window sash on each side of the window.
3. Use a 332 " drill bit to drill a starter holes through the holes in each bracket into the window sash.
4. Attach both the window-lock brackets to the window sash with #10 x 3/4" round-head screws to secure the window in place.

A. Window lock brackets
B. Upper window glass
C. Foam window sash seal

Through-the-Wall Cabinet Installation

NOTES:

■Handle the air conditioner gently.
■Be sure your air conditioner cabinet does not fall out of the opening during installation or removal.
■The location where the power cord exits the air conditioner should be no more than 4 ft (122 cm) from a grounded 3 prong outlet.
■Do not block the louvers on the front panel.
■Do not block the louvers on the outside of the air conditioner.
■It is the customer's responsibility and obligation to have this product installed by a qualified technician familiar with through-the-wall room air conditioner installations.

Option 1—Wood, metal or plastic molding

When using a wood, metal or plastic molding, the wood frame should line up with the inside wall as shown.

A. Molding
B. Inside wall
C. Wood frame
D. Louvers

Option 2—Plastered wall with no molding

If the plastered wall is to be flush with the cabinet and no molding is used, the wood frame must be set 12 " (13 mm) into the inside wall.

A. Plastered wall
B. Inside wall
C. Wood frame
D. Louvers

Install Wood Frame

1. Construct the wood frame. See "Location Requirements" for dimensions.
2. Measure the outside width and height of the frame to determine the wall opening dimensions.
3. Cut the opening through the wall. Remove and save the insulation.

NOTES:

■Dimension for depth depends on the wall thickness and the type of molding.
■Do not block louvers in the air conditioner cabinet.
■Use 1" (2.5 cm) or thicker lumber for the wood frame.

A. Outside width
B. Outside height
C. Depth

1. Apply the wood preservative to the outside exposed surface.
2. Insert the frame in the wall opening. Square and level the frame.
3. Attach the frame securely to the wall.

Install Cabinet into Wood Frame

1. Insert the cabinet into the framed wall opening.

Line drawing of a 3D cabinet or enclosure with a labeled component 'A' (no text or symbols on the diagram itself)

A. Trim

1. Use a level to check that the cabinet is level side to side.

Diagram of a cabinet with an internal component and labeled point A (no text or symbols on the diagram itself)

A. Level

1. Check that the air conditioner cabinet is tilted to the outside so that water will run to the outside.

Complete Through-the-Wall Installation

1. Reuse the insulation to seal opening between the cabinet and the frame.
2. Use the existing holes and 6 - #10 x 1" wood screws (not provided) to attach the cabinet to the frame.
   NOTE: Do not overtighten the screws or the cabinet will distort and provide a poor air seal between the cabinet and the air conditioner.
3. Caulk all outside wall openings around the cabinet.

Complete Installation

NOTE: Handle the air conditioner gently.

1. Make sure the free end of the ground wire is outside of the cabinet.

WARNING

Excessive Weight Hazard

Use two or more people to move and install air conditioner.

Failure to do so can result in back or other injury.

1. Insert the air conditioner into cabinet.

NOTE: Make sure the free end of the ground wire is outside of the cabinet.

Diagram of an air conditioning unit with labeled component A, showing internal panel and wiring (no text or symbols beyond label)

A. Ground wire outside of the cabinet

WARNING

Electrical Shock Hazard

Connect green ground wire to ground screw.

Failure to do so can result in death or electrical shock.

1. Connect the green ground wire to the ground screw.

Position the ground wire pointing straight up. Put the excess ground wire between the coil and the air conditioner cabinet.

A. Green ground wire
B. Ground screw

1. Push front panel straight on and then lower it slightly to lock it into place.

2. Using 2 - #10 x 3/8 " painted round-head screws, attach the bottom front of the panel.

Line drawing of a computer tower case with ventilation grilles and ventilation slots (no text or symbols)

NOTE: For through-the-wall installations, if needed, install the molding around the room side of cabinet.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

1. Plug into a grounded 3 prong outlet.

2. Press RESET on the power supply cord. See "Electrical Requirements."

AIR CONDITIONER USE

Operating your air conditioner properly helps you to obtain the best possible results.

This section explains proper air conditioner operation.

IMPORTANT:

■If you turn off the air conditioner, wait at least 3 minutes before turning it back on. This prevents the air conditioner from blowing a fuse or tripping a circuit breaker.

■Do not try to operate your air conditioner in the cooling mode when outside temperature is below 65^ F ( 18^ C). The inside evaporator coil will freeze up, and the air conditioner will not operate properly.

NOTE: In the event of a power failure, your air conditioner will operate at the previous settings when the power is restored.

Starting Your Air Conditioner—Digital Control

NOTES:

■When the air conditioner is off, the display shows the current room temperature.

If the room temperature is below 55^ F ( 13^ C), the display will show 55^ F ( 13^ C). If the room temperature is above 99^ F ( 37^ C), the display will show 99^ F ( 37^ C).

1. Remove clear protective film from control panel and front panel badge (on some models).

2. Press POWER to turn on the air conditioner.

NOTE: When air conditioner is turned on for the first time after it is plugged in, it will display the default settings: Cool mode, Turbo fan speed, 72°F (22°C) for 3 seconds. When it is turned on at all other times, it will display the previous settings for 3 seconds, and then display the room temperature.

1. Choose mode. See "Mode."
2. Choose fan speed. See "Fan Speed."
3. Choose temperature. See "Temperature."

Mode

1. Press and hold MODE until you see the indicator light for the desired setting.
2. Choose Cool, Fan or Power Saver.

Cool—Cools room. Press FAN SPEED to choose fan speed. Press the up or down arrow buttons to adjust the temperature.
■ Fan—Operates the fan at Turbo speed, without cooling. The display shows "FO" (fan only).
■ Power Saver—Fan runs only when cooling is needed. You can select the fan speed by pressing Fan Speed.

Because the fan does not circulate the room air continuously, less energy is used, but the room air is not circulated as often. Use Power Saver when you are asleep or away from home.

Fan Speed

NOTE: The Fan Speed button will operate only when the Cool or Power Saver mode has been selected.

1. Press and hold FAN SPEED until you see the indicator light for the desired setting.
2. Choose Turbo, High, Low or Auto.

Filter Monitor

1. When filter indicator light is lit or flashing, remove, clean and replace air filter. See "Cleaning the Air Filter."
2. Press and hold FILTER for 3 seconds after cleaning and replacing the air filter. This resets the filter monitor.

NOTE: After 360 hours of fan operating time, the filter indicator light will turn on. It will remain on for 180 hours or until you press FILTER. After 180 hours, it will flash. It will continue flashing until you press FILTER.

Temperature

■Press the plus button to raise the temperature. Each time you press or hold the plus button, the temperature will go up 1° to a maximum temperature of 86°F (30°C).

NOTE: After 3 seconds, display will show the current room temperature.

■Press the minus button to lower the temperature. Each time you press or hold the minus button, the temperature will go down 1° to a minimum temperature of 64°F (18°C).

NOTE: After 3 seconds, display will show the current room temperature.

Timer Delay

To set the Timer to turn off the air conditioner (the air conditioner must be On):

1. Press TIMER. Timer indicator light will flash. Display will show remaining hours before the air conditioner will turn off.

1. Press the plus or minus button to change the delay time from 1 to 24 hours.
2. Press TIMER again or wait 10 seconds. Timer indicator light will remain on. Display will show the current room temperature.

To set the Timer to turn on the air conditioner, keeping previous settings:

1. Turn off the air conditioner.
2. Press TIMER. Timer indicator light will flash. Display will show remaining hours before the air conditioner will turn on.
3. Press the plus or minus button to change the delay time from 1 to 24 hours.
4. Press TIMER again or wait 10 seconds. Timer indicator light will remain on. Display will show current room temperature.

To set the Timer to turn on the air conditioner, changing previous settings:

1. Turn on the air conditioner.
2. Adjust the mode to Cool, Fan Only, or Power Saver.
3. Adjust the fan speed to Turbo, High, Low or Auto.
4. Adjust temperature between 64°F and 86°F (18°C and 30°C).
5. Turn off the air conditioner.
6. Press TIMER. Timer indicator light will flash. Display will show remaining hours before the air conditioner will turn on.
7. Press the plus or minus button to change delay time (1 to 24 hours).
8. Press TIMER again or wait 10 seconds. Timer indicator light will remain on. Display will show current room temperature.

To clear Timer delay program:

NOTE: Air conditioner can be either on or off.

Press and hold TIMER for 3 seconds. Timer indicator light will turn off.

To see or change the time remaining (in hours):

1. Press TIMER once after it has been programmed. Display will show remaining time.
2. While the display is showing the remaining time, you can press the plus or minus button to increase or decrease the time.
3. After 10 seconds, display will show the current room temperature.

Using the Remote Control

NOTE: Remote control may vary in appearance.

NOTE: Two AAA batteries (included) power the remote control. Replace batteries after 6 months of use, or when the remote control starts to lose power.

To Turn the Air Conditioner On or Off

Press POWER.

To Select the Mode

Press COOL, FAN, or POWER SAVER.

To Select the Fan Speed

Press FAN SPEED for Turbo, High or Low or Auto.

NOTE: Auto fan speed cannot be selected in Fan Only mode.

To Set the Temperature

To raise the temperature:

Press the plus button to raise the temperature. Each time you press or hold the plus button, the temperature will go up 1^ to a maximum temperature of 86^ F ( 30^ C).

To lower the temperature:

Press the minus button to lower the temperature. Each time you press or hold the minus button, the temperature will go down 1^ to a minimum temperature of 64^ F ( 18^ C).

To Set the Timer Delay

To set Timer to turn off the air conditioner (air conditioner must be on):

1. Press TIMER. Timer indicator light on the air conditioner control panel will flash.

TIMER

1. Press the plus or minus button to change the delay time from 1 to 24 hours.
2. Press TIMER again or wait 10 seconds. Timer indicator light on the air conditioner control panel will remain on.

To set Timer to turn on the air conditioner, keeping previous settings:

1. Turn off the air conditioner.

2. Press TIMER. Timer indicator light on the air conditioner control panel will flash.

3. Press the plus or minus button to change delay time from 1 to 24 hours.

4. Press TIMER again or wait 10 seconds. Timer indicator light on the air conditioner control panel will remain on.

To set Timer to turn on the air conditioner, changing the previous settings:

1. Turn on the air conditioner.
2. Adjust the mode to Cool, Fan, or Power Saver.
3. Adjust the fan speed to Turbo, High, Low, or Auto.
4. Adjust temperature between 64°F and 86°F (18°C and 30°C).
5. Turn off the air conditioner.
6. Press TIMER. Timer indicator light on the air conditioner control panel will flash.
7. Press the plus or minus button to change delay time from 1 to 24 hours.
8. Press TIMER again or wait 10 seconds. Timer indicator light on the air conditioner control panel will remain on.

Starting Your Air Conditioner—Rotary Control—Cool Only Models

WARMER
COOLER

Wait three minutes before restarting

1. Set vent control. See "Vent Control (on some models)."
2. Select the fan speed. See "Fan Speed."
3. Set temperature. See "Temperature."

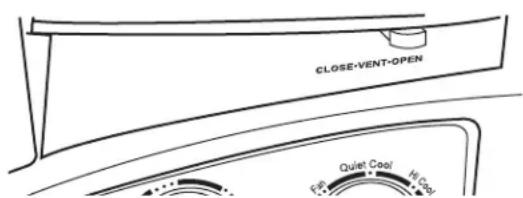

Vent Control (on some models)

Set the Vent control to CLOSE for maximum continuous cooling. The Vent control set to OPEN allows you to draw stale or smoky air from the room.

■ Open—to exhaust room air to the outside.
■ Close—to circulate room air.

NOTE: The Vent control will function only when the Fan Speed is operating.

Fan Speed

Set Fan Speed to the desired setting. When the air conditioner is operating at Turbo Cool, High Cool, or Low Cool, the fan circulates air continuously.

■ Turbo Cool—for maximum cooling
■ High Cool—for normal to maximum cooling (depending on model)
■ Low Cool—for sleeping comfort
■ Fan Only—to move air continuously without cooling

Temperature

Turn the TEMPERATURE control to a mid-setting. Adjust the air conditioner's performance by turning the Temperature control clockwise for maximum cooling. For less cooling, turn the TEMPERATURE control counterclockwise. Experiment to find the setting that suits you best.

WARMER
COOLER

Starting Your Air Conditioner—Rotary Control—Heat/Cool Models

TEMPERATURE

1. Set vent control. See "Vent Control (on some models)."
2. Select the fan speed. See "Fan Speed."
3. Set temperature. See "Temperature."

Vent Control (on some models)

Set the Vent control to CLOSE for maximum continuous cooling. The Vent control set to OPEN allows you to draw stale or smoky air from the room.

■ Open—to exhaust room air to the outside.
■ Close—to circulate room air.

NOTE: The Vent control will function only when the Fan Speed is operating.

Fan Speed

Set Fan Speed to the desired setting. When the air conditioner is operating at Low Heat or Turbo Heat, Turbo Cool, High Cool or Low Cool, the fan circulates air continuously.

■ Low Heat—for reduced heating
■ Turbo Heat—for maximum heating
■ Turbo Cool—for maximum cooling
■ High Cool—for normal to maximum cooling

■ Low Cool—for sleeping comfort
■ Fan Only—to move air continuously without cooling or heating
NOTE: Fan runs on Turbo speed only.

■ Power Saver—fan runs only when cooling or heating is needed.

Since the fan does not circulate the room air continuously, less energy is used, but the room air is not circulated as often. Use Power Saver when you are asleep or away from home.

NOTE: Fan runs on Low speed only.

Temperature

Cooling

Turn the TEMPERATURE control to a setting on the right-hand side of the knob. Adjust the air conditioner's performance by setting the Temperature control to "1" for maximum cooling. For less cooling, turn the TEMPERATURE control counterclockwise to a larger number on the right-hand side of the knob.

Heating

The electric strip heater is activated when the Fan Speed control is set to a heat setting. Turn the TEMPERATURE control to a setting on the left-hand side of the knob. For more heating, turn the TEMPERATURE control to "1" for maximum heating. For less heating, turn the TEMPERATURE control clockwise to a larger number on the left-hand side of the knob.

Experiment to find the setting that suits you best.

NOTE: Your air conditioner is not designed to be used as a primary heat source. It is intended for supplemental heating only.

Changing Air Direction

Use the Air Swing button on the air conditioner control panel or the Swing button on the remote control to direct air left or right.

SWING

Use the tab to direct air up, down or straight ahead.

A. Tab

Normal Sounds

When your air conditioner is operating normally, you may hear sounds such as:

■Droplets of water hitting the condenser, causing a pinging or clicking sound. The water droplets help cool the condenser.
■Air movement from the fan.
■Clicks from the thermostat cycle.
■Vibrations or noise due to poor wall or window construction.
■A high-pitched hum or pulsating noise caused by the modern high-efficiency compressor cycling on and off.

AIR CONDITIONER CARE

Your new air conditioner is designed to give you many years of dependable service. This section tells you how to clean and care for your air conditioner properly. Call your local authorized dealer for an annual checkup. Remember... the cost of this service call is your responsibility.

Cleaning the Air Filter

The air filter is removable for easy cleaning. A clean filter helps remove dust, lint, and other particles from the air and is important for best cooling and operating efficiency. Check the filter every 2 weeks to see whether it needs cleaning.

NOTE: Do not operate the air conditioner without the filter in place.

1. Turn off the air conditioner.
2. Remove the air filter by sliding out from either side of the front panel.

Line drawing of a computer tower with ventilation grilles and labeled component A (no text or symbols beyond label)

A. Air filter

1. Use a vacuum cleaner to clean air filter. If the air filter is very dirty, wash it in warm water with a mild detergent. Do not wash the air filter in the dishwasher or use any chemical cleaners. Air dry the filter completely before replacing to ensure maximum efficiency.
2. Replace the air filter by sliding the filter back into either side of the air conditioner.

Cleaning the Front Panel

1. Turn off the air conditioner.
2. Remove the air filter and clean it separately. See "Cleaning the Air Filter."
3. Wipe the front panel with a soft, damp cloth.
4. Air dry the front panel completely.

Repairing Paint Damage

Check once or twice a year for paint damage. This is very important, especially in areas near oceans or where rust is a problem. If needed, touch up with a good grade enamel paint.

NOTE: To reduce paint damage during the winter, install a heavy-duty cover over the air conditioner cabinet. For information on ordering a heavy-duty cover, see "Accessories."

Annual Maintenance

Your air conditioner needs annual maintenance to help ensure steady, top performance throughout the year. Call your local authorized dealer to schedule an annual checkup. The expense of an annual inspection is your responsibility.

TROUBLESHOOTING

Before calling for service, try the suggestions below to see whether you can solve your problem without outside help.

Air conditioner will not operate

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

■ The power supply cord is unplugged. Plug into a grounded 3 prong outlet. See “Electrical Requirements.”
■The power supply cord has tripped (Reset button has popped out). Press and release RESET (listen for click; Reset button will latch and remain in) to resume operation.
■A household fuse has blown, or a circuit breaker has tripped. Replace the fuse or reset the circuit breaker. If the problem continues, call an electrician. See “Electrical Requirements.”
■ The Fan Speed control is turned to the off position. Turn the Fan Speed control to an active setting.
■ The local power has failed. Wait for power to be restored.

Air conditioner blows fuses or trips circuit breakers

■ Too many appliances are being used on the same circuit. Unplug or relocate appliances that share the same circuit.
■Time-delay fuse or circuit breaker of the wrong capacity is being used. Replace with a time-delay fuse or circuit breaker of the correct capacity. See “Electrical Requirements.”
■ An extension cord is being used. Do not use an extension cord with this or any other appliance.
■You are trying to restart the air conditioner too soon after turning the Fan control off. Wait at least 3 minutes after turning the Fan control off before trying to restart the air conditioner.

Air conditioner power supply cord trips (Reset button pops out)

■Disturbances in your electrical current can trip (Reset button will pop out) the power supply cord. Press and release RESET (listen for click; Reset button will latch and remain in) to resume operation.
■Electrical overloading, overheating, cord pinching or aging can trip (Reset button will pop out) the power supply cord. After correcting the problem, press and release RESET (listen for click; Reset button will latch and remain in) to resume operation.
NOTE: A damaged power supply cord must be replaced with a new power supply cord obtained from the product manufacturer and must not be repaired.

Air conditioner seems to run too much

The current air conditioner replaced an older model. The use of more efficient components may cause the air conditioner to run longer than an older model, but the total energy consumption will be less. Newer air conditioners do not emit the “blast” of cold air you may be accustomed to from older units, but this is not an indication of lesser cooling capacity or efficiency. Refer to the efficiency rating (EER) and capacity rating (in Btu/h) marked on the air conditioner.
■The air conditioner is in a heavily occupied room, or heat-producing appliances are in use in the room. Use exhaust vent fans while cooking or bathing and try not to use heat-producing appliances during the hottest part of the day. A higher capacity air conditioner may be required, depending on the size of the room being cooled.

Air conditioner cycles on and off too much, or does not cool/heat room in cooling/heating mode

■The Fan Speed control is set to Power Saver (on some models). Use Power Saver only when you are asleep or away from home, since the fan does not circulate the room air continuously. Use Low Cool, High Cool, Turbo Cool, Turbo Heat or Low Heat for your best comfort.
■ The air conditioner is not properly sized for your room. Check the cooling capabilities of your room air conditioner. Room air conditioners are not designed to cool multiple rooms.
■ The filter is dirty or obstructed by debris. Clean the filter.
■The inside evaporator and outside condenser coils are dirty or obstructed by debris. See "Annual Maintenance."

■ There is excessive heat or moisture (open container cooking, showers, etc.) in the room. Use a fan to exhaust heat or moisture from the room. Try not to use heat-producing appliances during the hottest part of the day.
- The louvers are blocked. Install the air conditioner in a location where the louvers are free from curtains, blinds, furniture, etc.
■ The outside temperature is below 65^ F ( 18^ C). Do not try to operate your air conditioner in the cooling mode when the outside temperature is below 65^ F ( 18^ C).
■ The temperature of the room you are trying to cool is extremely hot. Allow extra time for the air conditioner to cool off a very hot room.
■ Windows or doors to the outside are open. Close all windows and doors.
■ The Vent control is set to OPEN (on some models). Set the Vent control to CLOSED for maximum cooling and/or heating.

■ The Temperature is not set at a cool enough setting. Adjust the Temperature control to a cooler setting by turning the knob clockwise. Turn the Fan Speed control to Turbo Cool.

■ The air conditioner in the heating mode has insufficient Btu/h for the heating requirements of the room. Do not use the air conditioner as a primary source of heat.

Water drips from cabinet into your house

- The air conditioner is not properly leveled. The air conditioner should slope slightly downward toward the outside. Level the air conditioner to provide a downward slope toward the outside to ensure proper drainage. See the Installation Instructions.

NOTE: Do not drill a hole into the bottom of the metal base and condensate pan.

ASSISTANCE OR SERVICE

To avoid unnecessary service calls, please check the

“Troubleshooting” section. It may save you the cost of a service call. If you still need help, follow the instructions below.

If you need assistance or service

Call the Customer eXperience Center telephone number. Dial toll-free 1-800-253-1301 in the U.S.A. Our consultants are available to assist you.

When calling: Please know the purchase date, and the complete model and serial number of your appliance.

This information will help us better respond to your request.

Our consultants provide assistance with:

■ Features and specifications on our full line of appliances
■ Installation information
■ Use and maintenance procedures
■ Accessory and repair parts sales
■ Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.)
■ Referrals to local dealers, service companies, and repair parts distributors

Our service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in the United States.

To locate the authorized service company in your area, you can also look in your telephone directory Yellow Pages.

If you need replacement parts

If you need to order replacement parts, we recommend that you only use factory-authorized parts. These parts will fit right and work right, because they are made to the same exacting specifications used to build every new appliance.

To locate factory-authorized parts in your area, call our Customer eXperience Center telephone number, your nearest authorized service center, or Factory Service at 1-800-442-1111 in the U.S.A.

For further assistance

If you need further assistance, you can write to ask any questions or tell us about your concerns to:

Customer eXperience Center 553 Benson Road

Benton Harbor, MI 49022-2692

Please include a daytime phone number in your correspondence.

Please record your model's information.

Whenever you call to request service on your appliance, you need to know your complete model number and serial number. You can find this information on the model and serial number label. See “Electrical Requirements” for model and serial number location.

Please record the model and serial number information below. Also, record the purchase date of your appliance and the store's name, address, and telephone number.

Model Number
Serial Number
Purchase Date
Store Name ____
Store Address ____
Store Phone ____

Keep this book and the sales slip together for future reference.

Accessories

You can order the following accessories for your air conditioner from your local authorized dealer or by calling 1-800-253-1301 from anywhere in the U.S.A. You will hear a recording. Follow the instructions to place an order.

Replacement Air Filters

A good, clean air filter is important for best cooling with least energy consumption. Your air filter should be cleaned regularly. See “Cleaning the Air Filter” for cleaning instructions. We suggest you replace your air filter once a year.

For a new electrostatic air filter, order Part Number 111211551. Airborne particles are attracted to an electrostatic air filter and remain attached to it until they are rinsed away. For a new antimicrobial air filter, order Part Number 11121216. In addition to providing all the benefits of an electrostatic air filter, an antimicrobial air filter also inhibits the growth of odor-causing bacteria, fungi, mold and mildew on the filter. Both of these air filters are sized to fit your air conditioner.

Heavy-duty cover

If you decide to leave your air conditioner installed during the winter, a heavy-duty cover will help protect your air conditioner and reduce drafts. The outdoor cover protects against cold drafts through the unit's air passages and protects the cabinet from snow, rain, sleet, rust, and dust.

For a heavy-duty outdoor cover sized to fit your air conditioner, order Part Number 484069.

For a heavy-duty indoor cover sized to fit your air conditioner, order Part Number 4392941.

Wide Window Kit

A special Wide Window Kit is available for windows 40" (101.6 cm) to 54" (137.2 cm) wide. Use Kit Number 1162147.

SEGURIDAD DEL ACONDICIONADOR DE AIRE

Line drawing of a computer tower with heat sinks and ventilation slots (no text or symbols)

A. Rejillas del gabinete

National Fire Protection Association

One Batterymarch Park

Quincy, MA 02269

Line drawing of a computer tower with ventilation grilles and directional arrows indicating motion (no text or symbols)

Technical line drawing of an air conditioning unit with labeled component A (no text or symbols beyond label)

Illustration of a hand holding a tool inside a wooden cabinet with vertical bars (no text or symbols)

Line drawing of a hand opening a wooden shelf with vertical bars (no text or symbols)

Vista superior

Pure technical line drawing of a structural frame with no text, numbers, or symbols

A. Moldura
B. Pared interior

C. Marco de madera

D. Rejillas

Opción 2—Pared enyesada sin moldura

Simple line drawing of a rectangular cabinet or enclosure with a label 'A' pointing to the top panel (no text or symbols on the cabinet itself)

A. Marco

Diagram of a cabinet or enclosure with internal components and a labeled arrow pointing to component A (no text or symbols present)

A. Nivel

Diagram of an air conditioning unit showing internal components and a cable, with no visible text or symbols.

Line drawing of a computer tower with ventilation grilles and ventilation slots (no text or symbols)

Line drawing of a computer tower with ventilation grilles and labeled component A (no text or symbols beyond label)

A. Filtro de aire
