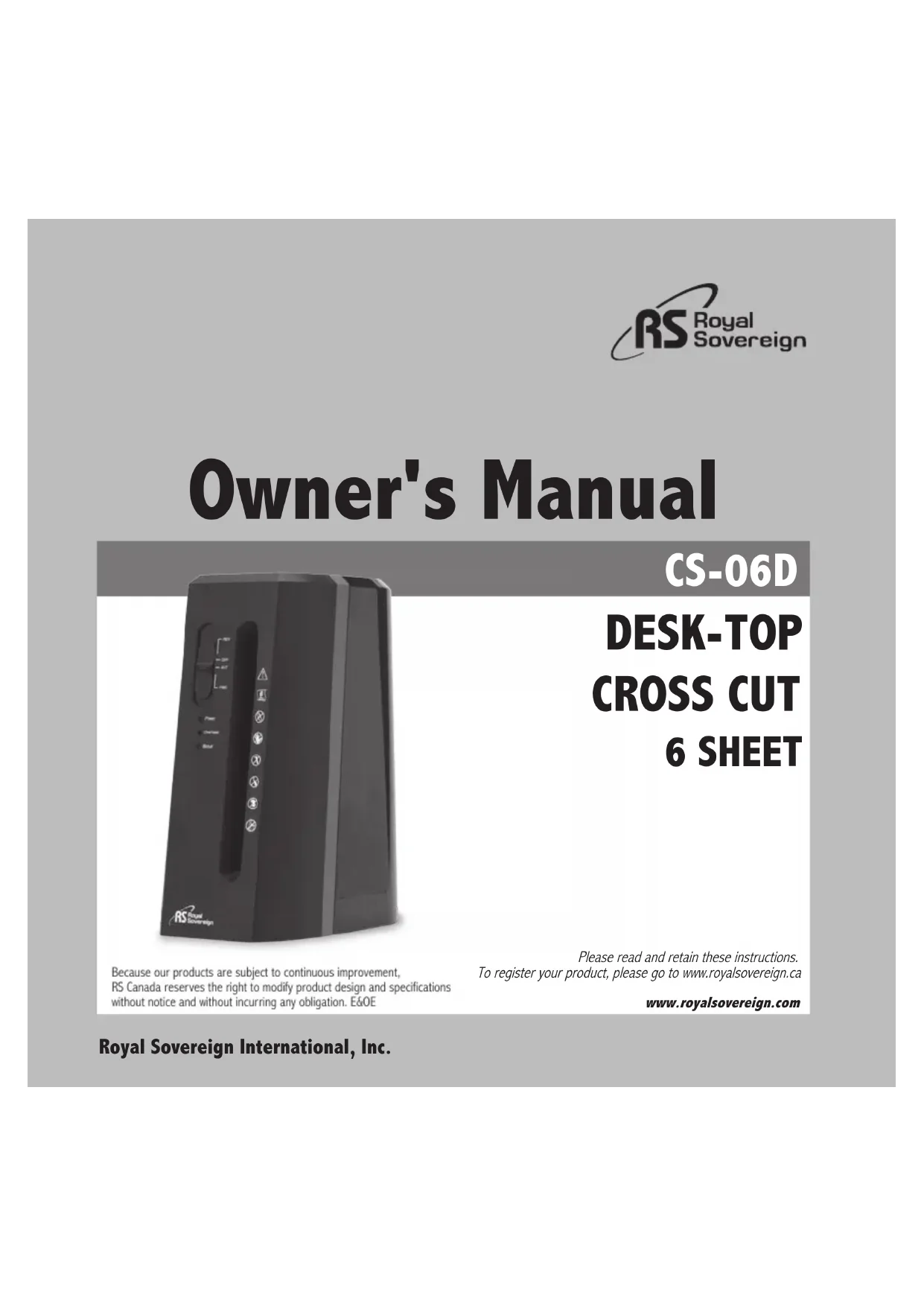

USER MANUAL CS06D Royal Sovereign

CS-06D DESK-TOP CROSS CUT 6 SHEET Because our products are subject to continuous improvement, RS Canada reserves the right to modify product design and specifications without notice and without incurring any obligation. E&OE Please read and retain these instructions. To register your product, please go to www.royalsovereign.ca www.royalsovereign.com

Royal Sovereign International, Inc.

Please read and retain these instructions. To register your product, please go to www.royalsovereign.ca

www.royalsovereign.com

SAFETY INSTRUCTIONS

The safety recommendations outlined in this section should be read and understood before operating this machine. When using this machine follow these basic safety precautions to reduce risk of fire, electric shock or injury. Keep this information for future reference.

SAFETY HAZARDS

Safety hazards are depicted in the following images:

*For your safety, please be aware and take notice of all safety hazards.

Misuse of this machine may lead to danger. NO DISASSEMBLY, Do not disassemble machinery.

*The following hazards are related to machine placement and movement.

WARNING

		Only operate machine with indicated power supply.Do not alter any distributing wires. This may cause a fire or an electric shock.
	Do not operate the machine near any flammables or heat-sensitive materials. This may cause a fire or internal damage to the shredder.
	Avoid placing the machine near the following areas:• a heat or fire-prone area such as a stove or a humidifier• an area with high humidity• an area prone to gas leaks• an area that is exposed to direct sunlight• an area that is dusty or incurs vibrations• an area that is not level or is on an inclineThis may cause a fire, electric shock, or internal damage to the shredder
	Do not put any materials on top of the machine.
	When moving the shredder, turn the machine off and remove the power cord from the outlet. A damaged power cord or plug may cause a fire or electric shock.
	Do not handle the plug with wet hands.This may cause an electric shock.		Keep the machine out of reach from small children.This may cause serious injury.
	Do not disassemble, repair, or alter the machine. Contact a qualified electrician or the Service department.This may cause a fire or electric shock.

		Do not place any liquids on the machine.This may cause a fire or electric shock.			Keep aerosol products away.
		Do not damage, alter, or transform the power cord or plug. Do not place any heavy objects on the power cord.Do not pull or bend the cord forcibly. A damaged power cord or plug may cause a fire or electric shock.
	[CSTA]	Do not block the top of the machine. This may cause a fire or a malfunction.Do not use any flammable materials when cleaning the machine. This may cause a fire.
		Do not operate the machine if the power cord or plug becomes stained by any substance or chemicals. In this case, turn off the machine and unplug the power cord from the outlet. Contact the Service department.Do not disassemble or repair the machine yourself. This can cause a fire or electric shock.

CAUTION

	Do not have any personal articles hanging around the machine such as long hair, necktie, necklace, and clothing. This may cause bodily injury from the machine.
	Turn off the machine and unplug the power cord from the outlet before cleaning or if the machine will not be in use for a long period of time. This may result in an electric shock.
	Do not spray water or chemicals into the machine when cleaning. This may result in a fire or electric shock.Use the machine only for shredding.If a malfunction or other machine problem occurs, first turn off the machine.Next, contact the Service department.If you smell or witness smoke coming from your machine, first turn off the machine. Next, unplug the power cord from the outlet, and contact the Service department.
	Keep children's hands away from the paper insert at all times.Do not insert fingers into the shredder.
	Do not insert anything other than paper, staples, CD/DVDs and credit card into the machine.

Do not allow any foreign materials or substances inside the shredder. This may cause a fire or bodily injury.

Materials except for paper Flammable and hardening materials

Metal, wood, and fabric Screws and nails Pencils and ball-point pens Cellophane and vinyl materials,

leaves, flowers, clothes, etc.

CONTENTS

BOX CONTENTS....5

PARTS 5

OPERATION....6

CLEARING PAPER JAMS....6

EMPTYING WASTE BIN 6

MAINTAINANCE 7

TROUBLESHOOTING....7

SPECIFICATIONS 7

WARRANTY 8

BOX CONTENTS

Cross Cut Shredder

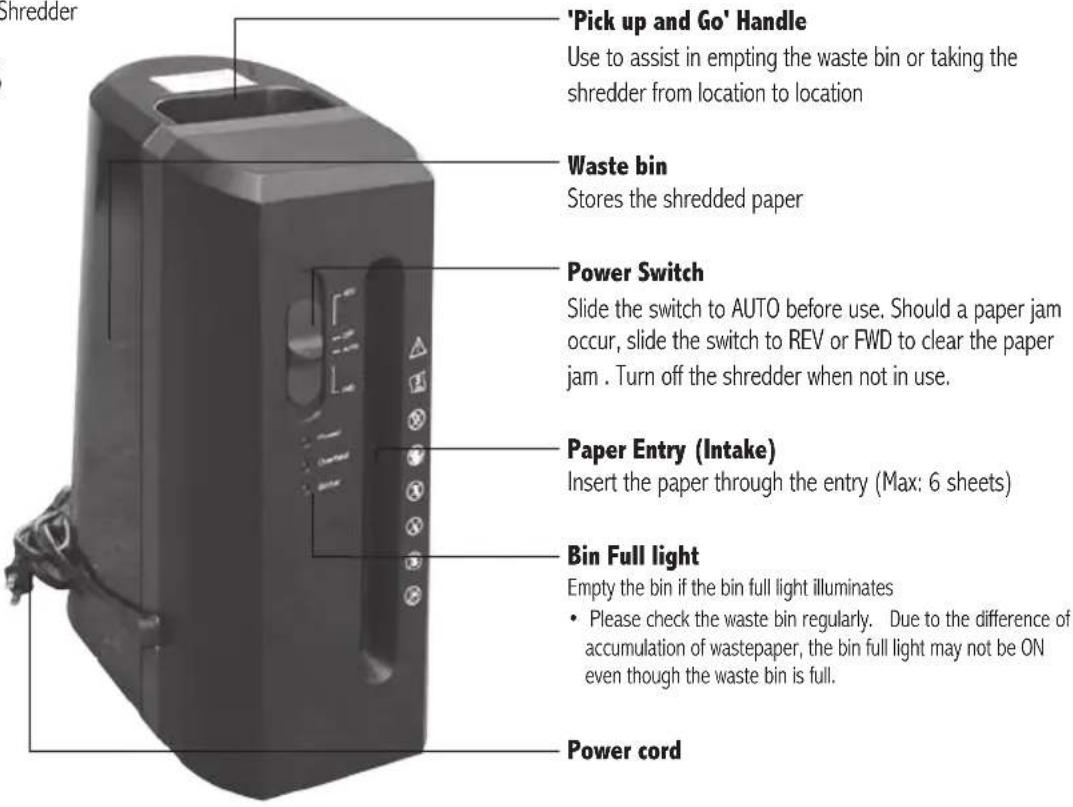

PARTS

'Pick up and Go' Handle Use to assist in emptying the waste bin or taking the shredder from location to location Waste bin Stores the shredded paper Power Switch Slide the switch to AUTO before use. Should a paper jam occur, slide the switch to REV or FWD to clear the paper jam . Turn off the shredder when not in use. Paper Entry (Intake) Insert the paper through the entry (Max: 6 sheets) Bin Full light Empty the bin if the bin full light illuminates • Please check the waste bin regularly. Due to the difference of accumulation of wastepaper, the bin full light may not be ON even though the waste bin is full. Power cord

Close-up of a metal pipe filled with shredded material, no visible text or symbols

Bin — Use the convenient 'push' button to release paper waste into garbage

OPERATION

1. Place the shredder on a desk, tabletop, floor or other flat surface.
2. Plug the power cord into an electrical outlet.
3. Slide the switch to AUTO selection

- When slide the switch is set to AUTO selection, the device is ready to be used.

1. Insert paper.
2. Slide the switch to OFF after use.

• The shredder may emit some heat when in use. This is normal.

- NOTE: Do not inset hard objects like card stock, CD/DVD's into the shredder.

CAUTION

1. If the shredder runs continuously for long time period, the motor may overheat or shut off automatically. Should this happen, please allow the motor time to cool down before shredding again.
2. Do not insert staples, card board, clothes etc as it may damage to the device.
3. Unplug the unit when cleaning and emptying the waste bin or when not use for a long time.

Helpful User Tips

Clearing a paper jam

Paper jams may occur due to paper being inserted incorrectly, or the sheet capacity has been exceeded. Should this happen the switch to the REVERSE (<<) position, and remove the excess paper from the top and pull it out. TO PREVENT ANY INJURIES, DO NOT PLACE YOUR HANDS NEAR THE FEED OPENING. Once the paper is cleared, normal shredding operation can resume. If the shredder jams while in reverse, press the switch to the AUTO position and let shredder run to clear the jammed paper. If jam does not clear, slide the switch back and forth between the REV and AUTO until the jam is cleared. If the jam cannot be cleared following this procedure, unplug the unit and carefully remove the jammed paper manually.

Overheating

If your shredder overheats, the unit will automatically shut off and all functions will cease in order to protect the motor. Turn off and unplug the shredder from the outlet. Allow enough time for the motor to cool down. The shredder will not resume normal function until the temperature of the motor cools down to a safe temperature. Once cool, plug the shredder back into the outlet, turn the unit back on and resume normal operation. Make sure to empty waste basket to avoid overloading the basket and damaging the cutting mechanism.

Bin Full Function

Some shredders are equipped with a mechanical or optical Bin Full sensor.

When the basket becomes full, the shredder will cease operation. Empty basket to resume operation.

Emptying Basket

Always turn the shredder off and unplug the power cord from the AC outlet before cleaning it, moving it, or emptying the wastebasket. Always keep wastebasket emptied so that the shredder's output is not impeded. Never let the wastebasket get full. This will lead to shredded material being pulled back up into the shredder and cause jams.

Staples and Paperclips

Although our shredders are safe to shred the occasional standard staple, you should remove them if possible. Also, industrial or non-standard, large size staples must be removed. Paperclips should not be shredded at any time, as they significantly reduce the life of the shredder. Please remove staples and paperclips from paper before shredding.

MAINTAINANCE

Shut off the switch and unplug the cord before service it.

Use a cloth dampened with a diluted neutral detergent to clean the dirt on the surface of the machine.

- Never use petroleum, essential oil, diluent or silver power on this product.

TROUBLESHOOTING

Symptom Cause Solutions
Unit does not work	Unit not set to Auto selection Set the selection to “auto” mode.
	Paper Not touching paper sensor Ensure the paper is fully inserted into the paper entry.
Cutting suspended	Built-in Overheat Protection Allow the shredder to cool down for about 40 minutes before restarting
	Paper Jam Use the "reverse" and "forward" selections to clear paper jam.

Note: Extensive use of paper clips or other hard materials will result in damages to the cutting system and will void the manufacturer's warranty. If you are still having complications, please contact Royal Sovereign's Service Center.

SPECIFICATIONS

Model CS-06D
Shred type	Cross cut
Shred capacity	6 sheets
Basket capacity 4.8L (1.3 Gallons)
Shred size	4mm × 30mm (0.16" × 1.18")
Noise level < 63dB
Shred speed	1.9m/min
Run Cycle time 3min
Throat size 220mm (8.66")
Dimensions (W×D×H)	160 × 282.5 × 342 (mm) (6.3" × 11.1" × 13.5")
Weight	3.6kg (8 lbs)
power	120W
Voltage	AC120V 60Hz

LIMITED ONE YEAR WARRANTY

This warranty applies to repair or replacement of product found to be defective in material or workmanship for one year from the date of the original purchase. This warranty is extended only to the original purchaser.

This warranty does not apply to damage resulting from abuse, misuse, improper maintenance or damage that is attributable to acts of nature. Royal Sovereign International, Inc. (and its affiliated companies) is not liable for incidental or consequential damages of any nature. This limitation would not apply if you live in those areas that do not permit the exclusion or limitation of incidental or consequential damages.

Defective products for warranty repair or replacement cannot be returned without a Return Authorization number. Please go to www.royalsovereign.com USA-Customer Support Tab to make a request for an Office Product Return Authorization.

Defective products must be returned to Royal Sovereign International Consumer Return Department, freight prepaid, with proof of purchase and Return Shipping and Handling payment (check or money order). Upon repair or replacement the product will be returned to the customer.

Return defective product to the following address with a detailed description of the problem. If possible, pack in original carton. Please prepay shipping charges.

For out of warranty service or frequently asked questions please go to www.royalsovereign.com USA- Customer Support Tab.

For sales of product, parts or accessories please visit us at www.royalfulfillmentcorp.com.

For service or sales please contact your local Royal Sovereign Office:

ROYAL SOVEREIGN INTERNATIONAL, INC.

2 Volvo Drive Rockleigh, NJ 07647 USA

TEL: [phone] FAX: [phone]

RS CANADA INC.

5610 Timberlea Blvd, Mississauga Ontario L4W 4M6 CANADA

TEL: [phone] FAX: [phone]

TF: [phone]

www.royalsovereign.ca
