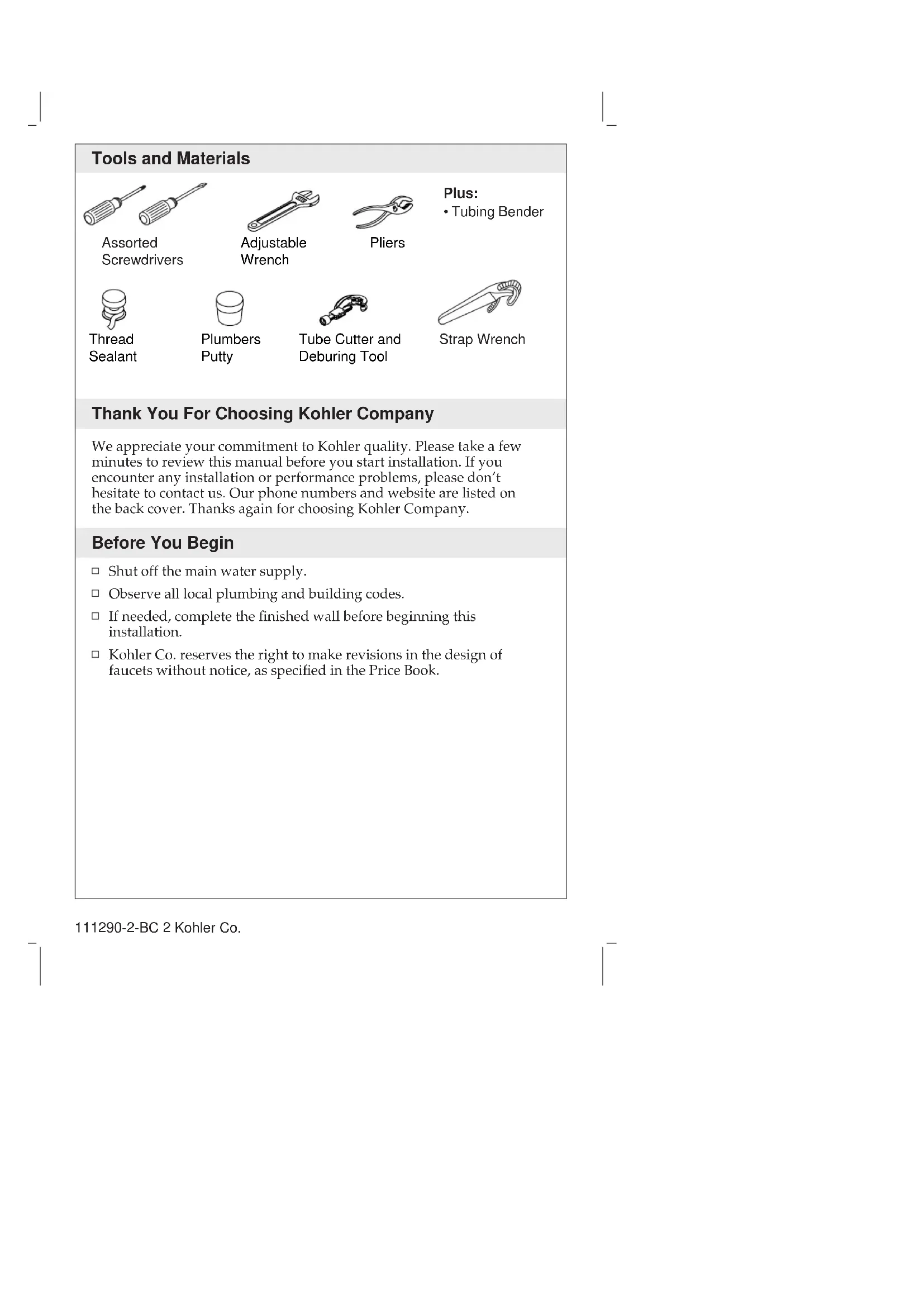

Installation Guide Shelf-Back Faucet M product numbers are for Mexico (i.e. K-12345M) Los números de productos seguidos de M corresponden a México (Ej. K-12345M) Français, page “Français-1” Español, página “Español-1” K-7302 K-8040 K-8046 111290-2-BCTools and Materials Thank You For Choosing Kohler Company We appreciate your commitment to Kohler quality. Please take a few minutes to review this manual before you start installation. If you encounter any installation or performance problems, please don’t hesitate to contact us. Our phone numbers and website are listed on the back cover. Thanks again for choosing Kohler Company. Before You Begin Shut off the main water supply. Observe all local plumbing and building codes. If needed, complete the finished wall before beginning this installation. Kohler Co. reserves the right to make revisions in the design of faucets without notice, as specified in the Price Book. Adjustable Wrench Plumbers Putty Thread Sealant Tube Cutter and Deburing Tool Pliers Assorted Screwdrivers Plus:

• Tubing Bender Strap Wrench 111290-2-BC 2 Kohler Co.1. Install the Valve Yoke Apply a bead of plumbers putty or other sealant around the underside of the escutcheons and spout body according to the manufacturer’s instructions. Place the valve yoke through the lavatory and thread the escutcheons to the valve bodies. Leave about 3/8″ (1 cm) of exposed threads in front of the escutcheons. Remove any excess sealant. Apply plumbers putty. Spout Body Escutcheon Valve Body 3/8" (1 cm) Kohler Co. 3 111290-2-BC2. Install the Spout IMPORTANT! Use care when installing the spout to avoid scratching the finish. All Spouts Apply thread sealant to the spout threads. Thread the spout body to the valve yoke with the spout body and valve escutcheons contacting the lavatory evenly. Remove any excess putty or sealant. High Shelfback Spout Apply thread sealant to the spout threads. Thread the spout to the spout body. Use a clean strap wrench to tighten if necessary. Escutcheon Valve Body Spout Body High Shelfback Spout Spout Body 111290-2-BC 4 Kohler Co.3. Install the Handles NOTE: Illustration shows one of the available handle styles. All handle styles follow the steps below. NOTE: Install lever handles so they are parallel to the floor (horizontal) when in the OFF position. Assemble the handles, screws, and button caps to the valve bodies. If either handle touches the escutcheon, adjust the escutcheon for a minimum 1/8″ (3 mm) clearance between the handle skirt and escutcheon. Tighten the two screws on the valve yoke at the back of the lavatory to secure the valve body. 1/8" (3 mm) Skirt Handle Escutcheon Escutcheon Valve Bodies Round-Head Cap Screw Socket-Head Screw Button Cap Button Cap Screw Valve Yoke Kohler Co. 5 111290-2-BC4. Choose Drain Type Refer to the illustrations above to determine the drain style you received with your faucet. Please follow the instructions for your drain style. Style A Drain Style B Drain 111290-2-BC 6 Kohler Co.5. Drain Installation-Style A Remove the protective material from the flange. Wrap the bottom 2/3 of the flange threads with three layers of sealant tape. Apply a ring of plumbers putty or other sealant to the underside of the flange according to the putty manufacturer’s instructions. Insert the flange into the fixture drain hole. Assemble the gasket (tapered side up) and washer to the flange and partially thread the nut to the flange. Do not fully tighten the nut at this time. Install the body washer and drain body with the seal hole facing the back of the fixture and securely tighten the nut. Use care to avoid scratching the finish. Remove any excess putty or sealant. Insert the stopper into the flange. Insert the seal into the seal hole on the body. Seal Stopper Lavatory Screw Spring Clip Gasket Nut Nut Link Rod Seal Flange Apply plumbers putty. Apply 3 layers of sealant tape to bottom 2/3. Washer Body Washer Drain Body Kohler Co. 7 111290-2-BC6. Complete Drain Installation-Style A For regular installations, insert the short end of the rod into the body seal hole and under the stopper. For vandal-resistant installations, fit the rod through the hole in the stopper. Secure with the body nut. Remove and adjust the stopper so it lifts about 3/8″ (1 cm) when opened. To adjust, loosen the stopper nut and shorten or lengthen the stopper as needed. Tighten the stopper nut. Apply three layers of thread tape and a small bead of pipe sealant to the tailpiece threads. Thread the tailpiece to the body and tighten securely. Slide one end of the clip onto the rod. Slide the link onto the rod with the thumbscrew facing the back of the fixture. Squeeze the other end of the clip, aligning the hole with the rod. Move the link to the proper position by squeezing the clip and sliding it along the rod. Insert the lift rod into the hole in the faucet and then into the hole in the link. Tighten the thumbscrew onto the link so the lift rod knob extends above the lift rod hole. Body Nut Stopper Body Tailpiece Seal Seal Hole Rod Apply 3 layers of sealant tape and a small bead of pipe sealant to threads. Stopper Nut Faucet Rod Clip Thumb Screw Link 111290-2-BC 8 Kohler Co.7. Drain Installation-Style B Remove the protective cover from the flange. Apply a ring of plumbers putty or other sealant to the underside of the flange according to the putty manufacturer’s instructions. Assemble the nut, flat washer, and tapered gasket (tapered side up) fully onto the body. From the underside of the fixture, insert the drain body up into the drain hole. From the top of the fixture, securely hand tighten the flange onto the drain body. Make sure the drain body seal hole is facing the back of the fixture, and securely tighten the nut. Remove any excess putty or sealant. Apply plumbers putty. Flange Gasket Washer Nut Drain Body Fixture Kohler Co. 9 111290-2-BC8. Complete Drain Installation-Style B Press the seal into the seal hole on the body. Insert the stopper into the flange. For regular installations, insert the short end of the rod into the body seal hole and under the stopper. For vandal-resistant installations, fit the rod through the hole in the stopper. Hand tighten the body nut. Remove and adjust the stopper as needed so it lifts about 3/8″ (1 cm) when opened. To adjust, rotate the threaded stopper rod in or out as needed. Retighten the stopper nut. Apply thread sealant tape to the tailpiece threads, and thread the tailpiece to the body. Tighten the tailpiece securely. Slide one end of the clip onto the rod. Slide the link onto the rod with the thumbscrew facing the back of the fixture. Squeeze the other end of the clip, aligning the hole with the rod. Move the link to the proper position by squeezing the clip and sliding it along the rod. Insert the lift rod into the hole in the faucet and then into the hole in the link. Tighten the thumbscrew onto the link so the lift rod knob extends 1/2″ (1.3 cm) above the lift rod hole. Body Rod Clip Stopper Nut Flange Seal Nut Tailpiece Apply thread sealant. Thumb Screw Stopper Rod Link 111290-2-BC 10 Kohler Co.9. Install the Drain and Supplies IMPORTANT! The drain steps apply to the K-8040 and K-8046 models only. Install the drain according to the drain manufacturer’s instructions. If necessary, connect the lift rod assembly. Cut the supply tubes, making sure there is enough length for the required penetration of the tubes into the supply-stops. Debur all tubing cuts. Slip the coupling nuts onto the supply tubes. Carefully position the round end of the supply tube (either flared end or ferrule) squarely into the valve body inlet. Hand tighten the coupling nuts. Carefully bend the supply tubes to align with the supply stops. Slide a coupling nut, then a ferrule, onto each supply tube. Insert the supply tubes into supply stop outlets, positioning the round ends of the ferrule squarely into the outlets. Tighten all coupling nuts. Trip Lever Push Rod Lift Rod Cotter Pin Valve Yoke Supply Tube Coupling Nut Ferrule Supply Stop Kohler Co. 11 111290-2-BC10. Complete the Installation Ensure that all coupling nuts are tight. Repair as required. Ensure that both faucet handles are turned off (hot = counterclockwise to close, cold = clockwise to close). Turn on the water supplies and check the installation for leaks. Repair as needed. Remove the aerator. Open the valves and run water through the spout for about a minute to remove any debris. Check for leaks. Remove all debris from the aerator. Turn the valves off, and reinstall the aerator. Aerator VP Wrench Aerator 111290-2-BC 12 Kohler Co.Guide d’installation Robinet en dos d’étagère Outils et matériels Merci d’avoir choisi la compagnie Kohler Nous apprécions votre engagement envers la qualité Kohler. Veuillez prendre s’il vous plaît quelques minutes pour lire ce manuel avant de commencer l’installation. Ne pas hésiter à nous contacter en cas de problème d’installation ou de fonctionnement. Nos numéros de téléphone et notre adresse du site internet sont au verso. Merci encore d’avoir choisi la compagnie Kohler. Avant de commencer Couper l’alimentation d’eau principale. Respecter tous les codes de plomberie et de bâtiment locaux. Si nécessaire, compléter le mur fini avant de commencer cette installation. Kohler Co. se réserve le droit d’apporter toutes modifications au design des robinets et ceci sans préavis, comme spécifié dans le catalogue des prix. Clé à molette Mastic de plombier Joint d'étanchéité pour filetage Coupe-tube et lime cylindrique Pinces Tournevis assortis Plus:
