USER MANUAL SFDG0264 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

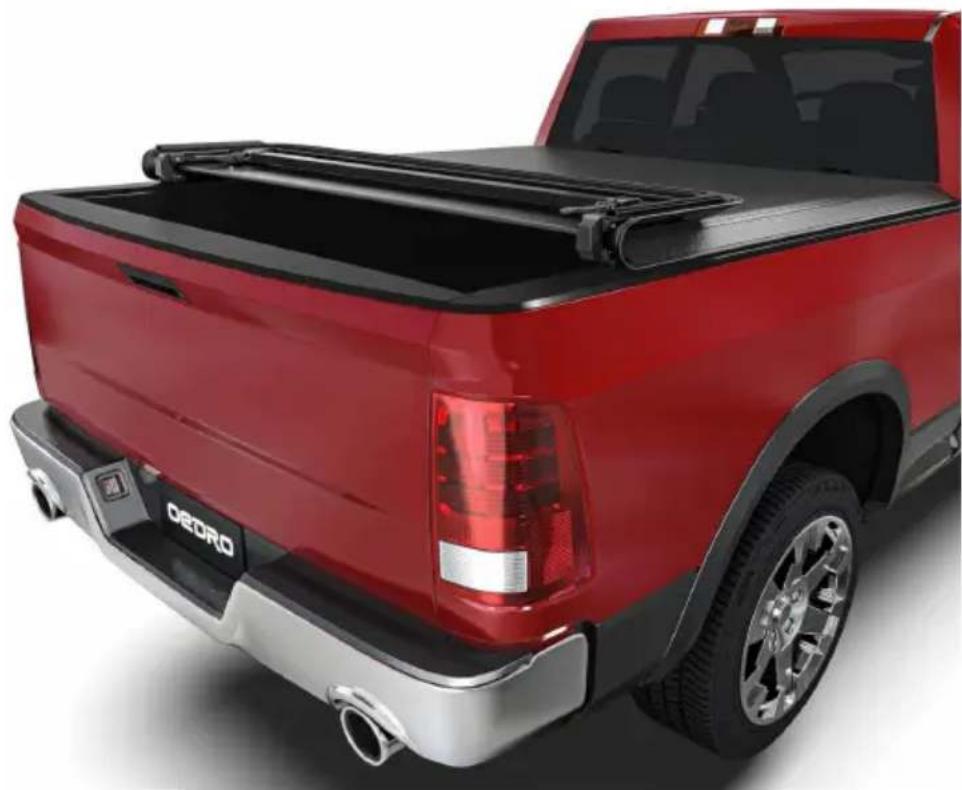

TRUCK TONNEAU COVERS

MODEL: SFDG0264

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

TRUCK TONNEAU COVERS

MODEL:SFDG0264

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

INTRODUCTION

WARNING:

ASSEMBLY PRECAUTIONS

1. Keep children and pets away during assembly.
2. Please assemble the product in strict accordance with the instructions. Incorrect assembly could be hazardous.
3. Separate and count all parts and hardware.
4. Prepare the following tool: Philips Head Screwdriver.
5. Follow the intended uses only.

Save the instruction.

PRODUCT PAREMETERS

Model	VEHICLE COMPATIBILITY	Color	Material
SRFD0955	Dodge Ram 1500 2500 3500, 2019-2023, Standard	Black	Vinyl, Aluminum, Stainless Steel

PART LIST

When unpacking this product, check to make sure the parts listed be are included and carefully inspect for any damage that may have occurred during transit. If any part is missing or damaged, do not attempt to assemble or use the product.

NAME	Picture	Qty		NAME	Picture	Qty
Cover Assembly		1		Plastic Hook		2
Clamp Foam Pad		6		Tailgate Stick Ta		1
M6 Cross Pin Nut		2

INSTALLATION METHODS

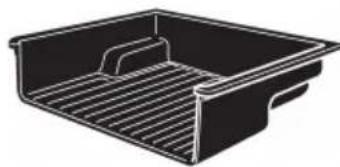

1. Wash truck bed.

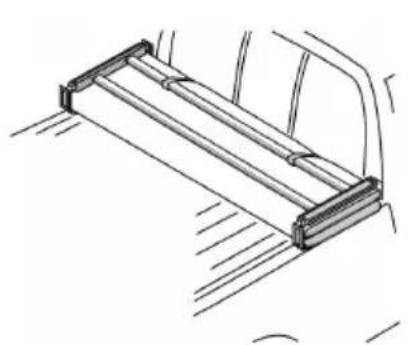

1. Place assembled tonneau over cab end of truck box.

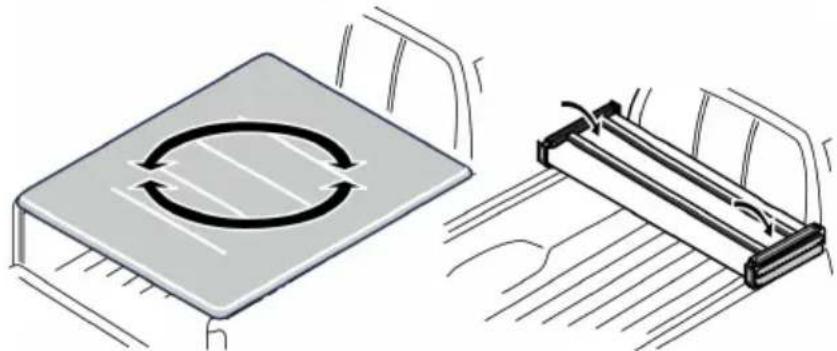

2. Unfold the tonneau fully and adjust position over the truck bed for p cab/tail alignment.

Carefully refold the tonneau without shifting its position on the truck bed

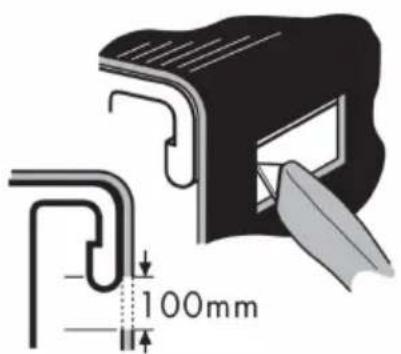

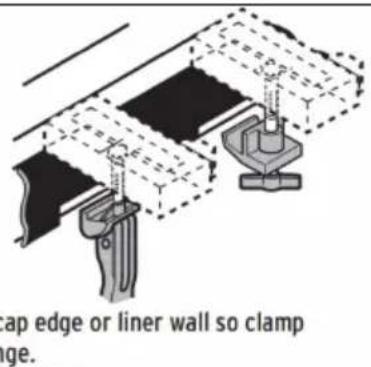

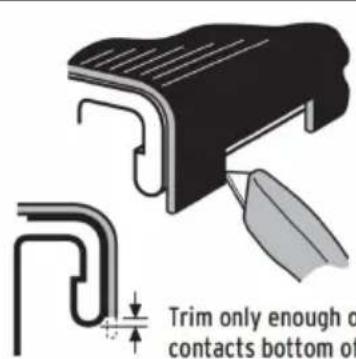

1. If your truck has a bed cap or b that covers the metal bed flange, you need to remove enough so that all 1 clamps make solid contact.

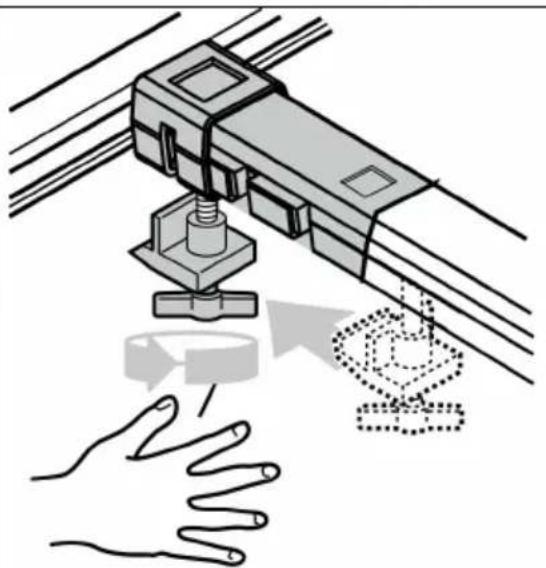

1. Ensure clamp is positioned under bed flange. Hand tighten until clamp contacts, then tighten an additional turns.

Do not secure to only lip of bedline wall cap.

Do Not Use Wrench or Overtighten!

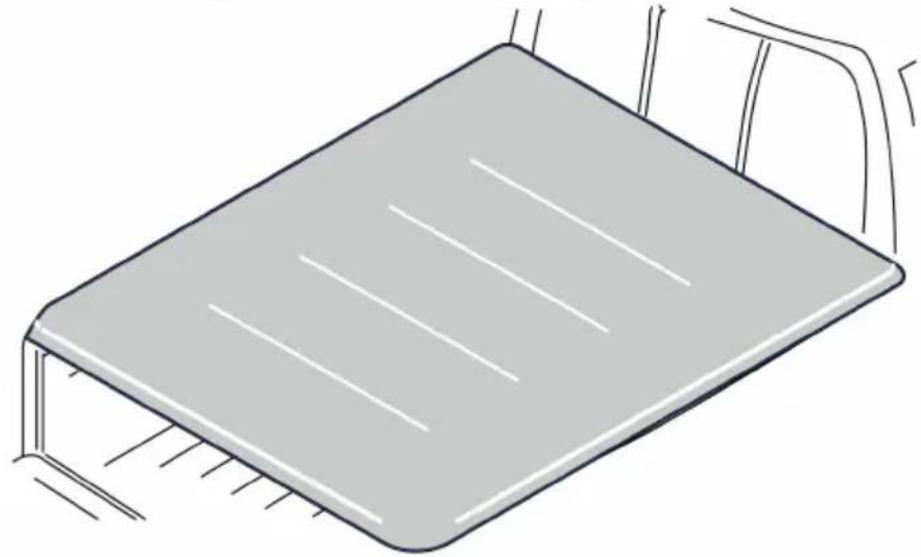

1. With tailgate down, completely open the tonneau cover.

1. There are three holes,choose suitable hole and slide out bed flan

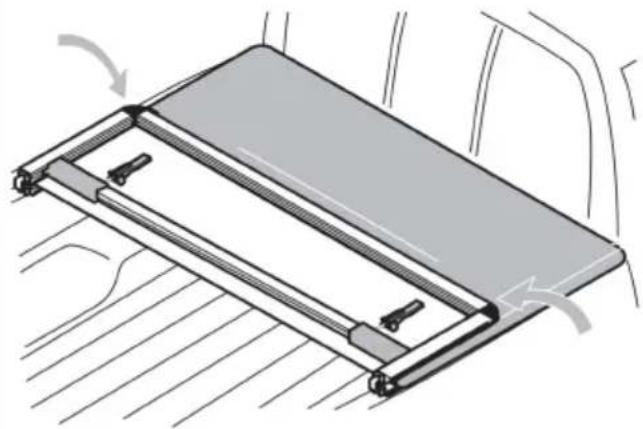

2. It is very convenient to drive with Tri-Fold Tonneau open. Release the rear clamps and fold th tonneau forward.

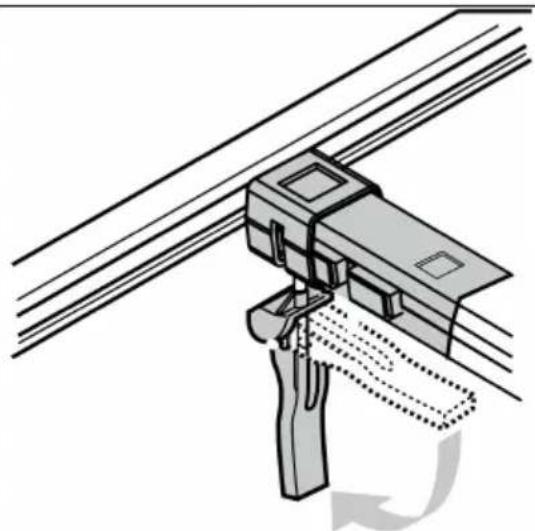

Pull clamp lever down to secure ag bed flange

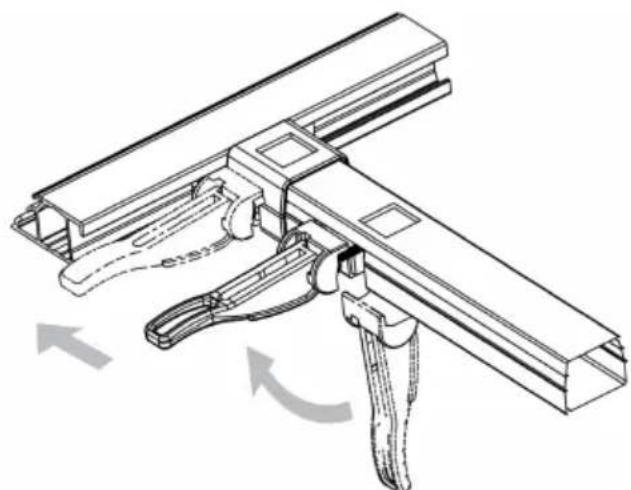

IMPORTANT: Before folding the second section of tonneau, rear clamps must be stowed into rail to prevent damata to fabric. Failure to stow handle will puncture tarp and void warranty.

Fold the tonneau forward and fasten straps in the middle section to front	9. After installation of tonneau apply one pad onto truck bed at each clca location as shown.
IMPORTANT NOTICE: While driving, tonneau must be completely flat and with all 4 clamps in the closed position or completely folded up (all par secured at the cab. DO NOT DRIVE with tonneau in partially opened.NOTE: Tarp can not be removed from aluminum frame. Attempting to do so will cause damage and void the warranty. Remove any snow or forei before folding over.

Manufacturer: Shanghaiuxinmuyeyouxianggsi

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS: SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD

NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250,9166 Anaheim

Place,Rancho Cucamonga,CA91730

Pooledas Group Ltd

Unit 5 Albert Edward House,

The Pavilions Preston, United Kingdom

[e-mail]

01772418127

SHUNSHUN GmbH

Romeracker 9 Z2021,76351

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Assistance technique et certificat de garantie electronique www.vevor.com/support

COUVRE-BAGAGES DE CAMION

MODELE:SFDG0264

Trim only enough of the bed cap edge or liner wall so clamp contacts bottom of metal flange.
