USER MANUAL BBJ4A Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

POPSICLE MACHINE MANUAL

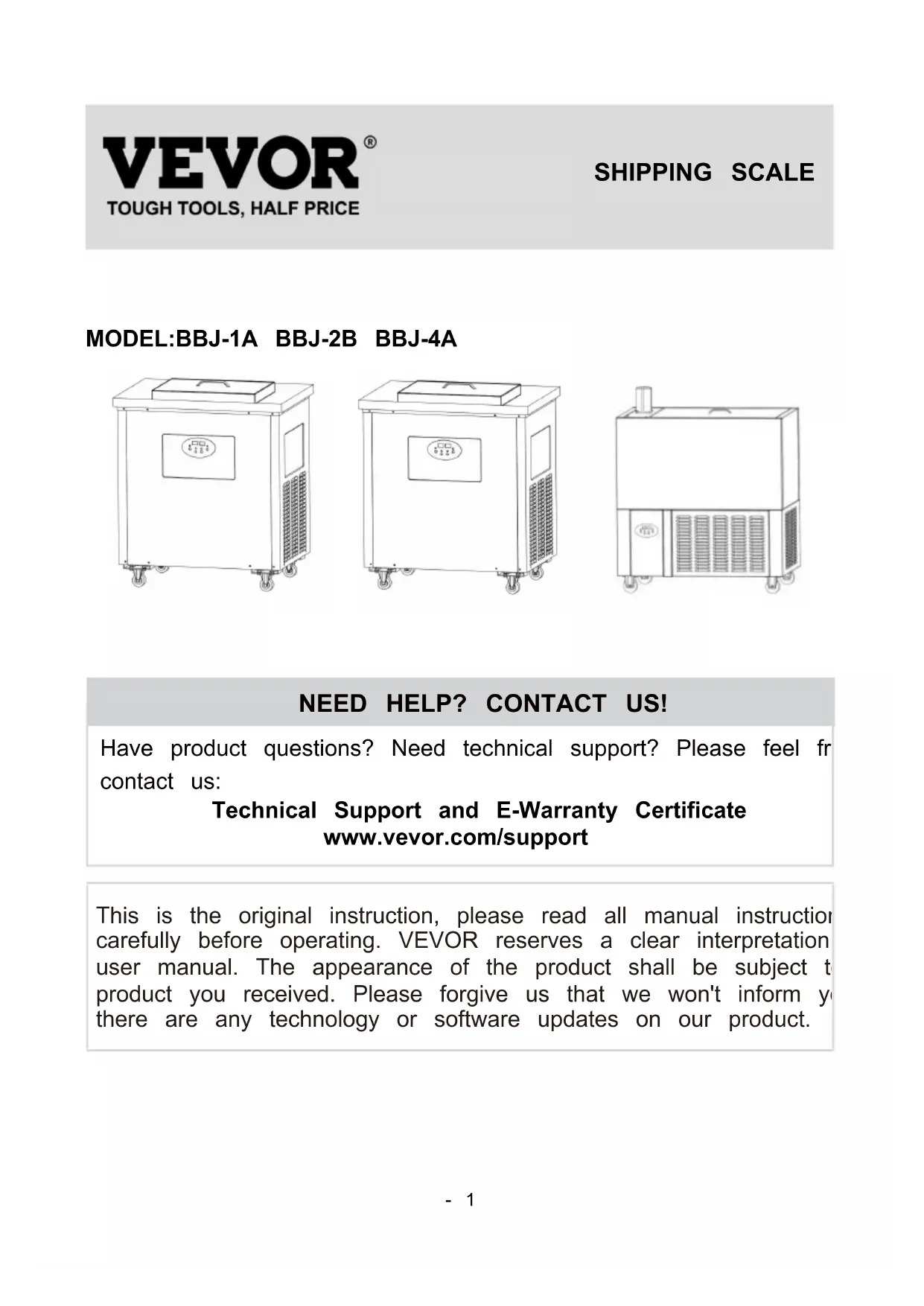

MODEL:BBJ-1A BBJ-2B BBJ-4A We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.- 1 - MODEL:BBJ-1A BBJ-2B BBJ-4A Have product questions? Need technical support? Please feel free to contact us: Technical Support and E-Warranty Certificate www.vevor.com/support NEED HELP? CONTACT US! This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product. SHIPPING SCALE- 2 - Warning-To reduce the risk of injury, user must read instructions manual carefully. Correct Disposal This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices Popsicle machine manual i.The main purpose BBJ series popsicle machine is mainly used to make popsicles and ice lolly. ii.Installation and debugging 1)After installing the components that need to be installed, thoroughly inspect the machine. 2)Place the machine in a ventilated and dry location, and ensure that the air grilles on each side of the machine are at least 300mm away from walls or obstacles. The ambient temperature should not be too high, not exceeding 35°C; otherwise, the cooling effect will be affected. 3)Connect the power supply with reliable grounding according to the voltage requirements on the nameplate on the machine; the machine must use an independent dedicated socket. 4)Pour 27% calcium chloride solution or ethylene glycol (freezing point -40°C) into the ice tank of the machine as the secondary refrigerant.- 3 - Model BBJ-1A BBJ-2B BBJ-4A Adding amount 16L 16L 120L 5)When the power is turned on, the power indicator light of the controller lights up, the left digital tube displays the current temperature, and the right digital tube displays the current voltage; press the "Cooling" button once, the corresponding indicator light lights up, the stirring motor starts, and the refrigeration system starts after a 1-minute delay; the machine enters Working state; when the temperature of the refrigerant in the water tank reaches the set temperature, the refrigeration system stops working, the stirring motor continues to work, and the machine enters the constant temperature state; after the refrigerant temperature rises, the machine will automatically enter the working state. 6)According to the needs, the cooling temperature and temperature return difference can be changed. Press the "Set" button for 3 seconds. The left digital tube will display "F1" and the right digital tube will display the current set temperature (factory setting -25℃). Press "Add" or "Minus" key to change; press the "Set" key again. The left digital tube displays "C1" and the right digital tube displays the current set temperature return difference value (factory setting 3℃). Press the "Add" or "Minus" key to change; If there is no operation for 8 seconds, the parameters will be saved automatically. iii.Use and operation Mold cleaning Pour clean water into the mold and scrub it clean with a brush; or rinse it directly with water. Ingredients a)Use special powder or slurry and prepare it according to the instructions on the packaging bag. b)Take the ingredients according to the proportion and weight according to the table, pour into the container and stir evenly; then pour in boiling water, stir quickly to completely dissolve, let it cool before use.- 4 - Raw Material Milk Powder White Sugar Water Other weight ratio

Appropriate amount operate Pour the prepared slurry into the ice mold (the slurry should not exceed 4/5 of the ice mold volume), cover the mold puller with the bamboo skewers inserted, and then place the ice mold into the refrigeration tank; cover it Cover and let the machine work for 20-40 minutes (the length of the molding time depends on the slurry) to freeze the mold, then take out the entire popsicle mold and immerse it in the clean water for 2-5 minutes; then pull up the mold puller, take out the popsicles, and then package them. Store in freezer.

1)During the transportation of the machine, the tilt is not allowed to exceed 45 degrees. 2)The power supply voltage requires rated voltage and must be reliably grounded; it cannot share the same socket with other electrical appliances. 3)There should be enough space of more than 200mm on the side of the inlet and outlet air grille to ensure heat dissipation of the machine. 4)Dust the machine condenser regularly, and the interval should not exceed 3 months 5)When the machine is working, do not touch your hands directly with the refrigerant to prevent frostbite. 6)Do not use the machine directly in a place exposed to direct sunlight, as it will directly affect the cooling effect. Fault reason Method of exclusion The machine alarms and does

1. If the power supply voltage

is too high or too low, it will display YH or YL and alarm.

1. Unplug the power plug

and adjust the voltage. Restart

2. The refrigeration sensor is

2. Replace the sensor- 5 -

not work faulty, displays FP, and alarms; the machine does not maintain a constant temperature and does not stop.

3. The control board

connection cable fell off

4. Check the line and

4. The controller is broken

5. Replace the switch or

the controller is broken.

6. After power outage, it will

automatically recover for 30-60 minutes and then turn on again. Poor cooling effect, no cooling

1. Use directly under sunlight

or the ambient temperature is too high.

2. Is the air grille in and out of

the machine blocked?

2. Leave more than 200mm

of space for air inlet and outlet.

3. The condenser is too dirty

and protector are broken.

6. Check for leaks, repair

leaks, and refill refrigerant There is loud noise and vibration

1. The machine is placed

3. Machine parts are loose

7)After use, unplug the power supply and clean the machine. The surface can be wiped with a wet towel; it is strictly forbidden to rinse it directly with- 6 - water. 8)If the machine malfunctions and alarms, please contact a professional to find out the cause before using it. iv.Common faults and troubleshooting methods v.Packing List No. Item Qty Remark

Popsicle stick 200 pieces

Popsicle bag 200 pieces

• WARNING 1)Connect the power supply according to the voltage requirements on the machine nameplate, and it must be reliably grounded; it cannot share the same socket with other electrical appliances. 2)There should be enough space of more than 200mm on the side of the inlet and outlet air grille to ensure heat dissipation of the machine. 3)Ambient temperature requirements for use: The ambient temperature of the floor-standing model should not exceed 35°C, and the ambient temperature of the tabletop model should not exceed 30°C. 4)It is strictly prohibited to use the machine under direct sunlight or in a closed space, which will directly affect the cooling effect. 5)Dust the machine condenser regularly, and the interval should not exceed 3 months. 6)The machine shuts down with an alarm, displays Y-H/Y-L, and the voltage is too high/low; it is necessary to unplug and adjust the voltage to restart. 7)The machine alarms and does not stop, displays F-P and the refrigeration/fresh-keeping temperature sensor is faulty and needs to be replaced. 8)Before using the machine, pour the refrigerant into the quantity according- 7 - to the instructions,It is forbidden to make Popsicle directly with empty machine. 9)When the machine is working, do not touch your hands directly with the refrigerant to prevent frostbite. 10)The concentration of the refrigerant will decrease after being used for a period of time and needs to be replaced in time to avoid freezing and affecting the freezing effect. 11)If the machine malfunctions and alarms, please contact a professional to find out the cause before using it. FCC Information CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment! This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This product may cause harmful interference.

2)This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly

approved by the party.responsible for compliance could void the user's authority to operate the product. Note: This product has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules, These limits are designed to provide reasonable protection against harmful interference in a residential installation. This product generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception,which can be determined by turning the product off and on, the- 8 - user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.

• Increase the distance between the product and receiver.

• Connect the product to an outlet on a circuit different from that to which the receiver is connected.
