USER MANUAL HU 2032 Orbegozo

White portable water purifier with clear blue casing and control knob (no visible text or symbols)

HU 2032

Sonifer, S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Technical diagram of a portable blender with numbered parts and exploded view, showing internal components and wiring.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.

4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

5. If the supply cord is damaged it must be repaired by the Authorized Service Agent.

6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.

10. Make sure the appliance has been unplugged before cleaning.

11. This appliance must be installed following the national regulations for electrical installations.

12. This appliance is for household use only.

13. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com

14. WARNING: In case of misuse, there is a risk of possible injury.

15. Unplug the appliance during filling and cleaning.

16. Do not disassemble the base of the unit without consulting qualified personnel.
17. Do not add detergents or chemical solutions other than those supplied by the manufacturer.

- Any modification or adjustment without the manufacturer's supervision may cause harm to the user.

- Unplug the unit immediately if you notice a strange smell or noise. If repairs are required, contact qualified personnel.

- Do not touch the water or any other part of the water cavity when the unit is operating.

- Do not plug in the unit when there is no water in the base.

- Do not clean the transducer surface with abrasive materials.

- Make sure there is no water in the unit when cleaning it.

• Place the unit on a flat surface.
• Keep the unit away from heat sources or direct sunlight
• Avoid direct steam on furniture or electrical appliances to prevent condensation.
• Do not use the humidifier in extremely cold conditions.

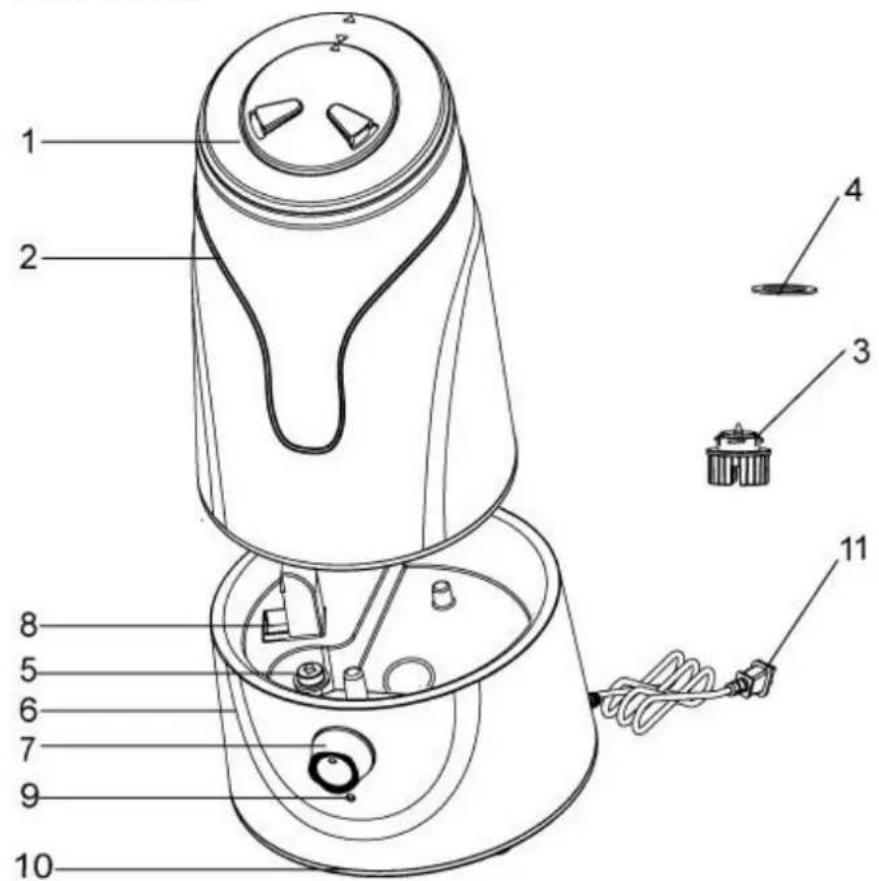

COMPONENTS

Technical diagram of a portable air purifier with numbered parts and exploded view

1 Fog nozzle2 Water tank3 Tank cap4 Silicone sealing washer5 Water level buoy6 Engine base

7 Adjustable control knob8 Air outlet / essence tray9 Indicator light10 Air filter11 Power cable

GENERAL INTRODUCTION

The HU 2032 humidifier is made of high-quality plastic. It can work continuously for up to 30 hours. Its main features are soft mist, anionic cooling effect, energy saving, quiet, auto shut-off function and long service life.

HOW DOES IT WORK?

According to the vibration theory of ultrasonic waves, the humidifier splits water droplets into particles with a size of 1-5 m. The particles are then diffused by a fan. During this process, a large amount of anions are produced and diffused. This is how this humidifier works to humidify and refresh the air.

HOW TO USE IT?

A. The ideal ambient temperature for the humidifier is between 0 °C and 40 °C. Please place it in a room for half an hour before first use.
B. It is recommended to use descaled and boiled water or distilled water. The water temperature should not be higher than 40 °C.
C. Remove the water tank from the base, open the cap (3) by turning it counter-clockwise, fill with water, make sure the silicone sealing washer (4) is firmly in place and then close the tank cap (3) by turning it clockwise.
D. Insert the plug into a power outlet, then turn the adjustable control knob (7) to turn on the humidifier, To select the appropriate steam intensity, turn the regulator to the desired point (7)

AIR FILTER (10)

There is an air filter (10) at the bottom, to allow clean air into the machine.

WARNING: DO NOT place the product on carpets or towels that may obstruct airflow and cause water leakage.

CLEANING AND MAINTENANCE

WATER TANK

● The water tank should be cleaned frequently. It is recommended to clean it once every 3 days.
● Water should be changed frequently and should not remain in the water tank for more than 2 days.

TRANSDUCER

Due to geographical factors, water quality may vary from place to place. Some places have hard water, which contains a large amount of calcium and magnesium ions. In addition, the use of bleaches (to purify water) also increases the hardness of the water. When this type of water is used to humidify the air, calcium and magnesium ions diffuse along with the mist. As time goes by, there will be scale sediments on the surfaces of objects and on the ground. There will also be sediments on the transducer and water outlet, which will affect the operation of the humidifier. To clean the transducer,

• Add some anti-scale cleaner (about 0.5g) into the transducer, add some water and wait for 2-5 minutes.
• Use a soft brush to clean the surface of the transducer. Do not use hard tools to scratch its surface.
• Do not use soap or other alkaline substances to clean the transducer.

BASE

• If the water slot and water level float also have scale deposits, use an anti-scale cleaner to clean them and then wash the water slot with clean water.
• Do not immerse the base in water and ensure that water does not enter the vent.

STORAGE

The original packaging is best for storing the unit. Be sure to clean all parts and dry them before storing.

DID YOU KNOW?

Did you know that every place and every object has a different humidity? Every place needs its own humidity. Find the answer below:

– The best humidity for the human body: 45% RH – 65% RH
– Best humidity for disease prevention and treatment: 40% RH – 55% RH
– Furniture and musical instruments: 40% RH – 60% RH

– Computer and communication equipment: 45% RH – 60% RH

— Ballroom, bar and other public entertainment venues: 40% RH – 65% RH

– Library, art gallery, museum: 40% RH – 60% RH

PRECAUTIONS

• It is not recommended to use additives such as perfumes, essences, etc. Adding alkaline substances to the water tank may cause it to break.
• During operation, do not touch the water on the steam outlet or other parts, as this may cause electric shock due to unexpected electric leakage.
• Do not point the spray nozzle towards children, furniture, walls, etc. Instead, aim it towards an empty space.
• Make sure it operates away from other appliances.
• Do not leave it operating on unstable surfaces. During work, do not tilt or overturn it.
• In case of abnormal noise or smell, turn off the power and unplug it from the power outlet immediately.
• When cleaning or moving the unit, turn it off and remove the water tank. Failure to do so could cause water to overflow into the base, affecting its operation.
• Do not place it in places exposed to the sun for a long time.
• Do not repair or replace parts by yourself; send it to professionals or the designated service center for help. Unauthorized modifications or restructuring of the humidifier may cause inconvenience or danger.
• If you are not going to use it for a long time, unplug it and store it properly.

TROUBLESHOOTING

PROBLEM	POSSIBLE REASONS	SOLUTIONS
No air, no steam	There is no power supply.	Connect to power outlet.
	The power switch is off.	Turn on the power switch.
	The water level in the steam outlet slot is too high.	Lower the water level using the steam regulator.
	Water tank leak.	Tighten the tank cap.
Air, but no steam.	There is no water in the water tank.	Fill the water tank.
	The water level detector is not in the correct position.	Reassemble the water level sensor.
	The unit temperature is too low.	Place the unit in a warmer room for half an hour before use.
Strange smell in the steam.	Water has been kept in the tank for too long.	Clean the water tank and refill it with clean water.
Low steam intensity.	Too much water in the base.	Empty the water from the base and replace the water tank.
	The mist intensity controller is on the minimal side.	Adjust the controller.
	Lime deposits on the transducer	Clean the transducer
	The water is too cold.	Use water at room temperature.
	The water is not clean.	Clean the water tank and refill it with clean water.
The steam jet is very low	The steam intensity regulator is on the minimum side.	Adjust the controller.
	The water tank and base are not properly positioned.	Make sure the water tank and base are in proper contact.
	The fan is not working properly	Have professionals check the fan inside the base.
Noise	Resonance caused by too little water in the water tank.	Add water to the water tank.
	Resonance caused by unstable surfaces.	Place the unit on stable surfaces.

TECHNICAL SPECIFICATIONS

Model	HU 2032	Power	25W
Voltage	220-240V	Moisture output	≥ 30 ml/h
Frequency	50/60Hz	Tank capacity	3 Liters

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be

separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.

GUIDE DE SÉCURITÉ

Avertissement :

Technical diagram of a blender with numbered parts for identification and assembly reference

Technical diagram of a portable air purifier with numbered parts and exploded view

Technical diagram of a portable blender with numbered parts and exploded view, showing internal components and wiring.

* NOTE: The period after which the equipment enters the specified mode automatically is 0 minutes.

MODÈLE	HU 2032
ALIMENTATION	25 W
CONNEXION	100-240 V~50/60 Hz
DIMENSIONS	172 / 335 / 190 mm
POIDS	0.88 Kg
MODE ARRÊT	<0,5W
