SAFETY INSTRUCTIONS

Intended Use

The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. Please check the packaging and appliance on arrival to make sure everything is intact to ensure safe operation. If you find a damage, please contact the retailer or dealer. Please note that alterations to the appliance are not allowed for your safety concern. Unintended use may cause hazards and loss of warranty claims.

Explanation of Symbols

Danger This symbol indicates that there are dangers to the life and health of persons due to extremely flammable gas.

Warning of electrical voltage This symbol indicates that there is a danger to life and health of persons due to voltage.

Warning The signal word indicates a hazard with a medium level of risk which, if not avoided, may result in death or serious injury.

Caution The signal word indicates a hazard with a low degree of risk which, if not avoided, may result in minor or moderate injury.

Attention The signal word indicates important information (e.g. damage to property), but not danger.

Observe instructions This symbol indicates that a service technician should only operate and maintain this appliance in accordance with the operating instructions.

Read these operating instructions carefully and attentively before using/commissioning the unit and keep them in the immediate vicinity of the installation site or unit for later use!

CAUTION

• Read Rules for Safe Operation and Instructions Carefully.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Never insert fingers, pencils, or any other object through the grille when fan is running.
• Disconnect fan when moving from one location to another.
• Be sure fan is on a stable surface when operating to avoid overturning.
• DO NOT use fan in window, rain may create electrical hazard.
  Household use only.

EN

WARNING

• If the supply cord is damaged, it must be replaced by manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.
• When the appliance is not in use and before cleaning, unplug the appliance from the outlet.
• When the fan was assembled, the rotor blade guard shall not be taken off anymore.

SPECIFICATIONS

Product Model	MFS400MOAPWO
Voltage	220-240V~
Frequency	50Hz
Power	40W

Item/DescriptionSymbolValue			Unit
Maximum fan flow rate	F	61,07	m³/min
Fan power input	P	34,10	W
Service value	Sv	1,79	(m³/min)W
Standby power consumption	PSB	0,15	W
Off power consumption	POFF	-	W
Fan sound power level	LWA	54,71	dB(A)
Maximum air velocity	C	2,54	meters/sec
Seasonal electricity consumption	Q	11,08	kWh/a
Measurement standard for service value	EN IEC 60879:2019
Contact details for obtaining more information	Midea Italia S.r.l. a sostio unico Viale Luigi Bodio 29/37 20158 Milano Italia midea.com/it

PRODUCT OVERVIEW

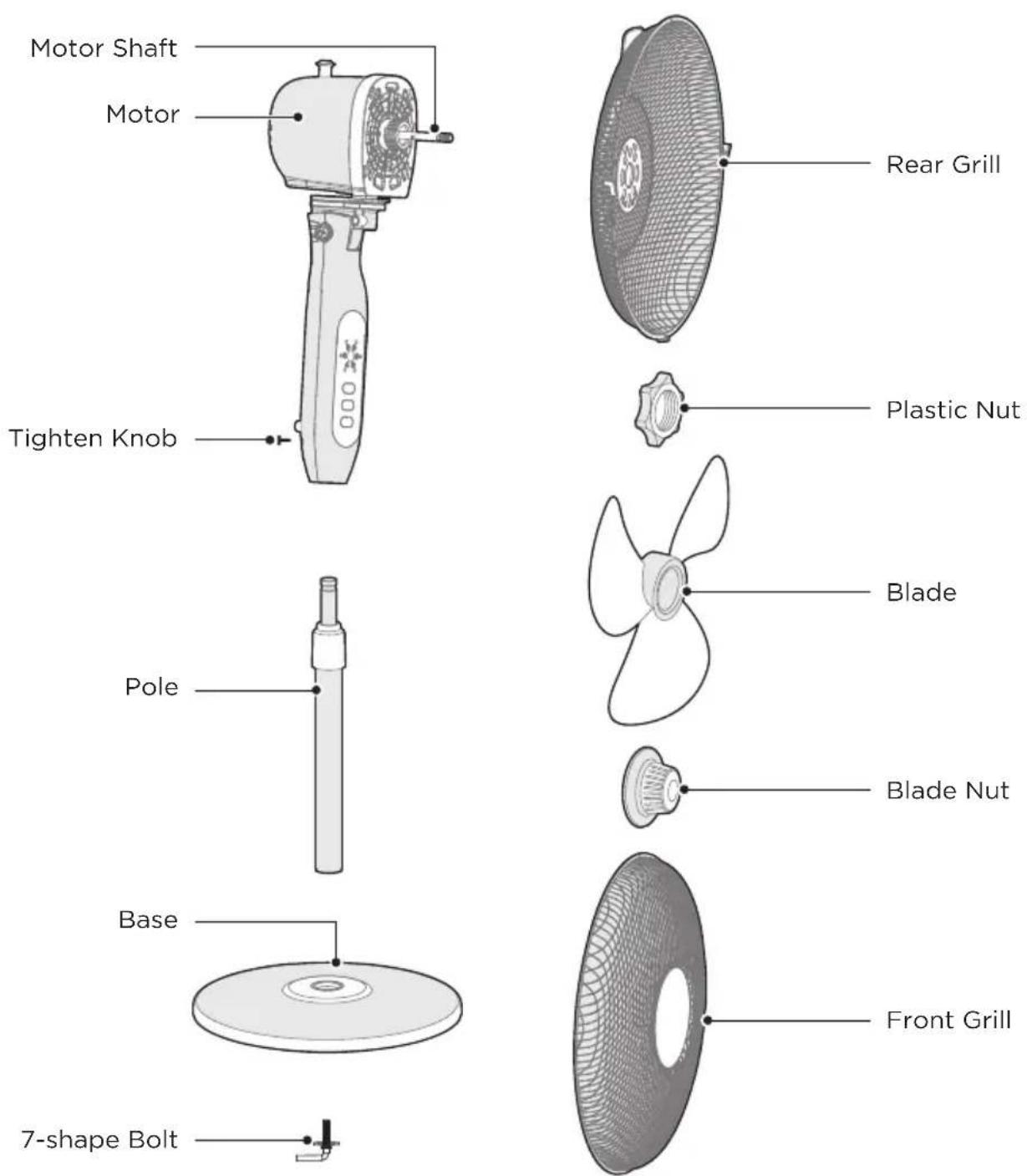

Part Name

NOTE

All the pictures in this manual are for explanation purpose only. Any discrepancy between the real object and the illustration in the drawing shall be subject to the real subject. Remove parts from the component before performing installation.

PRODUCT INSTALLATION

Installation Procedures

1 Install the base

Align the column with the groove on the base and fix them together using a 7-shape bolt.

2 Column installation

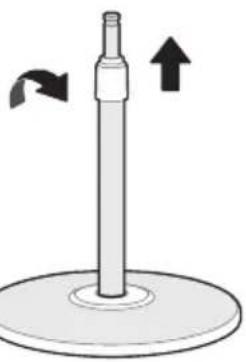

2.1 Pull out and fix the inner column tube by adjusting the height adjustment knob (height can be adjusted as required).

Height adjustment knob tighten clockwise, loosen counterclockwise

2.2 Install and fix the device by adjusting the tightening knob.

Tightening knob tighten clockwise, loosen counterclockwise.

3 Rear guard installation

3.1 Please unscrew the guard lock nut counterclockwise first.

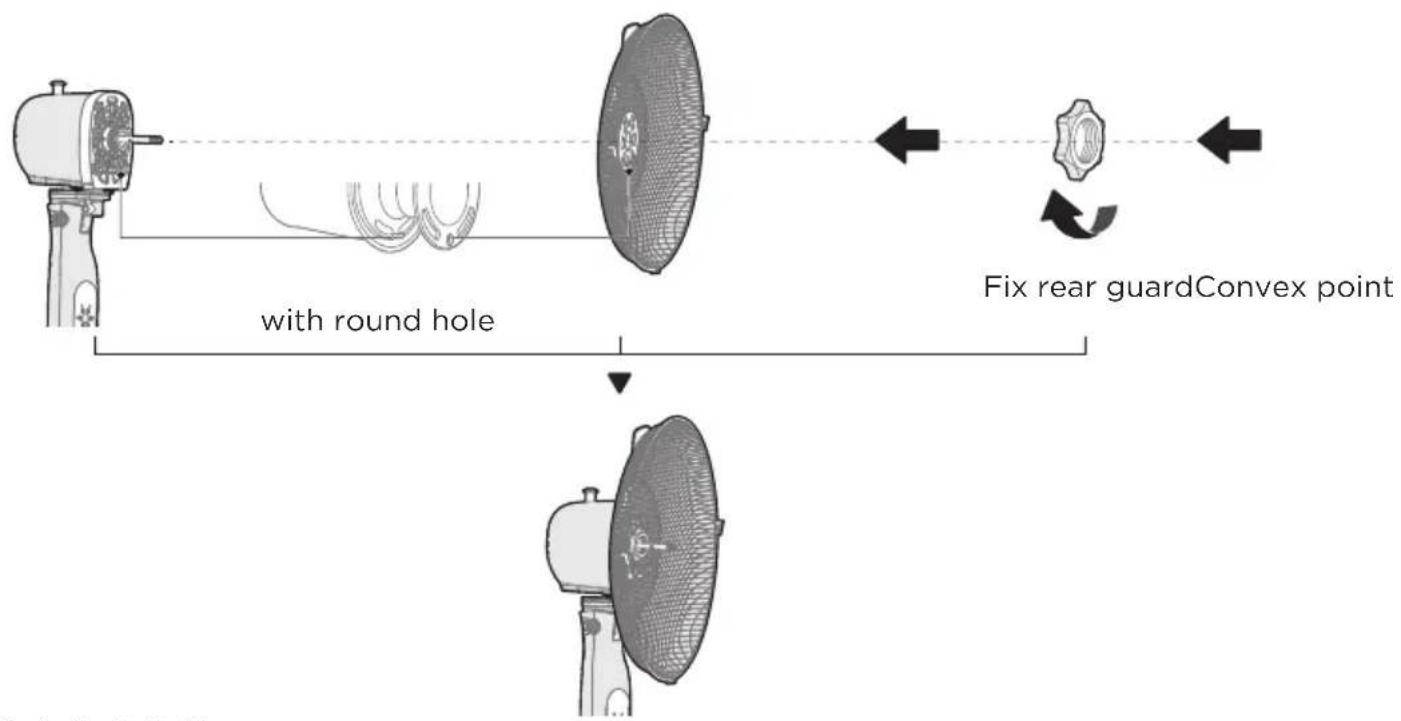

3.2 Align the front cover of the motor and the rear grille, hang them and lock with the guard lock nut.

EN

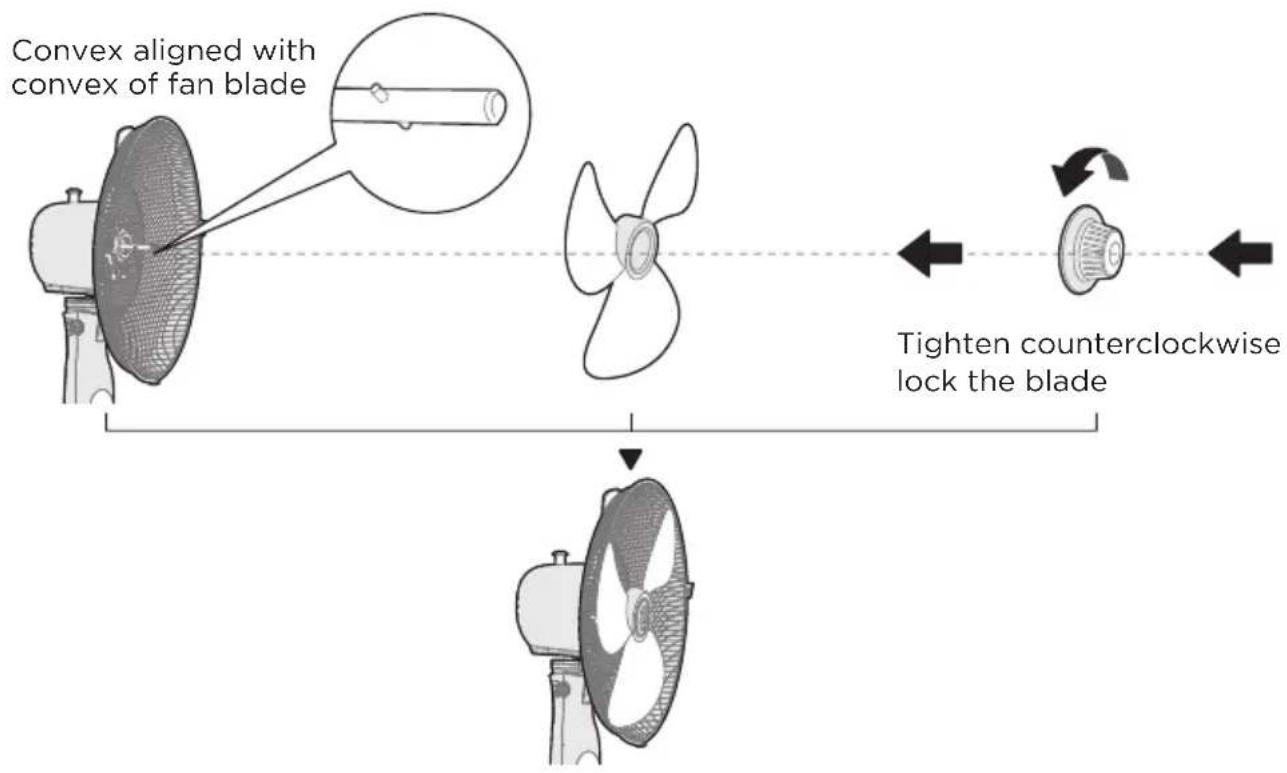

4 Blade installation

Fix rear guard with convex point aligned with round hole.

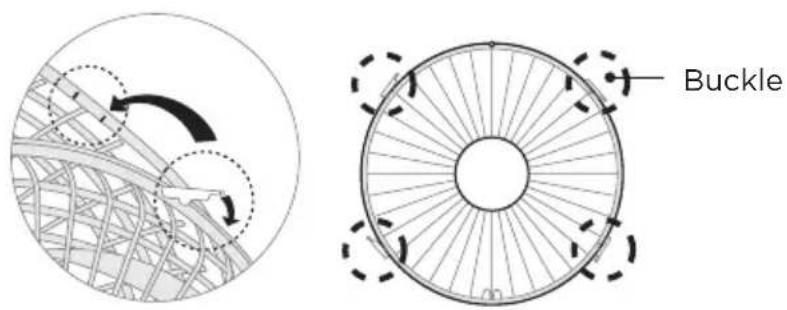

5 Front Guard Installation

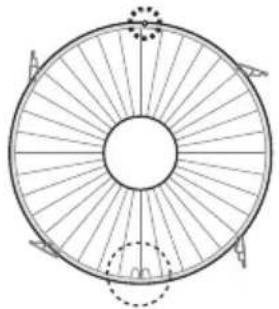

5.1 Align screw holes on the outer ring of both the front and rear guards, with the positioning clip aligned as illustrated.

5.2 Press down all the buckles to fasten the front guard with the rear guard. at the screw holes, tighten the separated screw and nut.

6 Tilt angle adjustment

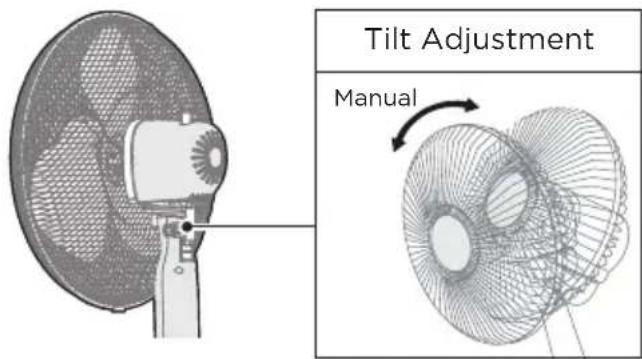

Manually adjust the back cover of the motor up and down to adjust the pitch angle of the fan.

7 Oscillation control

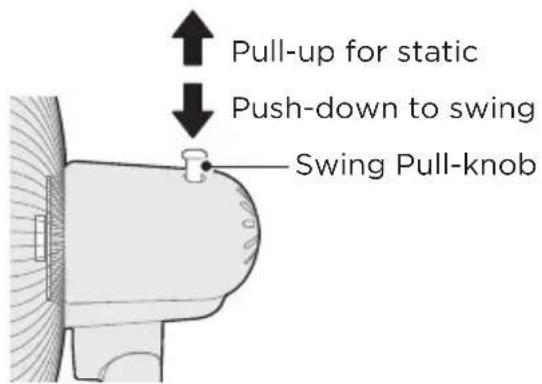

To make the fan oscillate, push down on the oscillation knob located on the top of the motor housing. To stop the fan from oscillating, pull up the oscillating knob.

OPERATION INSTRUCTIONS

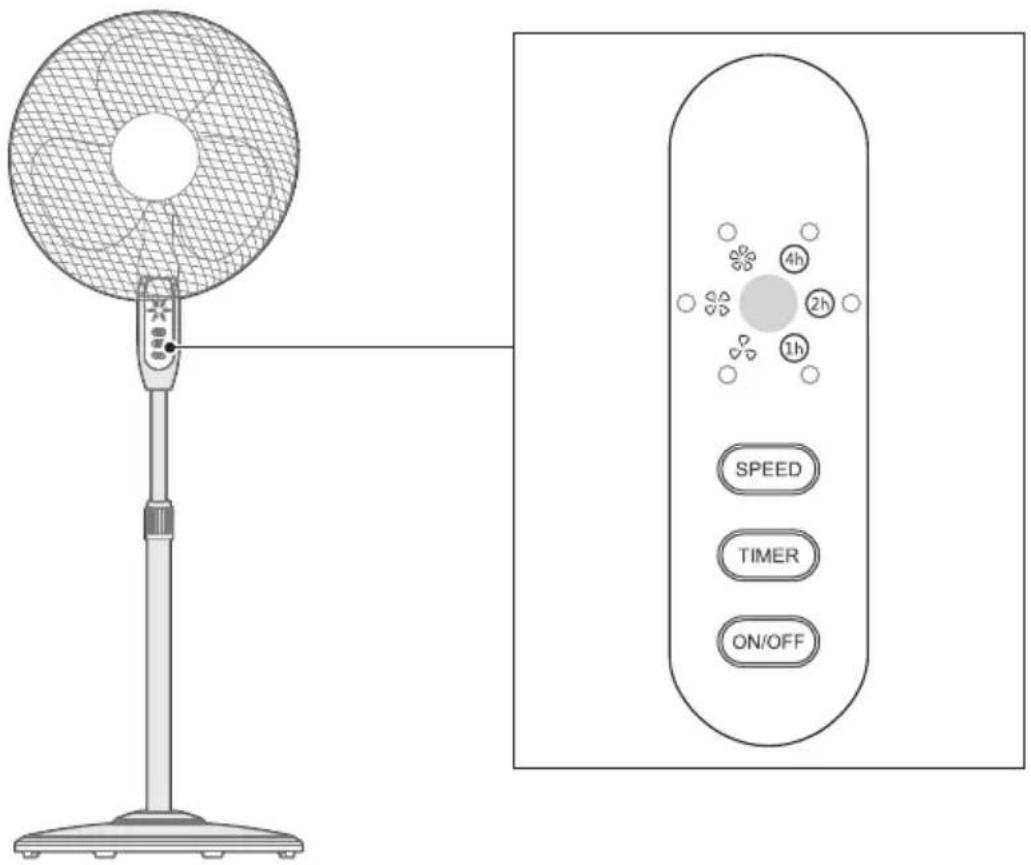

Control Panel Operations

EN

	Function descriptionButton
ON/OFF	• Press this key to start/stop the product.
TIMER	• Press the Timer button repeatedly in the power-on state to set the schedule off to 1h→2h→3h→4h→5h→6h→7h→Oh→... hours, and the corresponding timer indicator lights up.
SPEED	• In power-on state, press the Speed button repeatedly to cycle the fan speed: low → medium → high→..., and the corresponding wind speed indicator lights up.
XXX	• Display the wind speed level: high “XXX”, medium “XXX”, low “XXX”.
1h 2h 4h	• Display the set timer, for example: when schedule o timer is set to 7-hour, the indicator lights “1h v h turn on at the same time.

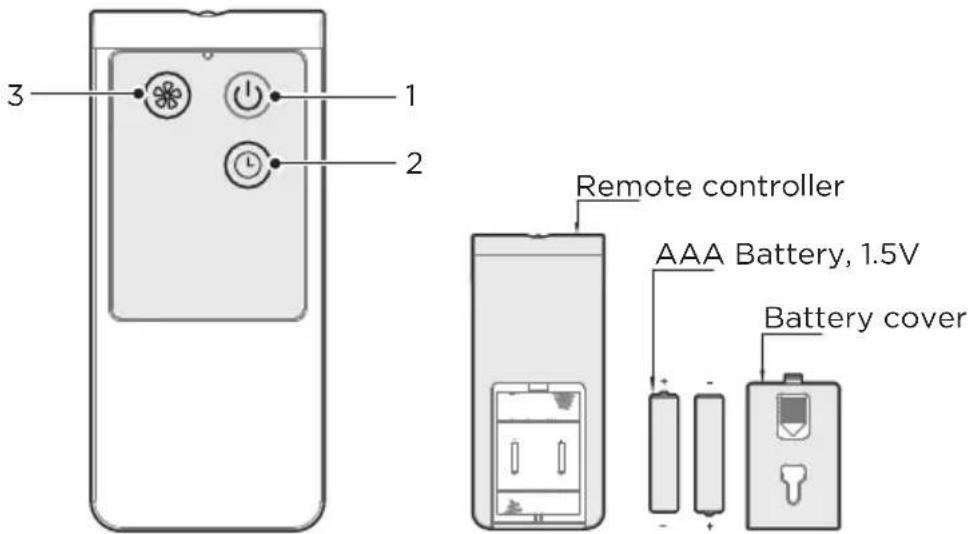

Remote Control

• Point the remote control at the receiver and press the desired key.
• The remote control will work at distances of up to roughly five meters and the angle of 30 degree from the control panel.
• Avoid the sunshine irradiating the receiver lest the effect of the receiver should be influenced.
• The batteries must be removed from the remote control before it is scrapped, and that they are disposed of safely.

NOTE

EN

Use manganese or alkaline batteries of type "AAA". DO not use rechargeable batteries.

Batteries(battery not included in the Packing)

• Slide the battery compartment cover.
• Insert the batteries, and make sure that the batteries are placed as shown in the Fig.10.
• Slide back the battery cover.

CLEANING AND MAINTENANCE

The fan requires minimal maintenance. Do not try to fix it by yourself. Refer it to qualified service personnel if service is needed.

1. Before cleaning and assembling, unplug the fan power.
2. To ensure adequate air circulation to the motor, keep vents at the rear of the motor free of dust. Do not disassemble the fan to remove dust.

Please wipe the exterior parts with a soft cloth soaking a mild detergent.

1. Do not use any abrasive detergent or solvents to avoid scratching the surface.
2. Do not use any of the following as a cleaner: gasoline, thinner.
3. Do not allow water or any other liquid entering into the motor housing or interior parts.
4. Be sure to unplug from the electrical supply source before cleaning.
5. Plastic parts should be cleaned with a soft cloth moisten with mild soap Thoroughly remove soapsuds with dry cloth.

TROUBLESHOOTING

Operation of your appliance can lead to errors and malfunctions. The following tables contain possible causes and notes for resolving an error message or malfunction. It is recommended to read the table below carefully in order to save your time and money that may cost for calling to the service center.

	Cause SolutionProblem
The machine does not work properly after installed	·The power cable is not plugged in or has poor contact.	Make sure the plug is properly inserted into the socket.
	·The switch on the body is not turned on.	Turn on the switch on the body.
The remote does not work	·The battery needs replacing. Replace the battery.
	·The remote is being used more than 5m away from the fan.	Use the remote closer to the fan and make sure it is pointing directly at the display panel.

EN

TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT

Midea logo, word marks, trade name, trade dress and all versions there of are valuable assets of Midea Group and/or its affiliates ("Midea"), to which Midea owns trademarks, copyrights and other intellectual property rights, and all goodwill derived from using any part of an Midea trademark. Use of Midea trademark for commercial purposes without the prior written consent of Midea may constitute trademark infringement or unfair competition in violation of relevant laws.

This manual is created by Midea and Midea reserves all copyrights thereof. No entity or individual may use, duplicate, modify, distribute in whole or in part this manual, or bundle or sell with other products without the prior written consent of Midea.

All the described functions and instructions were up to date at the time of printing this manual. However, the actual product may vary due to improved functions and designs.

EN

DATA PROTECTION NOTICE

For the provision of the services agreed with the customer,

we agree to comply without restriction with all stipulations of applicable data protection law, in line with agreed countries within which services to the customer will be delivered, as well as, where applicable, the EU General Data Protection Regulation (GDPR).

Generally, our data processing is to fulfil our obligation under contract with you and for product safety reasons, to safeguard your rights in connection with warranty and product registration questions. In some cases, but only if appropriate data protection is ensured, personal data might be transferred to recipients located outside of the European Economic Area.

Further information are provided on request. You can contact our Data Protection Officer via [e-mail]. To exercise your rights such as right to object your personal data being processed for direct marketing purposes, please contact us via [e-mail]. To find further information, please follow the QR Code.

Additional Conventional Warranty Conditions

The products imported by Midea Italia s.r.l. (hereinafter "Midea") and marked with the trademark. "Midea" are covered by the legal warranty for lack of conformity, which is provided for in Articles 28-135 of the Consumer Code and for which the seller is liable in respect of goods sold in its sales outlets. For the period of two years from the time of purchase, the consumer may at any time benefit from the legal guarantee covering conformity defects existing at the time of delivery, and provided that the conformity defect is reported to the seller within two months from the date of discovery of the defect. On the basis of agreements with its vendors, Midea provides technical support services for products covered by the legal warranty through its network of Authorised Service Centres (hereinafter referred to as the "ASC");
Furthermore, Midea Italia s,r.l. a sole shareholder with registered office in Milan, 20121, largo Guido Donegani 2 (hereinafter referred to as "Midea") offers an additional conventional warranty for a period of two years from the date of purchase on all Midea branded products (hereinafter referred to as the "Products") marketed by Midea itself in the territory of the Italian Republic (with the exclusion of the territory of the city of Venice and the smaller islands), in the territory of the Republic of San Marino and in the territory of the Vatican City, when installed and used in the same states and territories (hereinafter referred to as the "Territory") and when accompanied by the present Conventional Warranty Certificate (hereinafter referred to as the "CWC").

Additional conventional warranty conditions

This document contains the warranty conditions recognized by Midea Italia, s.r.l. (hereinafter "Midea") with reference to the Products marketed and installed in the Territory and accompanied by the CWC.These conventional warranty conditions respect the rights recognized to the consumer of D.Lgs.n.206/2005 and the following amendments and additions (hereinafter, the "Consumer Code") and by Articles 1519 bis et seq. of the Italian Civil Code and, in any case, do not limit, exclude or prejudice the consumer's right to benefit from the guarantee of conformity for which the seller is responsible.
The Conventional Warranty offered by Midea (hereinafter the "Conventional Warranty") is effective and applicable only in respect of and in favour of the purchasers of the Products having the characteristics and quality of consumers, as defined and established by the Consumer Code (hereinafter the "Consumers"). The Conventional Warranty is therefore not effective, is excluded and cannot be invoked by the purchasers of the Products who are not Consumers and/or who use the Products within the scope of their professional and/or entrepreneurial and/or commercial activity.
The Conventional Warranty is valid for 24 months from the date of purchase of the Product. In any event and irrespective of the date of purchase of the Product, the Conventional Warranty loses all effectiveness and is no longer valid 72 months after the date of manufacture of the Product, as determined by the serial numbers affixed to the Product.
The Conventional Warranty shall only be considered effective and valid if the following conditions are simultaneously and comprehensively fulfilled:
1. The Product is accompanied by an original CwC delivered to the buyer at the time of delivery of the Product. The CwC must be presented at the time of the service request and to the service centre personnel at the time of the servicing.
2. A suitable tax document is available certifying; (i) the date of purchase of the Product, (ii) the company name and correct identification of the seller and, (iii) the type and model of Product purchased, (iv) the quality of Consumer. The tax document of purchase must be shown at the time of the request for intervention and to the personnel of the service center at the time of the repair intervention,
- 3. The labels affixed to the Product and indicating the model and characteristics of the equipment, as well as the serial numbers of the Product itself must be intact, not altered or made illegible.
4. the Product shall be installed by a professional installer having all licenses and certifications required by law, and shall be installed and used in compliance with all regulations in force in the Territory of installation and in accordance with the provisions of the installation and use manuals enclosed with the Product itself
Midea is not responsible for any loss of this certificate and is not required to issue duplicates.
The Conventional Warranty, when effective, consists of the repair or replacement free of charge of Product components with defects or manufacturing faults.
Midea may arrange for the replacement of the Product with a new one, or in the event of the unavailability of such Product, with another equivalent.
The replacement of the Product does not modify or extend the validity of the Conventional Warranty, which always starts from the date of purchase of the original Product.

Warranty services are provided by Midea through a network of Technical Assistance Centres (hereinafter referred to as the "TAC") authorised by Midea.
The validity of the warranty is subject to the verification of the existence of defects or defects of the components constituting the Product, carried out by an authorised TAC.
After the warranty period, the customer is responsible for all costs related to spare parts and labor necessary for the repair of the Product.

Exclusions

• By way of example but not limited to, some cases of ineffectiveness and exclusion of the coverage of the Conventional Warranty are listed:
  a. The Conventional Warranty is ineffective and does not cover routine maintenance and periodic inspections such as; filter cleaning, filter replacement, heat exchanger cleaning and other activities to check and set the Product or to adjust or modify plugs or cables.
  b. The Conventional Warranty is ineffective and does not provide cover in the event that it is established that periodic maintenance has not been carried out or has been carried out in an irregular manner, in accordance with the prescriptions and indications set out in the Product's instruction booklet and user manual.
  c. The contractual warranty is ineffective and does not provide cover if the Product is used for non-domestic purposes, in any event, if it is used in the course of a commercial and/or entrepreneurial and/or professional activity.
  d. The Conventional Warranty is ineffective and does not offer coverage in the event of loss of parts, accessories and components of the Product.
  e. The conventional warranty does not cover direct damage and faults resulting from the use of the Product in a manner not specified in the instruction manual and the Product's user manual and in any case outside the Product's intended ratings, or from sudden changes in the mains voltage to which the Product is connected, as well as faults caused by liquid infiltration, fire, inductive/electrostatic discharges or discharges caused by lightning, surges or other phenomena external to the Product.
  The Conventional Warranty is ineffectve and does not offer coverage for direct or indirect damage caused by improper or negligent use of the Product or in the event of installation or storage of the Product outside the environmental conditions provided for its correct functioning, as indicated in the user manual that accompanies the Product.
  g. The Conventional Warranty is ineffective and does not offer coverage for defects arising from the imperfect installation of the Product or, in any case, when the Product has not been installed by a professional installer equipped with all the licenses and legal certifications.
  h. The Conventional Warranty is ineffective and does not offer coverage in case of use of the Product that does not comply with what is indicated in the user manual that accompanies the Product.
  i. The Conventional Warranty is ineffective and does not offer coverage for damage resulting from leaks and spills of water or other liquids attributable to defects in the constituent components of the product.
  j. The Conventional Warranty is ineffectve and does not offer coverage for direct or indirect damage caused by negligence, weather events, falling materials, accumulation of ice in the units of the Product, accumulation of impurities or residues in the connecting pipes and connection of the Product, contact of the Product with liquids or moisture.
  k. The Conventional Warranty is ineffective and does not offer coverage for direct or indirect damage caused by tampering by unauthorized personnel and by the use of components, spare parts or consumables not approved by Midea as suitable.
• The Conventional Warranty is ineffective and does not provide coverage for damage resulting from the transport and handling of the Product, even if such damage is reported to the carrier at the time of delivery.
  m t i t t d t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t
  n. The Conventional Warranty is ineffective and does not offer coverage for damage or compensation to food, clothing and the like inserted in the product, following its malfunction or failure.
  o. The Conventional Warranty is ineffectve and does not offer coverage for costs for tools or services necessary to access the Product, or for the transport of parts or components of the Product to the installation position in the event of not easy access guaranteed to the same.
  p. The Conventional Warranty is ineffective and does not offer coverage for defects attributable to technological obsolescence or other software/hardware components provided by third parties with respect to Midea.
  The clauses contained herein may be modified exclusively by Midea; no variation or modification may be made to this document except as expressly stated by Midea.

Warranty certificate

Midea would like to thank you for purchasing one of its products.

Please keep this document with your proof of purchase.

The warranty has a duration of 24 months from the date shown on the purchase document.

Our Customer Service is at your disposal for product reports and requests for information. To contact customer service and possible:

• Connect to the website www.midea.com/it
• Send an E-Mail to [e-mail]

To request product assistance in the event of a fault, please contact the customer service number:

02 962 46 65

The service is from Monday to Friday from 09:00 - 13:00 and 14:00 - 18:00, excluding public holidays. The service is subject to the normal tariff in force depending on the tariff plan used. The costs for the call may vary depending on the telephone operator and the tariff plan used.

EN

Keep this document together with the document proving the date of purchase of the product.

Space to apply the purchase document

Space to apply the barcode with the serial number present on the product packaging.

VIELEN DANK

VUE D'ENSEMBLE DU PRODUIT 05

INSTALLATION DU PRODUIT 06

INSTRUCTIONS DE FONCTIONNEMENT 09

NETTOYAGE ET ENTRETIEN 11

DEPANNAGE 12

MARQUES, DROITS D'AUTEUR ET MENTIONS LEGALES 13

AVIS SUR LA PROTECTION DES DONNEES 14

GARANTIE/SERVICE 15

CONSIGNES DE SECURITE

Usage prévu

VUE D'ENSEMBLE DU PRODUIT

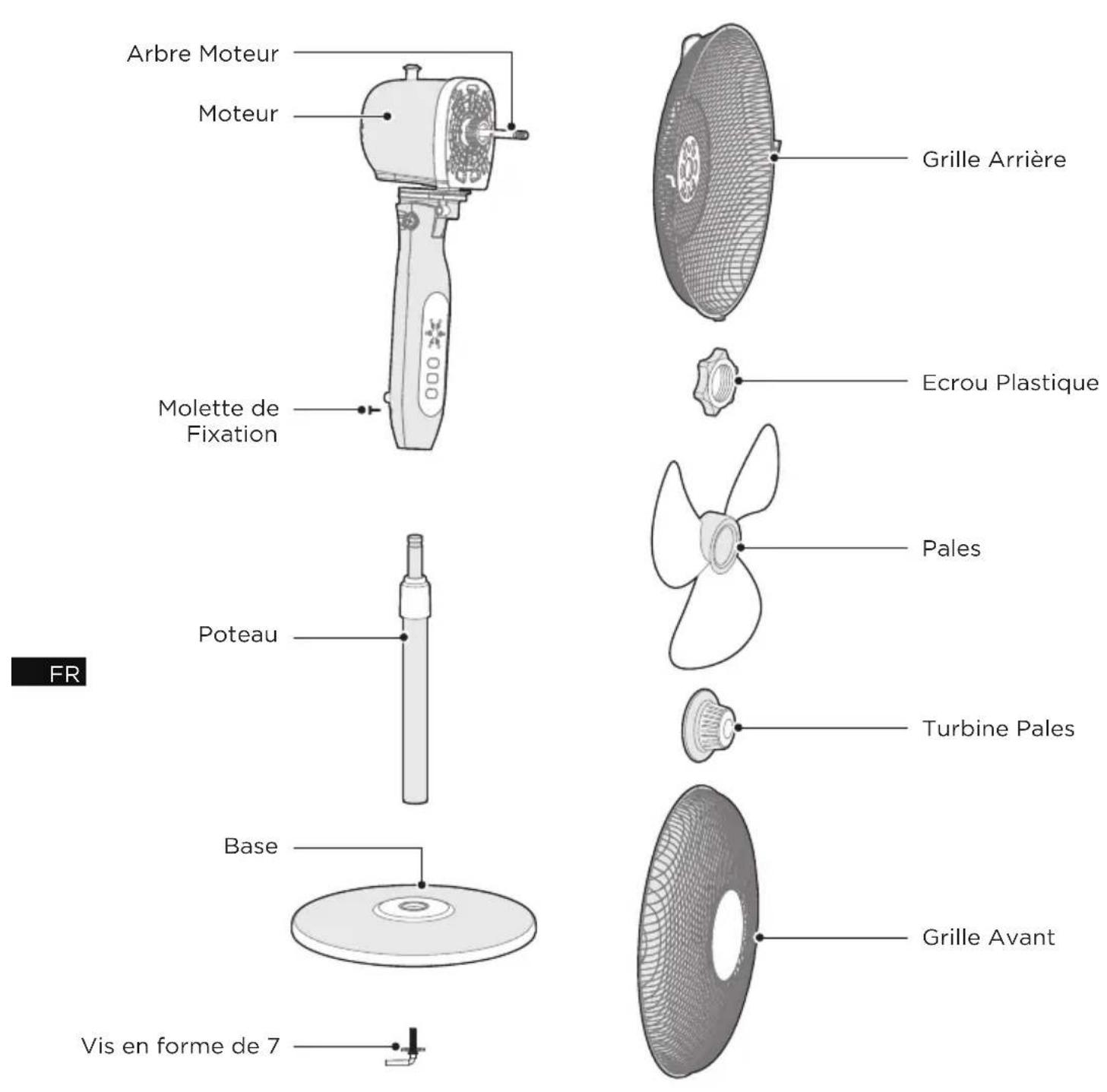

Nom des Composants
