USER MANUAL Sky 2.0 Avionaut

Line drawing of a baby car seat with straps and seatbelt (no text or symbols)

AVIONAUT

driven by care

SKY

40 cm - 125 cm / 0 - 25 kg

• Инструкция за употреба & Гаранция
  • Návod k obsluze & Záruka
  • Bedienungsanleitung & Garantie
  • Betjeningsvejledning & Garanti
• Οδηγίες χρήσης & Εγγύπον
  • User's manual & Warranty
• Instrucciones de uso y Garantía
• Kasutusjuhend ja garantiitingimused
• Käyttöohjeet ja takuu
  • Manuel d'utilisation & Garantie
  • כר בְרִיָה & אַבְרִי
• Upute za uporabu i jamstvo

• Használati útmutató és Garancia

• Istruzioni d'uso e Garanzia

• Naudojimo instrukcija ir garantija
  • Lietošanas pamācība & garantija
  • Bruksanvisning og garanti
• Instrukcja obstugi & Gwarancja
• Manual de instruções & Garantia
• Instructiuni de utilizare & Garantie
• Руководство по эксплуатации & Гарантия
  • Bruksanvisning och garanti
  • Návod na obsluhu & Záruka
  • Navodila za uporabo in Garancija
• Kullanım Kılavuzu ve Garanti
• Інструкція з експлуатації та гарантія

A B C D E F G H I J

K L M N

index

8

21

26

BG 29

CZ 36

DE 42

DK 48

ELL 54

EN 61

ES 67

EST 73

FI 79

FR 85

HEB 91

HR 96

HU 102

IT 108

LT 114

LV 120

NO 126

PL 132

PT 138

RO 144

RU 150

SE 157

SK 163

SL 169

TUR 175

UA 181

Diagram of a device control panel with checkmarks and directional arrows indicating status or options

1

Illustration of a hand holding a tool near a green band, with no visible text or symbols

Illustration of a hand inserting a green belt into a car interior, with no text or symbols present.

Illustration of a hand placing a yellow object into a chair frame (no text or symbols)

avionaut.com

Illustration of a yellow seatbelt buckle being adjusted, showing the seatbelt being removed and checked (no text or symbols present)

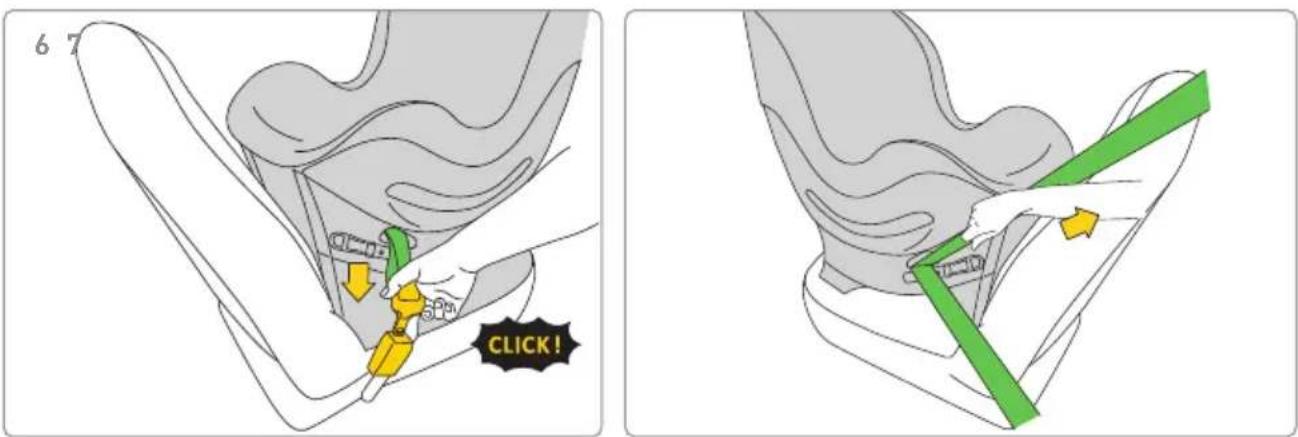

6 7 CLICK!

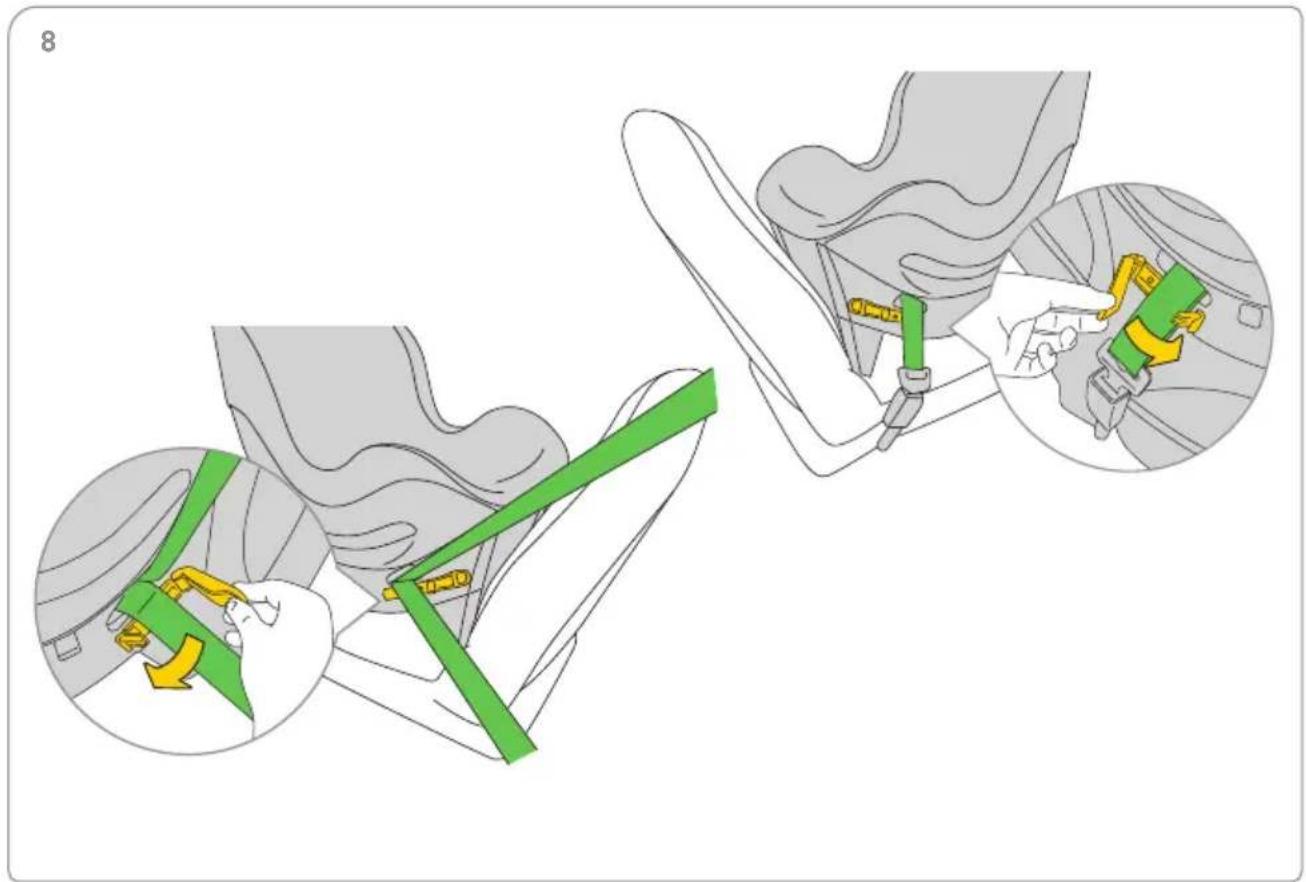

8

avionaut.com

Diagram illustrating car seatbelt usage and seatbelt connection, showing car interior, seatbelt assembly, and seatbelt layout with directional arrows.

10 11 A B

avionaut.com

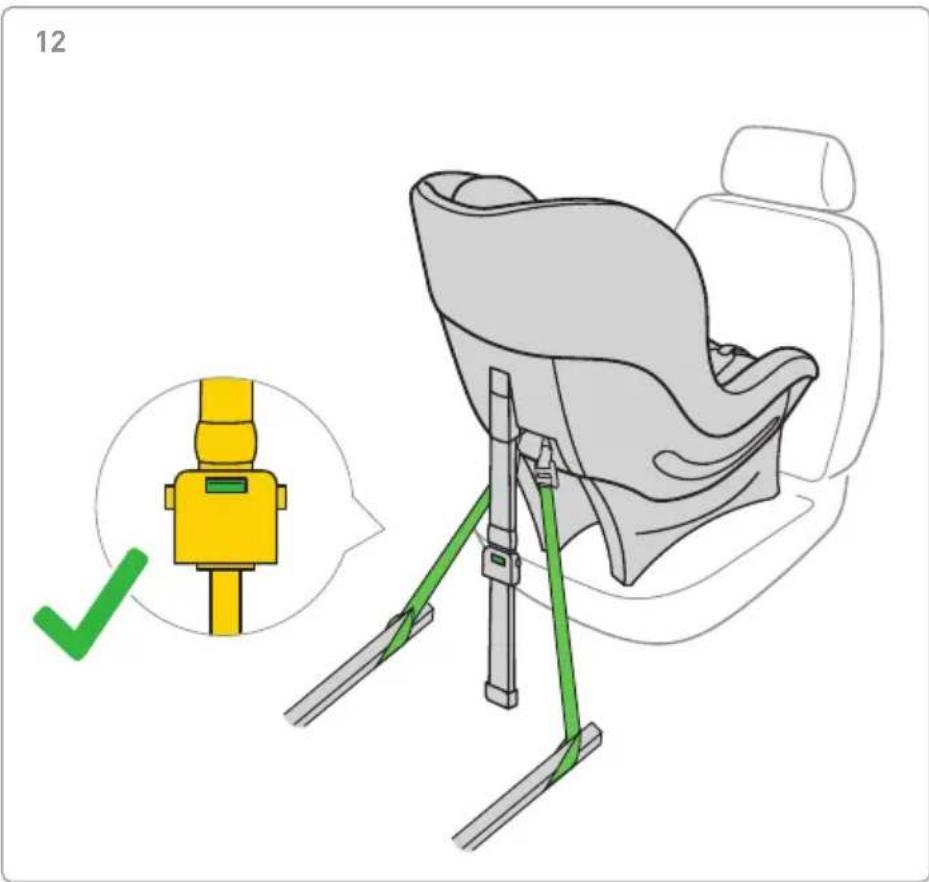

12

Diagram showing two circular safety symbols: a green checkmark and a red cross, both pointing to a green tool with yellow tape.

Diagram of a vehicle front view with four windows and one highlighted green area (no text or symbols)

13

Line drawing of a car interior showing a person seated in the seat with a yellow circle highlighting a specific area (no text or symbols)

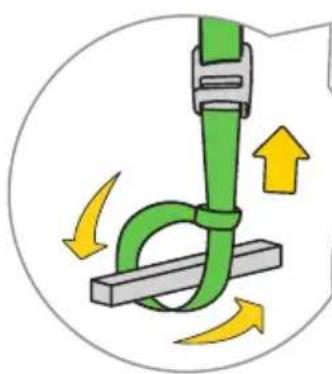

Diagram of a green rope knot with yellow directional arrows indicating motion (no text or symbols)

Illustration of a car seat with green tripod legs and seatbelt, enclosed in a circular frame (no text or symbols)

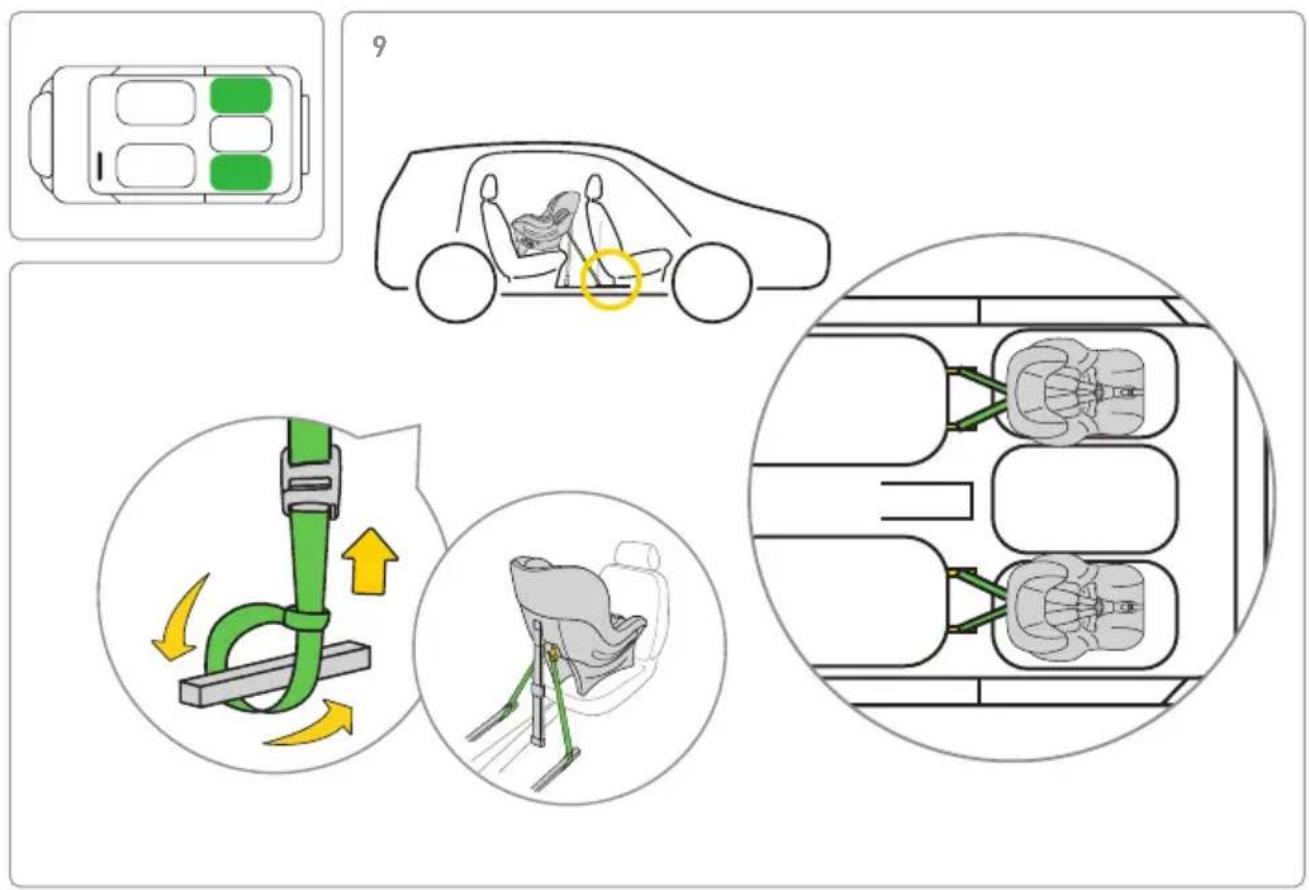

Top-down diagram of a vehicle or road intersection with green directional arrows indicating flow or movement (no text or symbols)

avionaut.com

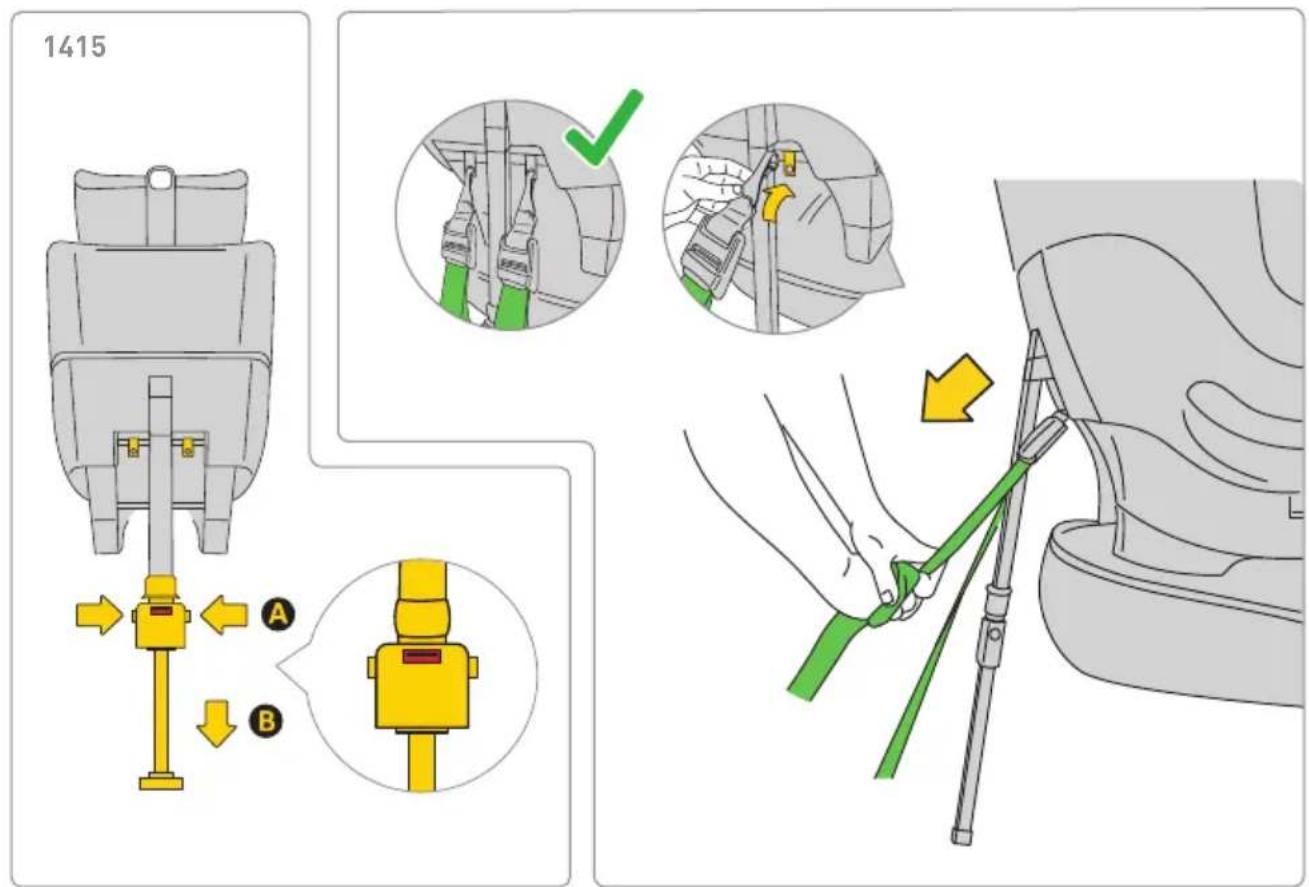

1415 A B

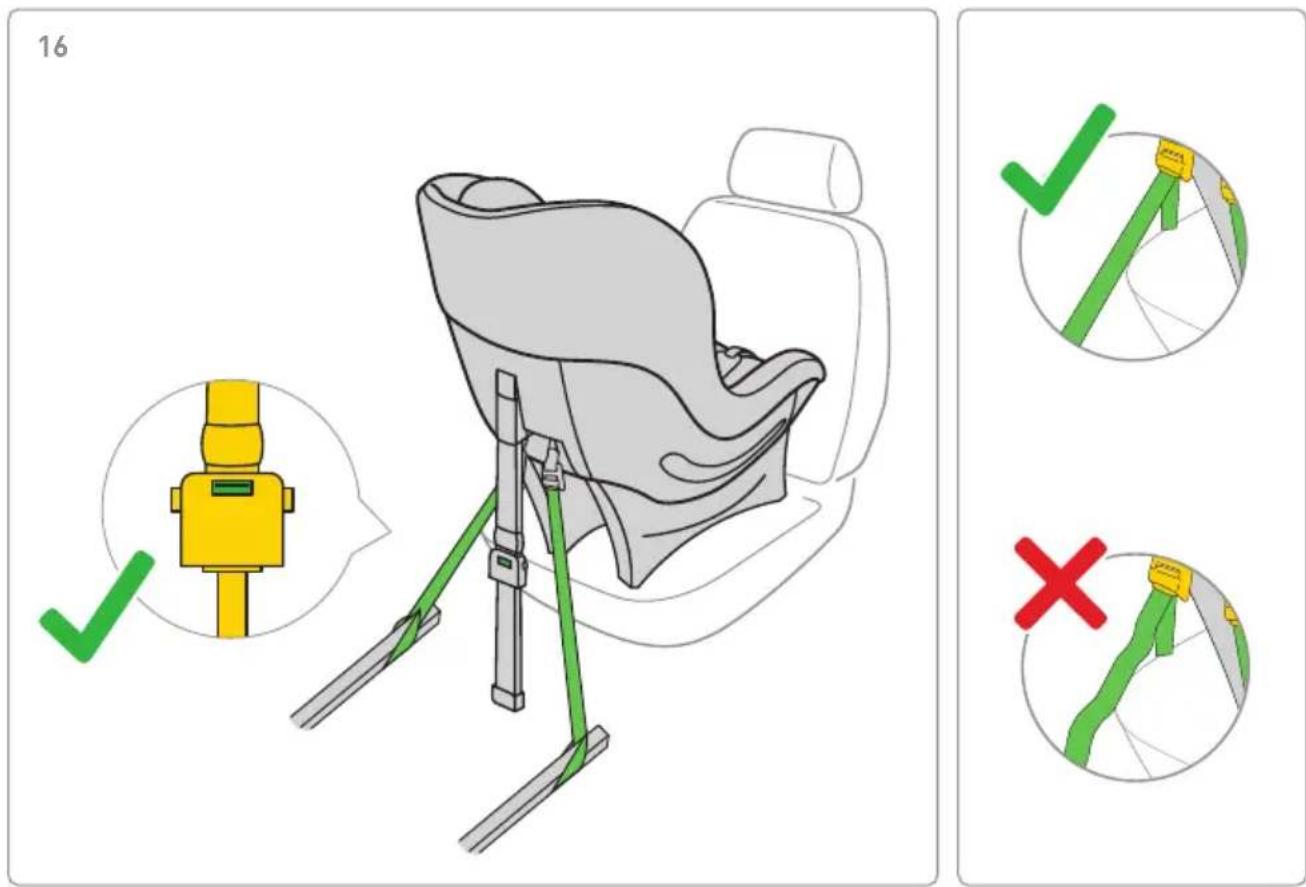

16 ✓ ✓ ✓ ✓ ✓ ×

avionaut.com

AIRBAS L=10

Line drawing of a car seat with a green belt and seatbelt, no text or symbols present

19

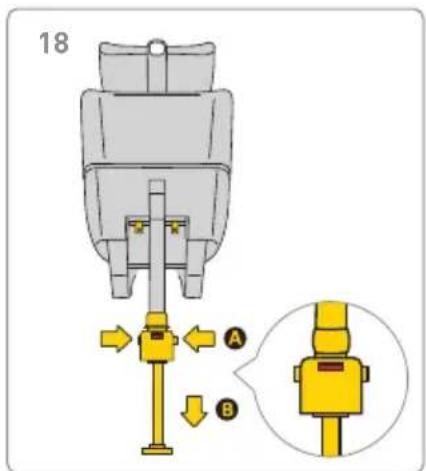

18 A B

Diagram illustrating a mechanical assembly with green belt and adjustment steps, showing tool path and detail views.

20 ✓ ✓ ✓ ✓ ✗

avionaut.com

Diagram of a battery terminal with check and disconnection indicators

21

Diagram illustrating car safety features including rear, front, side, and seat positions with warning symbols

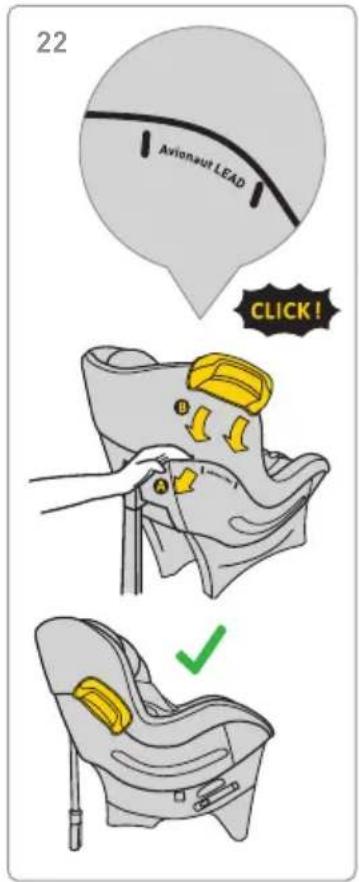

22 Avionaut LEAD CLICK!

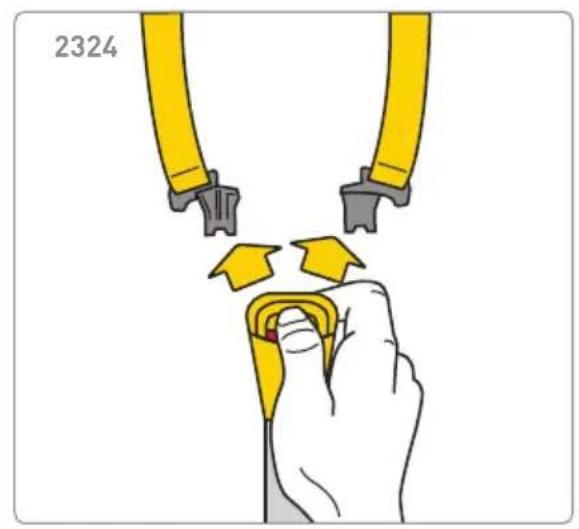

2324

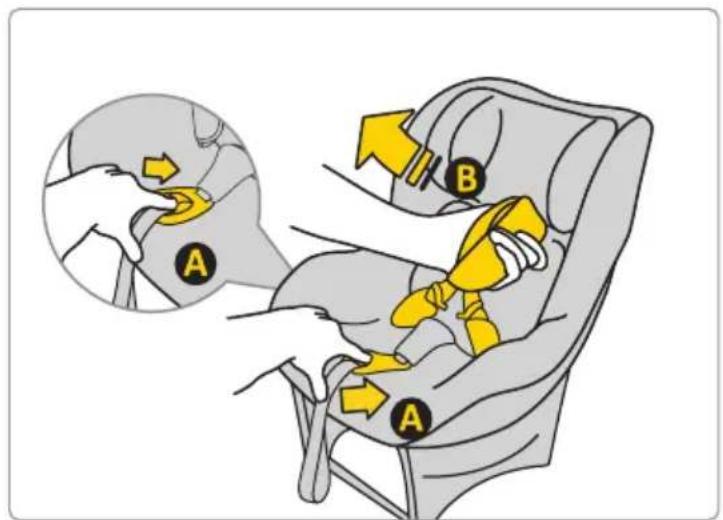

Medical illustration showing a hand positioning a patient's seat with labeled points A and B, indicating movement or positioning.

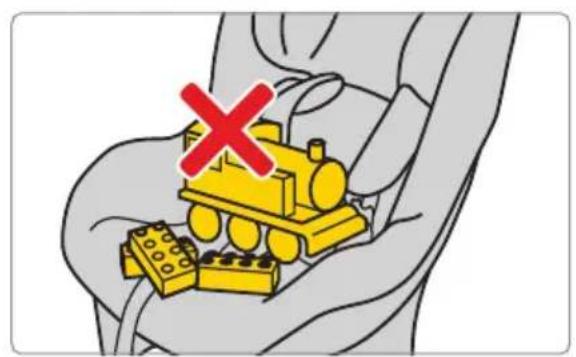

Illustration of a hand holding a yellow LEGO toy with a red X mark, no text or symbols present

Diagram showing correct and incorrect ways to tie a yellow belt buckle, with green checkmark and red X mark indicating selection.

avionaut.com

Illustration showing a baby being lifted by a yellow safety harness while sitting in a gray seat (no text or symbols)

Illustration of a baby in a car seat with a green checkmark indicating a safety or inspection (no text or symbols present)

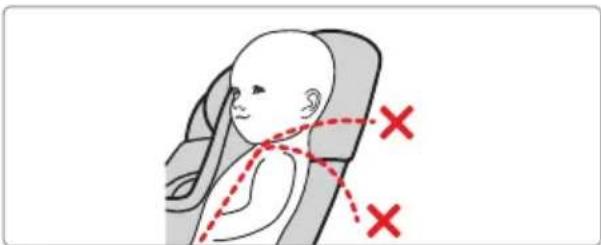

Illustration of a baby in a car seat with red X marks indicating pressure points (no text or symbols)

2 A B A

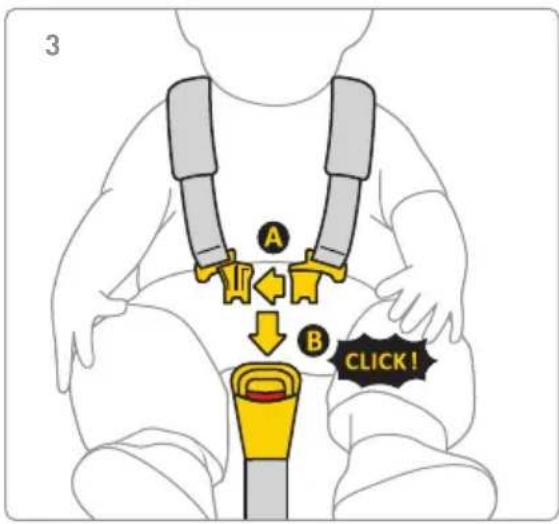

3 A B CLICK!

4 1 cm MAX.

Diagram showing a car with a person inside, indicating speed or velocity direction, alongside a green checkmark arrow.

avionaut.com

5

Illustration showing how to adjust seatbelt safety using a baby car, with red and yellow arrows indicating different conditions.

6

Illustration showing how to adjust seatbelt between two children's car seats, with directional arrows indicating changes.

avionaut.com

7 7

Diagram illustrating car seat cleaning and safety rules, showing directional arrows and icons for cleaning actions.

avionaut.com

Illustration of a yellow safety harness being lifted by a cable, shown with magnified detail (no text or symbols)

2 A B

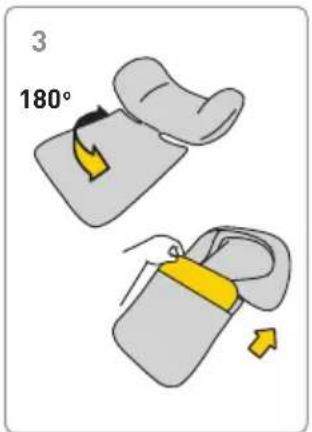

3 180°

4 A B

5

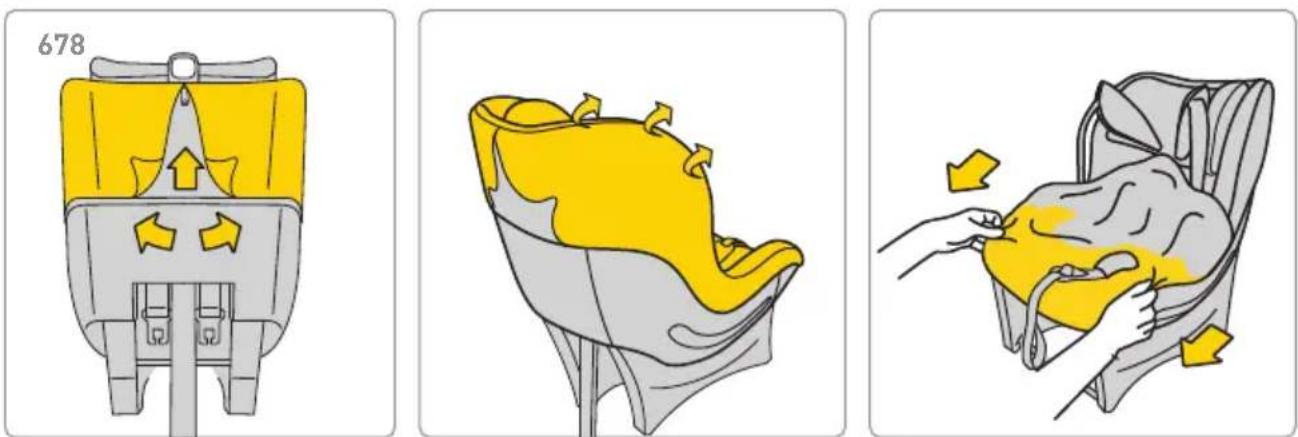

678

avionaut.com

Инструкция за употреба на детско столче Avionaut® Sky™

Важно!

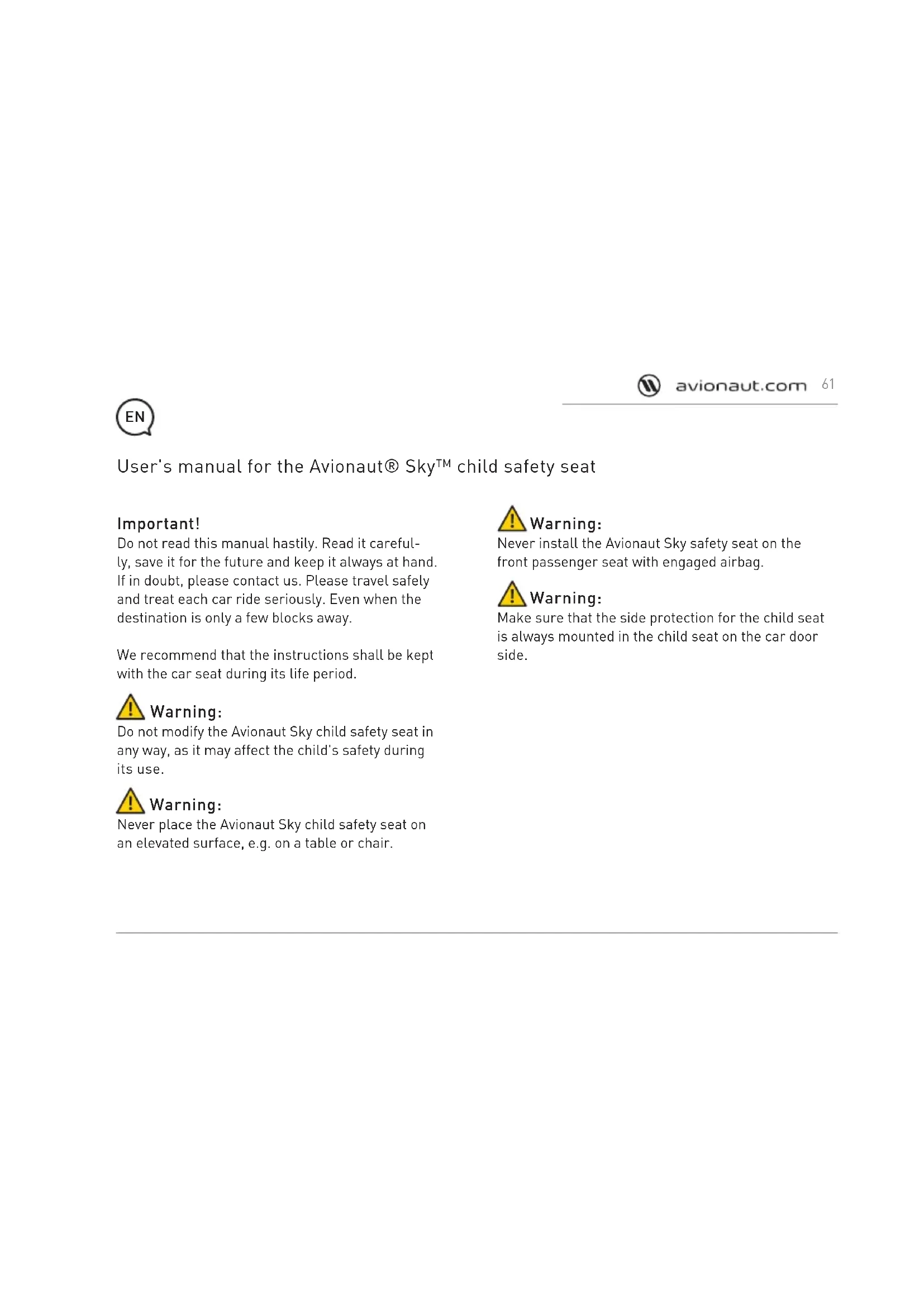

User's manual for the Avionaut® Sky™ child safety seat

Important!

Do not read this manual hastily. Read it carefully, save it for the future and keep it always at hand. If in doubt, please contact us. Please travel safely and treat each car ride seriously. Even when the destination is only a few blocks away.

We recommend that the instructions shall be kept with the car seat during its life period.

Warning:

Do not modify the Avionaut Sky child safety seat in any way, as it may affect the child's safety during its use.

Warning:

Never place the Avionaut Sky child safety seat on an elevated surface, e.g. on a table or chair.

Warning:

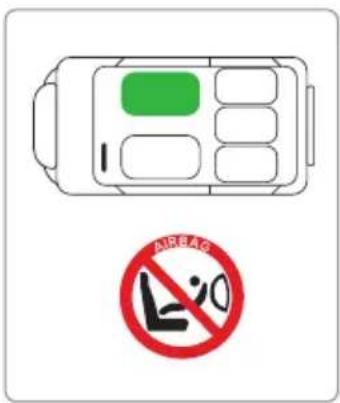

Never install the Avionaut Sky safety seat on the front passenger seat with engaged airbag.

Warning:

Make sure that the side protection for the child seat is always mounted in the child seat on the car door side.

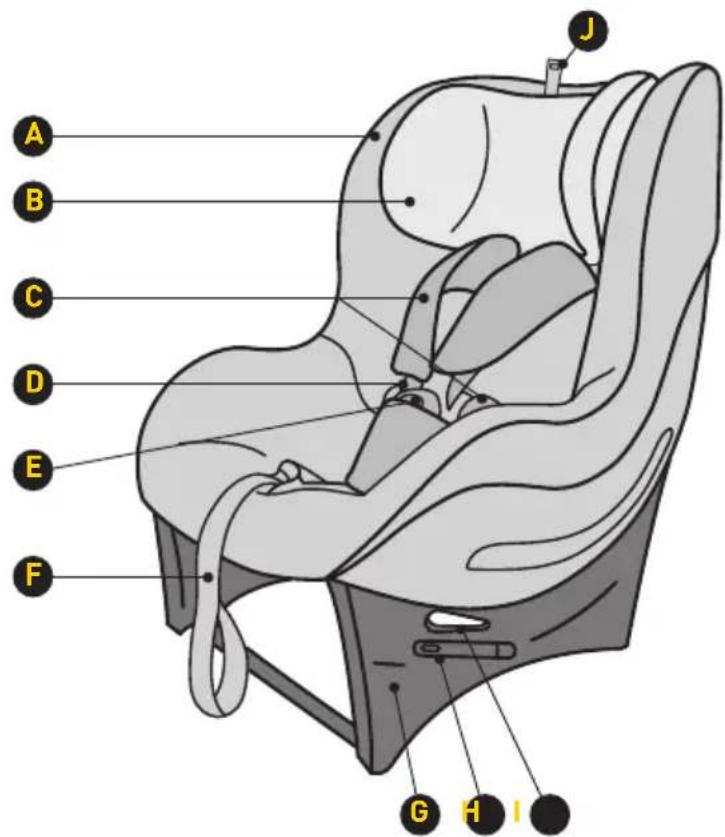

A Upholstery
B Headrest
C Belt protectors
D Harness shoulder belts of the seat
E Harness belt lock
F Belt for adjusting the length of the harness belts
G Seat shell
H Car belt buckle
I Car belt crossing
J Headrest height adjustment

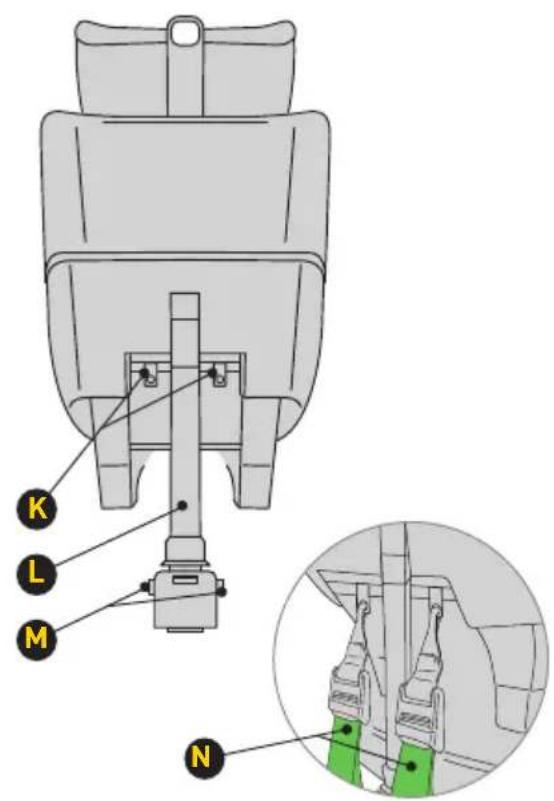

K Fastening of the mounting belts
L Support leg
M Support leg release button
N Mounting belts

Safety, use and travel

- Before purchase, each child safety seat should be installed in the car to check whether it can be properly installed and used in a given car. Matching the child safety seat model to the car type is one of the most important safety criteria. The seller's assistance during the first installation also guarantees that the installation will be fully correct.

• Remember that parents are always responsible for the safety of the child while driving.
• Never leave the child in the safety seat unattended in the car or outside it.
• Never hold your child on your lap while the car is in motion.
• The safest place for your child while travelling is the back seat of the car.

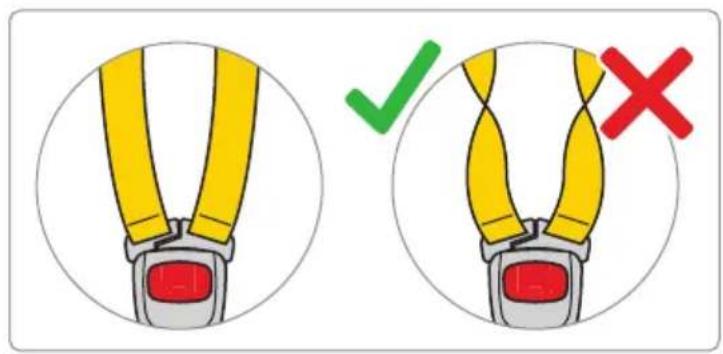

• Before each trip, make sure that the seat belts are not damaged or twisted.
• When the child safety seat is installed, the rear seat backrest must be locked and cannot move.
• Before each trip, make sure that the Avionaut Sky child safety seat has not been pinched in the door or exposed to the movement of luggage or the seat backrest.
• Make sure all luggage in the car is securely attached.
• Do not use the Avionaut Sky child safety seat without upholstery, as it is part of the child safety system.
  • Take short breaks during longer trips. Your child also needs movement.
• Always cover the child safety seat when you leave the car parked in a sunny place. The upholstery

as well as the metal and plastic parts can get extremely hot and burn your child.

• Always secure the child in the safety seat by fastening the child with the harness belts, also when using the safety seat outside the car.
- Make sure that the harness belts are properly fastened so that the child is correctly positioned in the seat.
- We do not recommend buying used child safety seats – you can never be sure of their history. However, if you decide to buy a used child safety seat, choose one whose use history is known.
- Do not use the Sky child safety seat for more than 10 years.
- Replace your child safety seat if it has been involved in an accident.
- Do not make any modifications to the child safety seat. They may cause partial or total loss of product safety.
- The child safety seat must always be secured in the car, even if no child is carried in it.
- The manufacturer takes into account the fact that the child safety seat can leave dents in the upholstery of the vehicle seat. This is unavoidable due to the requirement of tight fitting of the safety

seat. The manufacturer is not responsible for any damage caused by this.

• Make sure that the belts are properly fastened so that the child is correctly positioned in the seat.
• Harness belts holding the child cannot be used without covers,
• The seat may only be installed in a car equipped with 3-point seat belts,
• Make sure that you can place a maximum of one finger between the harness and the child (1cm). If this distance is greater, tighten the harness,
  • Always use support leg,

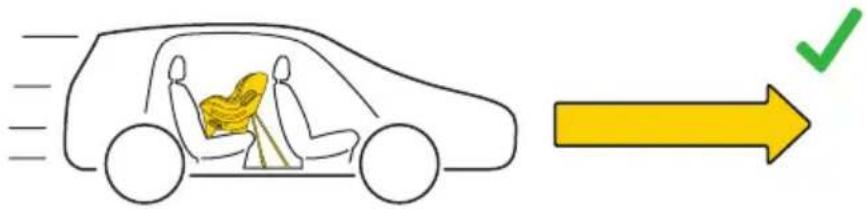

• The Avionaut SKY child safety seat should only be installed in the car facing backwards to the driving direction,
• Use the Avionaut SKY safety seat solely when your child's height is between 40–125 cm and your child's weight is between 0–25kg,
• The Avionaut SKY child safety seat is not intended for home use. Use it only in a car,

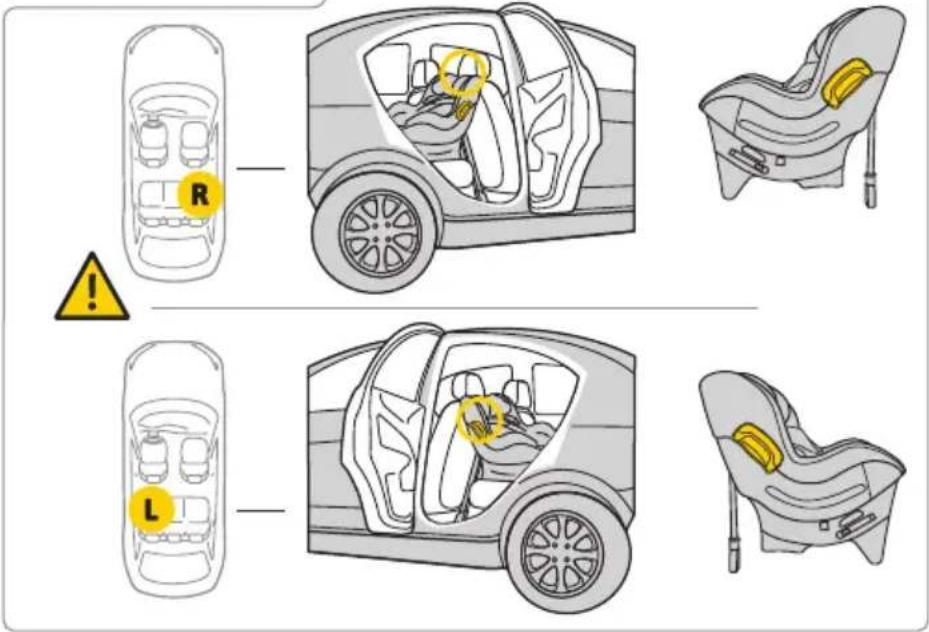

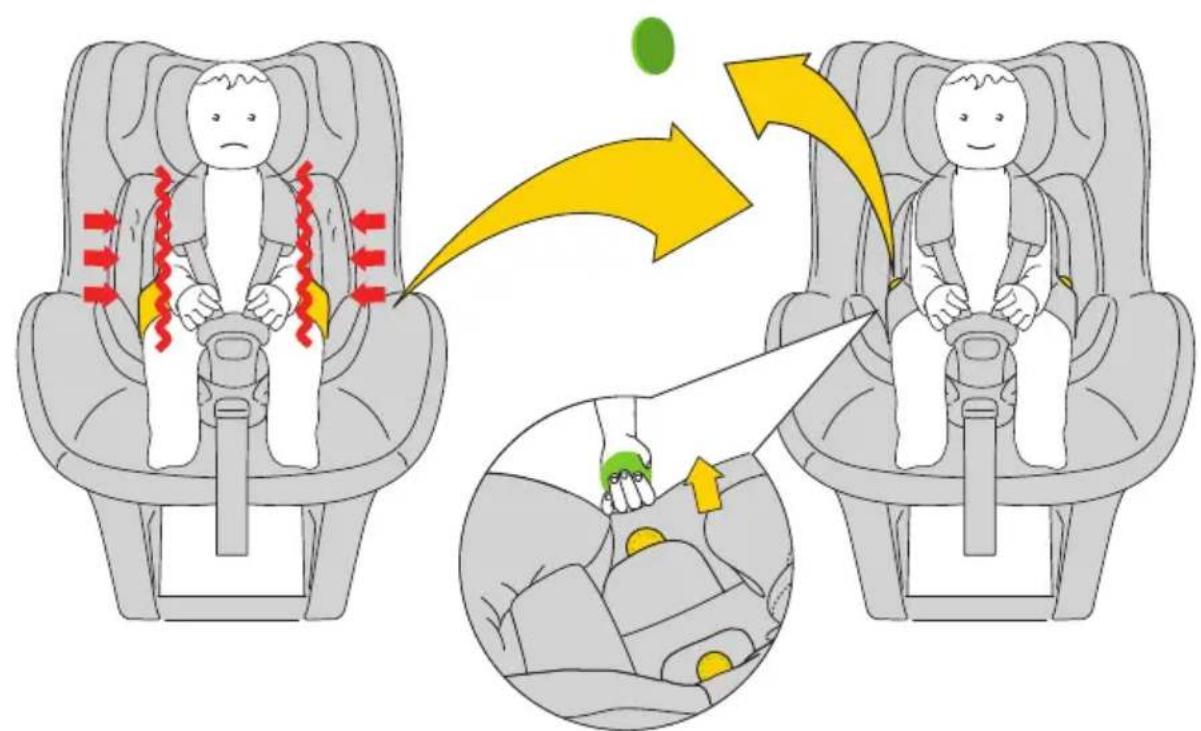

• A bumper is attached to the SKY child safety seat, which should be placed on the side in the designated place.

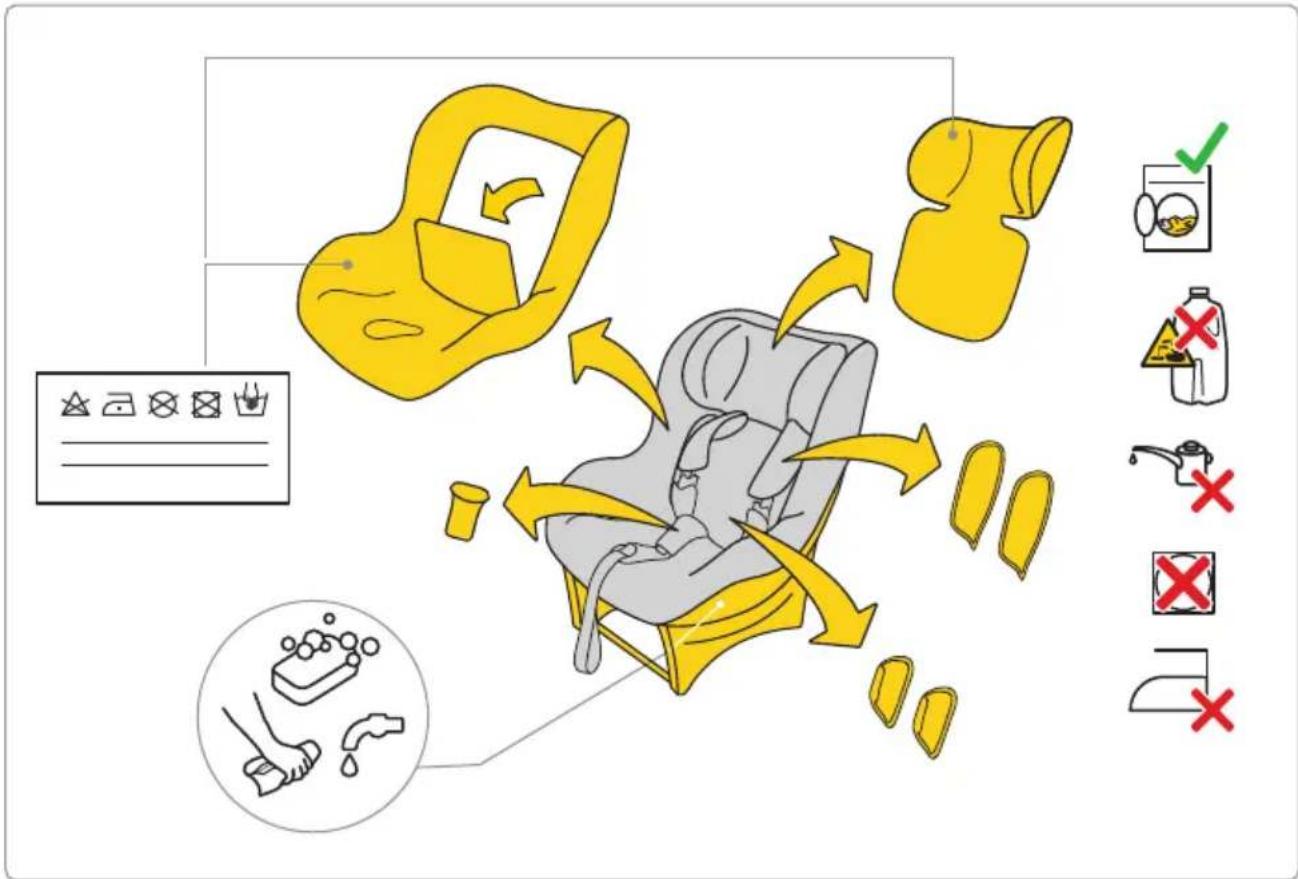

Maintenance and hygiene

1. The upholstery of the Avionaut Sky child safety seat can be machine washed at temperatures up to 30°C at speeds up to 600 rpm.
2. Other elements of the safety seat can be washed with soap and a soft sponge.
3. Keep your child safety seat clean. Do not use any moisturising agents or aggressive cleaning agents.
4. Do not use any lubricants, harsh chemicals or moisturisers for moving parts or other parts of the seat.

Environment

• Keep plastic packaging parts out of reach of the child to avoid the risk of suffocation,
• The batteries powering the information panel placed in the base of the child safety seat are subject to proper disposal.
• For reasons of environmental protection, after using the seat, please dispose of it in the appropriate waste management facility, in accordance with applicable local regulations.

Questions

If you have any questions, call your seller or authorised distributor. Prepare the following information:

— The age, height and weight of your child,
— The make and type of the car and the position of the seat on which you will install the Avionaut Sky child safety in the car.

Warranty

• The Avionaut Sky child safety seat is covered by a 24-month warranty.
• We hereby assure you that the product has been manufactured in accordance with current EU requirements regarding safety and quality standards and that at the time of purchase the product is free from manufacturing and material defects.
• The warranty is valid in the country of purchase and is satisfied by the authorised distributor.
• The warranty covers all manufacturing defects in regard to the materials and workmanship, provided that the product is used in accordance with the user's manual, under normal conditions, by the first end-user and within 24 months

from the date of purchase. Avionaut assumes responsibility for the repair or replacement of the defective product, but the guarantor decides about the choice of how to remove the defect and process the complaint.

• The warranty does not cover damage caused by daily use, such as the wear of fabric as well as the natural loss of colours and deterioration of the materials resulting from the normal ageing of the product.
• The warranty also does not apply in the event of damage to the product due to accidental damage, non-observance of the user's manual, improper use, damage due to negligence, fire, contact with liquid or other external causes.
• At the time of filing a complaint, the Avionaut Sky child safety seat must have all labels or an identification number and may only be serviced by a person authorised to do so.

Do you want to file a complaint?

- Do you want to file a complaint? When you see a defect and want to file a complaint, please contact the seller from whom you purchased the Avionaut Sky seat. When making a complaint, you must

provide proof of purchase that must be made within 24 months prior to the service request.

• If it is necessary to send the product to a service centre, you should return the product to the distributor or seller. At the same time, the shipping method and its costs should be agreed on, because in the absence of such agreement, the guarantor may refuse to cover the shipping costs. Damage and/or defects that are not covered by our warranty or consumer rights, and/or damage and/or defects of the product not covered by our warranty may be removed at the agreed fee.
• Replace your child safety seat with a new one if it has been involved in an accident. To do this, you will need: a note from the police regarding the accident, a photo from an accident with a visible seat or information from the police about this fact, proof of purchase, confirmation from the insurer of not including the child safety seat in the insurance claim, the warranty card and sending the seat, which was involved in the accident to us.

Consumer rights

• The consumer has rights in accordance with relevant legislation, which may vary from country to country. This warranty does not affect consumer rights subject to relevant national legislation.
• This warranty has been prepared by KARWALA, a company registered in Poland.

Company address:

KARWALA

Szarlejka,

(1) Purchased products with removed or altered labels or identification numbers are considered unauthorised. Due to the fact that the authenticity of such products cannot be determined, the warranty does not cover them.
