Be Quiet! Pure Power 11 700W - Power Supply (PC)

Pure Power 11 700W - Power Supply (PC) Be Quiet! - Free user manual and instructions

Find the device manual for free Pure Power 11 700W Be Quiet! in PDF.

English EN ⬇ Download 💬 AI Question ❓ 10 questions ⚙️ Specs
📄

Document temporarily unavailable

The manual is currently being transferred to our new server. It will be accessible again in a few hours. Thank you for your patience.

Pick your language and provide your email: we'll send you a specifically translated version.
Product Type PC Power Supply
Brand Be Quiet!
Model Pure Power 11 700W
Rated Power 700 W
Form Factor ATX
Compatibility Intel ATX 12V 2.4, EPS 12V 2.92, Intel C6/C7, Energy Star 6.1, ErP
Integrated Protections OCP, UVP, OVP, SCP, OTP, OPP
Main Connectors 20/24-pin ATX, 12V-P4/P8 processor
Manufacturer Warranty 5 years
Included Accessories Power cable, cable ties, mounting screws, manual
Maintenance Clean the exterior only with a dry cloth, unplug before
Safety Do not open, use only supplied cables, do not handle with wet hands
Repairability Repair exclusively by qualified personnel, opening voids warranty
General Information Indoor use, dry environment, room temperature before first use

Frequently Asked Questions - Pure Power 11 700W Be Quiet!

How to install the Pure Power 11 700W power supply?
Follow these steps: unplug the old power supply, remove the screws, insert the new power supply into the case, secure it with the provided screws, connect the 20/24-pin connector to the motherboard, then the 12V-P4/P8 processor connector. Use only the supplied cables.
Which cables should I use?
Use exclusively the cables delivered with the power supply. Using other cables can be dangerous and cause failures.
What to do if the computer does not start after installation?
Check that the power cord is properly plugged in, all connectors are firmly seated, and the case switch is correctly wired to the motherboard. If the problem persists, disconnect non-essential components to identify a possible short circuit or defect.
What are the integrated safety protections?
The power supply is equipped with: OCP (overcurrent), UVP (undervoltage), OVP (overvoltage), SCP (short circuit), OTP (overtemperature), OPP (overpower). If triggered, the power supply shuts down automatically.
What is the warranty period?
The manufacturer warranty is 5 years for the end consumer, as part of an initial purchase from an authorized distributor.
How to clean the power supply?
Unplug the power supply. Clean only the exterior with a dry cloth. Do not use a damp cloth or cleaning products.
Can I open the power supply to repair it?
No, opening the power supply is dangerous due to high voltages and voids the warranty. Any repair must be done by qualified personnel.
Is the power supply compatible with my motherboard?
It is compatible with Intel ATX 12V 2.4 (backward compatible 2.0-2.31) and EPS 12V 2.92 (700W/600W) standards. Check that your motherboard has a 20/24-pin connector and a 4/8-pin CPU connector.
What to do in case of power supply overheating?
If OTP protection activates, the power supply shuts down. Wait for it to cool before turning it on again. Ensure the PC ventilation is adequate.
Are the voltages displayed in the BIOS accurate?
Voltage readings via the BIOS or operating system may be inaccurate due to the motherboard's measurement tolerance. They do not necessarily reflect actual values.

User questions about Pure Power 11 700W Be Quiet!

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Power Supply (PC) in PDF format for free! Find your manual Pure Power 11 700W - Be Quiet! and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Pure Power 11 700W by Be Quiet!.

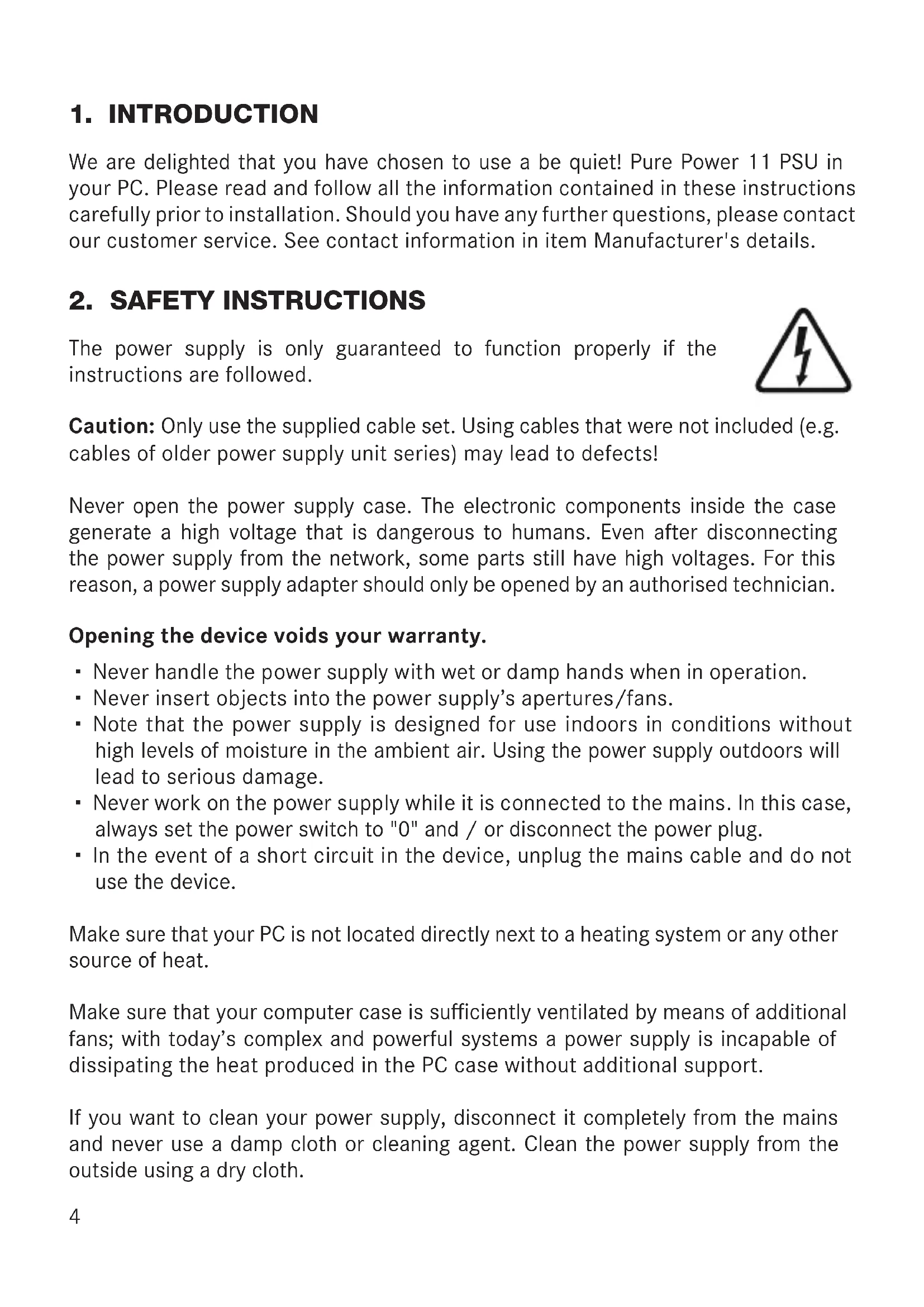

USER MANUAL Pure Power 11 700W Be Quiet!
