USER MANUAL Straight Power 11 450W Be Quiet!

Introduction. 5
Safety instructions 5
Compatibility 5
Installling your new power supply 5
Safety functions 6
Troubleshooting 6
Frequent problems 7
Accessories 7
Notes on disposal. 7
Warranty* 8
Manufacturer's details 8
Copyright 8
Technical data 32

DEUTSCH

Label 32
Voltage regulation 33
Operating conditions 33
Minimal load 33
Rail Splittings 33
Dimensions 34

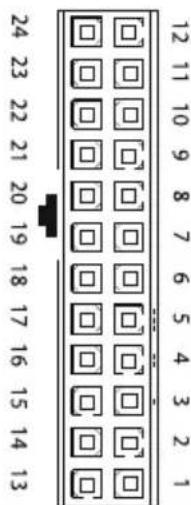

Distribution and Pin assignment 34

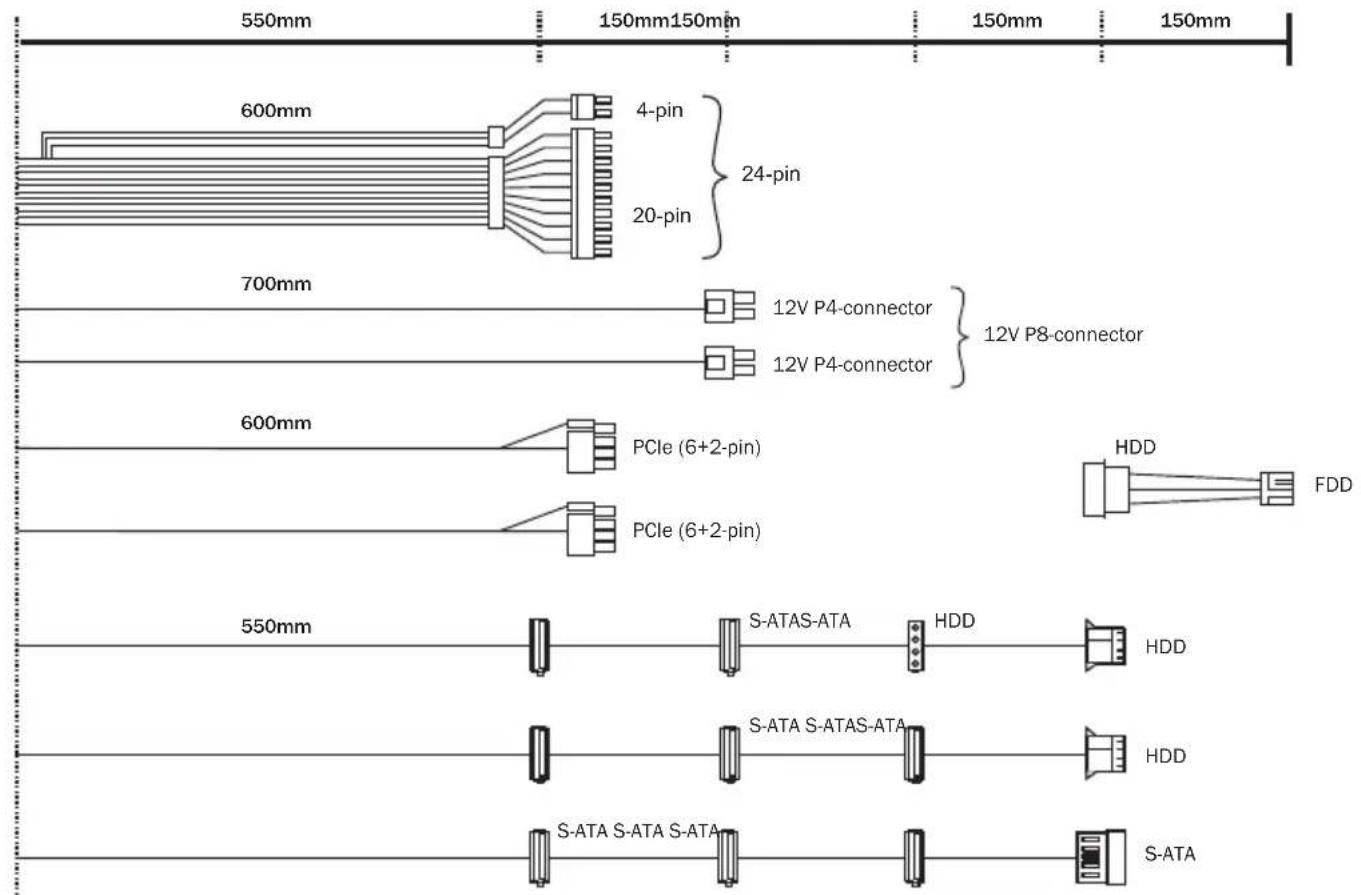

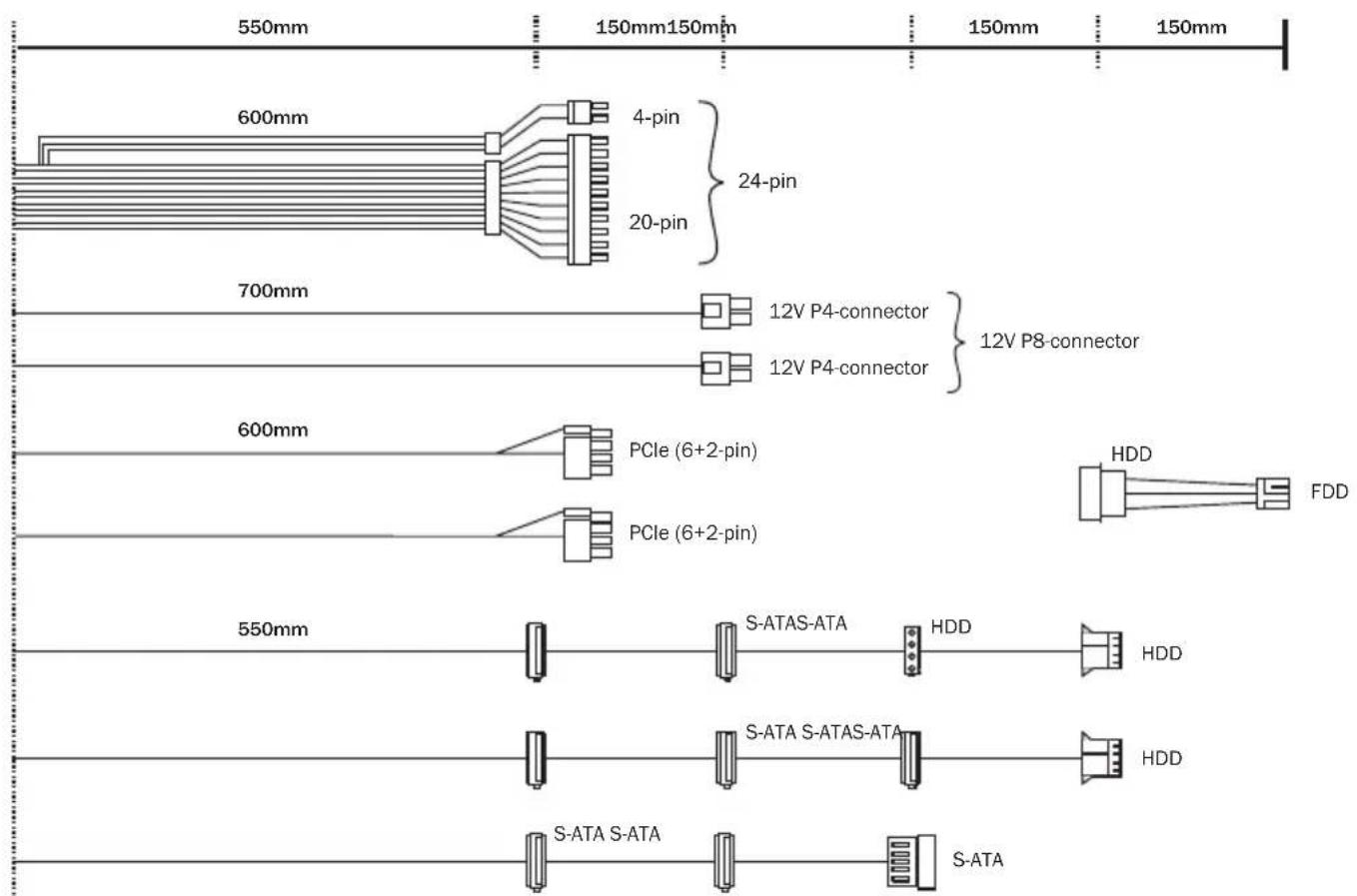

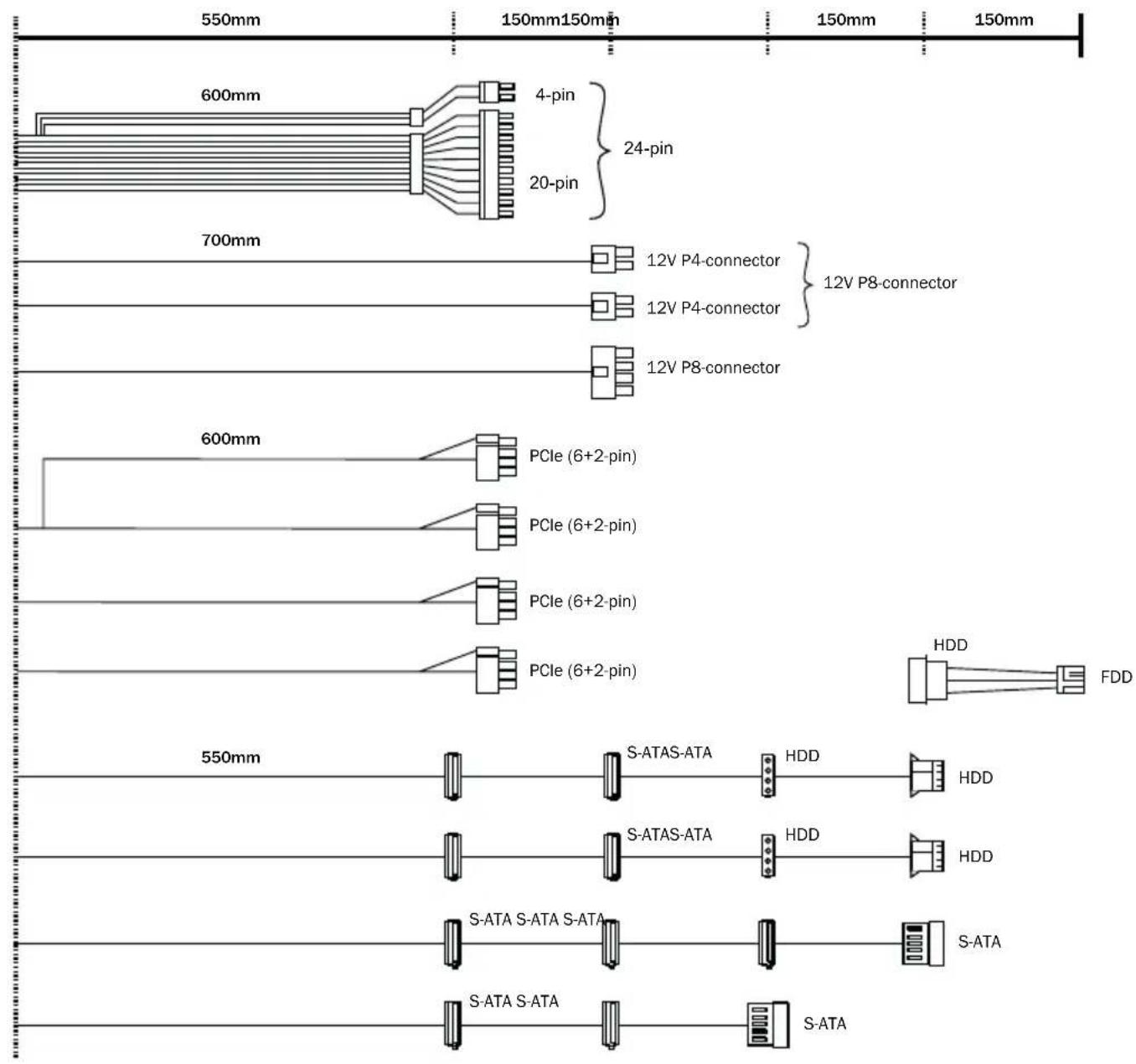

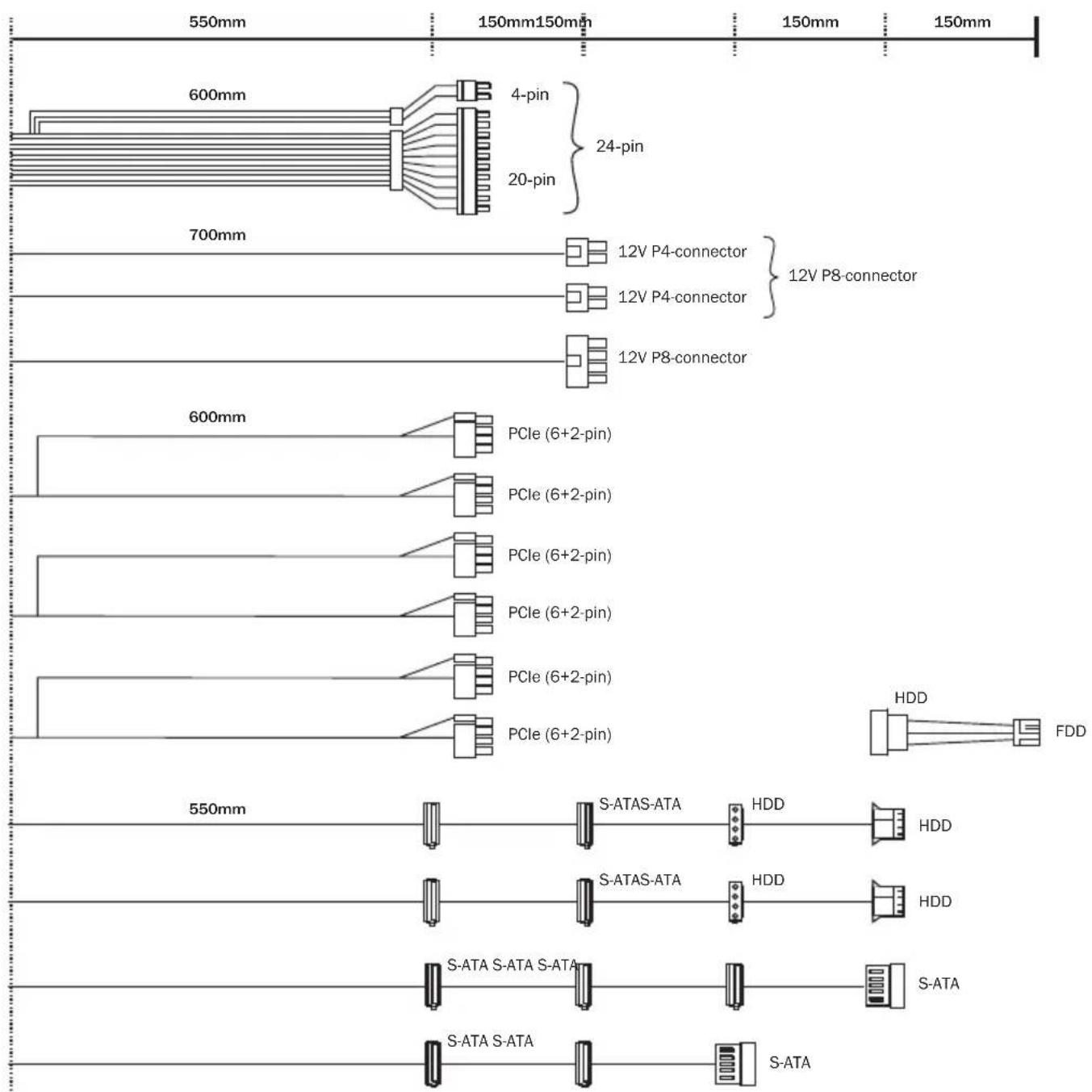

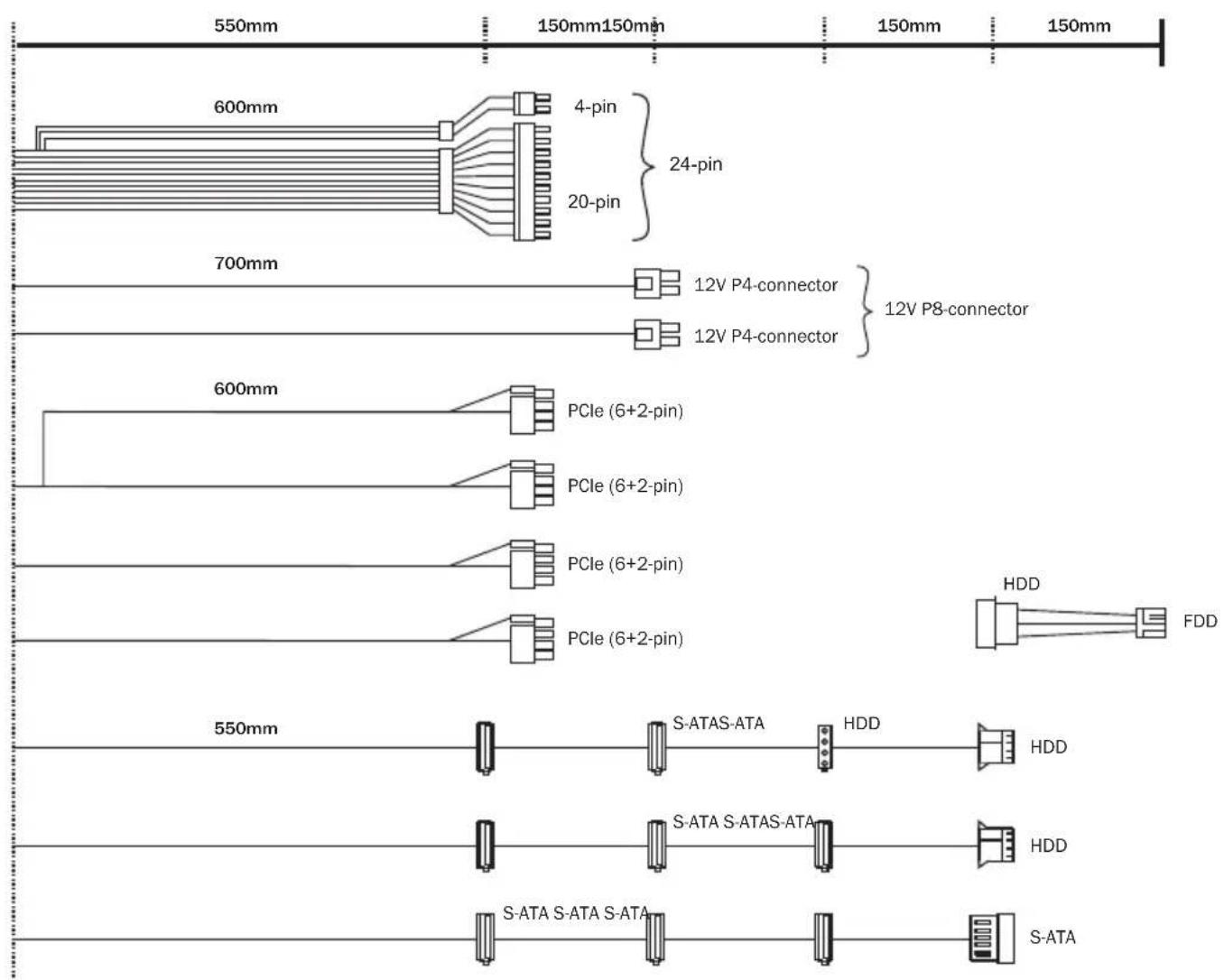

Connectivity and cable lengths 36

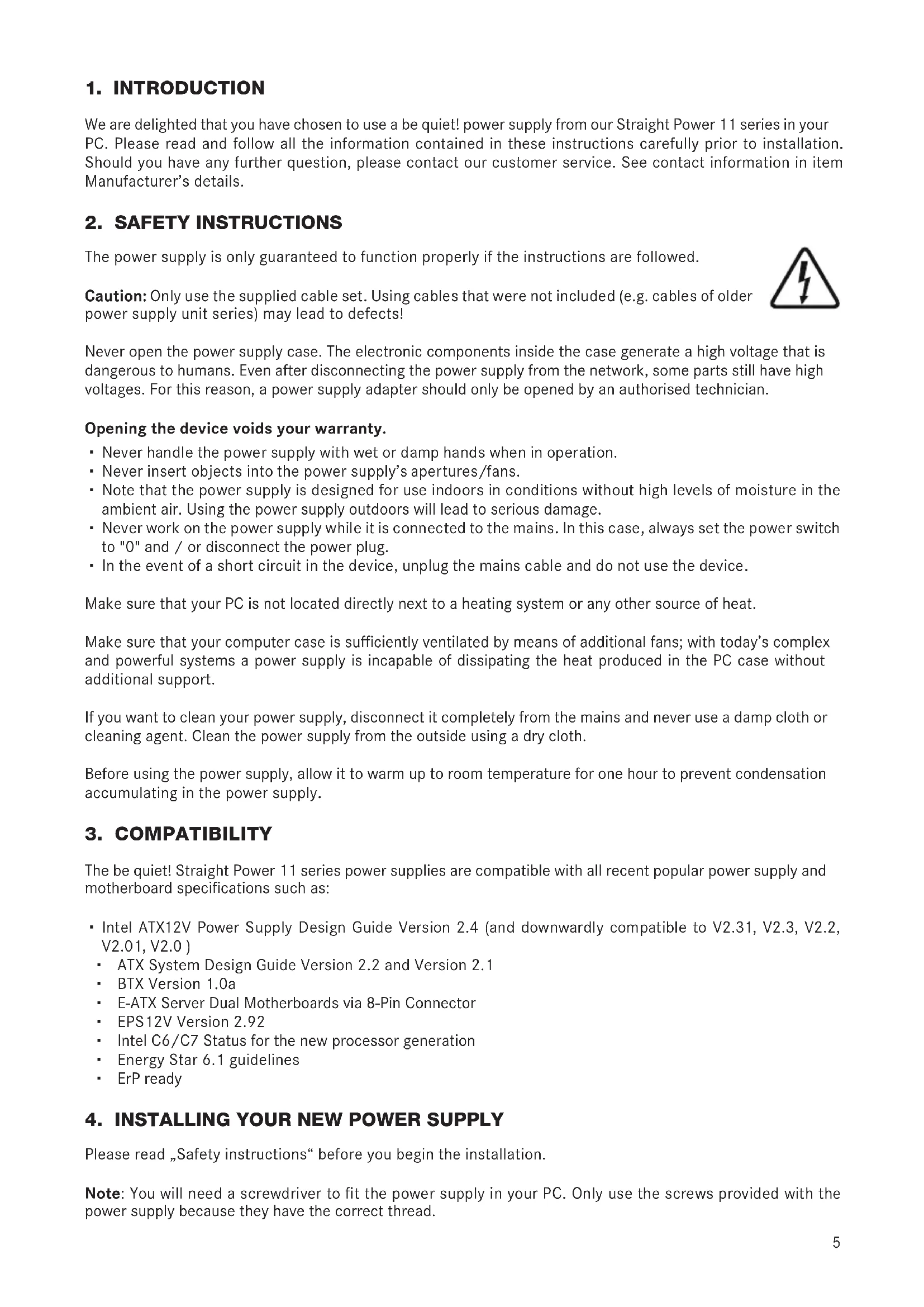

1. INTRODUCTION

We are delighted that you have chosen to use a be quiet! power supply from our Straight Power 11 series in your PC. Please read and follow all the information contained in these instructions carefully prior to installation. Should you have any further question, please contact our customer service. See contact information in item Manufacturer's details.

2. SAFETY INSTRUCTIONS

The power supply is only guaranteed to function properly if the instructions are followed.

Caution: Only use the supplied cable set. Using cables that were not included (e.g. cables of older power supply unit series) may lead to defects!

Never open the power supply case. The electronic components inside the case generate a high voltage that is dangerous to humans. Even after disconnecting the power supply from the network, some parts still have high voltages. For this reason, a power supply adapter should only be opened by an authorised technician.

Opening the device voids your warranty.

• Never handle the power supply with wet or damp hands when in operation.
• Never insert objects into the power supply's apertures/fans.
• Note that the power supply is designed for use indoors in conditions without high levels of moisture in the ambient air. Using the power supply outdoors will lead to serious damage.
• Never work on the power supply while it is connected to the mains. In this case, always set the power switch to "0" and / or disconnect the power plug.
• In the event of a short circuit in the device, unplug the mains cable and do not use the device.

Make sure that your PC is not located directly next to a heating system or any other source of heat.

Make sure that your computer case is sufficiently ventilated by means of additional fans; with today's complex and powerful systems a power supply is incapable of dissipating the heat produced in the PC case without additional support.

If you want to clean your power supply, disconnect it completely from the mains and never use a damp cloth or cleaning agent. Clean the power supply from the outside using a dry cloth.

Before using the power supply, allow it to warm up to room temperature for one hour to prevent condensation accumulating in the power supply.

3. COMPATIBILITY

The be quiet! Straight Power 11 series power supplies are compatible with all recent popular power supply and motherboard specifications such as:

• Intel ATX12V Power Supply Design Guide Version 2.4 (and downwardly compatible to V2.31, V2.3, V2.2, V2.01, V2.0)
  ATX System Design Guide Version 2.2 and Version 2.1
• BTX Version 1.0a
  E-ATX Server Dual Motherboards via 8-Pin Connector
  EPS12V Version 2.92
  Intel C6/C7 Status for the new processor generation
  Energy Star 6.1 guidelines
  ErP ready

4. INSTALLING YOUR NEW POWER SUPPLY

Please read „Safety instructions" before you begin the installation.

Note: You will need a screwdriver to fit the power supply in your PC. Only use the screws provided with the power supply because they have the correct thread.

Caution: Only use the supplied cable set. Using cables that were not included (e.g. cables of older power supply unit series) may lead to defects!

First remove your old power supply. To do so, proceed as follows:

• Carefully disconnect your PC from any power sources and unplug all cables connected to the PC.
• Open the PC case, taking care to follow the manufacturer's instructions.
• Disconnect all plugs from the motherboard and all other components, such as FDDs, HDDs, or optical drives. Make sure that there are no plugs from the old power supply connected to any of the components.
• Now remove the screws at the rear of the power supply and carefully pull the power supply out of the PC case. Take special care that no cables get caught in the components and damage them.

Fitting your new be quiet! Straight Power 11 power supply:

• Place the new power supply in the space provided in the PC case and connect to the rear panel using the four screws provided. Do not use excessive force.
• Plug the 20/24 pin connector into the socket provided on the motherboard. If you have a 24 pin connection, place the remaining 4 pins in the correct position before you plug the connector into the socket. If you have a motherboard with a 20 pin connector, fold the additional 4 pins to one side.
• Now plug the 12V-P4 or P8 connector for the CPU into the socket provided on the motherboard.

5. SAFETY FUNCTIONS

All be quiet! power supplies have numerous safety functions. They are designed to protect the power supply and the components connected to it against damage. If one of these safeguards is triggered, the system will reboot or power off in most cases. If this happens, you should immediately check the PC for errors.

For more info on troubleshooting see the "Troubleshooting" chapter.

The be quiet! Straight Power 11 series has the following safety functions:

OCP (Over current protection)

If the load on the individual circuits exceeds the specified limit, the power supply is automatically switched off.

UVP (Undervoltage protection)

This safeguard is triggered if the voltage on the circuits drops below a certain limit. The power supply is automatically switched off in this case.

OVP (Overvoltage protection)

The overvoltage safeguard is triggered if the voltage in the circuits is too high; the power supply is deactivated.

SCP (Short circuit safeguard)

The fuse protecting the power supply's secondary circuits prevents physical defects of the power supply and the components connected to it.

OTP (Temperature safeguard)

In the case of excessive heat build-up in the power supply, the power supply immediately and automatically switches off. You cannot switch it back on until it has cooled down. Please ensure that the PC has sufficient cooling.

OPP (overload protection)

This safeguard is triggered if the total output of the power supply exceeds the specified maximum load. This can happen if the output of power supply is insufficient for the system (incorrectly dimensioned).

6. TROUBLESHOOTING

Please note: If you have an ATX system, the power supply is enabled by the motherboard in order to boot the PC. For this reason, please refer to the motherboard or case manual to check whether the on/off switch is connected correctly.

Caution: There is a risk of fatal injury when working on power sources. If you notice traces of smoke, damaged

cables and exposure to liquids, immediately disconnect the power from the mains and do not use it again. Never open the power supply case. High-voltage components in the interior of the power supply may still be live after a longer period of disuse.

Please have any and all necessary repairs conducted by an authorized expert! Opening the device will void your warranty.

If the system in which you installed the power supply does not work properly, check for these possible sources of error first:

• Check that the mains cable to the power supply is correctly and firmly plugged into the power supply and the socket. Ideally, you should use a separate power socket for the computer power supply.
• Check whether all connectors are correctly plugged in, and make any necessary adjustments, such as in case of incorrect polarity.
• Check the connection between the on/off switch on the case to the motherboard. Refer to the motherboard manual if needed! Switch the power supply on by setting the switch to position "l" and then pressing the on/off switch on the case. If the power supply still does not switch on, continue with the next item.
• Check your system for possible short circuits or faulty hardware, making sure that you switch off the computer and disconnect all devices not required for the computer to start. Switch the computer back on. Repeat this process and connect one device after each reboot, until you discover the fault. If the power supply does not react due to a short circuit, wait for at least 5 minutes before switching back on as the device is equipped with overload protection.

7. FREQUENT PROBLEMS

Problem: The selected voltages (via BIOS/UEFI) are to low/high

If you check the power supply voltages via the BIOS/UEFI on the motherboard or the operating system, note that they may be displayed incorrectly. This typically results from imprecise measurements by motherboard and does not necessarily imply a genuine problem.

Problem: After installing a new graphics card, the PC will not power on, or it crashes frequently.

You have installed a new higher performance graphics card in your system and now your PC fails to boot, or it crashes immediately with minimal workload. The power supply is inadequately dimensioned for your graphics card. Before making a purchase, please refer to our PSU calculator tool on www.bequiet.com. The tool will help you to find the right be quiet! power supply from our range of products.

Important note:

If the power supply does not work, make sure that you have read these instructions thoroughly and have ruled out the problems referred to earlier on. If the problems persist, please contact our customer service department immediately.

8. ACCESSORIES

The power supply package includes the following accessories: Cable management cable set, mains lead, operating manual, cable ties, screws for installing the power supply.

9. NOTES ON DISPOSAL

Due to European directives* you are no longer allowed to dispose of used electrical and electronic devices as unsorted domestic waste. The devices must be collected separately. The trash can on wheels pictogram indicates the need to dispose of the device separately.

Please help to protect the environment and make sure, once you have decided to stop using the device, that you dispose of it responsibly via the correct collection system.

In Germany, you are legally** required to dispose of used devices separately, instead of as domestic waste. Your local waste disposal authority has set up one or more collection points at which used devices from private households in your area can be handed in free of charge. In some cases waste disposal authorities will pick up used devices, even from private households. Please refer to your local household waste collection brochure, or visit your town hall or community administration office, for more information on handing in or collecting used devices in your area.

• Complies with Directive of the European Parliament and of European Council on waste electrical and electronic equipment (WEEE).

** Corresponds to the law on sale, return and sustainable disposal of electrical and electronic equipment (Electrical and Electronic Equipment Act - ElektroG)

10. WARRANTY

• 5-year manufacturer's warranty for consumers (original purchase from authorised be quiet! dealers only).
• Your original purchase receipt will be required before warranty performance is rendered. Please keep it in a safe place.
• Opening the device, manipulations and / or technical modifications of any kind and damage due to external mechanical force will void your warranty.
  To read the warranty terms and conditions in full, see Service/Warranty Conditions on the homepage at bequiet. com.

Our General Terms and Conditions of Business apply; for details, please refer to bequiet.com on the internet.

11. MANUFACTURER'S DETAILS

Listan GmbH & Co. KG Biedenkamp 3a, 21509 Glinde Germany

For support in Germany, you can call our free service hotline,

Monday through Friday 09:00 - 17:30 hrs.

Tel. [phone] Fax [phone]

Email: [e-mail]

Internet page and PSU Calculator: www.bequiet.com

12. COPYRIGHT

• You are not allowed to reproduce, disclose, publish or store the contents of this documentation, or excerpts of it, without the prior written consent of Listan.
• be quiet! is a registered trademark of Listan GmbH & Co. KG. Other products and company names mentioned in this documentation may be brands or trademarks of their respective owners.
• In accordance with company policy, all Listen products are subject to ongoing development. Listen reserves the right to make changes and improvements to any product described in this documentation without prior announcement.
• Under no circumstances shall Listan be held liable for loss of data and income, or for any specific, incidental, direct, or indirect damage, however it arises.
• The content of this documentation represents the current state-of-art. Listan does not assume, whether expressed or implicit, any liability for the correctness or completeness of the content of this documentation, including, but not limited to the implicit guarantee of market suitability and aptitude for a special purpose, unless applicable laws or jurisdiction stringently stipulate such a liability.

Listan retains the right to make changes to this documentation or to withdraw the documentation at any time without prior announcement.

1. EINLEITUNG

Listan Poland Sp. z o.o.

SCP (3aunTa oT KOpOTKOrO 3aMbIKaHnA

IpeoXpaHntb 3aunuaet BTOpUHbIe cenn 6loKa nTaHn I NOKIOUeHHbIe KOMNOHeHTbl OT KOPOTKOHO 3aMbIKAHJ.

OTP (3aunta ot nepereba)

B cnyuae ype3mepHoro noBbIeHnra TEmnpaTpyb BHytpn 6JIOka NITAHn, OH ABOTOMaTueCKN BbIKIOHTcR.

BbI He cMOxKeTe erO BKJIHOHTb, noka TemnepaTpya He onyCTNTc DO HopMaJIbHOro yPOBn. IoxKaIyncta, y6eIITecb, YTO KOMNbOTep OCHaUeH DOCTaTOuHBIM OXJaXKDeHNEM.

OPP (3aunta o npeperpy3kn)

JaHHa CnCTema 3aunTbI cpaabaBaeT, ecn cyMMapHa BbIXoHra MOUHOCTb 6NoKa NITaHna NpeBBiHaET yKa3aHHb MaKcMmaJIbHbI yPOBeHb. 3TO MoKeT PpOu3OHTN, ecn BbIXoHOn MOUHOCTn 6NoKa NITaHna HeoCTaTOUHO DnCCTeMbI.

6. NONCK HENCPABHOCTEIN

BHMaHne:

Ecnn Bblncnoj3yeTe ATX-cntemy,6nK nTahnaA kTBNpyeTcYepe3 cNCTEmHyIO nLaty dIa 3arp3kn PIK.

Ioxayncta, o6paTtecB K ONcaHIO CnCTeMHo IJaTbI INN KOpnyCa, YTo6bl y6eHTbcB I npabInbHOCTN IOdkJIOUeHn BbIKIOuHaTeJI.

IpeynpejxneHc: CyueCTBye ONaCHocTb IJRA JN3HN pR pa6ote C NCTOCHKOM NITAHnE. EcnB 3amTeINCJeBdI DbIMa, NOBpeXdeHHbIe Ka6eIN ININ BO3DeIcTBnE XIKKOCTe, HEmeDJIeHHO OTCOeIHnTE NITAHnE OT CETNI He NCNOJIb3yIte 6JOK NITAHn CHOBA.

Hukorda He OTKpbBaIte Kopnyc 6Joka NITAHN. BbICOKOBJbTHbIE KOMNOHEHTBI 6Joka NITAHN MORYT no- npexhemy 6bTb NOHapraXeHHem daxe NOcNE dINTeJIbHO BPemeHN C MOMENTA OTKIOUHeHIN.

Ioxayncta, npoBOnTe Bce Heo6xOumbIe peMOHTbIe pa60TbI, nCnoJb3y ycnyr n ABTOpu3OBAHORO 3Kcnepta!

OtkpbItne Kopnyca yctpoiCTBa npuBeTe K noTepe rapaHTm.

EcnncTeMa, B KOTOpO yCTaHOBHeN 6nOK nHTaHn, He pa6oTaET DOJXHBIM o6pa3OM, npOBepbTe BO3MOxHbI npuHbI OUn6ok:

• Y6eIntecb, yTO cTeB0 K6eJIb 3JIeKTPoNITAHnI npaBnJIbHO n HaJExKHO NOkJIIOueH K nopTy NITAHnI pO3ETke. ONTImaJIbHO INCNOJIb3OBaTB OTdJIbHYO PO3ETKY dJIY NITAHNIG KOMNbIoTEpa.
• Y6eIITecb, yTO BCE pa3bEmbl npaBnJIbHO NOdkJIOUeHbI IN BHeCInTe KOppeKTHIBbl, HApPIMep, B Cnyae HeippaBnJIbHOI NOJIaRPHOCTu.
• PpOBepbTe coeHNHe Hne BblKIOHcTnE KOpNcA C cncTeMHO nlaToI. Pn Heo6xoIMocn 6paTntecb K nHCTpykCm nCtEmHO nLaTb! BkIOUte 6LOK nITaHn, yCTaHOBn BEpeKIOHcTEnB nOLOXeHne "I" n 3aTe M hKab KJIaBnSy BkIOUeHn Ha Kopnyce. Ecn CnCTema He BkIOUaETcA, nepeDnTE K cJeDyIOUeMy NHTy.
• PpOBepbTe BaUy CnCTeMy Ha npEIMet KOpOTKOro 3aMbIkaHnN IIN HeNCnPpABHO O6OpYIOBaHn, y6eINBwncBpeP 3TtM, YTO KOMNbIbTeP BvIKJIIOueH IN BCE HekPITuHbIE KOMNoHEHTb CnCTeMbI OTCoEINHeHb. BKJIOaHTeKOMNbIbTeP. NOBTopNTe 3TOT npocecc, NOkJIIOuaO nd HO yCTPOIcTB0 3a dpyrIM npN KaJdoN HOBo 3aRpy3ke, noka He o6hApXKeTe HeNCnPpABHbI KOMNoHET. EclN 6Lok NiTaHn He BKJIIOHaETcN3-3a KOpOTKOro 3aMbIkaHn, noIOxDInTe He MeHee 5 MmHyT, npExKeJe cEM BKJIIOuAtb CHObA.

7. YACTbIE NPOBJEMbl

Поблма: Вьбанhoe HanpxkeHЯ (pepe3 BIOS/UEFI) сишkom Hn3Koe/BbICOKoe

Ecnn Bbl npOBepnHn HApJKeHne 6Ioka nITaHnuepe3 BIOS/UEFI cncTeMHo nIaTb nnOnepaunOHn CnCTembl, OTMeTNM, yTO OHN MOrY T OTo6paKaTbCn HeKOppeKTHO. IIOIo6Hoe MoKET BO3HnKHyTb N3-3a HeToUHbIX N3MepeHn CNCTeMHo nIaTbI n Heo6ra3aTeJIbHo O3Haayet, YTO eCTb npo6JeMa.

PpO6Jema: Nocne yCTaHOBKn HOBoN BnDeOKapTbI KOMNbIOTeP He BKIOUaETcN Nn YacTo 3aBnCaeT.

Bb yctahOBnHOByIO 6oJIe npOn3BODnteHbHyIO BnDEOKApTy B CnCTeMy I Tepeb KOMNbIOTep He 3aRpyXaeTcnn 3aBep7aet pa60Ty npN MInHMalbHO 3aRpyKeHHocTN. Bo3MOxHO, y 6Loka NITAHN HEDOCTaTOUHO MOuHOCtIN DIABaew BnDEOKapTbI. PpexJe Yem CdeNaTb NOKyIKy, NOXaNyIcTa, OpaTnTeCb K HaWei npOrpamme no pacHTy MOuHOCtN 6Loka NITAHN HA caIte www.bequiet.com. 3TOT INHCTpyMeH T NOMOXET Bam nOIO6paTb IpaBnblhBn 6Lok NITAHN be quiet!

Baxkho:

Ecnn 6nok nntahn He pa6oTaET, y6eInTeCb, YTO Bbl TuaTeBHO npOHTaJIH NHCtpyKUHO INCKJIIOHN BCE ynomaytbe np6bn. Ecnn np6bnema coxpaHareTc, CBXnTECb HauIM OTJeIOM OcCyKuBaHn KJneHToB.

8. AKCECCYAPbl

KOMJIeKTaunna 6Ioka nITAHnB KJIIOyaeT cJeDyUOune akCECCyapbl: KOMJIeKT KaBeNe, cTeBOH KaBeJb, pyKOBOCTBO NO 3KcNpyataun, CTAAKN dJa KaBeNe, BNHTb I yCTaHOBKn 6IOKa nITAHn.

9. 3AMEUHIN NO YTNJN3AUHN

CornacHo eBpOneckm DnpeKTHBaM* 60JIbWe He pa3peWaeTc8 yTuIN3InpoBaTb NcIOJIb3OBaHHble 3JIeKTPuHeCKNe I 3JIeKTPoHHbIe yCTPOHCTBa KaK HecOpTnPoBAHHbIe 6blTOBbIe OTXOdbI. YcTPOINCTBa DOJKNbI CO6NpaTbCra OTJeJIbHO.

IcnoB3yTe IyTuIN3aUu MyCOPHbI 6aK C COOTBeTCTByIOUIM Oo3HaueHHeM.

Pomornte 3aunTb OKpykaOu cypey, y6eNTecb B TOM, UTO NCnOJIb3yeTe noDxoJyU cnCTemy c6opa, ecnn peunyn ytnnun3npoBaT b yctpoNCTBO.

B TepMaHn No 3aKohy N0JIb3ObaTeIb 6o3aH** yTUNI3NpuOBaT b cNoJIb3OBAHhIe np6Opbl OTeJIbHO, a He BMeCTc 6bITOBbIMN OTXODAMN. BocnoJIb3yIteCb MeCTHO cJyX6oB no yTUNI3aUIM nOTXODOB, B COOTBeTCTBYIOUeM IyHKTe CdaH N Bi CMoXKeTe yTUNI3NpuOBaT b acTHoe ycTpoIcTBo 6ecPiAThO. B HeKOToPbIX cJyuaX oTXOdb MOYr 6bITb 3a6paHHbIMN n3 Doma COOTBeTCTByIOUe cJyX6oB.

* CoOTBeTCTByeT Tpe6OBaHm DnpeKtNBbI Ebponeckoro naplaMeHa n CoBeta EC o6 otXoax 3neKtpueckoro n 3JIeKTPoHHOrO obOpdyobAHn (WEEE).
** CoOTBeTCTByeT 3aKoHy O npOdaXe, BO3BpaTe N yTuIN3aCm N 3JeKTpueckOrO n 3JeKtpoHHoro o6OpydoBaHn

10. IPAAHTIN

• 5-letnra rapaHTn npOn3BODnteI nI na noTpe6nteIe (IJIa o6OpydoBaHn, KynHeHHoro TObko y abTopu3OBAHHbIX npEcdTabTeIe be quiet!).
  -Дя rapaHTmHOrO cnUyA noTpe6yeTc OpiuHaJIbHa KBrTaHcIe, NOdTBepKdaIOuaJ aKaT nOKyPkn. Ioxayncta, xpaHnTe ee B HAdexKHOM MeCTe.
• OTKpbItne Kopnyca yCTpoiCTBa, MaHnIpyaunu n/IInn TexHnueckne n3MeHeHna IIO6oRo poJa n NOBpeKdEHHa 13-3a BHeUHeRo MExAHueCKOrO BO3DeNCTBnR npNBedeT K Notepe rapaHTn.
  -Подрбно ознakомьтесь суловая м rapаHTи в раздени «Сервс/траHTи» на домашен CTpaHиц WWW. bequiet.com

11. NOДРОБHOCTHO ПОНЗВОДNTЕЛ

Per the terms and conditions of this limited warranty as given below, be quiet! warrants its new products to be free of defects resulting from faulty materials and faulty manufacturing for the length of the warranty period.

I. APPLICABILITY

This non-transferrable warranty is applicable to newly purchased, previously unopened be quiet! products and is enforceable by only the original consumer purchaser. Proof of purchase is required for warranty service, so should be retained. be quiet! does not provide warranty registration services.

II. WARRANTY PERIOD

For eligible products, parts and labor are warranted for the appli-cable warranty period from the date of purchase. The applicable warranty period varies by product model, and is identified in your user documentation, on the product package, or as listed below. Should any of these warranty periods differ, the longest specified warranty period will apply. Replaced products will be warranted for the remainder of the original warranty period or thirty days, whichever is longer.

III. EXCLUSIONS

The following are not covered by the warranty:

1. Normal wear and tear.
2. Any product which has been modified without permission from be quiet!, or on which the serial number or warranty sticker has been defaced, modified, or removed.
3. Damage, deterioration or malfunction resulting from:

Accident, abuse, misuse or improper use, neglect, connection to an improper voltage source, unauthorized product modification, or failure to follow instructions included with the product.

Fire, water, lightning, or other acts of nature.

Repair or attempted repair by anyone not authorized by be quiet!.

Shipping or transport damage (claims must be made with the carrier).

Any other cause which does not relate to a defect in materials or manufacturing workmanship.

1. Cartons, cases, batteries, cabinets, tapes, accessories or other consumables used with this product.
2. be quiet, Inc. does not warrant that this product will meet your requirements. It is your responsibility to determine the suitability of this product for your purpose.
3. Removal or installation charges.
4. Shipping charges.
5. Any incidental charges.

IV. EXCLUSION OF DAMAGES

be quiet! 's sole obligation and liability under this warranty is limited to the repair or replacement of a defective product at its option. be quiet! shall not, in any event, be liable for any special, incidental, indirect, or consequential damages whatsoever, including but not limited to loss of profits, revenue, or data (whether direct or indirect), damages resulting from interruption of service and loss of business, or for liability in tort relating to this product or resulting from its use or possession, even if be quiet! has been advised previously of the possibility of such damages.

V. LIMITATIONS OF IMPLIED WARRANTYES

There are no other warranties, expressed or implied, including but not limited to those of merchantability or fitness for a particular purpose. The duration of implied warranties is limited to the warranty length specified in Paragraph II.50

VI. LOCAL LAW AND YOUR WARRANTY

This warranty gives you specific legal rights. You may also have other rights granted under local law. These rights may vary.

VII. NO OTHER WARRANTY

No be quiet! employee, dealer, or other agent is authorized to make any modification, extension, or addition to this warranty.

VIII. TO OBTAIN TECHNICAL SUPPORT OR WARRANTY SERVICE

Please see your product owner's manual or visit the Online Support section at www.bequiet.com for details and contact information. You will need to provide proof of purchase for warranty service.

TECHNICAL DATA

Technische Daten, Données technique, Datos technique, Dane technicze, Tehnueckne xapaktepuctikn

1. LABEL

AC Input		6-3A100-240Vac5
DC Output		3.3V	5V 12V1	12V2		12V3	12V4	-12V	5VSB
450W	Max. Current	24A	24A	18A	18A	19A	19A	0.3A	3A
				37.5A
	Max. Combined Power	120W		450W
		450W

AC Input		8-4A100-240Vac
DC Output		3.3V	5V 12V	1V 12V	2 12V3	2V4	-12V		5VSB
550W	Max. Current			18A 18A		20A 20A		0.3A	3A24A
				45.8A
	Max. Combined Power	130W		549.6W 3.6W 15W
		550W

AC Input		8-4A100-240Vac5
DC Output		3.3V	5V	12V1	12V2	12V3	12V4	-12V	5VSB
650W	Max. Current	24A	24A	18A	18A	22A	22A	0.3A	3A
				54.1A
	Max. Combined Power	140W		649.2W				3.6W	15W
		650W

AC Input		100 - 240Vac 50 - 60Hz 10 - 5A
DC Output		3.3V 5V 12V1	12V2		12V3	12V4	-12V	5VSB
750W	Max. Current	25A 25A	20A	20A 24A	24A		0.5A	3A
			62.5A
	Max. Combined Power	150W	750W				6W	15W
		750W

AC Input		100 - 240Vac 50 - 60Hz 10 - 5A
DC Output		3.3V 5V 12V1	12V2		12V3	12V4	-12V	5VSB
850W	Max. Current	25A 25A	21A	21A 26A	26A		0.5A	3A
			70.8A
	Max. Combined Power	150W	849.6W				6W	15W
		850W

AC Input		100 - 240Vac 50 - 60Hz 13 - 6.5A
DC Output		3.3V 5 V 12V1	12V2		12V3	12V4	-12V	5VSB
1000W	Max. Current	25A 25A	22A	22A 30A	30A		0.5A	3A
			83.3A
	Max. Combined Power	150W	999.6W				6W	15W
		1000W

2. VOLTAGE REGULATION

DC Output	3.3V	5V	12V1	12V2	12V3	12V4	-12V	5VSB
Tolerance	+/- 3%	+/- 3%	+/- 3%	+/- 3%	+/- 3%	+/- 3%	+/- 4%	+/- 3%
Ripple/Noise (max.)	40mV	40mV	80mV	80mV	80mV	80mV	80mV	40mV

3. OPERATING CONDITIONS

Environment	Temperature	Rel. Humidity
Operation	0 ~ 40°C	up to 85% (non-condensing)
Storage	-40 ~ 70°C	up to 98% (non-condensing)

4. MINIMAL LOAD

	3.3V	5V	12V1	12V2	12V3	12V4	-12V	5VSB
1000W	OA	OA	OA	OA	OA	OA	OA	OA
850W	OA	OA	OA	OA	OA	OA	OA	OA
750W	OA	OA	OA	OA	OA	OA	OA	OA
650W	OA	OA	OA	OA	OA	OA	OA	OA
550W	OA	OA	OA	OA	OA	OA	OA	OA
450W	OA	OA	OA	OA	OA	OA	OA	OA

5. RAIL SPLITTINGS

	12V1	12V2	12V3	12V4
1000W	SATA, HDD, FDD, 24pin	CPU (P4 / P8)	PCIe 1/2	PCIe 2/3
850W	SATA, HDD, FDD, 24pin	CPU (P4 / P8)	PCIe 1/2	PCIe 2/3
750W	SATA, HDD, FDD, 24pin	CPU (P4 / P8)	PCIe 1/2	PCIe 2/3
650W	SATA, HDD, FDD, 24pin	CPU (P4 / P8)	PCIe 1	PCIe 2
550W	SATA, HDD, FDD, 24pin	CPU (P4 / P8)	PCIe 1	PCIe 2
450W	SATA, HDD, FDD, 24pin	CPU (P4 / P8)	PCIe 1	PCIe 2

Please make sure you balance the load across the 12 volt rails 12V3 und 12V4:

• When using two PCIe cables, connect PCIe 1 and PCIe 3
• When you only need one PCIe cable, connect PCIe 2

24 PIN ATX power connector

Pin Signal Pin Signal
1 +3.3VDC 13			+3.3VDC +3.3Vdef.sense
2 +3.3VDC 14 -12VDC
3 COM 15 COM
4 +5VDC 16 PS_ON/OFF
5 COM 17 COM
6 +5VDC 18 COM
7 COM 19 COM
8 PWR_OK 20
9	+5VSB	21	+5VDC
10	+12VDC	22	+5VDC
11	+12VDC	23	+5VDC
12 +3.3VDC 24 COM

+12V power connector

Pin Signal Pin Signal
1	COM	5	+12VDC
2	COM	6	+12VDC
3	COM	7	+12VDC
4	COM	8	+12VDC

PCI express VGA connector

Pin Signal Pin Signal
1	+12VDC	4	COM
2	+12VDC	5	COM
3	+12VDC	6	COM
7 COM 8 COM

SATA power connector

Pin Signal Pin Signal
1	3.3V	4	COM
2	COM	5	+12VDC
3	+5VDC

Peripheral Devices & FDD power connector

Pin Signal Pin Signal
1	+5VDC	3	COM
2	COM	4	+12VDC

8. CONNECTIVITY AND CABLE LENGTHS

1000W

650W

550W

450W
