USER MANUAL Ultra Smoothie LQ120.006A Haeger

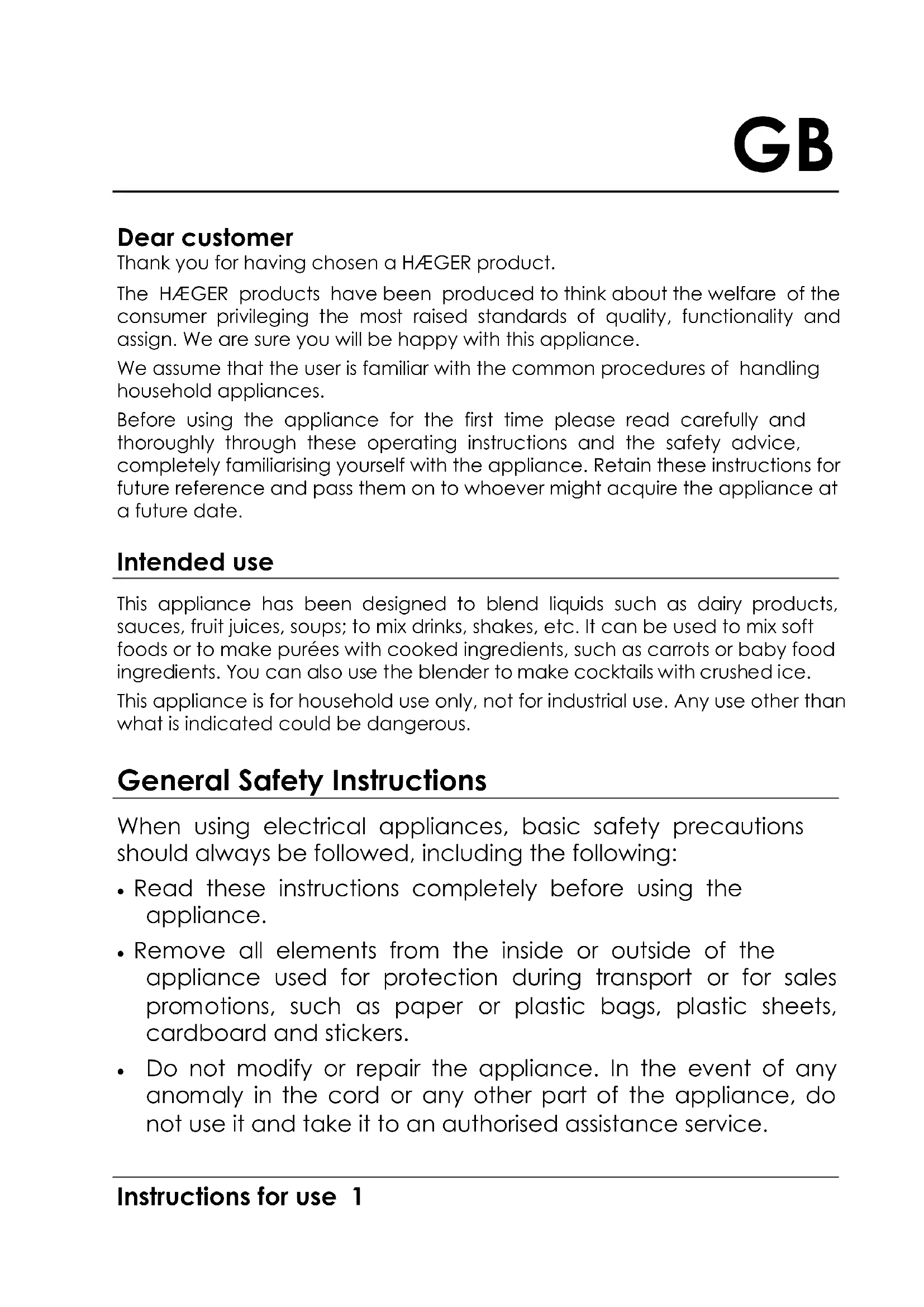

Food Blender / Liquidificadora Batidora de vaso / Mixeur User instructions / Instruções de uso Instrucciones de uso / Mode d’emploi Ultra Smoothie LQ-120.006A RoHSGB Instructions for use 1 Dear customer Thank you for having chosen a HÆGER product. The HÆGER products have been produced to think about the welfare of the consumer privileging the most raised standards of quality, functionality and assign. We are sure you will be happy with this appliance. We assume that the user is familiar with the common procedures of handling household appliances. Before using the appliance for the first time please read carefully and thoroughly through these operating instructions and the safety advice, completely familiarising yourself with the appliance. Retain these instructions for future reference and pass them on to whoever might acquire the appliance at a future date. Intended use This appliance has been designed to blend liquids such as dairy products, sauces, fruit juices, soups; to mix drinks, shakes, etc. It can be used to mix soft foods or to make purées with cooked ingredients, such as carrots or baby food ingredients. You can also use the blender to make cocktails with crushed ice. This appliance is for household use only, not for industrial use. Any use other than what is indicated could be dangerous. General Safety Instructions When using electrical appliances, basic safety precautions should always be followed, including the following:

• Read these instructions completely before using the appliance.
• Remove all elements from the inside or outside of the appliance used for protection during transport or for sales promotions, such as paper or plastic bags, plastic sheets, cardboard and stickers.

• Do not modify or repair the appliance. In the event of any anomaly in the cord or any other part of the appliance, do not use it and take it to an authorised assistance service.English 2 Instructions for use

• Before plugging the appliance into the mains, check that the indicated voltage matches that of your home.

• Always unplug the appliance after use and before removing or installing parts and before doing any maintenance or cleaning. Also unplug it in the event of a power outage.

• Never pull on the cord or use it to hang up the appliance. Always unplug the appliance by pulling on the plug, never the cord.

• Prevent the power cord from coming into contact with sharp edges or hot surfaces.

• If the power cord is damaged, it should be replaced by the manufacturer or by your after-sales service shop or similar qualified personnel to prevent possible hazards.

• Do not leave the blender in operation unattended.

• Never submerge the main body of the appliance in water or any other liquid or put it in the dishwasher.

• The blades are very sharp. Be very careful when handling them. Do not handle them when the appliance is plugged in. While it is operating, keep hands, hair, clothes and any utensil away from the moving blades.

• Only use the blender with the lid fitted on the jar. Never use the blender when it is empty.

• The jar is not suitable for use in microwave ovens. Children and Frail Individuals

• To ensure your children’s safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

• Do not allow small children to play with the foil as there is a danger of suffocation!English Instructions for use 3

• The appliance may be used by children 8 years or older and by persons with reduced physical or mental capabilities, if they are under supervision or if they have been instructed in the use of the appliance in a safe manner and understand the potential risks. Children must not carry out cleaning and maintenance of the appliance, unless they are 8 years or older and under supervision. Children younger than 8 years must be kept away from the appliance and its power supply.

• Children should be supervised to ensure that they do not play with the appliance. Description

7. Motor housing (base unit)

The control panel and programmes The blender has variable speed control and 3 functions – Pulse, Ice Crushing and Smoothie. - Pulse - In this mode, the unit operates at maximum speed as long as the pulse button ‘P’ is pressed. This programme is ideally suited for chopping ingredients for a short time at maximum speed. - Ice Crushing - This button starts the programme for crushing ice cubes. The appliance starts at maximum speed, then slows down and returns to maximum speed. This will last for 30s. - Smoothie - The unit works for 60 seconds at 90% of maximum speed. This programme is ideally suited for preparing smoothies, as the programme automatically switches off after 1 minute. - Speed selector - The speed control allows for increasing or reducing the operating speed. Use a low speed setting for coarse chopping of the ingredients; for puréeing ingredients, we recommend using the maximum speed setting.English 4 Instructions for use Before the first use

• Take the appliance and accessories out the box. Remove the protective foil or plastic from the device.

• Place the device on a flat stable surface and ensure a minimum of 10 cm. free space around the device. This device is not suitable for installation in a cabinet or for outside use.

• Before using your appliance for the first time, wipe off all removable parts with a damp cloth. Never use abrasive products.

• Put the power cable into the socket (Note: Make sure the voltage which is indicated on the device matches the local voltage before connecting the device). The blue light around the 3 function buttons will flashing up. After the glass jug is fixed to motor housing base unit, the light will stop flashing and turns fixed.

• The blender is equipped with a security function. The blender can only be switched on if the glass jar is locked in the base unit correctly. Assembly instructions Assembling and disassembling the blending jug

1. Place the cutting blade assembly into the blade base.

2. Place the blade base with inserted blade assembly on the blending glass

jug from the bottom and tighten it firmly in clockwise direction.

3. Place the measuring cup into the opening in the blender lid and turn it

clockwise to secure it in the lid.

4. When you have placed all the necessary ingredients into the blending jug,

close it with the assembled lid. The lid needs to be properly pushed down along the entire perimeter so that it adheres well to the edge of the blending jug.

5. When disassembling the blending jug, proceed in the reverse sequence.

Attaching the blending jug to the motor unit and their removal On to the motor unit place the blending jug and turn it clockwise all the way so that it is secured on the motor unit. When the blending jug is correctly attached to the motor unit, it is not possible to freely lift it off the motor unit. Attention: The safety mechanism will prevent the appliance from being started unless the blending jar is properly attached to the motor unit.English Instructions for use 5 Operation

• This appliance has been designed to blend liquids such as dairy products, sauces, fruit juices, soups; to mix drinks, shakes, etc. It can be used to mix soft foods or to make purées with cooked ingredients, such as carrots or baby food ingredients. You can also use the blender to make cocktails with crushed ice. Never put in more than 10 ice cubes at a time.

• Under no circumstance should the appliance be operated for more time than what is necessary. After using the appliance continuously for one minute, allow it to cool to room temperature to prevent it from overheating. CAUTION: – Maximum time of processing should not exceed 1min continuous use. In order to achieve below processing times, use the appliance with pulses and intermediate 10 second pauses. – DO NOT OPERATE THE UNIT WHEN EMPTY. – DO NOT PUT HOT INGREDIENTS INTO THE BOWL. BEFORE FOOD PREPARATION, ALLOW FOOD TO COOL DOWN FOR A FEW MINUTES. – Before you eat or serve blended food, please always check for ingredients that might have not been blended adequately. – Do not put any wooden, plastic, glass, metal or similar objects in the jar. GENERAL: For better results please make sure that the quantity of ingredients fully covers the blade while chopping solid food. Blending

1. Assemble the blender as explained in section “Assembly Instructions”. Be

sure that it is assembled correctly. (Fig. )

3. Put food into the jug without exceeding 2/3 of the maximum capacity

4. Close the jug with the assembled lid. The lid needs to be properly pushed

down along the entire perimeter so that it adheres well to the edge of the blending jug.

5. Turns the rotary control to the desired speed (min – max) for blending.

6. Mix the ingredients for 2 minutes and pause at least for 1 minuteEnglish

6 Instructions for use During operation hold the lid on firmly using both hands. NEVER remove the lid while the appliance is operating.

7. If you want to add any ingredient during the blending process, remove the

measuring cup and add ingredients through the hole in the lid.

8. When you obtain the desired result, turn the rotary control to its OFF

9. Unplug the cable from the mains and wait until the blade has stopped

10. Remove the jug from the main body and empty it.

1. Press and hold the Pulse button or press it several times, until the food

reaches your desired consistency. The device is working as long you press the button.

2. Operate the pulse function for ca. 1 minute and pause at least for 1 minute

Function Ice Crushing

1. Fill the jar with ice cubes.

2. Press the Ice crushing button, the machine will work discontinuously lasting

for 30 seconds to make the food reaches your desired consistency. Function Smoothie

1. Fill the jug with fruits and/or vegetables as well as enough liquid.

2. Press the Smoothie button, the machine will keep working for 1 min to

make the food reaches your desired consistency. Useful Tips

• Do not use this jar to store food or other objects.

• It is not advisable to pour very hot food in the jar to avoid the danger of burning yourself.

• We recommend adding the ingredients little by little instead of all at once.

• First blend the harder ingredients and then add the softer ones. This makes it easier to obtain an even mix.

• The slower speed is more suitable for beating or mixing foods with a liquid consistency. The faster speed is recommended for mincing or mixing more solid or thicker foods.

• Coarse and fibrous foods must be cut into 2 or 3 cm cubes at most.English Instructions for use 7

• To make cocktails with crushed ice, first put in the ingredients then the ice, and lastly the liquid needed or a little water. Do not forget to add the liquid otherwise the ice will not be crushed correctly.

• When crushing ice, use the high speed for a few seconds to crush it completely. The ice cubes will be propelled upwards, so they will not get stuck in the bottom.

• If the foods stick to the walls of the jar during blending or remain out of the range of the blades, switch off the appliance, remove the jar from the base and take off the lid. Remove the lid and carefully push the food towards the blades with a spatula. Put the lid on the jar, place it on the main body and carry on blending the ingredients.

• Do not exceed the maximum level indicated on the blender jar. Cleaning and Maintenance The blades are very sharp. Avoid touching the blades with your hands while cleaning and drying the inside of the jug. Never submerse the main body in water or wash it in the dishwasher.

1. Clean the appliance before using it for the first time, immediately after use

and after not being used for a long period of time.

2. Clean the jar and other plastic pieces immediately, given that some foods

(such as carrots) are very difficult to clean once they are dry. Quick cleaning

1. With the blender assembled, open the lid and pour in some warm water

with a drop of liquid detergent.

2. Close the lid. Be sure that it is closed firmly.

3. Press Pulse button for a few seconds.

4. Remove the jar and rinse with warm water.

1. Empty the jar and dismantle the blender.

2. Clean the main body and the mains cable with a damp cloth.

3. Clean the other parts with soapy water and rinse thoroughly under the tap.

Never wash in the dishwasher. Turn the jug upside down to dry.

4. Assemble the blender as explained in paragraph “Assembly Instructions”.

Do not touch the blade particularly when the machine is plugged in. The glass jar must not be subjected to large differences in temperature.English 8 Instructions for use Storage Instructions

• Store the machine in a dry environment.

• Never put the glass jar or any other part of the blender in the microwave. Troubleshooting

• If when the product is in use it shows abnormal signs such as noise, odour, smoke or any increase in temperature, unplug the machine and do not use it any more.

• If the machine no longer works, check that the plug is properly connected to the mains and that the jar is correctly locked onto the motor unit.

• If the machine still does not work after the above checks, contact the after-sales service of the store where it was purchased. Overheat protection

• In order to prolong the device’s service life, an overheat protecting unit is installed. If the motor runs too long or overloaded, the temperature reaches the warning value and the motor will stop automatically. Pull out power supply plug and wait for the motor to cool (about 20 to 30 minutes), then use again.
