Product Type	Magnetic resistance bike trainer
Brand	Saris
Model	Mag
Category	Bike accessory
Usage	Indoor bike training
Resistance	Adjustable manually or via remote shifter (Mag+ models)
Bike attachment	Quick release skewer included (part g); thru-axle adapter sold separately
Frame material	Steel or alloy (not precisely specified)
Number of manual pages	51
Available languages	FR, DE, EN, ES, IT, NL and others on request
Frame warranty (private use)	Lifetime (weld breakage)
Electronics warranty (private use)	2 years
Belt warranty (private use)	1 year
Pulley wheel warranty (private use)	1 year
Freewheel warranty (private use)	1 year
Wear parts not covered	Clamp knob, L-bolt, RU rollers, lock rings, feet, resistance band, Mag Plus lever
Maintenance	Clean with a dry cloth; do not use cleaner; unplug unit when not in use
Safety precautions	Consult a doctor before exercise; stop if pain; keep children away; do not insert objects into moving parts
Bike compatibility	Bikes with thru-axle (requires accessory); bolted/solid axle bikes (requires cone nuts)
Repairability	Spare parts available; repair by authorized service with authorization

Frequently Asked Questions - Mag Saris

How do I install the Mag trainer on my bike?

Remove the rear wheel of your bike and attach the trainer using the included quick release skewer (part g). For bikes with thru-axle, use a Saris thru-axle accessory available on Saris.com. Ensure the quick release lever is on the left side of the bike and pointing up or back.

How do I adjust the resistance on the Mag trainer?

Resistance is adjustable manually or via remote shifter (Mag+ models). Turn the yellow clutch knob until it engages, or turn the black knob an additional 2.5 turns to press the roller into the tire. For the remote shifter, push the lever up to increase resistance and down to decrease.

What are the important safety instructions?

Before any exercise, consult a doctor. If you experience chest pain, irregular heartbeat, shortness of breath, or discomfort, STOP immediately. Do not remove your feet from pedals, do not attempt high-speed training without warm-up, and keep children and pets away. Do not put hands or fingers into moving parts.

How do I maintain my Saris Mag trainer?

Remove the bike from the trainer when not in use. Regularly inspect parts. Clean the trainer with a dry cloth; do not use cleaner. Unplug the unit when not in use.

What is the warranty on the Mag trainer?

For private use: the frame is lifetime warranty against weld breakage, electronics 2 years, belt, pulley wheel, and freewheel 1 year. Wear parts (clamp knob, L-bolt, rollers, etc.) are not covered. Keep your proof of purchase.

Can I use the trainer with a thru-axle bike?

Yes, but you will need a Saris thru-axle accessory available on Saris.com. The trainer is designed to be used with the included skewer. For bolted or solid axle bikes, cone nuts may be needed.

How do I attach the remote shifter to the handlebar?

Adjust the nylon strap (d) around the handlebar, then lift the cam lever (b) to lock. If the lever does not hold the shifter, readjust the strap and re-engage the lever. The remote shifter allows resistance adjustment while riding.

What to do in case of a problem or defective part?

Contact Saris Cycling Group at 1-800-783-7257 to obtain a return authorization before any return. The warranty covers defects in materials or workmanship. Send the product prepaid to Saris or an authorized service center.

Does the Mag trainer require electrical power?

The base Mag model has no electrical power; it uses passive magnetic resistance. The Mag+ models with remote shifter may require a battery or be powered by the bike (not specified). Consult the manual for details.

How to download the manual in French?

On the product page, select the language FR and click Download. You will receive a 51-page PDF. If the manual is not available in your language, you can request a translation by providing your email.

USER MANUAL Mag Saris

EN Before starting any exercise program, consult with your physician or health professional. He or she can help establish the exercise frequency, intensity and time appropriate for your particular age and condition. If you have any pain or tightness in your chest, an irregular heartbeat, shortness of breath, feel faint, or have any discomfort while you exercise, STOP! Consult your physician before continuing. Failure to follow any of these safeguards may result in injury or serious health problems.

• Do not remove shoes from pedals while cycling.
• Do not attempt to ride the bike at high RPM's or in a standing position until you have practiced at lower RPM's.
• Do not place fingers or any other objects into moving parts of the trainer or bicycle.
• Keep children and pets away from your bike and the trainer while in use. Do not allow children to ride on your bike.
• Never turn pedal crank arms by hand. To avoid entanglement and possible injury, do not expose hands or arms to the drive mechanism.
• Do not dismount from your bike until both the pedals and the rear wheel are at a complete STOP.

EN Knobby tires will cause excessive noise and vibration. Use a slick tire to avoid this. Use of trainers will decrease the life of your rear tire. For longer life, use a harder compound tire (part #9735T).

ES Las ruedas tanos provocaran ruidos y vibracion excessivos. Utilice ruedas lisas para evitarlo. El uso de los aparatos de entregamente reducirá la vida utl de la rueda trasera. Para prolongar la vida util, utilise una rueda fabricada con un compuesto mas duro (pieza n.9735T).
FR Les pneus a crampons font du bruit et provoquent des vibrations. Utilisez alotot un pneu lisse. L'utilisation d'un trainer reduit la durée de vie du pneu arriere. Pour une durée de vie accrue, utilisez un pneu dur (piece 9735T).
Stark profilerte Reifen erzeugen laute Abrollgeräutsche und Vibrationen. Deshalb wird die Verwendung von Reifen mit glatter Laufflache empfohlen.
DE Die Verwendung des Trainingsgerats verkurzt die Lebensdauer des Hinterradreifens. Fur eine langere Lebensdauer sollen den Reifen mit harterer Materialzusammensetzung verwendet werden (Teilenummer 9735T).
Gli pneumatici con battistrada tassellato provocano rumori e vibrazioni eccessive. Utilizzare uno pneumatico con battistrada liscio per evitarlo. L'uso di rulli da allenamento riduce la durata dello pneumatico posteriore. Per prolongarne la vita utilizzare uno pneumatico con una mescola più dura (componente n° 9735T).
NL Knobbelige banden veroorzaken lawaai en trillingen. Gebruik een profielloze band om dit te vermijden. Het gebruik van trainingstoestellen za de levensduur van uwchterband verzorten. Gebruik banden met een hardere compound om de levensduur te verlengen (onderdeel # 9735T).

1

TRAINER SETUP

MONTAJE DEL APARATO DE ENTRENAMIENTO

ASSEMBLAGE DU DISPOSITIF D'ENTRAINEMENT

Insert the "L" bolt through the base of the resistance unit. While holding resistance unit in place, insert carriage bolt into the square hole of the trainer frame, passing through the resistance unit, to the other side of the trainer frame. (Optional: Use a soft rubber mallet to tap the carriage bolt into the square hole.)

ES

EN The trainer is designed to be used with the provided skewer (part g). Failure to use included skewer may result in damage or injury. Replace the skewer on the rear wheel of your bike with the one provided. Make sure the quick release handle is on the left (non-drive) side of the bicycle and faces upward or backwards. Thru axle bikes will require a Saris thru axle accessory available at Saris.com. Bolt on / solid axle bikes may need tapered nuts.

Turn the yellow clutch knob until it clicks OR turn the black knob an additional 2.5 complete rotations so the roller presses into the tire.

Mag and Fluid2 set up complete. Proceed to step 4 for MAG+ Remote Shifter Installation only.

ES

Mag/Mag+ Resistance Unit

EN Pull the Shift Cable End (e) out from the Shift Housing End Cap (f). Route the exposed cable clockwise around the Semi-Circular Adjuster (h). Firmly press the Shift Cable End (e) into the Shift Cable End Hole (i) on the Resistance Unit casing. Grasp the Shift Housing End Cap (f) and place the remaining exposed cable into the Shift Cable Slit (g). The Shift Housing End Cap (f) should be seated into hole on the side of the resistance Unit.

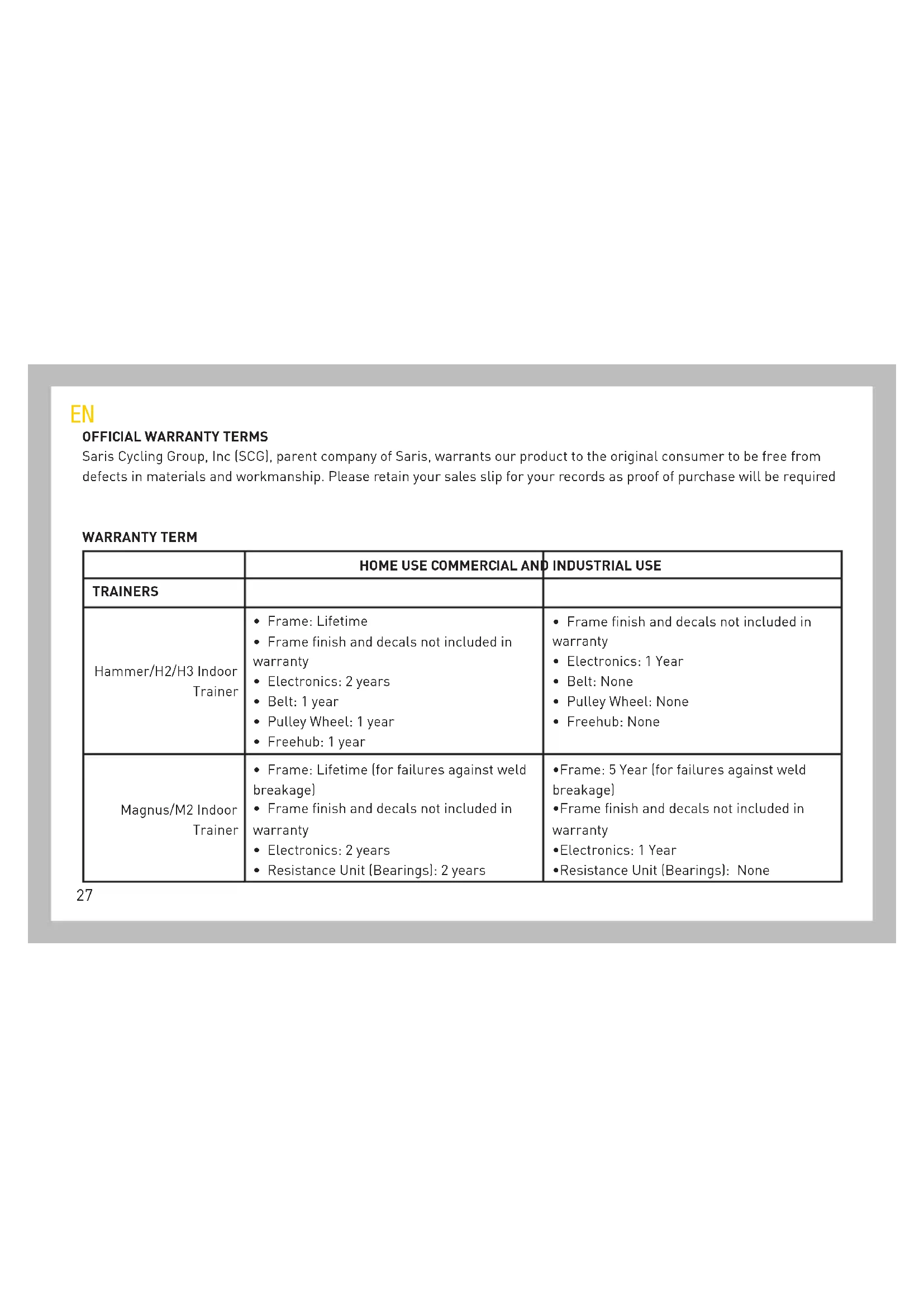

Saris Cycling Group, Inc (SCG), parent company of Saris, warrants our product to the original consumer to be free from defects in materials and workmanship. Please retain your sales slip for your records as proof of purchase will be required

WARRANTY TERM

	HOME USE COMMERCIAL AND INDUSTRIAL USE
TRAINERS
Hammer/H2/H3 Indoor Trainer	• Frame: Lifetime • Frame finish and decals not included in warranty • Electronics: 2 years • Belt: 1 year • Pulley Wheel: 1 year • Freehub: 1 year	• Frame finish and decals not included in warranty • Electronics: 1 Year • Belt: None • Pulley Wheel: None • Freehub: None
Magnus/M2 Indoor Trainer	• Frame: Lifetime (for failures against weld breakage) • Frame finish and decals not included in warranty • Electronics: 2 years • Resistance Unit (Bearings): 2 years	• Frame: 5 Year (for failures against weld breakage) • Frame finish and decals not included in warranty • Electronics: 1 Year • Resistance Unit (Bearings): None
Classic Trainers	·Frame: Lifetime (for failures against weld breakage) ·Frame finish and decals not included in warranty ·Resistance Unit (bearings, leakage): 2 years	·Frame: 5 Year (for failures against weld breakage) ·Frame finish decals not included in warranty ·Resistance Unit: None
PowerBean pro and PowerSync Trainer	·Frame: Lifetime (for failures against weld breakage) ·Electronics: 1 year
ROLLERS	·Frame: lifetime (for failures against breakage) ·Frame finish and decals not included in warranty ·Aluminum (bearings): 2 years	·Frame: No warranty on frame for failures against breakage ·Frame finish and decals not included in warranty ·Aluminum (bearings): None
INDOOR CYCLES	·Frame: 10 years ·Component parts, electronic components, paint/appearance: 1 year

EXCLUSIONS

The following items are considered wear items are NOT covered under warranty:

• Clutch knob
  L bolt
• RU rollers
• Bolt action bushings
• Trainer feet
• Roller resistance band
• Roller feet
• Mag Plus remote shifter
  Power Supply-magnus,hammer

Any product or part thereof found to be defective within the term as set forth above will be replaced without charge provided that: (1) its failure resulted from a defect in material or workmanship and not from normal wear and tear expected in the use of the product; (2) the product was not misused, improperly assembled, improperly maintained or damaged by accident; (3) there was no failure to follow instructions or warnings in Owner's Manual; (4) no alterations or modifications were made; and (5) the product or part is delivered, freight prepaid, to Saris Cycling Group or an authorized service center.

Please call 1-800-783-7257 to obtain return authorization prior to return. SCG reserves the right to inspect any product before issuing a replacement. SCG's only obligation shall be to replace such products or parts that it determines are defective.

Limitations

Saris warrants your product to be free of any defects in material or workmanship. This warranty does not apply to parts that have been worn out through normal use or damaged through misuse, abuse, neglect, accident, or unauthorized modi

fication. Where applicable, incidental and consequential damages are not covered, and there are no other warranties, expressed or implied. This warranty applies to the original owner only. Retain your receipt as proof of purchase.

The foregoing warranties are in lieu of and exclude all other warranties not expressly set forth herein, whether expressed or implied by operation of law or otherwise. Other than as set forth above, SCG makes no warranty, whether express, implied or statutory, with respect to any product, including, but not limited to, warranties of reliability, merchantability fitness for a particular purpose, or those arising from any course of performance, dealing, usage or trade. SCG shall not be liable for incidental or consequential losses, damages or expenses in connection with its products. SCG's liability hereunder is expressly limited to the replacement of goods not complying with this warranty or, at SCG's election, to the repayment of an amount of the purchase price of the product in question. Some states do not permit the exclusion or limitation of implied warranties or incidental or consequential damages, so the preceding limitations and exclusions may not apply to you.

Lifetime warranty available in North America only.

RECOMMENDED MAINTAINENCE

• Remove the bicycle from the trainer when not in use.
• Inspect the trainer parts on a regular basis.
• Keep clean with a dry cloth. Do not use cleaning supplies on this unit.
• Un-Plug unit when not in use when applicable.

ES

TERMINOS DE GARANTÍA OFICIAL
