1431 - Waffle Maker Cloer - Free user manual and instructions

Product type	Waffle maker
Brand	Cloer
Model	1431
Power supply	230 V, 50 Hz, 930 W
Dimensions (approx.)	30 x 20 x 15 cm
Weight (approx.)	2 kg
Plate coating	Non-stick
Browning control	Yes, by adjustment dial
Indicator lights	Green and red control light
Preheating	Position 1 of the regulator, light goes out when hot
Capacity	9 walnut-shaped waffles
Usage	Domestic, 2-3 hours per day max
Cleaning	Hot appliance with kitchen paper, then damp cloth, do not immerse
Safety	Grounding required, do not use outdoors or in wet conditions
Manufacturer warranty	Registration within 6 months at cloer.eu/guarantee
Repairability	Cloer after-sales service only
Included accessories	None mentioned
Housing material	Not specified

Frequently Asked Questions - 1431 Cloer

How to preheat the Cloer 1431 waffle maker?

Set the regulator to position 1. When the control light goes out, the appliance is hot and ready to use. Avoid preheating at a higher level to prevent overheating the coating.

How to adjust the browning level of waffles?

After preheating, turn the regulator to a low level for light waffles, or to a higher level for more golden waffles. The first waffle may not exactly match the setting.

Do I need to grease the non-stick plates?

No, the plates are non-stick. Only grease if you use cornstarch or milk, to prevent waffles from sticking.

How to clean the waffle maker?

Clean the appliance while still hot with kitchen paper. To finish, wipe the plates with a damp cloth. Never immerse the appliance in water and do not use sharp objects.

Why is there smoke during first use?

Manufacturing residues may burn off during the first few minutes. Ensure good ventilation during the initial heating. The first two waffles are not suitable for consumption.

What size dough balls to use?

Form 9 walnut-sized balls (about 3 cm in diameter). Dust your hands with flour. If the first waffles indicate an inappropriate size, adjust.

How to know if the waffle is cooked?

The red control light goes out and the green light comes back on. This indicates that the cooking process is complete.

Can I use metal objects to remove waffles?

No, do not use sharp objects like metal knives or forks, as this would damage the non-stick coating.

What is the required electrical voltage?

The appliance operates on a domestic mains socket of 230 V, 50 Hz. Check that your mains supply matches.

How to benefit from the manufacturer warranty?

Register your appliance within 6 months of purchase on the website cloer.eu/guarantee to benefit from the manufacturer warranty.

USER MANUAL 1431 Cloer

Exterior view of a modern office building (no signage)

Circular arrangement of dark textured square blocks with embossed patterns, no visible text or symbols

SPRACHEN - LANGUAGES

DE Bedienungsanleitung S.3
EN Instruction Manual....S. 6
NL Gebruiksaanwijzing....S. 9
FR Notice d'utilisation.... S. 12
IT Istruzioni sull'uso.... S. 15
ES Instrucciones de uso S. 18
LT Naudojimo instrukcija S. 20
SE Bruksanvisning.... S. 23
PL Instrukcja obsługi S. 26
HU Használati utasitás S. 29

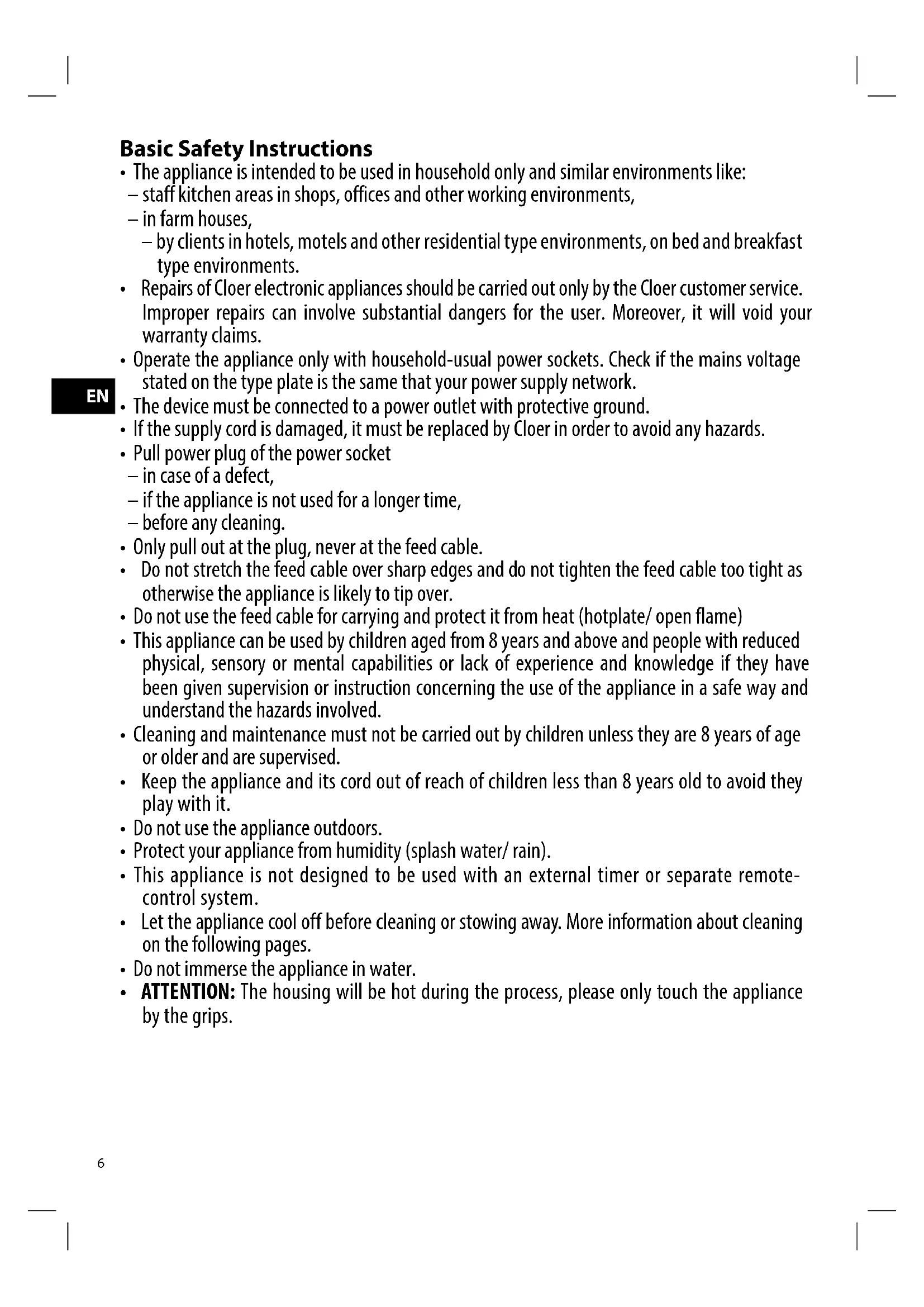

Basic Safety Instructions

- The appliance is intended to be used in household only and similar environments like:

• staff kitchen areas in shops, offices and other working environments,
  – in farm houses,

– by clients in hotels, motels and other residential type environments, on bed and breakfast type environments.

• Repairs of Cloer electronic appliances should be carried out only by the Cloer customer service. Improper repairs can involve substantial dangers for the user. Moreover, it will void your warranty claims.
• Operate the appliance only with household-usual power sockets. Check if the mains voltage stated on the type plate is the same that your power supply network.
• The device must be connected to a power outlet with protective ground.
• If the supply cord is damaged, it must be replaced by Cloer in order to avoid any hazards.
• Pull power plug of the power socket

– in case of a defect,
- if the appliance is not used for a longer time,
– before any cleaning.

• Only pull out at the plug, never at the feed cable.
• Do not stretch the feed cable over sharp edges and do not tighten the feed cable too tight as otherwise the appliance is likely to tip over.
• Do not use the feed cable for carrying and protect it from heat (hotplate/ open flame)
• This appliance can be used by children aged from 8 years and above and people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• Cleaning and maintenance must not be carried out by children unless they are 8 years of age or older and are supervised.
• Keep the appliance and its cord out of reach of children less than 8 years old to avoid they play with it.
• Do not use the appliance outdoors.
• Protect your appliance from humidity (splash water/ rain).
• This appliance is not designed to be used with an external timer or separate remote-control system.
• Let the appliance cool off before cleaning or stowing away. More information about cleaning on the following pages.
• Do not immerse the appliance in water.
• ATTENTION: The housing will be hot during the process, please only touch the appliance by the grips.

Technical Data

Type Volt Hz Watt
143 230	50 930

Before the first use

Read these operating instructions carefully before using the appliance for the first time.

• Remove all packaging elements and stickers, but not the rating plate.
• Place the waffle maker on a dry, flat, nonslip surface.
• Clean the baking surface with a damp cloth.
• Grease the baking surface before using it for the first time. Otherwise, greasing will not be needed due to the non-stick coating
• In case you use milk or corn-starch you should grease the surface from time to time to avoid that the waffles stick on the coating.
• Due to the production residues some smoke can appeared during the first minutes. Therefore, ensure good ventilation during the first time.
• The first waffles are unfit for human consumption because of hygienical reasons.

CE Label / Safety information

The appliance meets the requirements of the applicable CE directives.

The appliance is designed for indoor domestic use only.

ATTENTION! Always unplug the appliance when not in use and before cleaning.

Starting up / Preheating

- Plug the appliance into the wall socket. Set the controller to 1 to preheat the appliance. Preheating in a higher level should be avoided in order not to overheat the coat. Once the red light turns off you can begin baking the waffles.

ATTENTION! Appliance becomes hot. Do not touch any part of the appliance except the handles or the operating elements.

Baking

• After the preheating the browning regulator can be adjusted as desired. Select a low setting for light waffles or a high setting for dark waffles. The first waffle does not exactly correspond to the browning level selected, for this reason, you should wait until the following waffle before changing the browning level.
• First, form nine small walnut-sized balls out of the dough. This is best done with floury hands.
• Place the balls in the baking tin.
• Close the appliance and press down the handles. This way, the dough will spread even over the surface. Once the red light is on you do not need to continue pressing anymore. The filling process should be quick, otherwise the waffle will not be even browned in both sides.
• Shortly after having filled in the dough the green control lamp goes out. The red control lamp lights up.
  • After termination of the baking process the red control lamp goes out and the green one lights up again
• The waffle is ready.
• You can tell whether your balls were too big or too small from the first cinnamon waffles. You will very quickly identify the correct size.

Notes

• Greasing before baking is unnecessary for non-stick baking surfaces if you follow our recipes.
• This device is designed for normal home use with an average daily use duration of two to three hours. After this, it must be carefully cleaned. It is not suitable for permanent or commercial use.
• Do not remove the waffles from the device with sharp objects (e.g. knives, metal forks). This could destroy the non-stick coating.

Cleaning

• Use a paper towel to clean the appliance while still warm.
• Tip: Place two absorbent paper towels between the baking surfaces and close the appliance
• Afterwards, wipe the waffle maker with a damp cloth but never under running water.
• Do not use caustic cleaning agents.

Environmentally friendly disposal

We use environmentally friendly packaging for the transport of our appliances. Please recycle cardboard/paper and plastic packaging appropriately.

ATTENTION!

Electrical appliances should not be disposed of with the household trash.

Electrical appliances contain valuable raw materials. When an appliance is worn-out, please take it to a recognised recycling facility. Consult the local authorities for information on recycling appliances.

EN

Warranty

Cloer electrical appliances are in conformity with the currently required EC-guidelines and safety regulations. If your Cloer electrical appliance has a defect or it does not work properly, contact your specialist dealer. Registered clients have at their disposal our technical customer service.

Manufacturer warranty

Please register your appliances in the period of 6 months since the purchase in order to benefit from our manufacturer warranty. The published conditions of warranty in the moment of the registration are valid. You will find conditions of warranty and product registration here:

Manufacturer warranty

https://cloer.eu/guarantee

– in geval van storing.

© 2024 by Cloer Germany GmbH&CoKG
