USER MANUAL SHP78DP5N BOSCH

Register youroppliance and jointhe Bosch

family of perks: Bosch-home.com/us/ mybosch

Dishwasher

[en-us] Installation Instructions Dishwasher 2

1 IMPORTANT SAFETY INSTRUCTIONS. 3

1.1 Safety definitions 3
1.2 General information 3
1.3 Safe Installation 3
1.4 Electrical safety 3
1.5 State of California Proposition 65Warnings 4

2 Before you begin 5

2.1 Inspect the Dishwasher 5
2.2 Parts Included.. 5
2.3 Tools and Parts Needed 5
2.4 Pre-install Checklist.. 6
2.5 Electrical Requirements 6
2.6 Cabinet Requirements 6

3 Installation Preparation 7

4 Installation Procedure 7

4.1 Attach Water Inlet Hose 7
4.2 Visual Leak Check 8
4.3 Pre-level the Dishwasher 8
4.4 Attach Power Cord 9
4.5 Mounting Brackets 9
4.6 Prepare Hoses and Power Cord 11
4.7 Install Dishwasher in Cabinet Space 11
4.8 Level the Dishwasher 12
4.9 Outer Door Assembly 12
4.10 Secure the Dishwasher 13

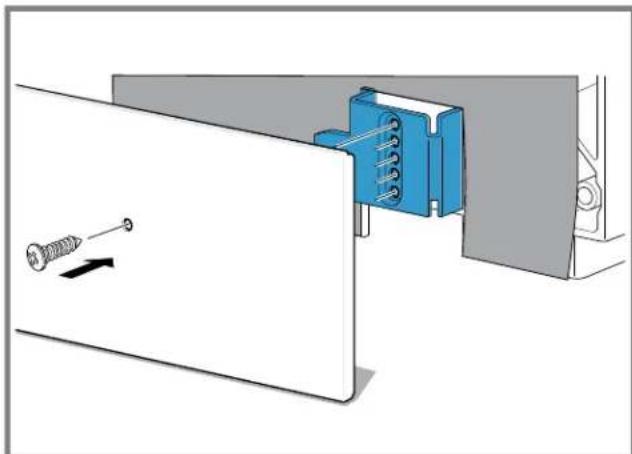

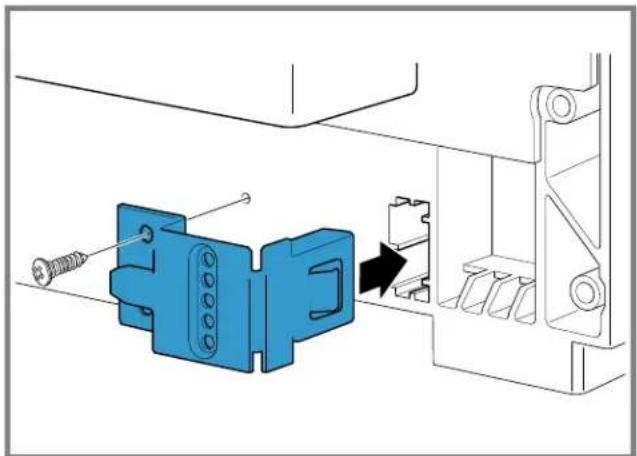

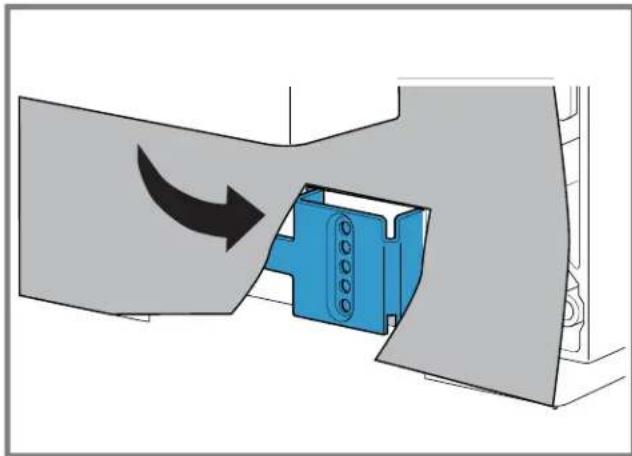

4.11 Attach the Standard Toe Panel 13

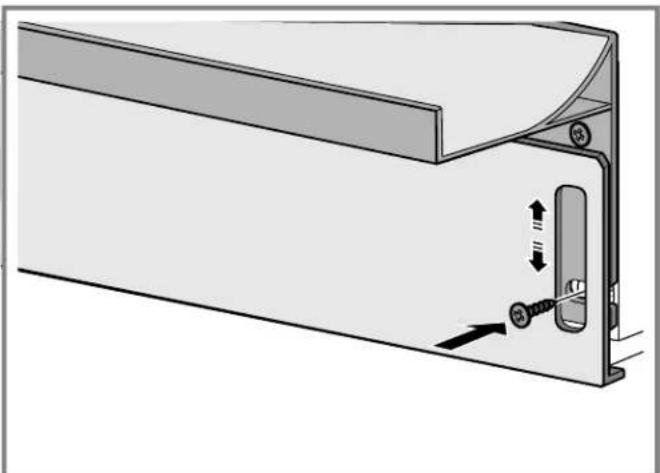

4.12 Attach Plastic Toe Panel 14

5 Dishwasher Connection 14

5.1 Installing the Water Inlet Connection 14
5.2 Installing the Drain Connection 15
5.3 Electrical Connection and Test Cycle 16

6 Customer Service 16

6.1 Model number (E-Nr.) and production number (FD) 16

IMPORTANT SAFETY INSTRUCTIONS READ AND SAVE THESE INSTRUCTIONS

Read all instructions carefully before use. These precautions will reduce the risk of electrical shock, fire and injury to persons. When using kitchen appliances, basic safety precautions must be followed including those in the following pages.

1.1 Safety definitions

Here you can find explanations of the safety signal words used in this manual.

WARNING

This indicates that death or serious injuries may occur as a result of non-observation of this warning.

CAUTION

This indicates that minor or moderate injuries may occur as a result of non-observation of this warning.

NOTICE:

This indicates that damage to the appliance or property may occur as a result of non-compliance with this advisory.

Note: This alerts you to important information and/or tips.

1.2 General information

To reduce the risk of fire, electrical shock, or serious injury, observe the following.

• Read and understand all instructions before using the appliance.
• Keep the provided documents in a safe place for future reference or for the next owner.
• Do not connect the appliance if it has been damaged in transit.
• Severe product damage and/or injury could result from the use of unqualified service technicians or non-original parts. All repairs must be performed by an authorized service provider using only original equipment factory replacement parts.
  NSF/ANSI 184 Certified residential dishwashers are not intended for licensed food establishments.

1.3 Safe Installation

Follow these safety instructions when installing the appliance.

These instructions are intended for use by qualified installers only. The dishwasher must be installed by a qualified technician or installer.

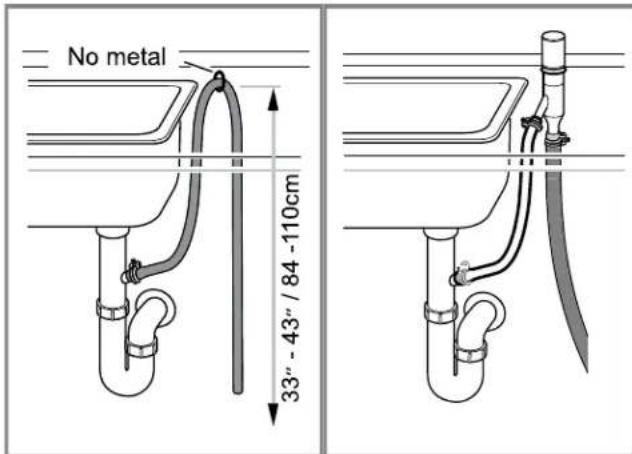

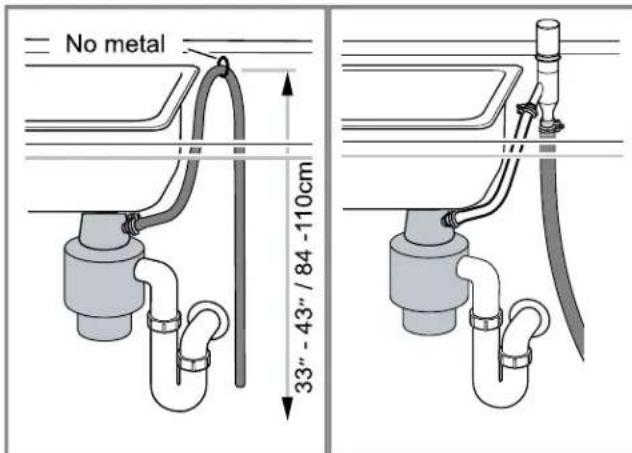

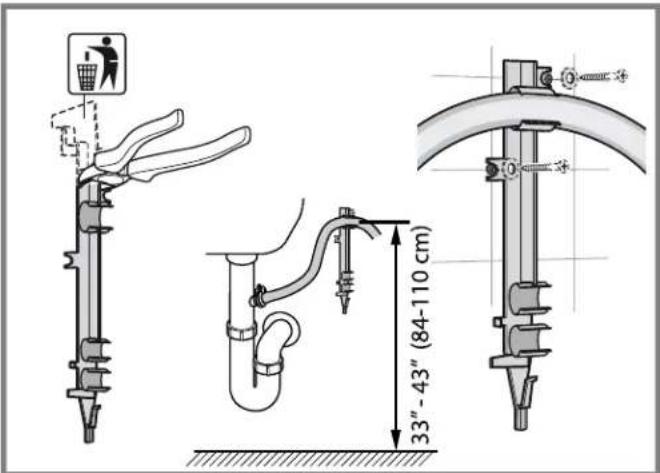

• The dishwasher drain hose must be installed with a portion of it at least 33'' (84 cm) off the floor; otherwise the dishwasher may not drain properly.
  This dishwasher is not for outdoor use. It is intended for indoor residential use only, and should not be used in commercial food service establishments.
• This dishwasher is designed to be enclosed on the top and both sides by cabinetry.
• NEW INSTALLATION - If the dishwasher is a new installation, ensure all connections are properly made before the dishwasher is moved into place.
• REPLACEMENT - If the dishwasher is replacing another dishwasher, check the existing dishwasher connections for compatibility with the new dishwasher, and replace parts as necessary.
  This appliance has been found to be in compliance with CAN/CSA-C22.2 No. 167/UL 749. It is the responsibility of the owner and the installer to determine if additional requirements and standards apply in specific installations.

WARNING

Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. Hydrogen gas is explosive.

Before using a dishwasher that is connected to a hot water system that has been unused for two weeks or longer, turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is explosive, do not smoke or use an open flame during this time.

1.4 Electrical safety

Follow these safety instructions to avoid electrical shock.

• The dishwasher must be properly grounded before operating. This appliance must be connected to a grounded metal permanent wiring system or an equipment grounding conductor must be run with the circuit conductors and connected to the equipment grounding terminal or lead on the dishwasher.
  DO NOT use an extension cord
• DO NOT reuse an old power cord; only use the cord provided.
  Make sure that the dishwasher is connected to a suitable ground in compliance with all local codes or, in the absence of a local code, with the NATIONAL

IMPORTANT SAFETY INSTRUCTIONS READ AND SAVE THESE INSTRUCTION

ELECTRICAL CODE in the United States or the CANADIAN ELECTRIC CODE C22.1-last edition in Canada as well as any provincial/state or municipal or local codes that apply
- Installations requiring hard wiring and terminal block - The accessory terminal block/junction box model, SMZPCJB1UC, designed for permanent wire connection, is not included but can be ordered through Customer Service by calling 1-800-944-2904. Follow the instructions included with the kit.

WARNING

Avoid Electrical Shock

Do not work on an energized circuit. Doing so could result in serious injury or death. Only qualified electricians should perform electrical work. Do not attempt any work on the dishwasher electric supply circuit until you are certain the circuit is de-energized.
To avoid possible injury or property damage, care should be exercised when the dishwasher is installed or removed to reduce the likelihood of damage to the power cord.

WARNING

Avoid Fire Hazard

Make sure electrical work is properly installed and checked by qualified electricians.
Make sure there are no loose electrical connections. Make sure all electrical connections are properly made. Loose and improperly installed electrical connections can result in overheating!

Wall outlet connections

• Only use the provided power cord for wall socket connections.
  DO NOT attach an extension cord or any type of modified cord or adapter with this appliance.
  DO NOT cut or splice the power cord.
  DO NOT alter the power cord in any way.

Permanent wire connections (in addition to the warnings above)

Only use the junction box power cord, sold as Accessory kit #SMZPCJB1UC.
- Carefully review the terminal block installation instructions.
DO NOT remove, alter or bypass the terminal block.

1.5 State of California Proposition 65Warnings

This product may contain a chemical known to the State of California, which can cause cancer or reproductive harm. Therefore, the packaging of your product may bear the following label as required by California:

STATE OF CALIFORNIA PROPOSITION 65 WARNING:

WARNING

Cancer and Reproductive Harm - www.P65Warnings.ca.gov

2 Before you begin

Read these instructions before you begin to install your appliance.

2.1 Inspect the Dishwasher

After unpacking the dishwasher and prior to installation, thoroughly inspect the dishwasher for possible freight or cosmetic damage. Report any damage immediately. Cosmetic defects must be reported within 30 days of installation. NOTE: Do not discard any bags or items that come with the original package until after the entire installation has been completed.

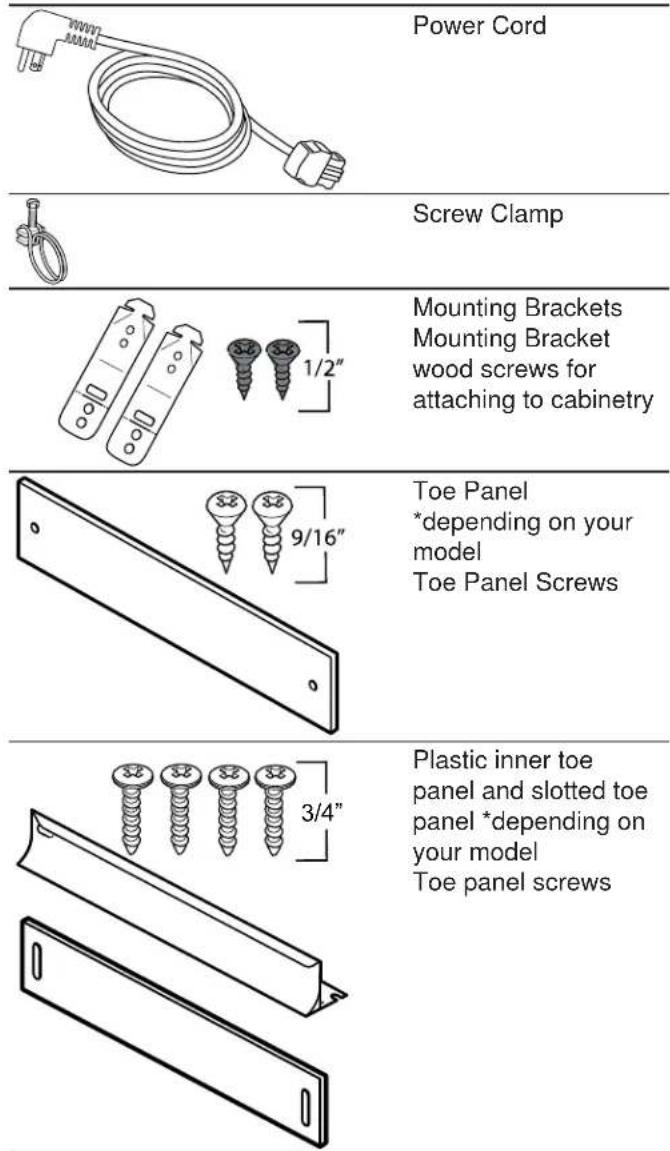

2.2 Parts Included

After unpacking all the parts, check for any damage in transit or missing parts.

3/4" Toe Panel Brackets Toe Panel Bracket Screws
x 4	Fully integrated panel kit and instructions *depending on your model
x 2
x 6
x 2

2.3 Tools and Parts Needed

Gather these tools and additional parts before beginning the installation of your appliance.

Tools

Power drill
Hole saw
Measuring tape
Phillips screwdriver
Flat screwdriver
Adjustable wrench x2
Pliers
Level
Coarse sandpaper
Parts
	Elbow connection with 3/4" female hose threads on one end fits your water supply line on the other.
	Water inlet hose - minimum 3/8" outer diameter copper tubing or metal braided dishwasher supply line. * Both the elbow and the water inlet hose can be found in the dishwasher supply kit SMZSH1ABUC.
	Shut-off valve and fittings appropriate for hot water supply line.

2.4 Pre-install Checklist

Ensure that the following requirements are met when planning the installation of your appliance.

WARNING

Avoid Scalding or Electric Shock Hazard
Make sure the water supply and electrical supply are shut off before installation or service.
Do not allow the electrical and supply lines to touch.
- Select a location as close to the sink as possible for easy access to water supply and drain lines.
- Be sure the unit is installed close enough to the sink so the drain hose length does not exceed 92^ (2337 mm) and so that a portion of the drain hose is raised at least 33^ above the floor level.
Ensure that the enclosure is square and the opening is at least 34^ (863.3 mm) high and 24^ (609.6 mm) wide.
- Check that the opening in the cabinet is large enough for routing the electric cable, water line, and drain hose, and if not, create a new opening. See "Installation Preparation", Page 7
If the opening is wood, be sure it is sanded smooth. If it is metal, be sure it is covered by a protective gasket.
- Be sure that your water heater set at 120^ F (49^ C) and the water pressure measures at 15-145 psi (1-10 bar)
Determine the mounting method based on the dishwasher model and counter-top type. See "Mounting Brackets", Page 9.

• Only use the included hardware for the installation. If you are replacing a dishwasher, dispose of old hose and other equipment properly.
• To avoid scratching the floor, have floor protection ready for when the dishwasher will be slid into the cabinet.

2.5 Electrical Requirements

Ensure that the following electrical requirements are met.

Dishwasher electrical rating

Volts 120

Hertz 60

Amperes 12

Watts 1,440 (max)

Electrical Supply

The customer has the responsibility of ensuring that the dishwasher electrical installation is in compliance with all national and local electrical codes and ordinances. The dishwasher is designed for an electrical supply of 120V, 60Hz , AC, connected to a dishwasher-dedicated, properly grounded electrical circuit with a fuse or breaker rated 15 or 20 amps.

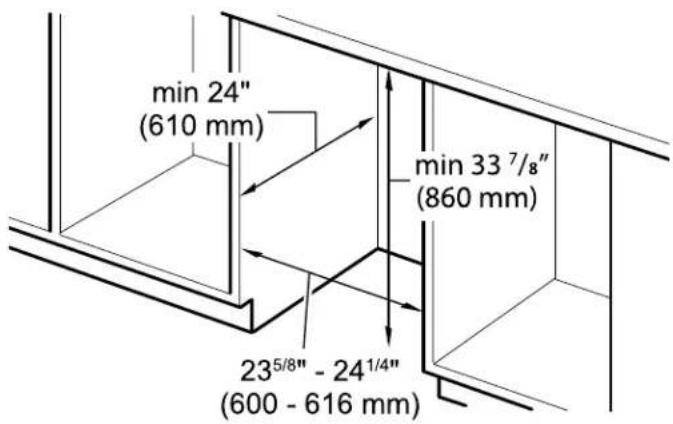

2.6 Cabinet Requirements

Ensure that the cabinet space for the installation meets the required dimensions.

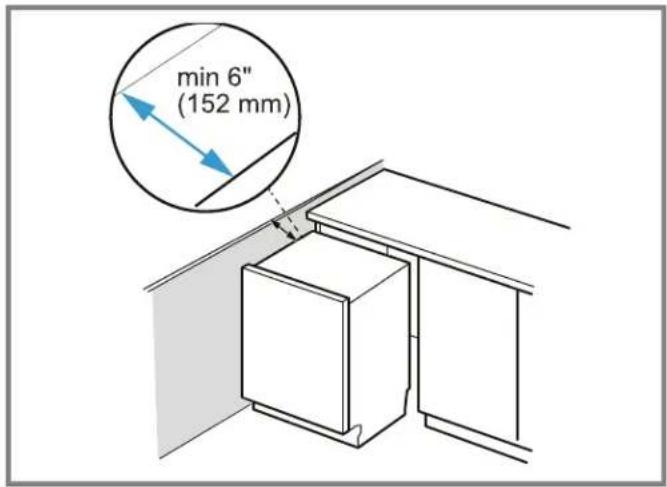

If the dishwasher is to be installed in a corner, ensure that there is adequate clearance to open the door as shown.

3 Installation Preparation

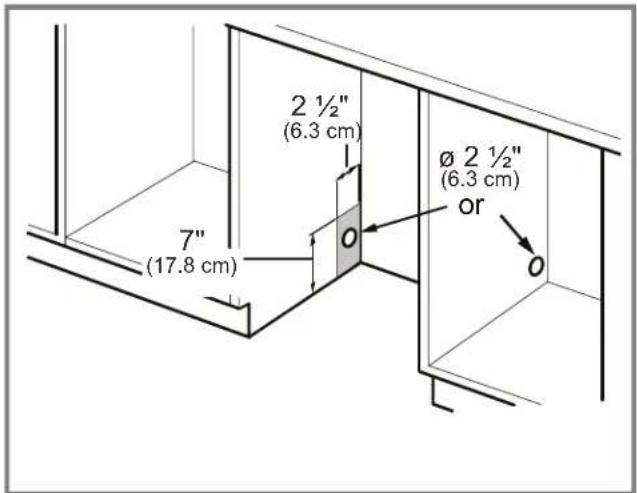

After locating the proper place for your dishwasher, create an opening to allow for water, drain and electrical lines on the appropriate side.

1. Cut a hole within the 7 × 2.5 area shown.

If the opening is made through wood, sand it smooth with coarse sandpaper.

If the opening is made through metal, use the Edge Protector with Power Cord clips Kit SMZEPCC1UC.

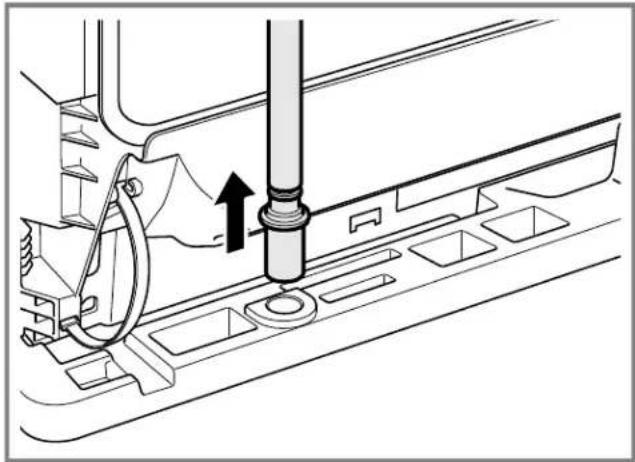

1. Pull the drain hose out of the packaging base as shown.

1. Set the toe panel aside for later use.

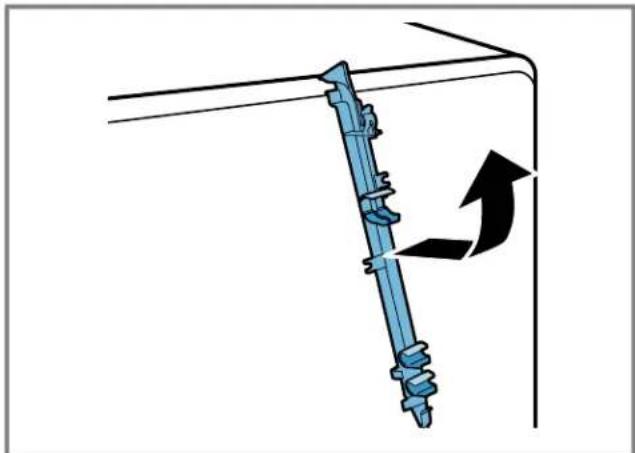

2. Remove the hose clip at the back of the dishwasher.

It can be used later to hold the drain hose inside your cabinet.

4 Installation Procedure

Follow these instructions to install the dishwasher.

4.1 Attach Water Inlet Hose

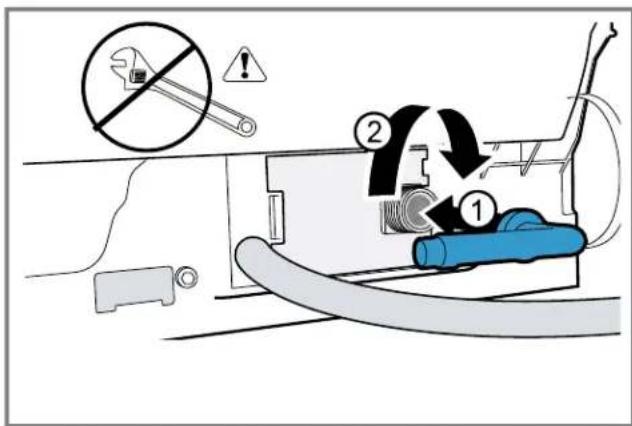

NOTICE:

Avoid cross-threading

Cross-threading will cause leaks.

Teflon tape

• Do not use Teflon tape; it could cause leaks and damage floors or cabinetry.

• Attach elbow joint to the water inlet valve with the open end facing towards the direction of the sink, either to the left or the right. ①Turn by hand and do not over tighten ②.

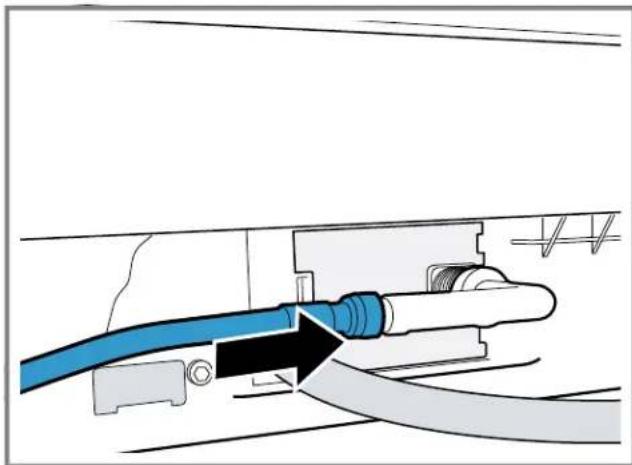

1. Attach hot water line to elbow.

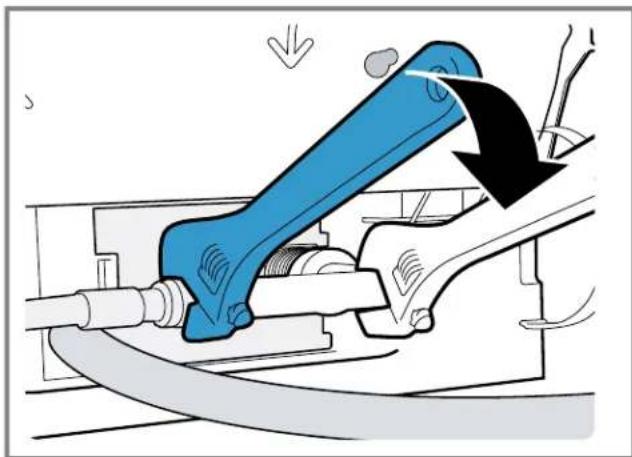

1. Use two wrenches to tighten, using one to stabilize and avoid putting stress on the water inlet valve.

4.2 Visual Leak Check

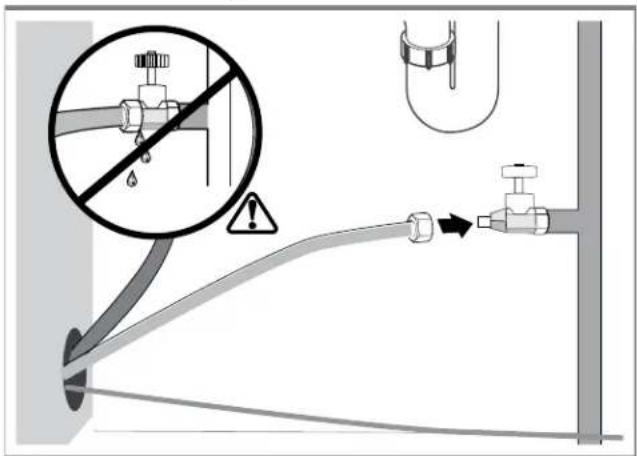

1. Temporarily hook up water supply under the sink by going through the front of the sink cabinet. Do not turn on the power or push the dishwasher into the niche.
2. Turn the water on and check for leaks at the water inlet hose connection on the back of the dishwasher.

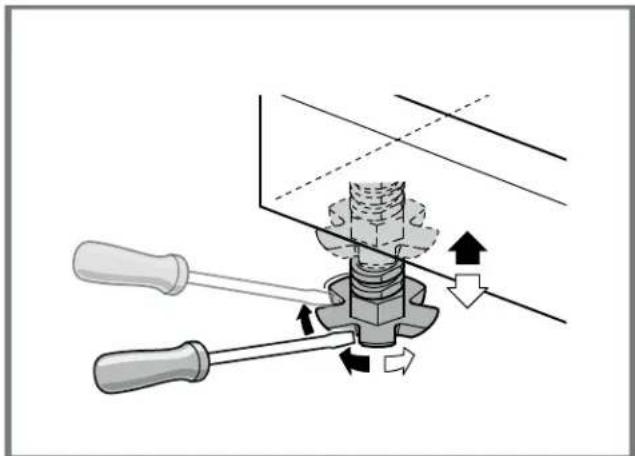

4.3 Pre-level the Dishwasher

Set the dishwasher to the correct height before it goes into the cabinet.

1. Measure the height of the cabinet opening.

2. Raise the front of the dishwasher to approximately 1/2 lower than the height of the opening by turning the feet clockwise.

3. You can raise the rear foot after the unit is in the cabinet opening.

The maximum height the unit can be raised to is 34.5" (867.3 mm)

1. Use a level on the top front to see that both feet are even. (The back foot will be adjusted after it is in the cabinet.)

4.4 Attach Power Cord

Plug the end of the supply cord into the back of the dishwasher.

• Be sure to push it all the way in until fully seated.

The outlet for the power supply cord should be located in a cabinet or wall adjacent to the dishwasher cabinet. Do not plug dishwasher into the wall outlet until all the steps of the installation are complete.

Notes

Only use the included power cord. If cord is missing order kit SMZPC002UC through Customer Service.
If you require a permanent wiring connection, order kit junction box accessory kit SMZPCJB1UC.
If local electrical codes require clips to secure the power cord wire to the dishwasher, use accessory kit SMZEPCC1UC.

4.5 Mounting Brackets

Before installing the supplied mounting brackets, decide which method of securing the dishwasher into its enclosure will be used, top (wood or porous material) or side (stone or solid surface). Once the mounting brackets are installed on the dishwasher, removing them is difficult

and will damage the mounting brackets and the dishwasher. If you have a Fully Integrated Panel, do not attach mounting brackets until after attaching the panel to the door.

WARNING

Avoid tip over hazard

Do not use the dishwasher until it is completely installed. When opening the door on an uninstalled dishwasher, carefully open the door while supporting the rear of the unit. Failure to follow this warning can result in serious injury.

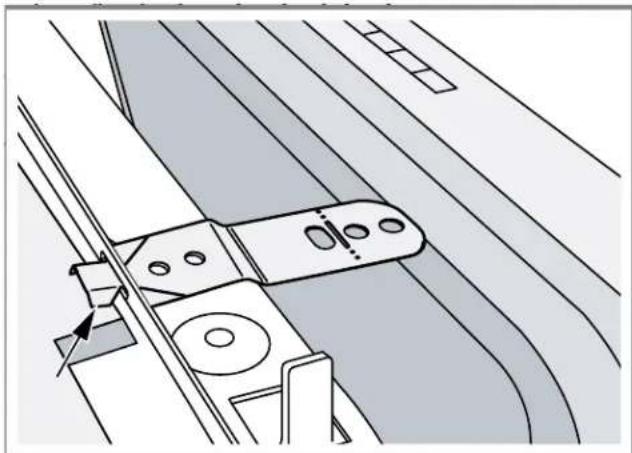

Top Mount

Top Mount is used for counter tops made of wood or other materials that can be easily drilled.

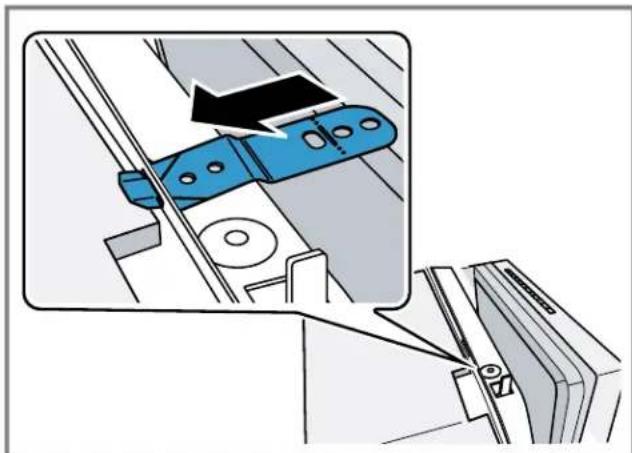

1. Orient the mounting brackets and insert in the correct slot.

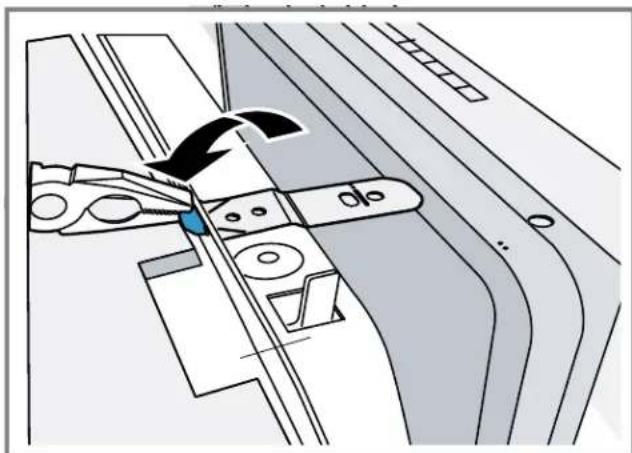

1. Using pliers, bend side flanges down. Do not attach to cabinet yet.

Side Mount

Side Mount is used for counter tops made of marble, granite, or other solid surface material that cannot be easily drilled.

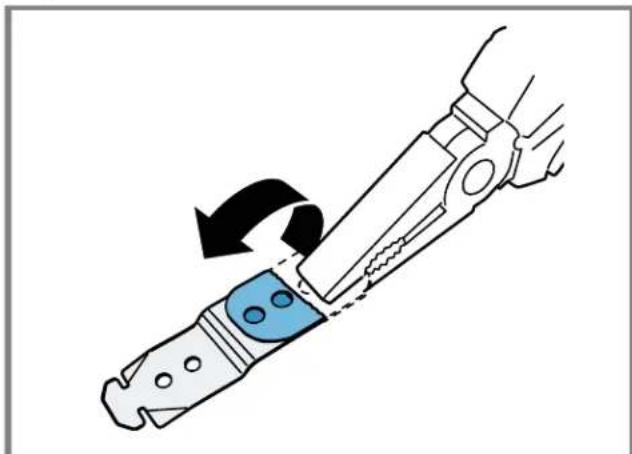

CAUTION

Avoid sharp edges

Do not break the mounting brackets; causes sharp edges.

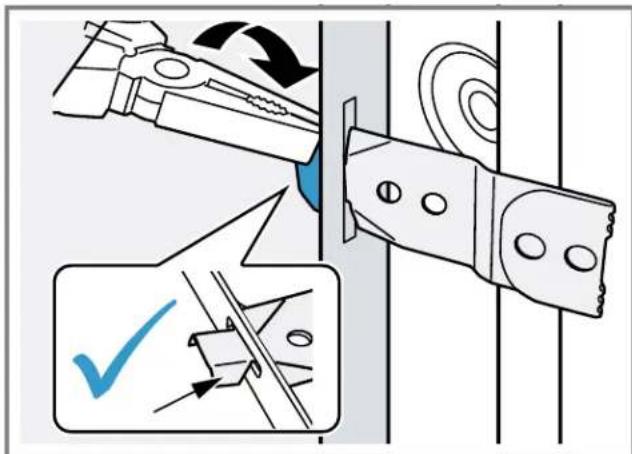

1. Grasp mounting bracket with pliers and fold bracket at the perforation over onto itself.

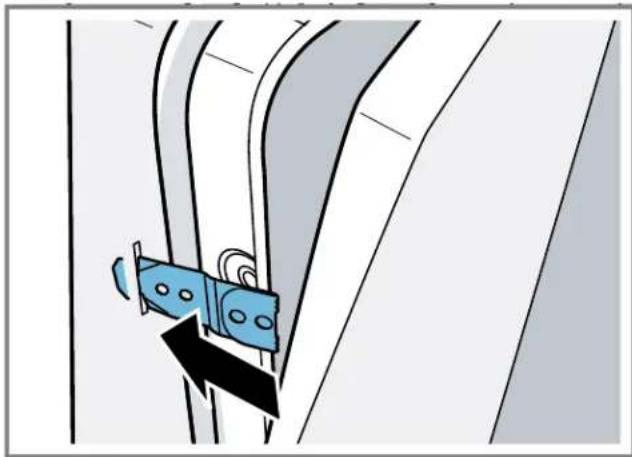

1. Slip bracket flange through side slots in frame.

1. Using pliers, bend side flanges. Do not attach to cabinet yet.

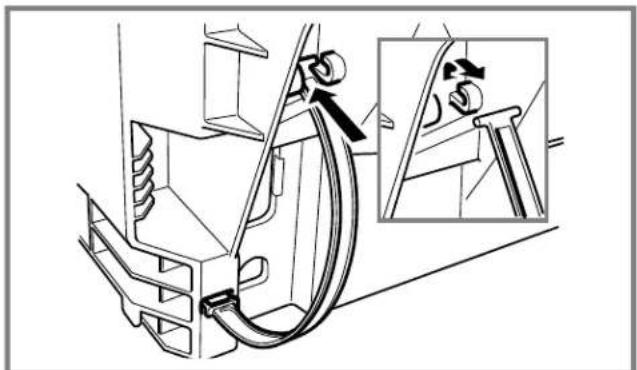

4.6 Prepare Hoses and Power Cord

The dishwasher drain hose is configured for a sink on the left side of the installation location. If your sink is on the right side, you will need to reposition the drain hose behind the dishwasher before installing.

1. If needed, unhook the strap and reposition the drain hose per your requirements.(If your sink is to the left side, leave the hose as it came.)

1. Position the drain hose, water inlet hose and the power cord so they all run through the strap on the appropriate side.

1. Attach the strap back in place to secure the hoses and cord.

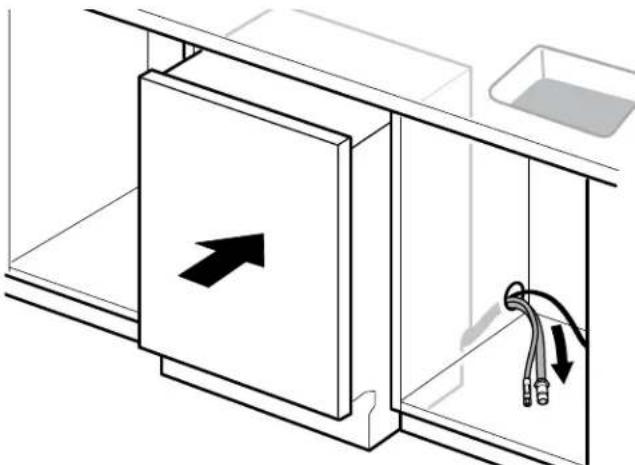

4.7 Install Dishwasher in Cabinet Space

To avoid scratching the floor, use floor protection and caution when sliding the dishwasher into the cabinet.

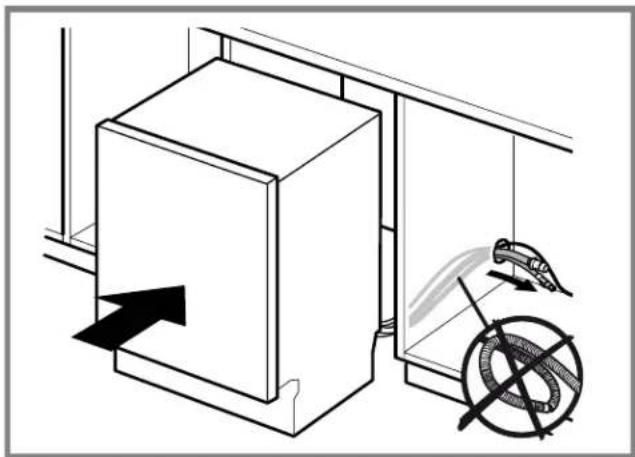

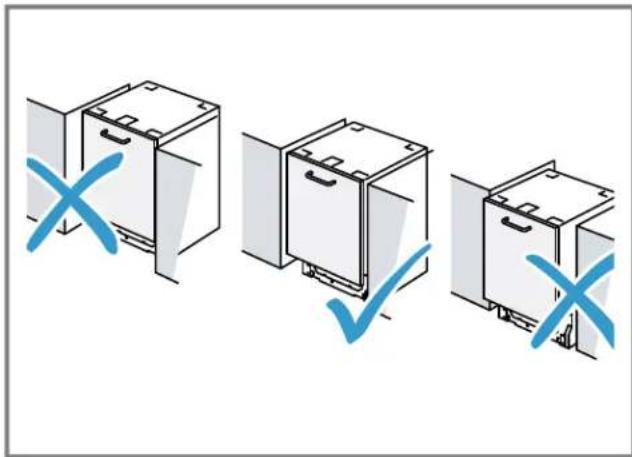

NOTICE:

Avoid Hose Kinks

• Be careful while pushing dishwasher in. The hoses can fold, kink or break, potentially causing an obstruction or leak.

• Feed the power cord through the low hole in the cabinet first and then add the hoses.

• Using both hands, push dishwasher 1/3 of the way into the cabinet and STOP.

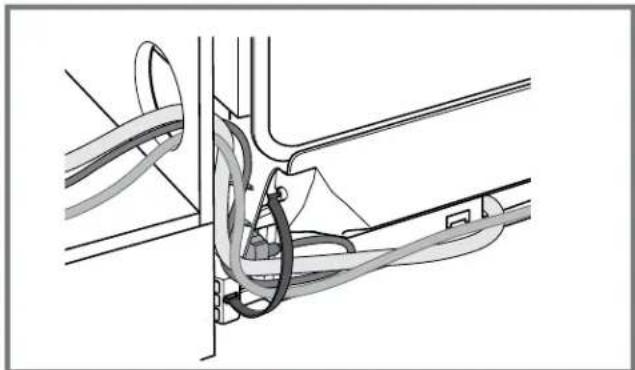

1. Pull the hoses and power cord through the hole in cabinet as shown.

2. Push the unit 2/3 of the way into the opening and STOP.

1. Reach into adjacent cabinet and pull hoses and excess power cord completely out so they do not get kinked.

1. Finally, push the unit in until flush with cabinet door.

4.8 Level the Dishwasher

Now that the dishwasher is in the cabinet, check the levels again.

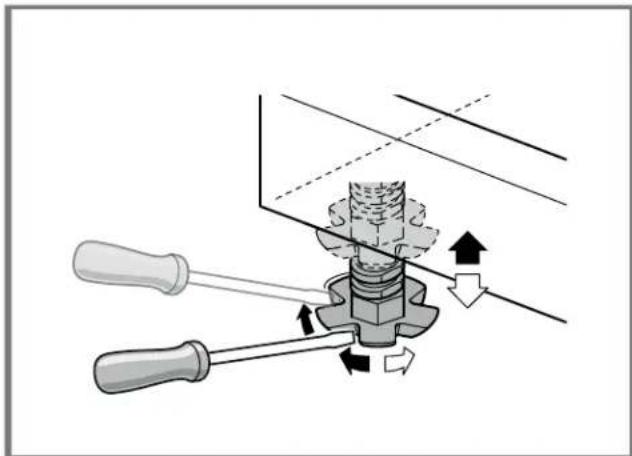

1. Level side to side by turning feet clockwise to raise or counter-clockwise to lower front.

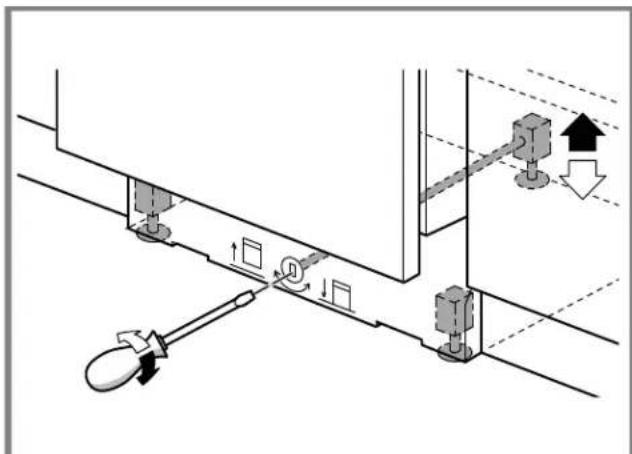

1. Level front to back by turning center screw clockwise to raise or counter-clockwise to lower the back.

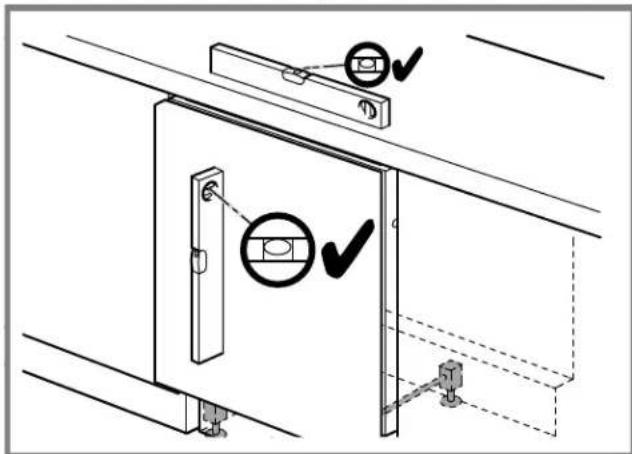

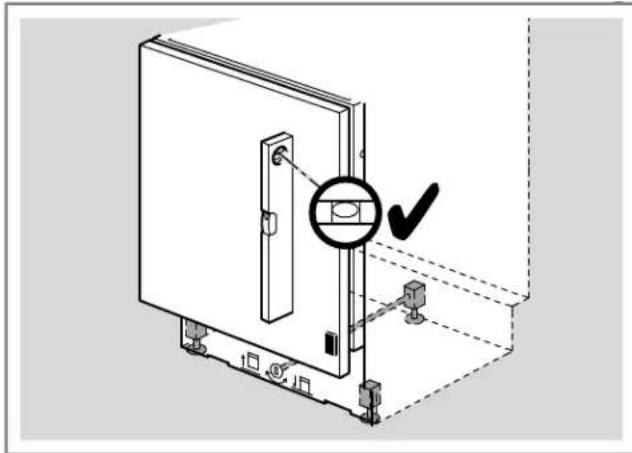

1. Use a level to check that your dishwasher is level. Check that the countertop is level and adjust the dishwasher to the countertop.

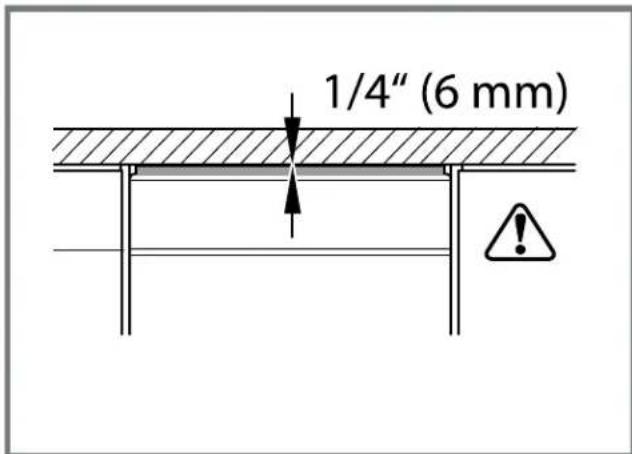

1. Make sure the top of the door is no less than 1/4 (6mm) from the underside of the counter.

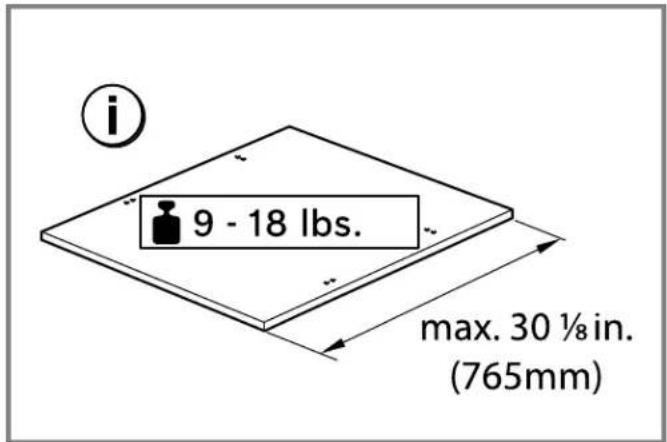

4.9 Outer Door Assembly

• Follow the instructions for outer door assembly on the fully integrated template.

Note: The door panel should weigh between 9 and 18 lbs, be at least 3/4'' thick, and not exceed 3018'' in length.

4.10 Secure the Dishwasher

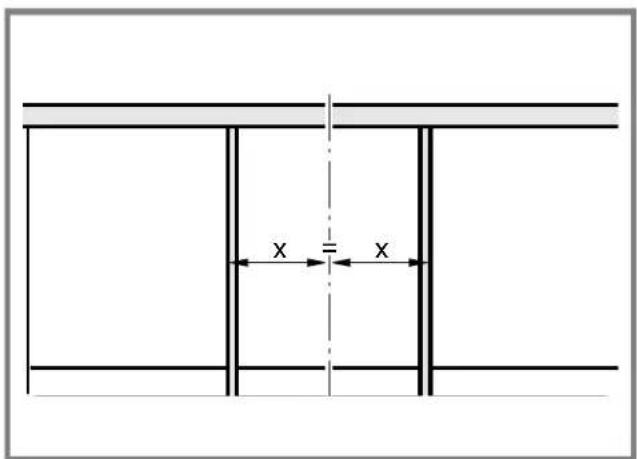

1. Center the dishwasher in the opening.

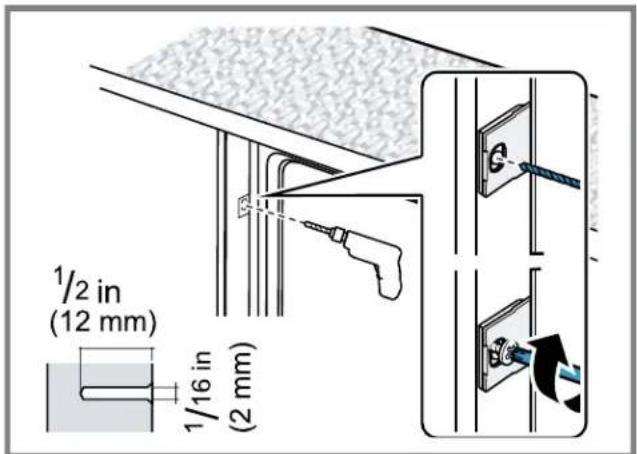

1. If using the Top Mount, and screw the 1/2'' (12.7mm) wood screws through the holes in the mounting brackets. Choose the bracket hole best suited for your installation.

If the dishwasher came with a protective barrier, screw through the barrier.

1. For Side Mount, lift the flap on the deco strip and insert the 1/2'' (12.7mm) wood screws underneath.

4.11 Attach the Standard Toe Panel

1. Insert the toe panel brackets into the openings on both sides by pressing hard until they are fully seated.
2. Use the 3/4'' (19mm) toe panel bracket screws to mount metal brackets to the base

1. If your model has a rubber apron, tuck it behind the tabs on the metal brackets as shown.

1. Slide toe panel into position ensuring the bottom of the toe panel is flush with the floor.
2. Use the 9/16" (14mm) toe panel screws to mount the toe panel through the hole it matches up with on the metal brackets.

The toe panel height can be adjusted by screwing into a different hole in the bracket.

1. If your model has a rubber apron, open the door to make sure that the apron is in the correct position. Ensure the apron does not bind up and can freely move up and down behind the toe panel.

4.12 Attach Plastic Toe Panel

If your dishwasher came with a plastic toe panel and slotted toe panel, follow these instructions.

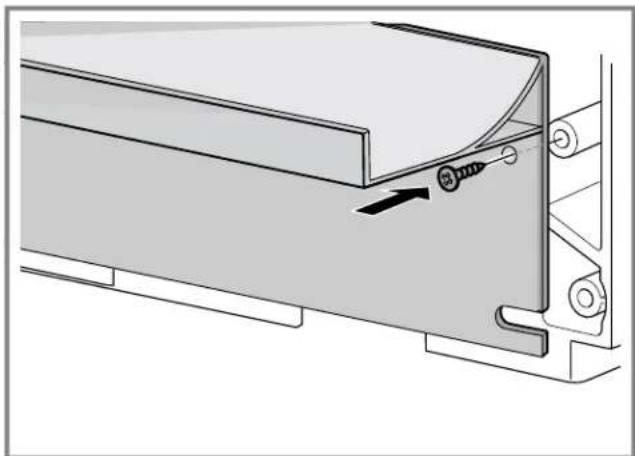

1. Align the plastic toe panel on the base of the dishwasher so the holes lines up.

2. Attach using 2 of the included 3/4'' (19mm) screws.

3. Use only the included screws to avoid damaging the dishwasher.

1. Slide the slotted toe panel into position ensuring that the bottom of the toe panel is flush with the floor.
2. Screw the slotted toe panel into place with the remaining 3/4 (19mm) screws.

5 Dishwasher Connection

Follow these instructions to connect the dishwasher.

5.1 Installing the Water Inlet Connection

The hot water heater should be set to deliver approximately 120^ F (49^) water to the dishwasher. Water that is too hot can cause some detergents to lose

effectiveness. Lower water temperatures will increase run times. The hot water supply pressure must be between 15 - 145 psi (1 - 10 bar).

WARNING

Scalding Hazard

• Do not perform any work on a pressured hot water line. Serious injury could result. Only qualified plumbers should perform plumbing work. Do not attempt any work on the dishwasher hot water supply plumbing until you are certain the hot water supply is shut off.

NOTICE:

Soldering plumbing lines

• Temperatures required for soldering and sweating will damage the dishwasher. If plumbing lines are to be soldered or sweated, keep the heat source at least 6 inches (152.4 mm) away from the dishwasher.

Plumbing codes

• Check local plumbing codes for approved plumbing procedures and accessories. All plumbing should be done in accordance with national and local codes.

Note

Important notes for water connection:

If using a solder joint instead of a compression fitting, be sure to complete all solder connections before connecting the water supply line to the dishwasher.
Use an approved dishwasher water supply line with the correct fittings for this connection.
If using copper tubing or other material not depicted in this manual for water supply, defer to a licensed plumber for proper installation.
Always use appropriate seals when making plumbing connections.

1. Flush the incoming water line for approximately 1 minute to clear any foreign material.
2. Connect the dishwasher water supply line to the water shut off valve.

Install a shut off valve if one isn't already in the supply line.
- Make sure there are no sharp bends or kinks in the water line that might restrict water flow.

1. Properly tighten all water connections.

2. After all connections are made, turn on the hot water and check for leaks.

5.2 Installing the Drain Connection

The drain hose must be installed with either a high loop or an air gap.

NOTICE:

Proper drain hose installation

The dishwasher drain hose must be installed with a portion of it at least 33^ (84 cm) off the floor; otherwise the dishwasher may not drain properly.

Remove garbage disposal plug

If the dishwasher drain hose will be connected to a garbage disposal connection, first remove the plug from the disposal connection.

Note

Important notes for drain connection:

If local ordinance require an air gap, install it according to the manufacturer's instructions.
The drain hose length can be extended if necessary. Use kit #SGZ1010UC. The maximum length of the drain hose, including the hose leading to the air gap, is 150^ (380 cm).
- You may attach the hose clip the inside of the adjacent cabinet to hang the drain hose (screws are not supplied) in place of using a nonmetallic tie as pictured in the next illustrations. Do not exceed 43" in drain hose height.

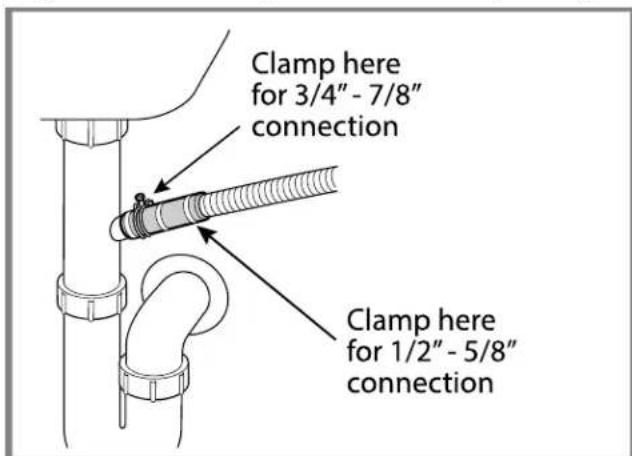

1. Place hose clamp around end of drain hose BEFORE connecting to the plumbing.
2. If you have a garbage disposal, connect the drain hose to the garbage disposal with either a high loop or an air gap.

1. If you do not have a garbage disposal, connect the drain hose to the drain connection with either a high loop or an air gap.

1. Tighten the hose clamp around the house plumbing.

5.3 Electrical Connection and Test Cycle

1. For wall outlet connections, plug the dishwasher into the outlet.
2. Turn on power supply.
3. Make sure the water supply is on.
4. Turn the dishwasher on and run a test cycle for 15 minutes.
5. Check to make sure the cycle operates and there are no leaks while it is running.
6. Stop the cycle and turn off the dishwasher.
7. Your installation is complete.

6 Customer Service

With any warranty repair, we will make sure your appliance is repaired by an authorized service provider using genuine replacement parts. We use only genuine replacement parts for all repairs.

Detailed information on the warranty period and terms of warranty can be found in the Statement of Limited Product Warranty, from your retailer, or on our website.

If you contact Customer Service, you will need the model number (E-Nr.) and the production number (FD) of your appliance.

USA:

1-800-944-2904

www.bosch-home.com/us/owner-support/get-support www.bosch-home.com/us/shop

CA:

1-800-944-2904

www.bosch-home.ca/en/service/get-support

www.bosch-home.ca/en/service/cleaners-and-accessories

For assistance with connecting to Home Connect®, you can also view instructions here:

www.home-connect.com/us/en/help-support/set-up

6.1 Model number (E-Nr.) and production number (FD)

You can find the model number (E-Nr.) and the production number (FD) on the appliance's rating plate.

The rating plate is located inside the appliance door.

Making a note of your appliance's details and the

Customer Service telephone number will enable you to find them again quickly.

Table des matieres

1 IMPORTANTES CONSIGNES DE SECURITE 18

1.3 Installation suture

4 Procedure d-installation

www.bosch-home.com/us/owner-support/get-support www.bosch-home.com/us/shop

CA:

1-800-944-2904

www.bosch-home.ca/en/service/get-support

www.bosch-home.ca/en/service/cleaners-and-accessories

www.home-connect.com/us/en/help-support/set-up

www.bosch-home.com/us/owner-support/get-support www.bosch-home.com/us/shop

CA:

1-800-944-2904

www.bosch-home.ca/en/service/get-support

www.bosch-home.ca/en/service/cleaners-and-accessories

www.home-connect.com/us/en/help-support/set-up

Register your appliance to enjoy customized benefits.

Thank you for being a Bosch customer!

Simply create a MyBosch account, then register your appliance.

You'll find a variety of customized information in MyBosch such as:

Discounts for filters, cleaners, accessories & parts
- Easy access to manuals & appliance specifications
- Easy access to part lists
- Customized offer for the Bosch Appliance Service Plan (sent by mail after appliance registration)

Register here:

www.bosch-home.com/us/owner-support/mybosch

BOSCH

HOMEAPPLIANCES

SERVICE

Looking for help?

You'll find it here.

No matter what, no matter when: Bosch is here to support you.

We're here to assist with usage instructions, cleaning tips, accessories & parts, troubleshooting, and repairs.

Find online resources such as FAQs, how-to-videos, manuals, warranties and authorized Bosch servicers at:

www.bosch-home.com/us/owner-support/get-support

Contact us:

Please have your Model Number (E-Nr) ready when contacting us.

1-800-944-2904

www.bosch-home.com/us/owner-support/contact-us

BSH Home Appliances Corporation

1901 Main Street, Suite 600

Irvine, CA 92614

USA

www.bosch-home.com

1-800-944-2904

© 2023 BSH Home Appliances Corporation

9001831461 (030426) 650A US

en-us,fr-cca-mx
