USER MANUAL OHEGBPS1 Videotec

Wide range power supply in airtight casing for cameras IN from 100Vac up to 240Vac, 50/60Hz - OUT 12Vdc, 1.25A

OHEGBPS2B

Power supply kit in airtight casing for cameras IN 230Vac, 50Hz - OUT 24Vac, 50Hz, 400mA

Technical illustration of an electronic device with mounting base and internal components (no text or symbols)

EN English - Instruction manual

Power supply kit in airtight casing for cameras IN 230Vac, 50Hz - OUT 24Vac, 50Hz, 400mA

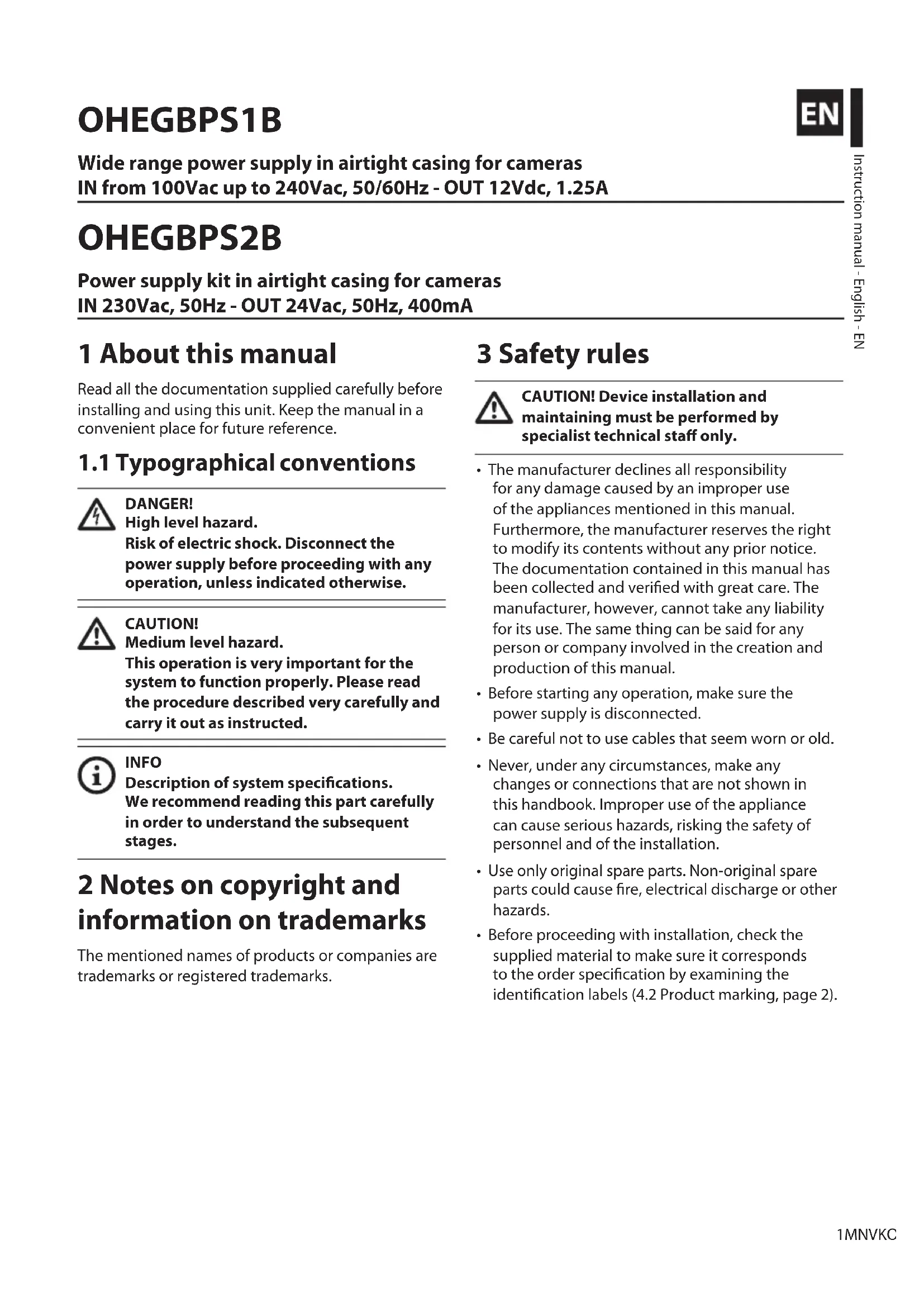

1 About this manual

Read all the documentation supplied carefully before installing and using this unit. Keep the manual in a convenient place for future reference.

1.1 Typographical conventions

DANGER!

High level hazard.

Risk of electric shock. Disconnect the power supply before proceeding with any operation, unless indicated otherwise.

CAUTION!

Medium level hazard.

This operation is very important for the system to function properly. Please read the procedure described very carefully and carry it out as instructed.

INFO

Description of system specifications. We recommend reading this part carefully in order to understand the subsequent stages.

2 Notes on copyright and information on trademarks

The mentioned names of products or companies are trademarks or registered trademarks.

3 Safety rules

CAUTION! Device installation and maintaining must be performed by specialist technical staff only.

• The manufacturer declines all responsibility for any damage caused by an improper use of the appliances mentioned in this manual. Furthermore, the manufacturer reserves the right to modify its contents without any prior notice. The documentation contained in this manual has been collected and verified with great care. The manufacturer, however, cannot take any liability for its use. The same thing can be said for any person or company involved in the creation and production of this manual.
• Before starting any operation, make sure the power supply is disconnected.
• Be careful not to use cables that seem worn or old.
• Never, under any circumstances, make any changes or connections that are not shown in this handbook. Improper use of the appliance can cause serious hazards, risking the safety of personnel and of the installation.
• Use only original spare parts. Non-original spare parts could cause fire, electrical discharge or other hazards.
• Before proceeding with installation, check the supplied material to make sure it corresponds to the order specification by examining the identification labels (4.2 Product marking, page 2).

4 Identification

4.1 Product description and type designation

OHEGBPS1B:

Wide range power supply in airtight casing for cameras.

For housings VERSO, VERSO POLAR, HEG, HTG.

IN from 100Vac up to 240Vac, 50/60Hz -OUT 12Vdc, 1.25A.

OHEGBPS2B:

Power supply in airtight casing for cameras.

For housings VERSO, VERSO POLAR, HEG, HTG.

IN 230Vac, 50Hz - OUT 24Vac, 50Hz, 400mA.

4.2 Product marking

See the label attached to the product.

5 Preparing the product for use

Any change that is not expressly approved by the manufacturer will invalidate the guarantee.

5.1 Unpacking

When the product is delivered, make sure that the package is intact and that there are no signs that it has been dropped or scratched.

If there are obvious signs of damage, contact the supplier immediately.

When returning a faulty product we recommend using the original packaging for shipping.

Keep the packaging in case you need to send the product for repairs.

5.2 Contents

Check the contents to make sure they correspond with the list of materials as below:

- Weatherproof box

• Power supply
• Electronic board

- Corrugated tubes

- Cable glands

- Instruction manual

5.3 Safely disposing of packaging material

The packaging material can all be recycled. The installer technician will be responsible for separating the material for disposal, and in any case for compliance with the legislation in force where the device is to be used.

6 Connections

Before starting any operation, make sure the power supply is disconnected.

Never power the kit with a voltage different from the one indicated.

CAUTION! The type of cable used must be compatible with the planned use. Comply with the national regulations in force on electrical installation.

Earth cable should be about 10mm longer than the other two, so that it will not be disconnected accidentally if pulled.

Connect the safety earth to the relative terminal of the power supply connector.

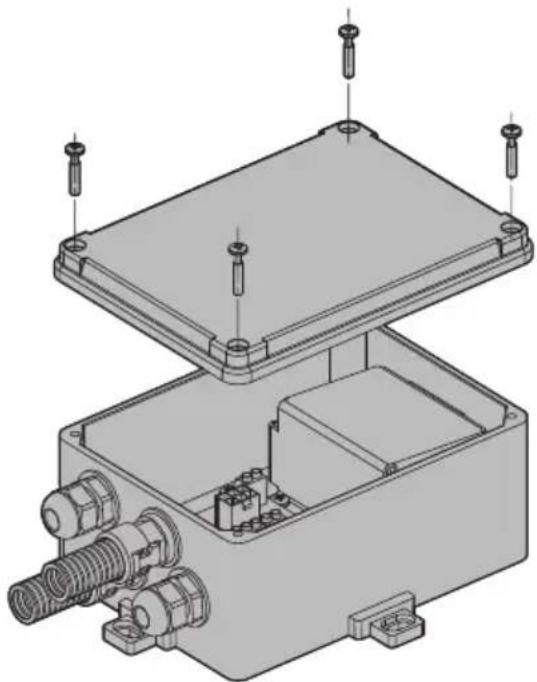

Open the box unscrewing the screws.

Insert the cables inside the weatherproof box using the cable glands.

Connect terminal J3 to the camera.

Connect the power supply terminal J1 to the electric network.

J1 J3

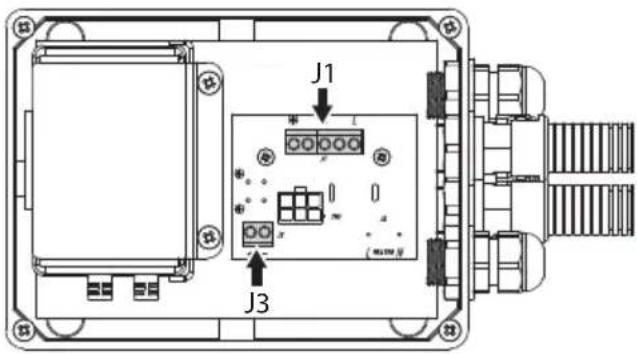

Fig. 1 View inside airtight casing

V_IN N L J1 TH1 J4 HEATER N + - V_OUT

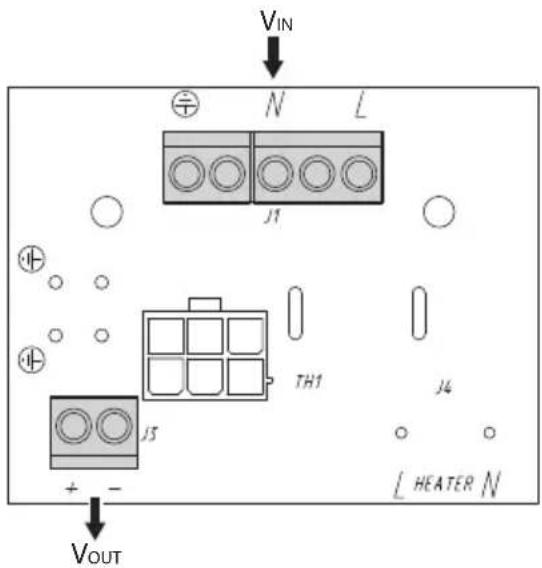

Fig. 2 The supplied board

Nominal section of the cables used: from 0.5mm^2 up to 2.5mm^2 .

Close the box.

7 Disposal of waste materials

This symbol mark and recycle system are applied only to EU countries and not applied to other countries of the world.

Your product is designed and manufactured with high quality materials and components which can be recycled and reused.

This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste.

Please dispose of this equipment at your local Community waste collection or Recycling centre. In the European Union there are separate collection systems for used electrical and electronic products.

OHEGBPS2B

V_IN N L J1 TH1 J4 HEATER N + - V_OUT

Barcode image containing encoded data, no human-readable text visible
