Pure ONE A50S - Vacuum Cleaner TINECO - Free user manual and instructions
Find the device manual for free Pure ONE A50S TINECO in PDF.
| Product Type | Cordless Stick Vacuum |
| Brand | Tineco |
| Model | Pure ONE A50S (compatible with GO PET PRO and T3 PET series) |
| Power Source | Lithium-ion battery 25.2 V, 500 W |
| Dust Bin Capacity | 1 L |
| Charger Input | 100-240 V~, 50/60 Hz |
| Filtration | Washable HEPA filter |
| Suction Modes | ECO, AUTO, MAX |
| Smart Sensor | iLoop (dirt detection loop with blue to red indicator) |
| Display | LED indicators: battery level, air path blockage, brush roll blockage, mode |
| Foldable Tube | Yes (A50S model) |
| Brush Roll | Motorized with blockage indicator |
| Battery Type | Removable Li-ion, part number ZB2377-7S1P-01A |
| Usage | Domestic, indoor only |
| Warranty | 2-year limited |
| Included Accessories | Motorized nozzle, tube, crevice tool (not detailed) |
| Maintenance | Regular cleaning of dust bin and HEPA filter |
Frequently Asked Questions - Pure ONE A50S TINECO
User questions about Pure ONE A50S TINECO
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Vacuum Cleaner in PDF format for free! Find your manual Pure ONE A50S - TINECO and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Pure ONE A50S by TINECO.
USER MANUAL Pure ONE A50S TINECO
Stick Vacuum Cleaner
Bedienungsanleitung
Instruction Manual
Manual De Uso
Mode D'emploi
INHALT
Important Safety Instructions....11
Specifications 14
Troubleshooting....15
Warranty 16
Assembly 71
Overview....73
Indicators 75
Charging Options....77
Maintenance 78
MORE LANGUAGES

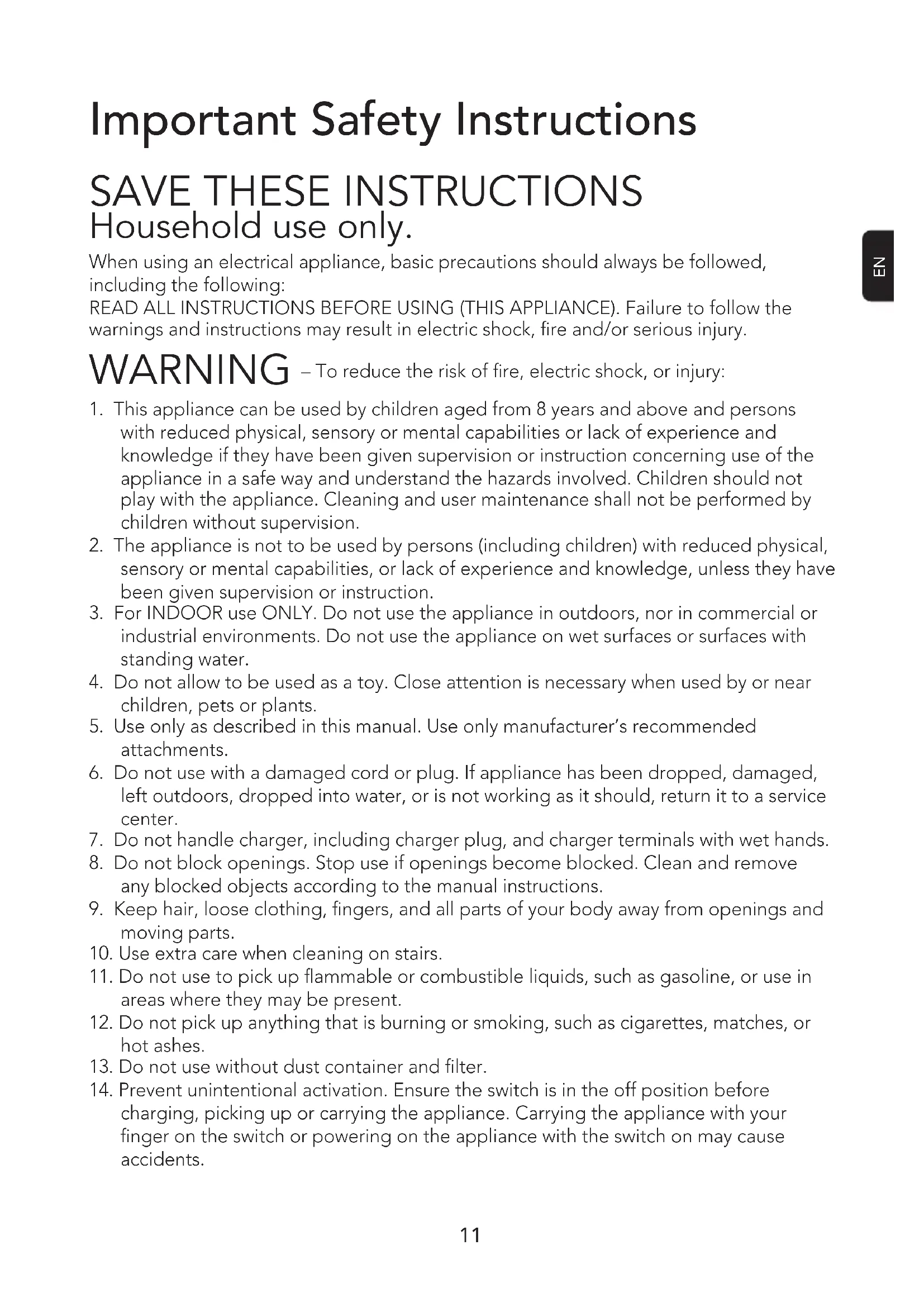

Important Safety Instructions
SAVE THESE INSTRUCTIONS Household use only.
When using an electrical appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE). Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
WARNING – To reduce the risk of fire, electric shock, or injury:
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance shall not be performed by children without supervision.
- The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
- For INDOOR use ONLY. Do not use the appliance in outdoors, nor in commercial or industrial environments. Do not use the appliance on wet surfaces or surfaces with standing water.
- Do not allow to be used as a toy. Close attention is necessary when used by or near children, pets or plants.
- Use only as described in this manual. Use only manufacturer's recommended attachments.
- Do not use with a damaged cord or plug. If appliance has been dropped, damaged, left outdoors, dropped into water, or is not working as it should, return it to a service center.
- Do not handle charger, including charger plug, and charger terminals with wet hands.
- Do not block openings. Stop use if openings become blocked. Clean and remove any blocked objects according to the manual instructions.
- Keep hair, loose clothing, fingers, and all parts of your body away from openings and moving parts.
- Use extra care when cleaning on stairs.
- Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
- Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
- Do not use without dust container and filter.
-
Prevent unintentional activation. Ensure the switch is in the off position before charging, picking up or carrying the appliance. Carrying the appliance with your finger on the switch or powering on the appliance with the switch on may cause accidents.
-
For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
-
Disconnect the battery pack from the appliance before making any adjustments, changing accessories, or storing appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.
-
Under improper usage, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid comes into eye contact, seek medical help. Liquid ejected from the battery may cause irritation or burns.
-
Do not use the appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
-
Do not expose the appliance to fire or excessive heat. Exposure to fire or temperatures above 266^ F ( 130^ C) may cause an explosion.
-
Follow all charging instructions and do not charge the appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
-
Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
-
Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care.
-
Always turn off this appliance before connecting or disconnecting the motorized nozzle.
-
Do not charge or store the appliance outdoors or inside a car. Only charge, store or use the appliance in a dry indoor area where the temperature is higher than 39.2^ F ( 4^ C) but lower than 104^ F ( 40^ C). The charger is for indoor use only.
-
Use appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
-
When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
-
The power supply unit shall not be used, if pins of the plug part are damaged.
For use only with TINECO Li-ion battery ZB2377-7S1P-01A.
Press the release button to remove the battery pack, and slide it back to install.
Rechargeable batteries are to be removed from the appliance before being charged.
Different types of batteries or new and used batteries are not to be mixed.
Batteries are to be inserted with the correct polarity.
Exhausted batteries are to be removed from the appliance and safely disposed of.
If the appliance is to be stored unused for a long period, the batteries should be removed.
The supply terminals are not to be short-circuited.
Recycling Instructions according to Battery Law
The rechargeable battery contains materials that are harmful to the environment and must therefore be removed from the device before disposal.
The device must be switched off to remove the rechargeable battery.
Batteries and rechargeable batteries must not be disposed of in household waste! Every consumer is obliged to hand in all batteries and rechargeable batteries, regardless of whether they contain harmful substances or not, at a collection point in his or her municipality/district or at a retailer, so that they can be disposed of in an environmentally friendly manner. Batteries and rechargeable batteries should only be returned when discharged.
Batteries and rechargeable batteries are therefore marked with the symbol left.
Recycling Instructions according to WEEE
Waste electrical and electronic equipment must not be disposed of with household waste! Every consumer is obliged to hand in all appliances at the end of their service life at a collection point in his or her municipality/district or at a retailer so that they can be disposed of properly and in an environmentally friendly manner.
The illustration left shows the wheelie bin symbol indicating separate collection of waste electrical and electronic equipment (WEEE).
For EU Countries:
Hereby declare that this product complies with the essential requirements of all relevant directives and regulations applicable in the European Community. The Declaration of Conformity (DoC) can be obtained from our website.
Visit https://global.tineco.com/compliance/
Your declaration will be downloaded as a PDF file.
Symbols:
 | Read the instruction manual |
 | For indoor use only |
 | Direct current |
 | Alternating current |
Specifications
| Product Name | PURE ONE A50S / Tineco GO PET PRO Series / T3 PET Series |
| Voltage 25.2V | = |
| Rated Power 500W | |
| Dustbin Capacity 1L | |
| AC Input | 100-240V~ |
Troubleshooting
| Problem Possible cause Solution | ||
| The appliance does not turn on | No power Charge the battery | |
| The suction mouth is blocked Check and remove blockages | ||
| The battery is still connected to the adapter | Disconnect the battery from the adapter | |
| Weak suction power | Dustbin and filter are full Clean the dustbin and filter | |
| Parts assembly is not in position | Check all the parts and put them in position | |
| The appliance is blocked (i.e. the tube, suction mouth or some other parts) | Remove blockages | |
| Abnormal motor sounds | The appliance is blocked (i.e. the tube, suction mouth or some other parts) | Remove blockages |
| Brush roller tangled indicator blinking | The brush roller is blocked Remove blockages | |
| Air channel blocked indicator blinking | The appliance is blocked, or full of dust in filter and dustbin | Remove blockages |
| Battery won’t charge | The adapter is not inserted in position | Remove the adapter and reinsert correctly |
| The adapter is not correct Use the original adapter | ||
| Rapid blinking red light on battery | The battery is overheated Let the battery cool | |
| The adapter is not correct Use the original adapter | ||
| Slow blinking red light on battery | The battery is out of power Charge the battery | |
Note:
If the above troubleshooting guide fails to provide a solution, please visit our website www.tineco.com for further support.
Warranty
2-YEAR LIMITED WARRANTY
- Only applies to purchases made from authorized retailers of Tineco.
- Is subject to the adherence of the requirements outlined in this instruction manual, and is subject to further conditions outlined below.
- This warranty is governed by and construed under the laws of the country in which the purchase took place. We provide 2-year warranty or a warranty period as stipulated by applicable local law, whichever is longer.
WHAT IS COVERED?
- Your Tineco appliance has a 2-year warranty against original defects in material and workmanship, when used for private household purposes in accordance with the Tineco Instruction Manual. Motorized accessories bought separately come with a 1-year warranty.
- This warranty provides, at no extra cost to you, all labor and parts necessary to ensure your appliance is in proper operating condition during the warranty period.
- This warranty will only be valid if the appliance is used in the country in which it was sold.
WHAT IS NOT COVERED?
Tineco shall not be liable for costs, damages or repairs incurred as a result of:
- Appliances purchased from an unauthorized dealer.
- Careless operation or handling, misuse, abuse and/or lack of maintenance or use not in accordance with the Tineco Instruction Manual.
- Use of the appliance other than for normal domestic purposes, e.g. for commercial or rental purposes.
- Use of parts not in accordance with the Tineco Instruction Manual.
- Use of parts and accessories other than those produced or recommended by Tineco.
- External factors unrelated to product quality and use, such as weather, modifications, accidents, electrical outages, power surges or acts of God.
- Repairs or alterations carried out by unauthorized parties or agents.
- Failing to clear blockage and other hazardous material from the appliance.
- Normal wear and tear, including normal wearing parts, such as clear bin, belt, filter, HEPA, brush bar, and power cord (or where external damage or abuse is diagnosed), carpet or floor damage due to use not in accordance with manufacturer's instructions or failure to turn the brush bar off when necessary.
- Reduction in battery discharge time due to battery age or use.
WARRANTY LIMITATIONS
- Any implied warranties relating to your appliance including but not limited to warranty of merchantability or warranty of fitness for a particular purpose, are limited to the duration of this warranty.
- Warranty coverage applies to the original owner and to the original battery only and is not transferable.
- This limited warranty gives you specific legal rights. You may also have other rights which vary by region.
- Manufacturer's warranties may not apply in all cases, depending on factors such as use of the product, where the product was purchased, or who you purchased the product from.
Please review the warranty carefully, and contact the manufacturer if you have any questions.
WARRANTY SERVICE
Register: We highly recommend that upon purchase, you register your appliance by logging into our official website (www.tineco.com) or scanning the QR code (see right) to enjoy more exclusive benefits. To register, please enter the whole serial number.
Failure to register your product won't diminish your warranty rights.


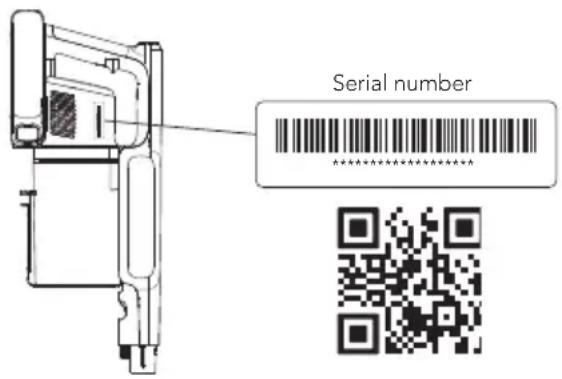

Serial numberHow to Claim: Please retain your proof of purchase. To make a claim under our Limited Warranty, you need to provide your serial number and the original purchase receipt with the purchase date and order number on it.
All work will be carried out by Tineco or an authorized agent.
Any replaced defective parts will become the property of Tineco.
Service under this warranty will not extend the period of this warranty.
Visit Tineco website www.tineco.com for expert customer service.
CONTENIDO
CO OBEJMUJE GWARANCJA?
H. Cepillo principal
I. Montaje en pared
A. Unità principale
B. Batteria
C. Deodorizer (Only for A50S PET series)
D. D. HEPAHEPA
E. Dustbin
F. Foldable tube (Only for A50S series)
G. Tube
H. Main brush
I. Wall Mount
A. Corps principal
B. Batterie
C. Désodorisant
A. ECO Mode
B. Air Channel Blocked
C. Power On/Off
D. AUTO Mode
E. Mode Switch
F. Battery Level
G. Dirt Monitoring Loop
(Blue to red according to the dirt amount)
H. Brush Roller Tangled Indicator
I. MAX Mode
Simple black oval button with four vertical bars and a lightning bolt, no text or symbols present.
Green light on: full charge
Luz verde parpadeando sucesivamente: carga no completa
Luz verde encendida: carga completa
Line drawing of a device with an attached power outlet and cable (no text or symbols)Wartung | Maintenance | Mantenimiento | Entretien | Manutenzione | Onderhoud | Konserwacja | Bakım

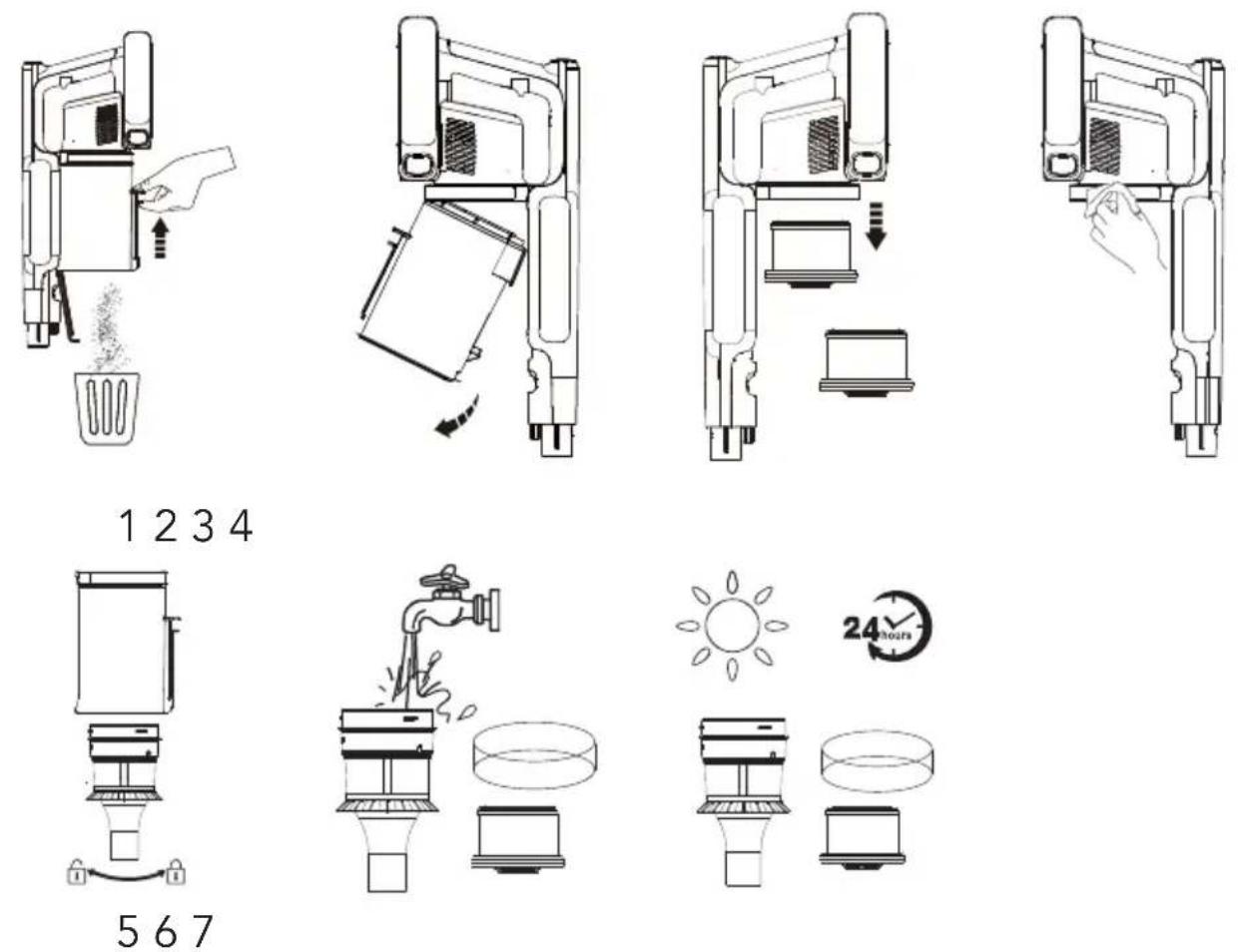

Staubbehälter | Dustbin | Depósito de polvo | Bac à poussière | Contenitore della polvere | Stofbak | Zbiornik na kurz | Toz Haznesi

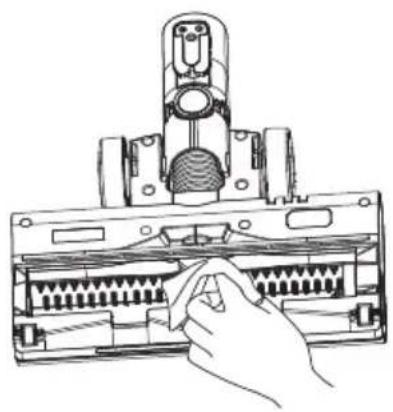

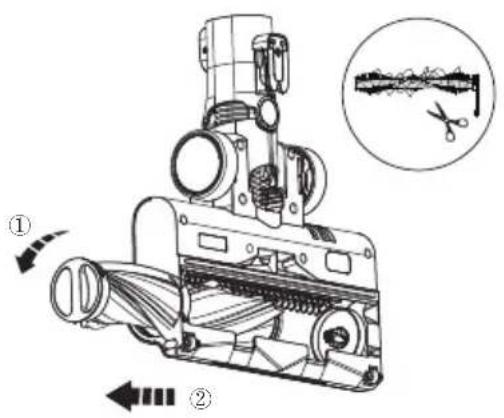

Bürste | Brush | Cepillo | Brosse | Spazzola | Borstel | Szczotka | Firça
Live Easy.
Enjoy Life.
www.tineco.com
Contact us - We'll get back to you within 24 hours.
