USER MANUAL VC004GL MAKITA

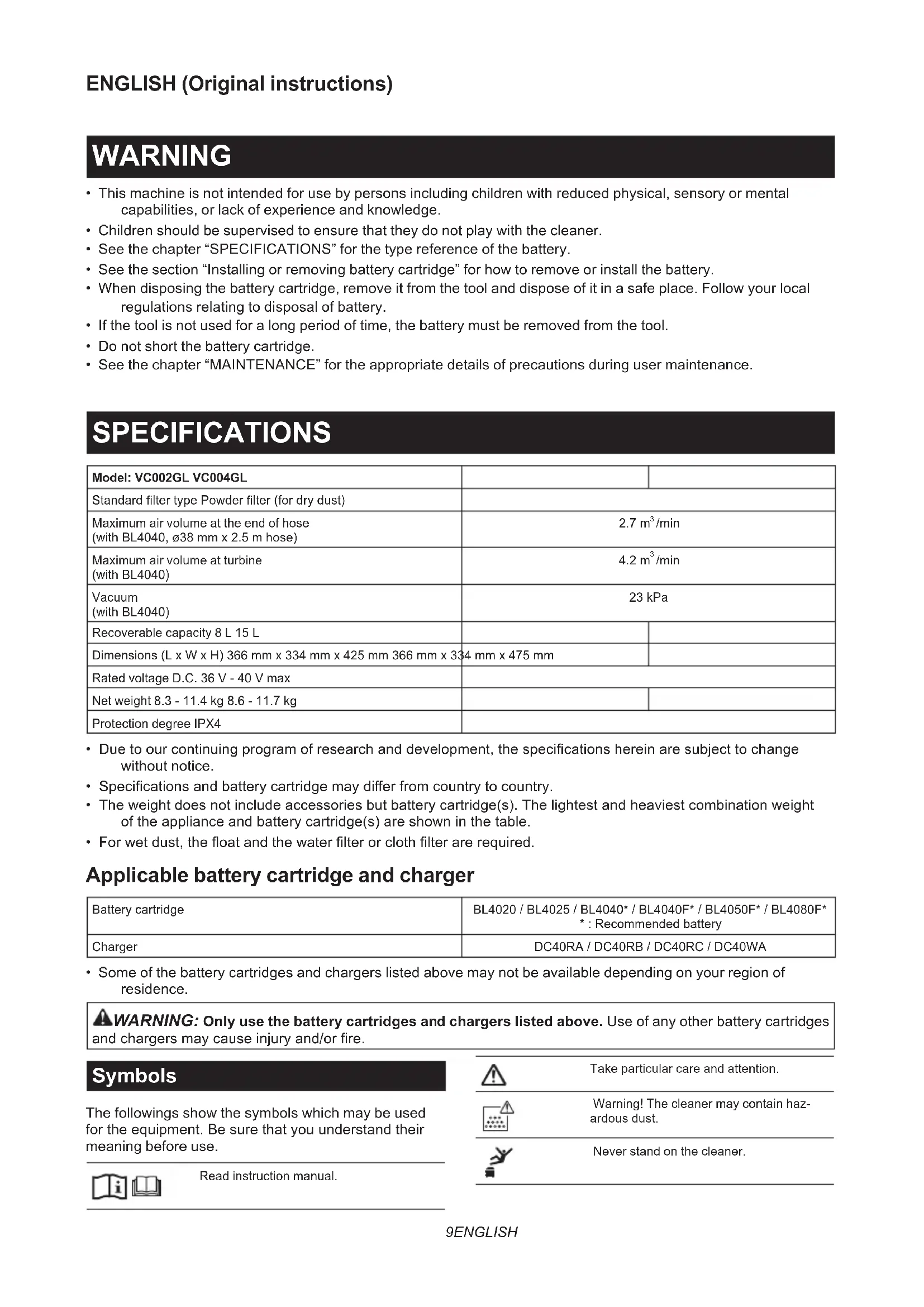

Cordless Vacuum Cleaner INSTRUCTION MANUAL 9

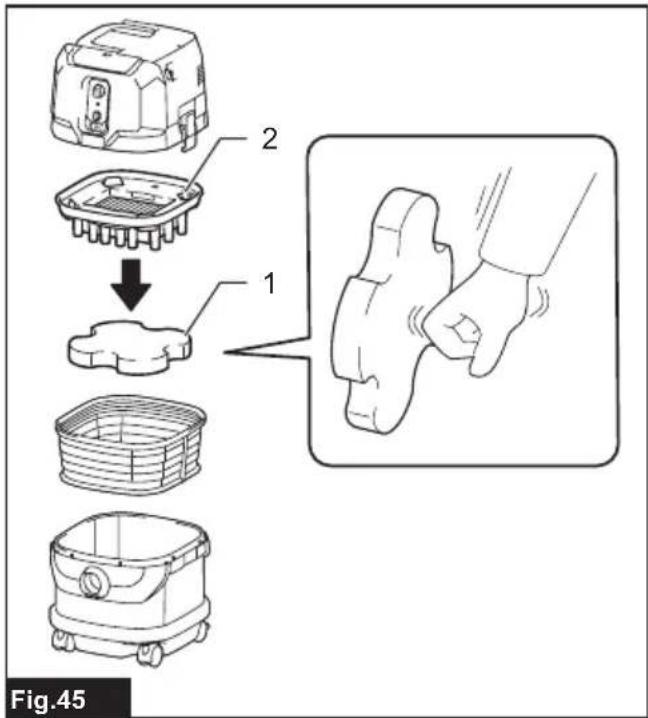

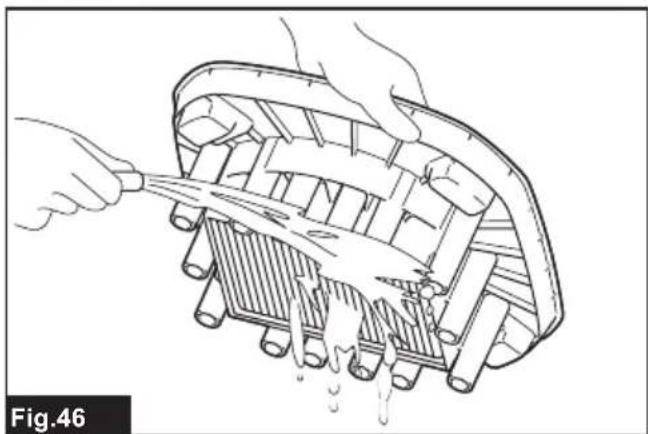

Fig.45 Fig.469 ENGLISH ENGLISH (Original instructions) WARNING

• This machine is not intended for use by persons including children with reduced physical, sensory or mental capabilities, or lack of experience and knowledge.

• Children should be supervised to ensure that they do not play with the cleaner.

• See the chapter “SPECIFICATIONS” for the type reference of the battery.

• See the section “Installing or removing battery cartridge” for how to remove or install the battery.

• When disposing the battery cartridge, remove it from the tool and dispose of it in a safe place. Follow your local regulations relating to disposal of battery.

• If the tool is not used for a long period of time, the battery must be removed from the tool.

• Do not short the battery cartridge.

• See the chapter “MAINTENANCE” for the appropriate details of precautions during user maintenance. SPECIFICATIONS Model: VC002GL VC004GL Standard lter type Powder lter (for dry dust) Maximum air volume at the end of hose (with BL4040, ø38 mm x 2.5 m hose)

/min Maximum air volume at turbine (with BL4040)

• Due to our continuing program of research and development, the specications herein are subject to change without notice.

• Specications and battery cartridge may di󰀨er from country to country.

• The weight does not include accessories but battery cartridge(s). The lightest and heaviest combination weight of the appliance and battery cartridge(s) are shown in the table.

• For wet dust, the oat and the water lter or cloth lter are required. Applicable battery cartridge and charger Battery cartridge BL4020 / BL4025 / BL4040* / BL4040F* / BL4050F* / BL4080F*

• : Recommended battery Charger DC40RA / DC40RB / DC40RC / DC40WA

• Some of the battery cartridges and chargers listed above may not be available depending on your region of residence.

WARNING: Only use the battery cartridges and chargers listed above. Use of any other battery cartridges

and chargers may cause injury and/or re. Symbols The followings show the symbols which may be used for the equipment. Be sure that you understand their meaning before use. Read instruction manual. Take particular care and attention. Warning! The cleaner may contain haz- ardous dust. Never stand on the cleaner.10 ENGLISH Dust class L (light). The cleaners are capa- ble of picking up dust class L. Follow your country's regulations relating to dusts and to occupational health and safety. Ni-MH Li-ion Only for EU countries Due to the presence of hazardous com- ponents in the equipment, waste electrical and electronic equipment, accumulators and batteries may have a negative impact on the environment and human health. Do not dispose of electrical and electronic appliances or batteries with household waste! In accordance with the European Directive on waste electrical and electronic equip- ment and on accumulators and batteries and waste accumulators and batteries, as well as their adaptation to national law, waste electrical equipment, batteries and accumulators should be stored separately and delivered to a separate collection point for municipal waste, operating in accor- dance with the regulations on environmen- tal protection. This is indicated by the symbol of the crossed-out wheeled bin placed on the equipment. Intended use The appliance is intended for collecting dry dust. The appliance is suitable for commercial use, for example in hotels, schools, hospitals, factories, shops, o󰀩ces and rental businesses. Noise The typical A-weighted noise level determined accord- ing to EN60335-2-69: Model VC002GL Sound pressure level (L

) : 70 dB(A) or less Uncertainty (K) : 2.5 dB(A) The noise level under working may exceed 80 dB (A). NOTE: The declared noise emission value(s) has been measured in accordance with a standard test method and may be used for comparing one tool with another. NOTE: The declared noise emission value(s) may also be used in a preliminary assessment of exposure.

WARNING: Wear ear protection.

WARNING: The noise emission during actual

use of the power tool can di󰀨er from the declared value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.

WARNING: Be sure to identify safety mea-

sures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched o󰀨 and when it is running idle in addition to the trigger time). Vibration The vibration total value (tri-axial vector sum) deter- mined according to EN60335-2-69: Model VC002GL Vibration emission (a h,M ) : 2.5 m/s

NOTE: The declared vibration total value(s) has been measured in accordance with a standard test method and may be used for comparing one tool with another. NOTE: The declared vibration total value(s) may also be used in a preliminary assessment of exposure.

WARNING: The vibration emission during

actual use of the power tool can di󰀨er from the declared value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.

WARNING: Be sure to identify safety mea-

sures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched o󰀨 and when it is running idle in addition to the trigger time). Declarations of Conformity For European countries only The Declarations of conformity are included in Annex A to this instruction manual. SAFETY WARNINGS Cordless vacuum cleaner safety warnings

WARNING: IMPORTANT! READ CAREFULLY

all safety warnings and all instructions BEFORE USE. Failure to follow the warnings and instructions may result in electric shock, re and/or serious injury.

1. Before use, make sure that this cleaner must

be used by people who have been adequately instructed on the use of this cleaner.

2. Before use, operators shall be provided with

information, instruction and training for the use of the machine and the substances for which it is to be used, including the safe method of removal and disposal of the mate- rial collected.

3. Always make sure that lters are correctly

installed before use. Do not use the cleaner without lters in place. Replace a damaged lter immediately. It is recommended to have some spares as lters are consumable items.

4. AVOID UNINTENTIONAL STARTING. Be sure11 ENGLISH

switch is OFF when installing battery(ies).

5. Do not attempt to pick up ammable materials,

reworks, lighted cigarettes, hot ashes, hot metal chips, sharp materials such as razors, needles, broken glass or the like.

OTHER HIGHLY EXPLOSIVE SUBSTANCES. The switch emits sparks when turned ON and OFF. And so does the motor commutator during operation. A dangerous explosion may result.

7. Never vacuum up toxic, carcinogenic, com-

bustible or other hazardous materials such as asbestos, arsenic, barium, beryllium, lead, pesticides, or other health endangering materials.

8. Always place the cleaner on a horizontal at

surface to prevent it from falling or moving unintentionally.

9. Never use the cleaner outdoors in the rain.

10. For Finland, this machine is not to be used

outdoors at low temperature.

11. Do not use close to heat sources (stoves, etc.).

12. If the exhaust air is returned to the room, it

is necessary to provide for an adequate air change rate in the room. Reference to National regulations is necessary.

13. Do not block suction inlet/outlet/cooling vents.

These vents permit cooling of the motor. Blockage should be carefully avoided other- wise the motor will burn out due to a lack of ventilation.

14. Keep proper footing and balance at all times.

15. Do not fold, tug or step on the hose.

16. Stop the cleaner immediately if you notice

poor performance or anything abnormal during operation.

17. REMOVE THE BATTERY(IES). When not in

use, before servicing, and when changing accessories.

18. Clean and service the cleaner immediately

after each use to keep it in tiptop operating condition.

19. MAINTAIN THE CLEANER WITH CARE. Keep

the cleaner clean for better and safer per- formance. Follow instructions for changing accessories. Keep handles dry, clean, and free from oil and grease.

20. CHECK DAMAGED PARTS. Before further use

of the cleaner, a guard or other part that is damaged should be carefully checked to deter- mine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, break- age of parts, mounting, and any other condi- tions that may a󰀨ect its operation. A guard or other part that is damaged should be properly repaired or replaced by an authorized service center unless otherwise indicated elsewhere in this instruction manual. Have defective switches replaced by authorized service cen- ter. Don’t use the cleaner if switch does not turn it on and o󰀨.

21. For user servicing, the machine shall be dis-

mantled, cleaned and serviced, as far as is reasonably practicable, without causing risk to the maintenance sta󰀨 and others.

22. The machine should be technically inspected

by the manufacturer, or an instructed person, at least annually, consisting of, for example, inspection of lters for damage, air tightness of the machine and proper function of the control mechanism.

23. When carrying out service or repair opera-

tions, all contaminated items which cannot be satisfactorily cleaned are to be disposed of; such items shall be disposed of in impervious bags in accordance with any current regula- tion for the disposal of such waste.

24. REPLACEMENT PARTS. When servicing, use

only identical replacement parts.

25. When not in use, always store the cleaner

26. Be kind to your cleaner. Rough handling can

cause breakage of even the most sturdily built cleaner.

27. Do not attempt to clean the exterior or interior

with benzine, thinner or cleaning chemicals. Cracks and discoloration may be caused.

28. Do not use cleaner in an enclosed space where

ammable, explosive or toxic vapors are given o󰀨 by oil-based paint, paint-thinner, gasoline, some mothproong substances, etc., or in areas where ammable dust is present.

29. Do not operate the cleaner or any tool while

under the inuence of drugs or alcohol.

30. As a basic rule of safety, use safety goggles or

safety glasses with side shields.

31. Use a dust mask in dusty work conditions.

32. This machine is not intended for use by per-

sons including children with reduced physical, sensory or mental capabilities, or lack of expe- rience and knowledge.

33. Children should be supervised to ensure that

they do not play with the cleaner.

34. Never handle battery(ies) and cleaner with wet

35. Use extreme caution when cleaning on stairs.

36. Do not use the cleaner as a stool or work

bench. The machine may fall down and may result in personal injury.

37. Do not pick up foam or soapy liquid. It can

cause foam to come out of air exit, resulting in electric shock and damage to the cleaner. Battery tool use and care

1. Recharge only with the charger specied by

the manufacturer. A charger that is suitable for one type of battery pack may create a risk of re when used with another battery pack.

2. Use power tools only with specically desig-

nated battery packs. Use of any other battery packs may create a risk of injury and re.

3. When battery pack is not in use, keep it away

from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery12 ENGLISH terminals together may cause burns or a re.

4. Under abusive conditions, liquid may be

ejected from the battery; avoid contact. If con- tact accidentally occurs, ush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

5. Do not use a battery pack or tool that is dam-

aged or modied. Damaged or modied batteries may exhibit unpredictable behaviour resulting in re, explosion or risk of injury.

6. Do not expose a battery pack or tool to re or

excessive temperature. Exposure to re or tem- perature above 130 °C may cause explosion.

7. Follow all charging instructions and do not

charge the battery pack or tool outside the temperature range specied in the instruc- tions. Charging improperly or at temperatures outside the specied range may damage the battery and increase the risk of re. SAVE THESE INSTRUCTIONS.

WARNING: DO NOT let comfort or familiarity

with product (gained from repeated use) replace strict adherence to safety rules for the subject product. MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury. Important safety instructions for battery cartridge

1. Before using battery cartridge, read all instruc-

tions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.

2. Do not disassemble or tamper with the battery

cartridge. It may result in a re, excessive heat, or explosion.

3. If operating time has become excessively

shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.

4. If electrolyte gets into your eyes, rinse them

out with clear water and seek medical atten- tion right away. It may result in loss of your eyesight.

5. Do not short the battery cartridge:

(1) Do not touch the terminals with any con- ductive material. (2) Avoid storing battery cartridge in a con- tainer with other metal objects such as nails, coins, etc. (3) Do not expose battery cartridge to water or rain. A battery short can cause a large current ow, overheating, possible burns and even a breakdown.

6. Do not store and use the tool and battery car-

tridge in locations where the temperature may reach or exceed 50 °C (122 °F).

7. Do not incinerate the battery cartridge even if

it is severely damaged or is completely worn out. The battery cartridge can explode in a re.

8. Do not nail, cut, crush, throw, drop the battery

cartridge, or hit against a hard object to the battery cartridge. Such conduct may result in a re, excessive heat, or explosion.

9. Do not use a damaged battery.

10. The contained lithium-ion batteries are subject

to the Dangerous Goods Legislation require- ments. For commercial transports e.g. by third parties, forwarding agents, special requirement on pack- aging and labeling must be observed. For preparation of the item being shipped, consult- ing an expert for hazardous material is required. Please also observe possibly more detailed national regulations. Tape or mask o󰀨 open contacts and pack up the battery in such a manner that it cannot move around in the packaging.

11. When disposing the battery cartridge, remove

it from the tool and dispose of it in a safe place. Follow your local regulations relating to disposal of battery.

12. Use the batteries only with the products

specied by Makita. Installing the batteries to non-compliant products may result in a re, exces- sive heat, explosion, or leak of electrolyte.

13. If the tool is not used for a long period of time,

the battery must be removed from the tool.

14. During and after use, the battery cartridge may

take on heat which can cause burns or low temperature burns. Pay attention to the han- dling of hot battery cartridges.

15. Do not touch the terminal of the tool imme-

diately after use as it may get hot enough to cause burns.

16. Do not allow chips, dust, or soil stuck into the

terminals, holes, and grooves of the battery cartridge. It may cause heating, catching re, burst and malfunction of the tool or battery car- tridge, resulting in burns or personal injury.

17. Unless the tool supports the use near

high-voltage electrical power lines, do not use the battery cartridge near high-voltage electri- cal power lines. It may result in a malfunction or breakdown of the tool or battery cartridge.

18. Keep the battery away from children.

SAVE THESE INSTRUCTIONS. CAUTION: Only use genuine Makita batteries. Use of non-genuine Makita batteries, or batteries that have been altered, may result in the battery bursting causing res, personal injury and damage. It will also void the Makita warranty for the Makita tool and charger. Tips for maintaining maximum battery life

1. Charge the battery cartridge before completely

discharged. Always stop tool operation and charge the battery cartridge when you notice less tool power.

2. Never recharge a fully charged battery car-

tridge. Overcharging shortens the battery service life.13 ENGLISH

3. Charge the battery cartridge with room tem-

perature at 10 °C - 40 °C (50 °F - 104 °F). Let a hot battery cartridge cool down before charging it.

4. When not using the battery cartridge, remove

it from the tool or the charger.

5. Charge the battery cartridge if you do not use

it for a long period (more than six months). Important safety instructions for wireless unit

1. Do not disassemble or tamper with the wire-

2. Keep the wireless unit away from young chil-

dren. If accidentally swallowed, seek medical attention immediately.

3. Use the wireless unit only with Makita tools.

4. Do not expose the wireless unit to rain or wet

5. Do not use the wireless unit in places where

the temperature exceeds 50 °C (122 °F).

6. Do not operate the wireless unit in places

where medical instruments, such as heart pace makers are nearby.

7. Do not operate the wireless unit in places

where automated devices are nearby. If oper- ated, automated devices may develop malfunction or error.

8. Do not operate the wireless unit in places

under high temperature or places where static electricity or electrical noise could be generated.

9. The wireless unit can produce electromagnetic

elds (EMF) but they are not harmful to the user.

10. The wireless unit is an accurate instrument. Be

careful not to drop or strike the wireless unit.

11. Avoid touching the terminal of the wireless

unit with bare hands or metallic materials.

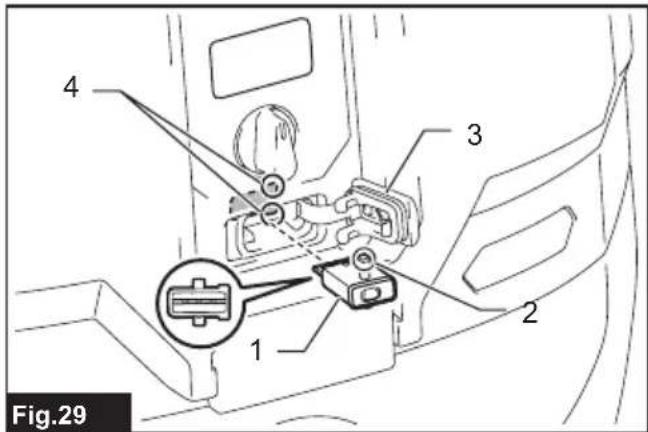

12. Always remove the battery on the product

when installing the wireless unit into it.

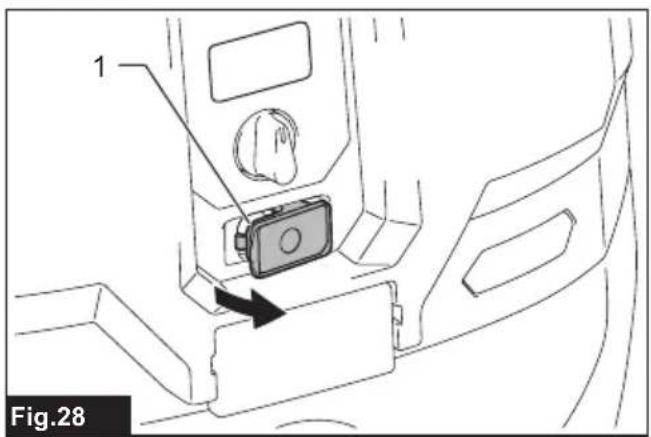

13. When opening the lid of the slot, avoid the

place where dust and water may come into the slot. Always keep the inlet of the slot clean.

on the wireless unit too hard and/or press the button with an object with a sharp edge.

17. Do not remove the wireless unit from the slot

while the power is being supplied to the tool. Doing so may cause a malfunction of the wireless unit.

18. Do not remove the sticker on the wireless unit.

19. Do not put any sticker on the wireless unit.

20. Do not leave the wireless unit in a place where

static electricity or electrical noise could be generated.

21. Do not leave the wireless unit in a place sub-

ject to high heat, such as a car sitting in the sun.

22. Do not leave the wireless unit in a dusty or

powdery place or in a place corrosive gas could be generated.

23. Sudden change of the temperature may bedew

the wireless unit. Do not use the wireless unit until the dew is completely dried.

24. When cleaning the wireless unit, gently wipe

with a dry soft cloth. Do not use benzine, thin- ner, conductive grease or the like.

25. When storing the wireless unit, keep it in the

supplied case or a static-free container.

26. Do not insert any devices other than Makita

wireless unit into the slot on the tool.

27. Do not use the tool with the lid of the slot dam-

aged. Water, dust, and dirt come into the slot may cause malfunction.

28. Do not pull and/or twist the lid of the slot more

than necessary. Restore the lid if it comes o󰀨 from the tool.

29. Replace the lid of the slot if it is lost or

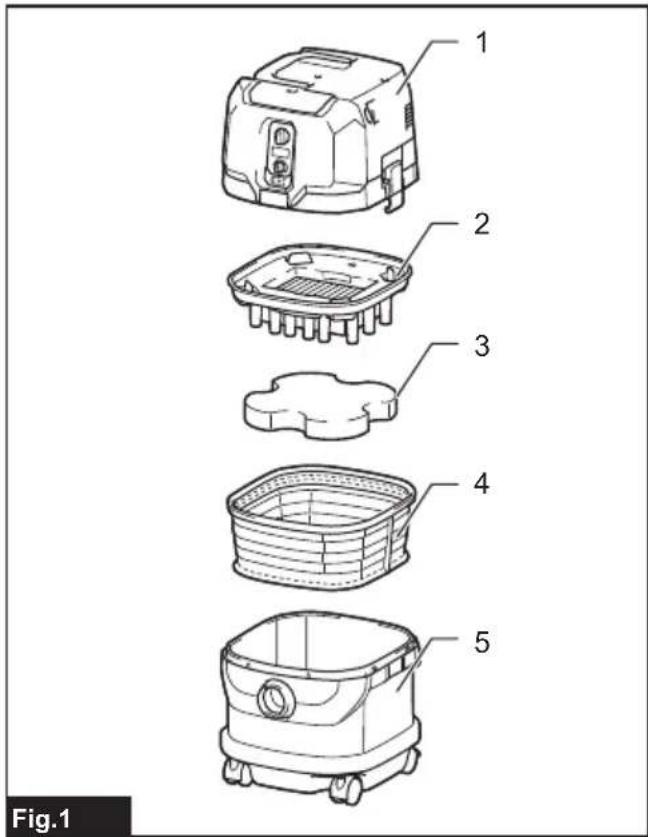

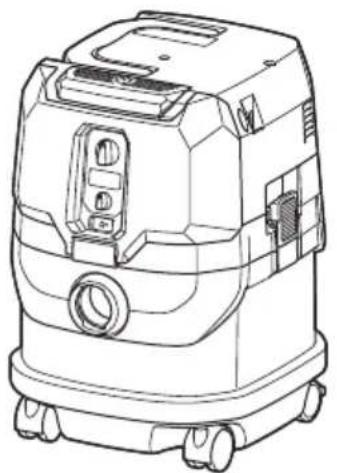

damaged. SAVE THESE INSTRUCTIONS. PARTS DESCRIPTION ► Fig.1: 1. Head unit 2. Powder lter (HEPA)

3. Damper 4. Prelter 5. Tank

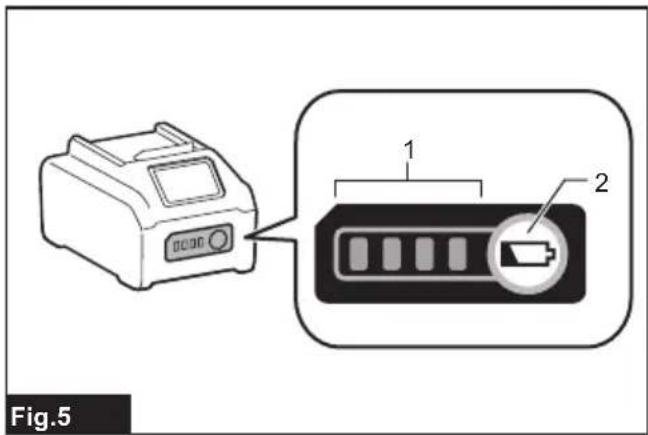

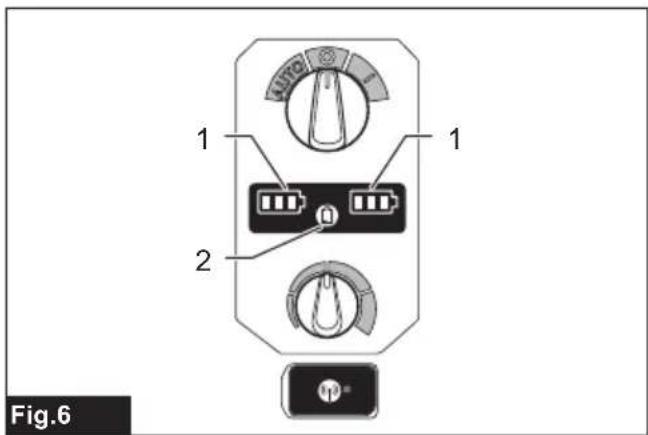

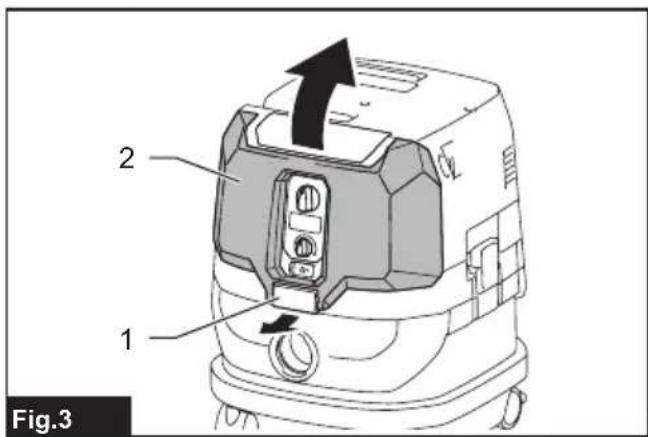

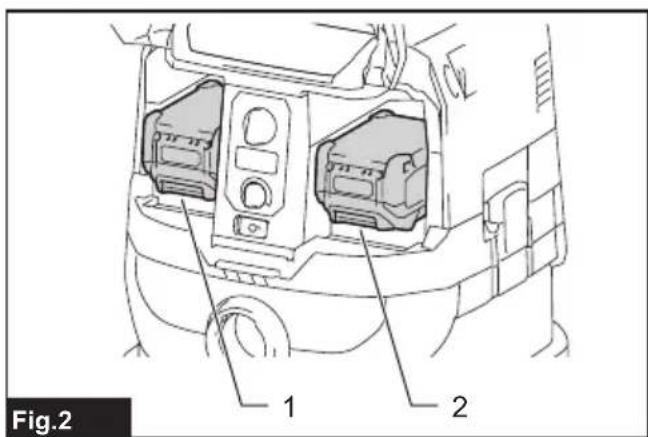

FUNCTIONAL DESCRIPTION CAUTION: Always be sure that the appliance is switched o󰀨 and the battery cartridges are removed before adjusting or checking function on the appliance. Installing or removing battery cartridge CAUTION: Always switch o󰀨 the appliance before installing or removing battery cartridges. CAUTION: Hold the cleaner and battery car- tridges rmly when installing or removing battery cartridges. Failure to do so may cause them to slip o󰀨 your hands, resulting in damage to the cleaner and battery cartridges or personal injury. CAUTION: Be careful not to pinch your n- gers when opening or closing the battery cover. Failure to do so may cause personal injury. The cleaner has double battery slots. With two identical batteries in parallel, you can extend your running time in one or more uses without having to stop to recharge batteries. The cleaner also works with a single battery, so you can choose with either double batteries or single battery according to your needs.14 ENGLISH ► Fig.2: 1. Left battery slot 2. Right battery slot With double batteries Continuous drive with two batteries allows longer run- time and more e󰀩cient cleaning. When the rst battery is becoming empty, the cleaner automatically switches a power source, so it continues working with the second battery. NOTE: The left battery slot (when facing the front of the cleaner) has priority over the right battery slot. The right battery slot will only be identied as a power source, either when no battery is installed in the left battery slot or the battery in the left battery slot becomes empty. NOTE: You can remove the battery from the left battery slot and recharge it after the cleaner has switched its power source from the left battery slot to the right without ceasing operation. To give priority back to the left battery slot after installing a recharged battery, restart the cleaner. With a single battery Only one battery is required as a power source in either the left or right battery slot. The cleaner automatically determines which battery slot is available according to operating conditions. Installation and uninstallation To install battery cartridges, release the lock rst, and open the battery cover. Then insert the battery cartridges. ► Fig.3: 1. Lock 2. Battery cover Align the tongues on the battery cartridges with the grooves in the battery housing and slip them into place. Insert them all the way until they lock in place with a little click. Then lock the battery cover. ► Fig.4: 1. Battery cartridge 2. Button To remove the battery cartridges, slide them out of the battery housing while pressing and holding the buttons in front of the cartridges. CAUTION: Always install the battery cartridge fully. If not, it may accidentally fall out of the appli- ance, causing injury to you or someone around you. CAUTION: Do not install the battery cartridge forcibly. If the cartridge does not slide in easily, it is not being inserted correctly. NOTE: When the cleaner switches the power source from the rst battery to the second, it may require a temporary halt in operations, causing a slight loss of suction. Please note that it is not malfunction so the cleaner recovers and resumes operations immedi- ately after the pause. Indicating the remaining battery capacity Press the check button on the battery cartridge to indi- cate the remaining battery capacity. The indicator lamps light up for a few seconds. ► Fig.5: 1. Indicator lamps 2. Check button Indicator lamps Remaining capacity Lighted O󰀨 Blinking 75% to 100% 50% to 75% 25% to 50% 0% to 25% Charge the battery. The battery may have malfunctioned. NOTE: Depending on the conditions of use and the ambient temperature, the indication may di󰀨er slightly from the actual capacity. NOTE: The rst (far left) indicator lamp will blink when the battery protection system works. Battery indicators on control panel The remaining battery capacity can be read on the control panel at any time. Press the check button, and the left and right indicators will show the battery charge levels correspondingly. ► Fig.6: 1. Battery indicators 2. Check button ► Fig.7 Battery indicator status Remaining battery capacity On O󰀨 Blinking 50% to 100% 20% to 50% 0% to 20% Charge the battery Battery not inserted NOTE: The battery indicators will also be activated when the cleaner starts functioning or switches its power source from one to another.15 ENGLISH Appliance / battery protection system The appliance is equipped with an appliance/battery protection system. This system automatically cuts o󰀨 power to the motor to extend appliance and battery life. The appliance will automatically stop during operation if the appliance or battery is placed under one of the following conditions: Overload protection When the appliance/battery is operated in a manner that causes it to draw an abnormally high current, the appliance automatically stops. In this situation, turn the appliance o󰀨 and stop the application that caused the appliance to become overloaded. Then turn the appli- ance on to restart. Overheat protection On Blinking When the appliance is overheated, the appliance stops automatically, and both left and right battery indicators blink. In this situation, let the appliance cool down before turning the appliance on again. On Blinking When the battery is overheated, the appliance stops automatically, and one of the indicators for overheated battery blinks. In this situation, let the battery cool down before turning the appliance on again. Overdischarge protection When the battery capacity becomes low, the appliance stops automatically. If the appliance does not run along with the switch operation, remove the batteries from the appliance and recharge them. Protections against other causes Protection system is also designed for other causes that could damage the appliance and allows the appliance to stop automatically. Take all the following steps to clear the causes, when the appliance has been brought to a temporary halt or stop in operation.

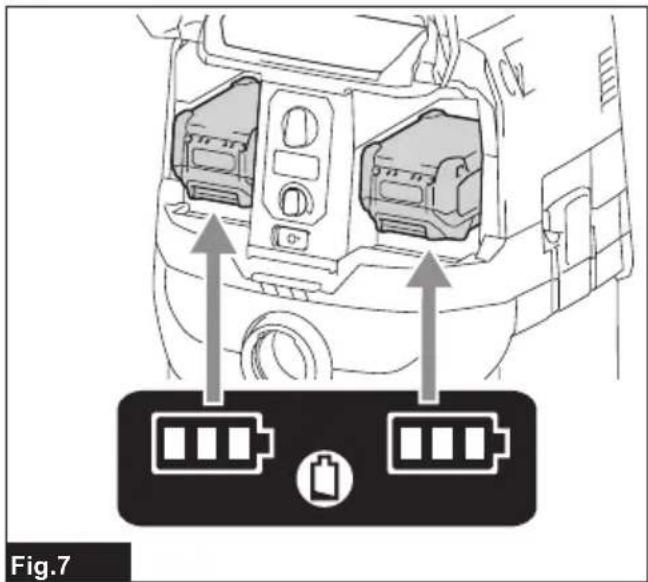

1. Turn the appliance o󰀨, and then turn it on again to

2. Charge the battery(ies) or replace it/them with

recharged battery(ies).

3. Let the appliance and battery(ies) cool down.

If no improvement can be found by restoring protection system, then contact your local Makita Service Center. Switch action Turning cleaner on

1. Turn the stand-by switch in the "I" (ON) or "AUTO"

(ON) position to have the cleaner ready in stand-by mode.

2. Press the power button.

To switch back to stand-by mode, press the power button again. Turning cleaner o󰀨 Perform one of the following steps.

• Press the power button to set the cleaner back in stand-by mode, and then turn the stand-by switch in the "O" (OFF) position.

• Turn the stand-by switch in the "O" (OFF) position. Adjusting suction power The suction power can be adjusted according to your work needs.

• Turn the suction force adjusting knob to the left to reduce the suction power.

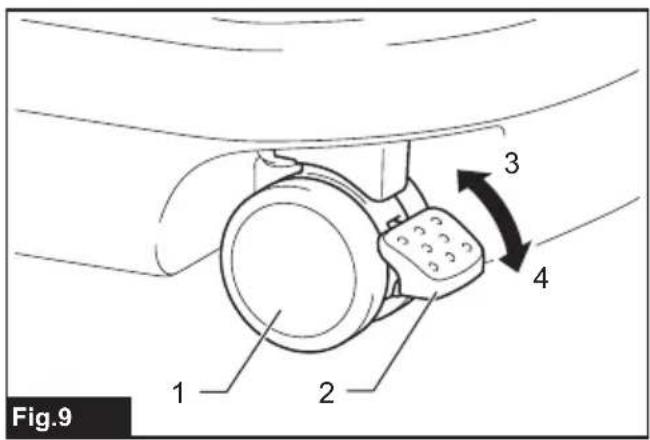

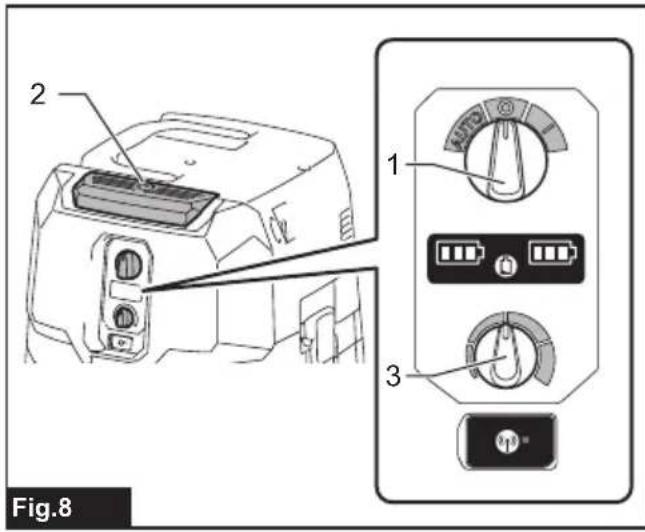

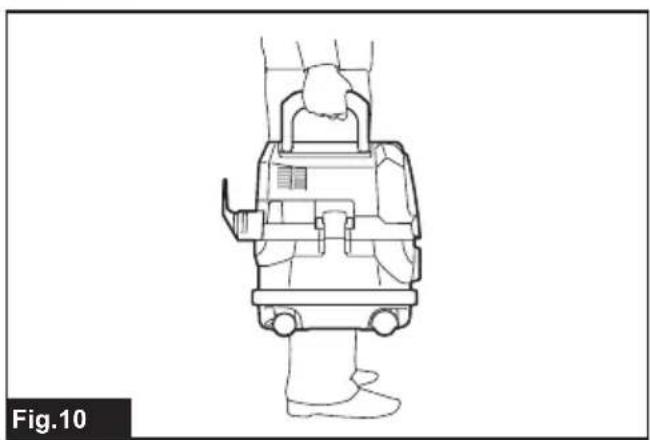

• Turn the suction force adjusting knob to the right to increase the suction power. ► Fig.8: 1. Stand-by switch 2. Power button 3. Suction force adjusting knob Locking and unlocking casters Rear casters can be locked with stoppers to help the cleaner stand still. Lower the stopper lever by hand to lock the caster, and raise it up to release. ► Fig.9: 1. Caster 2. Stopper lever 3. Unlocked posi- tion 4. Locked position NOTE: When moving the cleaner, make sure that the caster is unlocked. Moving the cleaner with the caster in a locked position may cause damage to the caster. Carriage handle CAUTION: Lift and carry the appliance with due care. Failing to do so may result in personal injury or damage to the appliance. When carrying the cleaner, carry it by holding the han- dle on the head unit. The handle is retractable on the head unit when not in use. ► Fig.10 ASSEMBLY CAUTION: Always be sure that the appliance is switched o󰀨 and the battery cartridges are removed before carrying out any work on the appliance. CAUTION: Always wear dust mask during assembly or maintenance.16 ENGLISH Installing powder lter (HEPA) and prelter (for dry dust) CAUTION: Never pick up water or other liq- uids or wet dusts when using the powder lter. Picking up such things may cause the powder lter breakage. To use powder lter:

1. Place the prelter into the tank aligning the mount-

ing position markings on the prelter and tank.

2. Set the damper into the prelter, and then place

the powder lter over the damper aligning the mounting position markings on the powder lter and prelter.

3. Mount the head unit over the tank and secure

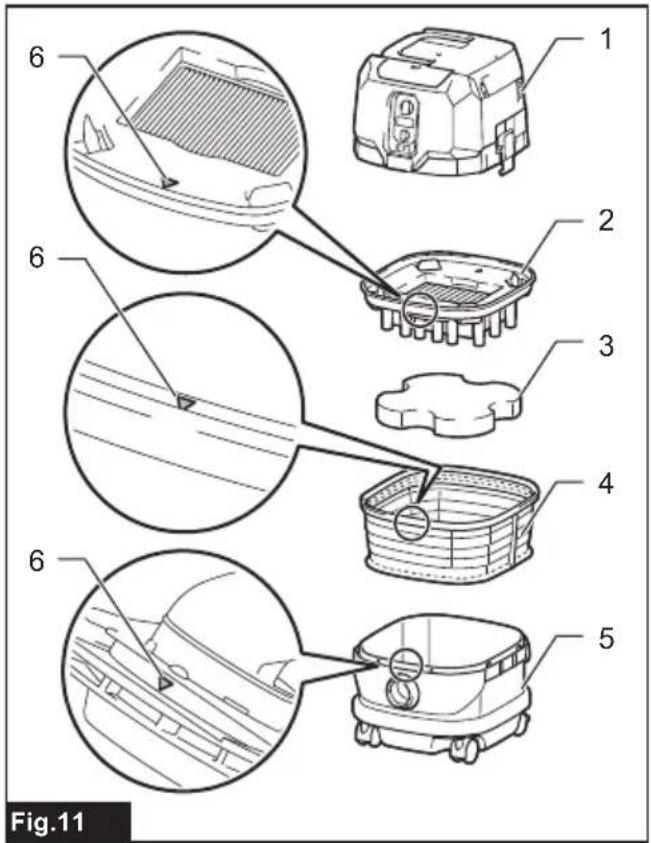

them with the locking latches. ► Fig.11: 1. Head unit 2. Powder lter (HEPA)

3. Damper 4. Prelter 5. Tank 6. Mounting

position marking NOTICE: Before using the powder lter, make sure that prelter and damper are used together. It is not allowed to install powder lter alone. Installing paper pack Optional accessory

WARNING: Before using a paper pack, make

sure that the prelter is used together. Failure to use the prelter together may cause unusual noise and heat, resulting in a re. NOTICE: Never pick up water or other liquids or wet dusts when using a paper pack. Picking up such things may cause the paper pack breakage. NOTICE: Before using a paper pack, make sure that the powder lter, damper and prelter are always used together.

1. Unfold a paper pack.

2. Align the paper pack opening with the dust intake

3. Install the paper pack into the tank with its card-

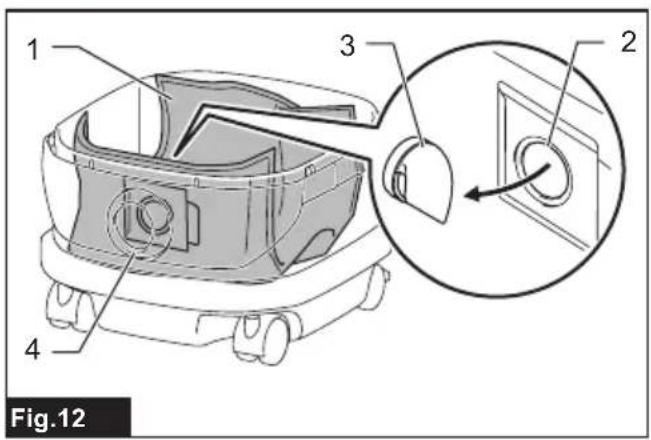

board opening hooked on the paper pack holder. ► Fig.12: 1. Paper pack 2. Cardboard opening

3. Paper pack holder 4. Dust intake

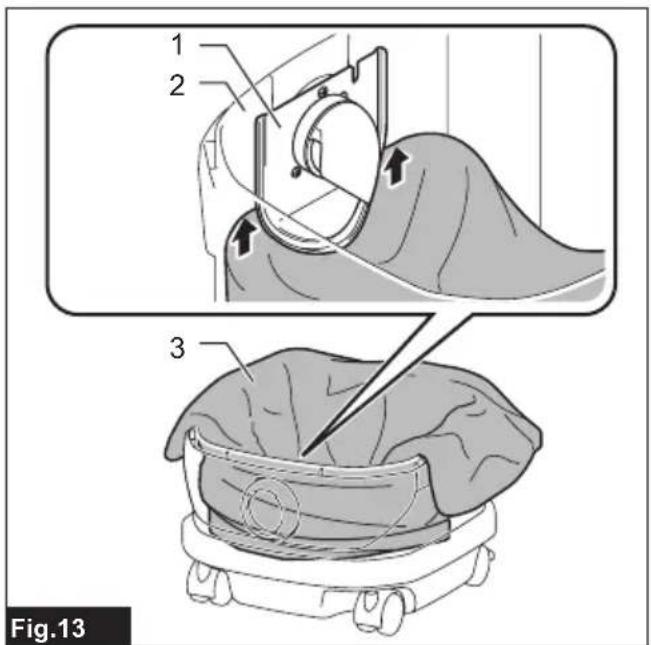

Installing polyethylene bag With a polyethylene bag installed in the tank, you can easily empty the tank without letting your hands dirty. Lay a polyethylene bag over the tank, and slip one side of the top edge of the bag at its open end in between the holder plate and the front wall of the tank. ► Fig.13: 1. Holder plate 2. Front wall of tank

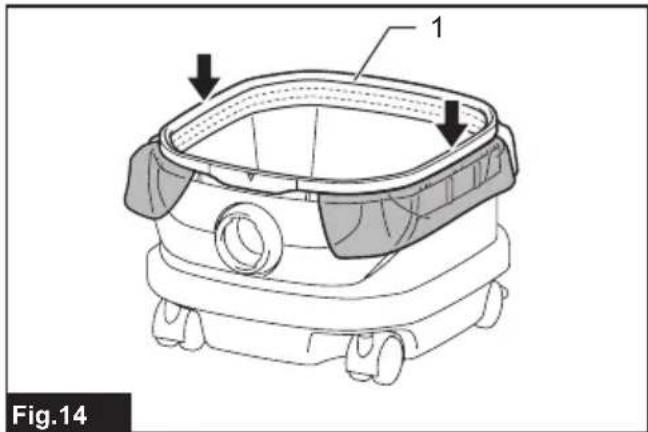

Spread the other top edges of the bag outwards over the top rims of the tank. Place the prelter over the poly- ethylene bag to fasten the opening of the bag securely. ► Fig.14: 1. Prelter NOTE: A polyethylene bag available on the market can be used. 0.04 mm or thicker one is recommended. NOTE: Too much dust will tear the bag easily, so do not collect the dust more than the half of the bag capacity. Emptying tank with polyethylene bag

WARNING: Always make sure that the cleaner

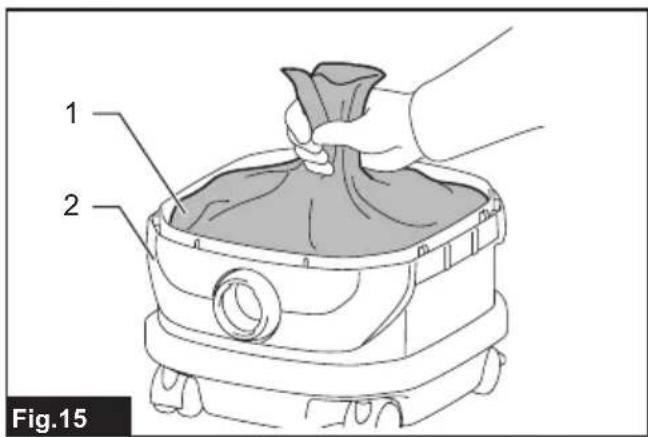

is switched o󰀨 and the battery cartridges are removed before emptying the tank. Failure to do so may cause an electric shock and serious personal injury. NOTICE: Do not apply a great impact on the tank. Applying a great impact may cause deformation and damage to the parts. NOTICE: Empty the tank at least once a day although this depends on picked-up dust volume in the tank. Or, the suction force will weaken and the motor may be broken. NOTICE: Do not grab the hooks or latches when emptying the tank. Grabbing the hooks or latches may cause them to break. Release the locking latches and lift the head unit up o󰀨 the tank. Shake o󰀨 dust from the prelter before lifting the lter away from the tank. Then remove the polyethylene bag out of the tank, closing the opening of the bag by hand. ► Fig.15: 1. Polyethylene bag 2. Tank NOTE: Take the polyethylene bag out of the tank carefully to avoid it from being scratched and torn by the edges inside the tank. NOTE: Empty the polyethylene bag before it becomes full. Too much dust in the tank may cause the polyethylene bag to be torn. Installing multi hook Use the multi hook to hold a hose, accessories and attachments not in use in place, and you can quickly take them out according to your preferences. ► Fig.16 Place the multi hook over the mounting base at the rear of the cleaner, setting the rails on the multi hook along the grooves on the mounting base. ► Fig.17: 1. Multi hook 2. Mounting base Installing MAKPAC adapter Optional accessory Connectable and stackable MAKPAC storage cases can be installed on top of the cleaner with an optional adapter. The cases are available in many sizes and styles to suit your preferences. Place the mounting base hook over the handle of the cleaner with its mounting surface facing upwards when17 ENGLISH the handle is folded into the closed position. ► Fig.18: 1. Mounting base hook 2. Mounting surface

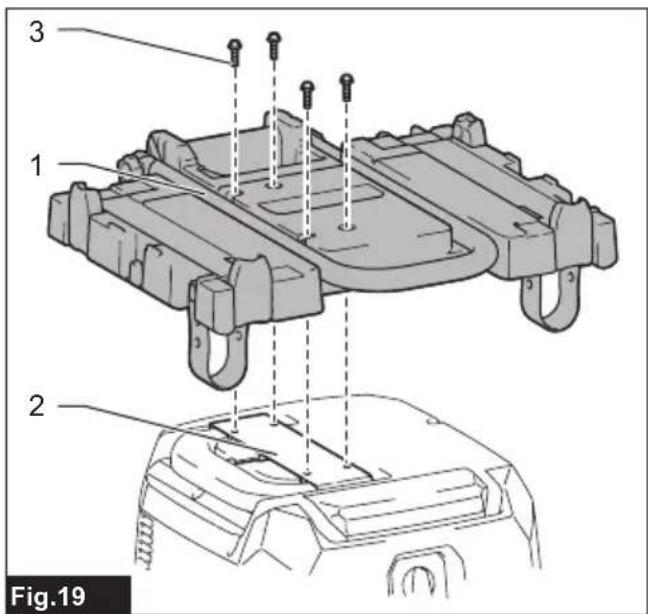

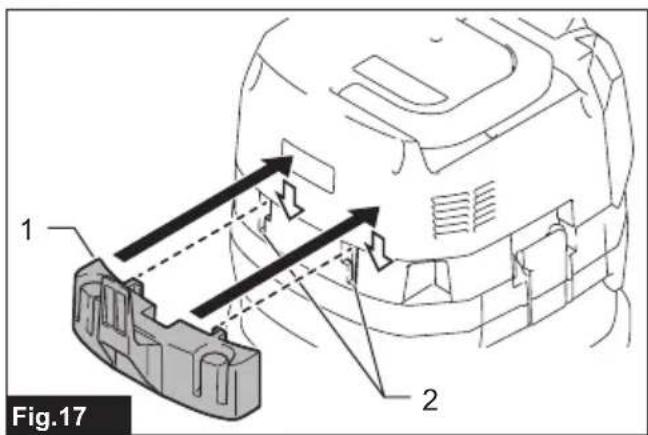

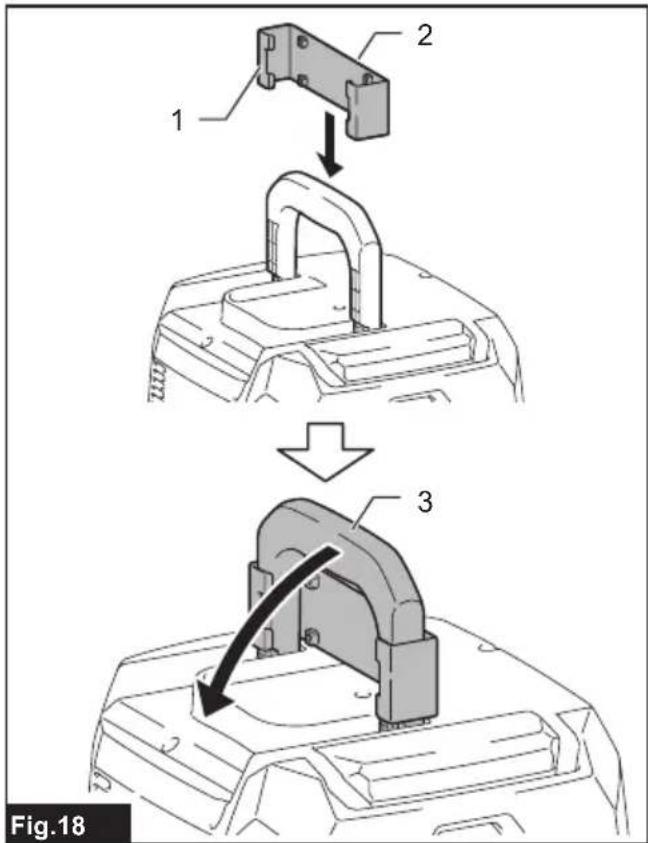

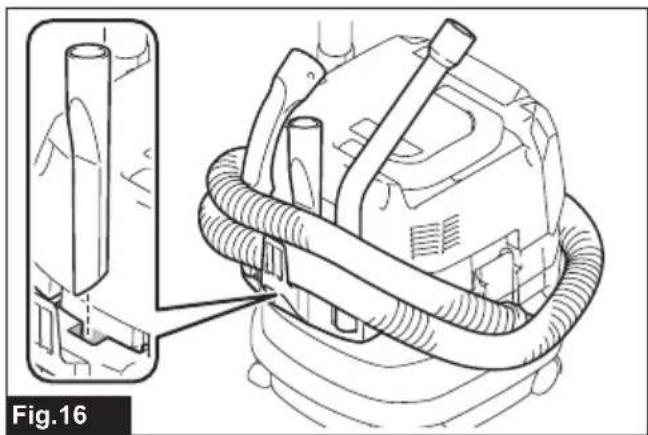

Mount the MAKPAC adapter onto the mounting base hook, and secure them together with four screws provided. ► Fig.19: 1. MAKPAC adapter 2. Mounting base hook

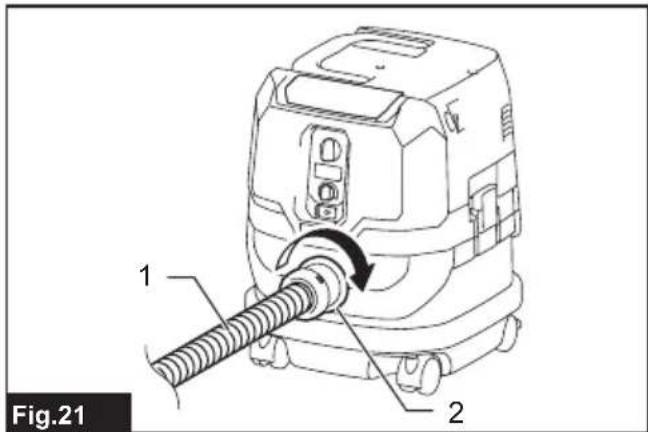

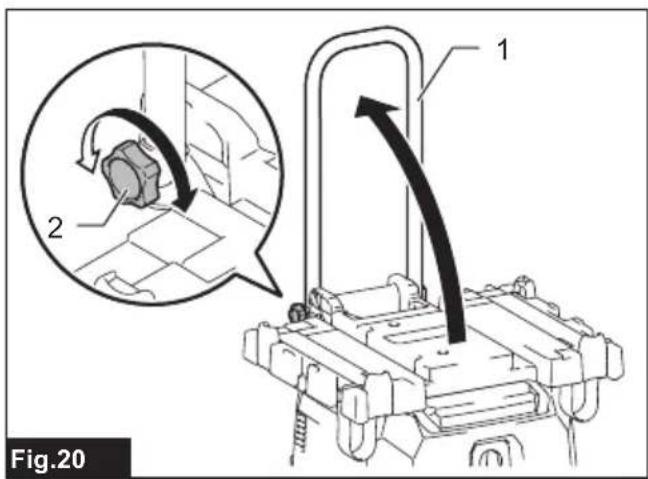

Lift the push bar up and tighten the knob to prepare installing the MAKPAC cases onto the cleaner. ► Fig.20: 1. Push bar 2. Knob NOTE: For details on installing the MAKPAC cases, refer to the instructions provided with the MAKPAC adapter and cases. Installing hose NOTICE: Never force the hose for bending or stamp it. Never move the cleaner by pulling the hose. Forcing, stamping and pulling the hose may cause a breakage or deformation of the hose. NOTICE: When picking up large wastes such as planer carvings, concrete dusts or similar other than small wastes, use the 38 mm inner diameter hose (optional accessory). Using the 28 mm inner diameter hose (optional accessory) may cause a hose stu󰀩ng and damage. Connection to cleaner Insert the hose end to the dust intake (hose inlet) of the cleaner, then turn it clockwise until it locks in place. ► Fig.21: 1. Hose 2. Dust intake (hose inlet) Connections with your work tools (Country specic) By connecting the vacuum cleaner to any available work tools compatible with the cleaner, it works as a dust extractor for your power tools. Select one of the front cu󰀨s or joints (optional acces- sories) as most suitable for your tool model. Place the cu󰀨s or joint, as necessary, between the front end of the cleaner hose and a dust extraction port of your tool. ► Fig.22: 1. Front cu󰀨s or joint 2. Cleaner hose

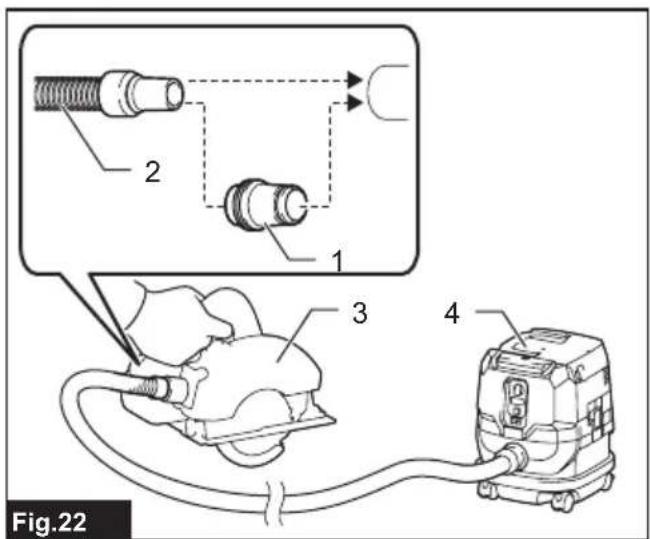

3. Power tool 4. Vacuum cleaner

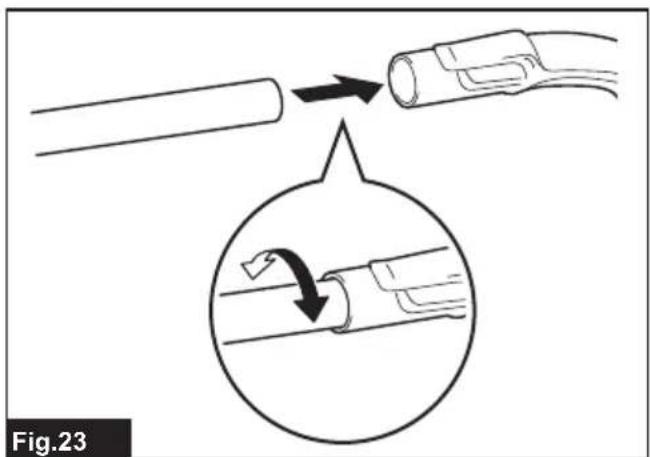

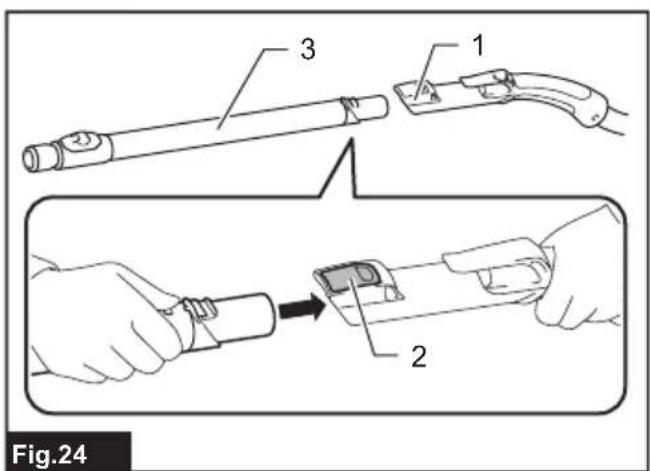

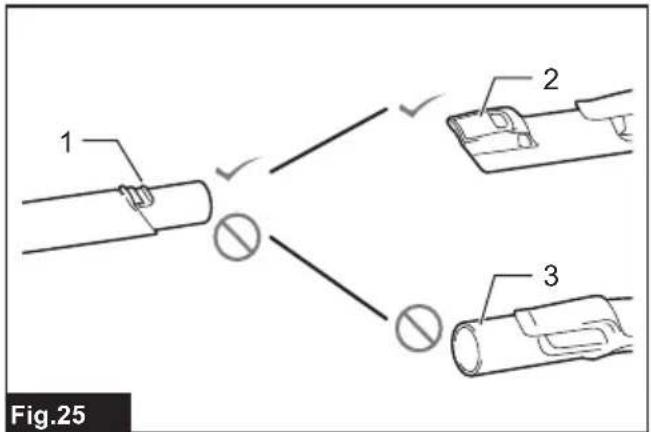

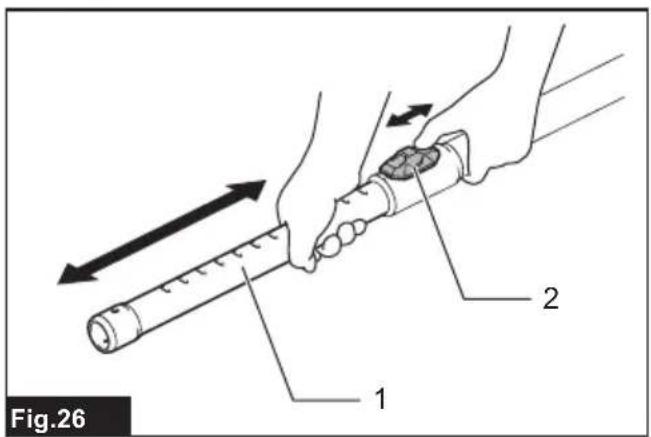

Installing or removing cleaner attachments CAUTION: After installing an attachment, check if it is securely installed. If the attachment is installed imperfectly, it may come o󰀨 and cause personal injury. Attachments without lock function Optional accessory Insert an attachment into the suction inlet of the cleaner by pushing and hand screwing it in place. Hand twist and pull the attachment apart from the suc- tion inlet after use. ► Fig.23 Attachments with lock function Optional accessory NOTICE: When installing the attachment with lock function, be sure to align the release button with the hook on the attachment. If they are not aligned, the attachment will not be locked and may come o󰀨 from the cleaner. Insert an attachment into the suction inlet of the cleaner by pushing them together with a click. To remove the attachment, pull it o󰀨 while pushing the release button. ► Fig.24: 1. Suction inlet with lock function 2. Release button 3. Attachment with lock function NOTE: An attachment with lock function can only be installed in the suction inlet with lock function. ► Fig.25: 1. Attachment with lock function 2. Suction inlet with lock function 3. Suction inlet with- out lock function Adjusting lengths of slide-type extension wand Optional accessory A slide-type extension wand can be combined for shorter and longer lengths. It allows to clean hard-to- reach areas and comfortable positioning options. Pull in and out the slide pipe to change wand lengths while pressing and holding the slide button. Release the slide button to lock the slide pipe in your desired position. ► Fig.26: 1. Slide pipe 2. Slide button WIRELESS ACTIVATION FUNCTION What you can do with the wireless activation function The wireless activation function enables clean and comfortable operation. By connecting a supported tool to the cleaner, you can run the cleaner automatically along with the switch operation of the tool. ► Fig.2718 ENGLISH NOTICE: Be sure to refer to the instruction man- ual of the tool when using the cleaner with wire- less activation function. NOTICE: Do not disassemble or tamper with the wireless unit. NOTICE: To prevent dust coming into the slot of the wireless unit, always close the lid securely during operation and storage. NOTICE: Do not remove the wireless unit while the power is being supplied. Doing so may cause a malfunction of the wireless unit. NOTICE: Do not press the wireless activation button too hard and/or press the button with an object with a sharp edge. NOTE: Wireless activation needs Makita tools equipped with the wireless unit. NOTE: Prior to the initial use of the wireless activa- tion function with each tool, the tool registration is required. Once the registration is nished with the tool, the re-registration is not required unless it is cancelled. NOTE: Before registration, be sure that the wireless unit is properly inserted. NOTE: One wireless unit can register up to 10 links with other wireless units. If more than 10 other wire- less units are registered to one wireless unit, the one registered earliest will be cancelled automatically. NOTE: The position of the wireless activation button varies depending on the tool. NOTE: The cleaner also starts by pressing the power button when the stand-by switch is set to "AUTO". However the power button will not actuate when the wireless activation function is used. Installing the wireless unit CAUTION: Place the cleaner on a at and stable surface when installing the wireless unit. NOTICE: Clean the dust and dirt on the cleaner before installing the wireless unit. Dust or dirt may cause malfunction if it comes into the slot of the wireless unit. NOTICE: To prevent the malfunction caused by static, touch a static discharging material, such as a metallic part, before picking up the wireless unit. NOTICE: When installing the wireless unit, always be sure that the wireless unit is inserted in the correct direction and the lid is completely closed.

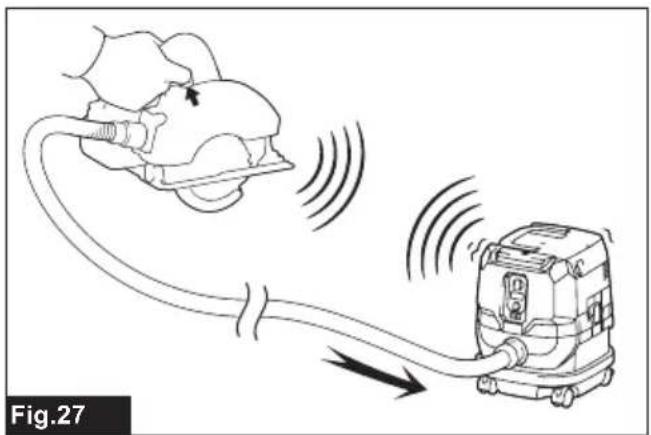

1. Open the lid on the cleaner as shown in the gure.

2. Insert the wireless unit to the slot and then close

the lid. When inserting the wireless unit, align the projections with the recessed portions on the slot. ► Fig.29: 1. Wireless unit 2. Projection 3. Lid

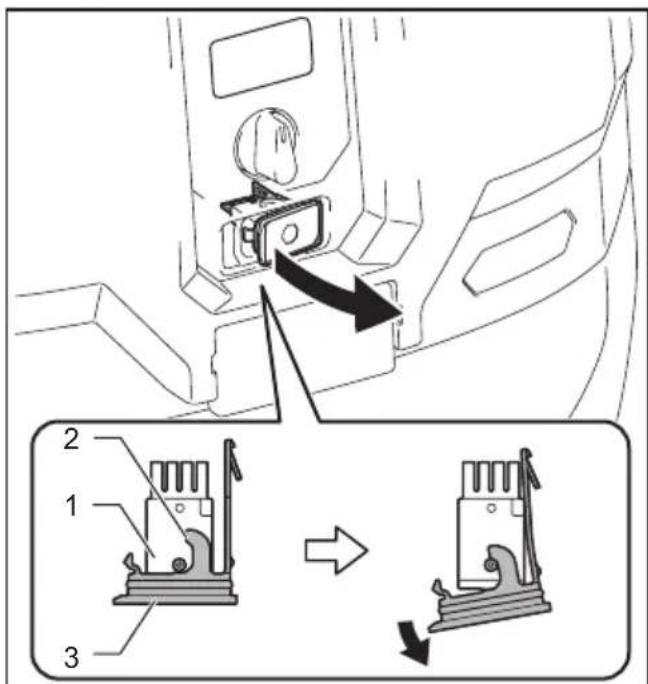

When removing the wireless unit, open the lid slowly. The hooks on the back of the lid will lift the wireless unit as you pull up the lid. ► Fig.30: 1. Wireless unit 2. Hook 3. Lid After removing the wireless unit, keep it in the supplied case or a static-free container. NOTICE: Always use the hooks on the back of the lid when removing the wireless unit. If the hooks do not catch the wireless unit, close the lid completely and open it slowly again. Tool registration for the cleaner NOTE: A Makita tool supporting the wireless activa- tion function is required for the tool registration. NOTE: Finish installing the wireless unit to the tool before starting the tool registration. NOTE: During the tool registration, do not pull the switch trigger on the tool or turn on the power switch on the cleaner. NOTE: Refer to the instruction manual of the tool, too. If you wish to activate the cleaner along with the switch operation of the tool, nish the tool registration beforehand.

1. Install the wireless units to the cleaner and the

2. Install the batteries to the cleaner and the tool.

3. Set the stand-by switch on the cleaner to "AUTO".

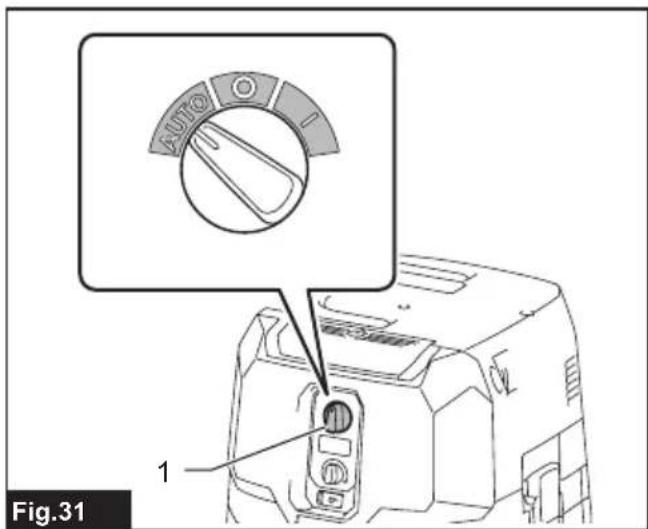

► Fig.31: 1. Stand-by switch

4. Press the wireless activation button on the cleaner

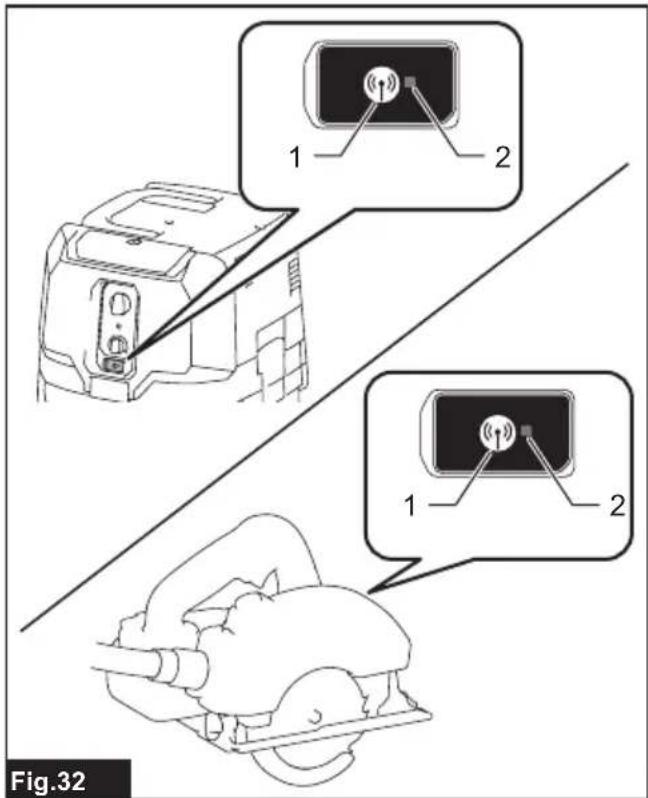

for 3 seconds until the wireless activation lamp blinks in green. And then press the wireless activation button on the tool in the same way. ► Fig.32: 1. Wireless activation button 2. Wireless activation lamp If the cleaner and the tool are linked successfully, the wireless activation lamps will light up in green for 2 seconds and start blinking in blue. NOTE: The wireless activation lamps nish blinking in green after 20 seconds elapsed. Press the wireless activation button on the tool while the wireless acti- vation lamp on the cleaner is blinking. If the wireless activation lamp does not blink in green, push the wire- less activation button briey and hold it down again. NOTE: When performing two or more tool registration for the cleaner, nish the tool registration one by one. Starting the wireless activation function NOTE: Finish the tool registration for the cleaner for wireless activation. NOTE: Always place the cleaner so that you can see the status of the wireless activation lamp. NOTE: Refer to the instruction manual of the tool, too. After registering a tool to the cleaner, the cleaner will automatically runs along with the switch operation of the tool.19 ENGLISH

1. Install the wireless units to the cleaner and the

2. Install the batteries to the cleaner and the tool.

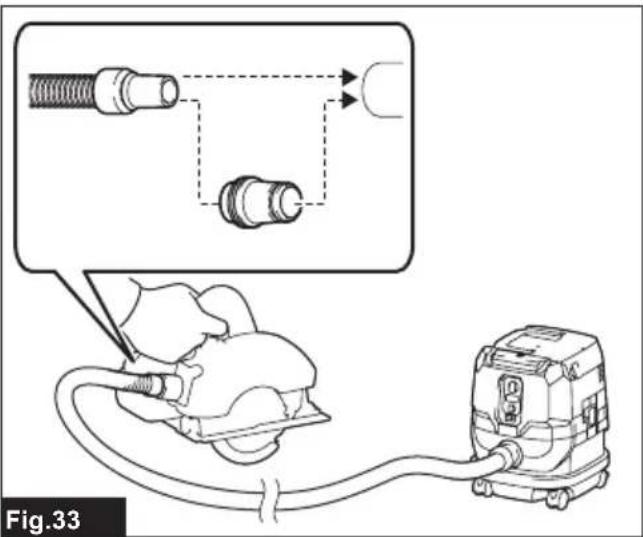

3. Connect the hose of the cleaner with the tool.

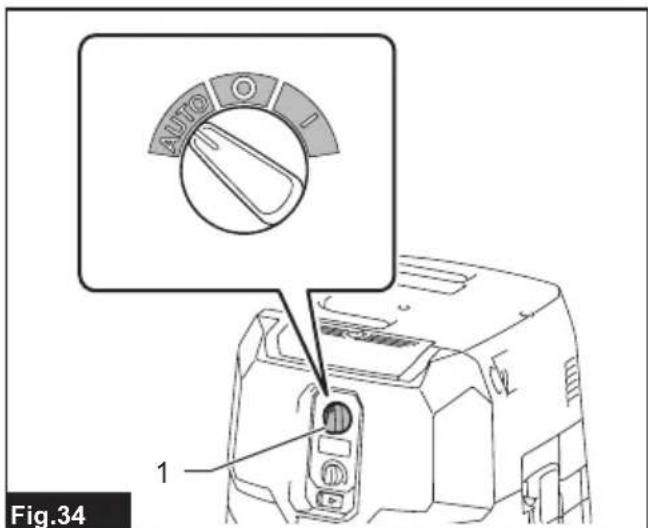

4. Set the stand-by switch on the cleaner to "AUTO".

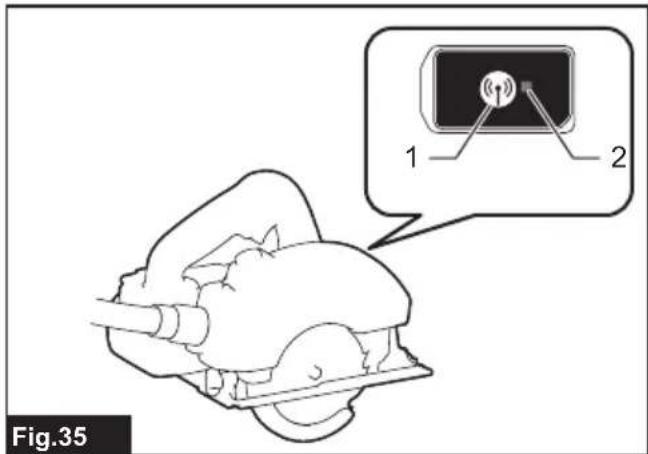

6. Turn on the tool. Check if the cleaner runs while

the tool is operating. CAUTION: Always check if the wireless acti- vation function works before starting a work with the tool. To stop the wireless activation, push the wireless activa- tion button on the tool, or set the stand-by switch on the cleaner to "I" or "O". NOTE: The wireless activation lamp on the tool will stop blinking in blue when there is no operation for 2 hours. In this case, set the stand-by switch on the cleaner to "AUTO" and press the wireless activation button on the tool again. NOTE: The cleaner starts/stops with a delay. There is a time lag when the cleaner detects a switch opera- tion of the tool. NOTE: The transmission distance of the wireless unit may vary depending on the location and surrounding circumstances. NOTE: When two or more tools are registered to one cleaner, the cleaner may start running even if you do not turn on the tool because other user is using the wireless activation function. Cancelling tool registration for the cleaner Perform the following procedure when cancelling the tool registration for the cleaner.

1. Install the wireless units to the cleaner and the

2. Install the batteries to the cleaner and the tool.

3. Set the stand-by switch on the cleaner to "AUTO".

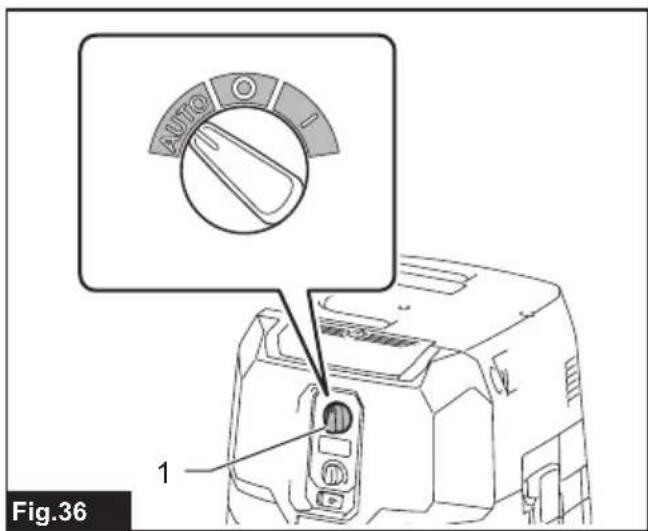

► Fig.36: 1. Stand-by switch

4. Press the wireless activation button on the cleaner

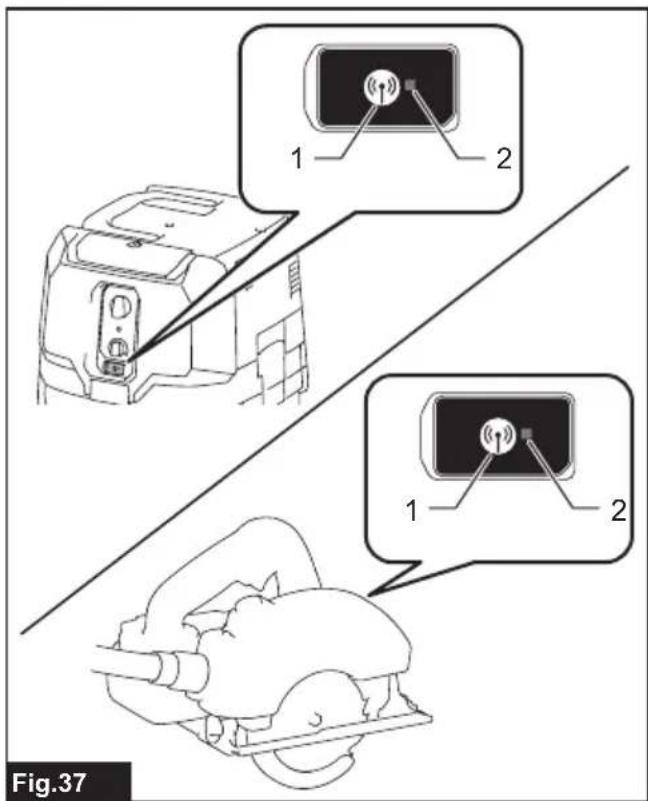

for 6 seconds. The wireless activation lamp blinks in green and then become red. After that, press the wire- less activation button on the tool in the same way. ► Fig.37: 1. Wireless activation button 2. Wireless activation lamp If the cancellation is performed successfully, the wire- less activation lamps will light up in red for 2 seconds and start blinking in blue. NOTE: The wireless activation lamps nish blinking in red after 20 seconds elapsed. Press the wireless acti- vation button on the tool while the wireless activation lamp on the cleaner is blinking. If the wireless acti- vation lamp does not blink in red, push the wireless activation button briey and hold it down again. Erasing all tool registrations You can erase all tool registrations from the cleaner as follows. ► Fig.38: 1. Stand-by switch 2. Wireless activation button 3. Wireless activation lamp

1. Install the wireless unit to the cleaner.

2. Install the batteries to the cleaner.

3. Set the stand-by switch to "AUTO".

4. Hold down the wireless activation button for about

6 seconds until the wireless activation lamp blinks in red (about twice per one second).

5. When the wireless activation lamp starts blinking

in red, release your nger from the wireless activation button. Thereafter, hold down the wireless activation button again for about 6 seconds.

6. When the wireless activation lamp starts blinking

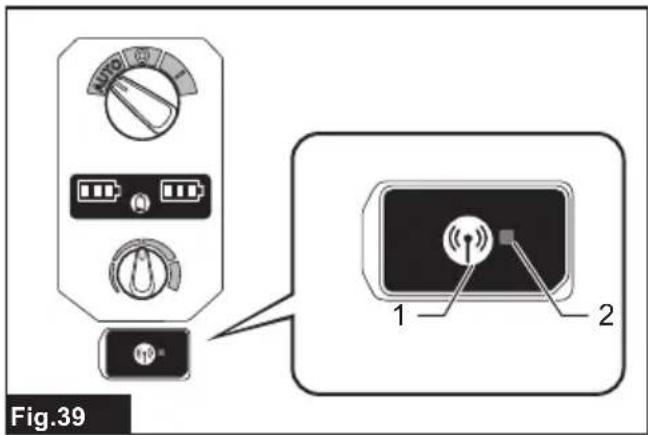

fast (about 5 times per one second) in red, release your nger from the wireless activation button. When the wireless activation lamp lights up in red and later lights o󰀨, all tool registrations are erased. NOTE: If the wireless activation lamp does not blink in red, press the wireless activation button briey and try again. Description of the wireless activation lamp status ► Fig.39: 1. Wireless activation button 2. Wireless activation lamp The wireless activation lamp shows the status of the wireless activation function. Refer to the below table for the meaning of the lamp status.20 ENGLISH Status Wireless activation lamp Description Color

Blinking Duration (approximate) Standby Blue Cleaner: con- tinuing Tool: 2 hours Waiting for the tool registration or the wireless activation function is available. The lamp on the cleaner blinks when the stand-by switch is set in AUTO. The lamp on the tool blinks when the wireless activation button is pushed. The lamp on the tool will automat- ically turn o󰀨 when no operation is performed for 2 hours. When the tool is running. The wireless activation of the cleaner is available and the tool is running. Tool registration Green 20 seconds Ready for the tool registration. Searching the tool to be registered. 2 seconds The tool registration has been nished. The wireless activa- tion lamp will start blinking in blue. Cancelling/ erasing tool registration Red (slow: 2 times/sec.) 20 seconds Ready for the cancellation of the tool registration. Searching the tool to be cancelled. (fast: 5 times/sec.) When the wireless acti- vation button is pressed down. Ready to erase all tool registrations. 2 seconds The tool registration has been cancelled/erased. The wireless activation lamp will start blinking in blue. Others Red 3 seconds The power is supplied to the wireless unit and the wireless activation function is starting up. O󰀨 - - The stand-by switch is not set to "AUTO". Troubleshooting for wireless activation function Before asking for repairs, conduct your own inspection rst. If you nd a problem that is not explained in the manual, do not attempt to dismantle the tool. Instead, ask Makita Authorized Service Centers, always using Makita replace- ment parts for repairs. State of abnormality Probable cause (malfunction) Remedy The wireless activation lamp does not light/blink. The wireless unit is not installed into the cleaner and/or the tool. The wireless unit is improperly installed into the cleaner and/or the tool. Install the wireless unit correctly. The terminal of the wireless unit and/or the slot is dirty. Gently wipe o󰀨 dust and dirt on the terminal of the wireless unit and clean the slot of the cleaner and/ or the tool. The wireless activation button on the tool has not been pushed. Push the wireless activation button on the tool briey. The stand-by switch on the cleaner is not set to "AUTO". Set the stand-by switch on the cleaner to "AUTO". No power supply Supply the power to the tool and the cleaner.21 ENGLISH State of abnormality Probable cause (malfunction) Remedy Cannot nish tool registration / can- celling tool registration successfully. The wireless unit is not installed into the cleaner and/or the tool. The wireless unit is improperly installed into the cleaner and/or the tool. Install the wireless unit correctly. The terminal of the wireless unit and/or the slot is dirty. Gently wipe o󰀨 dust and dirt on the terminal of the wireless unit and clean the slot of the cleaner and/ or the tool. The stand-by switch on the cleaner is not set to "AUTO". Set the stand-by switch on the cleaner to "AUTO". No power supply Supply the power to the tool and the cleaner. Incorrect operation Push the wireless activation button briey and perform the tool registration/cancellation procedures again. The tool and cleaner are away from each other (out of the transmission range). Get the tool and the cleaner closer to each other. The maximum transmission distance is approxi- mately 10 m however it may vary according to the circumstances. Before nishing the tool registration/ cancellation; - the switch of the tool is turned on or; - the power button on the cleaner is turned on. Push the wireless activation button briey and perform the tool registration/cancellation procedures again. The tool registration procedures for the tool or the cleaner has not nished. Perform the tool registration procedures for the tool and the cleaner at the same timing. Radio disturbance by other appliances which generate high-intensity radio waves. Keep the tool and the cleaner away from the appli- ances such as Wi-Fi devices and microwave ovens. The cleaner does not run along with the switch operation of the tool. The wireless unit is not installed into the cleaner and/or the tool. The wireless unit is improperly installed into the cleaner and/or the tool. Install the wireless unit correctly. The terminal of the wireless unit and/or the slot is dirty. Gently wipe o󰀨 dust and dirt on the terminal of the wireless unit and clean the slot of the cleaner and/ or the tool. The wireless activation button on the tool has not been pushed. Push the wireless activation button briey and make sure that the wireless activation lamp is blinking in blue. The stand-by switch on the cleaner is not set to "AUTO". Set the stand-by switch on the cleaner to "AUTO". More than 10 tools are registered to the cleaner. Perform the tool registration again. If more than 10 tools are registered to the cleaner, the tool registered earliest will be cancelled automatically. The cleaner erased all tool registrations. Perform the tool registration again. No power supply Supply the power to the tool and the cleaner. The tool and cleaner are away from each other (out of the transmission range). Get the tool and the cleaner closer to each other. The maximum transmission distance is approxi- mately 10 m however it may vary according to the circumstances. Radio disturbance by other appliances which generate high-intensity radio waves. Keep the tool and the cleaner away from the appli- ances such as Wi-Fi devices and microwave ovens. The cleaner runs while the tool is not operating. Other users are using the wireless acti- vation of the cleaner with their tools. Turn o󰀨 the wireless activation button of the other tools or cancel the tool registration of the other tools.22 ENGLISH State of abnormality Probable cause (malfunction) Remedy Cannot erase all tool registrations in the cleaner. Pressing the wireless button on the tool. Press the wireless button on the cleaner for erasing all tool registrations. The stand-by switch on the cleaner is not set to "AUTO". Set the stand-by switch on the cleaner to "AUTO". The wireless activation button is not held down correctly. Hold down the wireless activation button for more than 6 seconds and then release it when the wire- less activation lamp blinks in red. Hold down the wireless activation button for more than 6 seconds again until the wireless activation button rapidly blinks in red and then release the button. MAINTENANCE CAUTION: Always be sure that the appliance is switched o󰀨 and the battery cartridges are removed before attempting to perform inspection or maintenance. NOTICE: Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result. To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts. Storage of accessories Accessories and attachments not in use, such as noz- zles and brushes, can be hooked and stored in the multi hook at the rear of the cleaner. ► Fig.40: 1. Multi hook 2. Accessories and attach- ments not in use Pipes (with an optional stopper installed) can be placed into the pipe holder when not using the cleaner for a short time. ► Fig.41: 1. Stopper (optional accessory) 2. Pipe holder A hose can be wrapped and stored around the housing or handle of the cleaner in large loops. Connect its both ends together to make loops and hook the loops onto the handle raised up. Alternatively, keep its root end installed in the hose inlet and hang the loops on the multi hook with the loose end tied up. ► Fig.42 ► Fig.43 Cleaning of powder lter (HEPA) and prelter Clean out the powder lter, prelter and damper at regular intervals since clogged lters and damper may result in poor suction performance. Routinely wipe and shake dust o󰀨 lters and damper by hand. ► Fig.44: 1. Prelter ► Fig.45: 1. Damper 2. Powder lter (HEPA) Occasionally wash the powder lter in water, rinse and dry thoroughly in the shade before use. Never wash lters in a washing machine. ► Fig.46 NOTE: Do not rub or scratch the powder lter, the prelter and the damper with hard objects such as a brush and a paddle. NOTE: The lters wear out in course of time. It is recommended to have some spares for them. OPTIONAL ACCESSORIES CAUTION: These accessories or attachments are recommended for use with your Makita tool specied in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose. If you need any assistance for more details regard- ing these accessories, ask your local Makita Service Center.

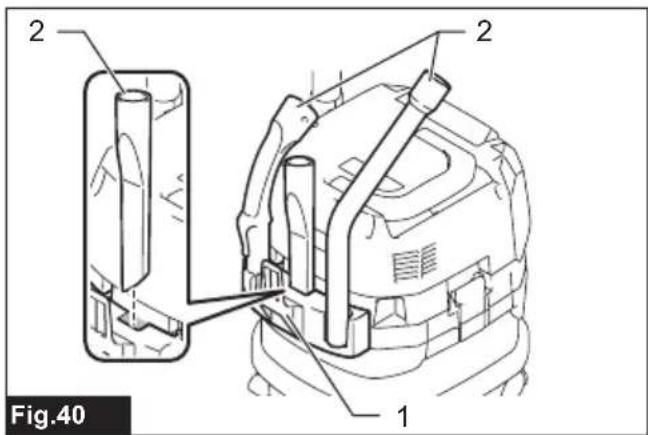

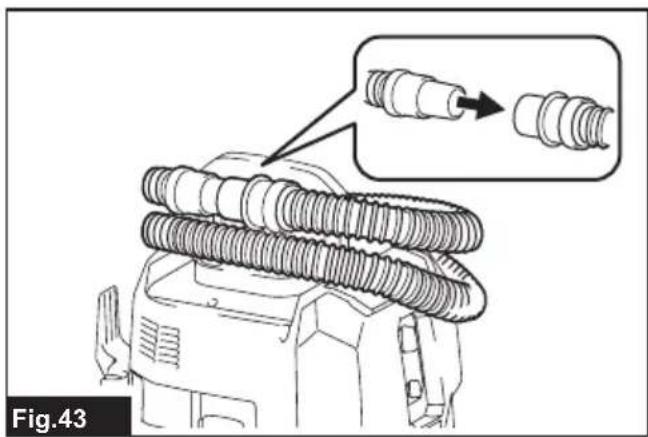

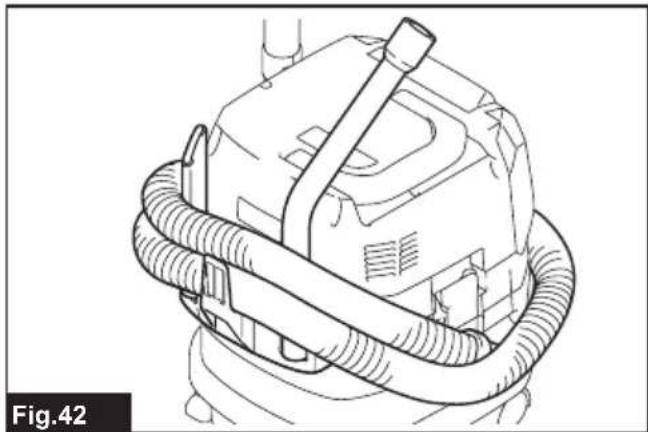

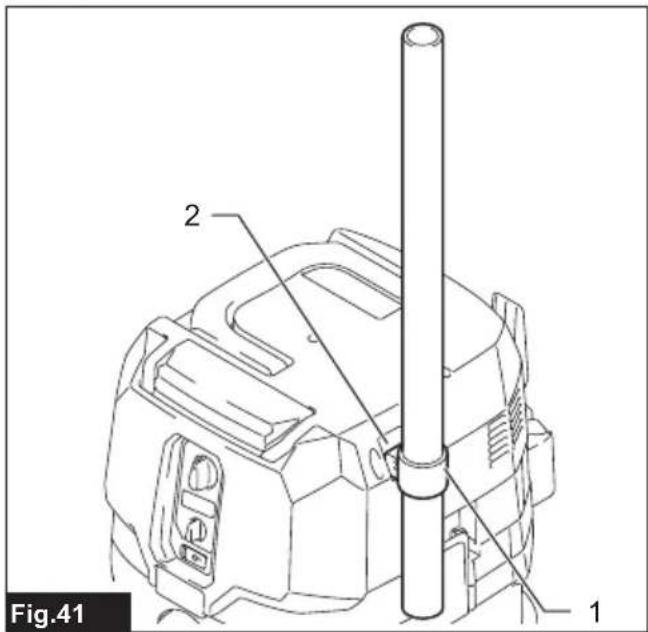

• Powder lter, HEPA (for dry dust)

• Makita genuine battery and charger NOTE: Some items in the list may be included in the tool package as standard accessories. They may di󰀨er from country to country.23 FRANÇAIS FRANÇAIS (Instructions originales) AVERTISSEMENT
