USER MANUAL Promenade CST404CUFG TOTO

THANKS FOR CHOOSING TOTO! The mission of TOTO is to provide the world with healthy, hygienic and more comfortable lifestyles. We design every product with the balance of form and function as a guiding principle. Congratulations on your choice. Thanks for Choosing TOTO

China Bowl with Lid Tank a b

• Closet Flange Mounting Bolts (usually 2 T-bolts, 2 metal washers and 2 nuts)

• Water Supply Line (typically 1/2” compression to 7/8” ballcock)

• Toilet Seat (TOTO SoftClose recommended) e f a. Caps (plastic) - 2 b. Base (plastic) - 2 INCLUDED PARTS4 ENGLISH BEFORE INSTALLATION Read these instructions thoroughly before beginning work. Please leave instructions for customers. These instruction contain maintenance and warranty information. If necessary, remove the existing toilet. For your new TOTO toilet to fit correctly, the rough-in, the distance between the finished wall to the center of the closet flange, must be at least 12 inches for most models. NOTE: Models with 10” rough-in have model numbers ending with “.10”, for example C744EF.10. Supply ValveFinished Wall"RI" C/L Closet Flange IMPORTANT! Due to the powerful performance of our Cyclone, G-Max, E-Max and Power Gravity ushing systems, they are not specified for back-to-back installations. The only means of installing these toilets in a back-to-back situation is when the toilet drain connections incorporate a WYE fitting. Please contact your builder or contractor prior to this installation. Double Combination WYE / 1/8 Bend YES Double Sanitary Tee / Sanitary Cross

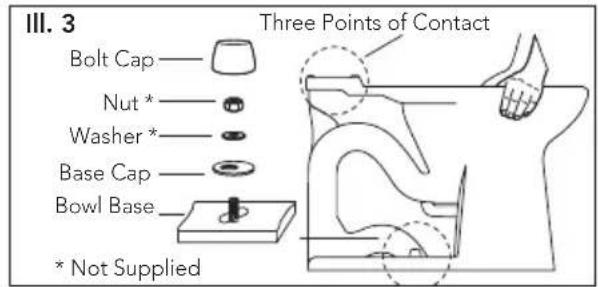

INSTALLATION PROCEDURE Ill. 1 Ill. 2 Wax Ring Horn Bolt CapNut *Washer *Base CapBowl BaseThree Points of Contact* Not Supplied Ill. 3

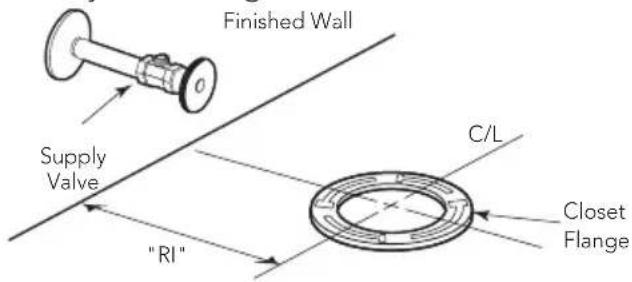

1) Clean any debris out of the closet flange

and then install new mounting bolts (not supplied) into the slots of the closet flange (see Illustration 1). The head of the bolt should be inserted into the slot with its threads facing upward.

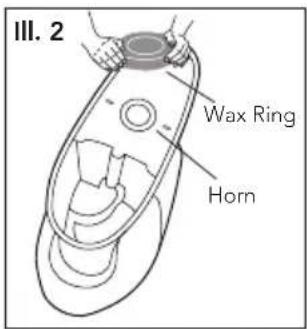

2) Carefully turn the toilet upside down

onto some padding. Firmly press a new bowl wax ring (not supplied) onto the circular recess around the toilet bowl’s horn (see Illustration 2). Turn the toilet upright and gently lower into position over the closet flange. With toilet properly aligned, press firmly on both sides of toilet rim to set the bowl wax ring (see Illustration 3). CAUTION: Do not move the bowl after the bowl wax ring is set. Thread the nuts and tighten evenly until bowl is snug to closet flange. Install the bolt caps (see Illustration 3). CAUTION: Do not over-tighten the nuts as damage to the china bowl may result.5 ENGLISH INSTALLATION PROCEDURE

YES Ill. 6Ill. 4Ill. 5Tank to Bowl Gasket

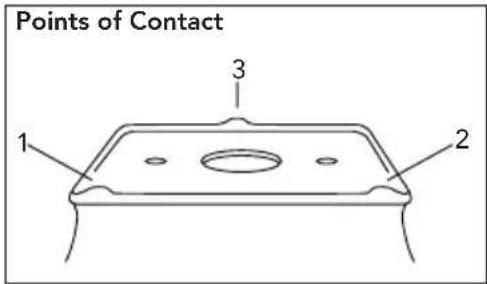

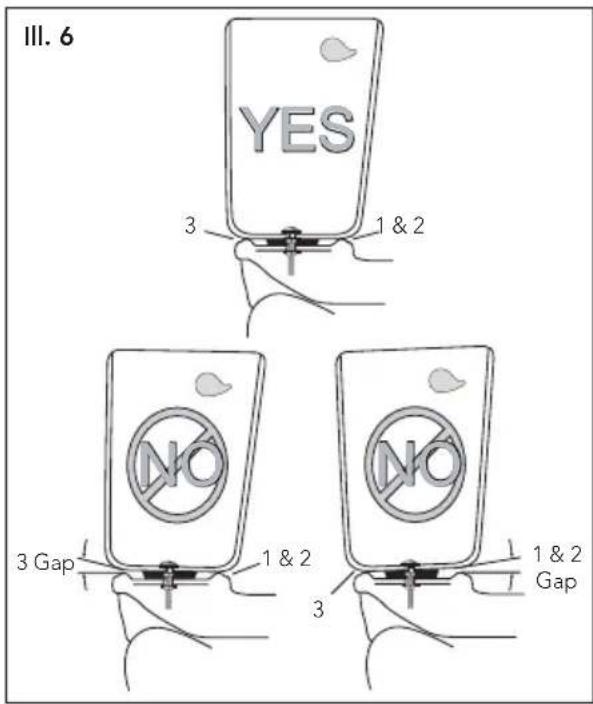

Fill Valve NutFlush Valve NutMetal Washer Nut Rubber Washer Bolt Cut Away View 1 & 23 Gap1 & 2 1 & 2 Gap Points of Contact NOTE: Three Points of Contact: The toilet bowl has three points o contact, which will actually contact the bottom of the toilet tank when properly installed. The location of these points can be seen on the bowl at the tank receiving area. The three points are front left (1), front right (2), and back center (3). Recall these three points during the Toilet Tank installation.

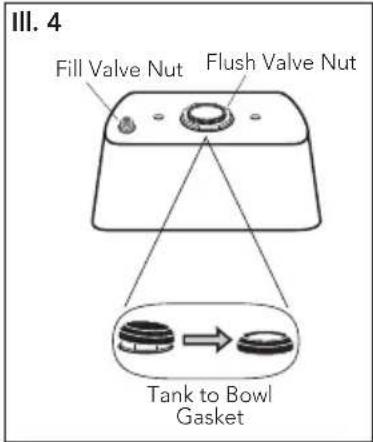

3) Place the tank upside down onto some

padding. Inspect the smaller fill valve nut and larger flush valve nut for a secure connection (see Illustration 4). Try to tighten the nuts with your hands. If loose, tighten the nut hand tight and an additional 1/4 turn for the smaller fill valve nut and an additional 1/2 turn for the larger flush valve nut. Place the tank-to-bowl gasket onto the flush valve nut. While pressing down, spread the gasket over the nut until the gasket touches the bottom of the tank. A slight gap between the tank bottom and the gasket is allowable.

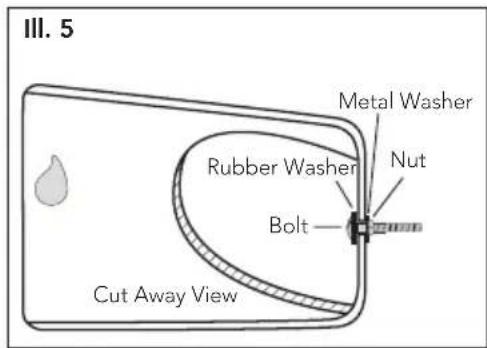

4) Lay the tank down on its back. Place a

rubber washer onto a brass bolt (see Illustration 5). Reach inside the tank and position the bolt through one of the holes in the bottom of the tank. On the outside of the tank, place a metal washer and nut onto the bolt. Hold the bolt centered in the hole and tighten the nut finger tight. Turn the nut an additional 1/2 turn with a wrench. Repeat this process for the remaining hole in the tank. Pick up the tank and carefully guide the brass bolts to align the tank with the bowl. Attach a metal washer and nut to each bolt. Tighten the nuts finger tight and inspect that the tank is level (see Illustration 6). Once level, tighten the bolts equally until the tank makes THREE POINTS OF CONTACT with the bowl.6 ENGLISH INSTALLATION PROCEDURE

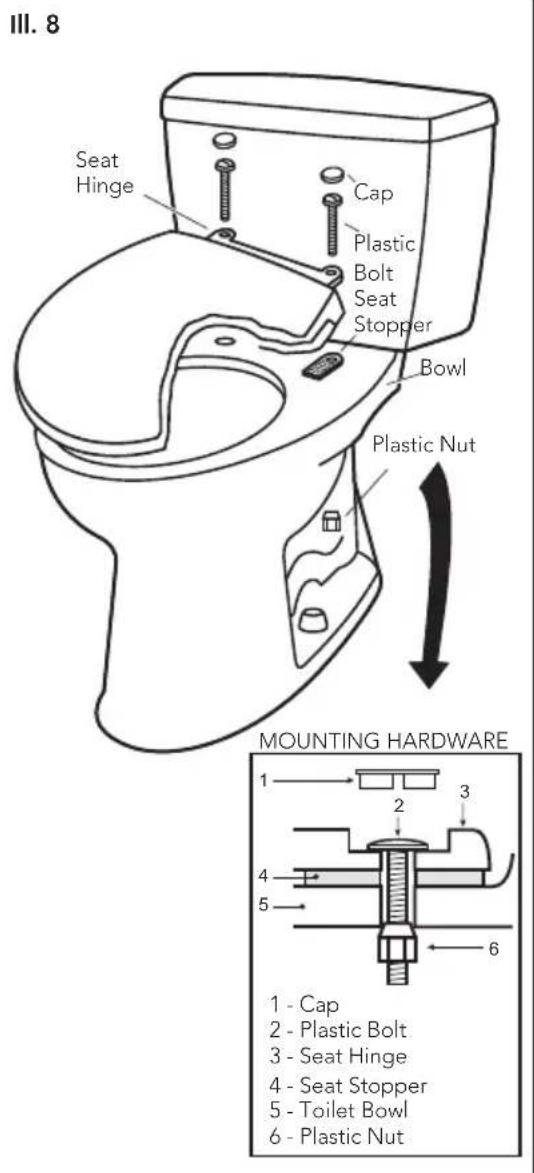

7/8” Ballcock ThreadHAND TIGHTEN ONLY Ill. 7 Ill. 8 Seat Hinge Cap Plastic Bolt Seat Stopper Bowl Plastic Nut1 - Cap2 - Plastic Bolt3 - Seat Hinge4 - Seat Stopper5 - Toilet Bowl6 - Plastic NutMOUNTING HARDWARE

5) Flush the water supply line for a few seconds

to remove any debris that may enter the new fill valve. (For new home constructions and/or additions, flush the water supply line for more than a minute to help remove any residual PVC adhesives, solder ux, and/ or pipe sealants that were used for the new plumbing.) Connect the water supply line to the fill valve threads as seen at the bottom of toilet tank (see Illustration 7). Tighten this connection finger tight. CAUTION: Avoid using a wrench to tighten the connection as you may damage the plastic threads and/or cause the fill valve to rotate inside the tank. NOTE: The water supply pressure should be 20 to 80 psi static.

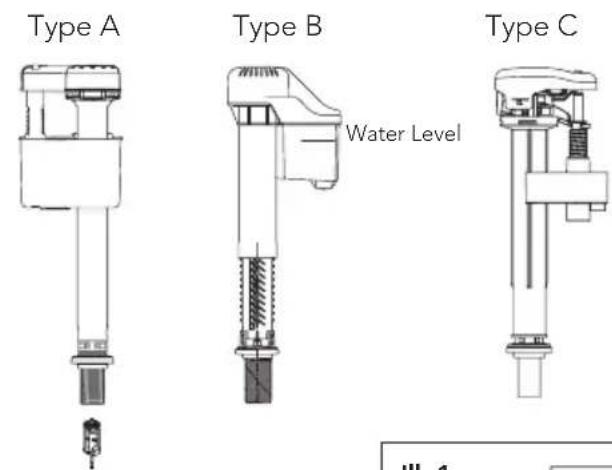

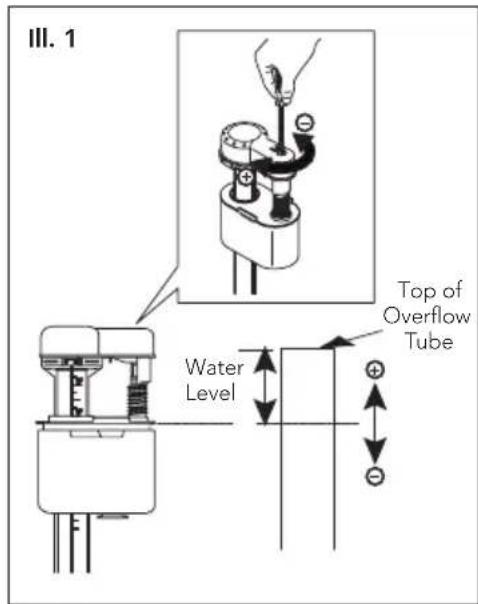

6) No ballcock / fill valve adjustments are

needed. The water will automatically stop at proper level. Flush the toilet several times. Check flapper valve for proper operation. Make sure that chain is not tangled and that the flapper arm is in its proper position.

using the mounting hardware in the toilet seat box. Place seat onto bowl and rotate the hinge down. Position seat stoppers under the seat hinge. Insert bolt into seat hinge and through the toilet bowl. Install plastic nut onto bolt from underneath. Tighten the bolt securely. Install the seat bolt caps. NOTE: Tighten the seat bolt until the hinge is secure. The seat and lid will have slight side to side movement, which is normal. This freedom of movement allows the seat to SoftClose® without binding.7 ENGLISH Water Level Adjustment Depending on the manufacturing plant, you may have one of two of the following fill valves: Type A Type B Water Level For Type A and C Fill Valve: Refer to the water level (WL) setting marked on the inner wall of the tank. Allow the wa- ter to fill the tank. Turn the adjustment screw clockwise in the (+) direction to increase the water level height (see Illustration 1). Turn the adjustment screw counter-clockwise in the (-) direction to decrease the water level height. Flush the toilet to verify the correct water level. Adjust as necessary. For Type B Fill Valve: There are no water level adjustments. The fill valve has been preset at the factory. Top of Overflow Tube Water LevelIll. 1 Type C

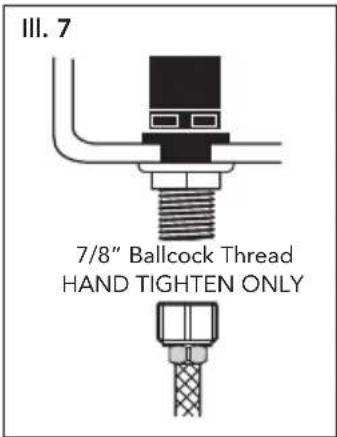

7) Connect water supply to fill valve shank and hand-tighten only.

NO TE: Do not overtighten. These are plastic parts. Never use pipe dope on any water supply connection.

8) Attach refill tube to fill valve nipple and clip other end of refill tube to the overow

9) Turn water supply ON and check for leaks outside the tank.

NO TE: As water fills the tank, water is also directed into the overow tube via the refill tube. This additional ow of water is critical to refilling your toilet’s bowl. Once the water stops filling the tank, some residual drops of water may drip from the fill valve. This is NORMAL as these drops will subside. Fill Valve Installation Procedure

1) Shut off the water supply to the toilet.

2) Flush toilet and remove remaining water from tank with a sponge.

3) Remove the water supply connection at the fill valve.

4) Remove old fill valve and use damp sponge to clean hole in tank.

5) Place new fill valve inside tank hole.

6) Thread mounting nut onto fill valve shank and tighten the nut.

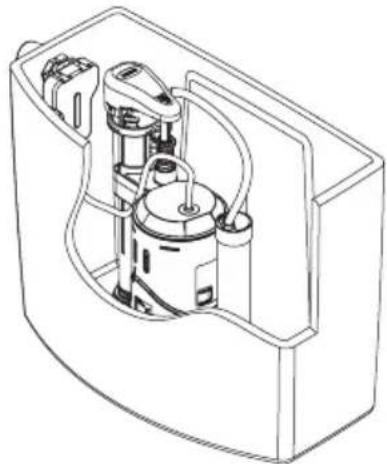

NO TE: Do not over-tighten. Be sure to install fill valve in a position that does not interfere with the trip lever operation. MAINTENTANCE INSTRUCTIONS8 ENGLISH Ill. 1 Ill. 2 Ill. 3 Ill. 4 Replacing the Flush Valve (ST453U and ST403U Model Tanks) MAINTENANCE INSTRUCTIONS

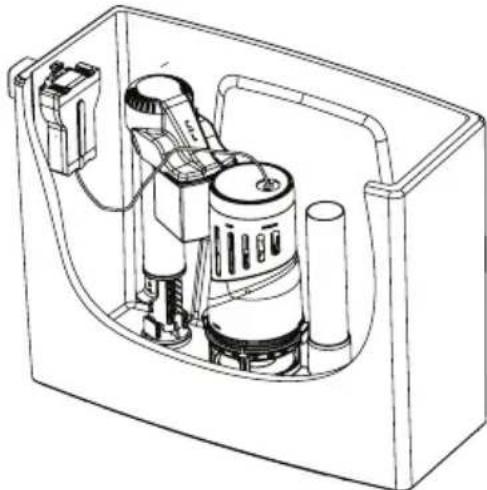

1) Turn off water supply and flush the toilet.

Remove the remaining water from tank with a sponge.

2) Remove the tank lid and place it upside

down on a clean surface.

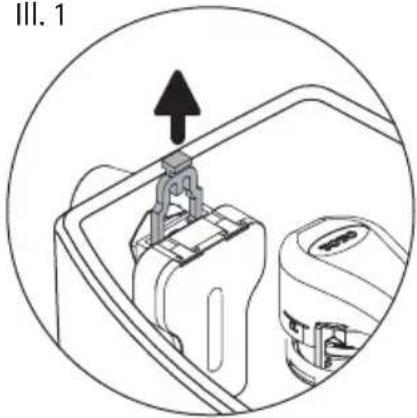

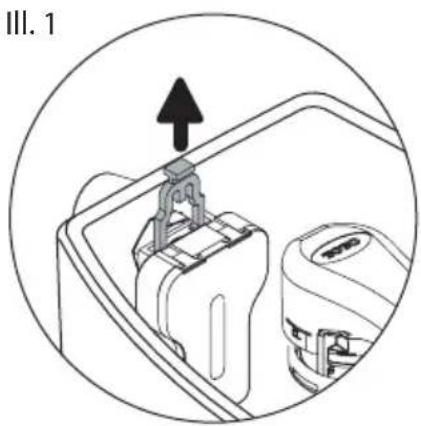

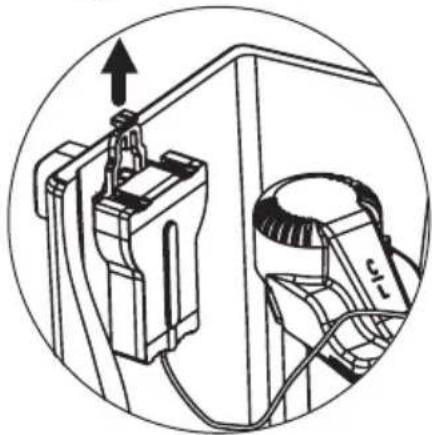

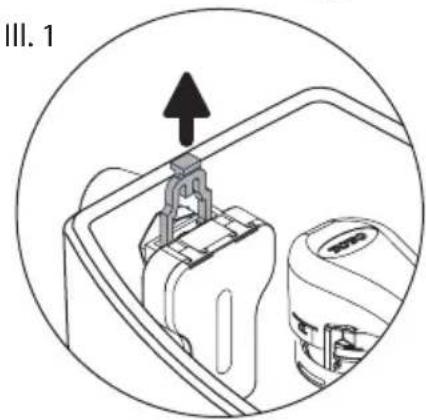

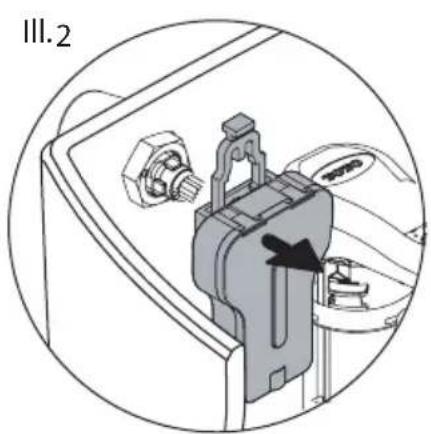

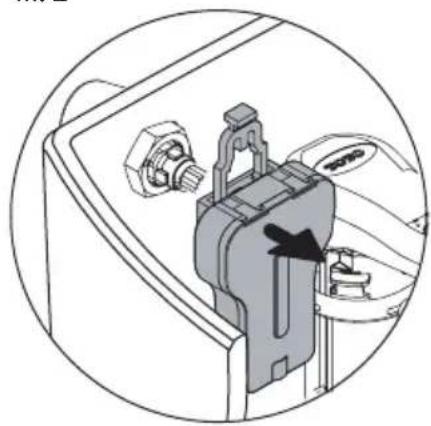

3) Pull the clip on top of trip leaver gear box

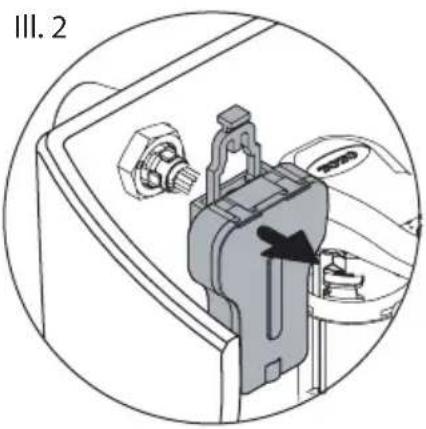

4) Pull gear box away and set on the side as

shown. (see ill. 1 & ill. 2)

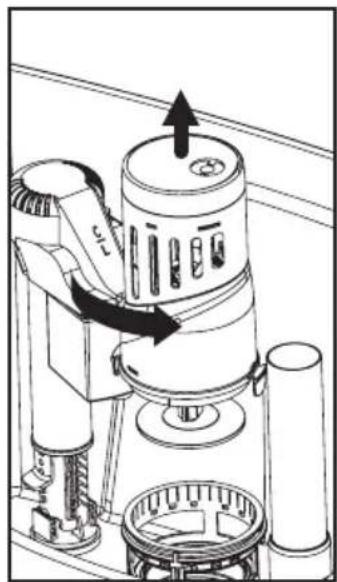

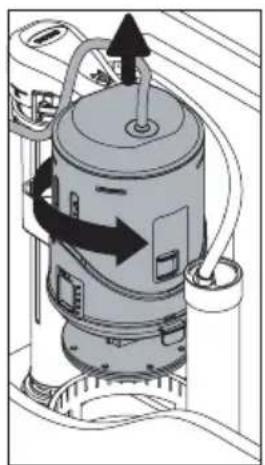

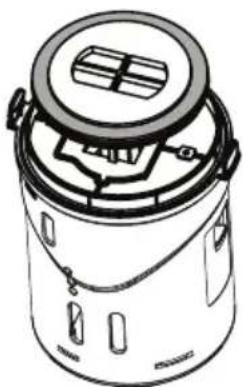

5) Rotate and pull up on the flush tower to

remove it. (see ill. 3)

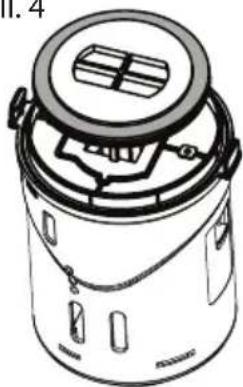

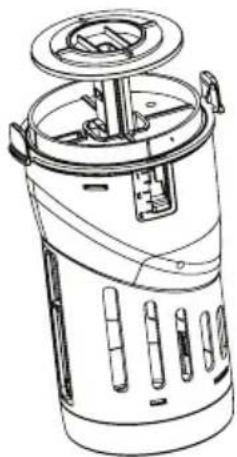

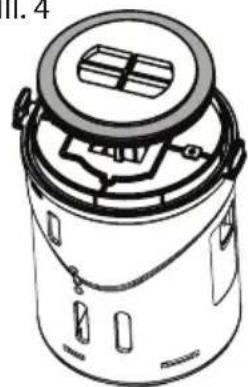

6) Remove the grey rubber seal gasket and

rinse under running water to clean. (see. ill. 4)

7) Place the gasket back on the flush tower.

8) Align and place the flush tower into hous-

ing and gently press to snap and to lock into place.

9) Replace the trip lever gear box and push

down on lever to lock it in place.

10) Carefully install the tank lid back on the

11) Flush the toilet several times making sure

the trip lever operates normally.

12) Check the water level in the tank and

inspect for signs of any leakage.9 ENGLISH WARNING! DO NOT USE IN-TANK BOWLCLEANERS. The use of high concentration of chlorine or chlorine-related products can seriously damage fittings in the tank. This damage can cause leakage and property damage. TOTO

shall not be responsible or liable for any tank fitting failure or damage caused by the use of in-tank bowl cleaners.

1) Shut off the water supply.

3) Remove the tank lid and place somewhere safe.

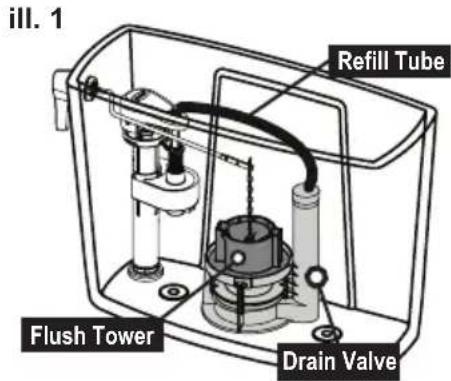

NOTE: Before removing anything from the tank, note the placement of the drain valve, chain and refill tube.

4) Unhook the refill tube from the overow tube of

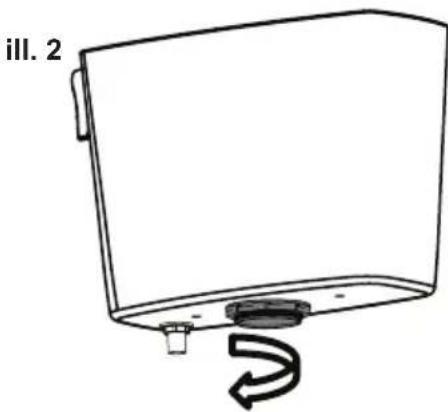

6) Uninstall the tank (refer to the toilet installation

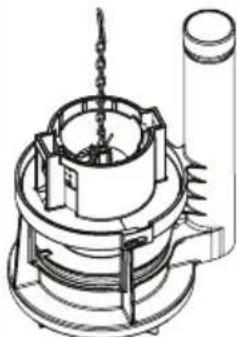

7) Remove the drain valve body from the tank.

8) Replace the drain valve in the same position as

the former drain valve.

9) Hand tighten the mounting nut of the drain valve

and use a wrench to tighten another 3/4 turn.

10) Reinstall the tank onto the bowl and place the

chain and refill tube the same way as it was for the former drain valve.

11) Turn the water supply back.

12) Check for any leakage after the tank has been

filled. MAINTENANCE INSTRUCTIONS Replacing the Drain Valve10 ENGLISH WARRANTY

1. TOTO warrants its vitreous china products (“Product”) to be free from defects in materials

and workmanship during normal use when properly installed and serviced, for a period of one (1) year from date of purchase. This limited warranty is extended only to the ORIGINAL PUR- CHASER of the Product and is not transferable to any third party, including but not limited to any subsequent purchaser or owner of the Product. This warranty applies only to TOTO Product purchased and installed in North, Central and South America.

2. TOTO’s obligations under this warranty are limited to repair, replacement or other appropri-

ate adjustment, at TOTO’s option, of the Product or parts found to be defective in normal use, provided that such Product was properly installed, used and serviced in accordance with instructions. TOTO reserves the right to make such inspections as may be necessary in order to determine the cause of the defect. TOTO will not charge for labor or parts in connection with warranty repairs or replacements. TOTO is not responsible for the cost of removal, return and/ or reinstallation of the Product.

3. This warranty does not apply to the following items:

a. Damage or loss sustained in a natural calamity such as fire, earthquake, ood, thunder, electrical storm, etc. b. Damage or loss resulting from any accident, unreasonable use, misuse, abuse, negli- gence, or improper care, cleaning, or maintenance of the Product. c. Damage or loss resulting from sediments or foreign matter contained in a water system. d. Damage or loss resulting from improper installation or from installation of the Product in a harsh and/or hazardous environment, or improper removal, repair or modification of the Product. (NOTE: Product model codes allow a maximum of 80 PSI. Check local codes or standards for requirements). e. Damage or loss resulting from electrical surges or lightning strikes or other acts which are not the fault of TOTO or which the Product is not specified to tolerate. f. Damage or loss resulting from normal and customary wear and tear, such as gloss reduc- tion, scratching or fading over time due to use, cleaning practices or water or atmospheric conditions. g. Tank flushing mechanisms of plastic or rubber moving parts. h. Toilet seats of plastic, wood or metal.

4. In order for this limited warranty to be valid, proof of purchase is required. TOTO encourages

warranty registration upon purchase to create a record of Product ownership at http://www. totousa.com. Product registration is completely voluntary and failure to register will not dimin- ish your limited warranty rights.

5. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS

WHICH VARY FROM STATE TO STATE, PROVINCE TO PROVINCE OR COUNTRY TO COUN- TRY.

6. To obtain warranty repair service under this warranty, you must take the Product or deliver it

prepaid to a TOTO service facility together with proof of purchase (original sales receipt) and a letter stating the problem, or contact a TOTO distributor or products service contractor, or write directly to TOTO U.S.A., INC., 1155 Southern Road, Morrow, GA 30260 [phone] or [phone], if outside the U.S.A. If, because of the size of the Product or nature of the defect, the Product cannot be returned to TOTO, receipt by TOTO of written notice of the defect together with proof of purchase (original sales receipt) shall constitute delivery. In such case, TOTO may choose to repair the Product at the purchaser’s location or pay to transport the Product to a service facility. WARNING! TOTO shall not be responsible or liable for any failure of, or damage to, this Prod- uct caused by either chloramines in the treatment of public water supply or cleaners containing chlorine (calcium hypochlorite). NOTE: The use of a high concentrate chlorine or chlorine related products can seriously damage the fittings. This damage can cause leakage and serious property damage. THIS WRITTEN WARRANTY IS THE ONLY WARRANTY MADE BY TOTO. REPAIR, REPLACEMENT OR OTHER APPROPRIATE ADJUSTMENT AS PROVIDED UNDER THIS WARRANTY SHALL BE THE EXCLUSIVE REMEDY AVAILABLE TO THE ORIGINAL PURCHASER. TOTO SHALL NOT BE RESPONSIBLE FOR LOSS OF THE PRODUCT OR FOR OTHER INCIDENTAL, SPECIAL OR CON- SEQUENTIAL DAMAGES OR EXPENSES INCURRED BY THE ORIGINAL PURCHASER, OR FOR LABOR OR OTHER COSTS DUE TO INSTALLATION OR REMOVAL, OR COSTS OF REPAIRS BY OTHERS, OR FOR ANY OTHER EXPENSE NOT SPECIFICALLY STATED ABOVE. IN NO EVENT WILL TOTO’S RESPONSIBILITY EXCEED THE PURCHASE PRICE OF THE PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTIES, INCLUDING THAT OF MERCHANTABILITY OR FITNESS FOR USE OR FOR A PARTICULAR PURPOSE, ARE EXPRESS- LY DISCLAIMED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUEN- TIAL DAMAGES, SO THE ABOVE LIMITATION AND EXCLUSION MAY NOT APPLY TO YOU.11 ESPAÑOL ÍNDICE ¡GRACIAS POR ELEGIR TOTO!

CST754EF(N) 28-1/8” 16-1/8” 32-1/2”

U.S.A., Inc. 1155 Southern Road, Morrow, Georgia 30260 Tel: [phone] Fax: [phone] www.totousa.com 0GU048Z-11 Rev Date: 08/16 Warranty Registration and Inquiry For product warranty registration, TOTO U.S.A. Inc. recommends online warranty registration. Please visit our web site http://www.totousa.com. If you have questions regarding warranty policy or coverage, please con- tact TOTO U.S.A. Inc., Customer Service Department, 1155 Southern Road, Morrow, GA 30260 [phone] or [phone] when calling from outside of U.S.A.
