USER MANUAL VT23 L3 LISTO

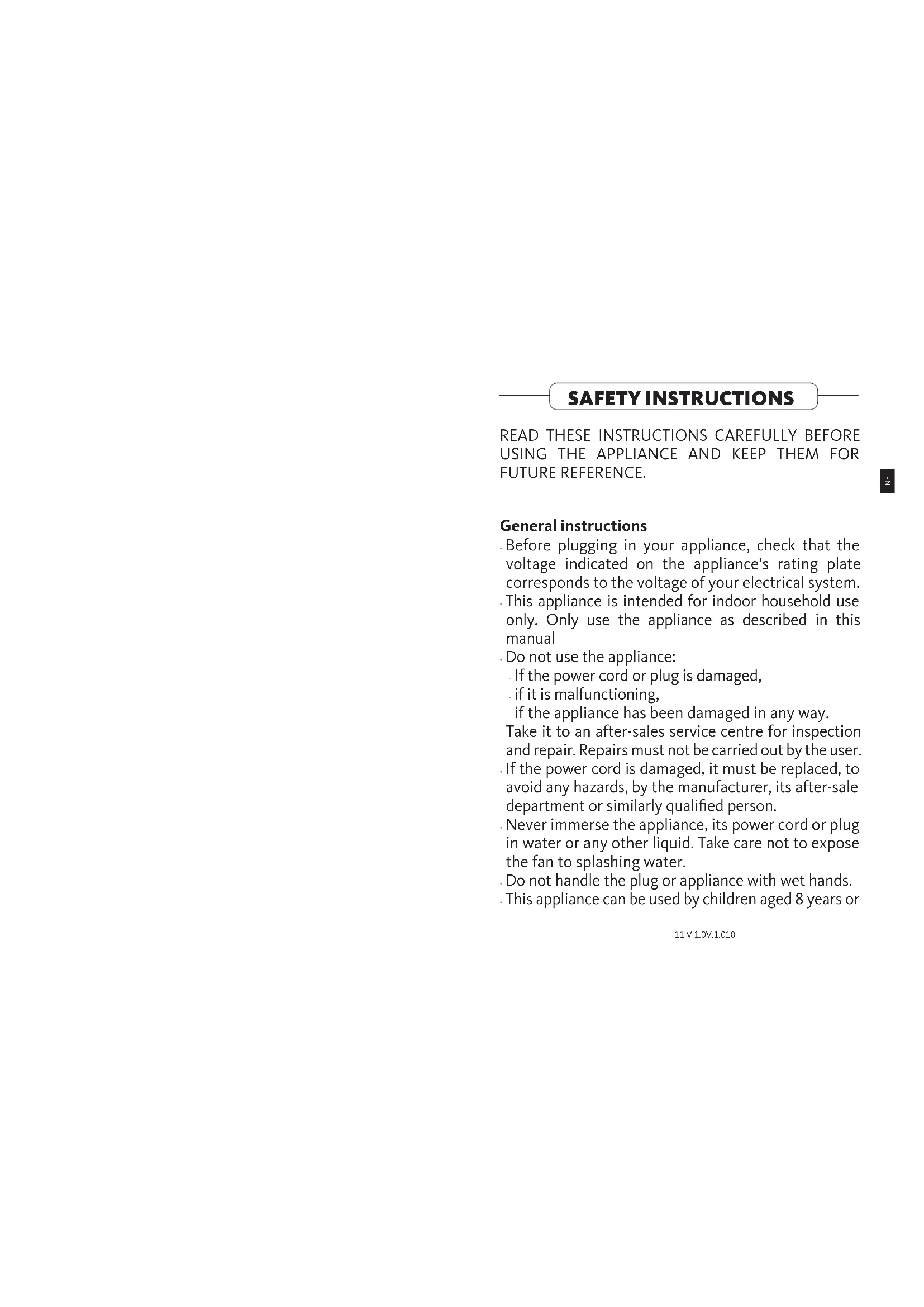

USING THE APPLIANCE AND KEEP THEM FOR FUTURE REFERENCE. General instructions

• Before plugging in your appliance, check that the voltage indicated on the appliance’s rating plate corresponds to the voltage of your electrical system.

• This appliance is intended for indoor household use only. Only use the appliance as described in this manual

• Do not use the appliance: - If the power cord or plug is damaged, - if it is malfunctioning, - if the appliance has been damaged in any way. Take it to an after-sales service centre for inspection and repair. Repairs must not be carried out by the user.

• If the power cord is damaged, it must be replaced, to avoid any hazards, by the manufacturer, its after-sale department or similarly qualied person.

• Never immerse the appliance, its power cord or plug in water or any other liquid. Take care not to expose the fan to splashing water.

• Do not handle the plug or appliance with wet hands.

• This appliance can be used by children aged 8 years or

11 V.1.0V.1.0 10more and by people with reduced physical, sensory or mental capacities or lacking the required experience or knowledge, if they are properly supervised or if they have been instructed in the safe use of the appliance and are aware of the risks involved.

• Children should not be allowed to play with the appliance.

• Children must be supervised when cleaning and maintaining the appliance.

• Keep the appliance and its power cord out of the reach of children under the age of eight.

• Keep the appliance and its power cord out of the reach of children under the age of eight.

• Children should be supervised to ensure that they do not play with the appliance.

• Never leave the fan unattended when in use.

• Young children, the elderly or ill persons should not be directly exposed to the blast of air from the fan for a long period of time.

• When you unplug the power cord, always pull it at the plug. Do not pull on the cord itself.

• Make sure that the fan is unplugged from the mains before removing the guard.

• Always unplug the appliance from the power point when not in use, before moving it, cleaning it or removing the guards.

• Never insert your ngers, pencils or any other object through the guard when the fan is running and avoid any contact with moving parts.

• Make sure that the fan is always placed on a at, dry and stable surface.

• Do not use your fan near a window. Rain could cause a risk of electric shock.

• Assemble all parts of the fan before turning it on.

• Do not place the fan near an oven, cooking appliance or any other heat source.

• Do not use the appliance in the presence of explosive or ammable vapours.

• Never attempt to repair the appliance yourself. Any repairs performed by an unqualied person will void the warranty.

• CAUTION: Never cover the appliance, even temporarily, as it may overheat and create a re hazard.

/min Power consumption P 20.9 W Service value SV 0.67 (m

/min)/W Power consumption in standby mode Psb - W Power consumption in o mode Po 0 Sound power level Lwa 52.22 dB(A) Maximum air speed c 2.51 metre/sec Seasonal consumption of electricity Q 6.69 kWh/a Service value measurement standard IEC 60879:2019 Contact details for further information Sourcing & Création Avenue de la Motte 59810 Lesquin - FRANCE ASSEMBLY

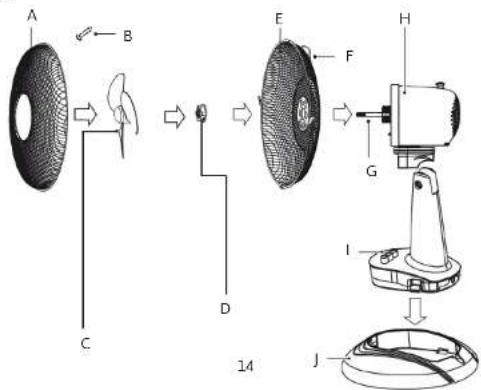

1. Insert the body (H) into the base (J), matching the notches provided. Then turn the nut on

the underside of the base clockwise to lock the assembly.

2. If necessary, remove the prexed rubber protection on the spindle (G).

3. Unscrew the plastic nut (D) pre-installed on the spindle (G).

4. Position the rear guard (E) on the motor assembly (H). The handle must face upwards.

5. Screw the plastic nut (D) tightly clockwise to secure the rear guard (E).

6. Place the propeller (C) on the spindle (G). Press rmly until it touches the retaining pin.

7. Remove the small screw and nut (B) pre-installed on the front guard (A).

8. Install the front guard (A) by inserting it into the bottom notch of the rear guard (E) and

matching the small round hole in each guard so that the closing screw (B) can be passed through later (see diagram below).

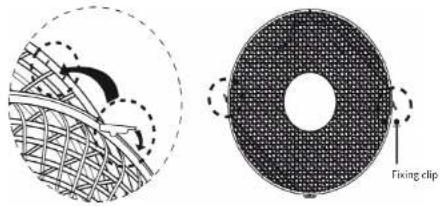

9. Fix the guards with the 2 xing clips (F), then use a screwdriver to tighten the closing

screw and nut (B) (see diagram below). Fixing clip

CAUTION !: The appliance must be unplugged from the power point before cleaning or dismantling the guards.

• You can remove the front guard to access the blades to clean them. Refer to the “Assembly” section.

• Remove dust with a soft, dry cloth.

• For a more thorough cleaning, you can clean the blades and body of the appliance with a soft damp sponge and a mild detergent (such as washing-up liquid). Rinse with clean water and dry using a soft cloth.

• Make sure that water cannot come into contact with the motor.

• Do not plug the unit back in until it is dry. USE

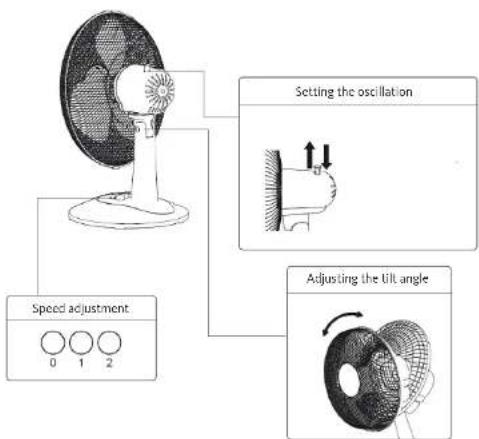

1. Plug the power cord into a suitable wall socket.

2. Adjust the speed using the buttons:

0: stop 1: low speed 2: high speed

3. You can adjust the angle manually by lowering or raising the guards.

4. You can activate or deactivate the oscillation by pressing or pulling the button behind the

guard on the motor block. Speed adjustmentSetting the oscillationAdjusting the tilt angle
