USER MANUAL FGAF50 FAGOR

Read this manual thoroughly before using and save it for future reference

18Warning: please be vigilant about risk, serious injury, and major loss of property that may lead to personnel. During work, the surface temperature of the front part, the left and right side and the upper part of the product will increase. The area / surface with the sign will become hot during the work. Please be careful to be burned. Note: please pay attention to the risks that may lead to injury to the person or damage to the articles. This appliance is intended to be used in household and similar applications such as: - staff kitchen areas in shops, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments. When using electrical appliances, basic safety precautions should always be followed including the following:

1. Read all instructions.

2. Do not touch hot surfaces.

SAVE THESE INSTRUCTIONS

IMPORTANT SAFEGUARDS

193. To protect against electric shock do not immerse cord, plugs,

or base in water or other liquid.

4. WARNING: This electrical appliance contains a heating

function. Surfaces, also different than the functional surfaces, can develop high temperatures. Since temperatures are differently perceived by different persons, this equipment shall be used with CAUTION. The equipment shall be touch only at intended handles and gripping surfaces, and use heat protection like gloves or similar. Surfaces other than intended gripping surfaces shall get sufficiently time to the cool down before getting touched.

5. Unplug from outlet when not in use and before cleaning.

Allow to cool before putting on or taking off parts.

6. Type Y:If the supply cord is damaged, it must be replaced

by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

7. The use of accessory attachments not recommended by the

appliance manufacturer may cause injuries.

8. Do not use outdoors

10. Do not place on or near a hot gas or electric burner, or in a

11. Extreme caution must be used when moving an appliance

20containing hot oil or other hot liquids.

12. Always attach plug to appliance first, then plug cord in the

wall outlet. To disconnect, turn any control to "off," then remove plug from wall outlet.

13. Do not use appliance for other than intended use.

14. This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are old than 8 and supervised.

15. Keep the appliance and its cord out of reach of children

16. The appliances are not intended to be operated by means

of an external timer or separate remote-control system. 17.For detailed information on how to clean surfaces in contact with food, see the below paragraph "Cleaning".

18.This product contains a light source of energy efficiency class G to Regulation (EU) No 2019/2015.Danger -This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. -Keep the appliance and its cord out of reach of children less than 8 years. -Never immerse the housing, which contains electrical components and the heating elements, in water nor rinse it under the tap. -Do not let any water or other liquid enter the appliance to prevent electric shock. -Always put the ingredients to be fried in the basket, to prevent it from coming into contact with the heating elements. -Do not cover the air inlet and the air outer openings while the appliance is operating. -Do not fill the pot with oil as this may cause a fire hazard. -Never touch the inside of the appliance while it is operating. The temperature of accessible surfaces may be high when the appliance is operating. Important 22WARNING - Check if the voltage indicated on the appliance fits the local mains voltage. - Do not use the appliance if there is any damage on plug, mains cord or other parts. - Do not go to any unauthorized person to replace or fix damaged main cord. - Keep the mains cord away from hot surfaces. - Do not plug in the appliance or operate the control panel with wet hands.. - Do not place the appliance against a wall or against other appliances. Leave at least 10cm free space on the back and sides and 10cm free space above the appliance. - Do not place anything on top of the appliance. - Do not use the appliance for any other purpose than described in this manual. - Do not let the appliance operate unattended. - During hot air frying, hot steam is released through the air outlet openings, Keep your hands and face at a safe distance from the steam and from the air outlet openings. - Also be careful of hot steam and air when you remove the pot from the appliance. - Any accessible surfaces may become hot during use (Fig.2) - Immediately unplug the appliance if you see dark smoke 23coming out of the appliance. Wait for the smoke emission to stop before you remove the pot from the appliance. Caution - Ensure the appliance in placed on a horizontal, even and stable surface. - This appliance is designed for household use only. It may not suitable to be safely used in environments such as staff kitchens, farms, motels, and other non-residential environments. Nor is it intended to be used by clients in hotels, motels, bed and breakfasts and other residential environments. - If the appliance is used improperly or for professional or semi-professional purposes or it is not used according to the instructions in the user manual, the guarantee becomes invalid and we could refuse any liability for damage caused. -Always unplug the appliance while not using. -The appliance needs approximately 30 minutes to cool down for handle or cleaning safely.

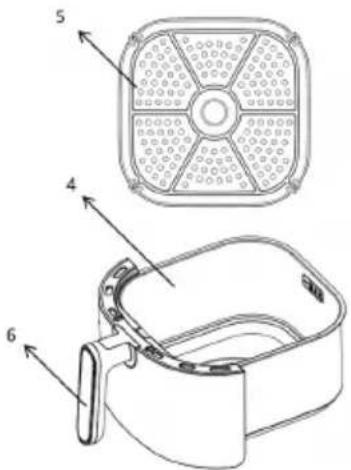

24INTRODUCTION This all now Airfry provides an easy and healthy way of preparing your favorite ingredients. By using hot rapid air circulation and a top grill, it is able to make numerous dishes. The best part is that the Airfry heats food at all directions and most of the ingredients do not need any oil. TECHNICAL DATA: -----Voltage: 220-240V~ 50/60Hz -----Wattage:1500 Watts -----Capacity of tank: 5.0 Litre -----Adjustable temperature: 80℃-200℃ ----- Timer (1- 60 min) GENERAL DESCRIPTION (Fig.1/Fig.2)

1. Remove all packaging materials.

2. Remove any stickers or labels from the appliance.

3. thoroughly clean the basket and tank with hot water, some washing-up liquid and a

non-abrasive sponge. 4.Wipe inside and outside of the appliance with a moist cloth. This is an oil-free fryer that works on hot air, do not fill the tank with oil or frying fat directly. Notice: When your airfry is heated for the first time, it may emit slight smoke or odor. This is normal with many heating appliances. This does not affect the safety of your appliance. Preparing for use 1 Place the appliance on a stable, horizontal and even surface. Do not place the appliance on non-heat-resistant surface. 2 Place the grill in the tank (Fig.4). Do not fill the tank with oil or any other liquid. Do not put anything on top of the appliance, the airflow will be disrupted and affects the hot airfry result.

The oil-free can prepare a large range of ingredients. Airfry

1. Connect the mains plug into an earthed wall socket.

2. Carefully pull the tank out of the airfry (Fig.3)

3. Put the ingredients in the basket. (Fig.5)

4. Slide the tank back into the airfry (Fig 6)

Noting to carefully align with the guides in the body of the airfry. Never use the tank without the basket in it. Caution: Do not touch the pot during and some time after use, as it gets very hot. Only hold the pot by the handle. 5.Determine the required preparation time for the ingredient (see section ‘Settings’ in this 26chapter). 6.Some ingredients require shaking halfway through the preparation time (see section “Settings” in this chapter). To shake the ingredients, pull the tank out of the appliance by the handle and shake it. Then slide the tank back into the airfry. Tip: If you set the timer to half the preparation time, you hear the timer buzzer when you have to shake the ingredients. However, this means that you have to set the timer again to the remaining preparation time after shaking.

7. When you hear the timer buzzer, the set preparation time has elapsed. Pull the tank out of

the appliance Note: You can also switch off the appliance manually. To do this, set the timer to 1min.

8. Check if the ingredients are ready.

If the ingredients are not ready yet, simply slide the tank back into the appliance and set the timer to a few extra minutes.

9. To remove ingredients (e.g. fries), pull the tank out of the airfry and place it on trial

framework. Do not turn the basket upside down with the tank still attached to it, as any excess oil that has collected on the bottom of the tank will leak onto the ingredients. The tank and the ingredients are hot. Depending on the type of the ingredients in the airfry, steam may escape from the pot.

10. Empty the basket into a bowl or onto a plate.

11. When a batch of ingredients is ready, the airfry is instantly ready for preparing another

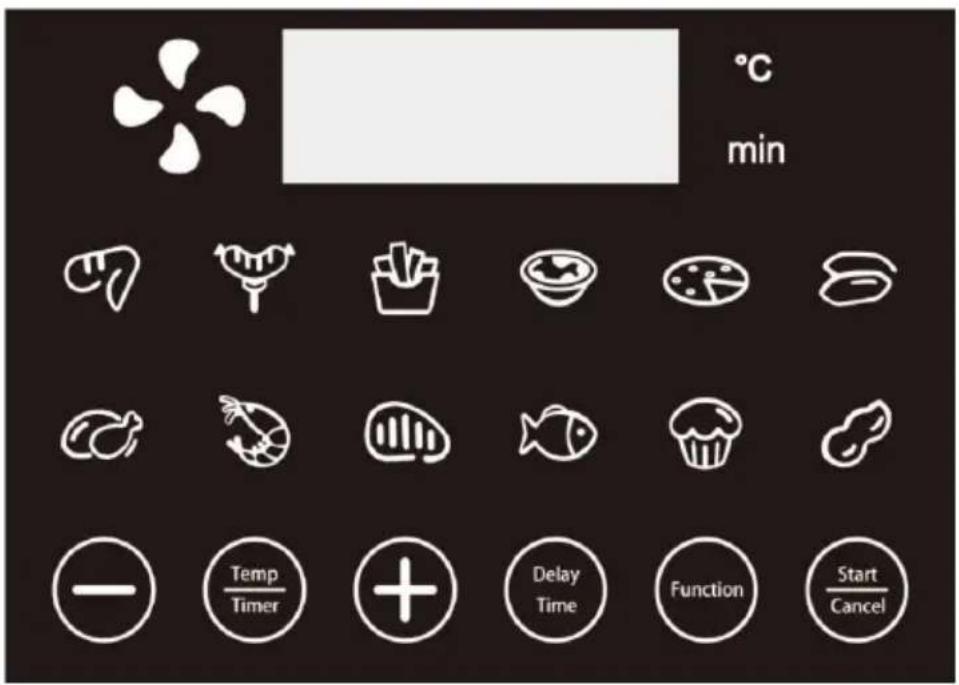

27Tip: Time can be adjusted according to personal taste and the type and size of food. Operation Instructions: Key –Power Key 1: Press power key, after power on, the display light is all bright, the display tube shows the default baking time of the first menu, and the first menu will flash. 2: Select the Function key according to the default menu. The menu is adjusted from 3: After menu selection, if you do not press the "start" button, the operation function will start by itself 5 seconds later; And bake time countdown; 4: Reservation function: according to different users' use conditions, the corresponding menu can be reserved, press which can be adjusted from 10 minutes to 24 hours; Start reservation countdown after operation; 5: After the function operation, press the "Cancel" button to pause the baking program. Press the “Start” button and the baking program will continue to work. Press and holding the ”Cancel” button for 3 seconds to cancel the baking program, and the machine will also carry out Menu

Name chicken wing sausa

chips egg tart pizza sweet potato drumstick

seafood steak fish cake peanut Default temp 180℃ 190℃ 180℃ 180℃ 190℃ 190℃ 170℃ 180℃ 200℃ 150℃ 190℃ Default time 20min 10min 10min 10min 38min 20min 10min 13min 20min 14min 10min left to right. The temperature and time can be freely switched in the "Temperature and time" button according to personal preferences and tastes, and the corresponding "-" and "+" buttons can increase and decrease the temperature and time(The temperature was increased or decreased by 5℃ each step, and the time was increased or decreased by 1Min). 190℃ 13min 28the cooling operation for 30 seconds (but it’s not a quality issue); 6: After the baking process is over, or 1 minute after the function is not operated, the display screen will enter the standby mode, then press "Start" key, The display screen will be energized and display full light, restart operation mode. Settings This table below will help you to select the basic settings for the ingredients. Note: Keep in mind that these settings are indications. As ingredients differ in origin, size, shape as well as brand, we cannot guarantee the best setting for your ingredients. Because the Rapid Air technology instantly reheats the air inside the appliance instantly Pull the tank briefly out of the appliance during hot airfry barely disturbs the process. Tips - Smaller ingredients usually require a slightly shorter preparation time than larger ingredients. - A larger amount of ingredients only requires a slightly longer preparation time, a smaller amount of ingredients only requires a slightly shorter preparation time. - Shaking smaller ingredients halfway through the preparation time optimizes the end result and can help prevent unevenly fried ingredients. - Add some oil to fresh potatoes for a crispy result. Fry your ingredients in the airfry within a few minutes after you added the oil. - Snacks that can be prepared in a oven can also be prepared in the airfry. - Use pre-made dough to prepare filled snacks quickly and easily. Pre-made dough also requires a shorter preparation time than home-made dough. - Place a baking tin or oven dish in the airfry basket if you want to bake a cake or quiche or if you want to fry fragile ingredients or filled ingredients - Suggest baking time to set half of the time, turn the object on one side in the baking, will improve the baking effect.

29Cleaning Clean the appliance after every use. The tank and the non-stick coating basket. Do not use metal kitchen utensils or abrasive cleaning materials to clean them, as this may damage the non-stick coating. 1 Remove the mains plug from the wall socket and let the appliance cool down. Note: Remove the pot to let the airfry cool down more quickly. 2 Wipe the outside of the appliance with a moist cloth. 3 Clean the tank and basket with hot water, some washing-up liquid and a non-abrasive sponge. You can use degreasing liquid to remove any remaining dirt. Tip: If dirt is stuck to the basket or the bottom of the tank, fill the tank with hot water with some washing-up liquid. Put the basket in the tank and let the tank and the basket soak for approximately 10 minutes. 4 Clean the inside of the appliance with hot water and non-abrasive sponge. 5 Clean the heating element with a cleaning brush to remove any food residues. Storage 1 Unplug the appliance and let it cool down. 2 Make sure all parts are clean and dry. Environment Do not throw away the appliance with the normal household waste when it is exhausted,, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment Guarantee and service If you need service or information or if you have a problem, please contact your local authorized service centre. Troubleshooting

problem Possible cause Solution The airfry does not work The appliance is not plugged in. Put the mains plug in an earthed wall socket. You have not set the timer. Set the timer key to the required preparation time to switch on the appliance. The ingredients fried with the airfry are not done. The amount of ingredients in the basket is too big. Put smaller batches of ingredients in the basket. Smaller batches are fried more evenly. The set temperature is too low. Set the temperature key to the required temperature setting (see section ‘settings’ in chapter ‘Using the appliance’). The preparation time is too short. Set the timer to the required preparation time (see section ‘Settings’ in chapter’ Using the appliance’). The ingredients are fried unevenly Certain types of ingredients need to be Ingredients that lie on top of or across each other (e.g. fries) need to be shaken halfway through the

30REMOVAL OF APPLIANCES USED

Directive 2012/19/EU on waste electrical and electronic Equipment (WEEE) requires that the appliance uses are not disposed of using the normal municipal waste. Old appliances must be collected separately in order to optimize the recovery and recycling of materials they contain and reduce the impact on human health and the environment. The symbol of the dustbin is used on all products to remind the obligations for separate collection. Consumers should contact their local authorities or dealer regarding the steps to follow for the removal of their old appliance. If you proceed with the scrapping of old equipment, be sure to render useless what could be dangerous: disconnect the power cable flush with the device.

Never attempt to use your appliance, if it shows signs of damage or the power cord or plug is damaged. If the power cord is defective it is important to have it replaced with the after sales service to eliminate any danger. Only qualified and authorized persons are authorized to carry out repairs to your appliance. in the airfry. shaken halfway through the preparation time. preparation time. See section ‘Settings’ in chapter ‘Using the appliance’. Fried snacks are not crispy when they come out of the airfry. You used a type of snacks meant to be prepared in a traditional deep fryer. Use oven snacks or lightly brush some oil onto the snacks for a crispier result. I cannot slide the pan into the appliance properly. There are too much ingredients in the basket. Do not fill the basket beyond the MAX indication. The basket is not placed in the tank correctly. Push the basket down into the tank until you hear a click. White smoke comes out of the appliance. You are preparing greasy ingredients. When you fry greasy ingredients in the airfry, a large amount of oil will leak into the tank. The oil produces white smoke and the tank may heat up more than usual. This does not affect the appliance or the end result. The pot still contains grease residues from previous use. White smoke is caused by grease heating up in the pan. make sure you clean the pan properly after each use. Fresh fries are fried unevenly in the airfry. You did not use the right potato type. Use fresh potatoes and make sure they stay firm during frying. You did not rinse the potato sticks properly before you fried them. Rinse the potato sticks properly to remove starch from the outside of the sticks. Fresh fries are not crispy when they come out of the airfry. The crispiness of the fries depends on the amount of oil and water in the fries. Make sure you dry the potato sticks properly before you add the oil. Cut the potato sticks smaller for a crispier result. Add slightly more oil for a crispier result.

31Any repairs not in accordance with standards could significantly increase the level of risk for the user! Defect resulting from improper handling, degradation or attempted repairs by third parties voids the warranty on the product. This also applies in case of normal wear and accessories from the appliance. Important! We recommend that you keep the packaging of your device at least for the duration of the warranty. The guarantee does not apply without the original packaging. Warranty: Your device has two years warranty. Accessories and spare parts are only available during the 2 years of the product warranty. The warranty does not cover wear and breakage following a wrong use of the product. The customer is responsible for all returns. You remain responsible for the costs and risks associated with the product shipment; it is therefore recommended to ship the product with an acknowledgement of receipt and transport insurance in case of significant value of the product.

KEEP OUT OF REACH OF CHILDREN

Children should be supervised to ensure that they do not play with the appliance.
