USER MANUAL Profi 48970 UNOLD

Power Rating: 180 W, 220–240 V~, 50 Hz Capacity: 2.0 liter Max. filling quantity: 1,500 ml Dimensions: W/D/H approx. 27.5 x 31.5 x 36.7 cm Weight Approx. 13.00 kg Power cord: Approx. 135 cm Features: Fully automatic, self-cooling compressor for continuous cold production, elegant stainless steel design, menu button for three functions: Mix, Freeze, Mix & Freeze, removable ice cream bowl, robust motor Accessories: Operating instructions with recipes Equipment features, technology, colours and design are subject to change without notice.

INSTRUCTIONS FOR USE MODEL 48870

TECHNICAL SPECIFICATIONS Please read the following instructions and keep them on hand for later reference.

1. This appliance can be used by children 8 years and older, as

well as by persons with reduced physical, sensory or mental abilities or with lack of experience and/or knowledge, if they are supervised or if they have been instructed with regard to safe use of the appliance and have understood the dangers that can result from use of the appliance.

2. Children must not play with the appliance.

3. Children are not allowed to perform cleaning and user

maintenance, unless they are 8 years of age or older and are supervised.

This symbol denotes a possible hazard which could cause injury or damage to the appliance. Caution: risk of fire. This symbol indicates a possible fire hazard. Copyright UNOLD AG | www.unold.de26 von 112 Stand 26.4.2022

4. Keep the appliance and the power cord out of the reach of

children under 8 years of age.

5. Connect the appliance to alternating current only, in accordance

with the rating plate.

6. Appliances are not intended to be operated by means of an

external timer or separate remote-control system.

7. After use, before cleaning and in case of defaults always unplug

8. Do not immerse the motor block, the power cord and the plug

into water – risk of short circuit.

9. Do not clean the appliance in the dishwasher.

10. Place the appliance on a free and flat surface.

11. Never put the appliance or the cable on hot surfaces nor operate

it near an open gas flame.

12. This appliance is intended for domestic and similar use such as:

staff kitchen areas in shops, offices and other working environments; agricultural enterprises; by clients in hotels, motels and other accommodation facilities; bed and breakfast accommodations and holiday homes.

13. Unwind the power cord completely.

14. Make sure, that the power cord does not hang over the edge of

15. Do not exceed the maximum filling quantity (max. 3/4 of the

ice cream bowl volume), as the ice cream will expand during freezing.

16. Always fill the ingredients into the removable ice cream bowl,

but never directly into the recess of the compressor housing.

17. Do not hold any tools, cutlery or fingers into the jug while it is

operated - Risk of injuries.

18. Only use the appliance when properly assembled.

19. During operation, the ventilation slots of the compressor housing

as well as of the motor block must be free and uncovered.

20. Never use the device without the ice cream bowl!

21. Do not use the appliance with accessories of other machines or

22. Do not use any sharp objects to take out the ice cream. Only use

plastic or wooden spoons or spatulas.

23. Check the plug and power cord regularly for wear and damage. In

case of a fault, please send the appliance for inspection/repair to our after sales service.

24. Inadequate repair may constitute a risk for the user and result in

the loss of guarantee.

25. Warning: fill with foodstuff only.

Never place hand in machine when in operation – risk of injury! After unpacking, please do not operate the appliance for at least two hours. The coolant in the appliance has to first settle, to prevent damage to the compressor. When unpacking the appliance and removing the packaging material, make sure not to tilt the appliance more than 45 °, to prevent damage to the compressor inside the appliance.

Warning: Do not store explosive substances such as aerosol

cans with a flammable propellant in this appliance.

Warning: Keep ventilation openings, in the appliance enclosure

or in the built-in structure, clear of obstruction

Warning: Do not use mechanical devices or other means to

accelerate the defrosting process, other than those recommended by the manufacturer. Warning: Do not damage the refrigerant circuit. Warning: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit becomes damaged. The refrigerant (R600a) is flammable. If the refrigerant circuit should be damaged: Avoid opening flames and sources of ignition. Thoroughly ventilate the room in which the appliance is situated. Copyright UNOLD AG | www.unold.de28 von 112 Stand 26.4.2022

The manufacturer will not be liable in the event of incorrect assembly, improper or incorrect use or if repairs are carried out by unauthorized third parties.

BEFORE USING THE APPLIANCE

1. Remove all packaging materials and any transport safeguards. Keep

packaging materials away from children – danger of suffocation! Dispose of packaging materials in accordance with local regulations.

2. Check the appliance for damage. If the appliance shows visible signs of

damage, do not operate it. Contact our customer service organisation instead.

3. Check whether all listed accessory parts are present.

4. Before taking your ice cream maker into operation for the first time, we

recommend to rinse all removable parts – except the compressor casing (4) – in warm water.

5. Wipe the casing and slot for the ice cream bowl with a damp, well-wrung

6. Place the appliance on a dry, level work surface.

7. Due to storage and transport, the lubricant for the mixer drive may become

viscous in individual cases. If the mixer does not rotate automatically during operation or after a longer break, please press the mixer firmly into the ice container and turn it clockwise by hand a few times. A smooth operation is usually possible then. Otherwise, please contact our customer service department. Button “Power” When the plug is in the power socket, the appliance is in the stand-by-mode. The display shows “00”. Press the button in order to turn on the appliance. The display lights up and shows “60:00”. In order to turn off the appliance during operation, press this button as well. Button “Menu” With this button, you choose between the three preparation programmes “Mix & Freeze”, “Freeze” or only “Mix”. When the appliance is in operation,

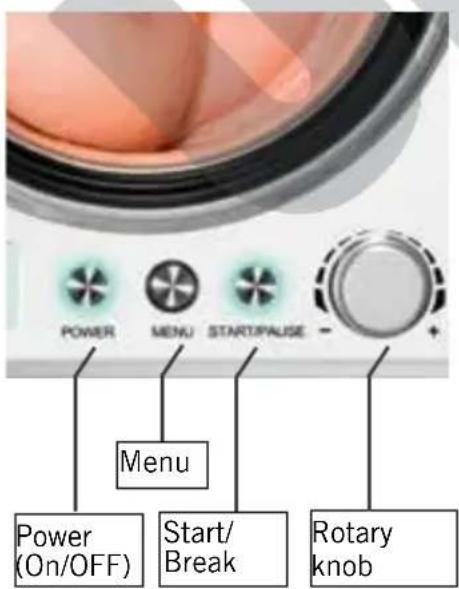

if you press the button for approx. 3 seconds, the appliance will return to the original settings. Rotary knob (for time adjustment) Turn the knob to select the desired time. If you turn the knob to the left (counter- clockwise), the time will be shortened in 1-minute increments, if you turn the knob to the right the time will be extended in 1-minute increments. The minimum preparation time is 5 minutes, shorter times cannot be set. Button “Start/Break” (Start/Pause) This button starts the chosen programme. It is possible to interrupt the pro- grammes by pressing this button as well. When you interrupt the programme, the preselected time is interrupted as well. As soon as you press the button START/ BREAK, the appliance will restart. Advice: If the preparation procedure does not start again within 10 minutes, the appliance will be turned off automatically. Then, you need to press the button POWER and do all the settings again. Please do not press the button several times. In order to avoid damages of the compressor, you need to wait at least 5 minutes before pressing the button again.

1. Prepare the ingredients for the ice cream as stated in the recipe. If the ice

cream mixture has to be cooked, this should be done a day in advance so the mixture has time to cool thoroughly.

2. Refrigerate the prepared ice cream mixture or the required ingredients to a

temperature of 6–8 °C.

3. Puree fruit just before mixing the ingredients and add pieces of fruit at the

4. Use alcohol sparingly and do not add until the end of the freezing time,

because alcohol prolongs the time needed for freezing.

5. Place the removable ice cream bowl in the space provided in the compressor

6. Place the mixer (2) on the shaft in the middle of the ice cream bowl.

7. Place the mixer exactly on the upright shaft on the bottom of the ice cream

8. Fill the refrigerated ingredients into the removable ice cream bowl. Be sure

not to exceed the maximum capacity of approximately ¾ of the bowl as the Copyright UNOLD AG | www.unold.de30 von 112 Stand 26.4.2022

ice expands due to the freezing process. However, we recommend filling the ice bowl at least halfway for a homogeneous freezing process.

9. Place the lid on the ice cream bowl.

10. Plug the power cord into an electrical outlet and switch on the appliance

with the POWER button. The display lights up blue briefly and displays “60:00”. The symbol for the standard program Mix & Freeze blinks.

11. The appliance is ready for operation.

12. You can now select the desired program with the “Menu” button. The

selected program is indicated by a corresponding symbol.

13. The following programs are available:

Symbol Program Mix and Free-

Freeze Mix Mix and Freeze The pre-set time for the normal ice cream preparation is 60:00. You can select the desired preparation time via the rotary knob for time adjustment. This is possible in 1 minute increments between 60 minutes and 5 minutes. For technical reasons, the mixer freezes after a short time if preparation is interrupted. The pause function should therefore only be used for a very short time. Freeze If the ice cream does not have the desired consistency, you can extend the freezing time by maximum 60 minutes. By turning the rotary knob, an appropriate time selection within a range of 60 minutes to 5 minutes is possible. 30 minutes is the prescribed standard setting. Mix When the ingredients need to be mixed evenly before starting the programme, please choose this programme selection before the ice cream preparation. The ingredients are mixed 60 minutes at maximum. By turning the rotary knob, an appropriate time selection within a range of 60 minutes to 5 minutes is possible. 10 minutes is the prescribed standard setting. Copyright UNOLD AG | www.unold.deStand 26.4.2022 31 von 112

14. Important: once you have selected a program, you cannot change it while

the program is running. You then have to use the POWER switch to switch the appliance off and back on again.

16. The remaining time is shown on the display.

17. During operation, you can change the duration of operation by setting the

desired time via the rotary knob. If you turn the knob to the left, the time will be shortened in 1-minute increments, if you turn the knob to the right, the time will be extended in 1-minute increments. The minimum preparation time is 5 minutes, shorter times cannot be set.

18. After expiration of the set time the appliance automatically switches off and

a signal beeps ten times. The display shows 00:00.

19. If the ice cream is not removed immediately after the program ends, after ten

minutes the automatic keep-cool phase switches on. After a few minutes, the compressor will be heard for a short time. Remove ice cream

20. Before removing the ice cream from the appliance, switch off the appliance

with the POWER switch and unplug the power cord from the electrical outlet.

21. Remove the transparent lid.

22. Remove the ice cream bowl from the appliance and carefully pull the mixer

23. Transfer the ice cream to a suitable bowl. Do not use sharp or pointed

objects for this; instead, use a plastic or wooden spoon in order not to damage the ice cream bowl. We recommend using a silicone dough scraper.

24. If desired, you can make more ice cream right away. In this case, start again

25. Tip: If you make fruit ice cream or sorbet, remove the ice cream bowl as

soon as the program is finished, transfer the ice cream to a bowl suitable for freezing and put this bowl in the freezer so that the ice cream freezes completely. Otherwise, this ice cream may be slightly soft inside, even if it is firmly frozen on the outside.

26. If you do not wish to make more ice cream, switch the appliance off with the

Before cleaning, always turn off the appliance, unplug it from the electrical outlet.

1. Never clean the appliance with or under water or other liquids. It is especially

important to keep the motor and the compressor from coming into contact with water.

2. Do not use harsh or abrasive cleaners.

3. The removable parts can be cleaned in warm water with mild dishwashing

detergent. These parts are dishwasher-safe, too (top rack).

4. Wipe off the compressor housing with a damp cloth.

5. Dry all parts thoroughly with a soft cloth before reassembly.

RECIPES: GENERAL INFORMATION

In the following you find some general information for the preparation of ice cream as well as some basic recipes. You will find a lot of good cooking books in good bookstores. Please adapt the quantities always to the maximum filling quantity of the ice bowl. The ice cream smells best when it is fresh. Homemade ice cream does not contain any conserving agents and is thus provided for immediate use. If you want to store the ice cream for some time, you should add 20 g ice cream base which avoids the formation of big ice crystals. In Germany the ice base (Eisbasis) is available under the following address in Germany: Hobbybäcker-Versand - Inge Pinzer Am Mühlholz 6 – D-89287 Bellenberg Tel. 0 73 06/92 59 00 Fax 0 73 06/92 59 05 Internet: www.hobbybaecker.de Only use ripe fruits for fruit ice cream. Fruit pieces or berries should be added at the end of the freezing procedure. You can replace milk by cream or cream by milk. The more cream is used, the softer the ice cream will be. Sugar can be replaced by honey, syrup or sweetener (not in case of soft ice cream). Milk can be replaced by soy drink. If you want hard ice cream, put the mass for about 15-30 minutes into the freezer before filling it into the ice cream bowl, or just select a longer freezing time. The ingredients must be well cooled before filling them into the ice cream bowl. The cooler the Copyright UNOLD AG | www.unold.deStand 26.4.2022 33 von 112

ingredients, the shorter the preparation time (approx 30 minutes). Ice will loose taste and quality if stored too long. To conserve the ice cream for a certain time, do not leave it in the removable bowl of the ice machine, but fill it into an adequate freezing box with lid. Ice cream can be stored for a short time in the freezer. Use the homemade ice cream within one week. Only use very fresh eggs. Melted ice cream should be used immediately and should not be frozen again.

Basic recipe soft ice cream 700 ml cream, 120 g honey, 4 egg yolk, 2 eggs, 1 pinch of salt Mix all ingredients and prepare ice cream in the ice cream maker. Sesaon to taste with liqueur, chocolate chips etc. Chocolate soft ice 700 ml cream, 80 g milk choco- late, 80 g dark chocolate, 2 egg yolk, 2 eggs, 1 pinch of salt Heat cream and chocolate the day be- fore and let it cool down in the refrig- erator. Add eggs and salt immediately before the ice preparation. Raspberry soft ice 500 ml cream, 1 tsp vanilla sug- ar, 120 g honey,2 egg yolk, 2 eggs, 1 pinch of salt, 250 ml mashed rasp- berries Mix cream, vanilla sugar and honey. Add mashed raspberries, eggs and salt immediately before the ice prepara- tion. Vanilla soft ice 700 ml cream, 1 sliced vanilla pod, 120 g honey, 2 egg yolk, 2 eggs, 1 pinch of salt Cook cream, vanilla pod and honey the day before and let it cool down. Mix all ingredients and prepare ice cream in the ice cream maker. Copyright UNOLD AG | www.unold.de34 von 112 Stand 26.4.2022

CREAM ICE Cream ice is made of milk, cream, egg yolk, sugar and other ingredients. It becomes smooth and soft by being stirred constantly during freezing. Basic recipe vanilla ice cream 350 ml milk, 550 ml cream, 1 vanil- la pod, 1 pinch of salt, 4 egg yolk, 6 tblsp sugar Heat milk and cream, slit the vanil- la pod and add the pulp to the milk, as well as the salt. Beat egg yolk with sugar and add slowly the warm milk. Cool the ice cream mass for about 24 hours in the refrigerator, then pre- pare ice cream in the ice cream mak- er. TIPP: For children add some choc- olate chips or jelly bears at the end of the freezing process. Quick vanilla ice cream 250 ml milk, 700 ml cream, 1 egg, 8 tblsp sugar, 1–2 tsp vanilla sugar Mix all ingredients and prepare ice cream in the ice cream maker. Basic recipe chocolate ice cream 1 bar each of plain and milk chocolate, 600 ml cream, 140 ml milk, 1 egg Heat chocolate with milk and cream and cool for about 24 hours in the re- frigerator. Then add the egg and pre- pare ice cream in the ice cream maker. Quick chocolate ice 300 ml chocolate syrup, 2 eggs, 300 ml cream, 300 ml milk Mix all ingredients and prepare ice cream in the ice cream maker. Mocha ice cream Prepare vanilla ice cream according to the basic recipe, but add 2-3 tblsp of granulated mocha or espresso powder to the hot milk. At the end of freezing add 1-2 tblsp of coffee liqueur. Walnut ice cream Caramelize 75 g of sugar in a pan, add 75 g of chopped walnuts and mix it with the caramel. Let the caramel cool down on an oiled plate. Prepare va- nilla ice cream according to the basic recipe, add the chopped caramelized walnuts at the end of the freezing pro- cess. TIPP: Replace walnuts by pump- kin seeds and season the ice cream with 1 tsp of pumpkin seed oil. Amaretto ice cream Prepare vanilla ice cream according to the basic recipe. Add the crumbs of 250 g amaretti (almond macaroons) with 2-3 tblsp of amaretto liqueur at the end of the freezing process. Copyright UNOLD AG | www.unold.deStand 26.4.2022 35 von 112

Fruit ice cream consists mainly of mashed fruits with sugar, cream or yoghurt and evtl. some eggwhite. To have a smooth fruit ice cream, it has to be stirred during freezing, which is achieved best in a ice cream maker. Basic recipe 550 g mashed fruits, 2 tblsp lemon juice, 125-150 g sugar, 2 tblsp egg- white, 250 ml cream Mix mashed fruits with sugar and lem- on juice. Beat eggwhite and cream and add it the mashed fruits. Mix all in- gredients and prepare ice cream in the ice cream maker. If canned fruits are used, it might not be necessary to add additional sugar. Basic recipe strawberry ice cream 500 g strawberries, 3-4 tblsp sugar, 350 ml sweet cream, 50 ml milk Mix the mashed strawberries with all ingredients and prepare ice cream in the ice cream maker. Yoghurt fruit ice cream 500 g mashed fruits (strawberries, raspberries, cherries etc.), 1 dash of sweetener, 500 ml natural yoghurt, 6 tblsp of cream Prepare ice cream as described above. Quick Yoghurt fruit ice Just prepare ice cream of 750 ml fruity yoghurt (4,5% grease). Mango coconut ice cream 2 ripe mango, 350 g natural yoghurt, 200 ml coconut milk, 2-3 tblsp sugar, 2-3 tblsp grated coconut Peel and mash the mango, mix it with the other ingredients and prepare ice cream in the ice cream maker. PARFAIT The basis of a parfait consists of egg yolk and sugar, beaten in a bain-marie and then mixed and frozen with other ingredients and cream to get a very creamy ice cream. Apple Calvados Parfait 375 g apple, 1 lemon, 2-3 tblsp Cal- vados or apple brandy, 1 egg, 1 egg yolk, 75 g sugar, 250 ml cream Peel and cube the apple, mix it with the lemon juice. Take 1 teaspoon aside and cook and mash the remain- ing apple in a small amount of wa- ter. Beat eggs and sugar in a bain- marie. Add the mashed apple to the cooled egg mass. Beat the cream and add it also. Prepare ice cream in the ice cream maker. At the end of freez- ing, add the apple cubes and the ap- ple brandy. Serve with black current or blackberry sauce. Copyright UNOLD AG | www.unold.de36 von 112 Stand 26.4.2022

You can replace sugar with stevia. In this case always replace approx. 1/10 of the specified sugar weight with stevia (for example, instead of 100 g of sugar, use 10 g of stevia). We have provided several recipe suggestions for you here. However please note that chocolate ice cream cannot be produced, because fat and sugar come from the bar of chocolate. Likewise, vanilla ice cream cannot be produced because in this case the sugar functions as an indispensable flavour carrier. Only use very fresh eggs. Consume the ice cream within one week. Consume thawed ice cream immediately, do not refreeze it. Praliné Parfait 50 g sugar, 80 ml water, 2 egg yolk, 1 tsp vanilla sugar, 1 pinch of grated orange peels, 75 g plain chocolate, 60 g nougat, 1 tblsp cocoa liqueur or rum, 250 ml cream Boil sugar with water, beat the egg with the cooled sugar water, the vanilla sugar and the orange peels. Melt choc- olate and nougat and add to the eggs, add liqueur or rum. Add the beaten cream. Mix all ingredients and prepare ice cream in the ice cream maker. STEVIA RECIPES Kiwi ice cream 10 ripe kiwis, 20 g stevia, 4 TBSP ap- ple sauce, 500 ml apple juice, 4 egg whites 2 TBSP lemon juice Peel the kiwis, cut them into pieces and put them in a high bowl. Add ste- via, apple sauce and apple juice. Pu- ree with the hand mixer. Beat egg whites and lemon juice until creamy, and blend with the kiwi mixture. Pour into the ice cream maker and freeze for approx. 40 minutes. Sour cherry sorbet 500 g sour cherries (from the jar, drained), 2 TBSP lemon juice, 10 g stevia, 500 ml apple juice, 2 enve- lopes of gelatine that dissolves in cold liquids Pour all the ingredients into a high bowl and puree with the hand mixer. Pour into the ice cream maker and freeze for approx. 40 minutes. Iced tomato cream (As an appetiser or intermediate course on hot days) 250 ml tomato juice, 250 ml tomato puree (finished product), 400 g sour cream, 200 g sweet cream, 1 TBSP salt, 4 pinches stevia, 4 TBSP lemon juice, 1 TBSP finely chopped parsley, Copyright UNOLD AG | www.unold.deStand 26.4.2022 37 von 112

1 TBSP chopped chives, 2 envelopes of gelatine that dissolves in cold liq- uids, black pepper and Tobasco sauce to taste Pour all the ingredients into a high bowl and puree with the hand mixer. Pour into the ice cream maker and freeze for approx. 40 minutes. Tip: You can also add between 1 TBSP and 2 TBSP of balsamic vinegar (depend- ing on the prepared quantity) and fine- ly chopped basil leaves. In this case leave out the Tabasco sauce, parsley and chives. Cucumber ice cream 2 cucumbers, 4 TBSP lemon juice, 2 TBSP sunflower oil, 2 TBSP olive oil, 2 envelopes “Dill” spice blend for cucumber salad (or 4 TBSP finely chopped dill), 6 g stevia, 2 envelopes of gelatine that dissolves in cold liq- uids, 4 egg whites, salt and pepper to taste Peel cucumbers and cut them in half, scoop out the seeds, cut in large piec- es and put them in a high bowl. Puree with the hand mixer. Add all the oth- er ingredients, except the egg whites, and mix. Add a pinch of salt to the egg whites and beat until creamy, then fold into the cucumber puree with a whisk. Pour into the ice cream maker and freeze for 30 to 40 minutes. Buttermilk ice cream 400 ml buttermilk, 200 ml milk, 200 ml cream, 4 egg yolks, 20 g ste- via, 1 TBSP lemon zest Preparation variant 1 Only select this variant if you are sure you are using very fresh eggs. Pour all the ingredients into a high bowl and puree with the hand mixer. Pour into the ice cream maker and freeze for approx. 40 minutes. Preparation variant 2 Beat egg yolks and stevia in a double boiler until creamy. Bring milk and cream to boil and stir it into the egg yolk/stevia mixture and let cool. Ideally prepare this mixture on the day before. When the egg yolk/stevia mixture (with the added milk and cream) has completely cooled, mix in the buttermilk (do not add the buttermilk before the mixture has cooled, otherwise the buttermilk will curdle). Pour into the ice cream maker and freeze for approx. 40 minutes. Strawberry ice cream 500 g strawberries, 20 g stevia, 200 ml milk, 200 ml cream, 2 TBSP lemon juice Pour all the ingredients into a high bowl and puree with the hand mixer. Pour into the ice cream maker and Copyright UNOLD AG | www.unold.de38 von 112 Stand 26.4.2022

freeze for approx. 40 minutes. Tip: Add either 1 to 2 TBSP balsam or 1 to 2 EL finely chopped fresh mint leaves or basil leaves. You can also use blue- berries or raspberries instead of straw- berries. The authors have thoroughly considered and tested the recipes included in these operating instructions. Nevertheless, a guarantee cannot be accepted. The authors, respectively UNOLD AG and their assignees shall not be liable for personal injuries, material damages and financial loss.

WASTE DISPOSAL / ENVIRONMENTAL PROTECTION

Our appliances are produced on a high quality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible we ask you to follow the following instructions for disposal. Do not dispose this appliance together with your standard household waste. Please bring this product to an approved collection point for recycling of electric and electronic prod- ucts. By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment. GUARANTEE CONDITIONS We grant a 24 months guarantee, and in case of commercial use a 12 months guarantee, starting from the date of purchase for any damage demonstrably due to manufacturing defects and when the appliance has been used according to its intended use. Within the warranty period we will remedy defective materials or workman- ship through repair or replacement, at our option. Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. You can print out a return receipt on our website www.unold.de/ruecksendung. (only for entries from Germany and Austria). The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties. Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty. The instruction booklet is also available for download: www.unold.de Refrigerant: R600a Copyright UNOLD AG | www.unold.deStand 26.4.2022 39 von 112
