USER MANUAL IC BMW 100 v2 FOCAL

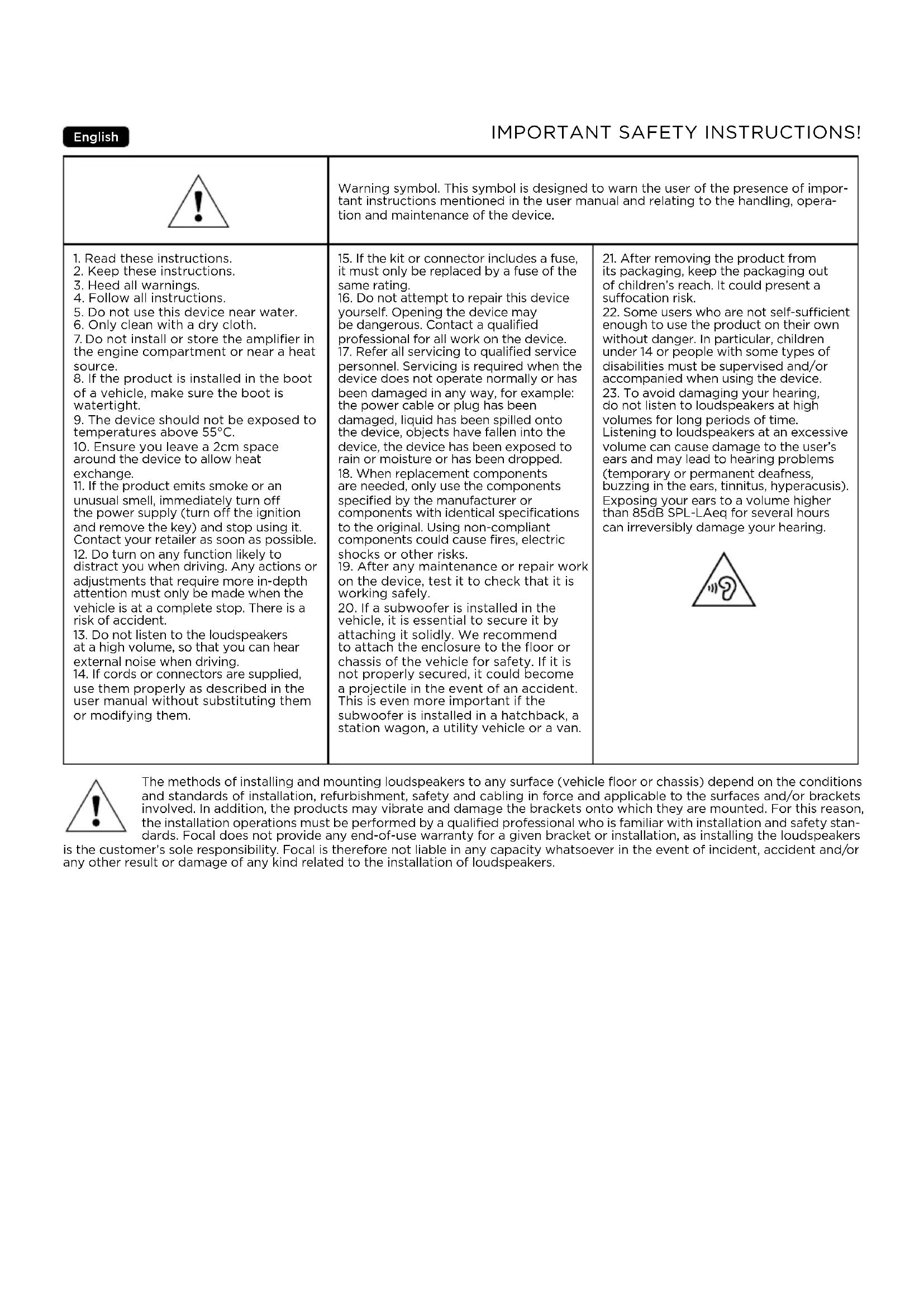

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this device near water.

6. Only clean with a dry cloth.

7. Do not install or store the amplifier in

the engine compartment or near a heat source.

8. If the product is installed in the boot

of a vehicle, make sure the boot is watertight.

9. The device should not be exposed to

temperatures above 55°C.

10. Ensure you leave a 2cm space

around the device to allow heat exchange.

11. If the product emits smoke or an

unusual smell, immediately turn o the power supply (turn o the ignition and remove the key) and stop using it. Contact your retailer as soon as possible.

12. Do turn on any function likely to

distract you when driving. Any actions or adjustments that require more in-depth attention must only be made when the vehicle is at a complete stop. There is a risk of accident.

13. Do not listen to the loudspeakers

at a high volume, so that you can hear external noise when driving.

14. If cords or connectors are supplied,

use them properly as described in the user manual without substituting them or modifying them.

15. If the kit or connector includes a fuse,

it must only be replaced by a fuse of the same rating.

16. Do not attempt to repair this device

yourself. Opening the device may be dangerous. Contact a qualified professional for all work on the device.

17. Refer all servicing to qualified service

personnel. Servicing is required when the device does not operate normally or has been damaged in any way, for example: the power cable or plug has been damaged, liquid has been spilled onto the device, objects have fallen into the device, the device has been exposed to rain or moisture or has been dropped.

18. When replacement components

are needed, only use the components specified by the manufacturer or components with identical specifications to the original. Using non-compliant components could cause fires, electric shocks or other risks.

19. After any maintenance or repair work

on the device, test it to check that it is working safely.

20. If a subwoofer is installed in the

vehicle, it is essential to secure it by attaching it solidly. We recommend to attach the enclosure to the floor or chassis of the vehicle for safety. If it is not properly secured, it could become a projectile in the event of an accident. This is even more important if the subwoofer is installed in a hatchback, a station wagon, a utility vehicle or a van.

21. After removing the product from

its packaging, keep the packaging out of children’s reach. It could present a suocation risk.

22. Some users who are not self-sucient

enough to use the product on their own without danger. In particular, children under 14 or people with some types of disabilities must be supervised and/or accompanied when using the device.

23. To avoid damaging your hearing,

do not listen to loudspeakers at high volumes for long periods of time. Listening to loudspeakers at an excessive volume can cause damage to the user’s ears and may lead to hearing problems (temporary or permanent deafness, buzzing in the ears, tinnitus, hyperacusis). Exposing your ears to a volume higher than 85dB SPL-LAeq for several hours can irreversibly damage your hearing.14

BMW v2 User manual For the purposes of improvement or to take into account any legal or regulatory changes, FOCAL-JMLab reserves the right to modify the tech- nical specifications of its products without prior notice. Where required, any images shown are for illustrative purposes only, and may differ slightly from the products sold. Thank you for purchasing a Focal product. Welcome to our High-Fidelity world. Innovation, tradition, excellence and pleasure are our values; our one and only aim is to bring you a sound that is rich, pure and true. To get the most out of your product, we recommend that you read the instructions in this booklet, then store it in a safe place to refer to in the future. For your safety, follow the assembly instructions provided in this user manual. Equipment required Important recommendations This speaker driver has been designed to be fitted in the factory location. Check that there is sufficient space between the speaker driver and the protective grille.

• Keep the speaker driver clear of any metal shavings and dust particles during the cutting process.

• Clean thoroughly before fitting the speaker driver.

• Ensure that there is nothing covering the grille, as this could damage the speaker driver.

• For the electrical disconnection, use the connector. Do not pull on the wires.

• Unclipping and reclipping the various parts must be done carefully.

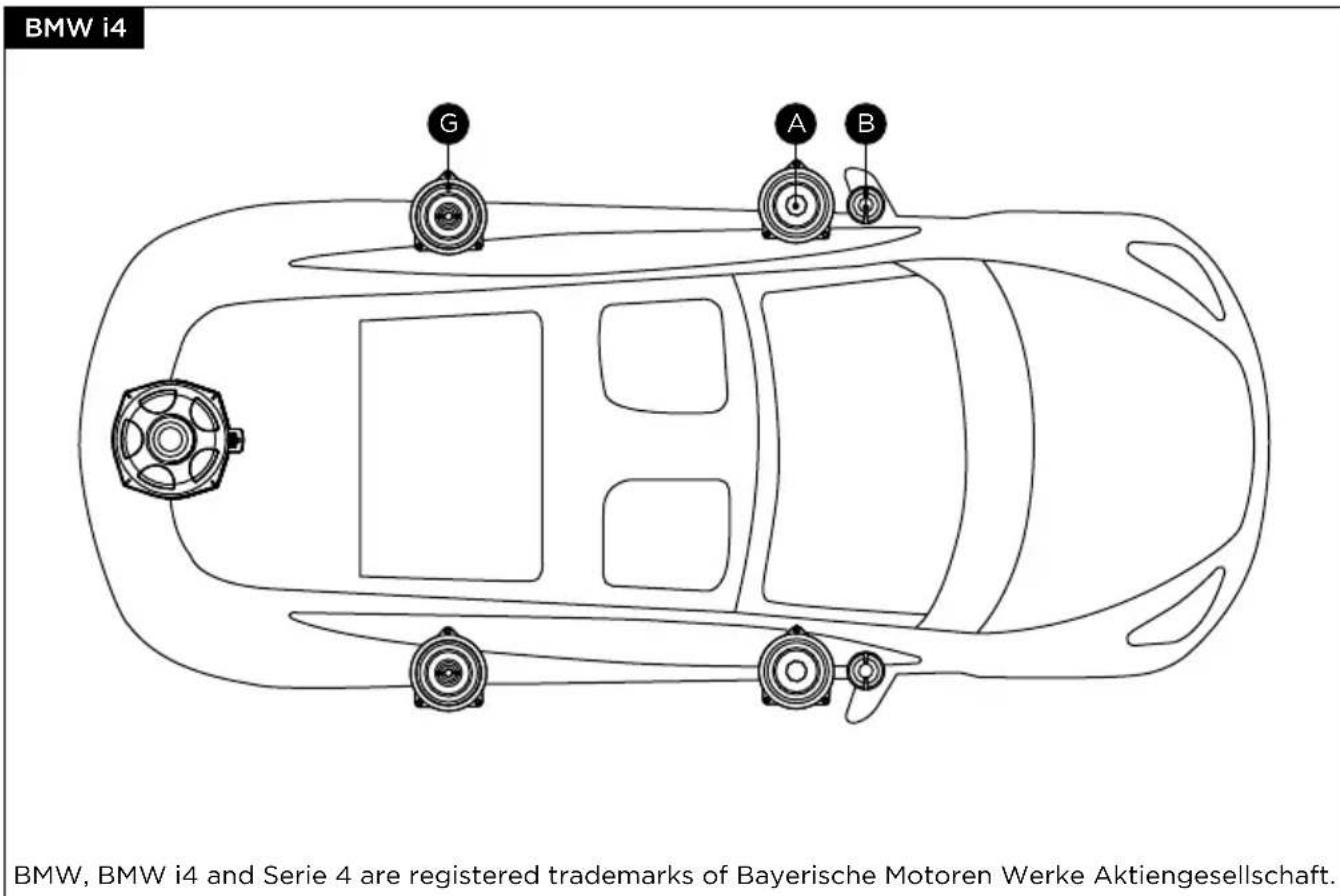

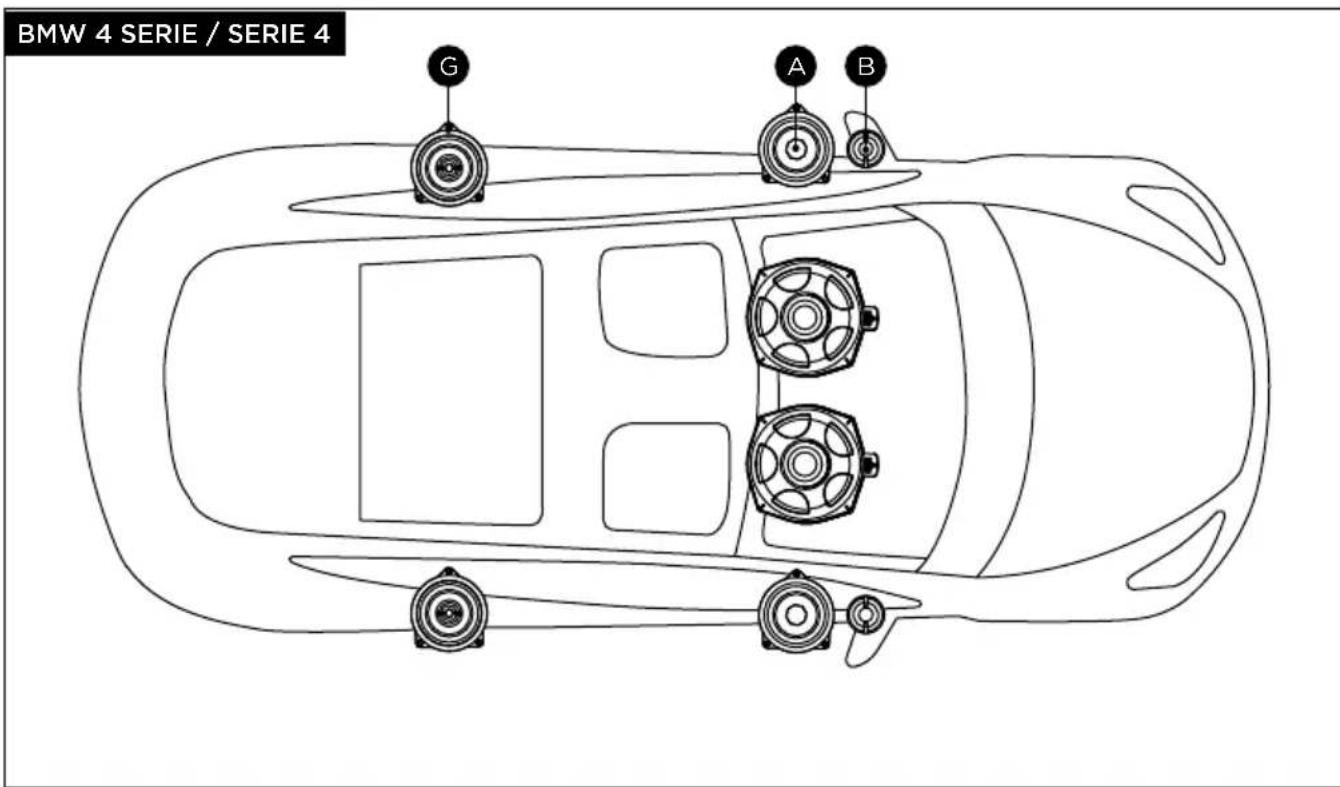

• Excessive force may damage them. Product positioning The speaker driver has been designed to deliver the most faithful sound reproduction for any style of music. Nonetheless, a few simple rules should be followed to optimise their performance and to guarantee good tonal balance and a realistic sound image. We recommend placing the speaker drivers from the kit in the dedicated OEM locations (see illustrations). Installation

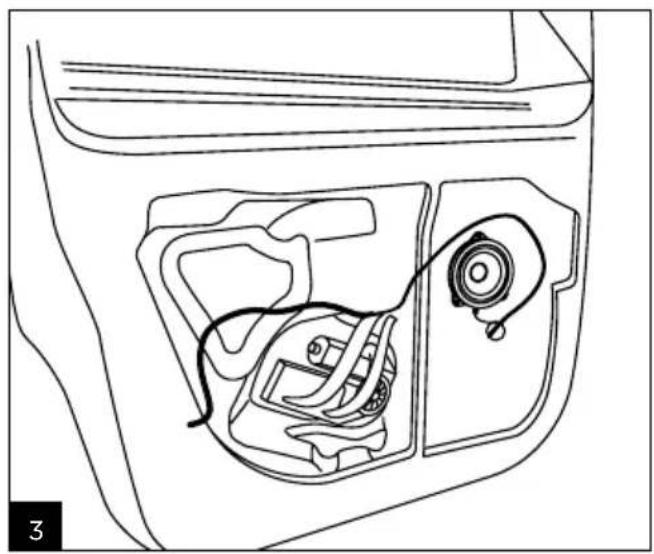

• 1. Identify the location of the speaker driver within the vehicle.

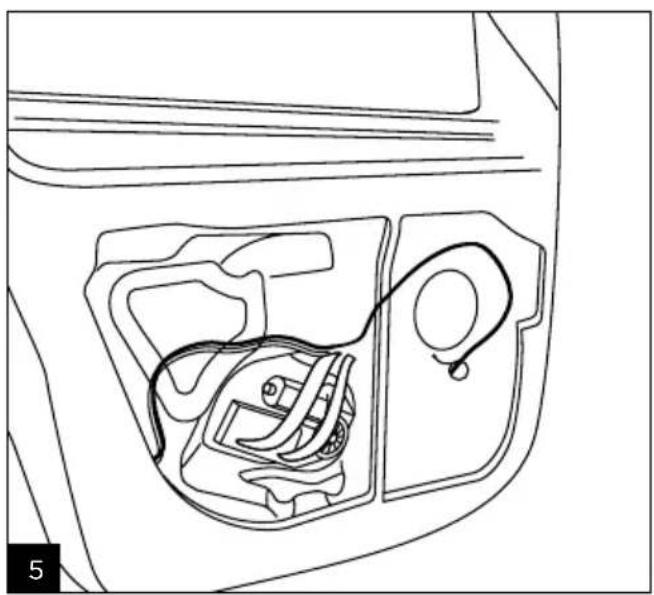

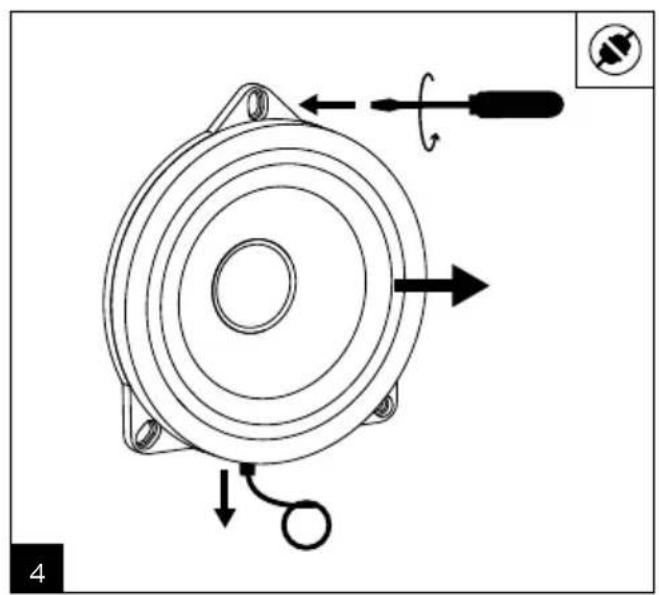

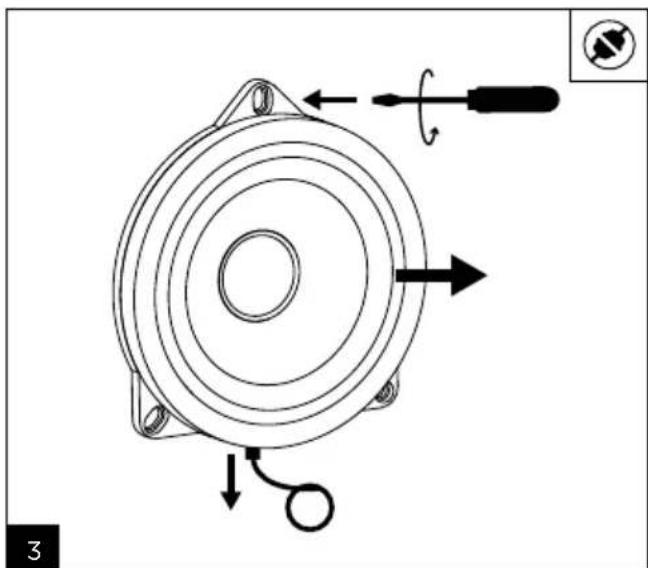

• 2. Carefully disconnect and disassemble the original speaker driver.

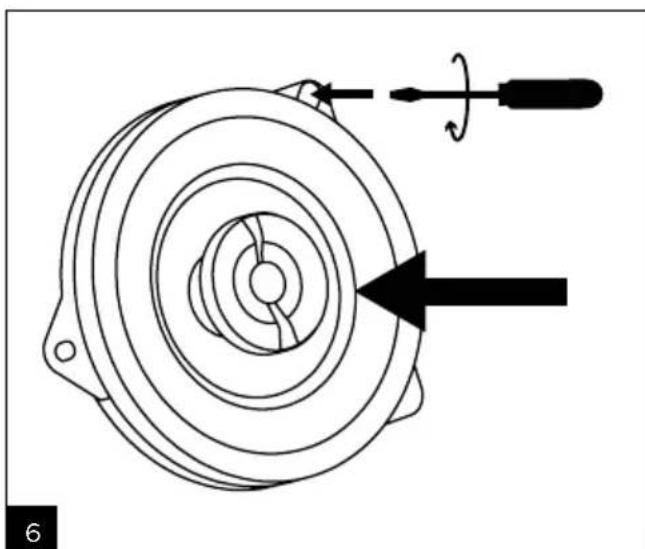

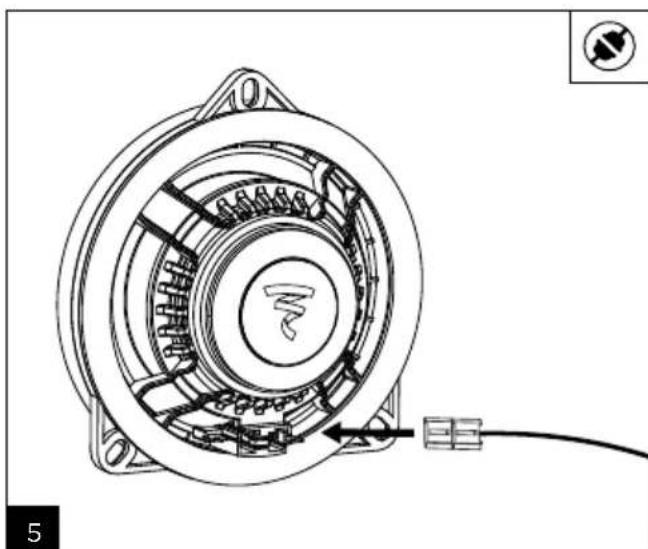

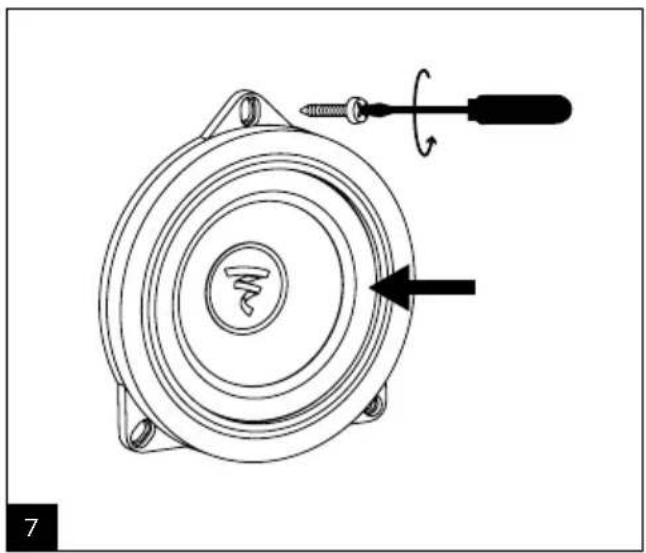

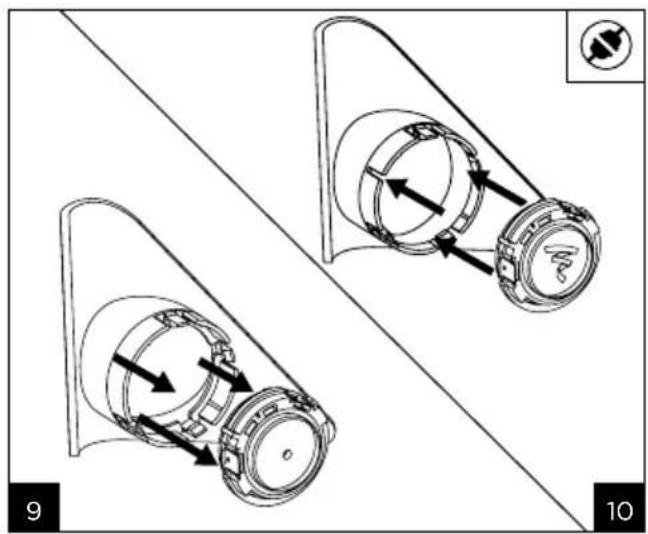

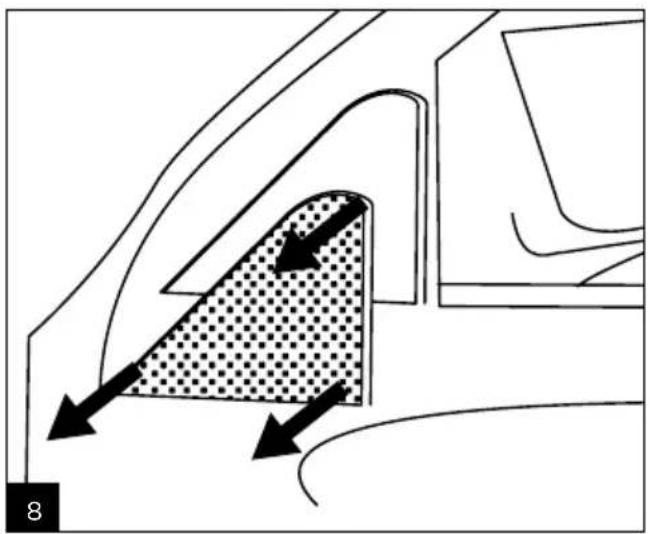

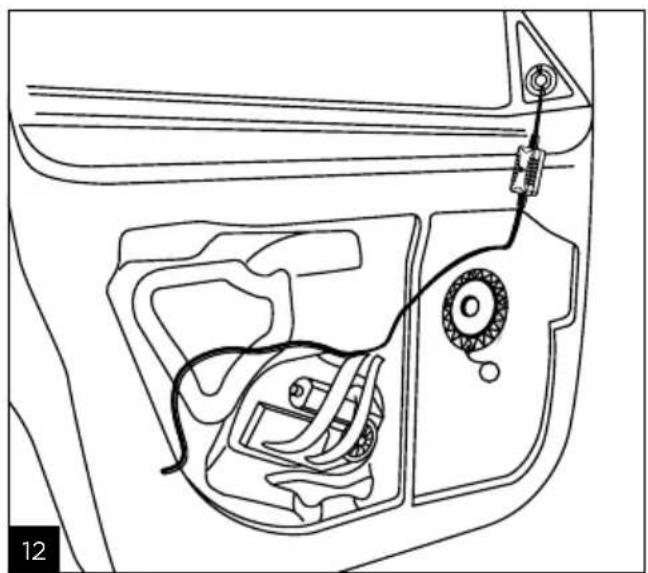

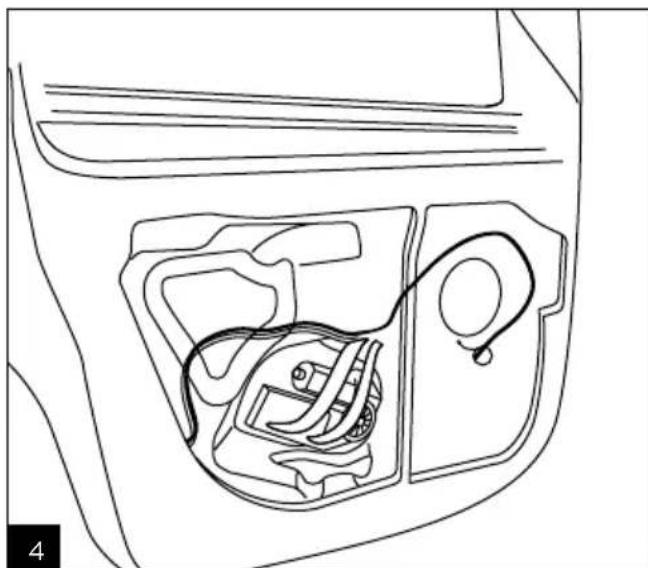

• 3. Fit the Focal speaker driver into the vehicle’s factory locations then connect it. Installation details may vary depending on the model. We recommend watching our online assembly tutorials. To improve the performance of your system and eliminate parasitic sounds, we advise you to use the Focal B.A.M. acoustic insulation kit. Focal. SPECIAL PRECAUTIONS Door trims Once the door trim has been removed, be sure to place it on a protective surface to avoid damaging it or the cables. Maintenance To look after the speaker drivers, simply dust using a dry cloth. If the grille is marked, use a damp cloth. Never use solvents, detergents, alcohol or corrosive products, scrapers or scouring utensils to clean the surface of the speaker drivers. To facilitate the Focal-JMlab warranty, it is now possible to register your product online at: www.focal.com/warranty Torx T2015

Correct elimination of this product. This marking indicates that within the EU this product should not be disposed of with other household wastes. To prevent any risk to the environment or human health, please recycle them responsibly to encourage the reuse of material resources. To return your used device, please use the return and collection systems available, or contact the retailer where you purchased the product. They can recycle this product safely.
