Brand	Focal
Model	IFBMW-Sub
Product type	Car speaker - Subwoofer
Compatibility	BMW (specific series, depending on model)
Speaker diameter	20 cm (8 inches)
RMS power	150 W
Peak power	300 W
Impedance	4 ohms
Sensitivity	88 dB (1W/1m)
Frequency response	30 Hz - 500 Hz
Cone material	Polyglass
Suspension material	Rubber
Dimensions (W x D x H)	30 x 25 x 20 cm
Weight	3.5 kg
Power supply	Vehicle 12V battery
Main functions	Bass frequency reproduction, plug-and-play installation, integrated low-pass filter
Maintenance and cleaning	Clean with a soft, dry cloth. Do not use abrasive products.
Safety	Disconnect the battery before any intervention. Respect polarity.
Spare parts and repairability	Contact Focal customer service or an authorized dealer.
Warranty	2 years (according to legislation)

Frequently Asked Questions - IFBMW-Sub FOCAL

Is this subwoofer compatible with my BMW?

The Focal IFBMW-Sub is designed to fit many BMW models, including the 1, 2, 3, 4, 5, X1, X3 series, etc. Check exact compatibility in the manual or on the Focal website.

How to install the IFBMW-Sub?

Installation is simplified thanks to the specific BMW wiring harness. Disconnect the battery, connect the subwoofer to the dedicated location (under the seat or in the trunk) and plug in the connector. Refer to the manual for details.

What amplifier power is recommended?

An amplifier delivering between 150 and 300 W RMS at 4 ohms is ideal. Make sure the impedance matches.

Can I adjust the cutoff frequency?

Yes, the subwoofer includes an adjustable low-pass filter. Adjust it between 50 and 150 Hz according to your preferences.

Is the IFBMW-Sub powered by the car radio?

No, it requires a direct power supply from the battery via a power cable provided or purchased separately.

What type of cable should be used for connection?

Use a power cable of at least 4 mm² cross-section and a good quality shielded RCA signal cable.

How to maintain the subwoofer?

Clean the grille with a soft, dry cloth. Avoid moisture and chemicals.

What to do if the sound is distorted?

Check the gain and filter settings, the impedance, and the amplifier power. A level that is too high can cause distortion.

Is there thermal protection?

Yes, the subwoofer has built-in thermal protection that cuts the sound in case of overheating.

Where can I find spare parts?

Contact Focal customer service or an authorized dealer to order parts such as the cone, suspension, or mounting kit.

USER MANUAL IFBMW-Sub FOCAL

Technical line drawing of a circular mechanical component with mounting brackets and a central hub (no text or symbols)

English page 3

Français page 9

Thank you for choosing Focal and for sharing our passion for the "Spirit of Sound". Designed using the latest technology, these speakers integrate Focal's perfectionist believes, developing products with high power handling, and unrivalled sound quality. To obtain the best results from this product, we recommend that you follow carefully all the information contained in this user's manual. If not correctly followed, any fault observed may not be covered by the guarantee.

Warning

Continuous listening at high sound level (above 110dB) can durably damage your hearing.

Listening above 130dB can damage your hearing permanently.

The Focal guarantee only applies if the enclosed guarantee card is returned to us within 10 days of purchase.

Important recommendations

Before attempting any installation work, it is very important to check how much space is available to fit the speakers into the vehicle.

Key points:

• Ensure the speaker is clean from debris and metallic particles that maybe attached (especially after drilling).
• Clean before mounting the speakers.

Conditions of guarantee

All Focal loudspeakers are covered by guarantee drawn up by the official Focal distributor in your country. Your distributor can provide all details concerning the conditions of guarantee. Guarantee cover extends at least to that granted by the legal guarantee in force in the country where the original purchase invoice was issued.

2 way kit IFBMW-S installation

• This kit has been designed for installation in a BMW® (1 Series / 3 Series / X1)
• The components of this dedicated kit are compatible with this vehicle's original connectors and fixings.
• Take extreme care when installing.
• Only the use of appropriate quality tools can guarantee optimal installation.
• Connectors are fragile electronic components. Handle with care.
• Follow these instructions correctly to ensure the proper functioning of the IFBMW-SUB kit.
• Before restarting your system, check your car radio settings (which differ according to the vehicle's model, version and engine).

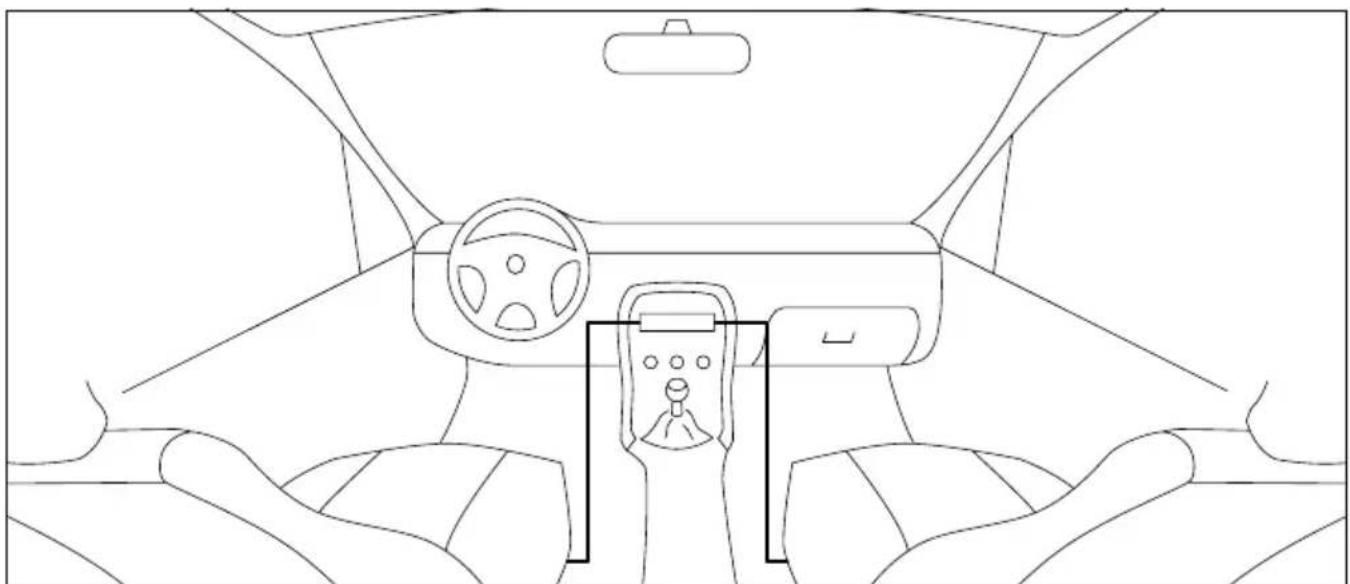

Top-down line drawing of a car interior showing steering wheel, dashboard, and steering wheel (no text or symbols)

* Product non adaptable in the last versions (serie "F"). Non-exhaustive list of vehicles.

WARNING

• Before beginning installation, disconnect the negative terminal of the battery to avoid any risk of injury fire material damage and airbag deployment during you disconnect the plug under the seat).
  The minimum delay to keep the battery unconnected is 30 mn to 1 hour (following the years and model of car).
• Do not leave the ignition key in the slot and does not involve nor the stop / start button or key on during intervention.
• Keep the trunk opened during all the installation (unlocked position).

In order to obtain the best results and safety installation (mentioned above), we highly recommend you have your product installed by your local Focal dealer.

fig. 1

Illustration of a hand using a hammer to press down a battery with a minus symbol (no text or labels)

Front subwoofer access (under the seat): Respect the explanation and use the specific tool (not supplied) for the seat dismantling.

Close-up of a mechanical device with a grid-patterned base and mechanical components (no visible text or symbols)

N°1. Subwoofer location (under the front seats)

Close-up of a mechanical component with internal cavities and a central hub, resting on a textured surface (no visible text or symbols)

N°2. "Front" screws to remove the seat

Close-up of a metallic mechanical component with visible structural elements (no text or symbols)

N°3. "Rear" screws to remove the seat N°4. Move the seat to the rear position

Interior view of a car showing the seat, dashboard, and steering wheel (no visible text or symbols)

Person in uniform inspecting a car interior with a hand near the seat (no visible text or symbols)

Close-up of a mechanical component being inserted into a dark base, no visible text or symbols

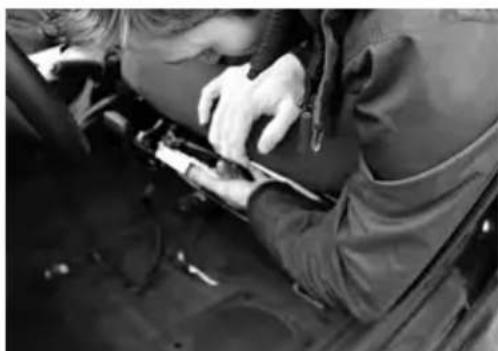

N°5. Unscrew with a "torx 45" tool N°6. Move the seat to the front to have

access to rear screws

Close-up of a hand holding a small mechanical component, partially visible in a dark vehicle (no text or symbols)

N°7. Unscrew the "rear" screws

Close-up of a person wearing a jacket and holding a phone, partially obscured by foliage (no visible text or symbols)

N°8. After 4 screw unscrewed, fall over the seat to the front position

Close-up of a hand holding a small electronic device with a black control panel (no visible text or symbols)

N°9. Unlock the power connector (under the seat)*

Close-up of a robotic arm gripping a small electronic device (no visible text or symbols)

N°10. Factory Connector unlocked

Interior view of a car showing a person seated in the back seat, with steering wheel and dashboard visible (no text or symbols)

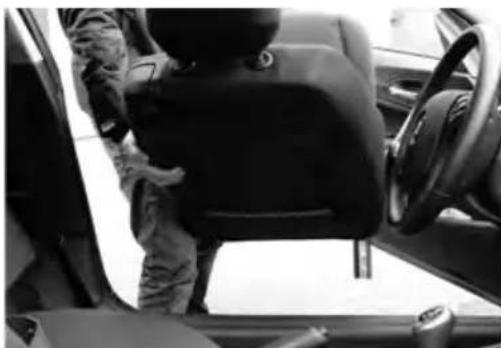

N°11. After screws and connector dismantling: remove the seat from the car

Interior view of a vehicle showing dashboard, steering wheel, and electrical plug (no visible text or symbols)

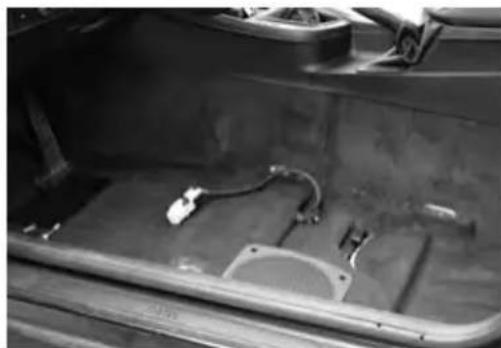

N°12. Clean space ready for installation

Close-up of hands assembling a mechanical component on a perforated metal surface (no text or symbols visible)

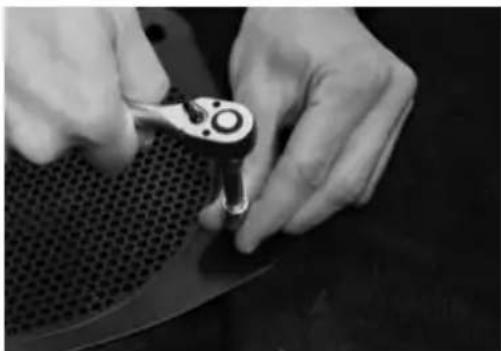

N°13. Remove the Factory plastic grille (4 screws)

Close-up of a car's wheel rim with a circular sensor or dial, mounted on a textured surface (no visible text or symbols)

N°14. The BMW factory subwoofer is under the grille

*Depends of cars models (and options of equipment) but you can have others connectors in addition of this yellow one. In this case please remove all of them carefully.

Close-up of hands pressing down on a black circular object with a small label (no visible text or symbols)

N°15. Raise the carpet to have an access to connector

Close-up of a car engine bay with a circular component and attached wires (no visible text or symbols)

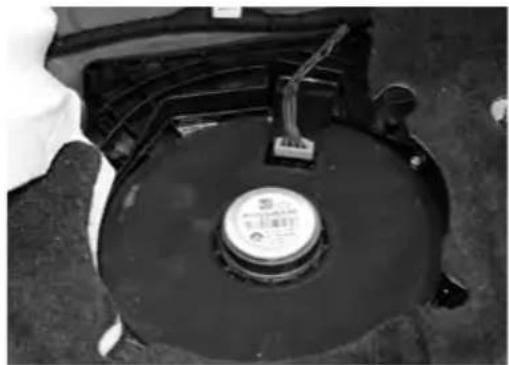

N°16. Subwoofer is accessible and be removed

Close-up of a hand inserting wires into a circuit board (no visible text or symbols)

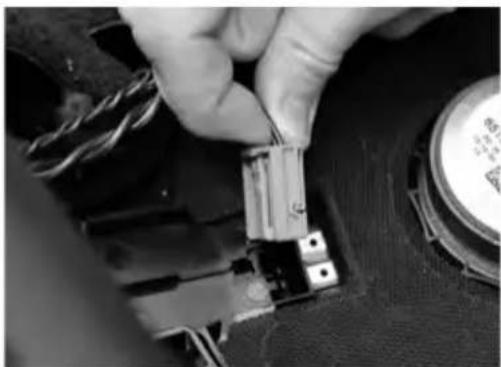

N°17. Disconnect the factory plug to terminal

Close-up of a car's front bumper and grille (no visible text or symbols)

N°18. In case of the original subwoofer is glued, unscrew the 2 CHC screw (to remove the complete enclosure)

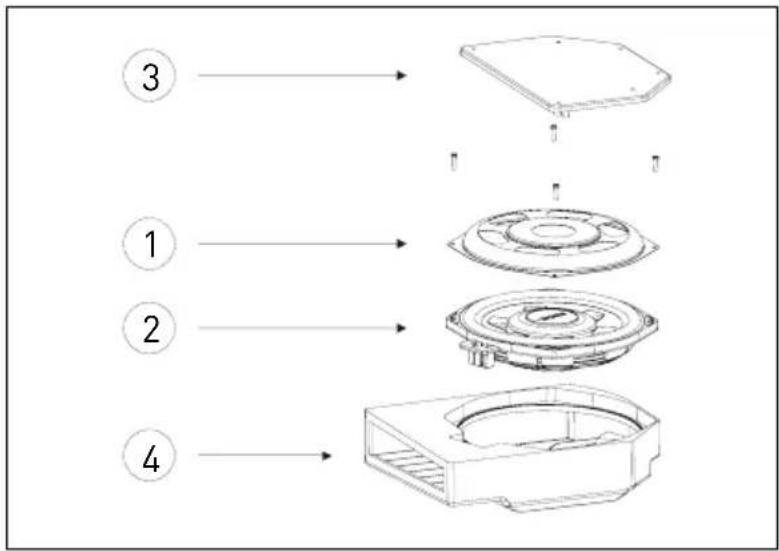

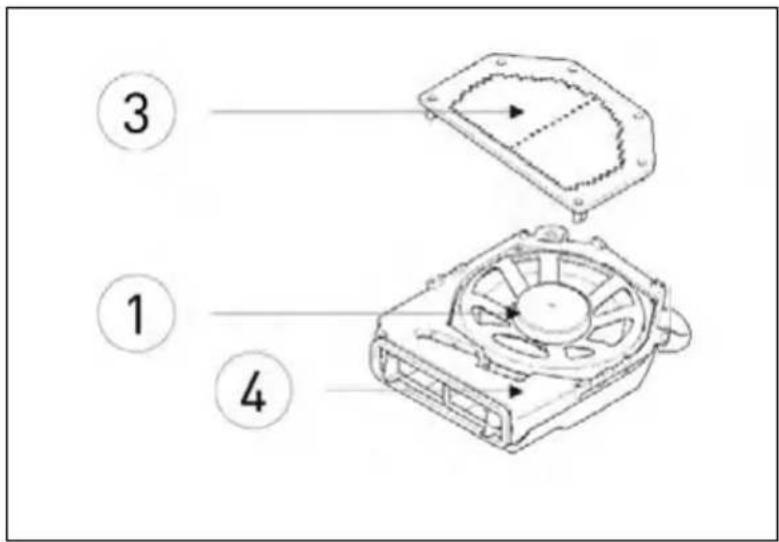

1) Speaker dismantling

Depends on models of BMW cars but it may be that the subwoofer could be glued.

In the case of the speaker (N°1) is glued, the replacement will be final and damageable for it.

Be careful not to damage the plastic enclosure (n°4) which can be re used for the Focal IFBMW-SUB speaker installation.

2) IFBMW-SUB installation

Before the IFBMW-SUB installation, please check that the surface between the subowoffer and the plastic factory enclosure as no damage (the back rubber ring might be in contact with a clean surface).

Use the 4 supplied screw to fix the top FOCAL metal grill (N°1) on the speaker (N°2).

When subwoofer replacement is finish, please note to re install the top plastic BMW factory grille (N°3).

Your Focal-JMlab product was developed and manufactured with high-quality materials and components which can be recycled and/or re-used. This symbol indicates that electrical and electronic equipment must be disposed of separately from normal garbage at the end of its operational lifetime. Please dispose of this product by bringing it to your local collection point or recycling centre for such equipment. This will help to protect the environment in which we all live.

Line drawing of a car interior showing steering wheel, dashboard, and seatbelt (no text or symbols)

Illustration of a hand using a tool to press down a battery component (no text or symbols present)

Close-up of a mechanical device with a grid-patterned base and mechanical components (no visible text or symbols)

Close-up of a mechanical component with internal parts and mounting holes, resting on a textured surface (no visible text or symbols)

Close-up of a metallic mechanical component with a cylindrical housing and stepped base (no visible text or symbols)

Interior view of a car showing the seat, dashboard, and steering wheel (no visible text or symbols)

Close-up of a mechanical tool inserted into a workpiece, showing a cylindrical component (no visible text or symbols)

Person in protective gear handling a car seat (no visible text or symbols)

Close-up of a hand adjusting a mechanical component on a car wheel (no visible text or symbols)

Close-up of a person working on a car interior, hand near the hood (no visible text or symbols)

Close-up of a hand holding a small electronic device with a black control panel (no visible text or symbols)

Close-up of a robotic arm gripping a small electronic device (no visible text or symbols)

Interior view of a car showing a person seated in the back seat, with steering wheel and dashboard visible (no text or symbols)

Interior view of a vehicle showing dashboard, steering wheel, and electrical plug (no visible text or symbols)

Close-up of hands assembling a mechanical component on a perforated metal surface (no text or symbols visible)

Close-up of a car's wheel rim with a circular sensor or dial, mounted on a textured surface (no visible text or symbols)

Close-up of hands pressing down on a dark circular object with a small circular component (no visible text or symbols)

Close-up of a black circular mechanical component with a central circular component and wires, no visible text or symbols.

Close-up of a hand inserting a small electronic component into a car body (no visible text or symbols)

Close-up of a car's front wheel and side panel, showing mechanical components (no text or symbols visible)

2) Montage du Subwoofer IFBMW-SUB
