USER MANUAL EnergySilence 900 Cyclone CECOTEC

Modern white outdoor fan with spiral blades mounted on a stand against a dark blue background (no text or symbols visible)

Safety instructions 5

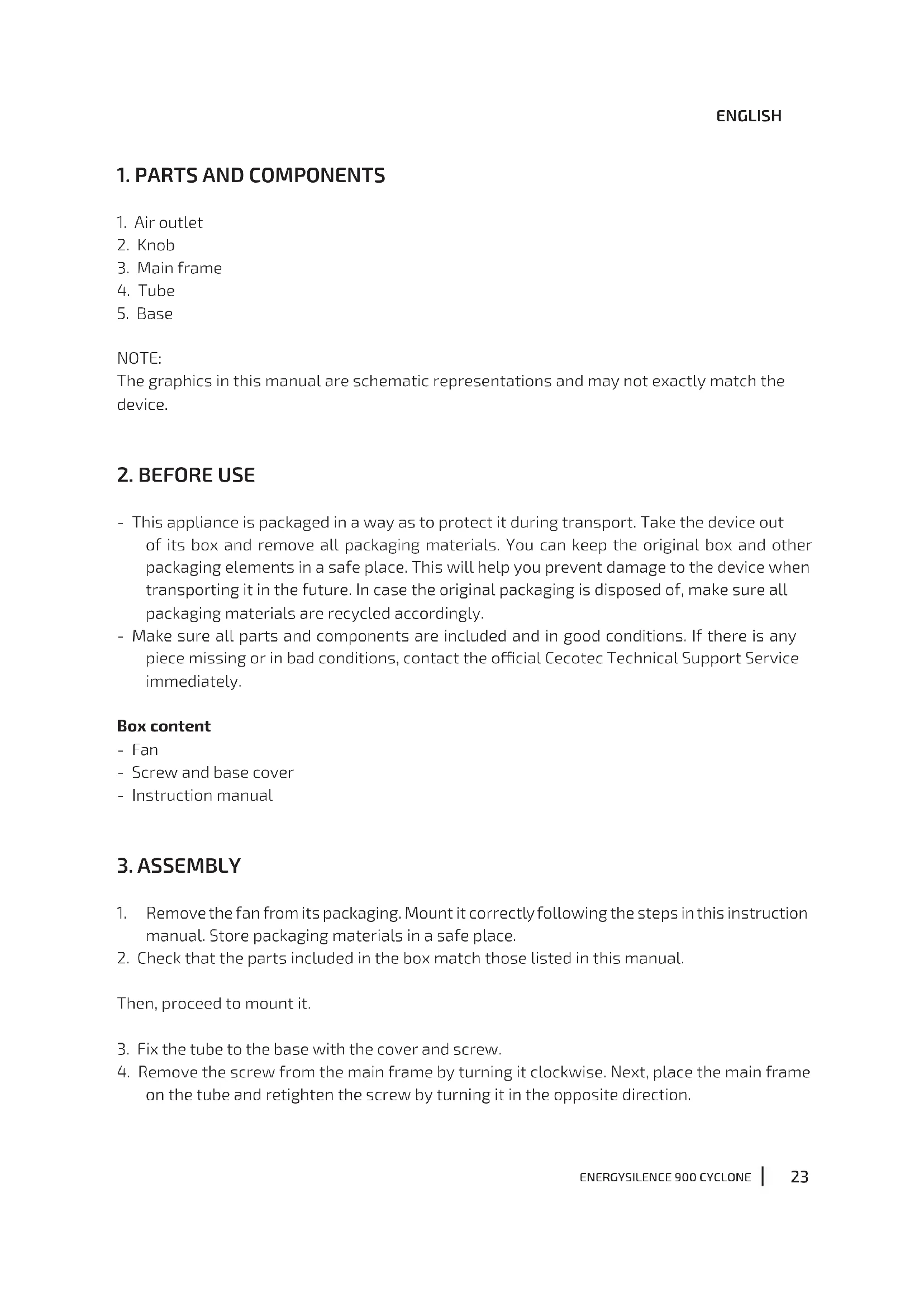

1. Parts and components 23

2. Before use 23

3. Assembly 23

4. Operation 24

5. Cleaning and maintenance 24

6. Technical specifications 25

7. Disposal of old electrical and electronic appliances 26

8. Technical support and warranty 26

9. Copyright 26

SOMMAIRE

Read these instructions thoroughly before using the device. Keep this instruction manual for future reference or new users.

• All safety instructions must be closely followed when using the appliance.
• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children must not play with the appliance. Cleaning and user

maintenance should not be carried out by unsupervised children.

- This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.

- Make sure that the mains voltage matches the voltage stated on the appliance marking and that the wall outlet is earthed.

- Check the power cable regularly for visible damage. If the cable is damaged, it must be repaired by the official Cecotec Technical Support Service to avoid any type of danger.

- Do not immerse the cable, plug, or any other non-removable part of the device in water or any other liquid or expose electrical connections to water. Make sure your hands are completely dry before handling the plug or switching on the appliance.

- If the appliance falls accidentally into water, unplug it immediately. Do not touch the water! Do not operate the device if any fault or unusual sign is detected.

- Keep hair, loose clothing, fingers, and other parts of the body away from the openings and moving parts of the device.

- Make sure the appliance is placed on a flat and stable surface during operation.

- Do not use the device next to windows, as exposure to rain could cause electric shock.

- Do not operate the product under or next to curtains.

- Do not cover the grilles and do not place the product cord under carpets or other objects during operation. Keep the sides, front, and back of the appliance at a minimum safety distance of 20 cm from any object or wall.

- Always turn off and unplug the device when not in use and before moving it to a new location. Pull from the plug, not the cable, to disconnect it from the outlet.

INSTRUCTIONS DE SÉCURITÉ

The graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

- This appliance is packaged in a way as to protect it during transport. Take the device out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the device when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.

- Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

- Fan

- Screw and base cover

- Instruction manual

3. ASSEMBLY

1. Remove the fan from its packaging. Mount it correctly following the steps in this instruction manual. Store packaging materials in a safe place.

2. Check that the parts included in the box match those listed in this manual.

Then, proceed to mount it.

1. Fix the tube to the base with the cover and screw.

2. Remove the screw from the main frame by turning it clockwise. Next, place the main frame on the tube and retighten the screw by turning it in the opposite direction.

ENGLISH

4. OPERATION

This fan operates by means of a knob that is on the main frame. To use it, proceed as follows:

• By turning the knob to the 0 position, the fan switches off.
• By turning the knob to position 1, 2 or 3, the fan operates at low speed (1), medium speed (2) or high speed (3) accordingly.
• By turning the knob to position ⭕, the oscillation function is activated.

NOTE: if desired, you can adjust the air outlet position up and down manually without applying too much force to prevent the air outlet from breaking.

- A table with the speed and oscillation functions is shown below.

	Off position
	Low speed
[S4H]	Medium speed
[S7XH]	High speed
	Low speed with oscillation
	Medium speed with oscillation
	High speed with oscillation

5. CLEANING AND MAINTENANCE

1. Before cleaning the fan, disconnect it from the mains and wait for the motor to cool down.
2. Do not clean the appliance directly with water. Wipe it with a soft cloth containing a little neutral soap and then dry it with a clean, dry soft cloth.

NOTE: do not use corrosive products or abrasive materials for cleaning.

NOTE:

• When the fan is not to be used for a long period of time, clean and dry it thoroughly. Then, take it apart and store it in its original box.
• Close the box and store in a cool, dry place.

6. TECHNICAL SPECIFICATIONS

Product reference: 07364

Product: EnergySilence 900 Cyclone

Voltage: 220-240 V

Frequency: 50-60 Hz

Power: 35 W

Description Symbol Value Unit
Fan maximum flow F 19.1 m3/min
Fan power consumption P 34.3 W
Service value SV 0.56 (m3/min)/W
Power consumption on standby mode P	SB	0	W
Fan sound power level	LWA	57.9	dB (A)
Maximum air speed	C 5.1	m/seg
Service value measurement standard	IEC 60789:2019
Contact details to obtain more information	Cecotec Innovaciones S.L.Av. Reyes Católicos n°60, 46910, Alfafar(Valencia, Spain)

The appliance power consumption when off is 0.0 W, following the guidelines of EN 50564:2011 and the European regulations 1275/2008/EC and 801/2013/EC. For this purpose, the device is connected to the mains without performing any function. The switch/controller of the appliance was set to the Off position.

ENGLISH

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.
