1545 - Mixer ARIETE - Free user manual and instructions

Product type	Hand mixer / Stand mixer
Brand	Ariete
Model	1545
Rated power	250 W (estimated)
Speeds	4 speeds + Turbo function
Included accessories	2 wire whisks (for whipping egg whites), 2 spiral dough hooks
Whisk type	Wire whisks and spiral hooks
Processing capacity	Up to 1 kg of dough, 500 ml of cream, 10 egg whites
Max continuous use time	3 minutes for speeds 1-4, 1 minute for Turbo
Power supply	220-240 V, 50/60 Hz
Cable length	Approximately 1 meter (estimated)
Weight	Approximately 1 kg (estimated)
Body material	Plastic
Maintenance	Body wiped with damp cloth, whisks dishwasher safe
Safety	Unplug before cleaning, do not immerse motor body
Intended use	Household use only
Warranty	Manufacturer's warranty, repairs by Ariete authorized center
Dimensions (L x W x H)	Approximately 20 x 10 x 15 cm (estimated)

Frequently Asked Questions - 1545 ARIETE

How to attach the whisks on the Ariete 1545?

To attach the whisks, make sure the appliance is turned off and unplugged. Set the selector to '0'. Insert the shaft of each whisk into the motor slots while turning slightly until it clicks. The spiral hooks have a metal ring: the one with the ring goes into the larger slot.

Which speed to use for whipping egg whites?

To whip egg whites, use speed 4. For 1 to 10 egg whites, the beating time is 1 to 3 minutes.

Can I wash the whisks in the dishwasher?

Yes, the wire whisks and hooks can be washed in the dishwasher or in hot water. Never wash the motor body, cable, or plug in water.

What is the maximum recommended use time?

For speeds 1 to 4, do not exceed 3 minutes of continuous use. For Turbo speed, limit to 1 minute. Let the appliance cool down between uses.

What to do if the appliance slows down during use?

If the appliance slows down excessively, switch to a higher speed or reduce the amount of mixture. For overly dense doughs, use the Turbo function by pressing the selector.

Can I use an extension cord with this appliance?

Yes, but the extension cord must be suitable for the appliance's power to avoid any risk. Use an extension cord of sufficient gauge and in good condition.

How to clean the appliance body?

Always unplug the appliance before cleaning. Clean the motor body with a damp cloth. Never immerse the motor body, cable, or plug in water.

Can the appliance be used by children?

No, this appliance should not be used by children. Keep it out of reach of children. Children should not play with the appliance.

What accessories are included with the Ariete 1545?

The appliance comes with two wire whisks for whipping egg whites and two spiral dough hooks. A chopper accessory may be available depending on the version.

How to dispose of the appliance at the end of its life?

In accordance with European Directive 2012/19/EC, do not dispose of the appliance with household waste. Make it unusable by cutting the cable and deposit it at an appropriate collection point.

USER MANUAL 1545 ARIETE

Line drawing of a Ariete electric mixer with handle and fork (no text or symbols)

Sbattitore

Mixer

Mixer

Rührgerät

Mezclador

Batedeira

Menger

Håndmixer

Αναμικτής

Миксер

Миксер

Trzepaczka

خライト

Line drawing of a hand mixer with handle and lever (no text or symbols)

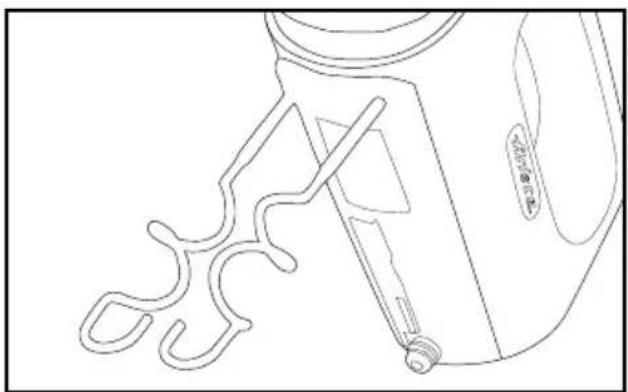

Fig. 1

Technical line drawing of a mechanical component with a tool inserted, no visible text or symbols

Fig. 2

AVVERTENZE IMPORTANTI

LEGGERE QUESTE ISTRUZIONI PRIMA DELL'USO.

Technical line drawing of three mechanical components: a cylindrical container, a small pin-like component, and a multi-layered cylindrical housing (no text or symbols)

The necessary precautions must be taken when using electrical appliances, and these include the following:

1. Make sure that the voltage on the appliance rating plate corresponds to that of the mains electricity.
2. Never leave the appliance unattended when connected to the power supply; unplug it after every use.
3. Never place the appliance on or close to sources of heat.
4. Always place the appliance on a flat, level surface during use.
5. Never leave the appliance exposed to the elements (rain, sun, etc....).
6. Make sure that the power cord does not come into contact with hot surfaces.
7. This appliance cannot be used by people, including children, with reduced physical, sensorial or mental capabilities, with no experience and knowledge of the appliance unless supervised or trained beforehand about use of the appliance by a person responsible for their safety.
8. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
9. Children shall not play with the appliance.
10. Never place the appliance body, plug or power cord in water or other liquids; always wipe clean with a damp cloth.
11. Always unplug the power cord from the electricity mains before fitting or removing single attachments or before cleaning the appliance.
12. Always make sure that your hands are thoroughly dry before using or adjusting the switches on the appliance, or before touching the power plug or power connections.
13. To unplug the appliance, grip the plug and remove it directly from the power socket. Never pull the power cord to unplug the appliance.
14. Do not use the appliance if the power cord or plug are damaged or if the appliance itself is faulty; all repairs, including substitution of power cord, must be carried out exclusively by an Ariete assistance centre or by authorized Ariete technicians in order to avoid all risks.
15. In case of using extension leads, these must be suitable for the appliance power to avoid danger to the operator and for the safety of the environment in which the appliance is being used. Extension leads, if not suitable, can cause operating anomalies.

EN

1. Never allow the cord to dangle in places where it may be grabbed by a child.
2. Do not threaten the safety of the appliance by using parts that are not original or which have not been approved by the manufacturer.
3. This appliance is designed for HOME USE ONLY and may not be used for commercial or industrial purposes.
4. This appliance complies with directives 2014/35/EU and EMC 2014/30/EU and the regulation (EC) No. 1935/2004 of 27/10/2004 on materials in contact with food.
5. Any changes to this product that have not been expressly authorised by the manufacturer may lead to the user's guarantee being rendered null and void.
6. In the event that you decide to dispose of the appliance, we advise you to make it inoperative by cutting off the power cord. We also recommend that any parts that could be dangerous be rendered harmless, especially for children, who may play with the appliance or its parts.
7. Packaging must never be left within the reach of children since it is potentially dangerous.
8. NEVER TOUCH THE MOVING PARTS.
9. Before starting the appliance, make sure it is properly assembled.
10. Never use the appliance empty.
11. Do not use the appliance in continuous manner for too long time. In case of speeds from “1” to “4”, do not use the appliance for more than 3 continuous minutes, while do not use it longer than 1 minute with the “Turbo” speed.
12. To dispose of product correctly according to European Directive 2012/19/CE, please refer to and read the provided leaflet enclosed with the product.

DO NOT THROW AWAY THESE INSTRUCTIONS

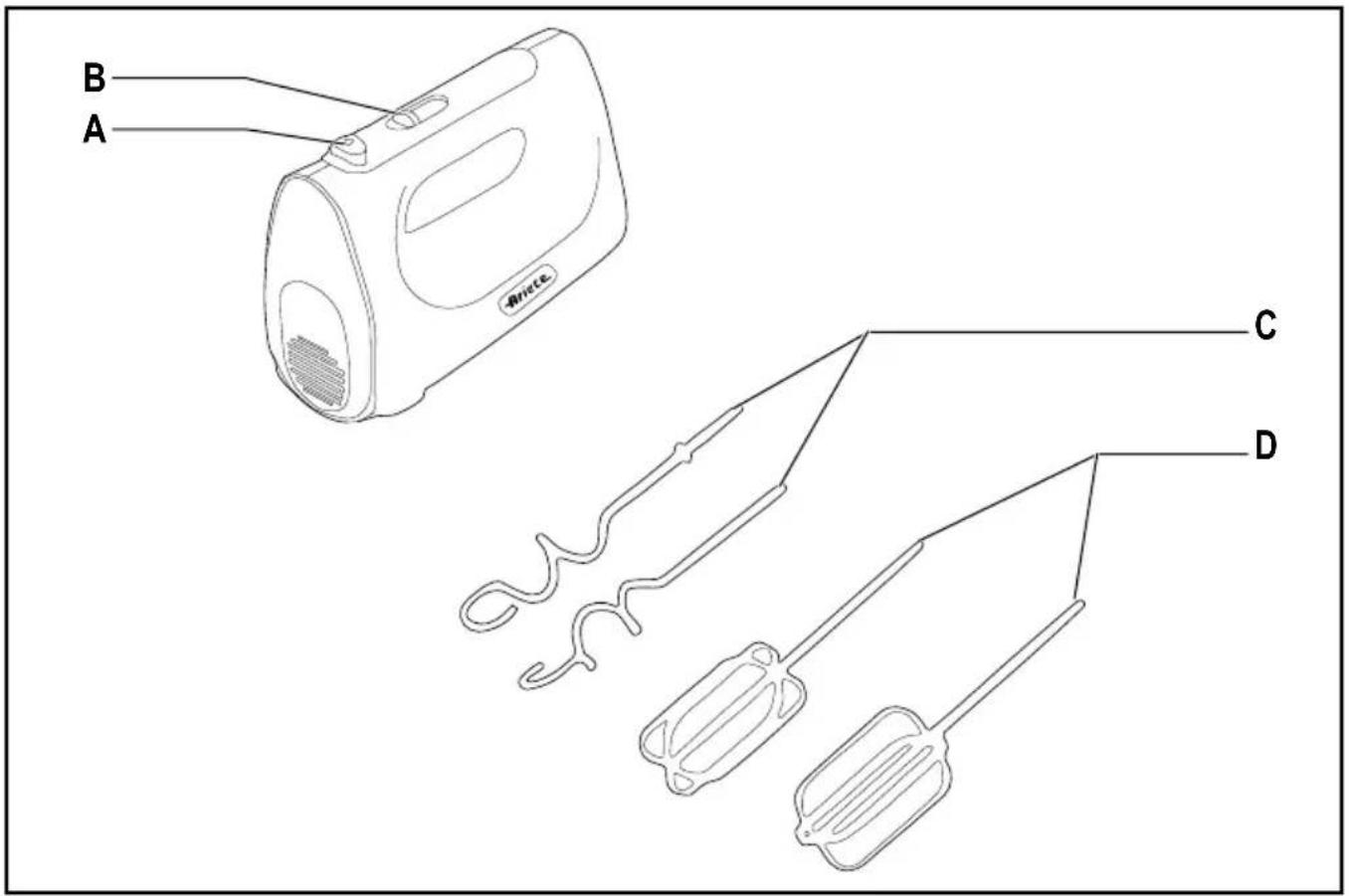

APPLIANCE DESCRIPTION

A Beater releasing button
B Speed selector / "TURBO" function
C Dough hooks
D Whipping whisks

ASSEMBLY AND DISASSEMBLY OF BEATERS

WARNING: When assembling, disassembling or cleaning the appliance, make sure it is off and unplugged.

• Position the speed selector (B) on the position "0".
• To fit the beaters, hold the appliance by its handle and insert the stem of each beater into the provided holes on the appliance body by slightly rotating them until a click is heard (Fig.1).

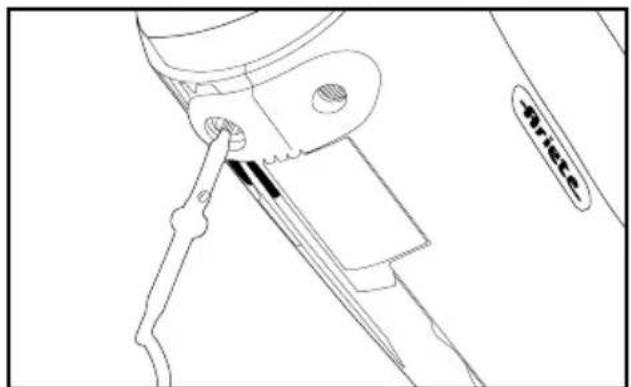

  The dough hooks (C) are different: the one having a metal ring on the stem is to be mounted into the larger hole (Fig. 2).
• Press the releasing button (A) to remove the beaters.

HOW TO USE THE MIXER

• Position the speed selector (B) on the position "0".
• Insert the required beaters, as previously described.
• Plug the power cord into a socket.
• Put the ingredients into a bowl.
• Immerse the beaters in the center of the mixture, turn on the appliance and start mixing at the lowest speed increasing it gradually until the required speed is reach.
• After the mixing process or in case it is required to add other ingredients to the mixture or to change the beater type, move the switch (B) to its original position "0", unplug the appliance and release the beaters.
• Observe the max time of 60 continuous seconds (using speed "Turbo") for preparing the recipe or allow the appliance to rest for longer preparations.

WARNING: Should the appliance slow down excessively while operating, select a higher speed or reduce the amount of mixture to be processed. In case of very thick mixtures, it is also possible to use the “Turbo” speed via the selector (B).

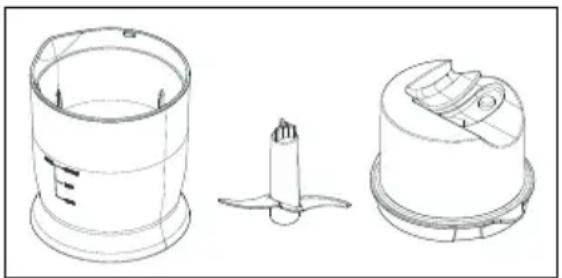

USING CHOPPER ATTACHMENT (if supplied)

Install the appliance onto the chopper attachment Pig skin chopping times

Pig skin Quantity

200 g MAX

Speed “Turbo” for 5 seconds MAX

Technical line drawing of three mechanical components: a cylindrical container, a small pin-like component, and a multi-layered cylindrical housing (no text or symbols)

RECOMMENDED USAGE CHART

Please note that these are recommendations only and the speed you select may depend upon the bowl size, quantities, the ingredients you are mixing and personal preference.

Gradually increase to the recommended speeds below.

Food type Weight / Quantity Speed Time (min)
Beaters
Egg whites 1 - 10 4 1 - 3
Whipping Cream (Processing times may vary, depending on fat content of cream)	200 - 500 ml 1 - 4	5	2 - (1)
All-in-one cake mixes 1 kg Total weight 1 – 4 > 5		1 - 2 (1)
Batter 1 litre 5 1
Rubbing fat into flour Adding water to combine pastry ingredients	250 g Flour weight 1 - 2 3
Fruit cake, Creaming fat and sugar, Folding in flour, fruit, etc.	900 g Total weight	1 - 2	2
		5	1
Kneaders
Bread	450 g Flour weight	4	2
	750 g Total weight	5	1

CLEANING OF THE APPLIANCE

WARNING: Never immerse the MOTOR, the POWER CORD or the PLUG in water. Before cleaning, make always sure the appliance is unplugged.

• The beaters (C-D) may be washed in hot water or in a dishwasher.
• Clean the appliance body using a damp cloth.

AVERTISSEMENTS IMPORTANTES

LIRE CES INSTRUCTIONS AVANT L'EMPLOI

Technical line drawing of three mechanical components: a cylindrical container, a small cylindrical component with a handle, and a multi-layered cylindrical housing (no text or symbols)

TABLEAU DES RECOMMANDATIONS D'UTILISATION

Technical line drawing of three mechanical components: a cylindrical container, a small pin-like component, and a multi-layered cylindrical housing (no text or symbols)

Technical line drawing of three mechanical components: a cylindrical container, a small pin-like component, and a multi-layered cylindrical housing (no text or symbols)

TABLA DE USO RECOMENDADO

Technical line drawing of three mechanical components: a cylindrical container, a small pin-like component, and a multi-layered cylindrical housing (no text or symbols)

BESCHRIJVING VAN HET APPARAAT

Technical line drawing of three mechanical components: a cylindrical container, a small pin-like component, and a multi-layered cylindrical housing (no text or symbols)

Technical line drawing of three mechanical components: a cylindrical container, a small pin-like component, and a multi-layered cylindrical housing (no text or symbols)

TABEL OVER ANBEFALET BRUG

APPARATETS RENG∅RING

Technical line drawing of three mechanical components: a cylindrical container, a small pin-like component, and a multi-layered cylindrical housing (no text or symbols)

Technical line drawing of three mechanical components: a cylindrical container, a small pin-like component, and a multi-layered cylindrical housing (no text or symbols)

Technical line drawing of a three-part mechanical component with no visible text or symbols

Technical line drawing of three mechanical components: a cylindrical housing, a central pin-like component, and a multi-layered final housing (no text or symbols present)

TABELA ZALECANYCH ZASTOSOWAŃ

Technical line drawing of a three-part mechanical component with no visible text or symbols

مدد فرم جلد الخنزير
