WIFISA20CBK - Air purifier NEDIS - Free user manual and instructions

Brand	Nedis
Model	WIFISA20CBK
Product type	Connected air quality monitor
Use	Indoor only
Power supply	Mains adapter (included)
Backup battery	Built-in lithium-ion, battery life up to 6 hours
Built-in sensors	Temperature, humidity, carbon dioxide (CO₂)
Connectivity	Wi-Fi 2.4 GHz
Compatible app	Nedis SmartLife (free, iOS and Android)
Main functions	Real-time monitoring, customizable alerts, automation with other SmartLife devices
Temperature measurement range	0 °C to 50 °C
Humidity measurement range	10 % RH to 90 % RH
CO₂ measurement range	400 ppm to 2000 ppm
Color	Black (CBK)
Material	ABS plastic
Protection rating	IP20
Electrical safety	Do not open, do not immerse, use only the supplied adapter
Cleaning	Soft dry cloth, no chemicals
Operating temperature	0 °C to 40 °C
Certifications	CE, RED 2014/53/EU
Package contents	Monitor, mains adapter, USB cable, quick start guide

Frequently Asked Questions - WIFISA20CBK NEDIS

How to connect the monitor to the Nedis SmartLife app?

Download the Nedis SmartLife app, create an account, then press '+' to add a device. Follow the instructions in the app: put the monitor in pairing mode (usually by holding the button) and connect it to your 2.4 GHz Wi-Fi network.

What to do if the monitor does not turn on?

Check that the mains adapter is properly connected and that the socket works. If the battery is discharged, plug in the monitor for a few minutes. If the problem persists, try a reset by holding the power button for 10 seconds.

How to interpret CO₂ levels?

CO₂ levels are measured in ppm. Below 800 ppm, air is good. Between 800 and 1200 ppm, air is moderate; consider ventilating. Above 1200 ppm, quality is poor; ventilate immediately.

Can I use the monitor without battery?

Yes, the monitor operates on mains via the supplied adapter. The built-in battery serves as backup in case of power failure and provides about 6 hours of battery life.

How to clean the monitor?

Unplug the monitor before cleaning. Use a soft dry cloth to wipe the surface. Do not use chemicals, solvents, or water directly on the device.

What does the flashing light mean?

A flashing light may indicate that the device is in pairing mode, the battery is low, or an air quality alert is triggered. Refer to the manual for specific codes or the app for more details.

Can I place the monitor outdoors?

No, this monitor is designed for indoor use only. Exposed to moisture, rain or extreme temperatures, it could be damaged.

How to reset the monitor?

Hold the power button for about 10 seconds until all lights flash. The device will restart and you will need to reconnect it to the app.

Is the monitor compatible with Alexa or Google Home?

Yes, via the Nedis SmartLife app, you can integrate the monitor into routines with Alexa or Google Assistant. Follow the instructions in the app to enable skills.

What to do in case of high CO₂ detection?

The app sends a notification. Open windows to ventilate immediately. If the level drops quickly, that suffices. If the problem persists, check CO₂ sources (cooking, heating) and ventilate more.

USER MANUAL WIFISA20CBK NEDIS

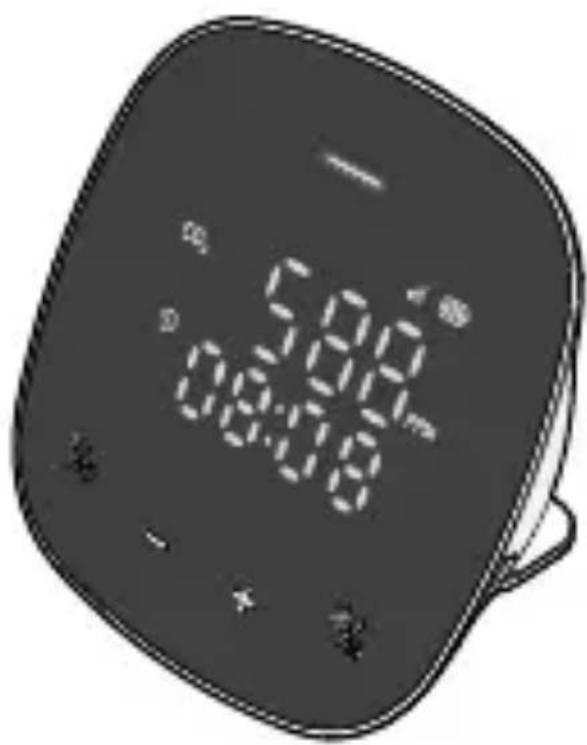

Wi-Fi Smart Air Quality Monitor

Safety instructions

NedisSmartLife

WIFISA20CBK

EN Safety instructions 3
DE Sicherheitshinweise 8
FR Consignes de sécurité 13
NL Veiligheidsvoorschriften 18
IT Istruzioni di sicurezza 23
ES Instrucciones de seguridad 28
PT Instruções de segurança 33
SV Sakerhetsanvisningar 38
F1 Turvallisuusohjeet 42
NO Sikkerhetsinstruksjoner 47
DA Sikkerhedsinstruktioner 52
HU Biztonságiutasítások 57
PL Instrukcje bezpiecznych 62
EL O8nyiec aOgpaAeiaC 67
SK BezpečnostnéPokyny 72
cs BezpečnostníPokyny 77
RO Instruţiuni de sigurantha 82

Wi-Fi Smart Air Quality Monitor

WIFISA20CBK

For more information see the extended manual online:ned.is/wifisa20cbk

Aboutthisdocument

This document is the user manual and contains all the information for correct, efficient and safe use of the product.

Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep the packaging and this document for future reference.

Symbolsused

WARNING!

Signal word used to indicate a potentially hazardous situation which, if not avoided, could result in death or serious injury.

NOTICE

Signal word used to address practices not related to physical injury.

Intenduse

This product is an air quality monitor that measures air temperature, humidity, and CO_2 levels.

The product is powered by the included AC power adapter and has a built-in battery with 6 hours of capacity, serving as a backup in case of power loss.

This product is intended to be used with the Nedis SmartLife app.

Combine the use of this product with other Nedis SmartLife products to automatically control and optimise the air quality in your home.

This product is intended for indoor use only.

Only use the product as described in this user manual. Any modification of the product may have consequences for safety, warranty and proper functioning.

Safetyinstructions

WARNING!

Electricalhazard:

• Do not open the product. The product may only be opened by an authorised technician for maintenance.
• This product may only be serviced by a qualified technician.
• Do not immerse the product in water or other liquids.
• Do not expose the product to water, rain, or moisture.
• Disconnect the product from the power source before cleaning.
• Only power the product with the voltage corresponding to the markings on the product.
• Only use the provided charging cable and adapter for powering the product.

Firehazard:

• Do not use the product if a part is damaged or defective. Always replace a damaged or defective product immediately.
• During charging, the battery must be placed in a well-ventilated area.
• Stop the charging process if the product gets too warm.

Chokinghazard:

• Do not let children play with the packaging material. Always keep the packaging material out of the reach of children.

Healthhazard:

• Some wireless products may interfere with implantable medical devices and other medical equipment, such as pacemakers, cochlear implants and hearing aids. Consult the manufacturer of your medical equipment for more information.

NOTICE

Risk of damaging the product:

• Do not drop the product and avoid bumping.
• Do not use aggressive chemical cleaning agents when cleaning the product.
  Children of less than 8 years should be kept away.
• Children should be supervised to ensure that they do not play with the product.

The product is designated for separate collection at an appropriate collection point. Do not dispose of the product with household waste.

For more information, contact the retailer on the local authority responsible for the waste management.

DeclarationofConformity

We, Nedis B.V. declare as manufacturer that the product WIFISA20CBK from our brand Nedis®, produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation.

The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via: nedis.com/WIFISA20CBK#support
